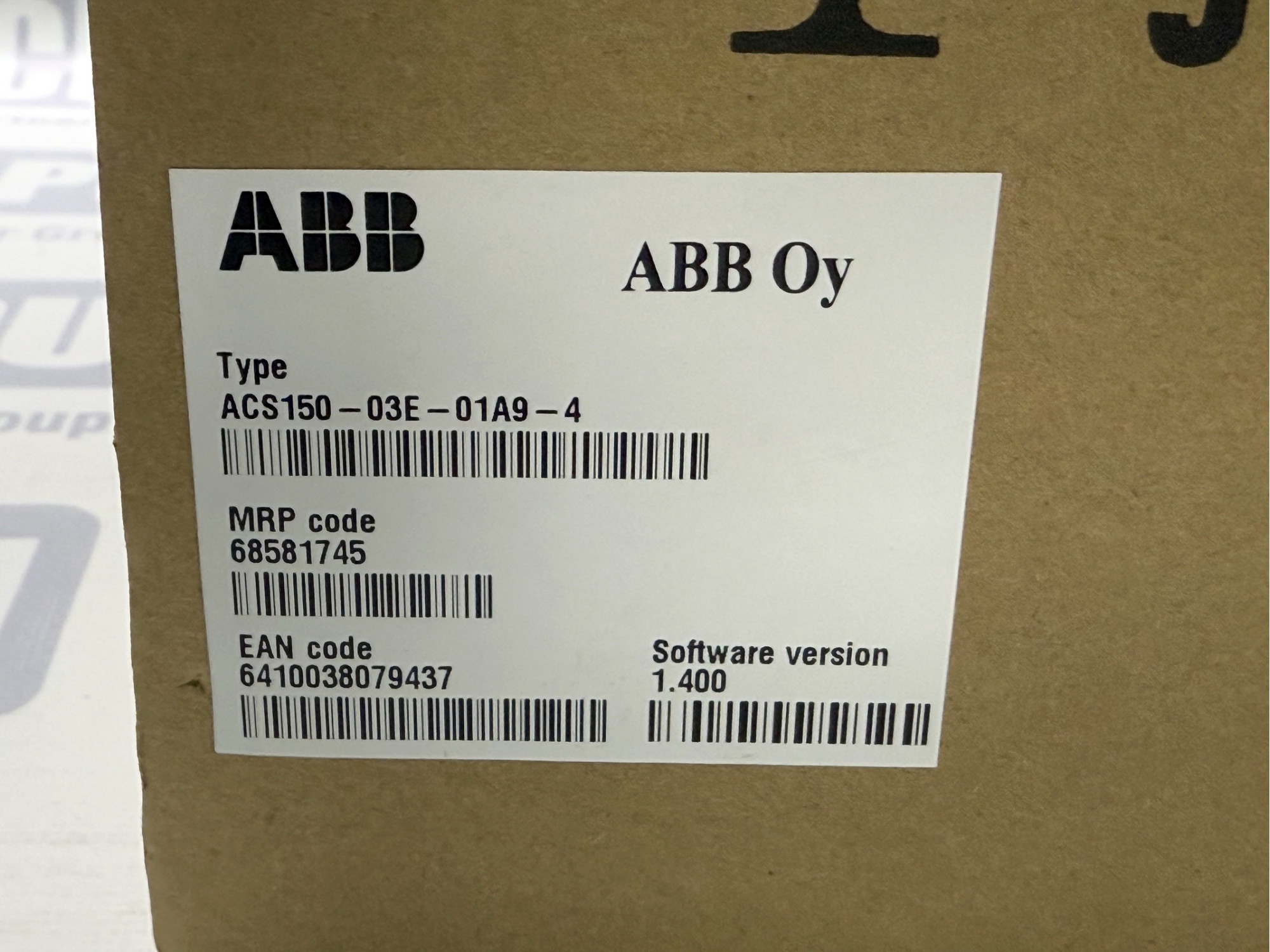

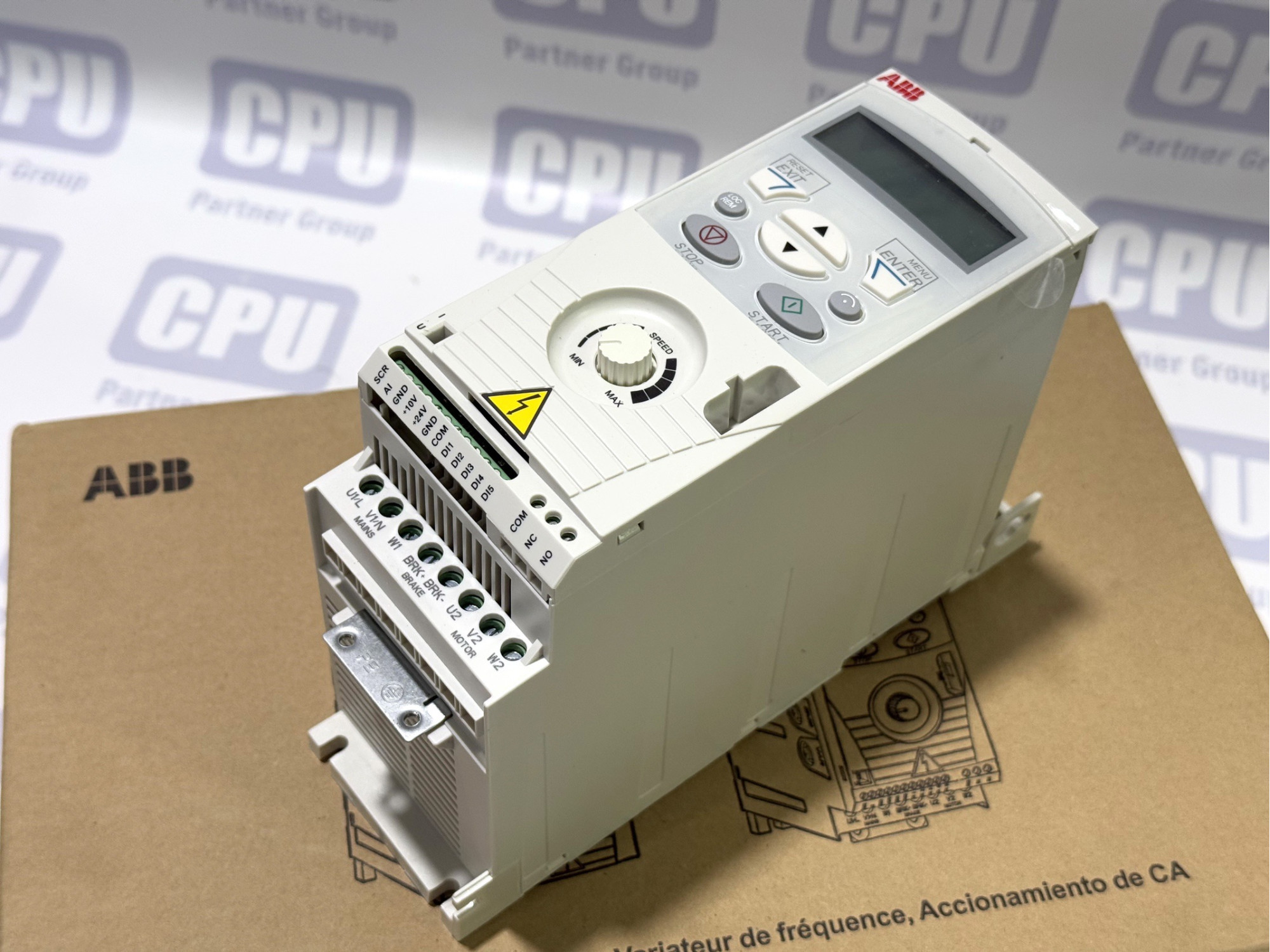

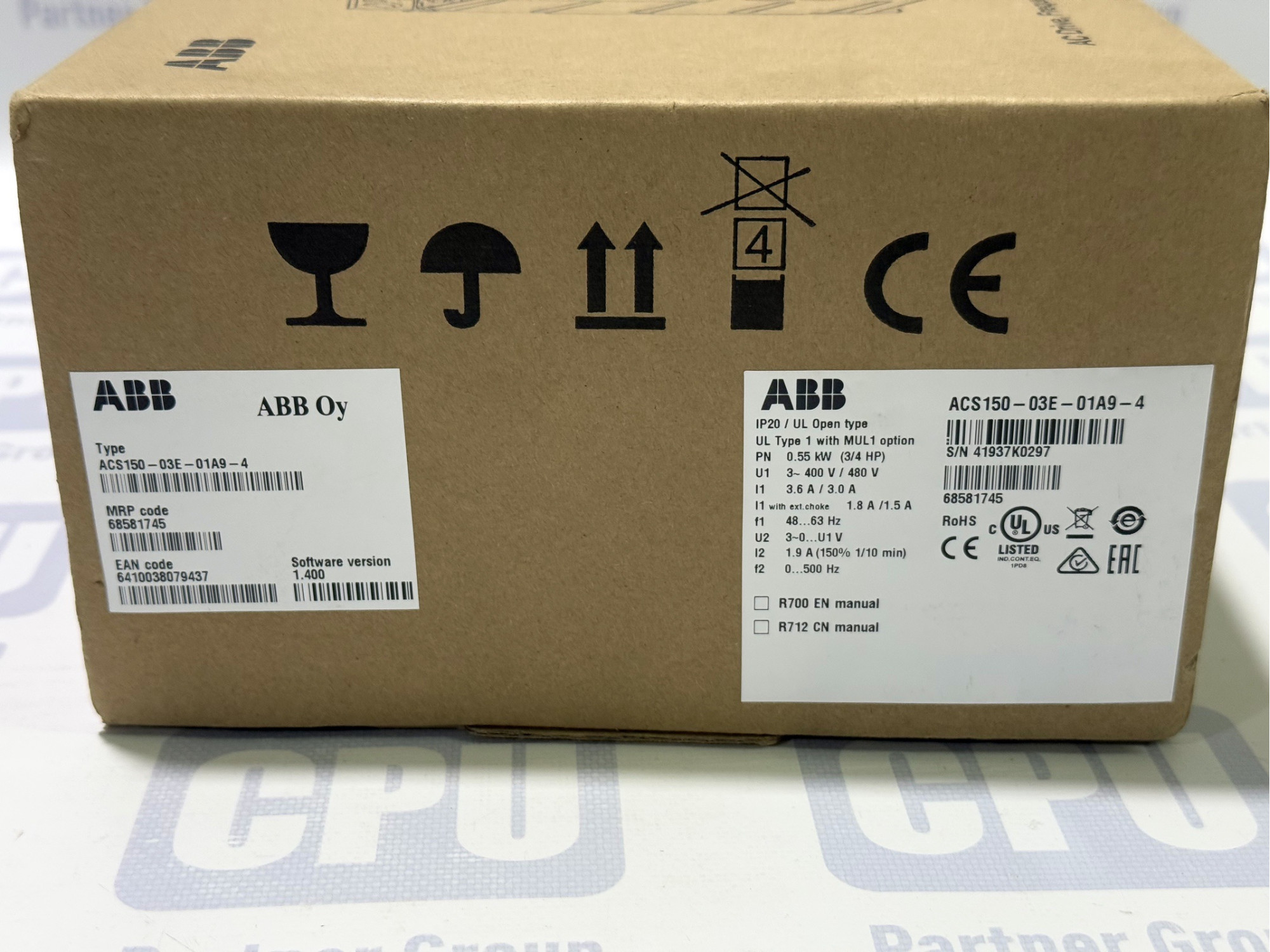

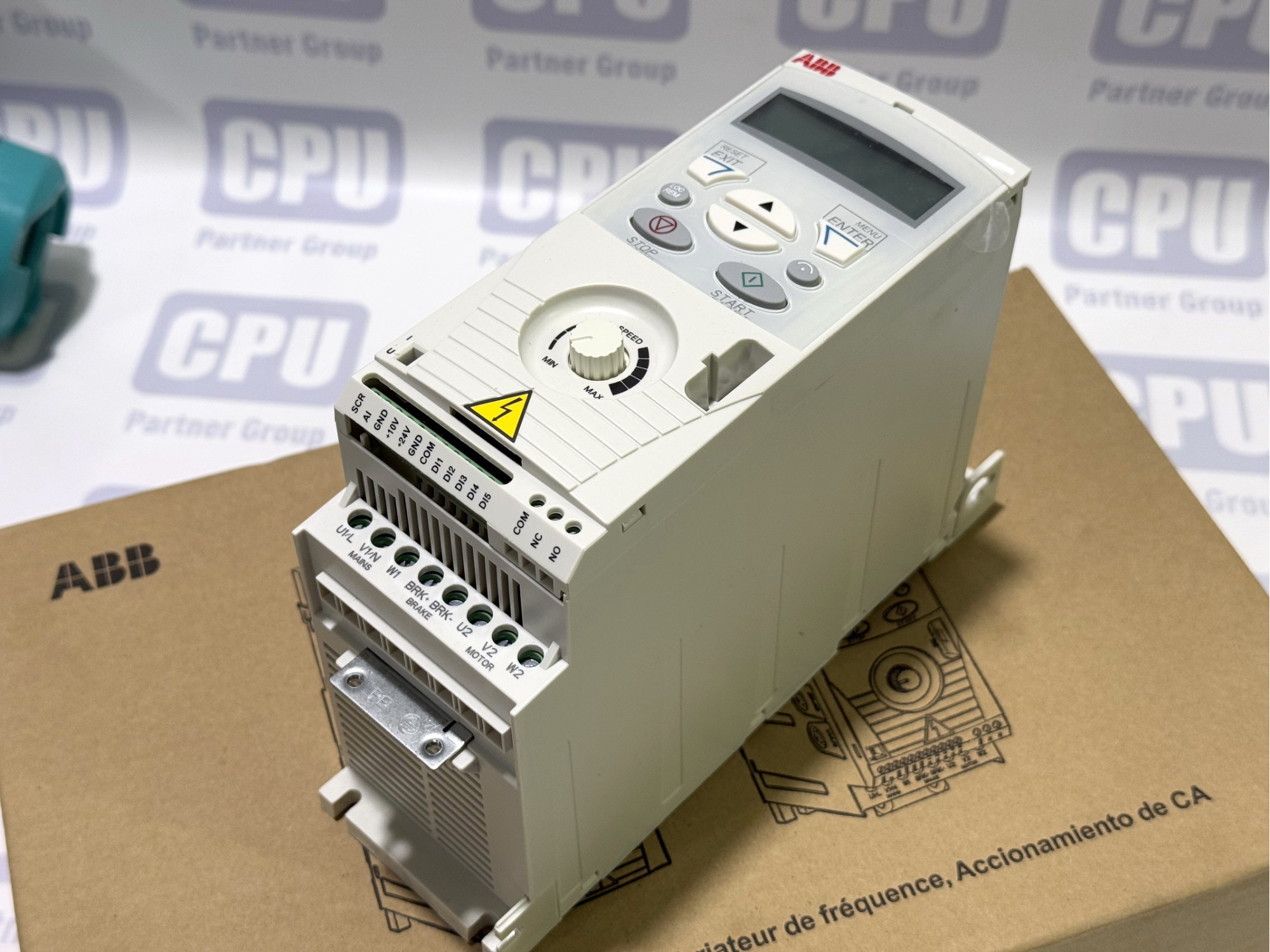

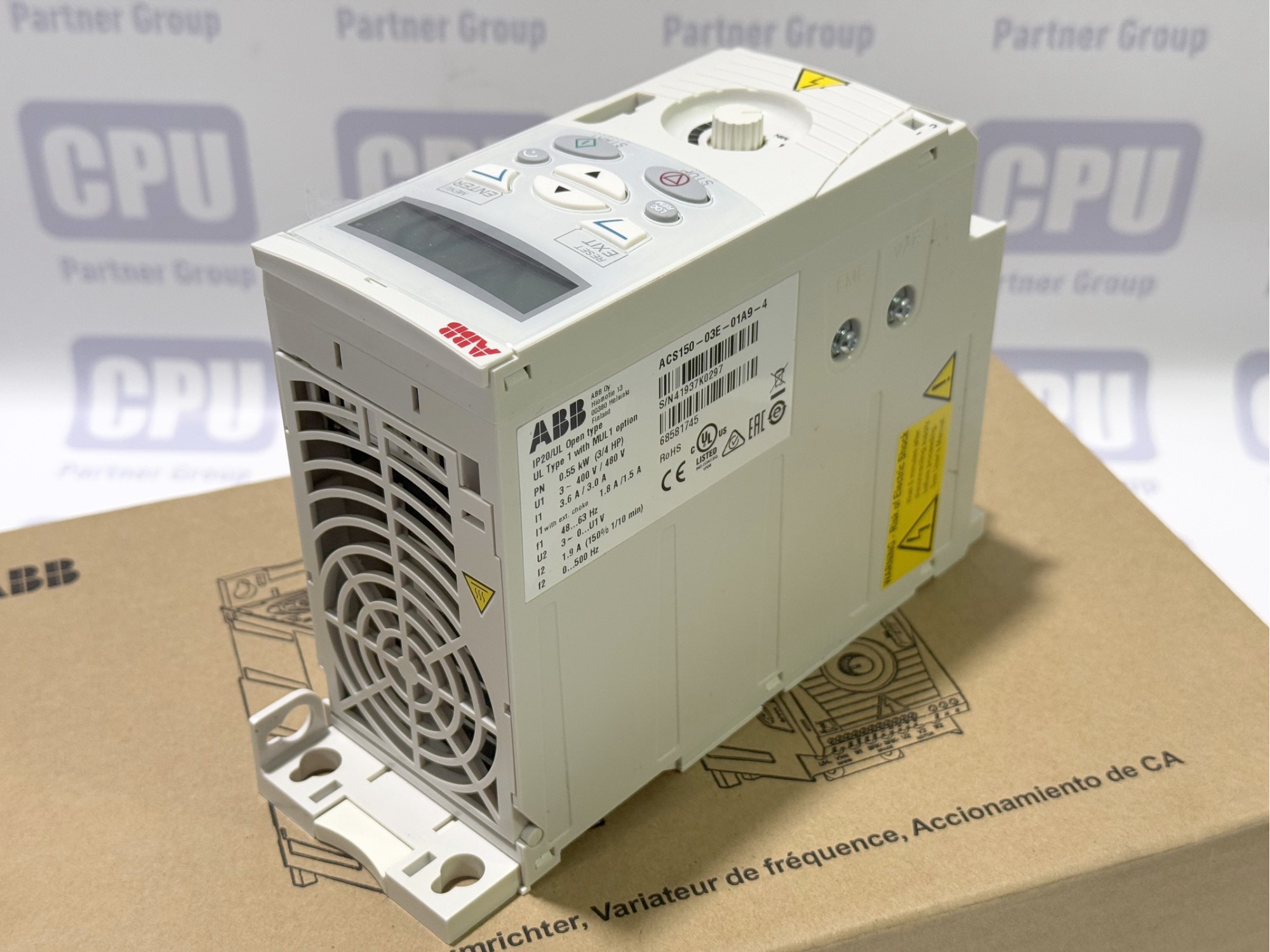

ABB ACS150-03E-01A9-4 0,55kW frequency converter

ABB ACS150-03E-01A9-4 0,55kW frequency converter

General Description

The ABB ACS150‑03E‑01A9‑4 is a compact general-purpose frequency converter rated at 0.55 kW, designed for controlling three-phase motors. It is ideal for use in fans, pumps, conveyors, mixers, and other simple machinery. The device supports scalar (V/f) and sensorless vector control, and comes equipped with an integrated brake chopper, built-in PID controller, and a local control panel with potentiometer.

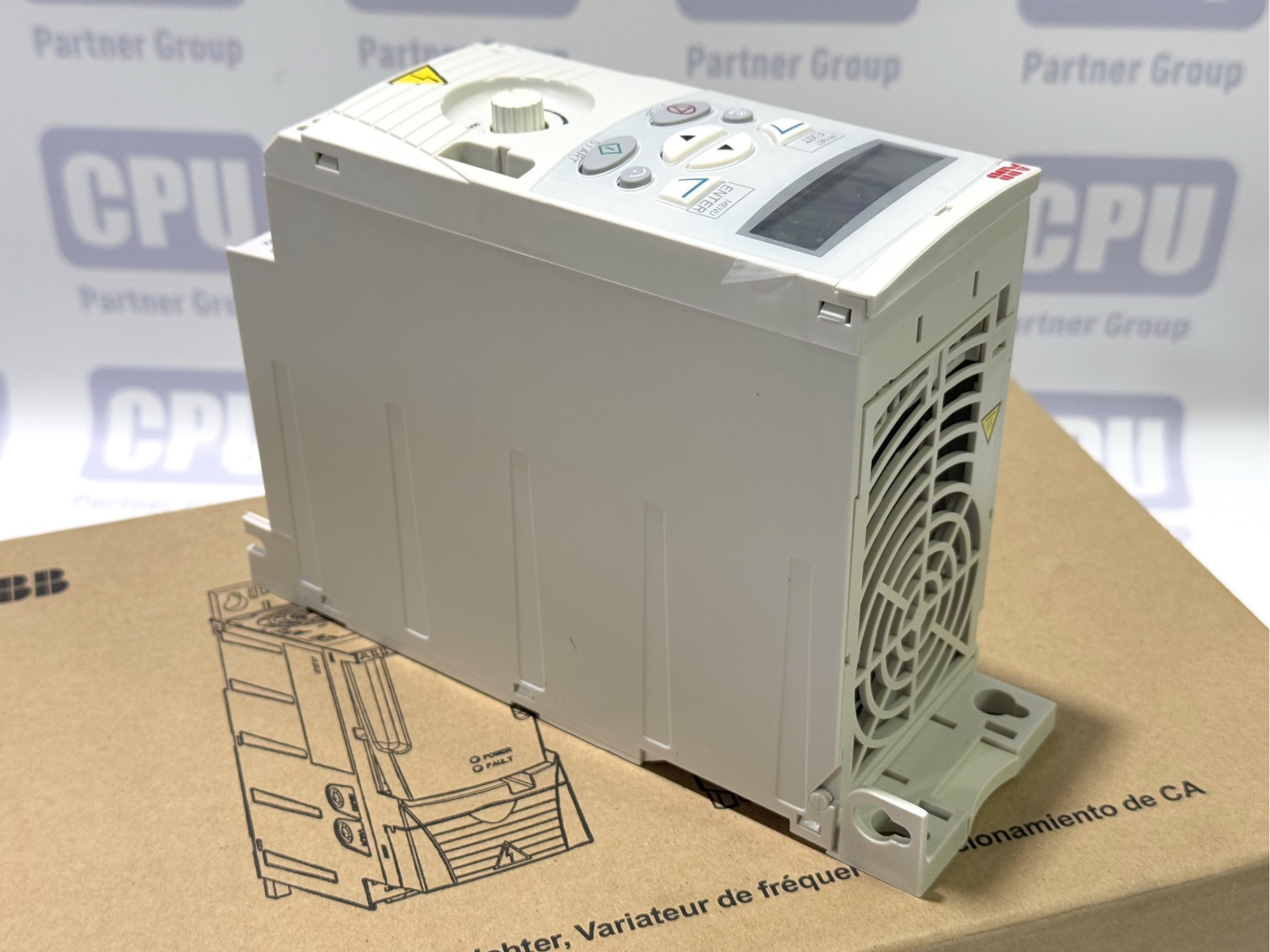

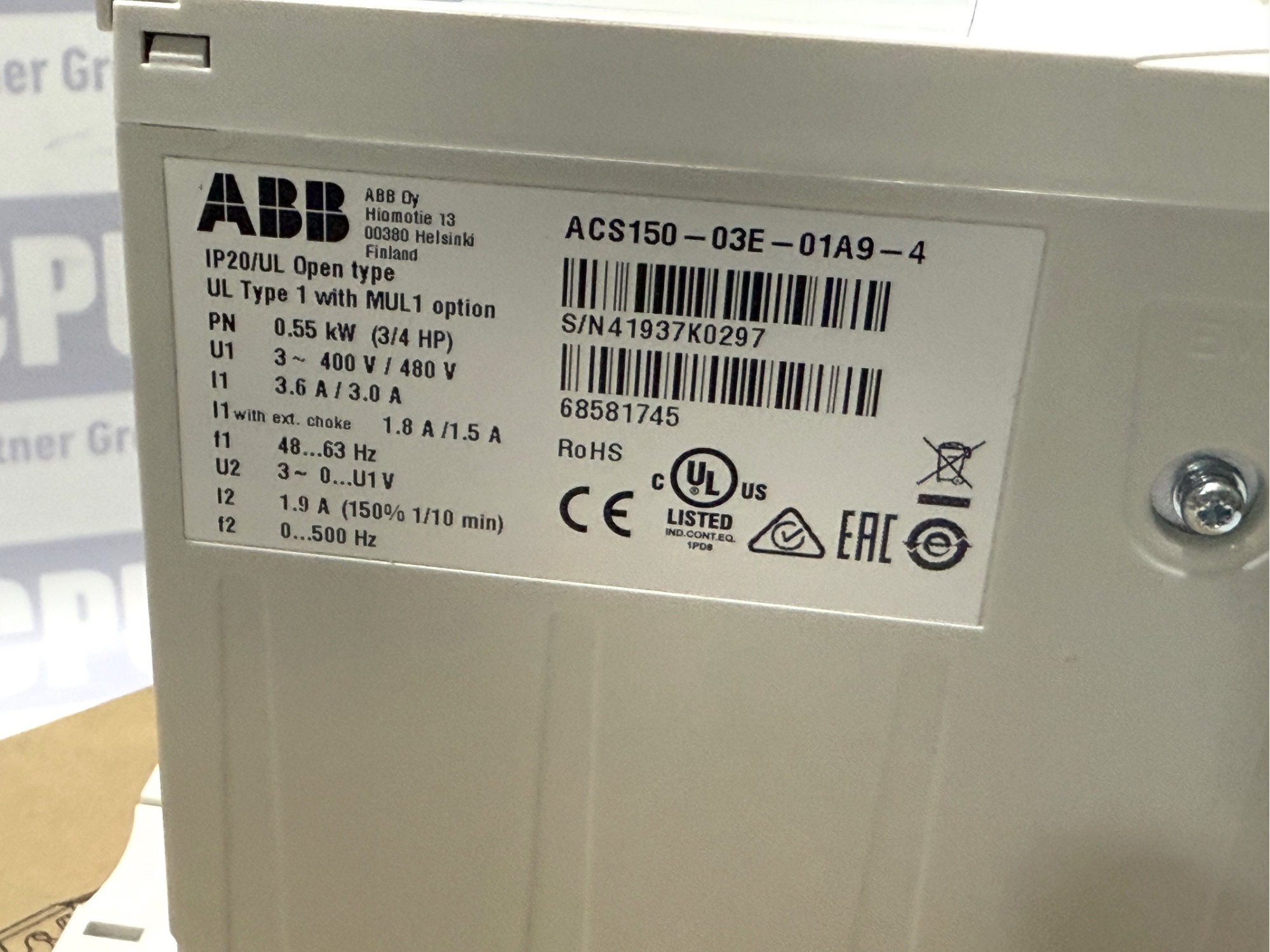

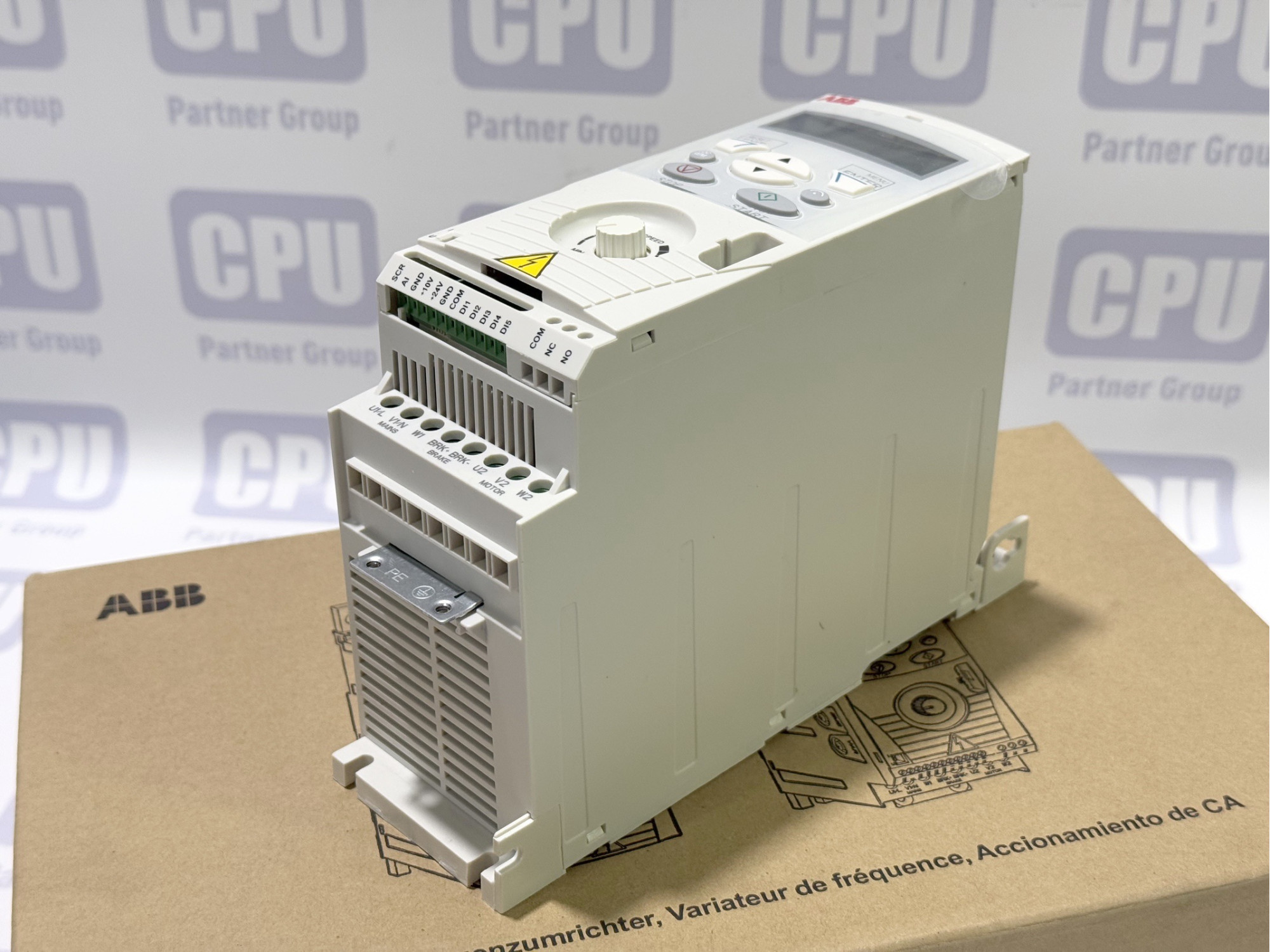

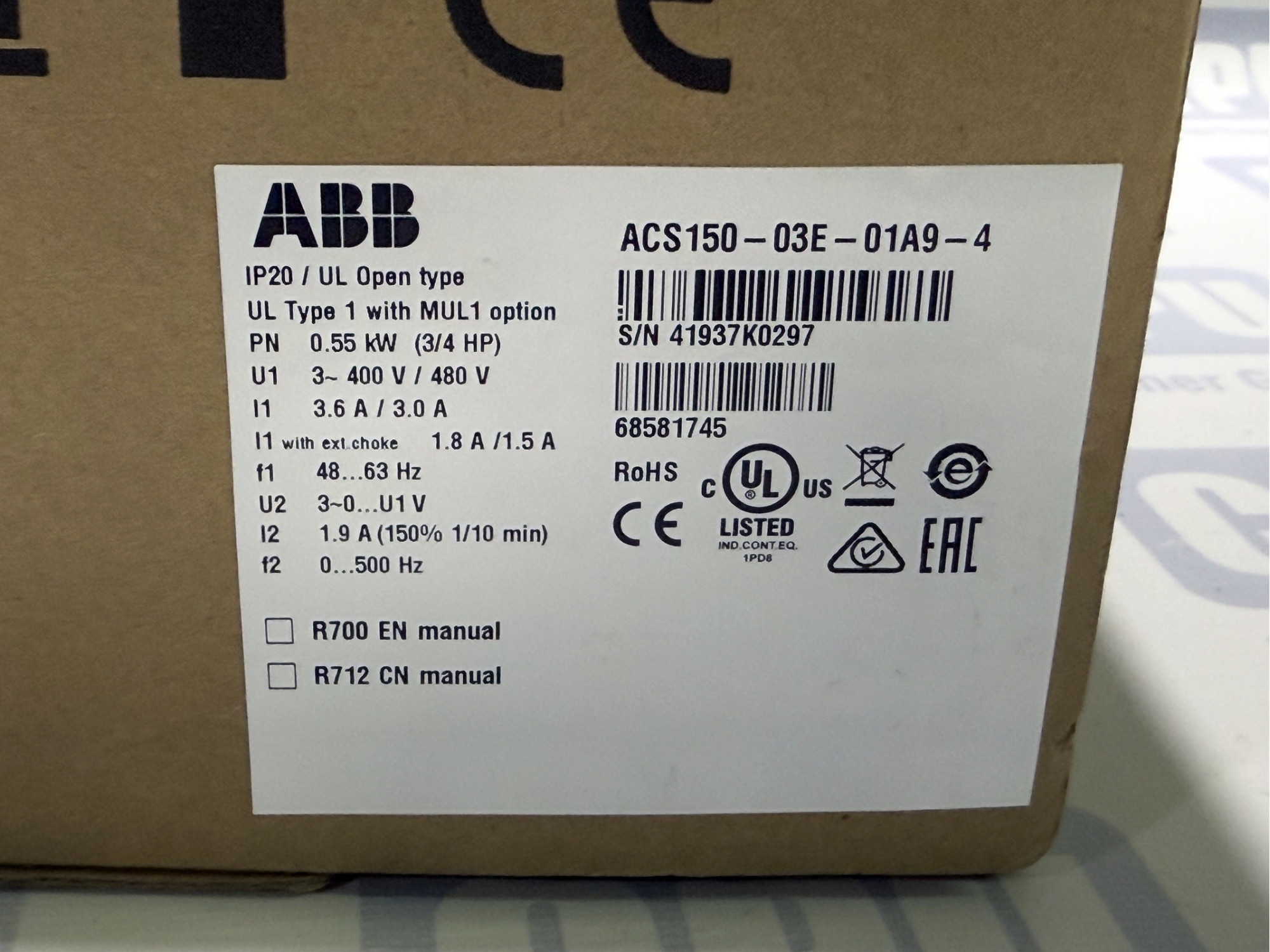

Electrical Specifications

• Input voltage: 380–480 V AC, 50/60 Hz, ±10% tolerance

• Output power: 0.55 kW (0.75 HP)

• Rated output current: 1.9 A

• Maximum overload current: Up to 3.8 A (150% for 60 seconds)

• Output frequency range: 0 to 500 Hz

• Brake chopper: Integrated (external braking resistor supported, 175–800 Ω)

• EMC compliance: Built-in filter, conforms to EN 61800-3 Class C3

Control and Interfaces

• Control modes: Scalar V/f and sensorless vector control

• PID control: Built-in, no external controller required

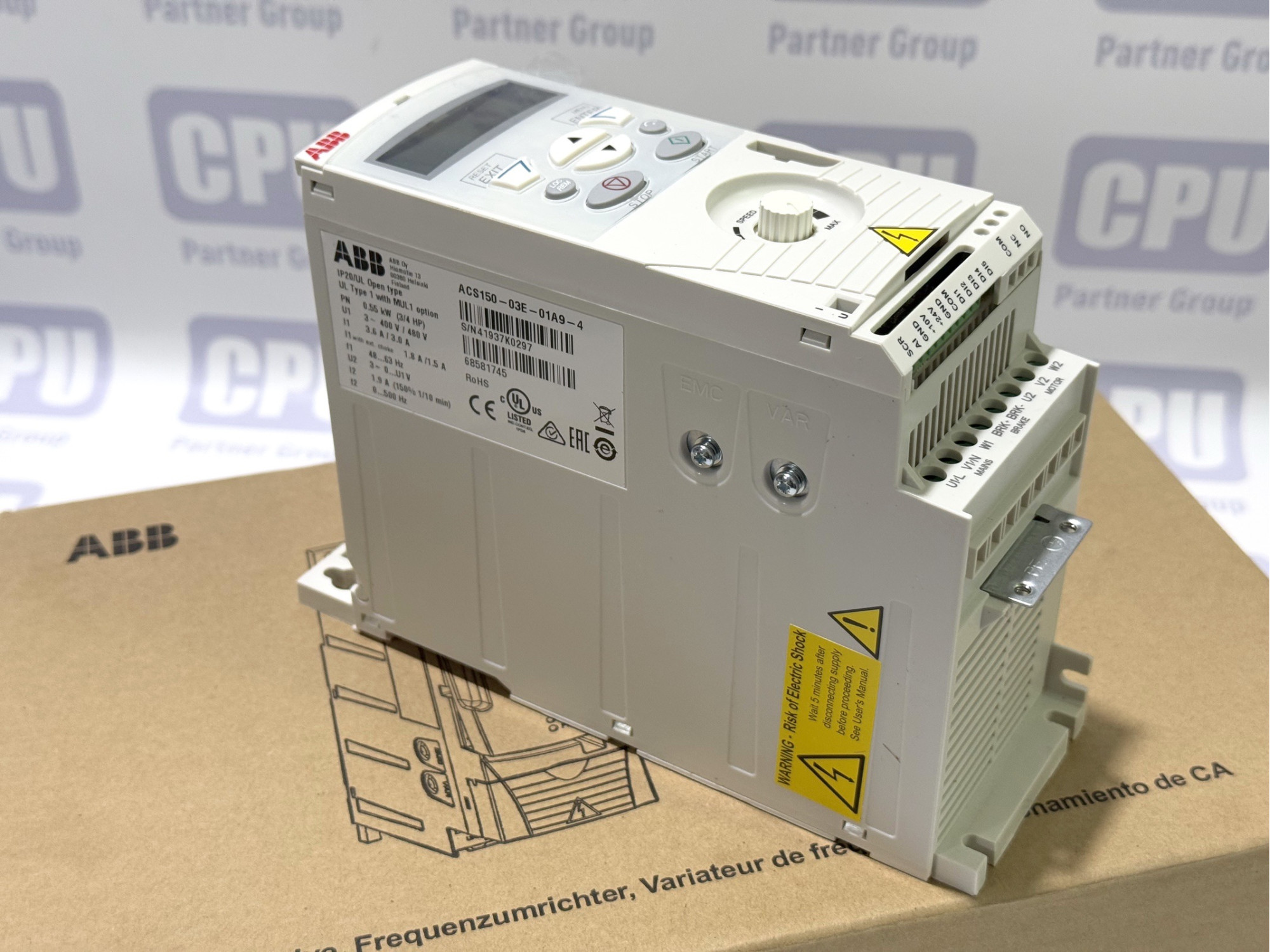

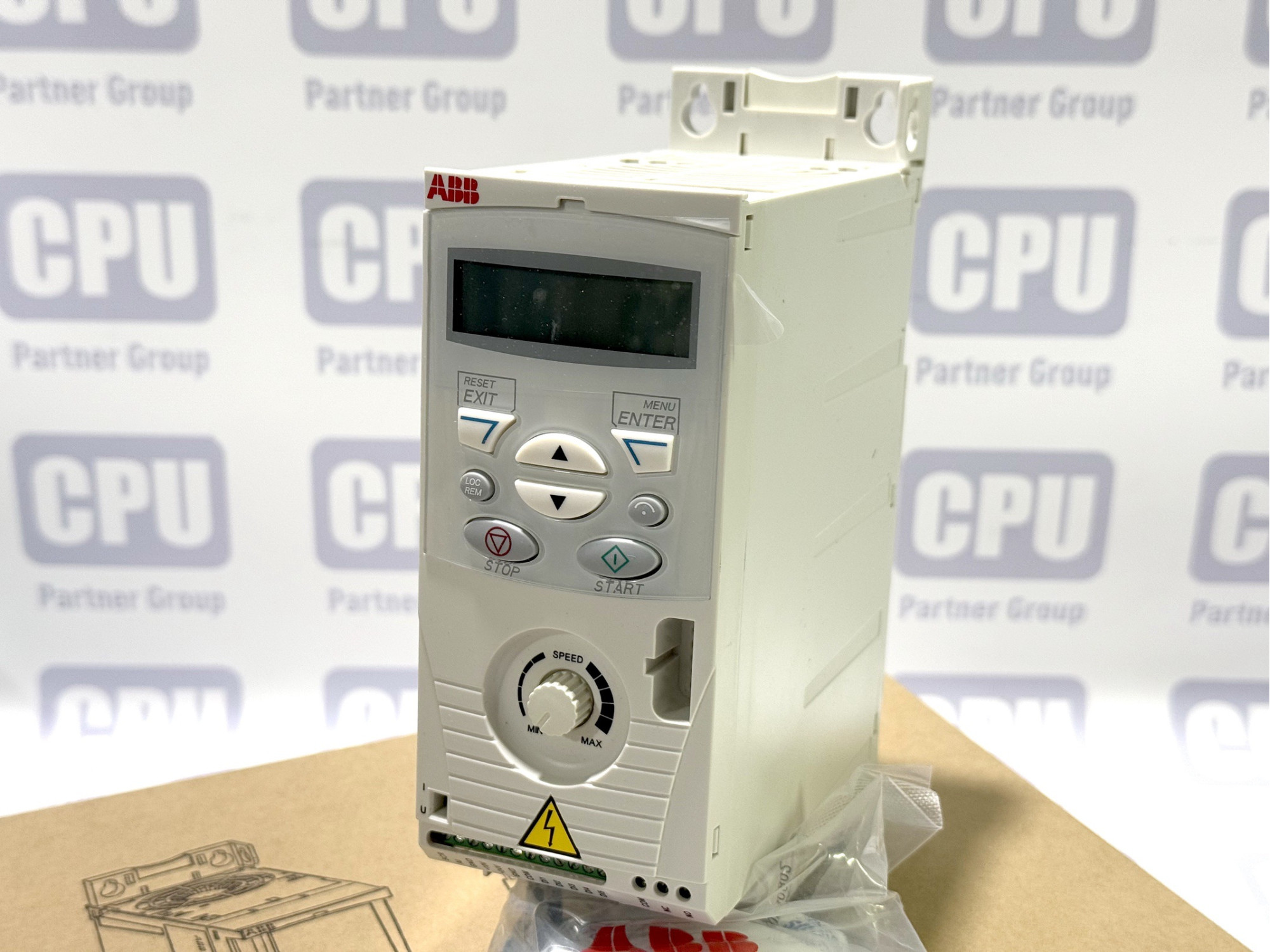

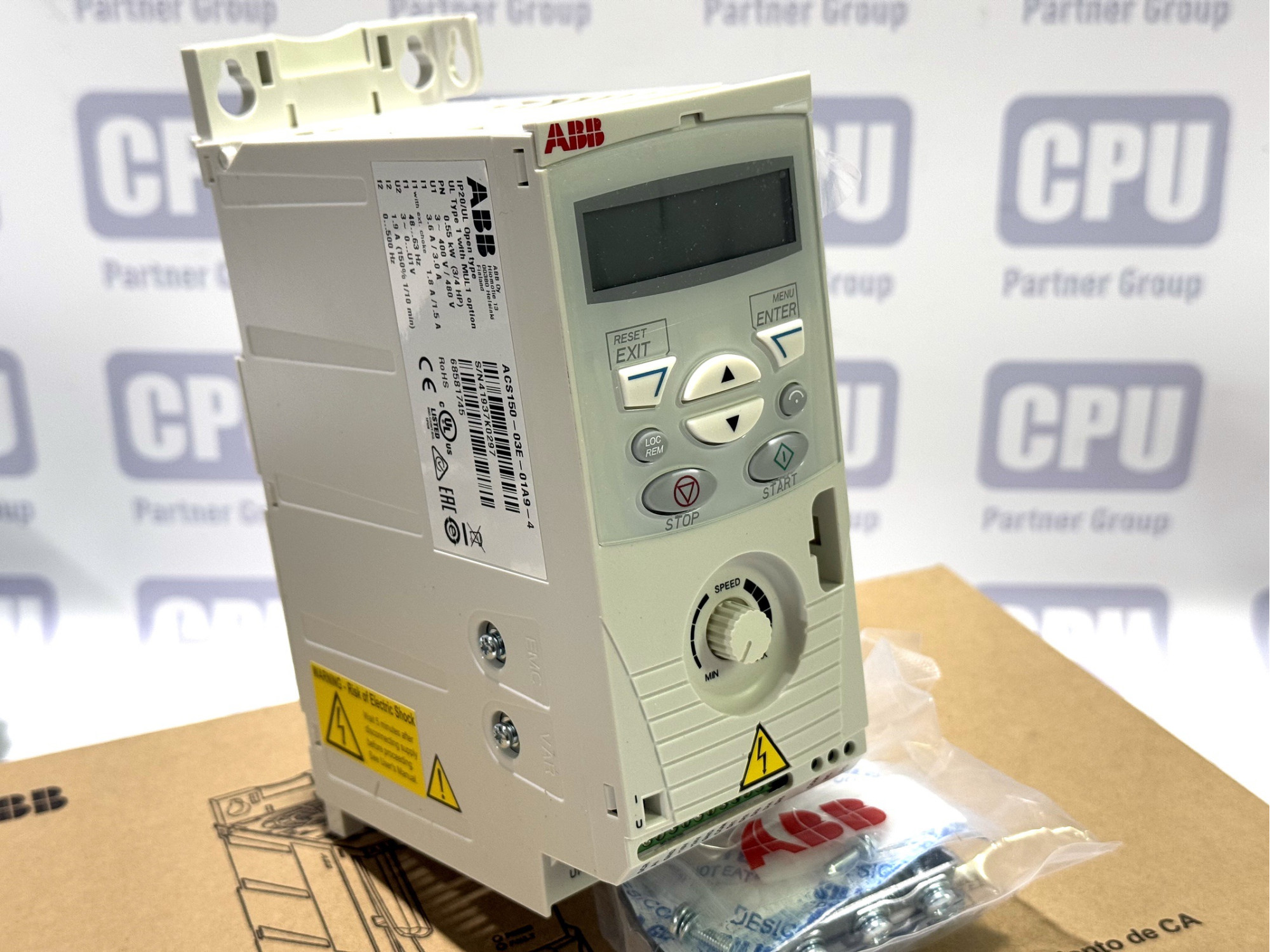

• Operator panel: Integrated LCD with potentiometer

• Remote programming: Supports FlashDrop tool for offline parameter configuration

Mechanical and Environmental Data

• Frame size: R0

• Dimensions: Approx. 202 × 70 × 142 mm

• Weight: Approx. 1.1 kg

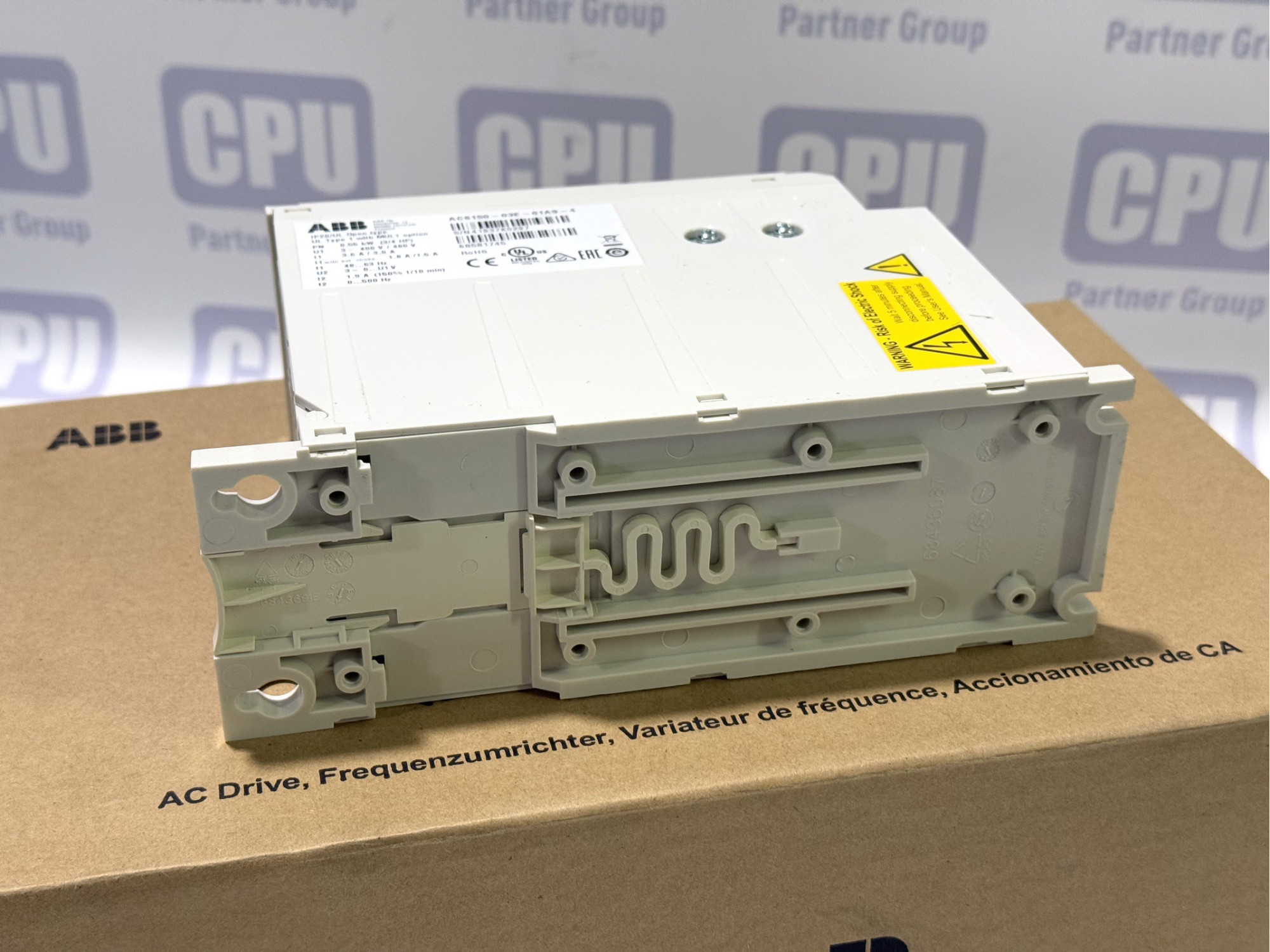

• Mounting options: DIN rail, panel, or wall mounting

• Protection rating: IP20

• Operating temperature: –10 °C to +40 °C (up to –50 °C with derating)

• Storage temperature: –40 °C to +70 °C

Functional Features

• Predefined macros for quick setup (3-wire start, potentiometer speed control, PID)

• Flame-retardant plastic housing (UL 94 compliant)

• International approvals: UL, CE, C‑Tick, EAC, RoHS

• High reliability and long-term operational stability

Conclusion

The ABB ACS150‑03E‑01A9‑4 is a versatile and reliable low-power frequency converter, well suited for industrial applications that require basic motor speed control. Thanks to its compact design, broad parameter range, and built-in functions, it is an excellent choice for cost-effective automation solutions.
