ABB ACS580-01-018A-4 Frequency Converter 7.5 kW + Ethernet Adaptor FENA-11

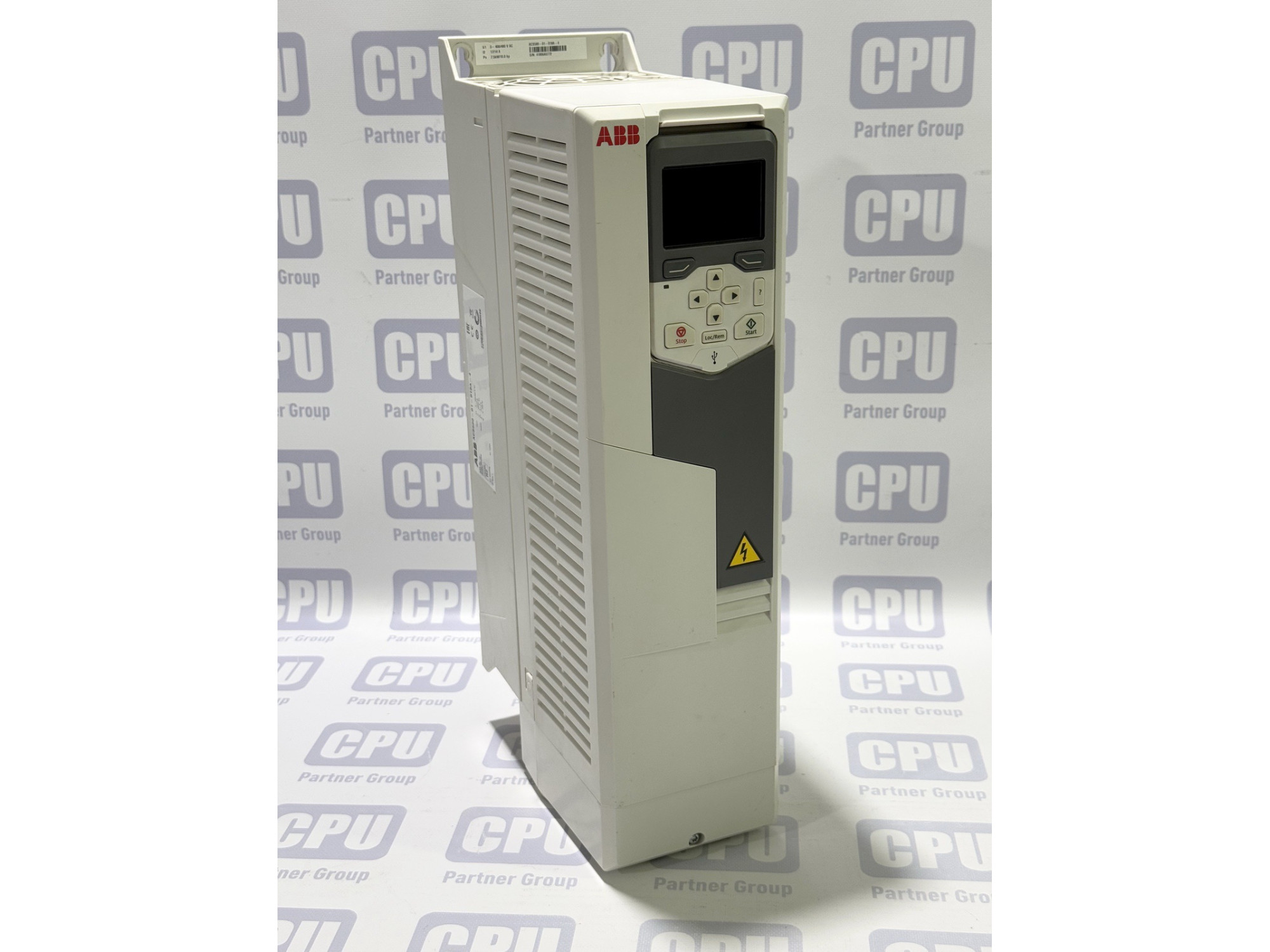

ABB ACS580-01-018A-4 general-purpose frequency converter (VFD) 7.5 kW, 17 A + Ethernet Adaptor FENA-11

General Kit Description: The kit consists of the ABB ACS580-01-018A-4 frequency converter with an additional FENA-11 communication module, which provides advanced Ethernet connectivity capabilities for industrial networks.

Main Component: ABB ACS580-01-018A-4

Key Features:

• Manufacturer: ABB (ABB Oy, Finland)
• Model: ACS580-01-018A-4
• Type: General-purpose frequency converter / Variable Frequency Drive (VFD)
• Input Voltage: 3-phase, 400/480 V AC
• Input Current (I1): 17/14 A
• Input Frequency: 50/60 Hz
• Output Voltage (U2): 3-phase, 0...U1 V
• Output Current (I2): 17/14 A
• Output Frequency: 0...500 Hz
• Motor Power: Corresponds to specified currents for standard applications.
• Frame Size: R2
• Cooling System: Air cooling
• Protection Class: IP21 (UL Type 1)
• Maximum Short Circuit Current Rating (Icc): 100 kA

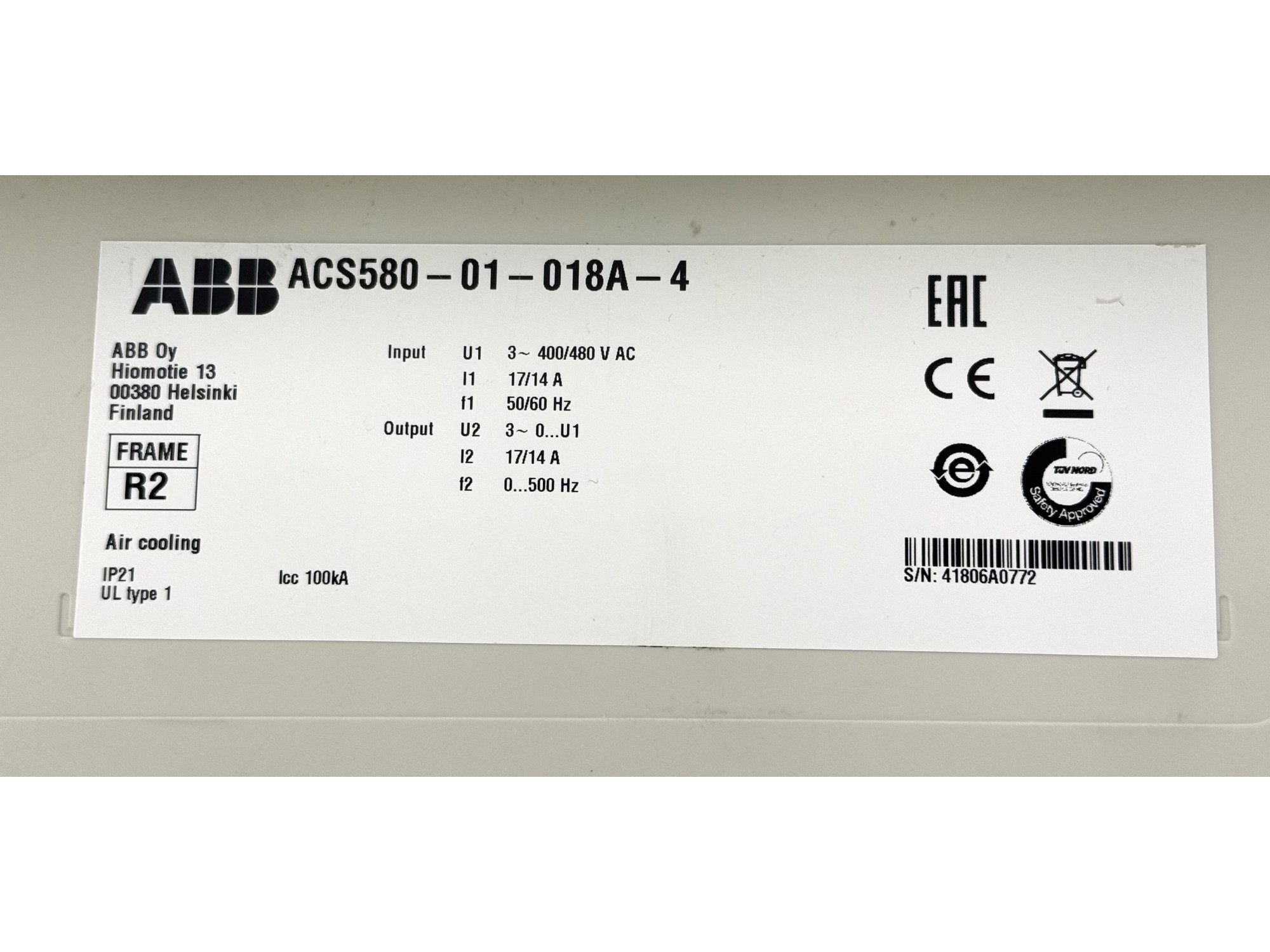

• Integrated Adapter: FENA-11 Ethernet Adapter (MAC ID: 00-1C-01-05-DC-6A)
• Control Panel: Intuitive, with a graphical display.
• Certifications: EAC, CE

Additional Module: FENA-11 Ethernet Adaptor

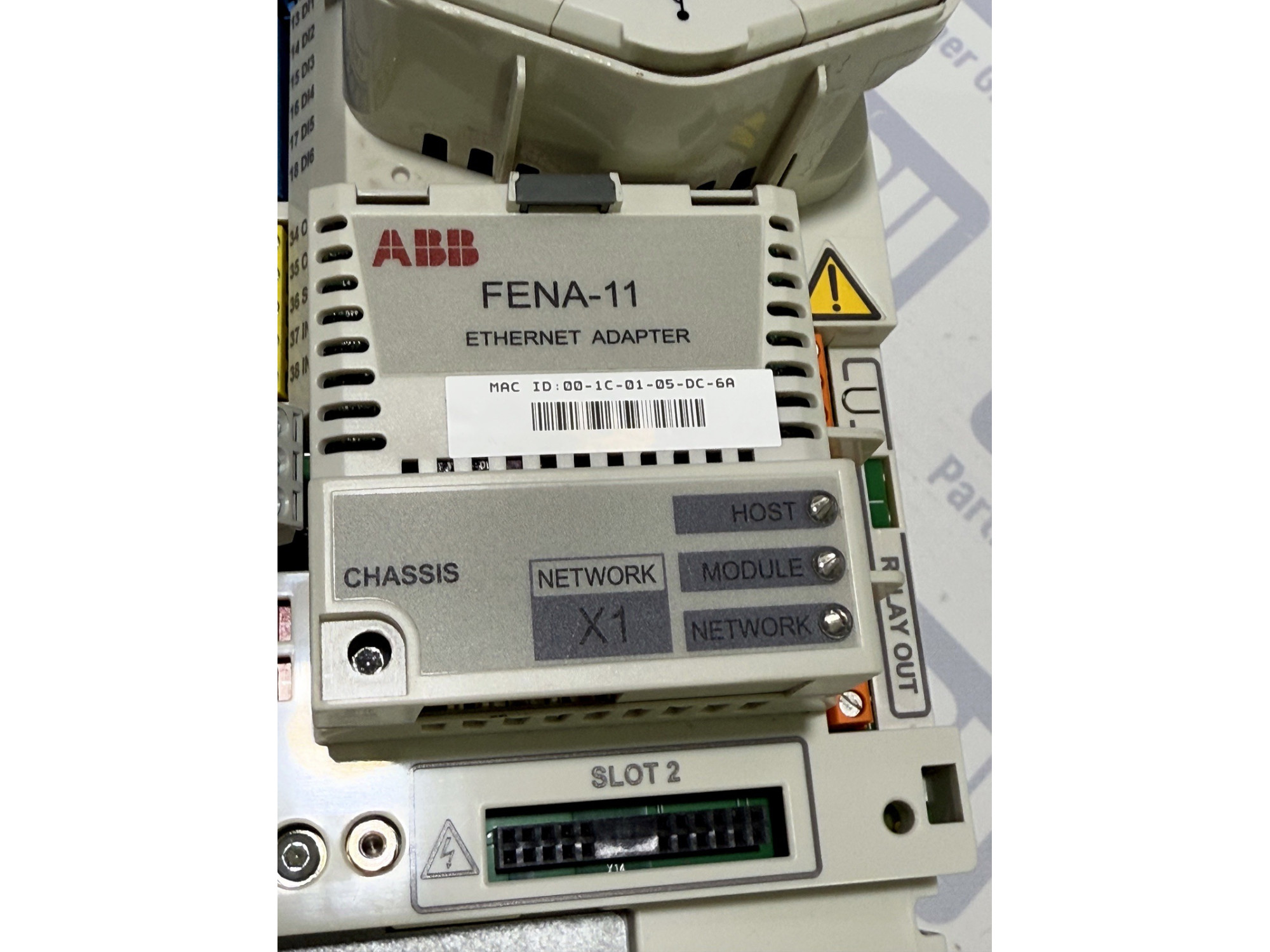

FENA-11 Description: FENA-11 is an Ethernet adapter module for ABB frequency converters, providing connection to industrial Ethernet networks and support for various industrial communication protocols.

FENA-11 Technical Specifications:

• Module Type: Fieldbus adapter for Ethernet networks
• Supported Protocols:
  • PROFINET IO (RT and IRT)
  • EtherNet/IP
  • Modbus TCP
  • ABB Drives Profile for EtherNet/IP
• Data Transfer Rate: 10/100 Mbps, auto-detection
• Connection: RJ45 Ethernet connector
• Indication: LED indicators for network and communication status
• Power Supply: From main drive (no additional power required)
• Operating Temperature: -10°C to +50°C

Kit Functional Capabilities:

Network Capabilities:

• Industrial Network Integration: Seamless connection to PROFINET, EtherNet/IP networks
• Remote Monitoring: Drive parameter control via Ethernet
• Real-time Diagnostics: Network transmission of diagnostic information
• Network Parameterization: Remote drive parameter configuration

Advanced Control Functions:

• Cyclic Data Exchange: Fast exchange of control signals
• Acyclic Data Exchange: Parameter and diagnostic information transmission
• Time Synchronization: Precise time synchronization support (for PROFINET IRT)
• Redundancy Support: Network redundancy support (protocol-dependent)

Kit Applications:

• Automated Production Lines with centralized control
• Building Management Systems (BMS/BAS) with Ethernet infrastructure
• Water Treatment Plants with remote monitoring
• HVAC Systems in large buildings and complexes
• Industrial IoT Applications with connectivity requirements
• SCADA System Integration via industrial protocols

Kit Advantages:

• Plug-and-play Installation: Simple FENA-11 module integration
• Standard Industrial Protocols: Compatibility with most automation systems
• High Reliability: Industrial-grade reliability standard
• Configuration Flexibility: Support for various network topologies
• Diagnostic Capabilities: Enhanced network diagnostics
• Centralized Control: Ability to centrally manage multiple drives

Configuration and Installation:

• FENA-11 module installs in the ACS580 drive expansion slot
• Configuration via DriveStudio or standard industrial network tools
• Support for automatic network settings detection
• Built-in web server for diagnostics and configuration

This kit represents a modern solution for integrating frequency converters into industrial Ethernet networks, providing high performance, reliability, and ease of integration into existing automation systems.
