ADAM ADAM-6015 Temperature Monitoring Module Data Acquisition Module

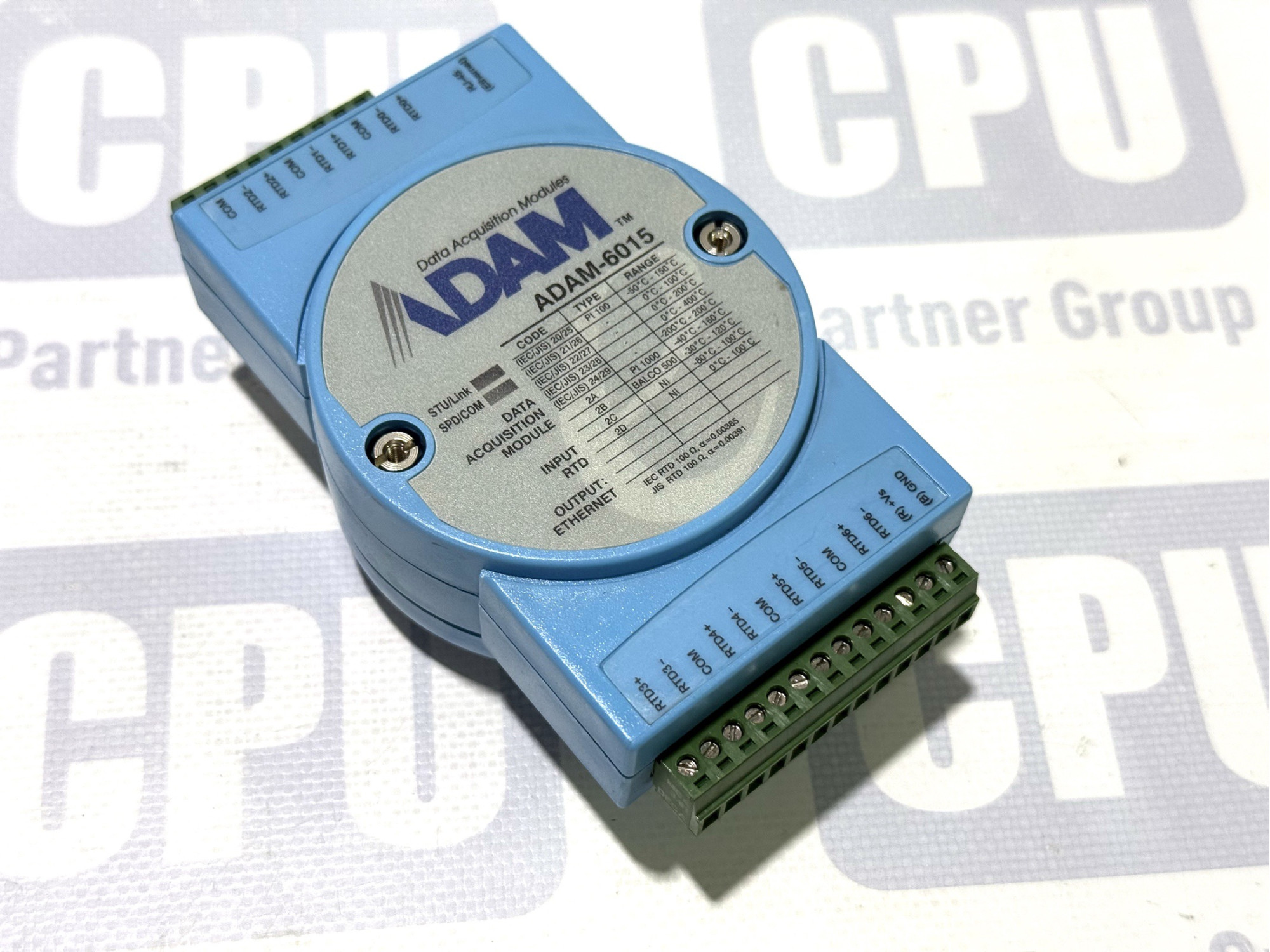

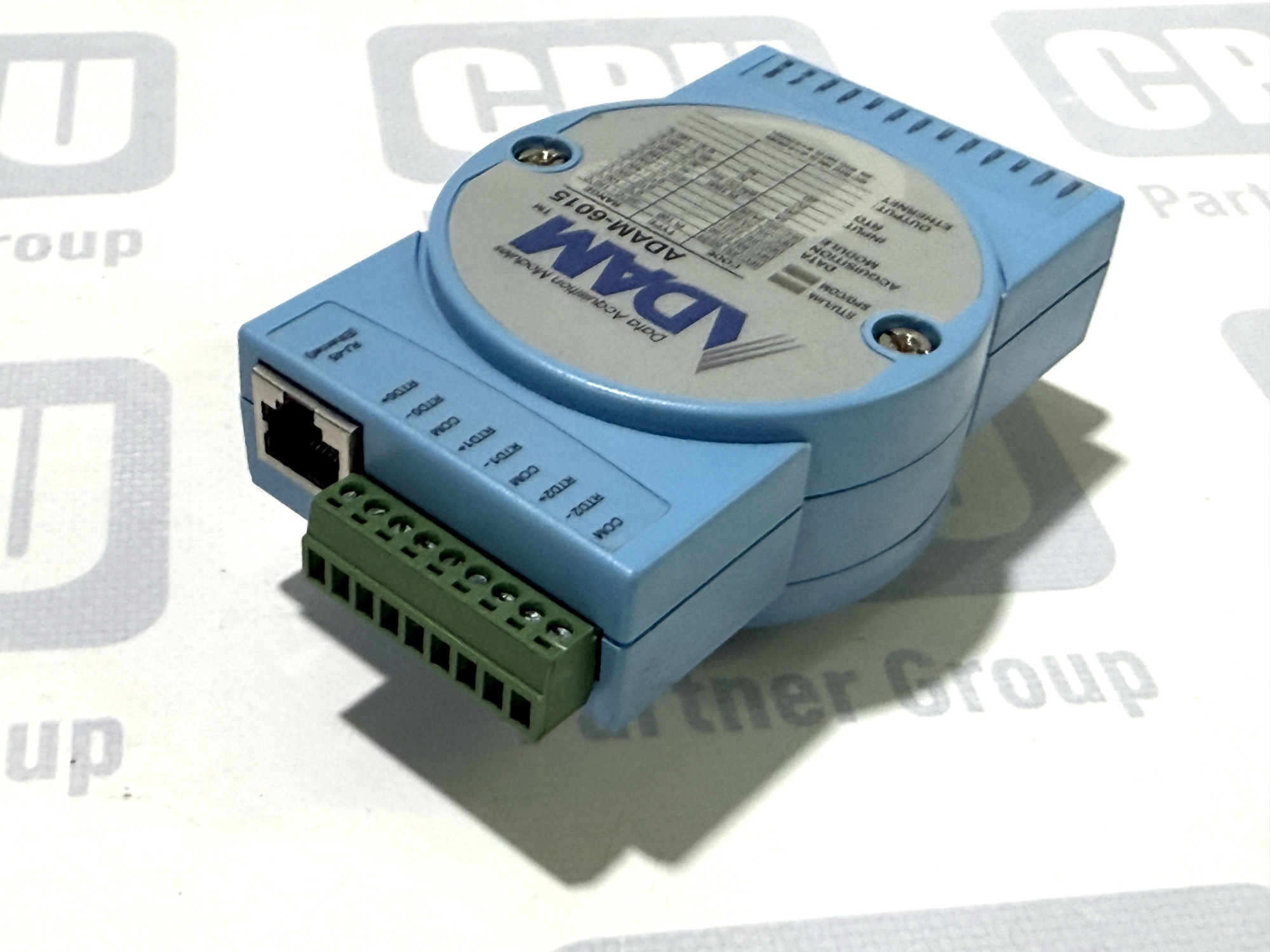

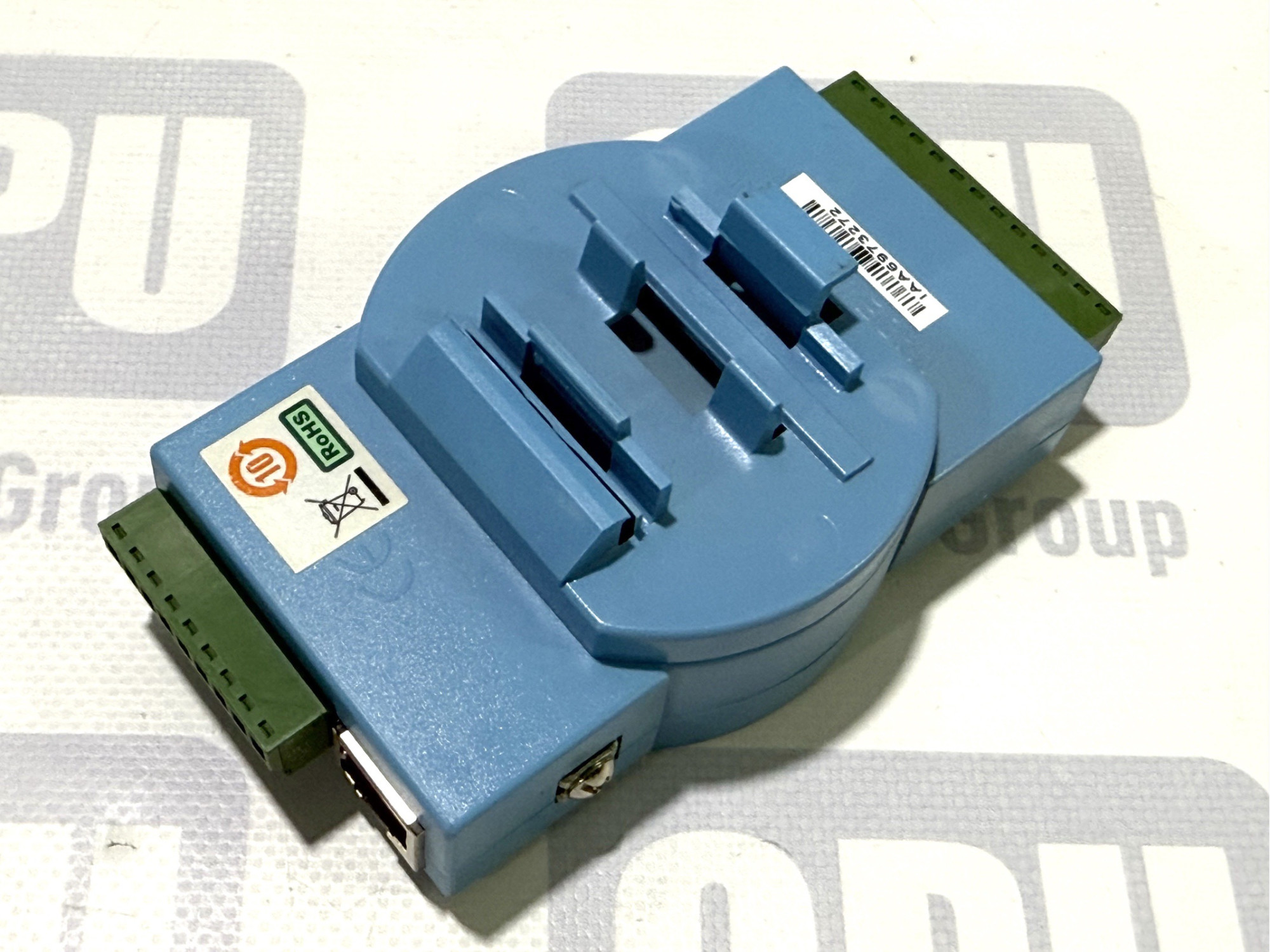

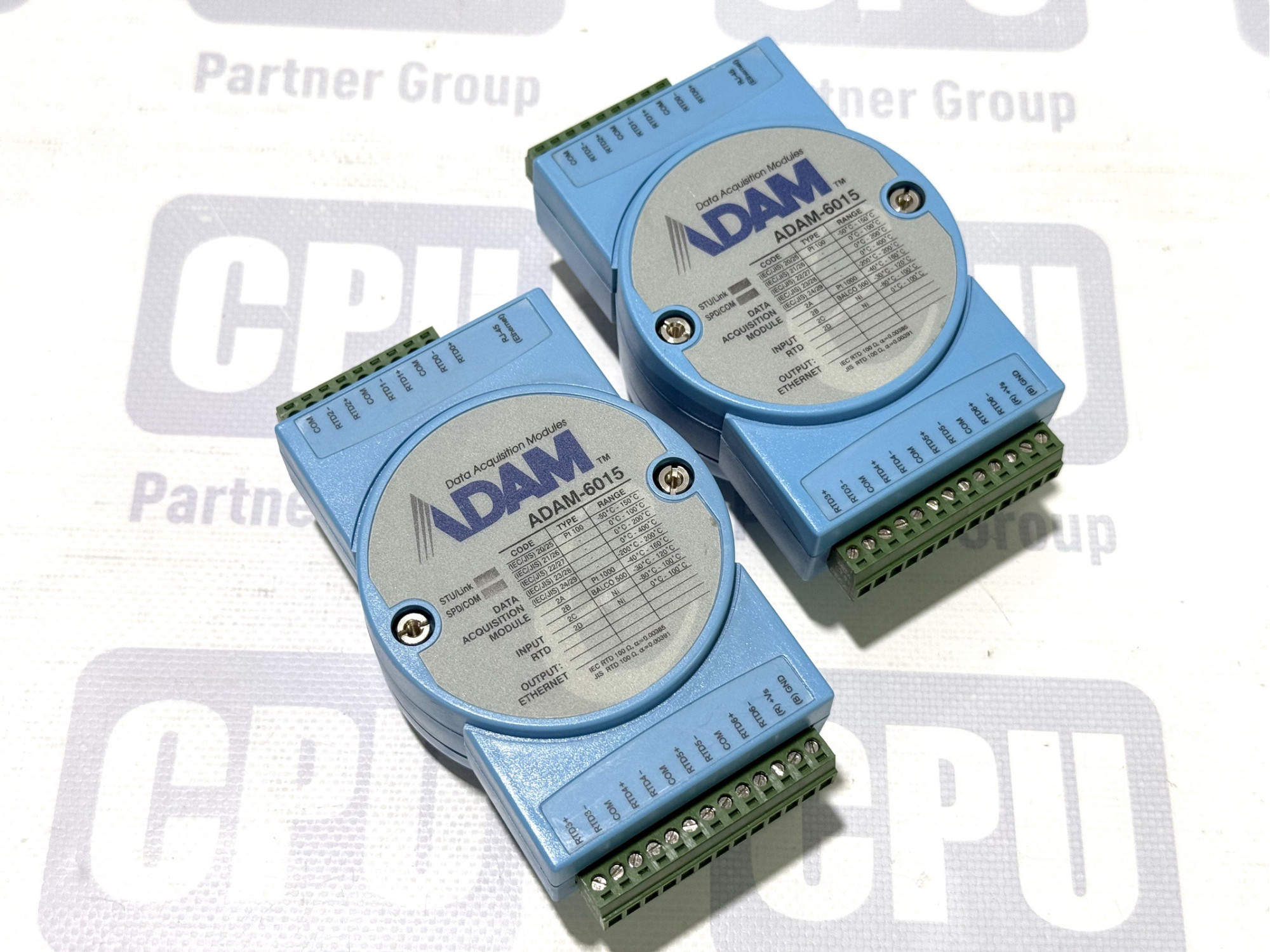

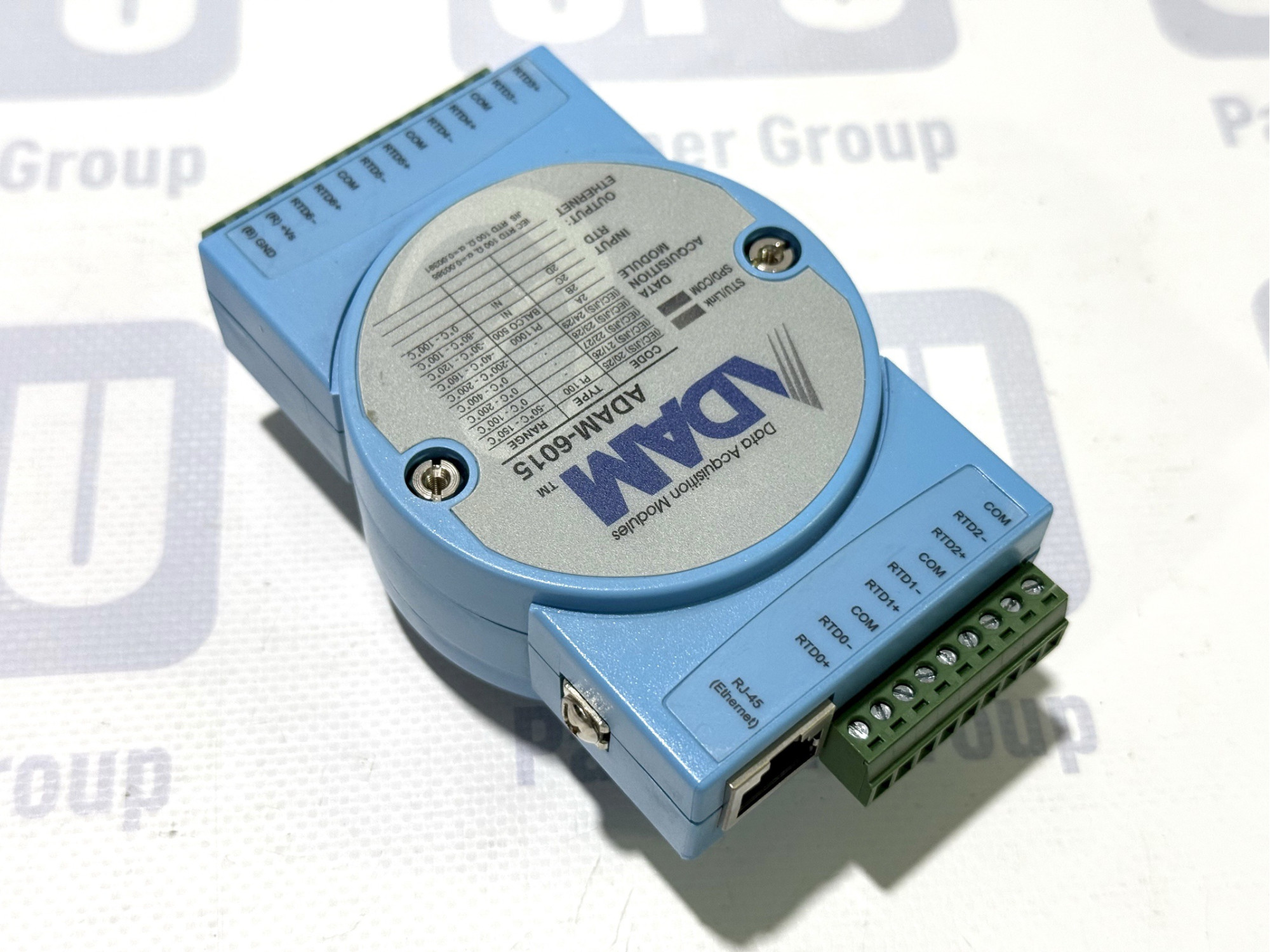

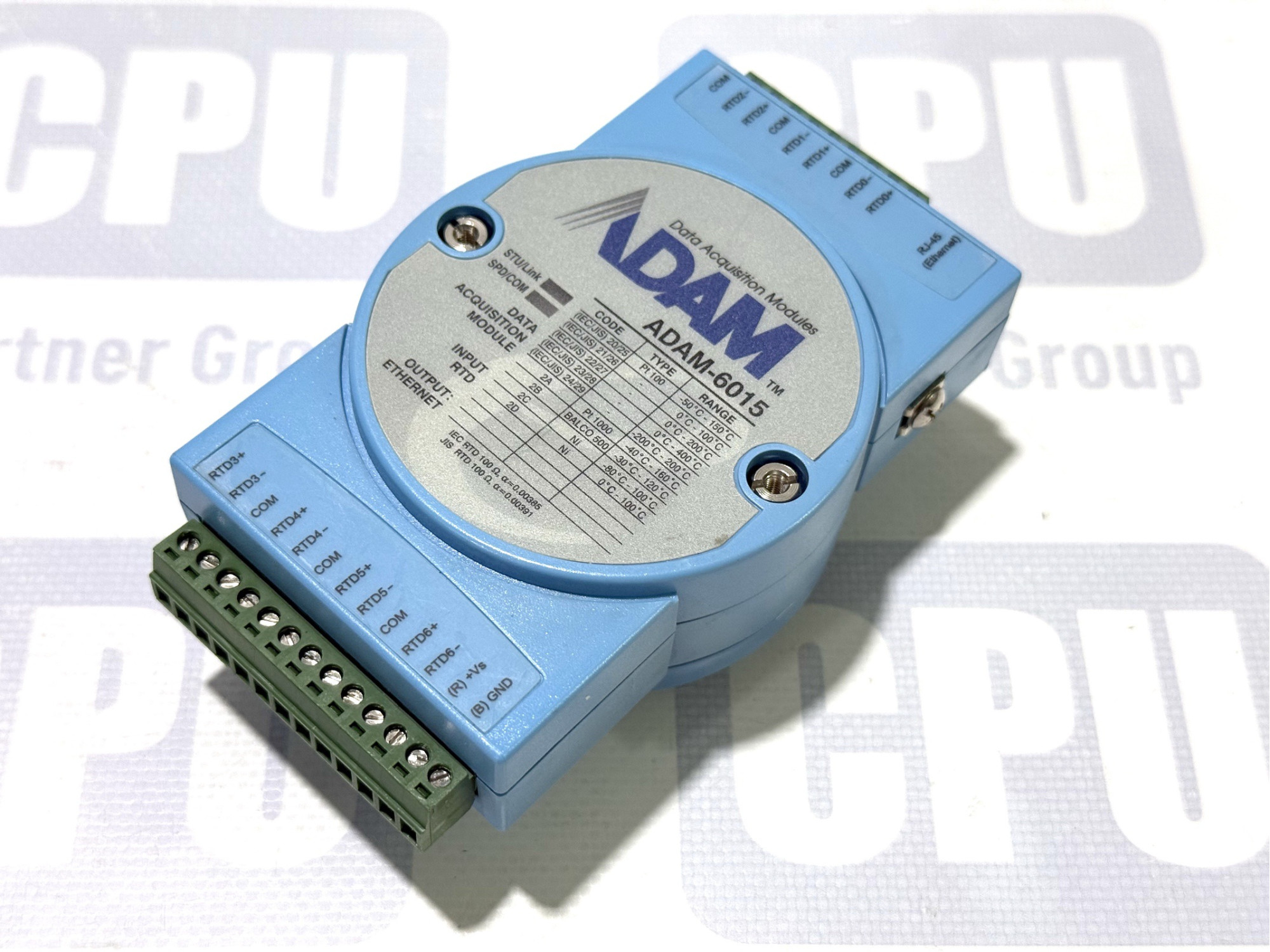

ADAM-6015 - 7-Channel RTD Input Module

General Description

The ADAM-6015 is a 7-channel isolated RTD input module with Modbus TCP support. This is an industrial Ethernet I/O module manufactured by Advantech, designed for temperature measurement using RTD sensors in automation systems and IoT applications.

Main Technical Specifications

Input Channels:

• Number of Channels: 7 RTD inputs
• Resolution: 16-bit

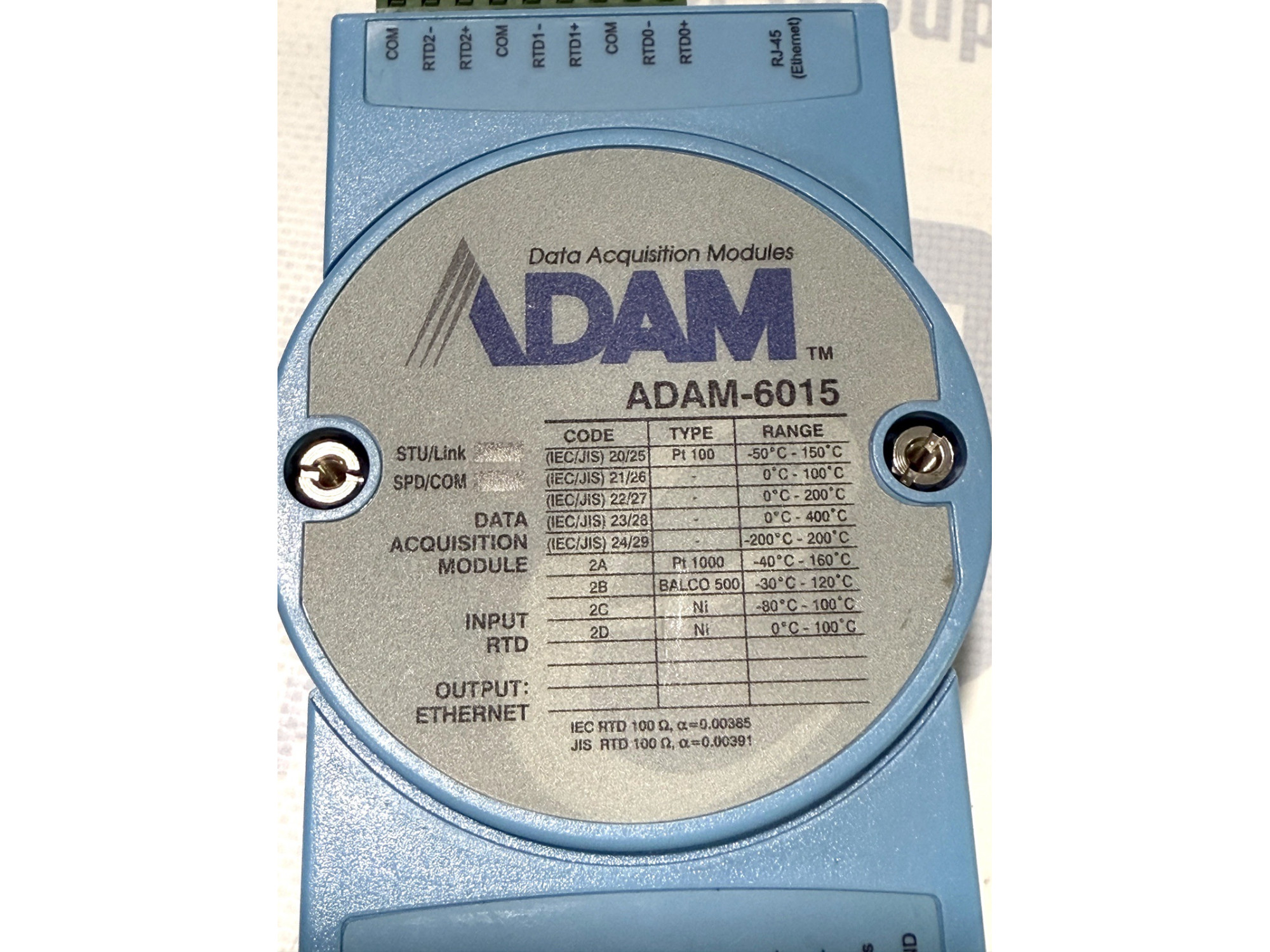

• Supported RTD Types: Pt 100/1000, Ni, Balco 500
• Additional Types: Pt100, Pt1000, Ni50, Ni508, Balco 500 series

Power and Interface:

• Supply Voltage: 10-30 VDC / 24 VDC
• Network Interface: 10/100Base-T Ethernet
• Communication Protocol: Modbus TCP (Slave)

Operating Conditions:

• Operating Temperature: -10°C to +70°C
• Series: ADAM-6000

Key Features

Functional Capabilities:

• Multi-channel/multi-range mode support
• Wire break detection function
• Support for different input ranges within a single module
• Support for Peer-to-Peer (P2P) and Graphic Condition Logic (GCL) technologies

Technological Advantages:

• Ability to operate as a standalone product for measurement, control, and automation
• Easy-to-use and intuitive graphic utility
• Quick system configuration

Applications

The ADAM-6015 is used in:

• Industrial temperature control systems
• IoT applications for monitoring
• Building automation systems
• Remote equipment monitoring
• Data acquisition systems

Advantages

• High measurement accuracy thanks to 16-bit resolution
• Flexibility in connecting different types of RTD sensors
• Reliable operation in industrial environments
• Easy integration into existing Ethernet networks
• Remote monitoring and control capabilities

The ADAM-6015 module represents a reliable solution for industrial temperature measurement using RTD sensors in distributed automation systems.

On this page you will find the user manual for ADAM-6000 Series. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for ADAM-6000 Series

https://cpupartnergroup.com/image/pdf/ADAM-6000_User_Manaul_Ed.12-FINAL.pdf
