Aventics 0830100488 Magnetic Reed Proximity Sensor, Series ST6, 10-30VDC, IP65/IP67

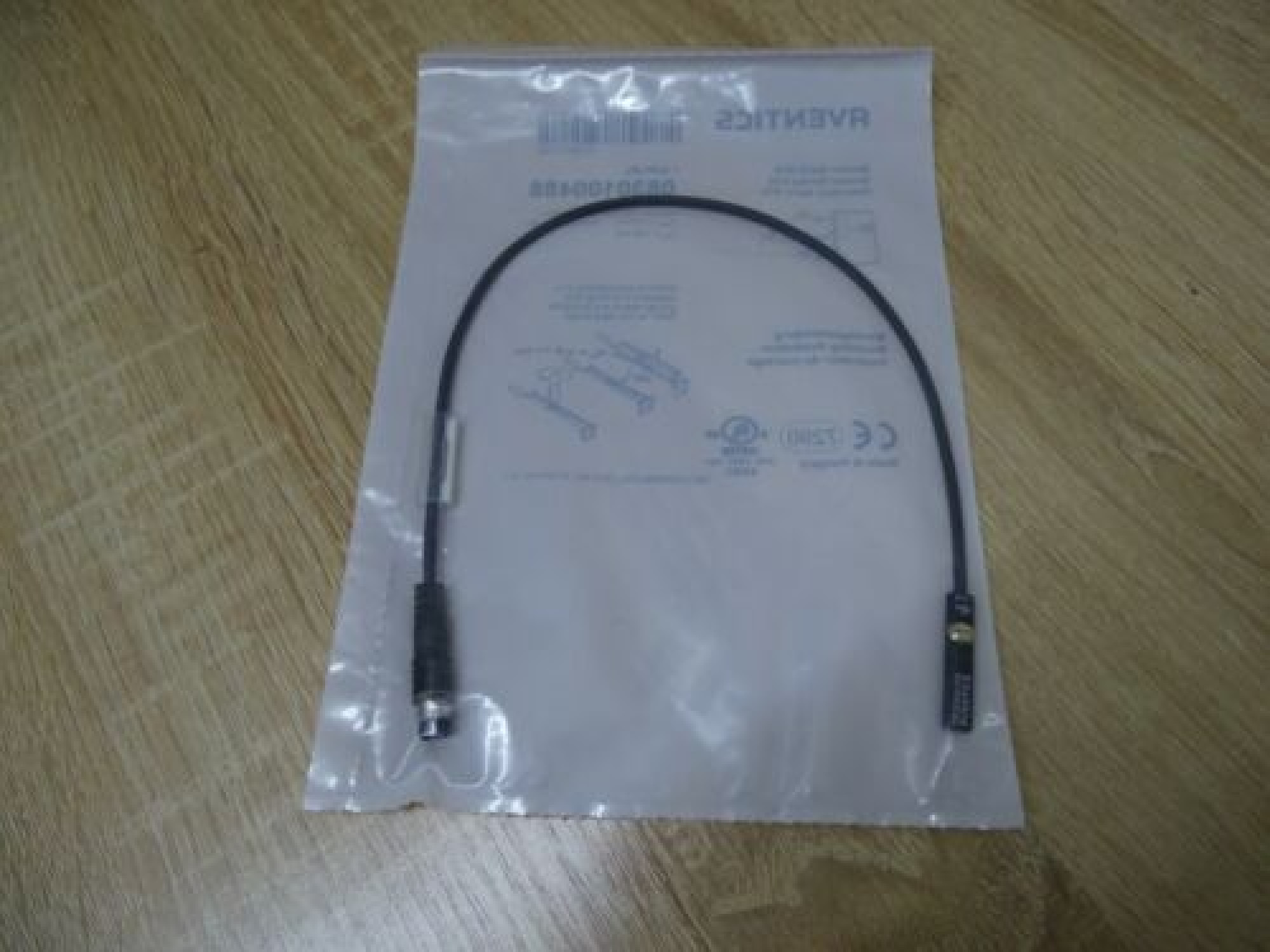

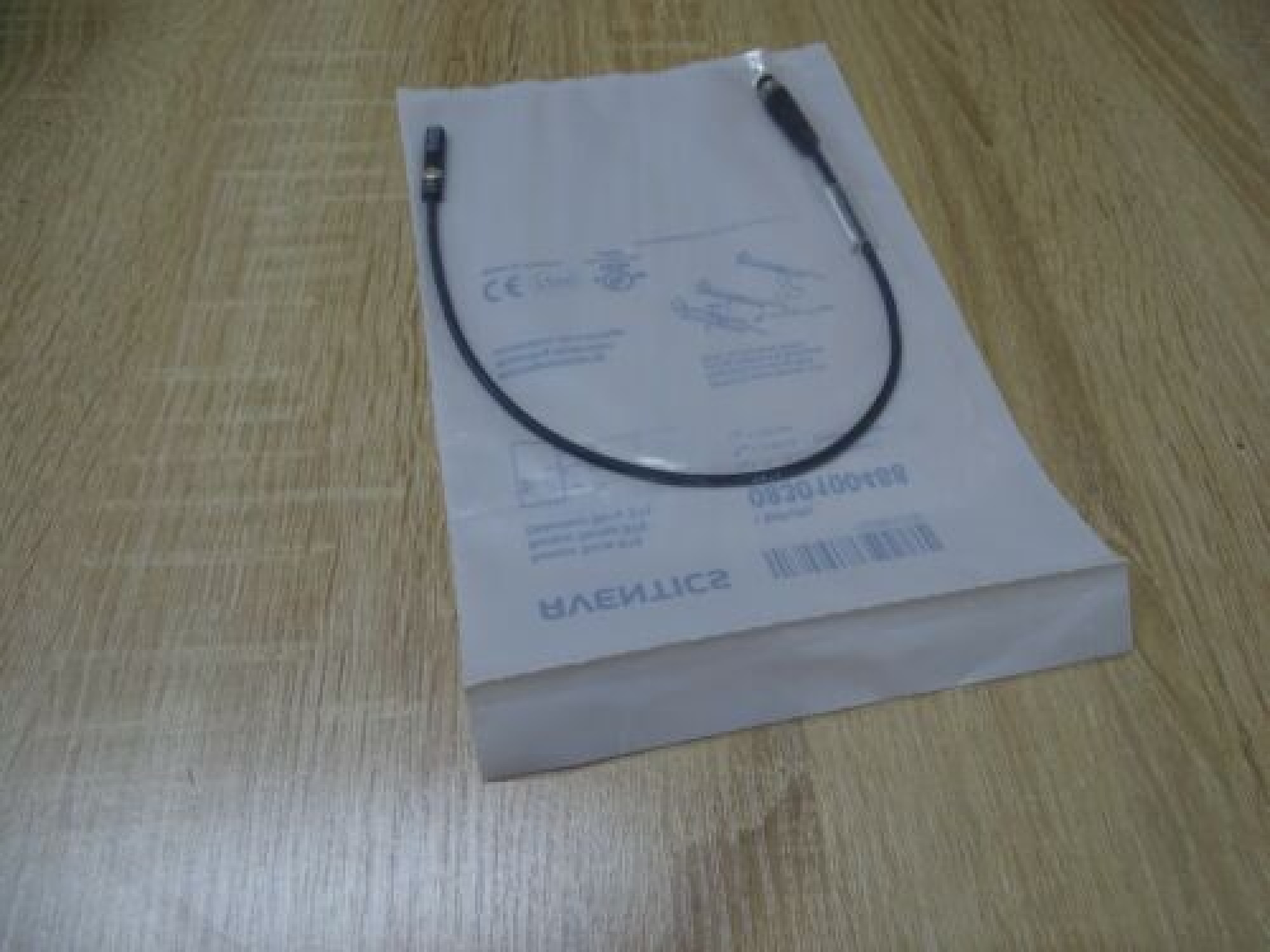

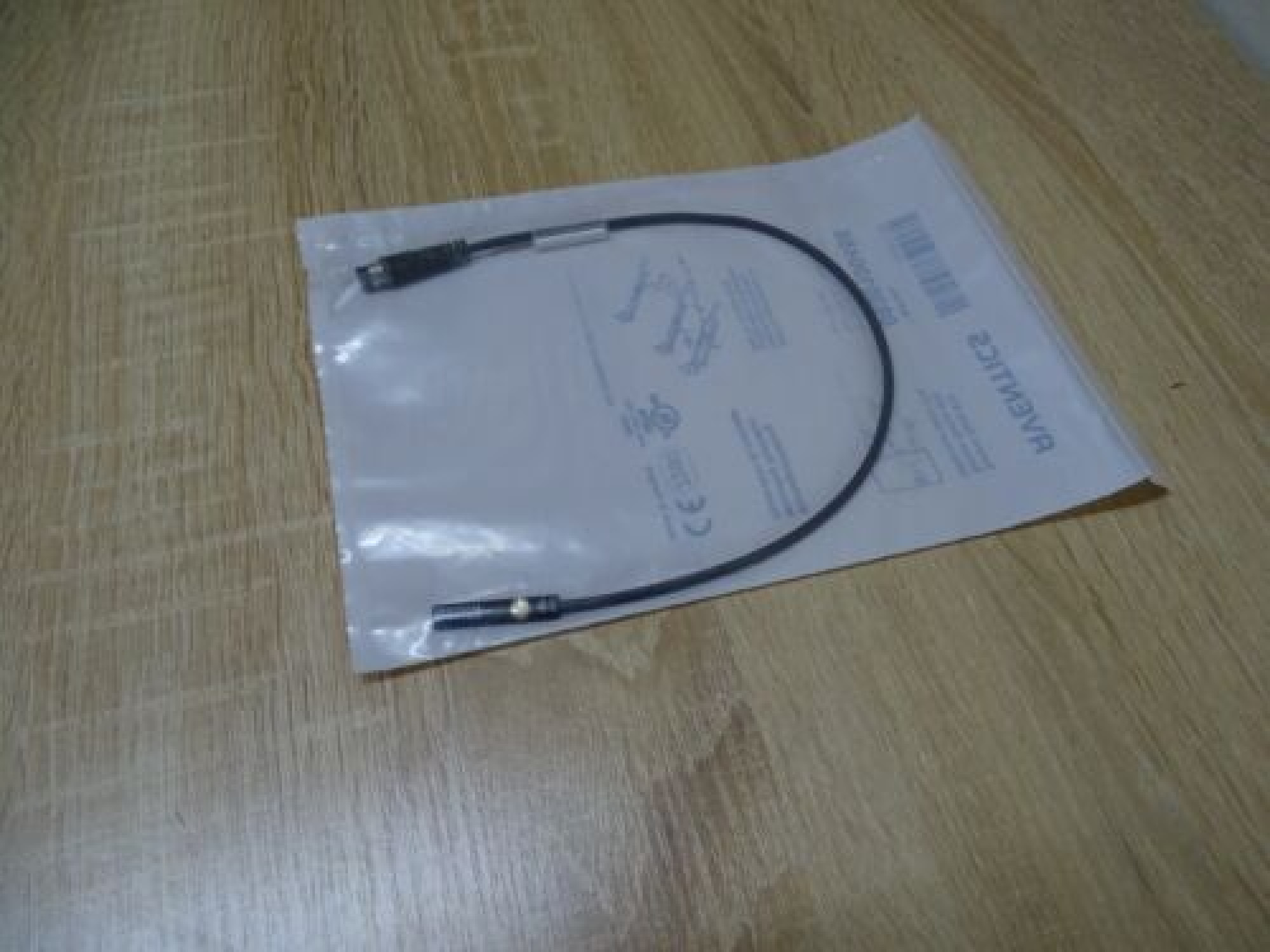

The Aventics 0830100488 is a Magnetic Reed Proximity Sensor from the Sensor Series ST6. Manufactured by Aventics (now part of Emerson), this sensor is primarily used in pneumatic systems, typically for reliable, non-contact detection of the piston position in pneumatic cylinders.

The sensor operates on a voltage range of 10 - 30 V DC and has a maximum current draw of 100 mA. It features a Reed contact output with a switching capacity of typically 3W/3VA. Designed for demanding industrial environments, it boasts a high degree of protection with IP65 and IP67 ratings. The operating ambient temperature range is specified as -25°C to +70°C.

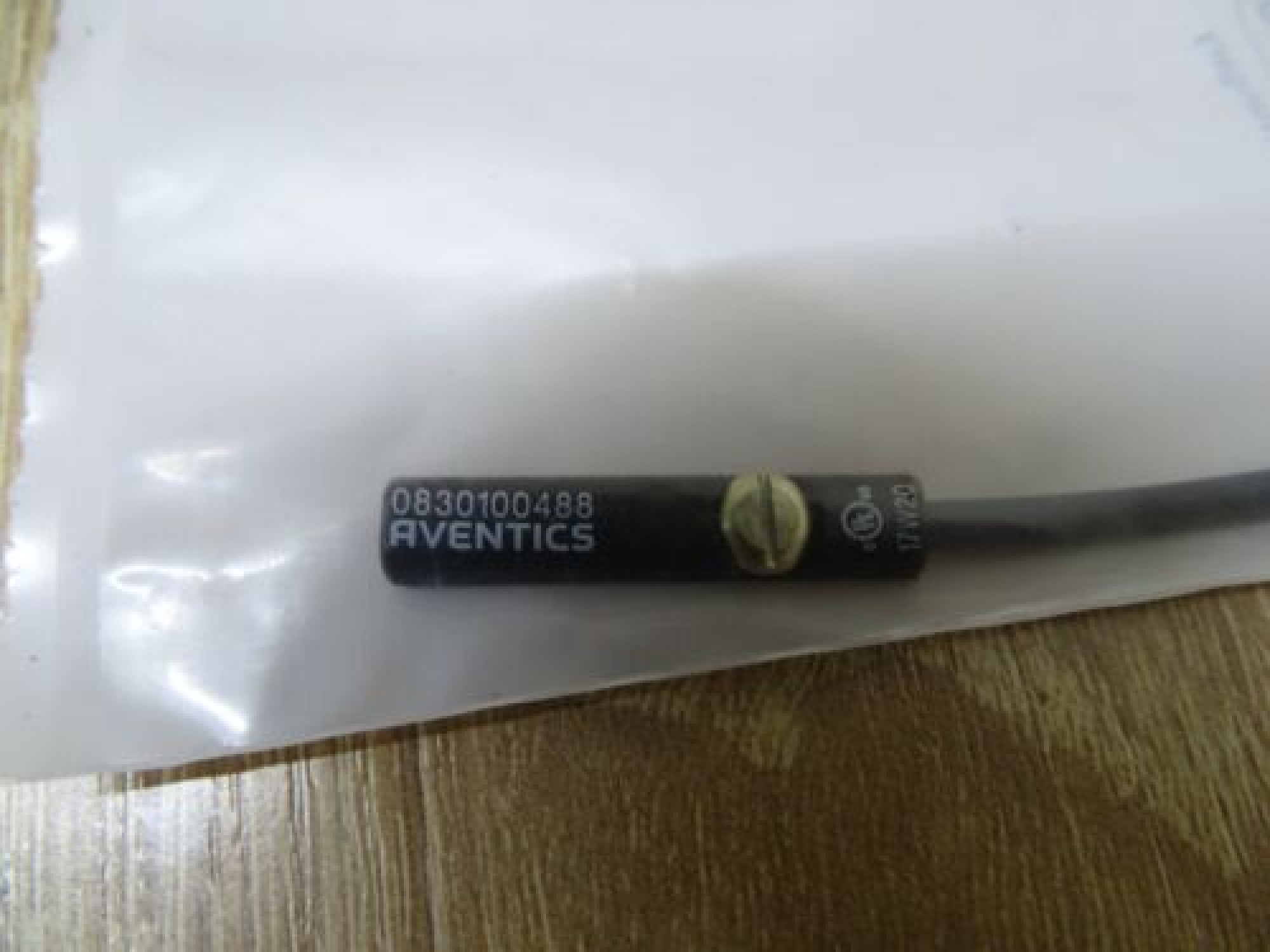

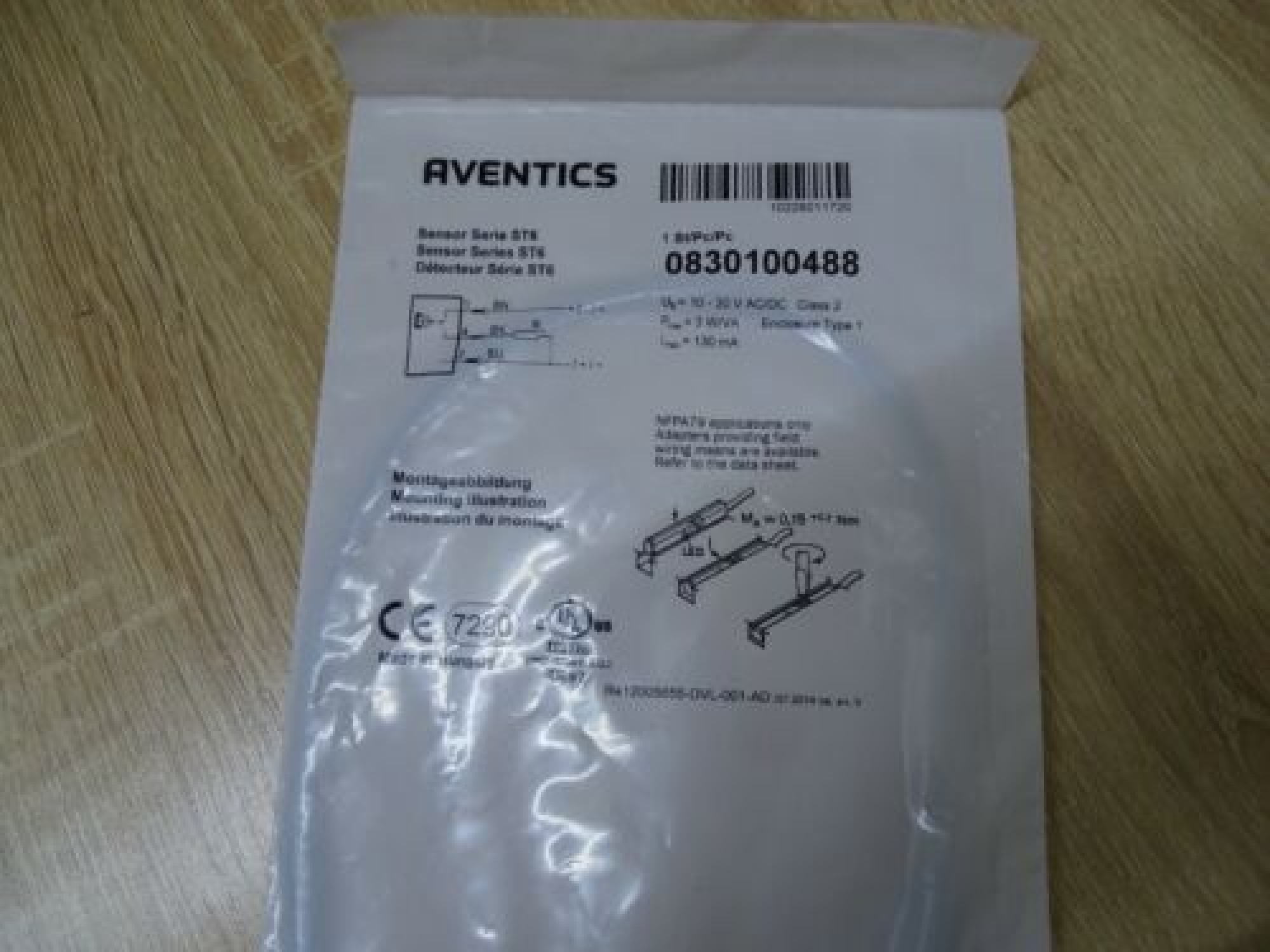

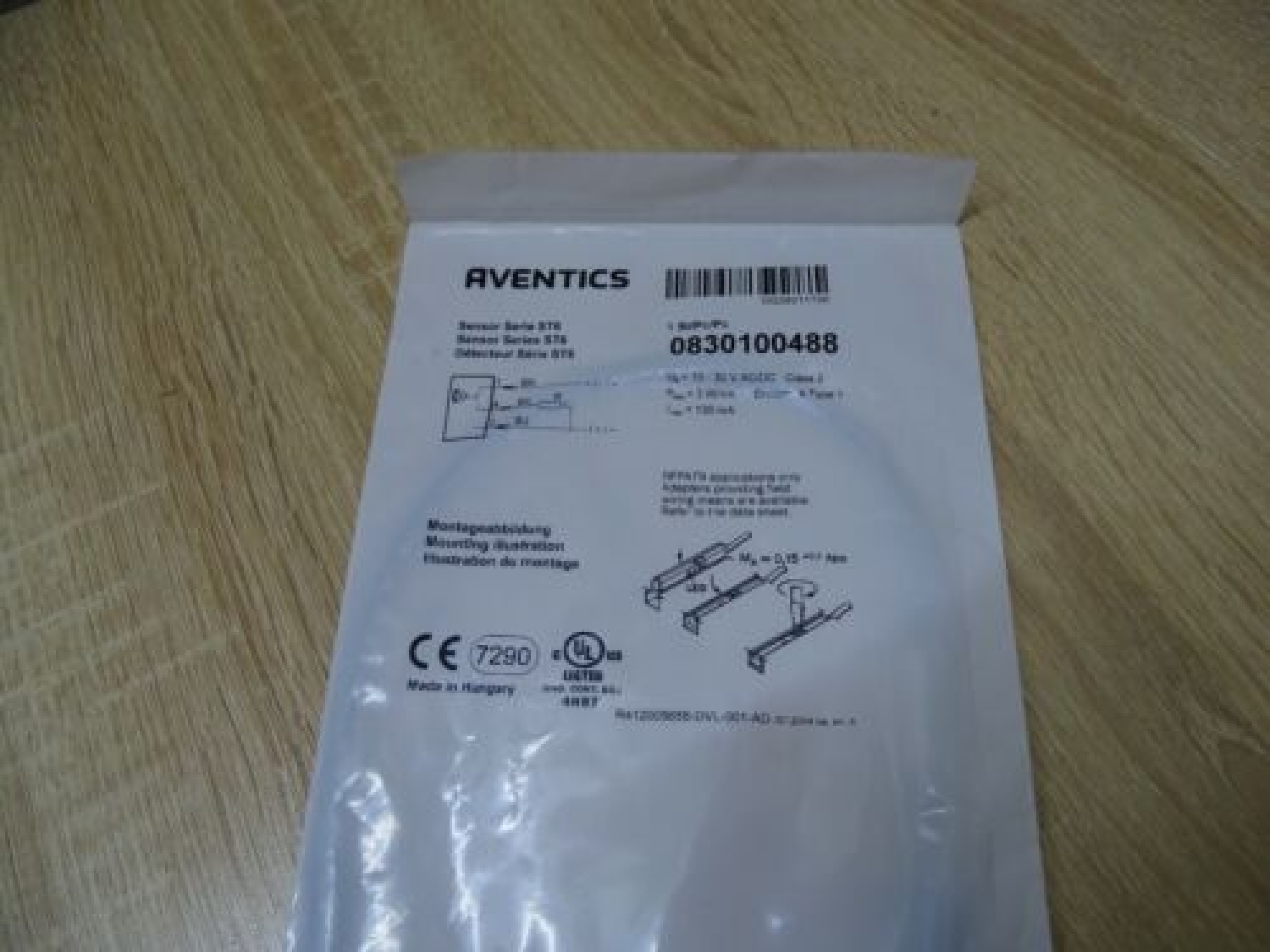

Key features derived from the label include the part number 0830100488, brand AVENTICS, and certifications such as CE, cULus LISTED, and EAC. The sensor is indicated as being Made in Hungary. Its robust design and certifications make it suitable for a wide range of pneumatic automation applications requiring precise position sensing.

Key Characteristics:

• Part Number: 0830100488
• Manufacturer: Aventics (Emerson)
• Series: ST6
• Type: Magnetic Reed Proximity Sensor
• Operating Voltage: 10 - 30 V DC
• Max Current: 100 mA
• Output Type: Reed (Switching Capacity typically 3W/3VA)
• Protection Rating: IP65, IP67
• Operating Temperature: -25°C to +70°C
• Certifications: CE, cULus LISTED, EAC
• Origin: Made in Hungary
• Application: Piston position detection in pneumatic cylinders
