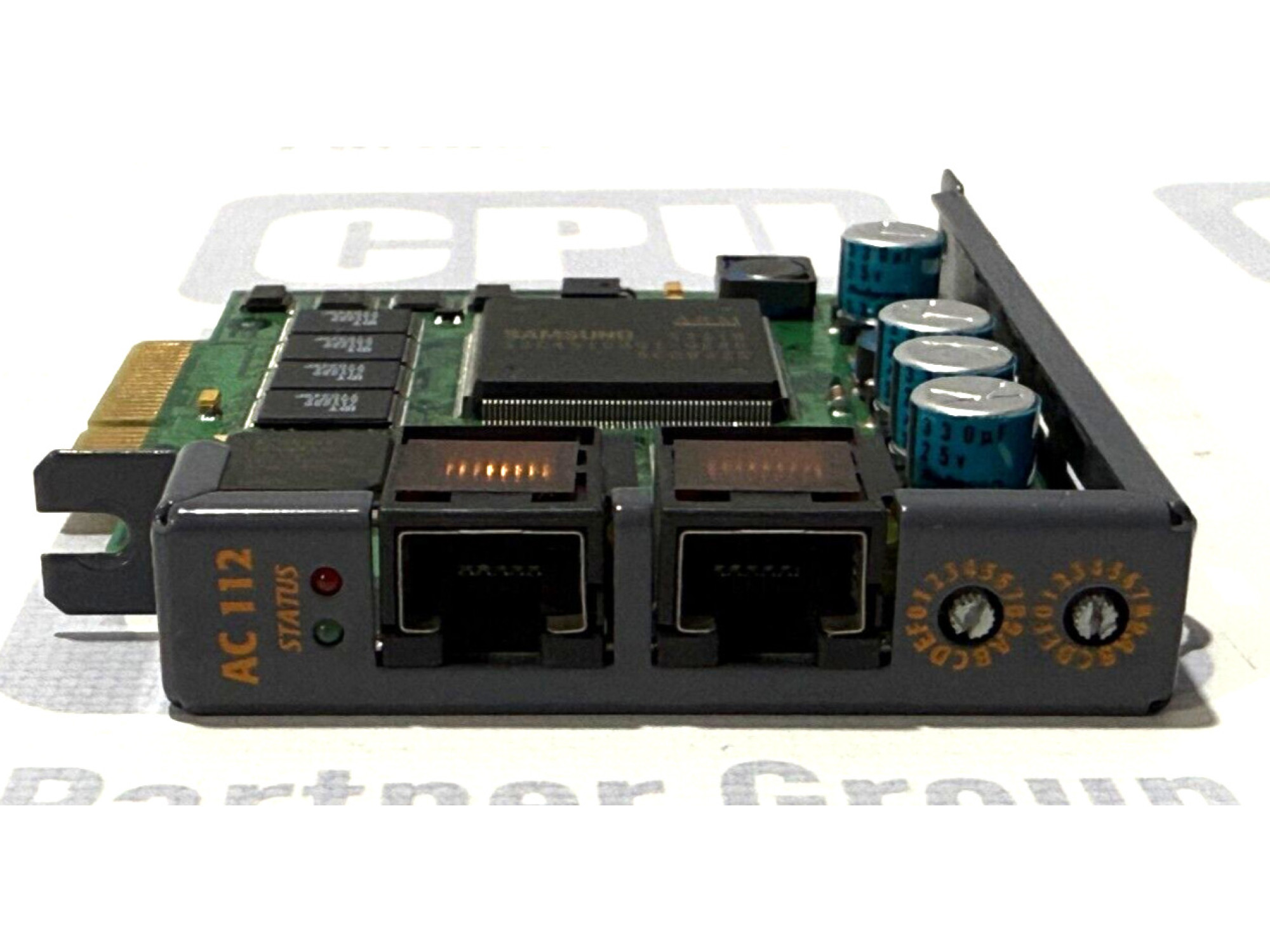

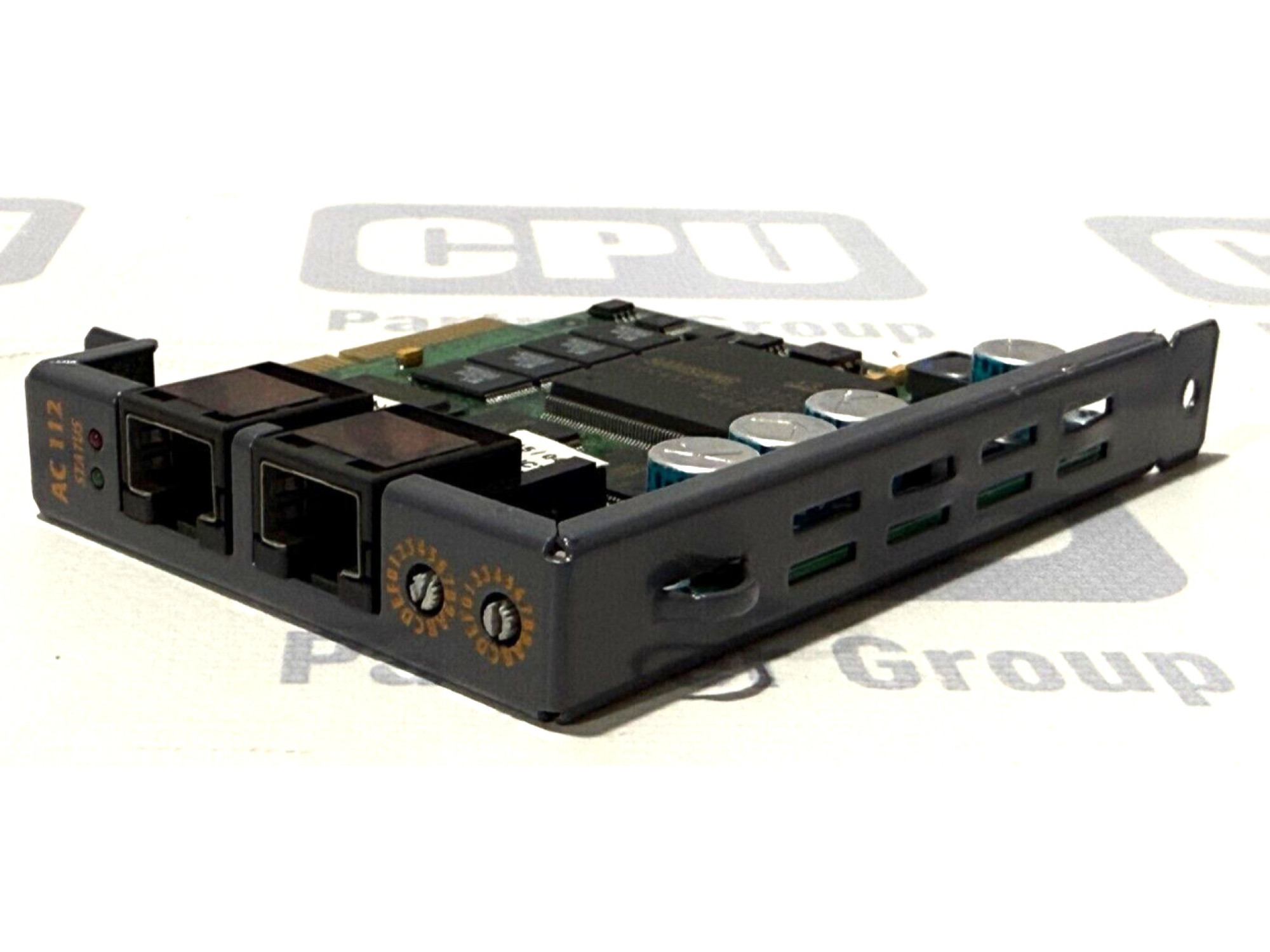

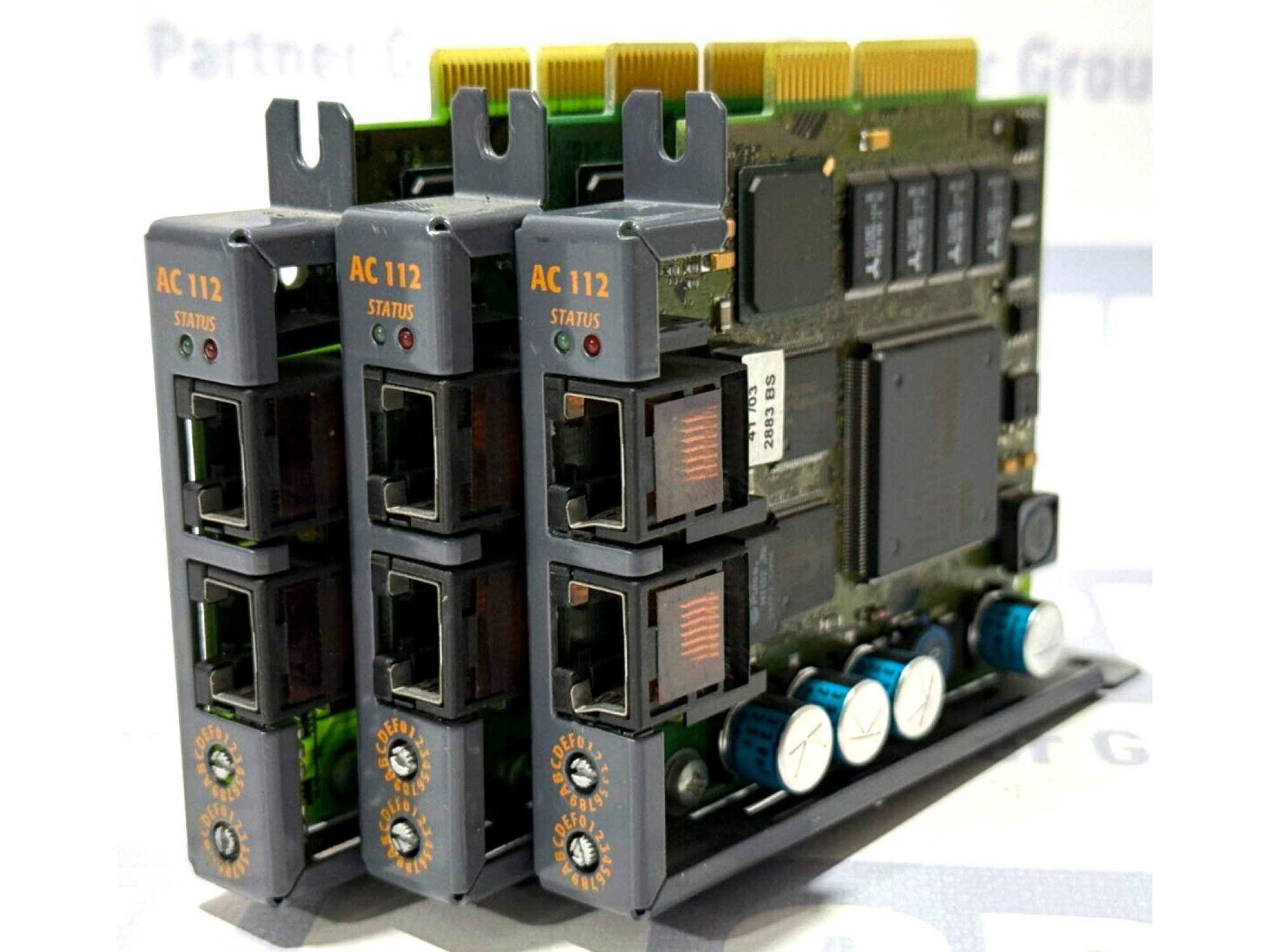

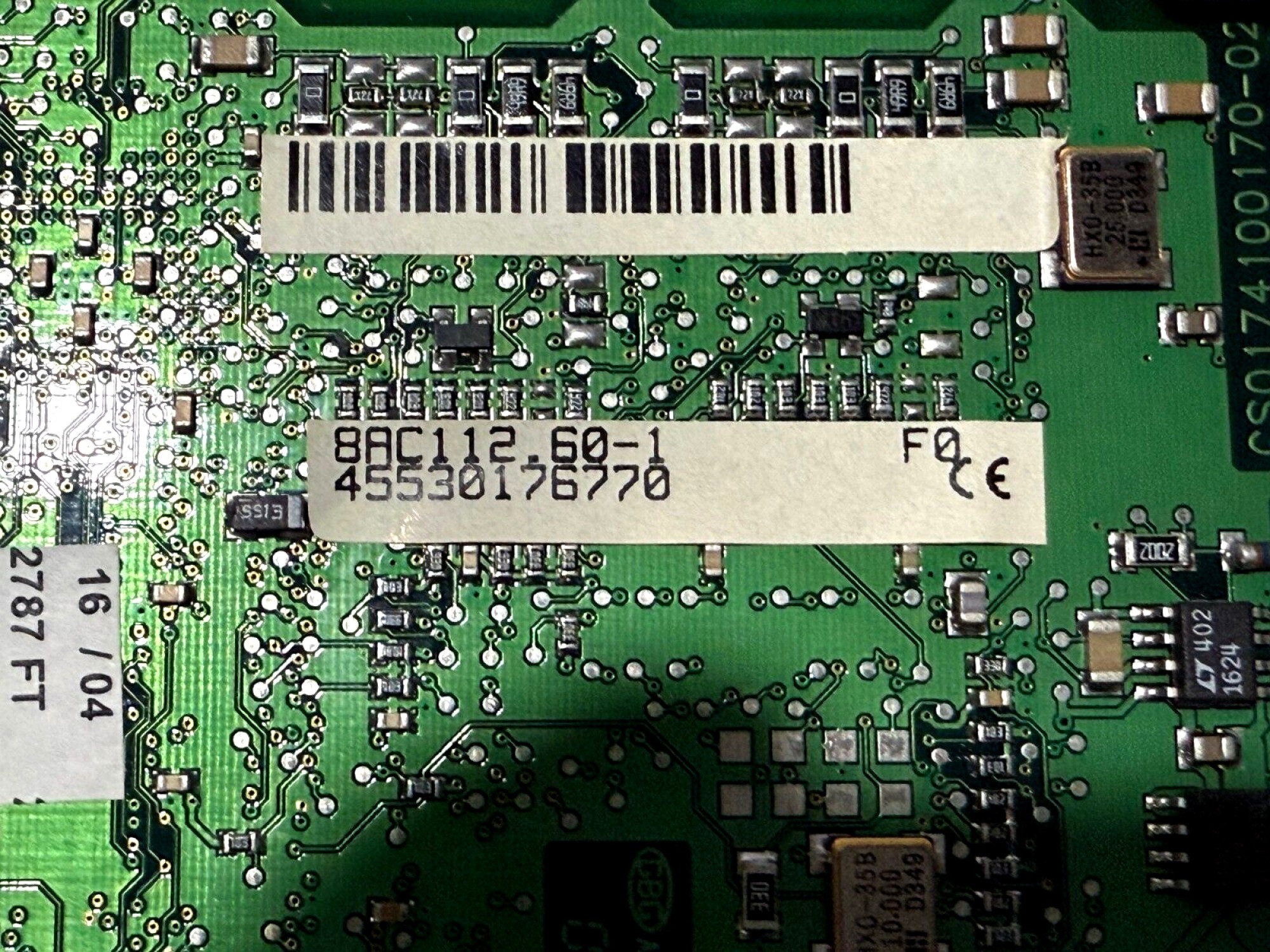

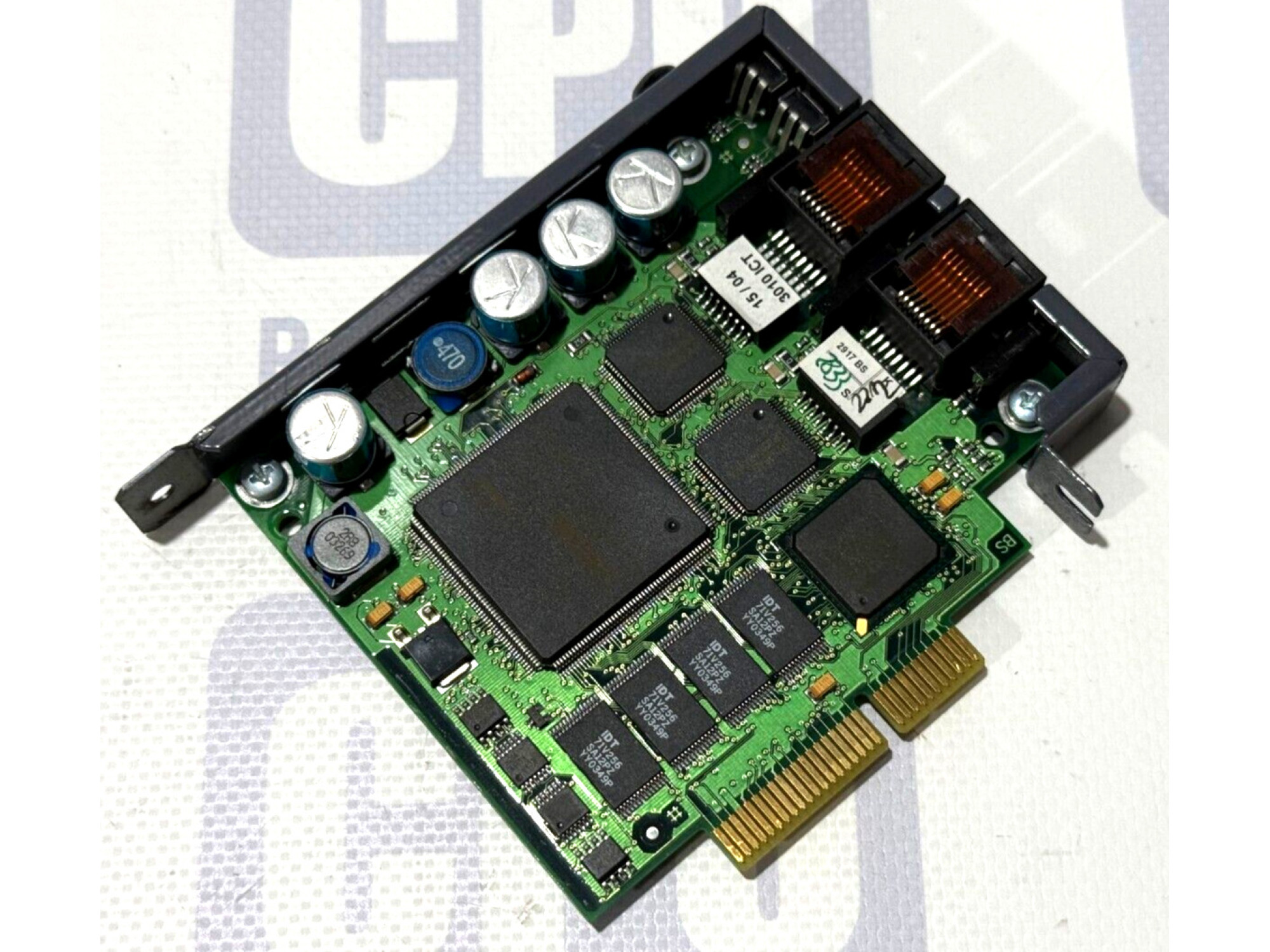

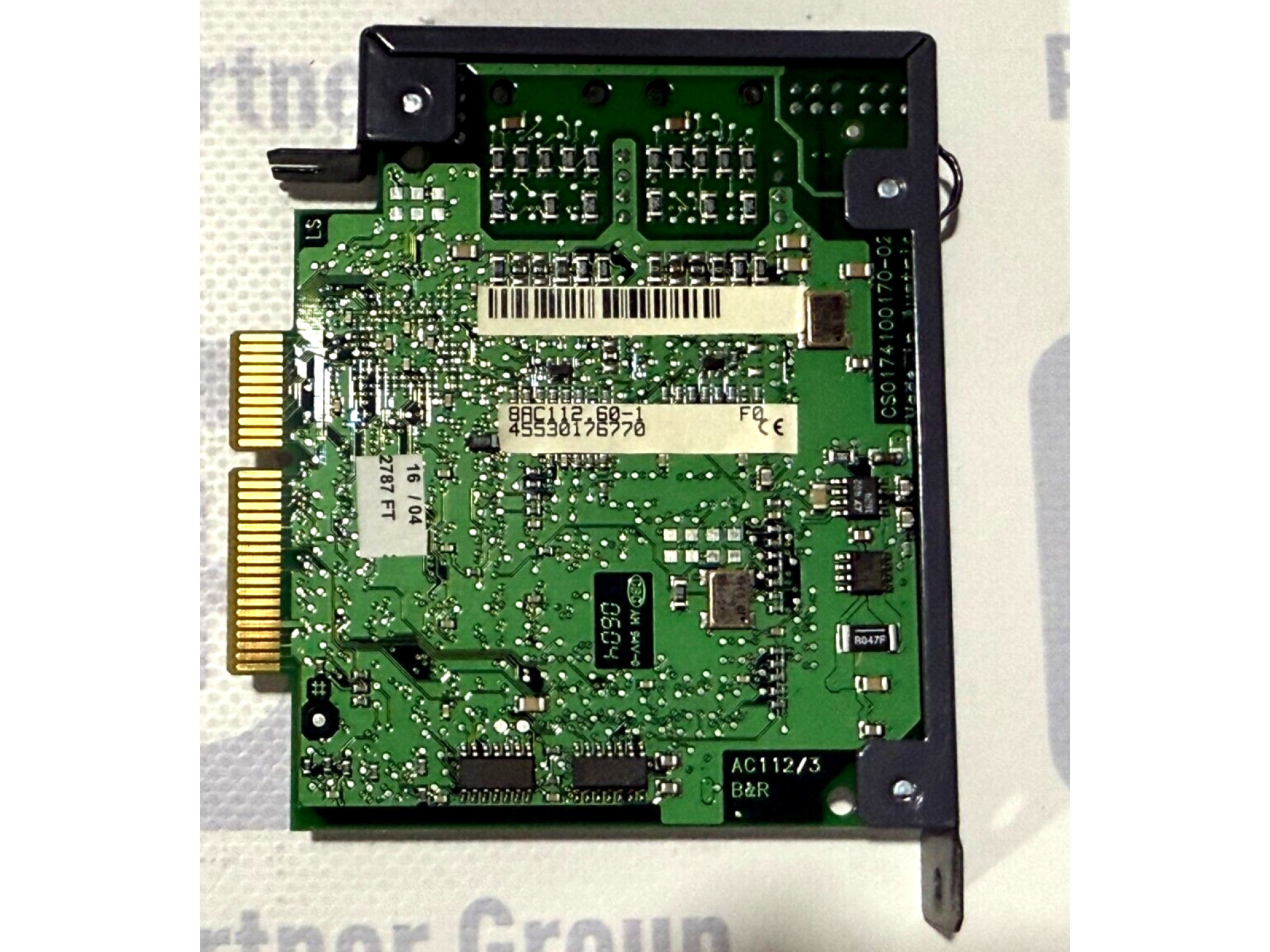

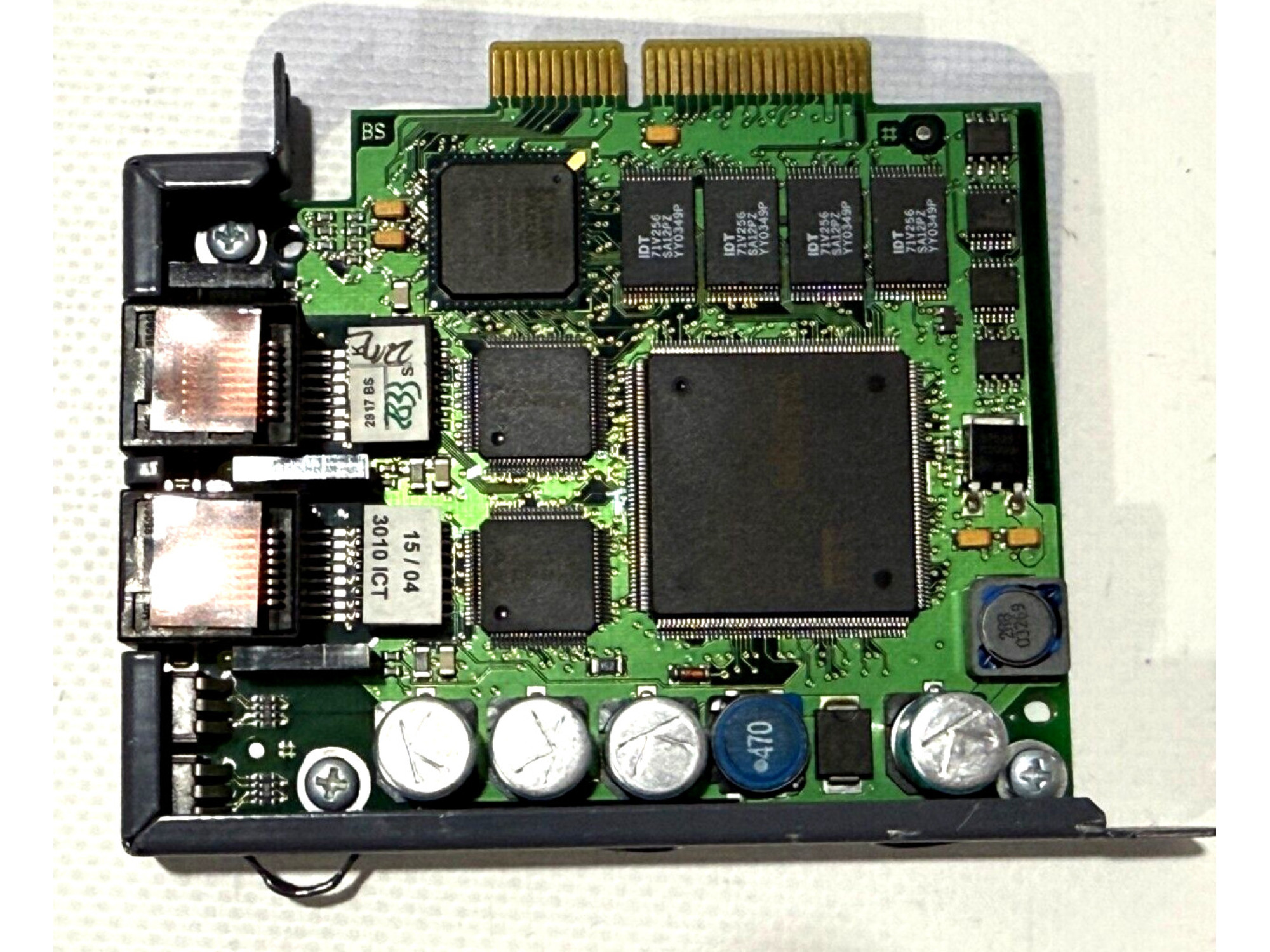

B&R ACOPOS AC112 8AC112.60-1 REV. F0

8AC112.60-1

Description:

POWERLINK interface for installation in ACOPOS servo drives
Integrated 2x hub for easy wiring
For communication and configuration of the ACOPOS servo drive for complex and time-critical applications
Node number can be set using switch

ACOPOS plug-in module, POWERLINK interface

Module type	ACOPOS plug-in module
B&R ID code	0x11C9
Slot	Slot 1
Support
Dynamic node allocation (DNA)	No
Power consumption	Max. 2.5 W
Certifications
CE	Yes
UL	cULus E225616 Power conversion equipment
KC	Yes

Interfaces

POWERLINK
Quantity	1
Module-side connection	2x RJ45 port
Status indicators	LED status indicators
Transfer rate	100 Mbit/s
2-port hub	Yes
Possible station operating modes	Synchronous to the POWERLINK cycle
Electrical isolation	Yes
Cabling topology	Star or tree with level 2 hubs
Maximum number of hub levels	10
Line length	Max. 100 m between two stations (segment length)
Network-capable	Yes
Watchdog functionality
Hardware	Yes (via ACOPOS servo drive)
Software	Yes (via ACOPOS servo drive)

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C
