Beckhoff KL2404 Digital Output Terminal 1 PCS

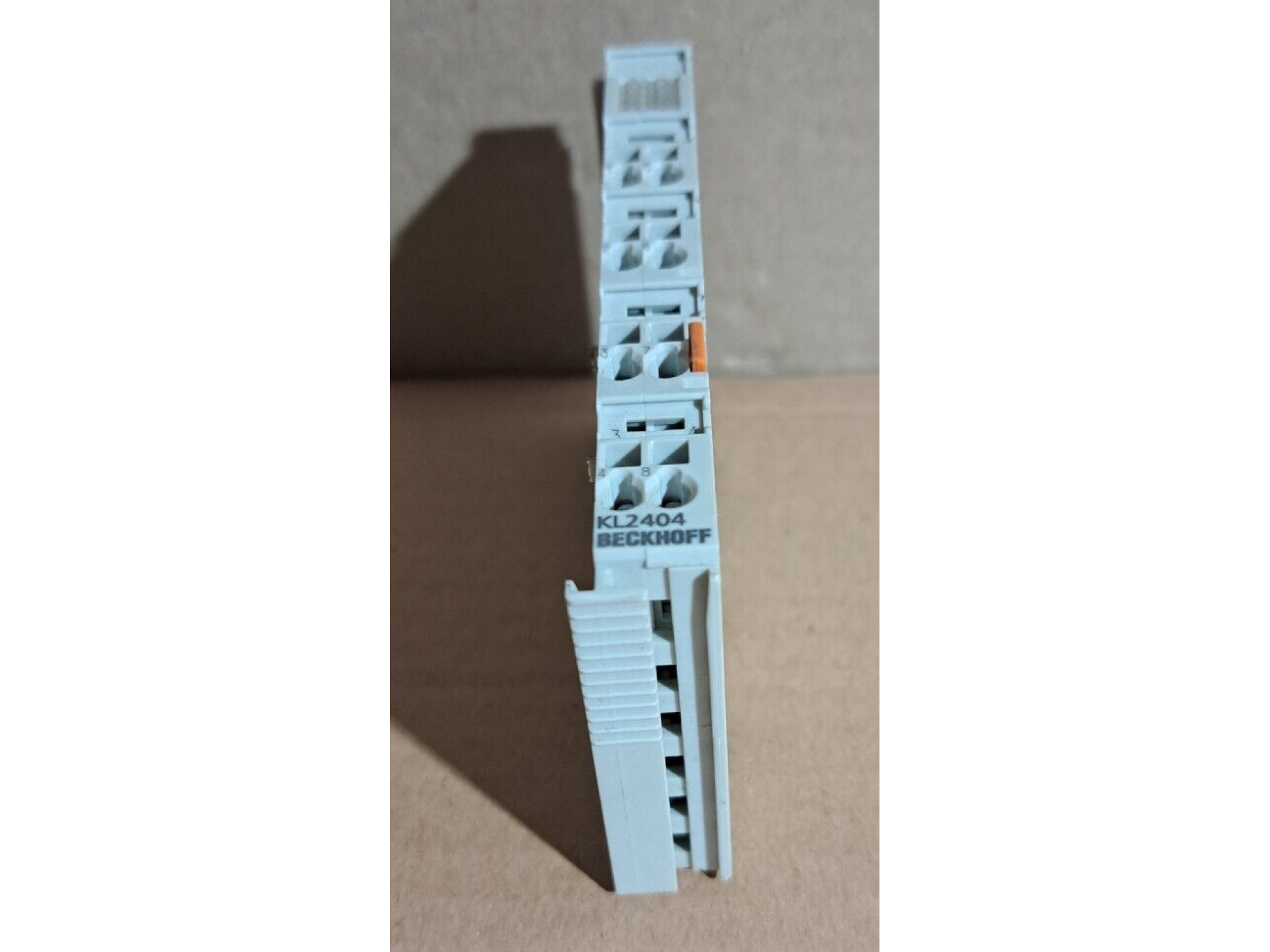

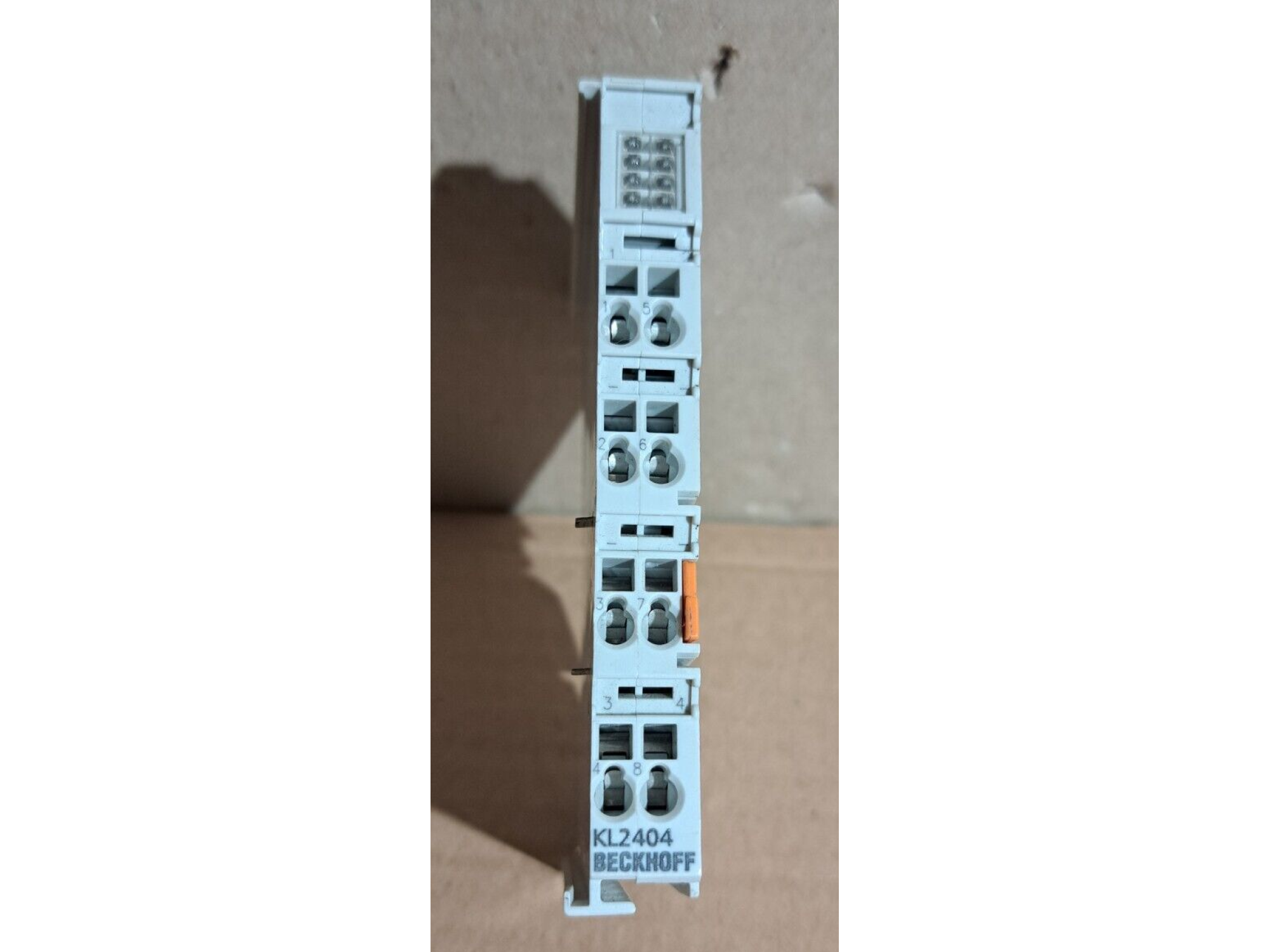

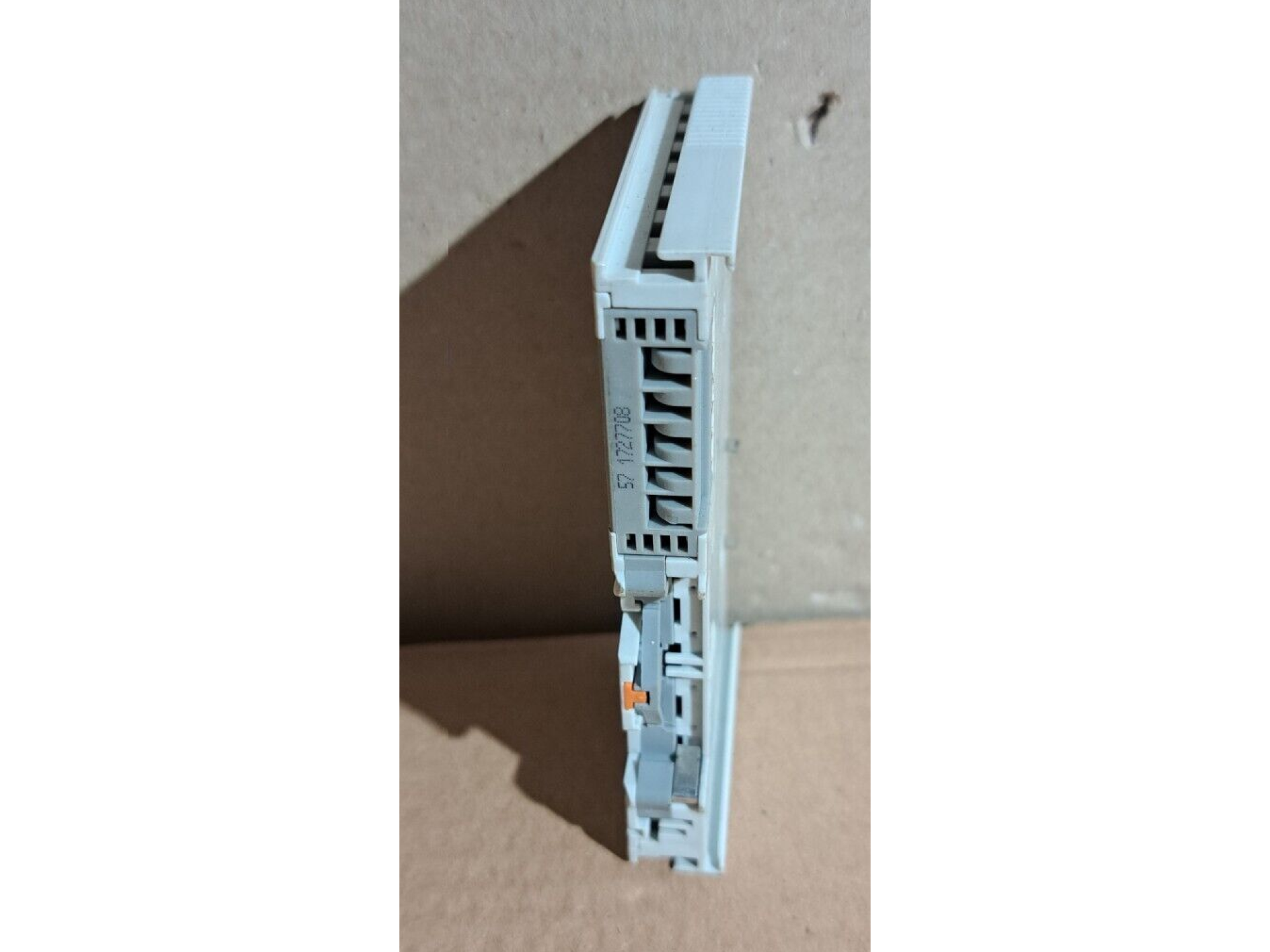

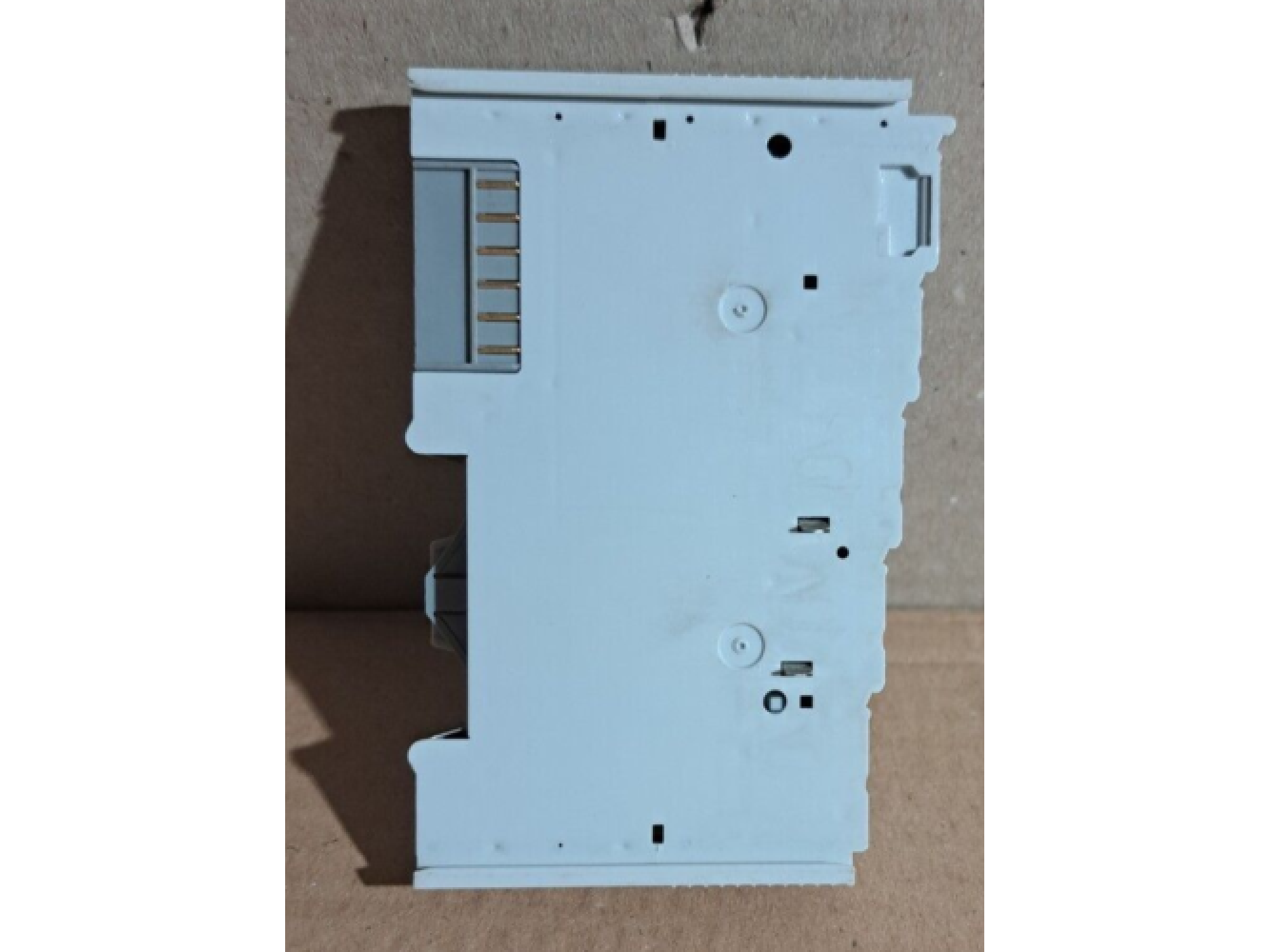

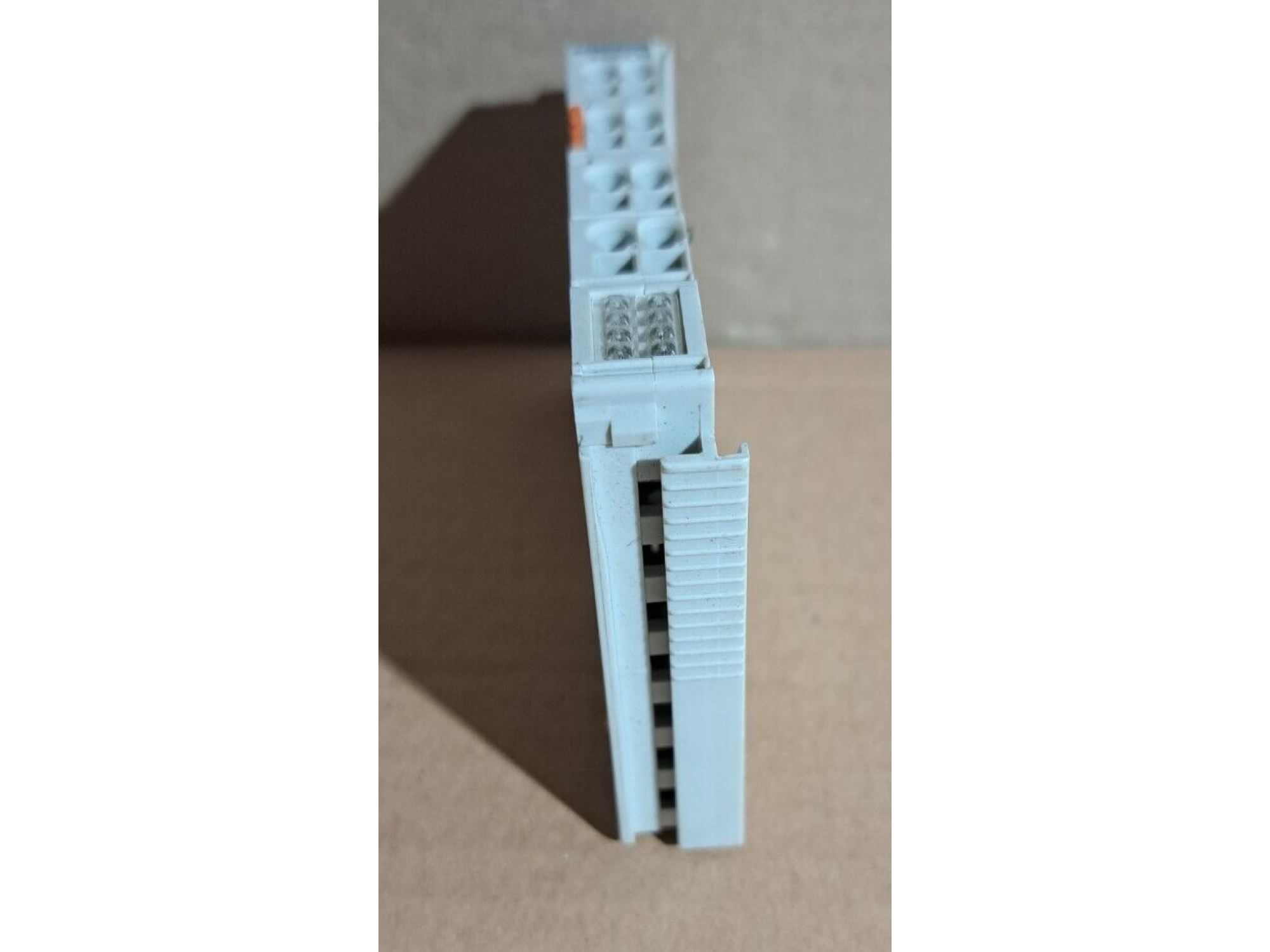

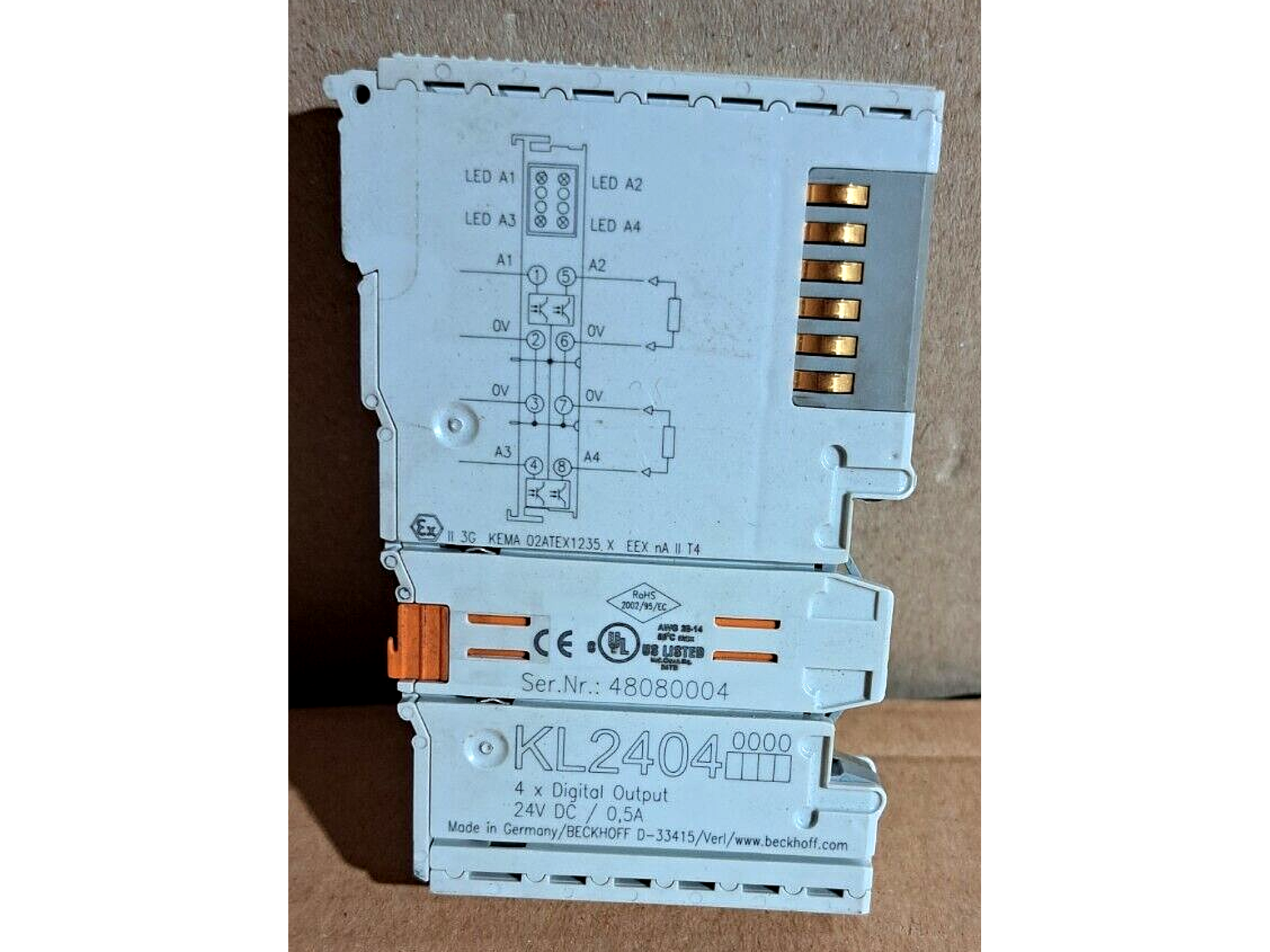

Beckhoff KL2404 Digital Output Terminal

The Beckhoff KL2404 digital output terminal is designed for use in Beckhoff Bus Terminal automation systems. It serves to output discrete signals, controlling actuators, relays, indicators, and other devices that require digital control in industrial processes. This is a compact and efficient solution for expanding control capabilities in decentralized I/O systems.

Key Features:

• Manufacturer: Beckhoff

• Model: KL2404

• Type: 4-channel digital output module

• Connection Technology: 2-wire

• Number of Channels: 4

• Rated Voltage: 24 V DC (-15% / +20%)

• Load Type: Ohmic, inductive, lamp load

• Maximum Output Current (per channel): 0.5 A (short-circuit proof)

• Short Circuit Current: < 2 A

• Breaking Energy: < 150 mJ/channel

• Reverse Voltage Protection: Yes

• Electrical Isolation: 500 V (K-Bus/field potential)

• K-Bus Current Consumption: Typ. 9 mA

• Power Contact Current Consumption: Typ. 30 mA + load

• Bit Width in Process Image: 4 output bits

• Configuration: No address or configuration settings required

• Materials: Durable plastic housing, typical for Beckhoff Bus Terminals.

• Connection: Terminals for connecting signal and power lines.

• Dimensions (W x H x D): 15 mm x 100 mm x 70 mm (connected width: 12 mm)

• Weight: Approx. 70 g

• Permissible Ambient Temperature: -25°C ... +60°C in operation

• Relative Humidity: 95%, no condensation

• Vibration / Shock Resistance: Conforms to EN 60068-2-6/EN 60068-2-27

• EMC Resistance/Emission: Conforms to EN 61000-6-2/EN 61000-6-4

• Protection Class: IP20

• Approvals: CE, ULus, ATEX.

• Manufacturing: Made in Germany (Beckhoff Automation GmbH, Verl, Germany).

Unique Advantages & Features:

• Compactness: The Bus Terminal form factor provides high channel density and space savings in control cabinets.

• Easy Connection: The 4-channel Bus Terminals enable direct connection of four 2-wire sensors, with four ground connection points provided.

• Reliability: Beckhoff products are known for their quality and durability, ensuring stable operation in industrial environments.

• Simple Diagnostics: Individual LED indicators for each channel significantly simplify status monitoring and quick fault diagnosis.

• Versatile Application: Ideally suited for a wide range of automation tasks, from simple control systems to complex industrial complexes.

• Integration: Easily integrates into existing Beckhoff systems and other compatible platforms.

• Robust Protection: Includes short-circuit and reverse polarity protection per channel.

• Flexible Temperature Range: A wide operating temperature range from -25°C to +60°C makes it suitable for various industrial environments.




  Data sheet

  https://cpupartnergroup.com/image/pdf/kl2404_kl2424en.pdf
