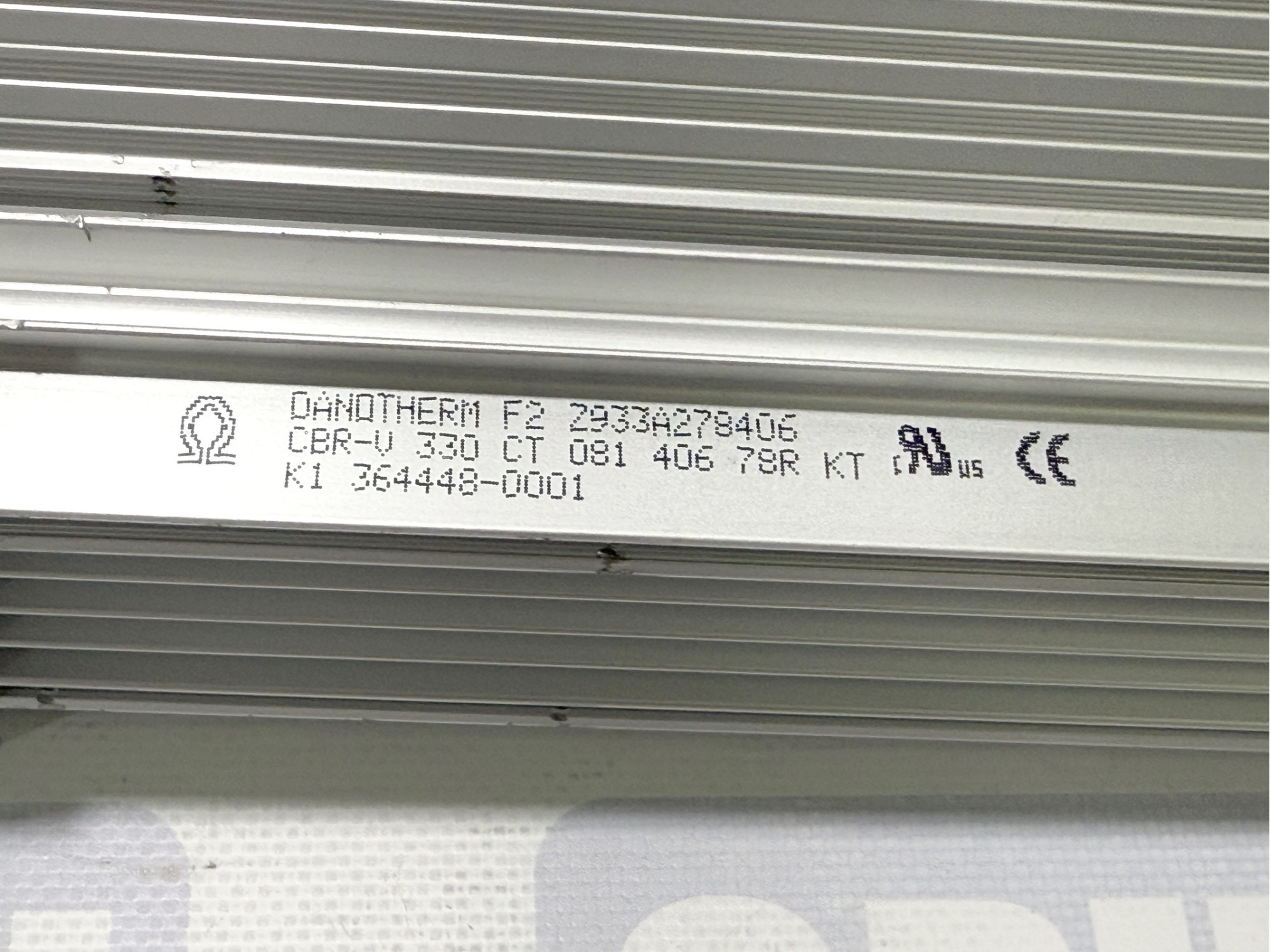

Danotherm CBR-V 330 CT Power Resistor

Danotherm CBR-V 330 CT Power Resistor

General Description

Danotherm CBR resistors are passive power resistors designed for efficient cooling and optimal protection against solid particles and liquids. They are UL certified and housed in compact aluminum enclosures. The CBR-V 330 CT is part of the CBR series, specifically designed for high-reliability applications.

Main Technical Specifications

Electrical Parameters:

• Rated Power: 330 W with natural air cooling
• Series Power Range: 160 – 1700 W with natural air cooling
• Primary Resistive Element: Nickel-chromium alloy with very low temperature drift for enhanced accuracy

Design Features:

• Housing: Aluminum with compact design
• Cooling: Cooling fins for optimized heat dissipation
• Protection: UL certification for safety
• Power Enhancement Capability: Higher power can be achieved with forced air cooling

Technical Advantages

Material Characteristics:

• Very low temperature drift of the resistive element
• High measurement accuracy
• Reliable operation in industrial environments

Cooling and Heat Dissipation:

• Optimized design with cooling fins
• Efficient natural convection
• Capability for forced cooling to increase power

Applications

These resistors are commonly used in small inverter drive systems as braking resistors, as well as in:

• Power electronics
• Motor control systems
• Braking circuits of frequency converters
• High-reliability industrial equipment
• Energy recovery systems

CBR Series

CBR resistors are designed for use in various high-reliability applications, making the CBR-V 330 CT a suitable choice for mission-critical industrial systems where precise power dissipation and long-term stability are required.

Advantages

• Compact aluminum housing for efficient heat dissipation
• UL certification for international applications
• Low temperature drift for stable operation
• Capability to operate with both natural and forced cooling
• High reliability in industrial environments

The CBR-V 330 CT represents a reliable solution for applications requiring precise power control and efficient heat dissipation in a compact housing.

On this page you will find the user manual for Danotherm CBH / CBV / CBR-H / CBR-V Series. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for Danotherm CBH / CBV / CBR-H / CBR-V Series

https://cpupartnergroup.com/image/pdf/CBH%20-%20CBV%20-%20CBR.pdf
