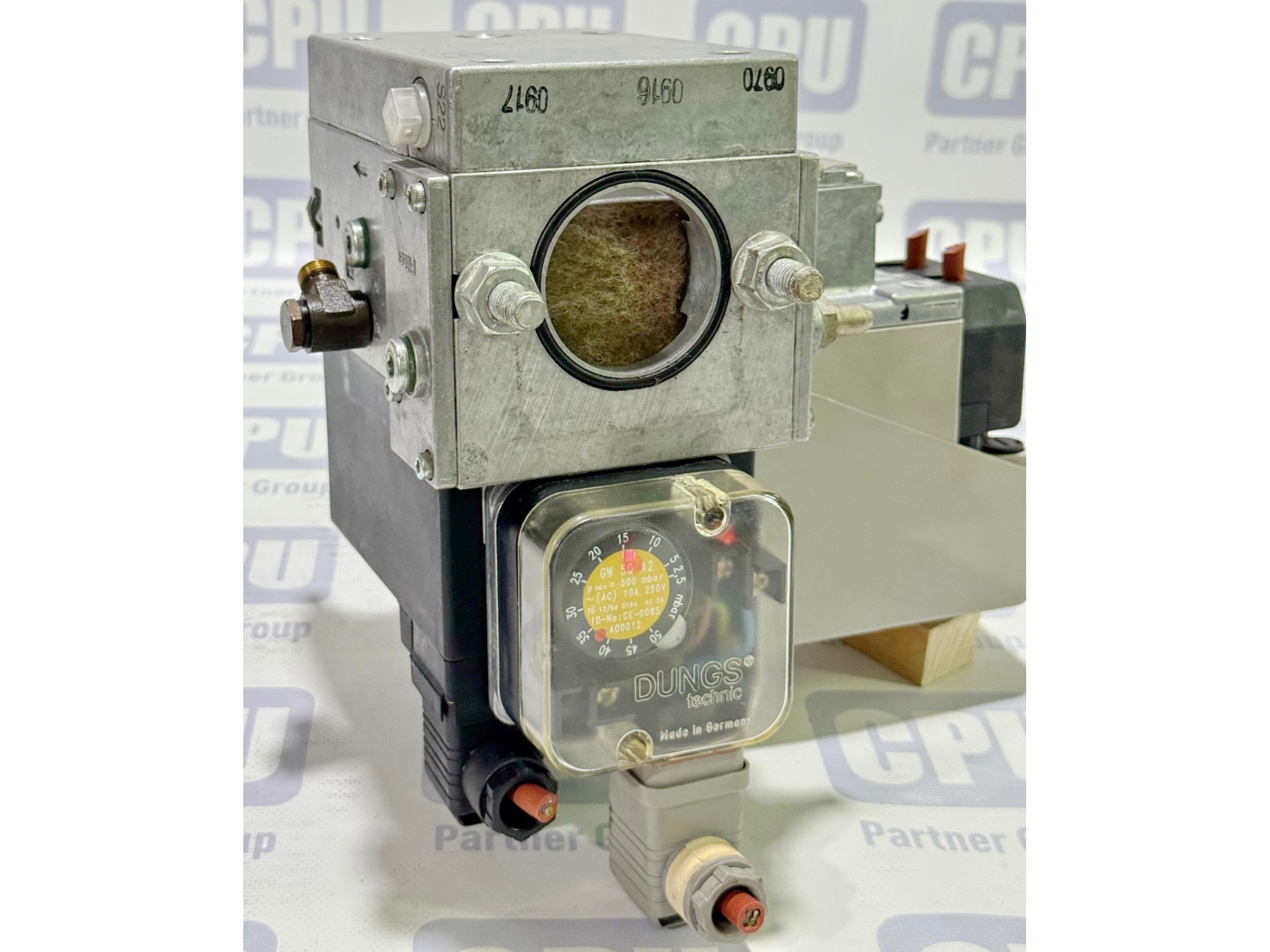

DUNGS VPS 504 S02 Valve proving system & MB-DLE 412 B01 GasMultiBloc BD/4 1 pcs

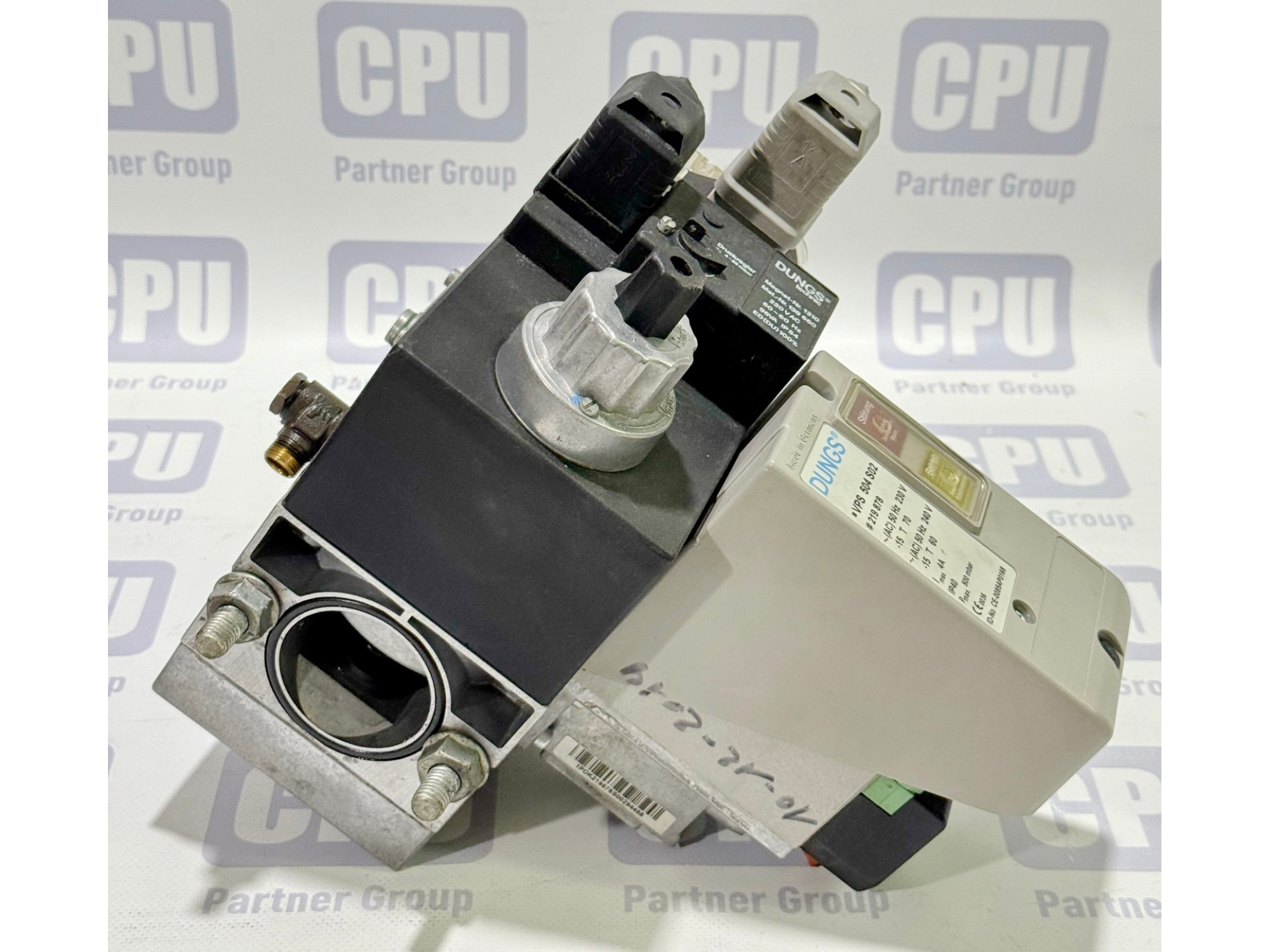

DUNGS VPS 504 S02 Valve proving system & MB-DLE 412 B01 GasMultiBloc BD/4

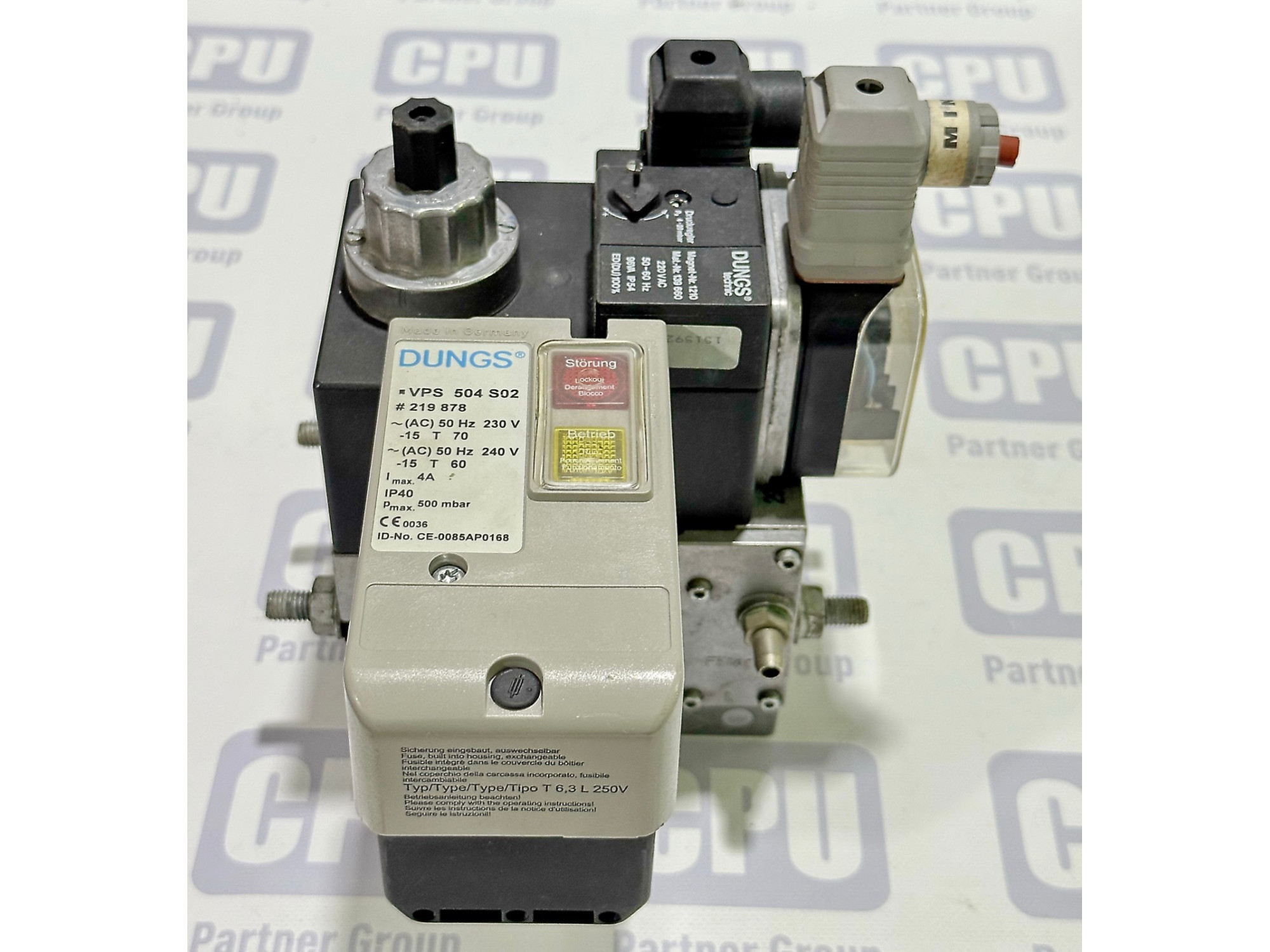

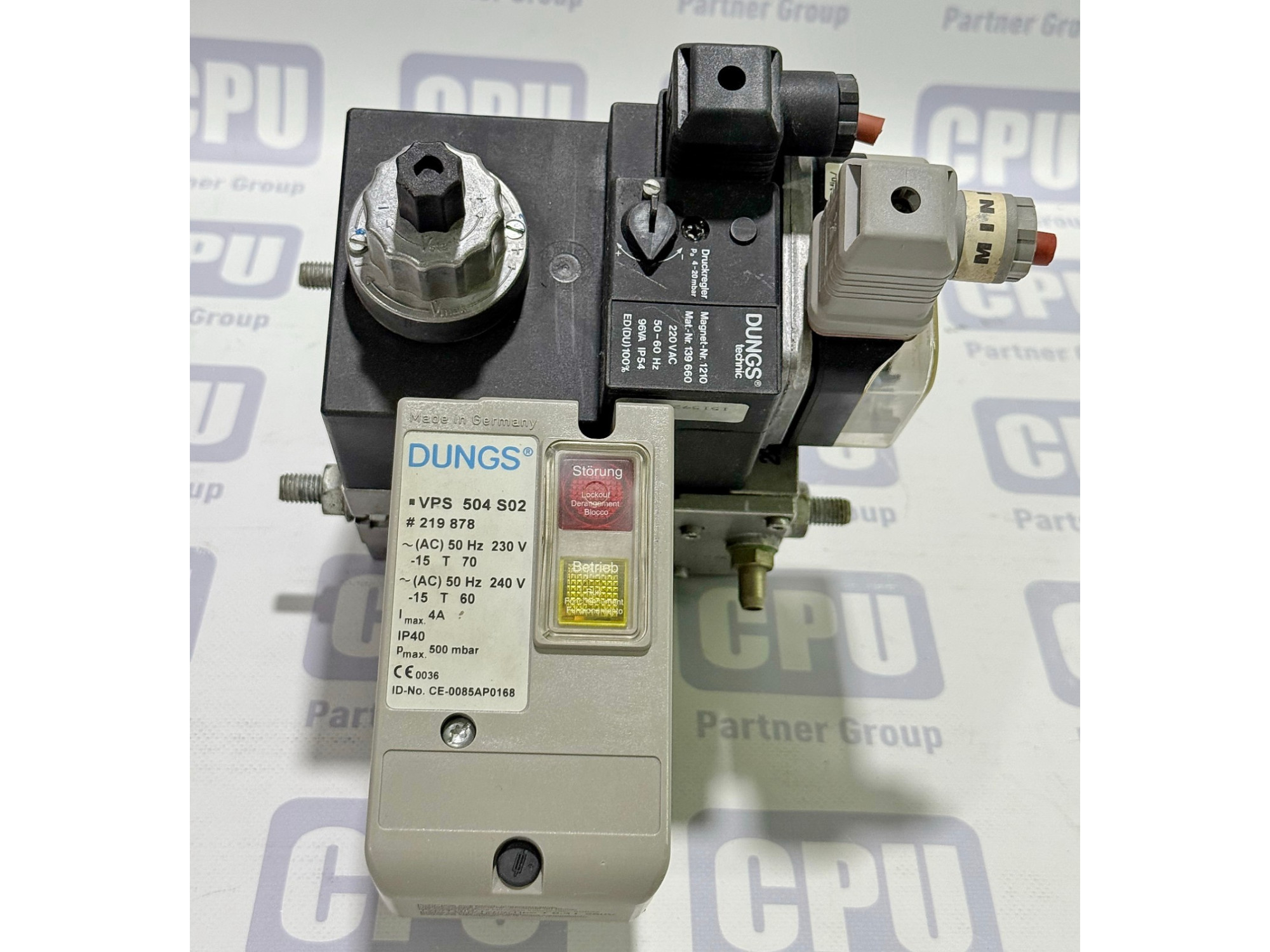

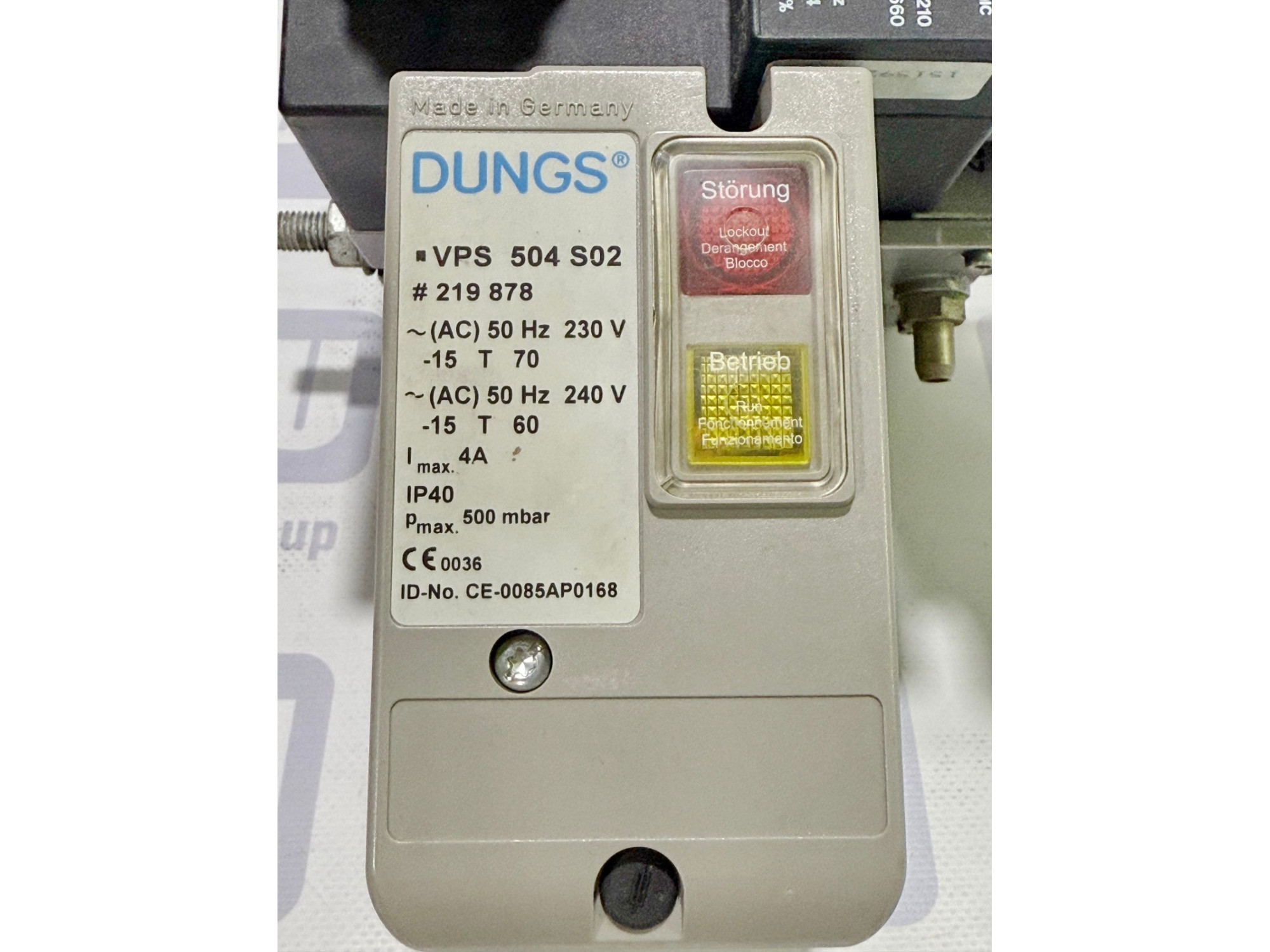

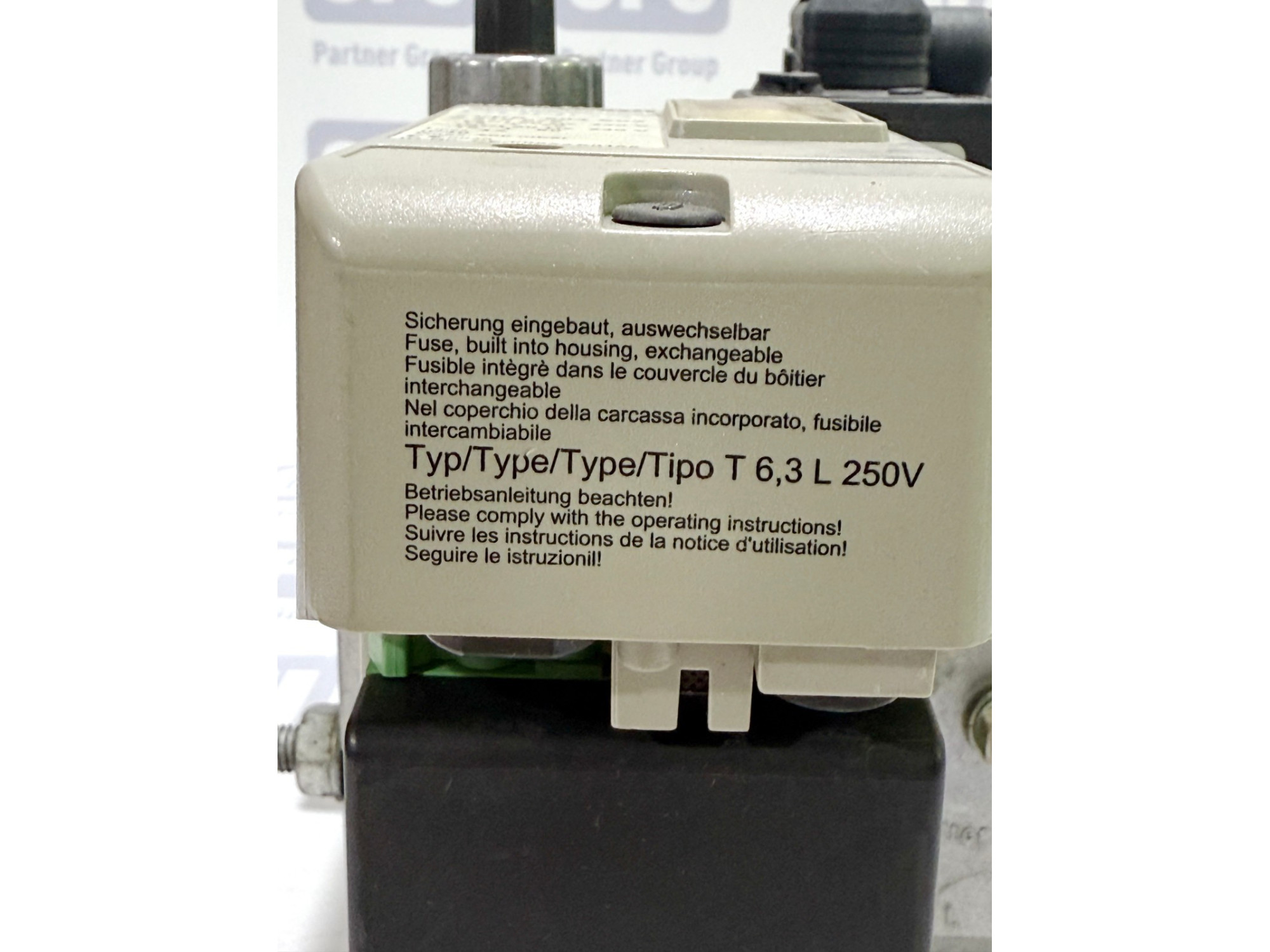

DUNGS VPS 504 S02 Valve Proving System

Description:
The DUNGS VPS 504 S02 is a valve proving system designed to check the tightness of automatic shut-off valves before or after burner operation. It enhances safety in gas and combustion systems by detecting leaks in the valves, thereby preventing uncontrolled gas leakage and reducing the risk of explosions or fire hazards. This system is typically used in industrial burners, heating systems, and other gas-related applications.

Specifications:

• Type: Valve proving system for automatic shut-off valves

• Test Method: Pressure-based leak detection

• Nominal Voltage: 110–120 V AC or 220–240 V AC (depending on version)

• Power Consumption: Low operating power requirement

• Pressure Range: Suitable for low and medium pressure gas applications

• Operating Temperature: –15 °C to +60 °C

• Mounting: For integration with DUNGS gas trains and control systems

• Applications: Gas burners, heating systems, and industrial combustion installations

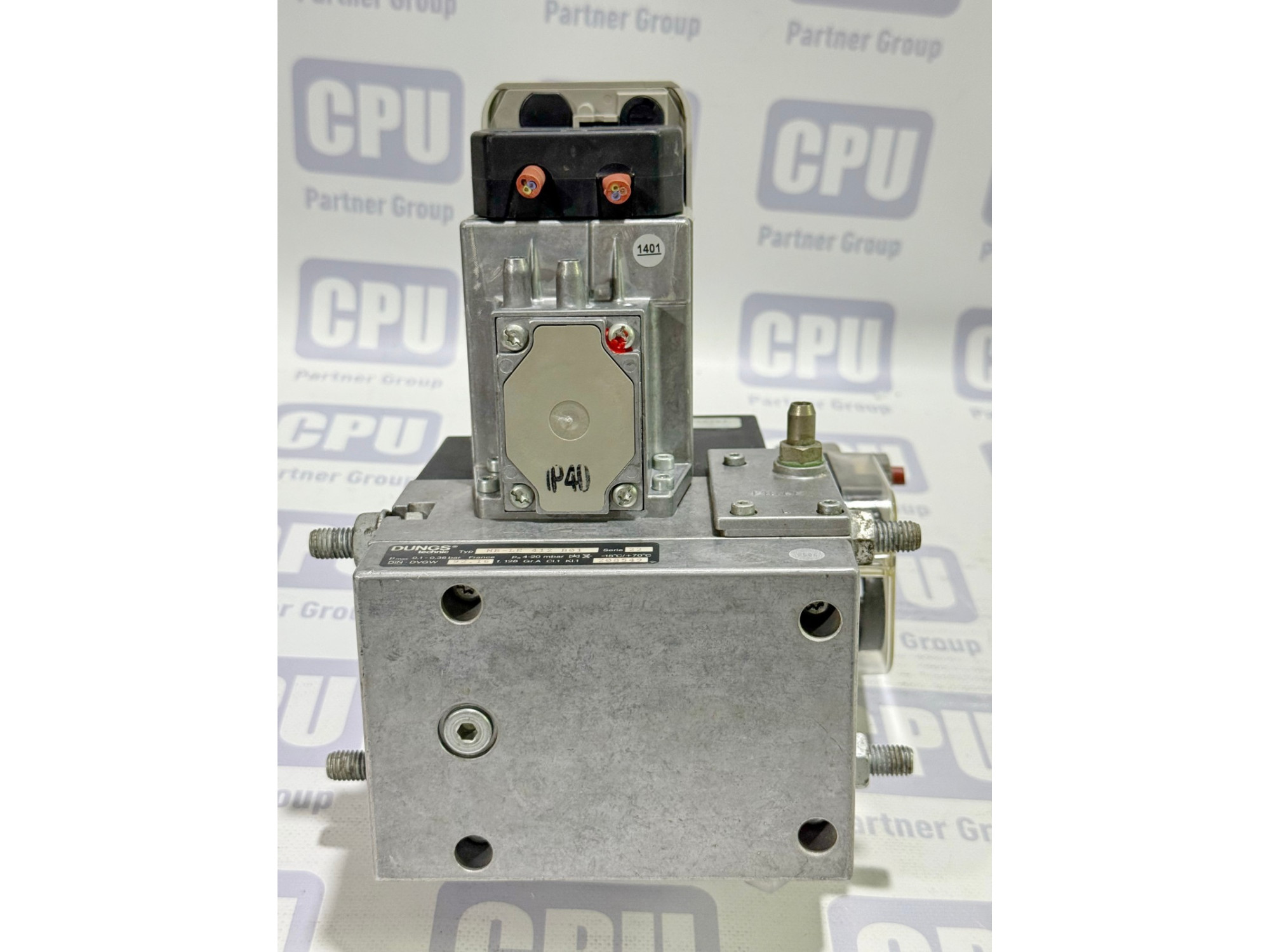

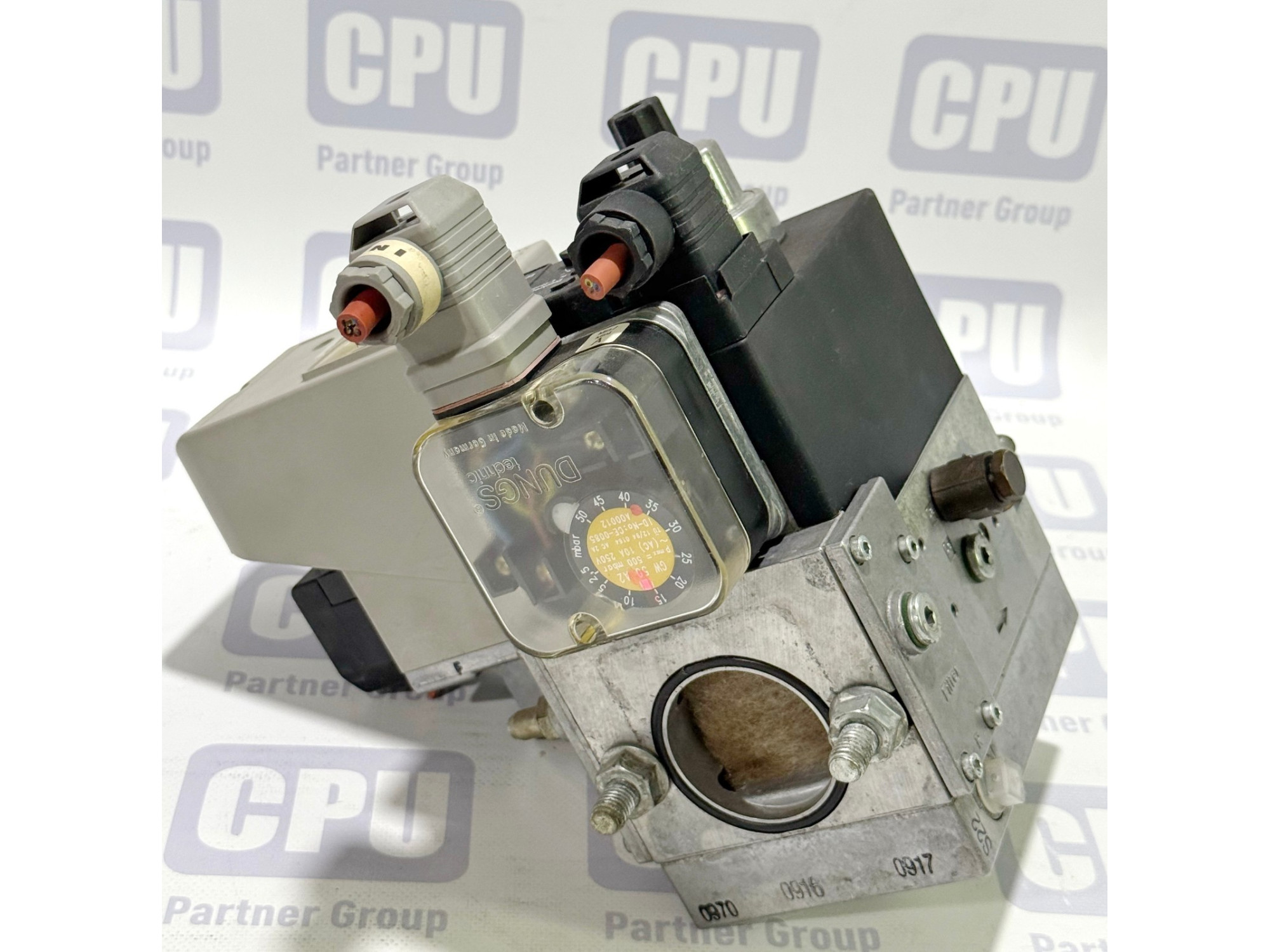

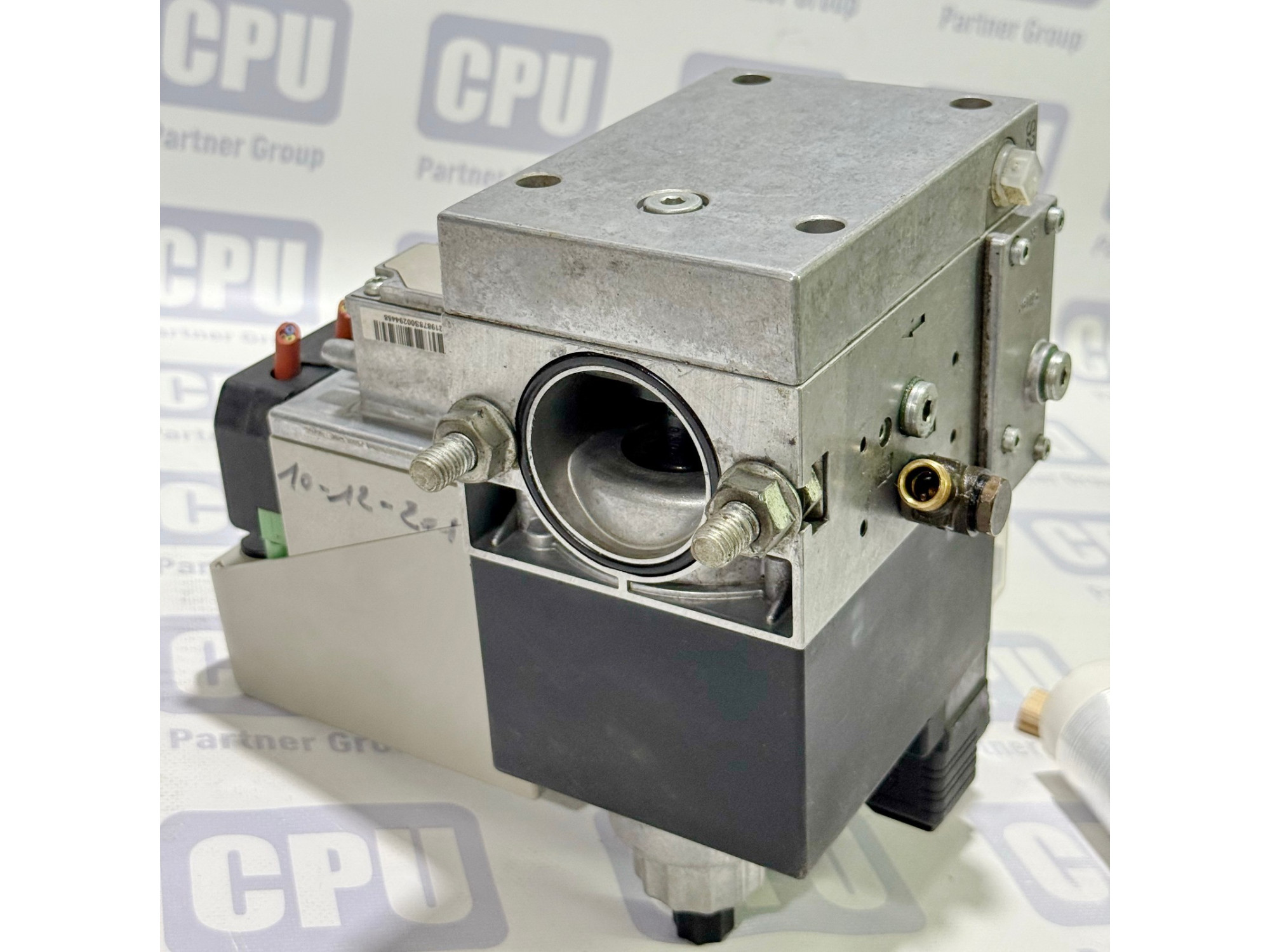

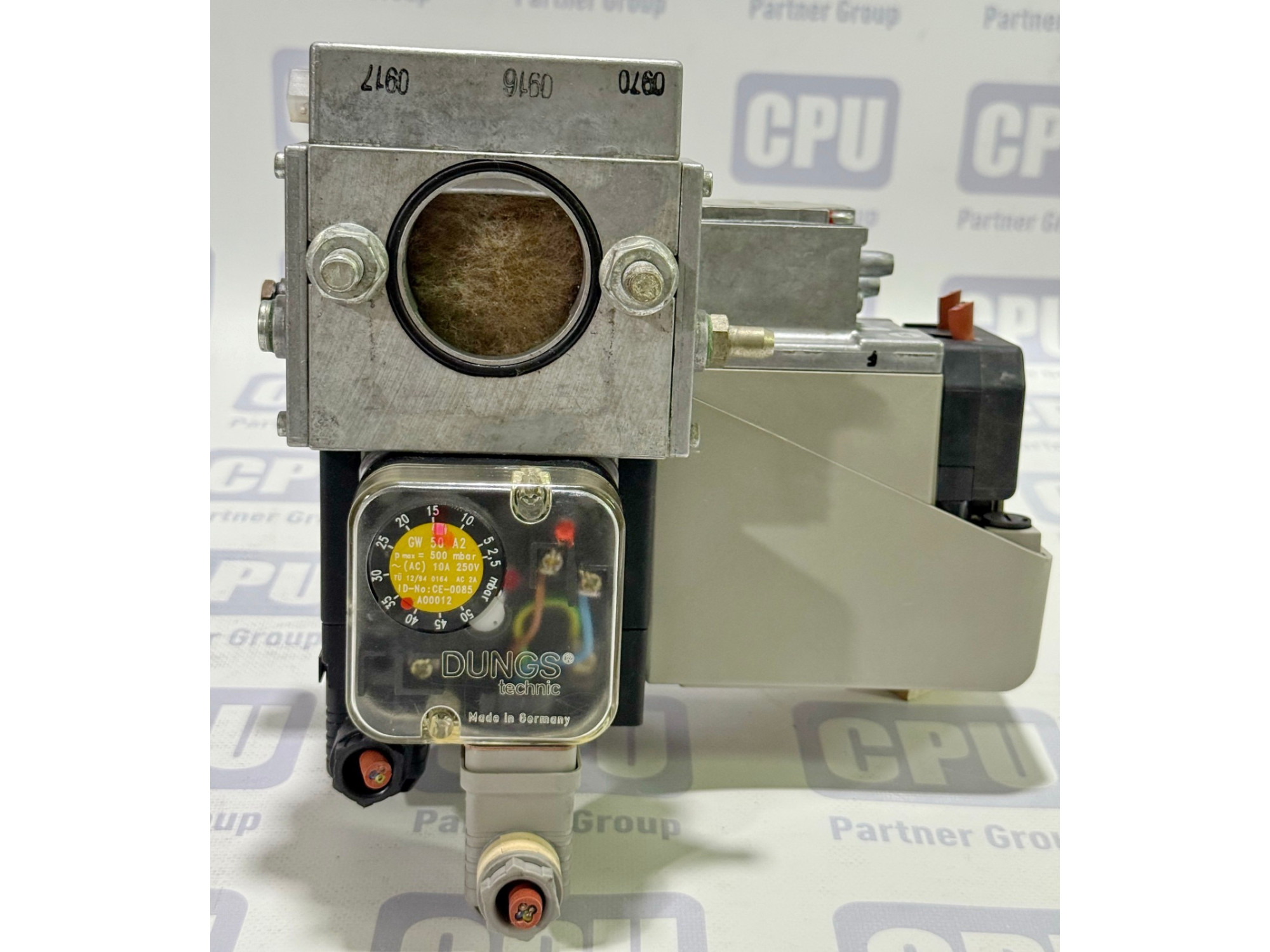

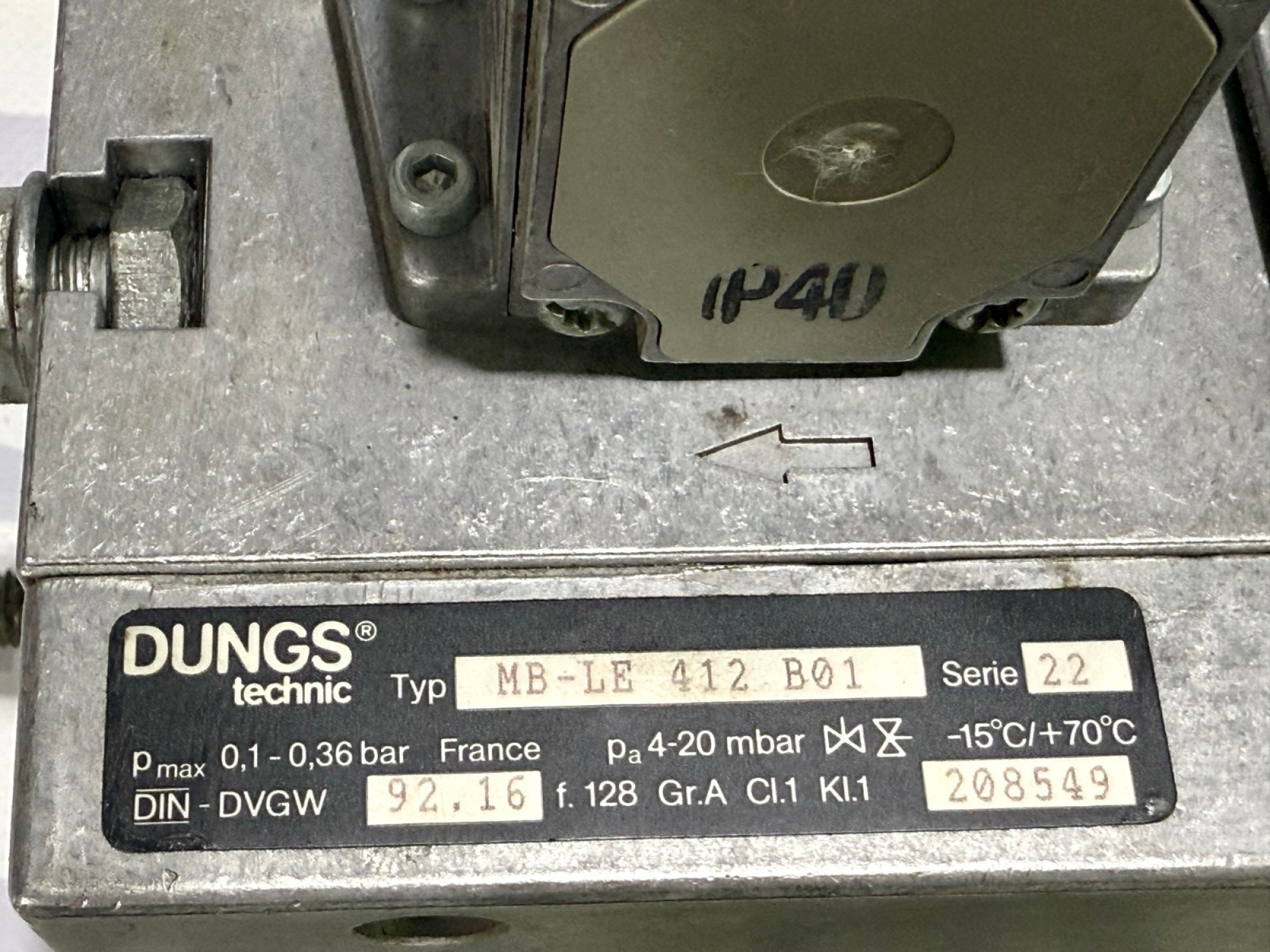

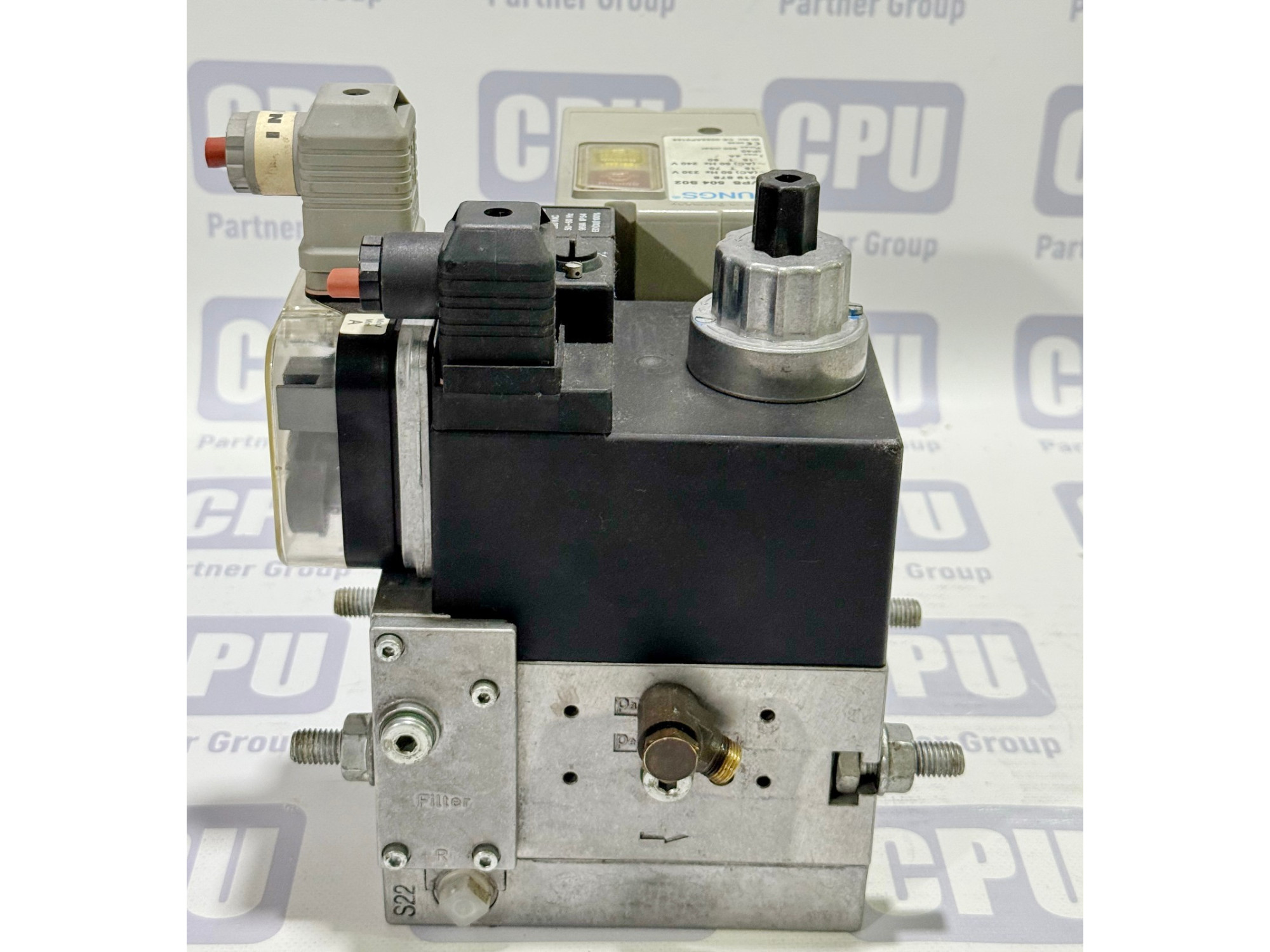

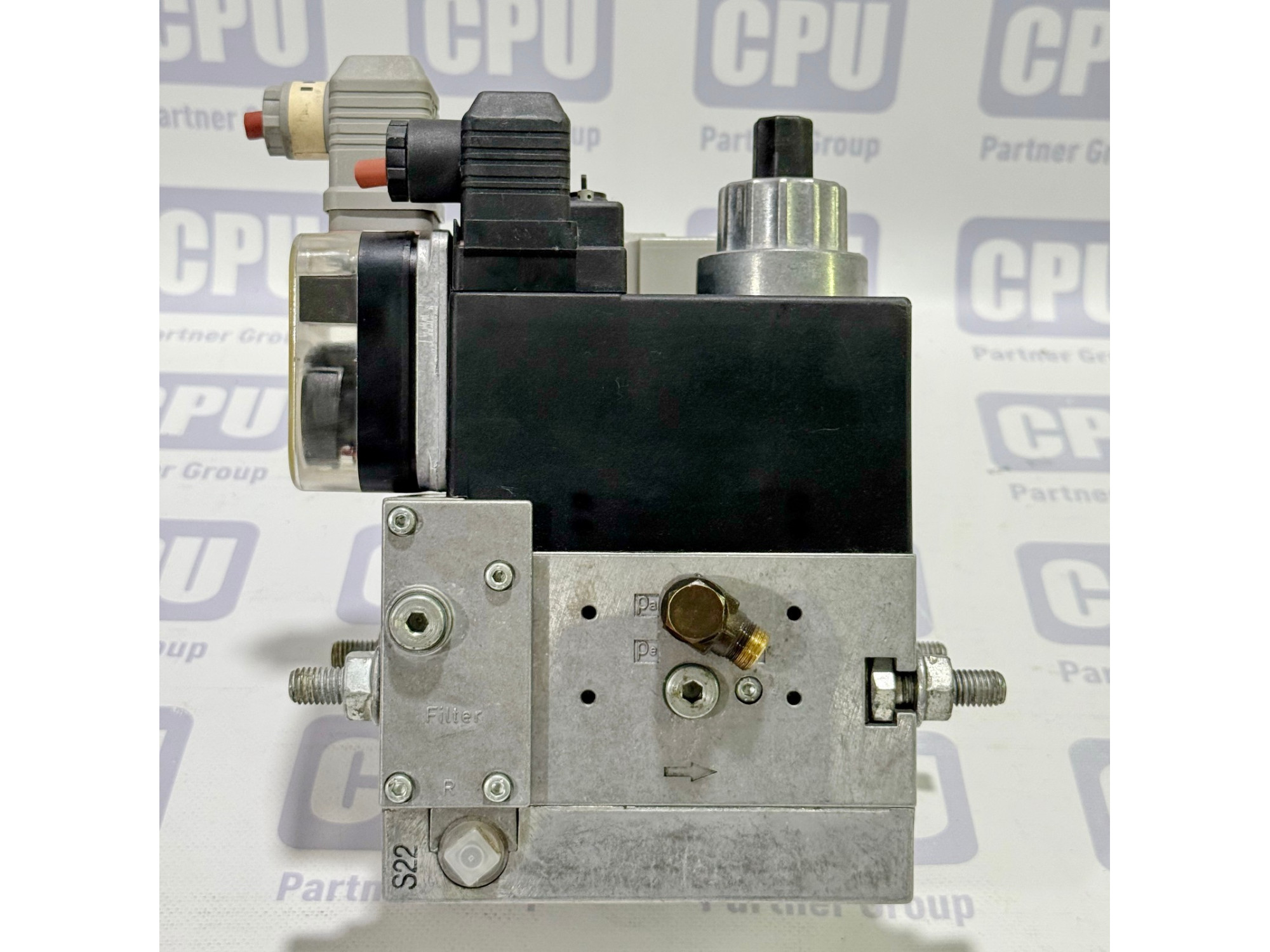

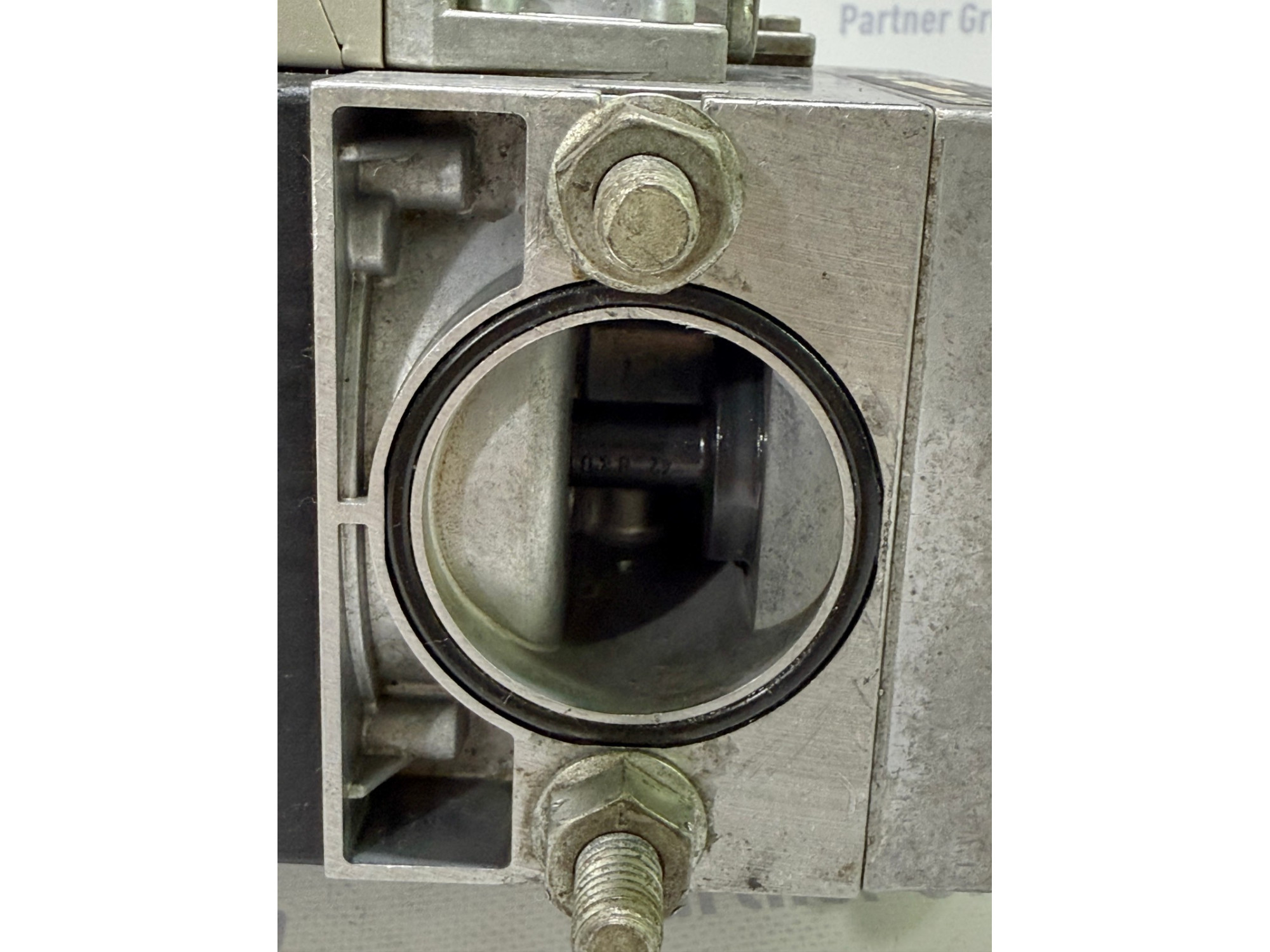

DUNGS MB-DLE 412 B01 GasMultiBloc BD/4

Description:
The DUNGS MB-DLE 412 B01 GasMultiBloc is a compact modular gas control unit that combines multiple safety and regulation components into one housing. It integrates a pressure regulator, two automatic shut-off valves, a filter, and pressure test points. This combination ensures simplified installation, reduced space requirements, and improved safety for gas burner systems.

Specifications:

• Type: Multifunctional gas control block (GasMultiBloc)

• Components Integrated:

  • Gas pressure regulator

  • Two automatic shut-off valves

  • Built-in gas filter

  • Pressure test points

• Nominal Diameter: DN 40–DN 50 (depending on version)

• Pressure Range: Up to 360 mbar (depending on configuration)

• Nominal Voltage: 230 V AC (other versions available)

• Operating Temperature: –15 °C to +60 °C

• Body Material: Aluminum die-cast housing

• Applications: Industrial burners, heating equipment, and combustion systems requiring reliable gas control and safety

  On this page you will find the user manual for DUNGS VPS 504 S02 Valve proving system & MB-DLE 412 B01 GasMultiBloc. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

  Manual for DUNGS VPS 504 S02 Valve proving system & MB-DLE 412 B01 GasMultiBloc

  https://cpupartnergroup.com/image/pdf/VPS504.pdf

  https://cpupartnergroup.com/image/pdf/datasheet-gasmultibloc-mb-dle-405-407-410-412-b01.pdf
