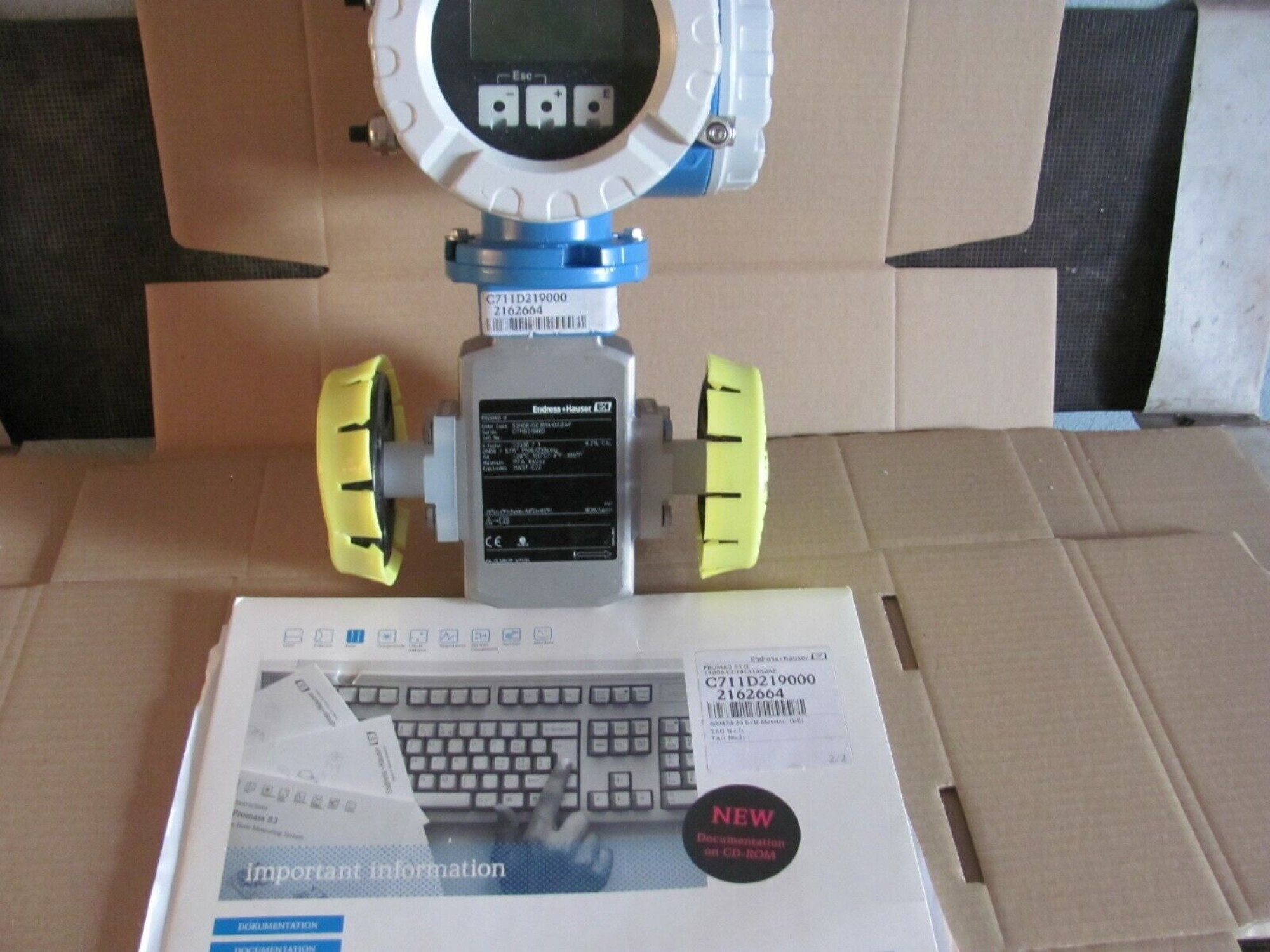

Endress+Hauser PROMAG H / PROMAG 53 53H08-GC1B1A10ABAP Electromagnetic Flowmeter

High-Precision Endress+Hauser PROMAG H DN08 Electromagnetic Flowmeter with PROMAG 53 Transmitter for Demanding Applications

 Endress+Hauser PROMAG H / PROMAG 53  53H08-GC1B1A10ABAP, this high-precision electromagnetic flowmeter is designed for reliable measurement of the volumetric flow rate of electrically conductive liquids in the most demanding applications, including hygienic processes in the food & beverage, pharmaceutical, and life sciences industries, as well as in the chemical sector.

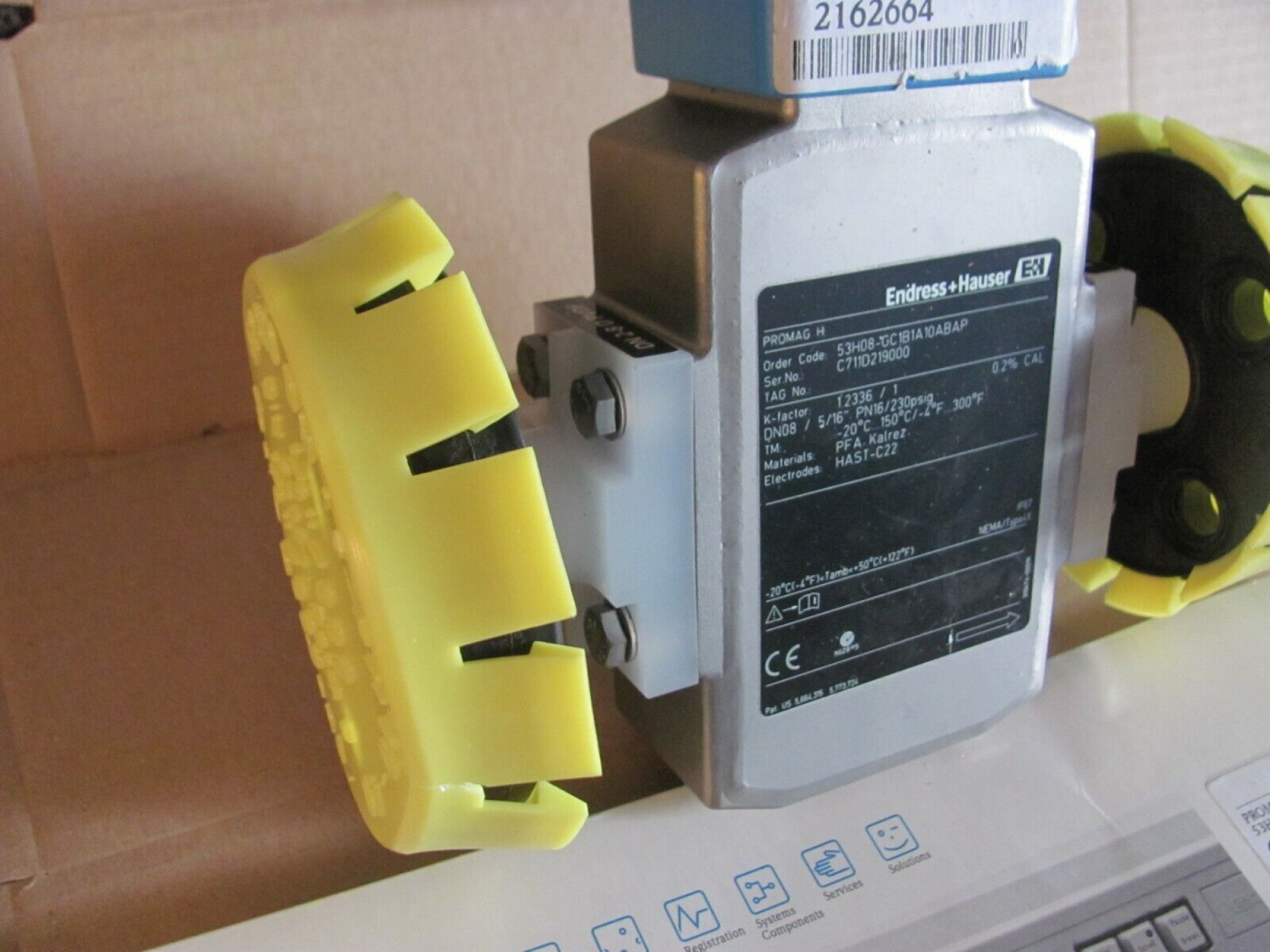

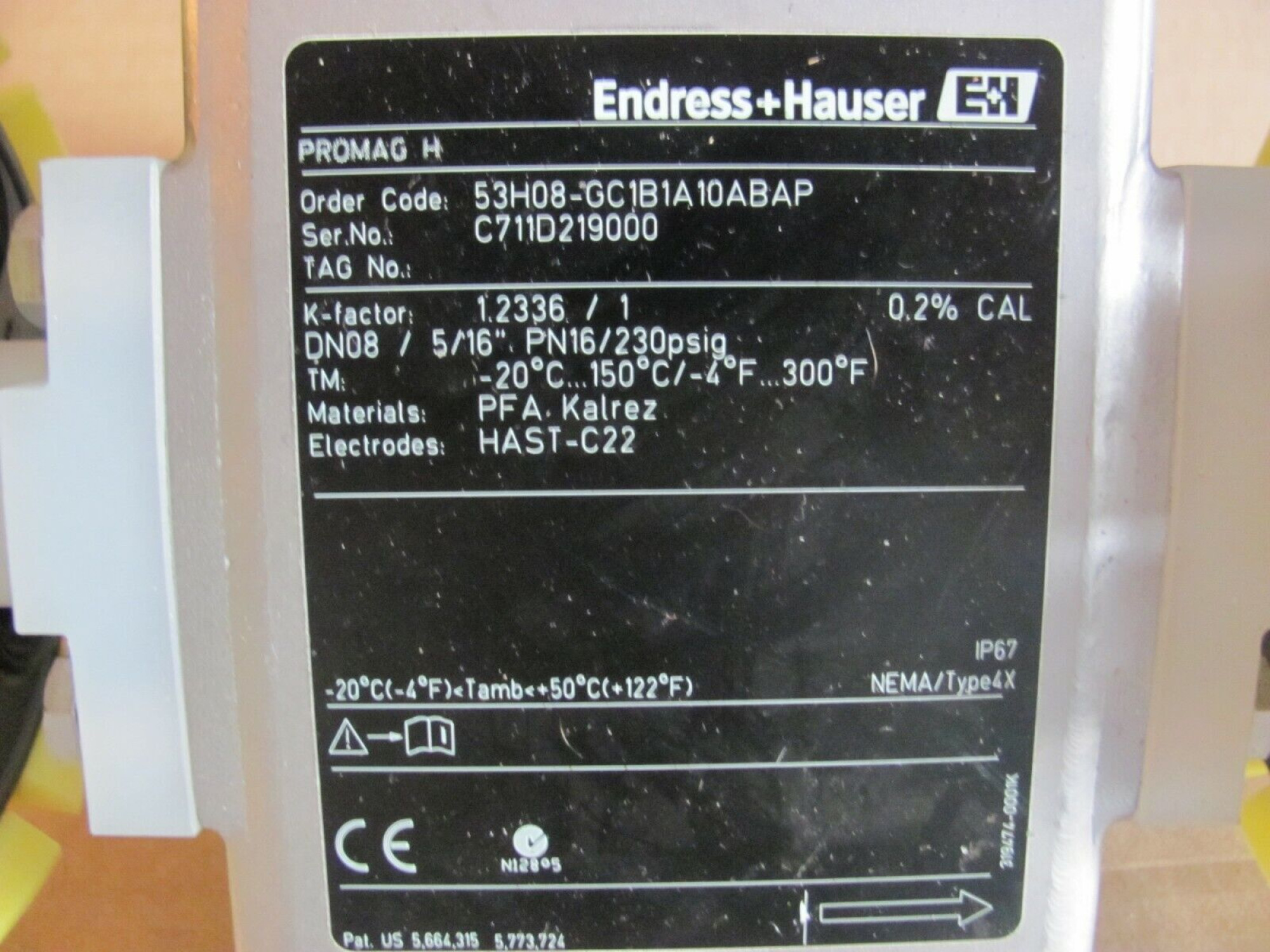

The Promag H sensor (indicated by "H" in the code) is designed for highly demanding applications and small flow rates with a nominal diameter of DN08 (5/16 inch). Thanks to the wetted materials – PFA liner, electrodes made of highly corrosion-resistant alloy Hastelloy C22 (HAST-C22), and Kalrez seals – the sensor is resistant to aggressive and high-temperature media up to +150°C and pressures up to PN16 (230 psig). The highest measurement accuracy is confirmed by the calibration with a stated error of 0.2%.

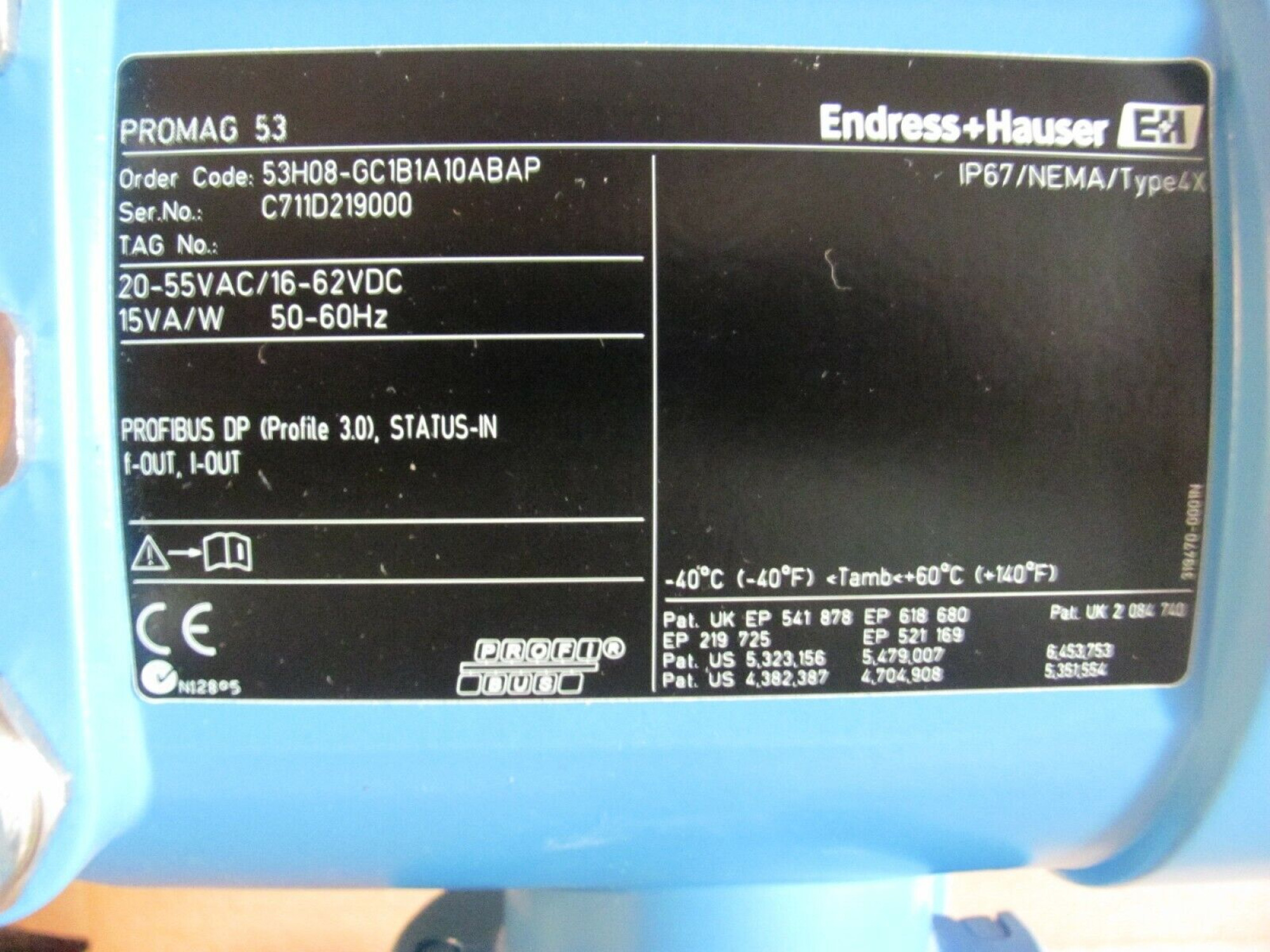

The Promag 53 transmitter (indicated by "53" in the code) provides advanced signal processing and communication capabilities. It features a four-line backlit display with touch control for convenient configuration and diagnostics. The transmitter supports power supply from AC or DC sources with a voltage of 20-55 V AC or 16-62 V DC and has low power consumption of 15 VA/W.

The system offers flexible data output options, including two current outputs (I-OUT), one of which supports the HART protocol for advanced diagnostics and configuration, as well as a status input (STATUS-IN). The configuration with code GC1B1A10ABAP also includes support for digital communication via PROFIBUS DP (Profile 3.0).

The flowmeter has a high ingress protection rating of IP67 / NEMA/Type4X, ensuring reliable operation in a wide ambient temperature range from -40°C to +60°C (according to transmitter data).

Key Features and Benefits:

• Promag H Sensor + Promag 53 Transmitter System: Combination of high performance and extended functionality.
• Electromagnetic Principle: Accurate measurement without moving parts, minimal pressure loss.
• Nominal Diameter DN08: Ideal for small flow rates.
• Materials for Demanding Media: PFA liner, Hastelloy C22 electrodes, Kalrez seals.
• High Accuracy: 0.2% calibration.
• Wide Medium Temperature Range: From -20°C to +150°C.
• Flexible Connectivity: AC/DC power, two current outputs (HART), status input, PROFIBUS DP.
• Advanced Transmitter Features: 4-line touch display, diagnostics, software options support.
• Reliability in Harsh Conditions: IP67 / NEMA/Type4X protection, ambient temperature range from -40°C to +60°C.
• Hygienic Design: Suitable for CIP/SIP cleaning (implied by H series and materials).

Technical Specifications:

• Brand: Endress+Hauser
• Line: Promag H / Promag 53
• Order Code / MPN: 53H08-GC1B1A10ABAP
• Instrument Type: Electromagnetic Flowmeter
• Measurement Principle: Electromagnetic
• Nominal Diameter: DN08 (5/16")
• Measured Medium: Electrically conductive liquids
• Medium Temperature: -20°C to +150°C
• Process Pressure: Up to PN16 (230 psig)
• Power Supply: 20-55 V AC / 16-62 V DC, 50-60 Hz
• Power Consumption: 15 VA/W
• Output Signals: 2x Current Output (I-OUT), HART (on one output), Status Input (STATUS-IN)
• Digital Communication: PROFIBUS DP (Profile 3.0)
• Protection Rating: IP67 / NEMA/Type4X
• Ambient Temperature: -40°C to +60°C
• Serial Number (SN): C711D219000
• Certifications: CE, 3A, PROFIBUS
• Wetted Materials: PFA liner, Hastelloy C22 electrodes, Kalrez seals
• Accuracy: 0.2% CAL

The Endress+Hauser PROMAG H / PROMAG 53 electromagnetic flowmeter (53H08-GC1B1A10ABAP) is an advanced solution for accurate and reliable flow measurement in the most challenging industrial and hygienic applications.
