Endress+Hauser PROMASS M 83M08 83M08-GHAABAAAABAA DN08 #BD# 1 pcs

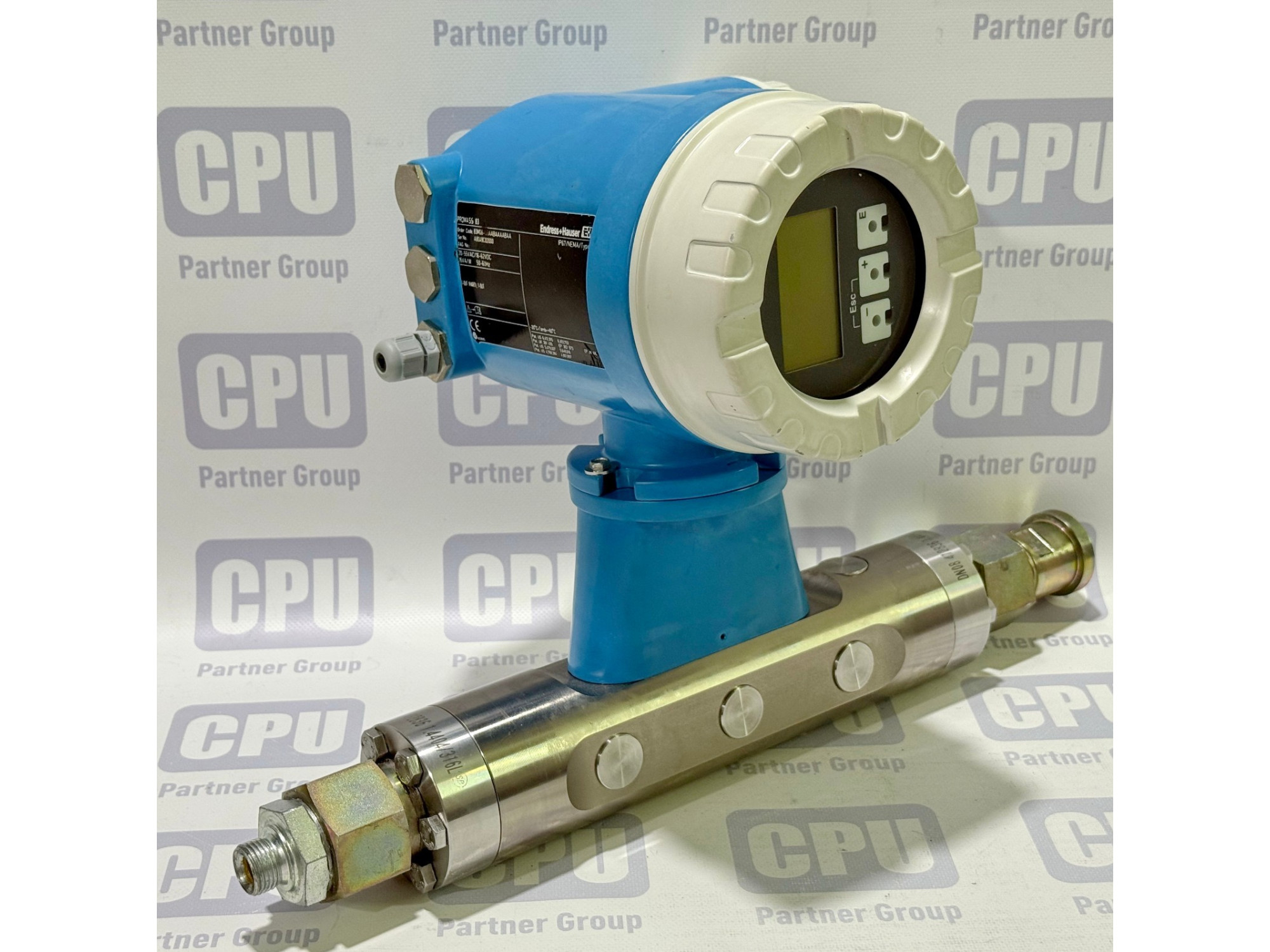

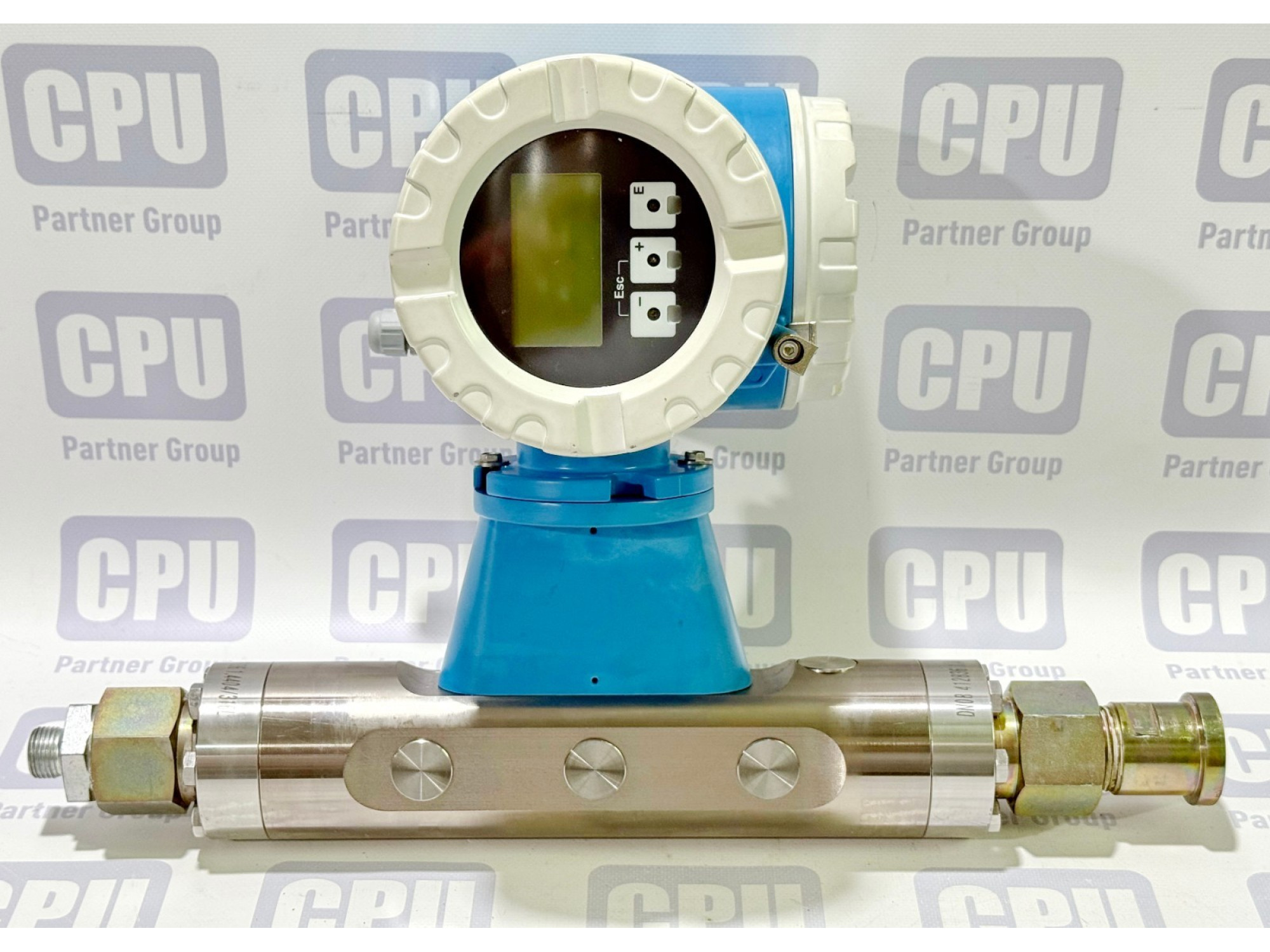

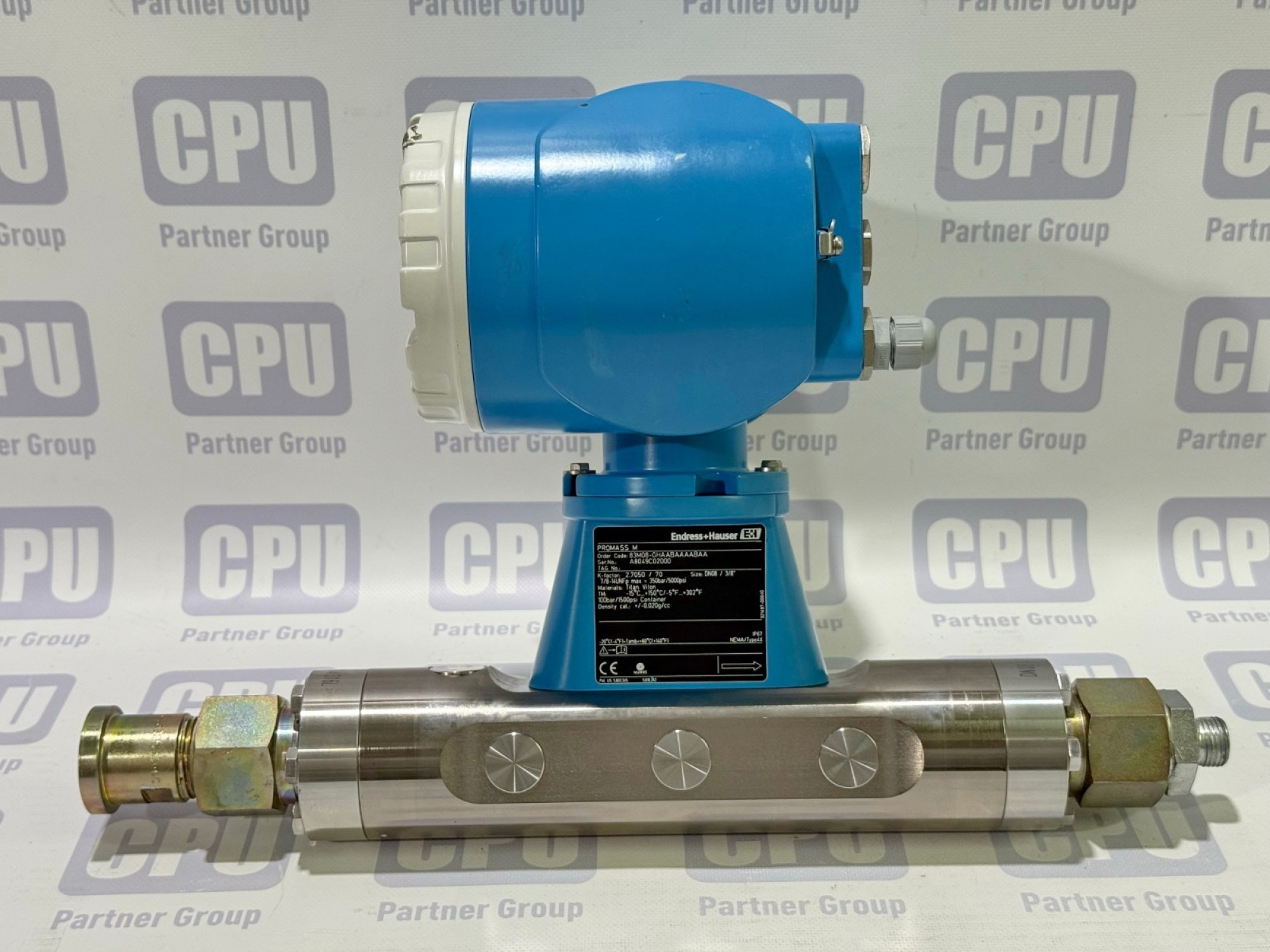

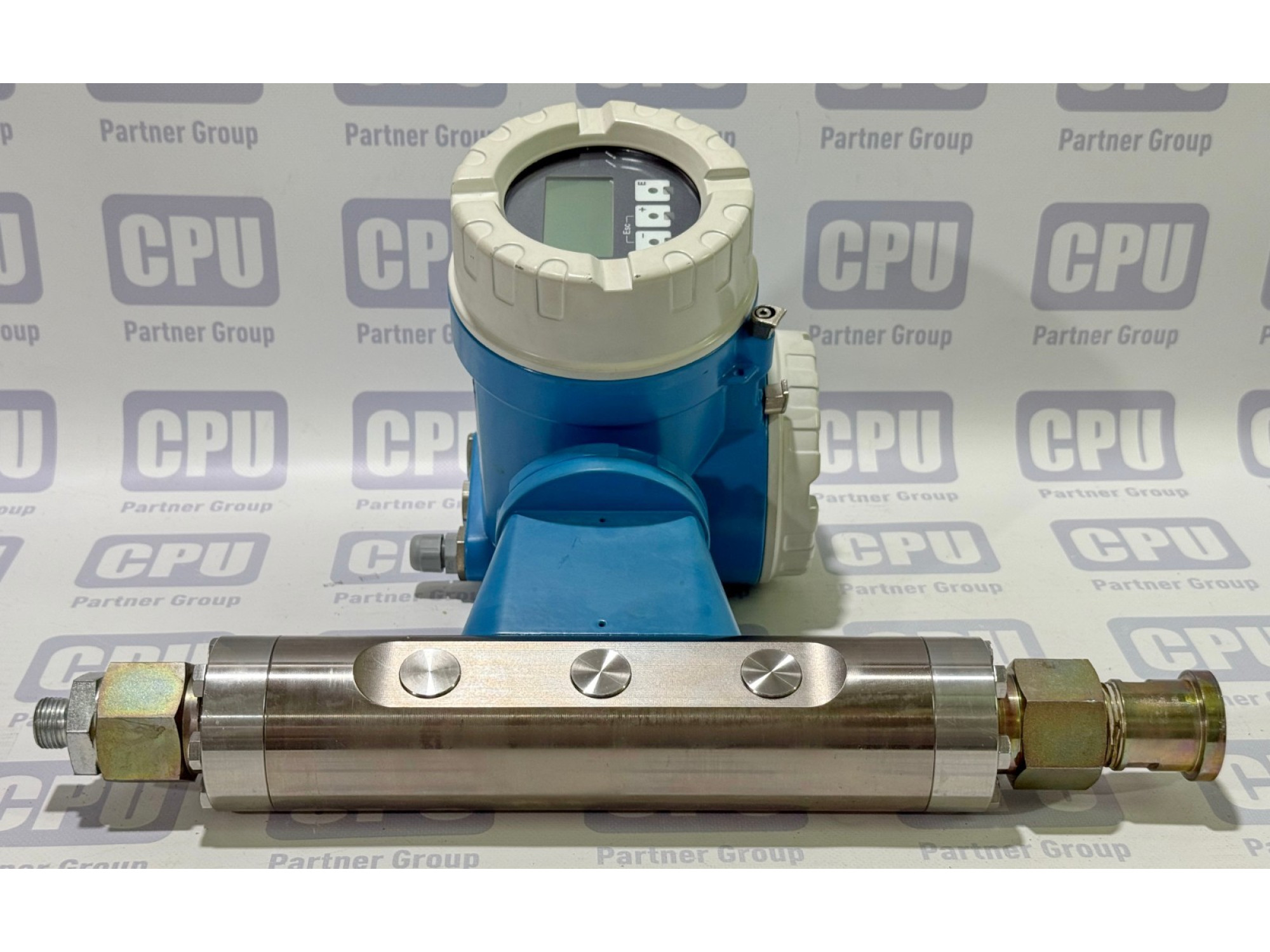

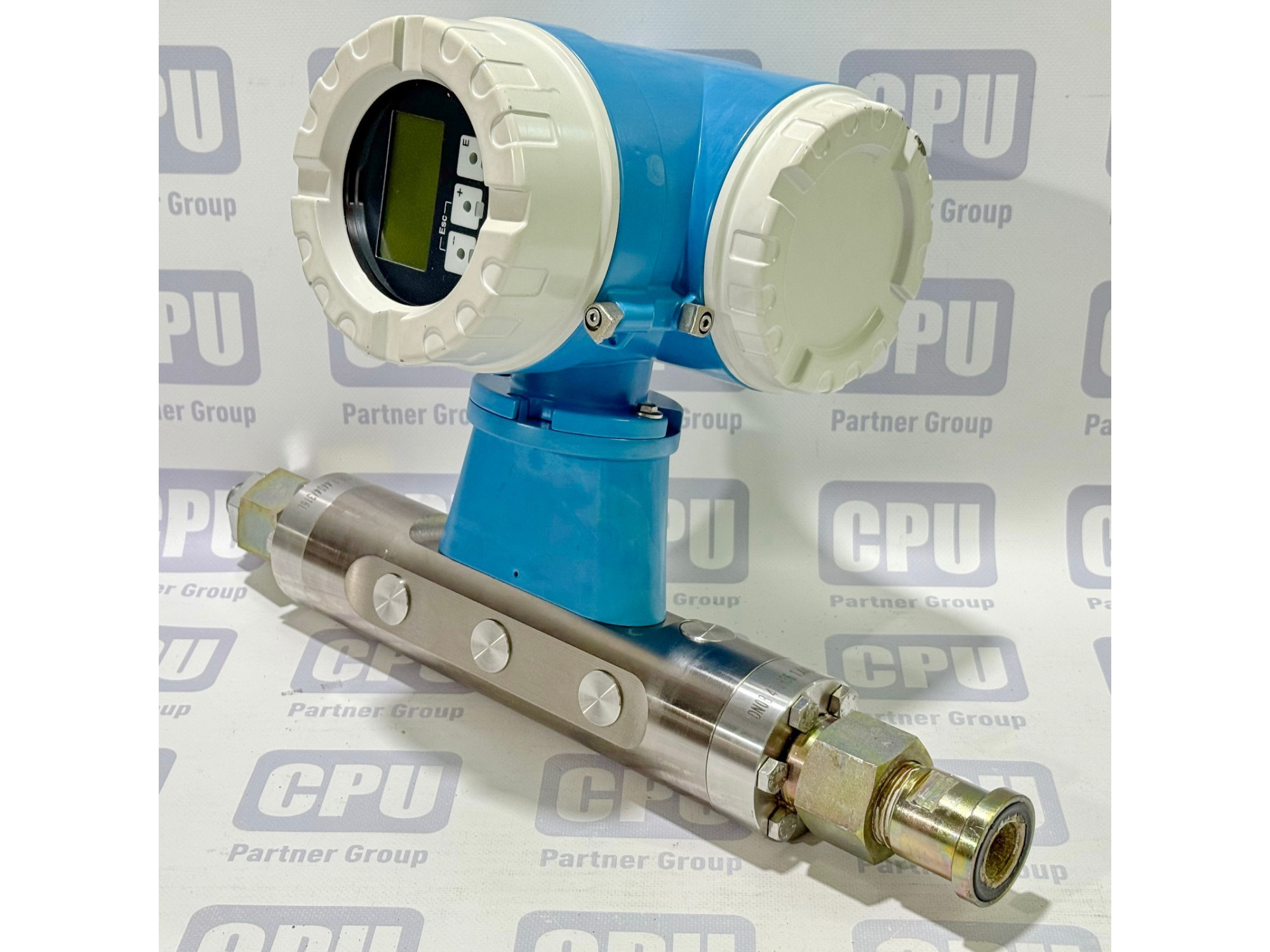

Endress+Hauser PROMASS M 83M08 Coriolis Mass Flow Meter

Description:
The Endress+Hauser PROMASS M 83M08 is a Coriolis mass flow meter designed for accurate measurement of mass flow, density, and temperature of liquids and gases. It is particularly suited for hygienic applications in the food, beverage, pharmaceutical, and life sciences industries. With its compact hygienic design, it offers high measurement accuracy, reliability, and compliance with international standards.

Technical Specifications:

• Model: PROMASS M 83M08

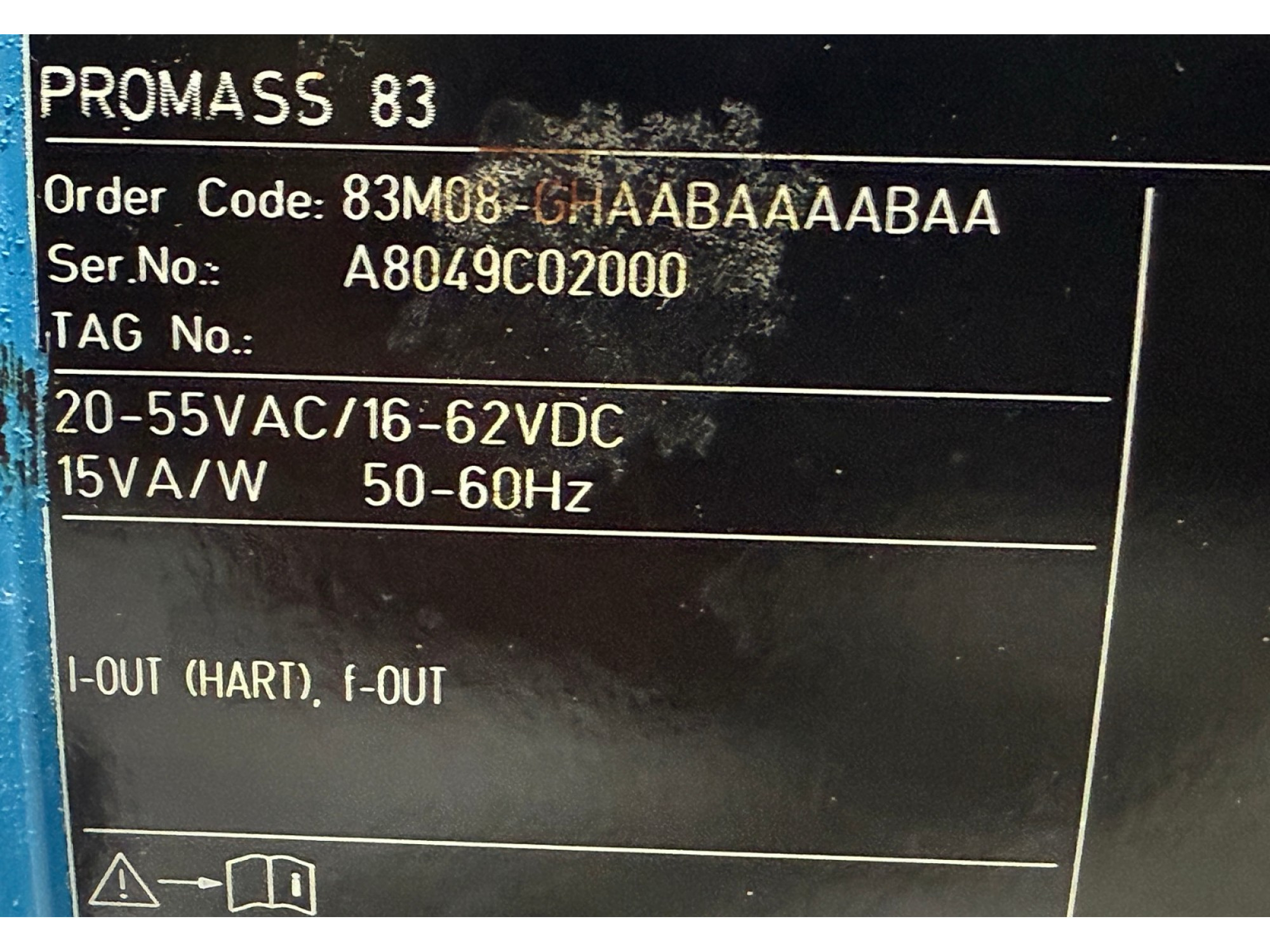

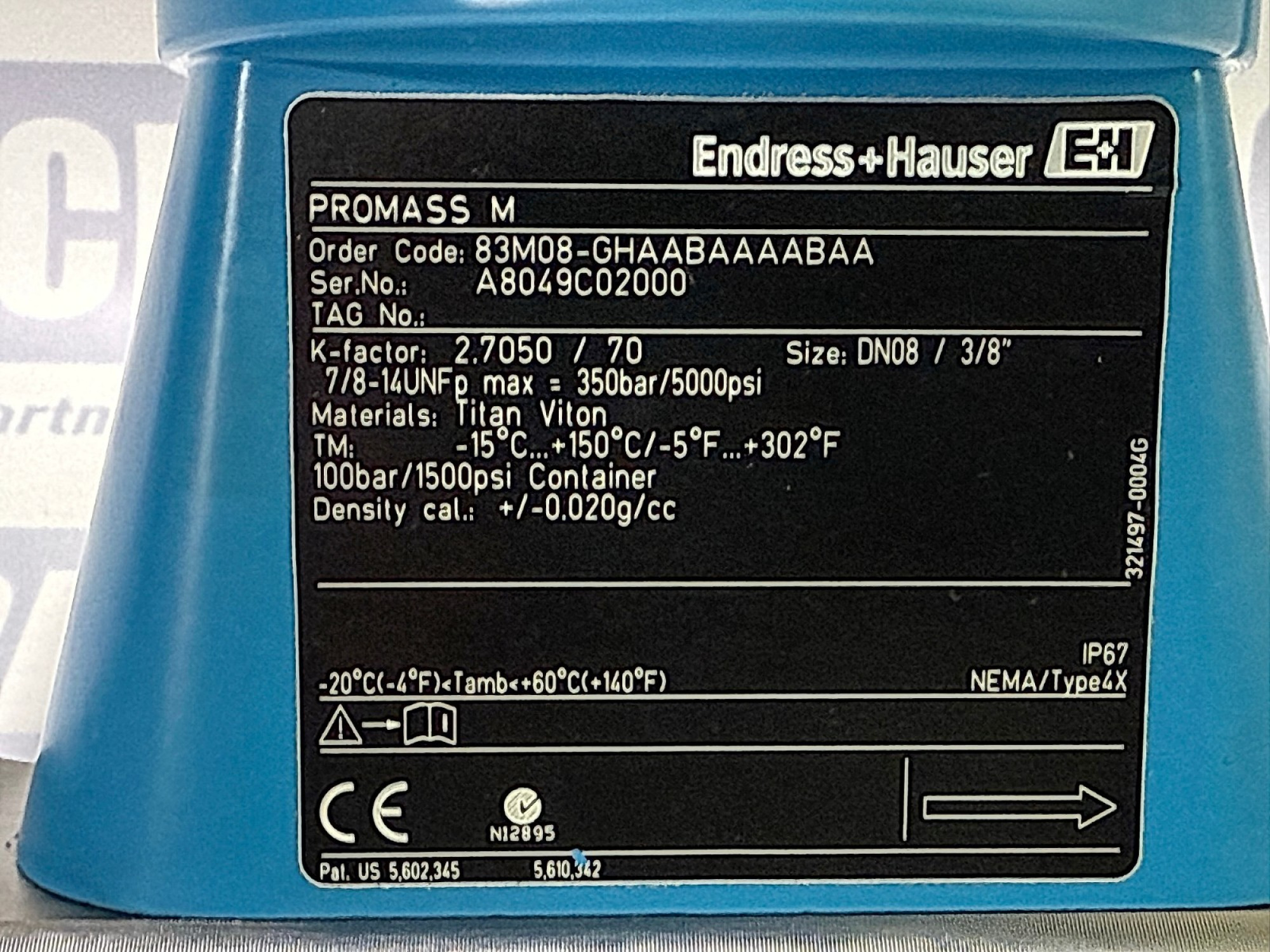

• Order Code: 83M08-GHAABAAAABAA

• Nominal Diameter: DN 08

• Measuring Principle: Coriolis mass flow measurement

• Measured Variables:

  • Mass flow

  • Density

  • Temperature

  • Volume flow (calculated)

• Flow Range: Depending on medium and process conditions, suitable for small nominal diameters

• Accuracy:

  • Mass flow: ±0.1% of reading (depending on calibration)

  • Density: ±0.0005 g/cm³

  • Repeatability: High repeatability, typically better than ±0.05%

• Process Pressure: Suitable for low to medium pressure ranges (depending on sensor design)

• Process Temperature Range: –50 °C to +150 °C (depending on version and gasket material)

• Materials:

  • Sensor body: Stainless steel

  • Wetted parts: Stainless steel or special alloys depending on configuration

• Housing: Compact stainless steel design with hygienic connections

• Outputs and Communication:

  • 4–20 mA analog output

  • Pulse/frequency output

  • HART digital communication

  • Optional fieldbus interfaces (Profibus PA, Foundation Fieldbus depending on version)

• Power Supply: 85–260 V AC or 20–55 V DC, depending on version

• Protection Class: IP67 / NEMA 4X (depending on housing and installation)

• Certifications:

  • EHEDG and 3-A sanitary certification for hygienic applications

  • CE, ATEX (optional), CSA approvals depending on order configuration

Applications:

• Food and beverage industry for hygienic flow measurement

• Pharmaceutical and life sciences processes

• Precise dosing and batching of liquids

• Measurement in small pipelines requiring compact installation

✅ In summary, the Endress+Hauser PROMASS M 83M08 DN08 is a highly accurate and compact Coriolis mass flow meter optimized for hygienic applications, delivering reliable measurement of mass flow, density, and temperature in small-diameter process lines.

On this page you will find the user manual for Endress+Hauser Proline Promass 80F, 80M, 83F, 83M. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for Endress+Hauser Proline Promass 80F, 80M, 83F, 83M
https://cpupartnergroup.com/image/pdf/Proline%20Promass%2080F%2C%2080M%2C%2083F%2C%2083M.pdf
