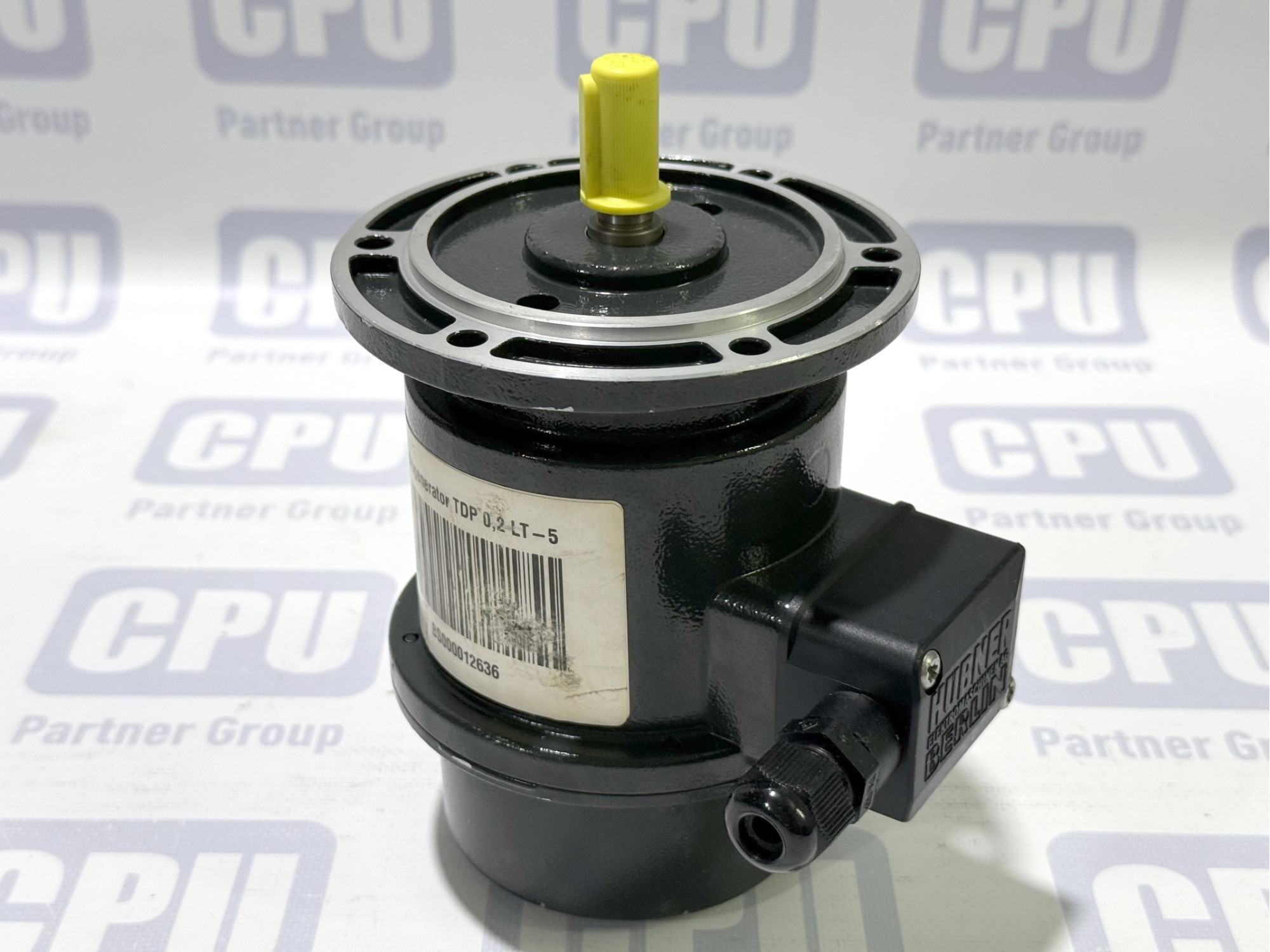

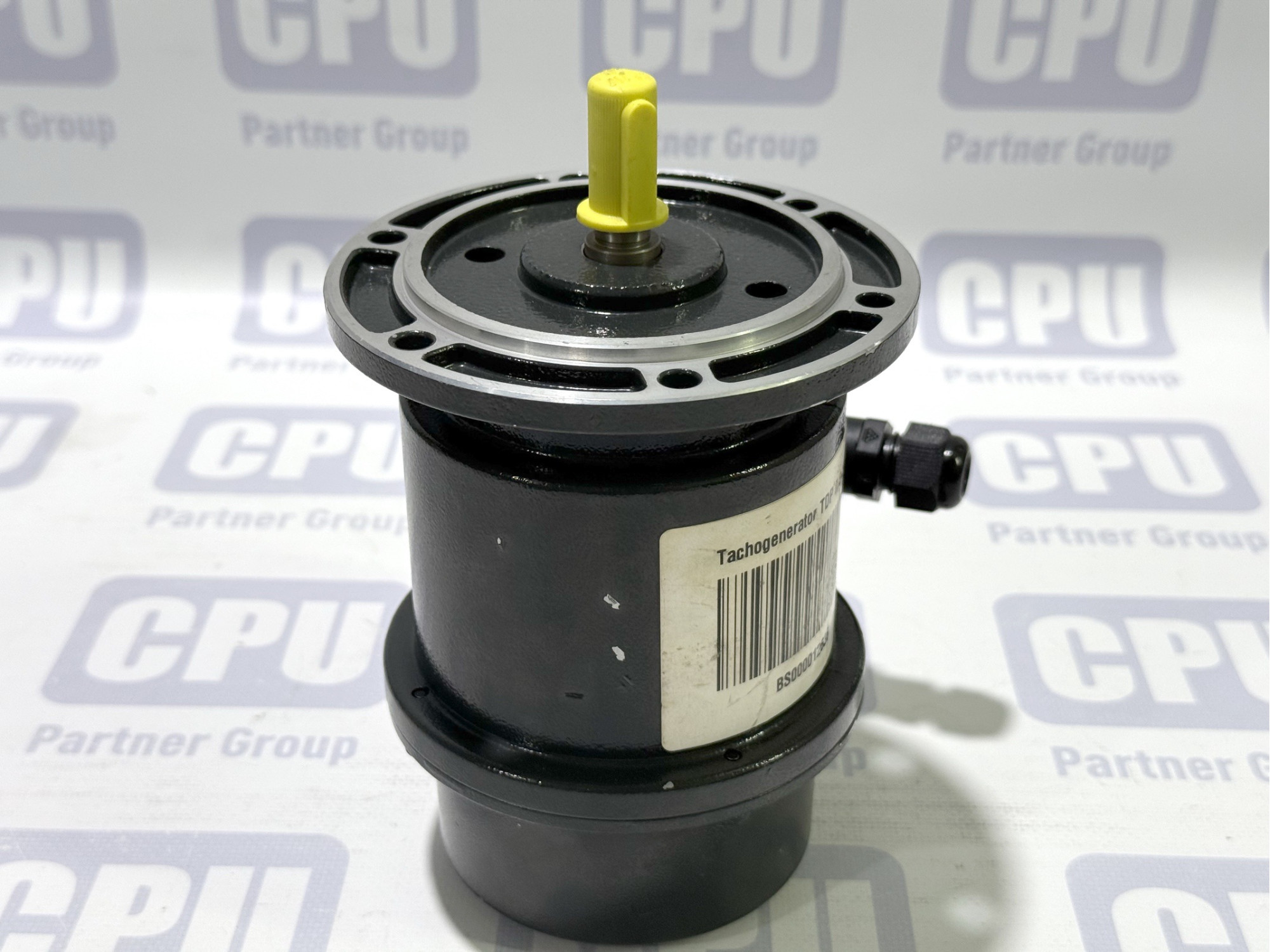

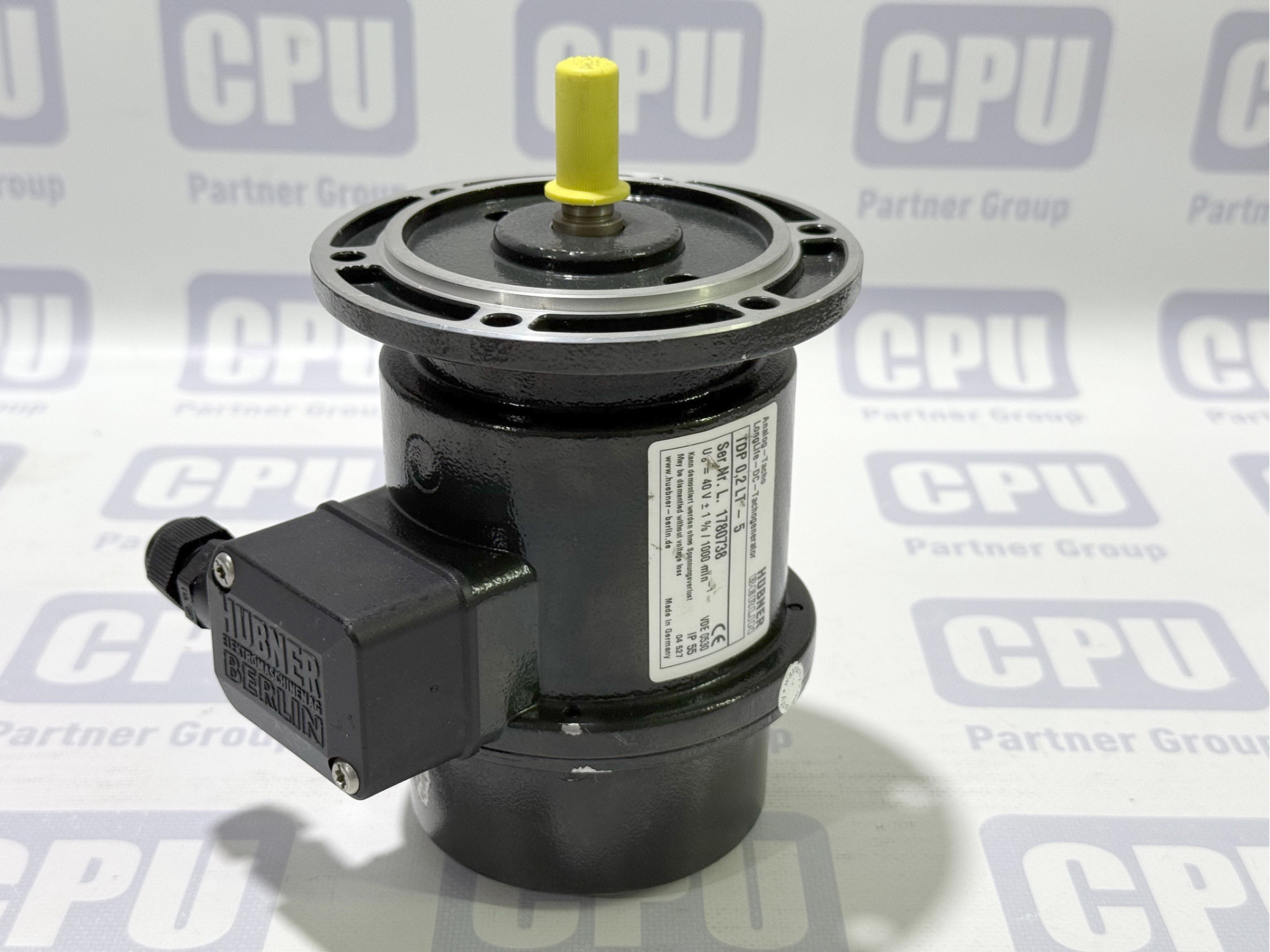

Hubner Berlin Tachogenerator TDP 0.2 LT-5

Виробник: Hübner
Модель: TDP 0,2 LT-5
Код: #D7809/21#
Наявність: 1
Термін гарантії: 30 days
Місцезнаходження: Ukraine

️ 135

Ціна: 21,750 грн

Опис
Відгуків (0)

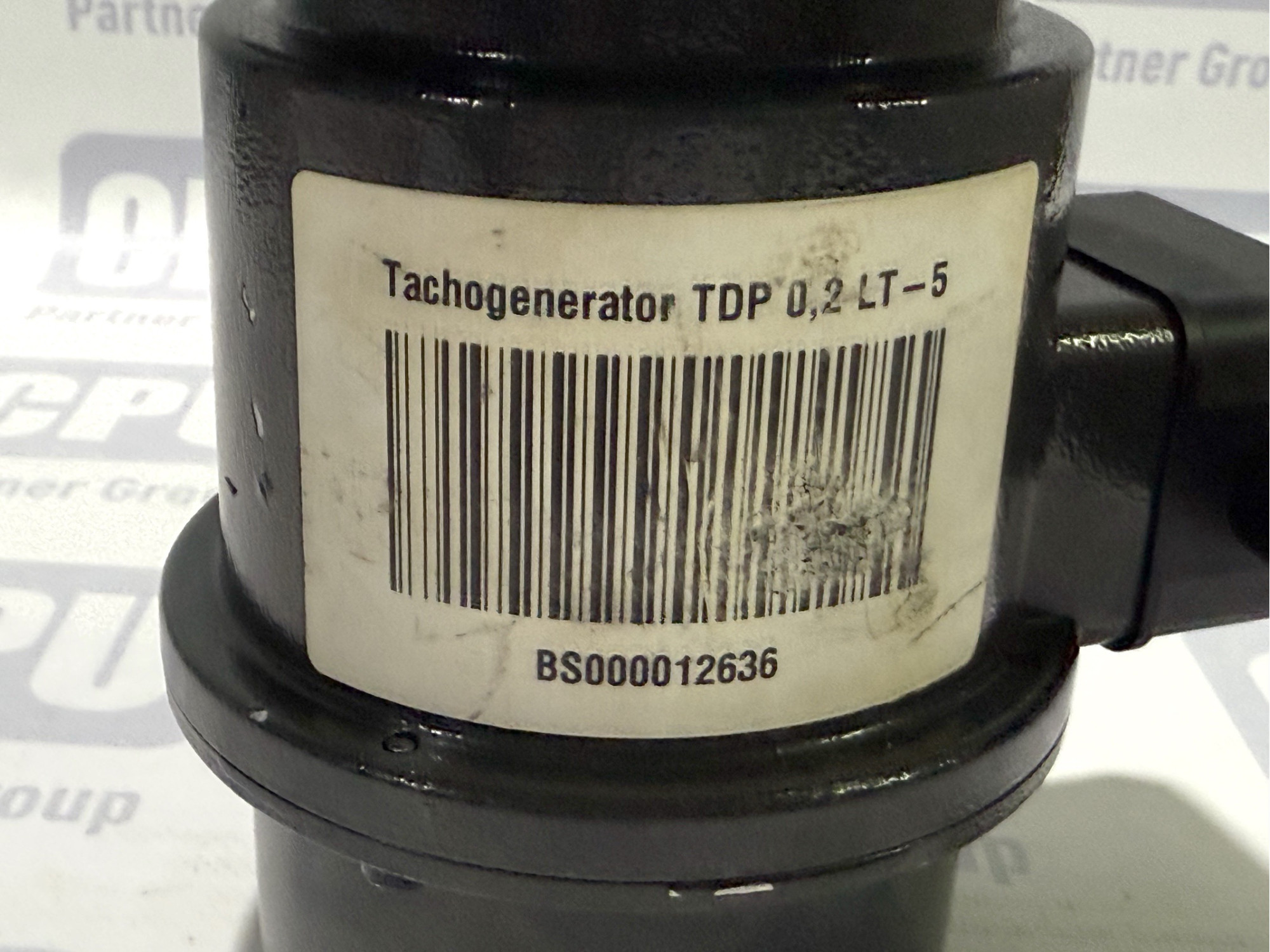

Tachogenerator TDP 0,2 LT-5

Overview
The TDP 0.2 LT-5 is a high-quality, durable analog tachogenerator (also known as a DC tacho machine with permanent excitation) designed for precise rotational speed control in industrial drive systems. It is built for demanding environments and utilizes LongLife technology for high wear resistance and extended service life.

Electrical Characteristics

Output voltage (no load): 40 mV per 1000 rpm
Optional version available with 60 mV/1000 rpm (model LT-4/B3)

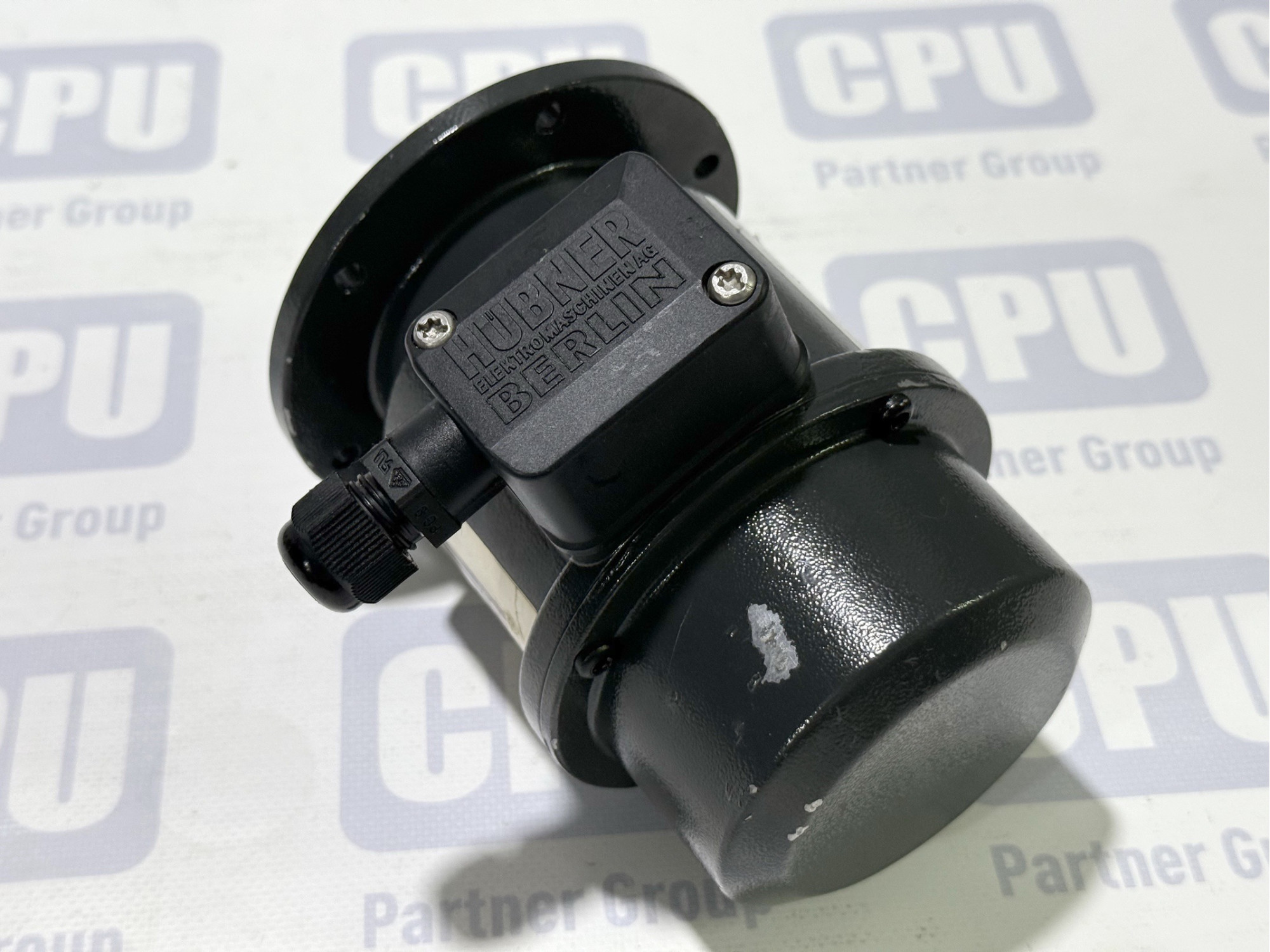

Connection via terminal box
Signal type: single-channel DC analog output

Mechanical Characteristics

Flange: EURO B10, diameter 115 mm, PCD 100 mm
Shaft type: solid, 11 mm diameter (11k6 × 30 mm length)
Mounting: B10 flange; optional B3 foot mounting or dual shaft extension
Housing material: cast aluminum; shaft: stainless steel
Maximum speed: up to 9000 rpm
Starting torque: approximately 1.5 N·cm

Environmental Conditions

Protection rating: IP55 (versions up to IP67 available)
Operating temperature range: –30 °C to +130 °C
High shock and vibration resistance due to LongLife technology

Features and Options

LongLife technology with silver track commutator ensures a significantly extended lifespan under heavy load
Direction of rotation recognition
Options include: marine and tropical protection, second shaft end, B3 foot mounting, dual-output version (TDPZ)
Designed for industrial applications requiring precise and reliable speed monitoring

Quick Summary

Parameter	Value
Output voltage	40 mV/1000 rpm (LT-5)
Max. speed	up to 9000 rpm
Starting torque	approx. 1.5 N·cm
Shaft dimensions	11 mm diameter × 30 mm length
Flange / Mounting	B10 (Ø115 mm), B3 optional
Protection class	IP55 (up to IP67 optional)
Temperature range	–30 to +130 °C
Weight	approx. 2.4 kg

Conclusion
The Hubner Berlin TDP 0.2 LT-5 is a reliable, precise, and long-lasting tachogenerator developed for harsh industrial environments and continuous operation. It provides a linear analog output signal, high resistance to mechanical stress, wide operating temperature range, and flexible mounting options. Ideal for speed control in drives, generators, and heavy-duty equipment where reliability is critical.
