Invertek Optidrive E3 ODE-3-120070-1F12 Frequency Converter 1 pcs

Invertek Optidrive E3 Frequency Converter ODE-3-120070-1F12 – Efficient and Reliable Motor Control

Discover the Invertek Optidrive E3 frequency converter, model ODE-3-120070-1F12, a compact and highly efficient solution for precise motor speed control in various industrial and commercial applications. The Optidrive E3 series is renowned for its simplicity, robust performance, and user-friendly features, making it an excellent choice for a wide range of tasks.

This specific model offers versatile control for single-phase motor applications, providing smooth operation and energy savings. Its intuitive interface and pre-programmed settings allow for quick setup and integration into existing systems.

Key Features:

• Optimal Performance: Designed for efficient control of 1.5 kW (2 HP) AC motors, delivering precise speed and torque management.
• Wide Voltage Range: Supports input voltage from 200-240V AC, ensuring compatibility with common power supplies.
• User-Friendly Interface: Features a clear display and intuitive keypad for straightforward programming and monitoring.
• Compact Design: Space-saving dimensions allow for flexible installation in various control cabinets and environments.
• Robust Construction: Built to withstand demanding industrial conditions, ensuring long-term reliability and minimal downtime.
• Versatile Applications: Suitable for pumps, fans, conveyors, compressors, and general machinery, enhancing system efficiency and control.
• Made in the UK: Indicates manufacturing according to high quality standards.

Technical Data:

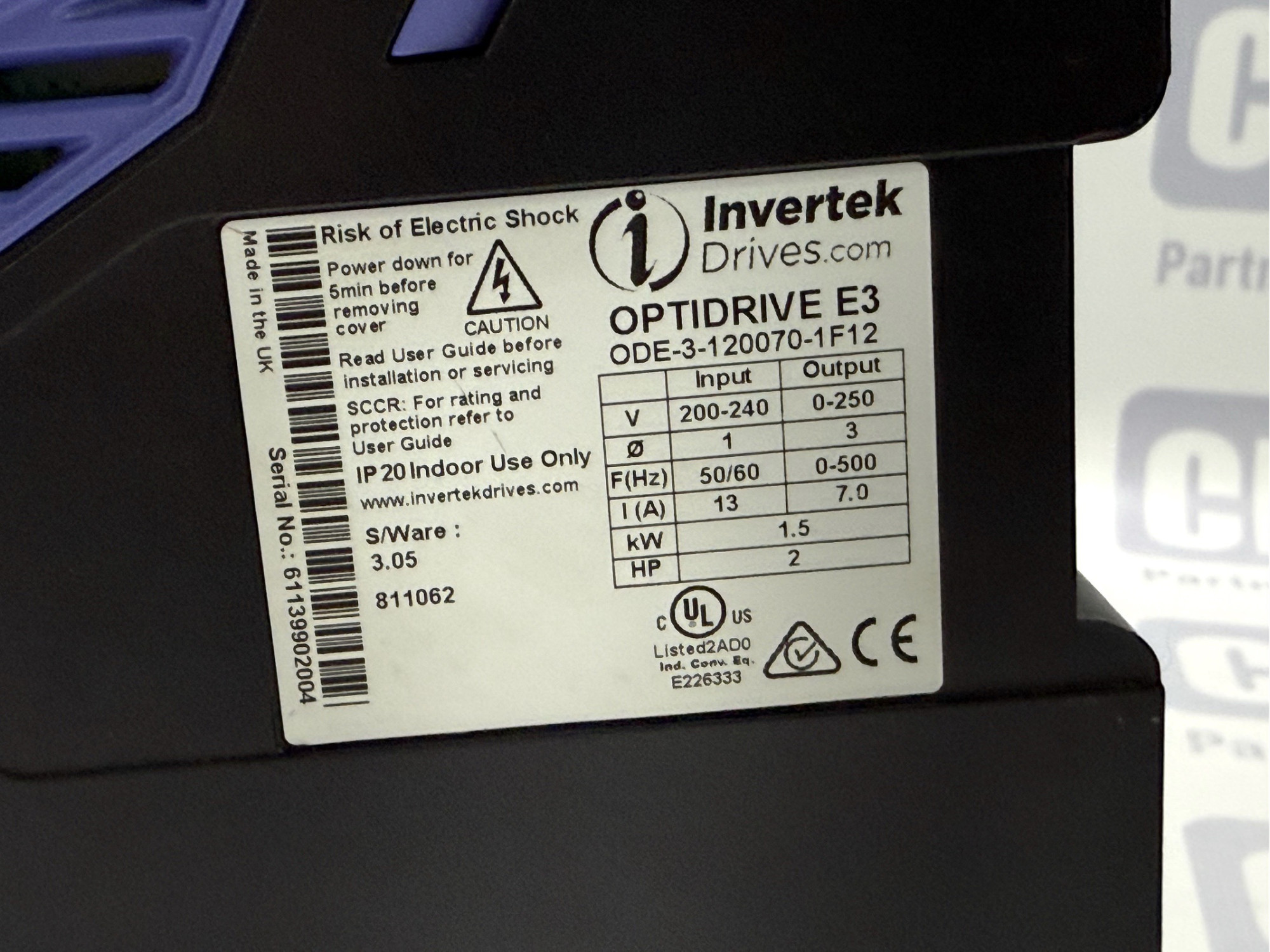

• Model: INVERTEK OPTIDRIVE ODE-3-120070-1F12
• Input Voltage: 200-240V AC
• Power: 1.5 kW (2 HP)
• Input Current (I (A)): 13 A
• Output Current (I (A)): 7.0 A
• Input Frequency (F(Hz)): 50/60 Hz
• Output Frequency (Output): 0-500 Hz
• Protection Class: IP20 Indoor Use Only
• Software Version: 3.05
• Manufacturing Country: Made in the UK
• Certifications: UL cUL Listed (E226333), CE

Optidrive E3 VFD Datasheet

https://cpupartnergroup.com/image/pdf/Invertek%20Drives%20ODE-3-120070-1F12%20Datasheet.pdf
