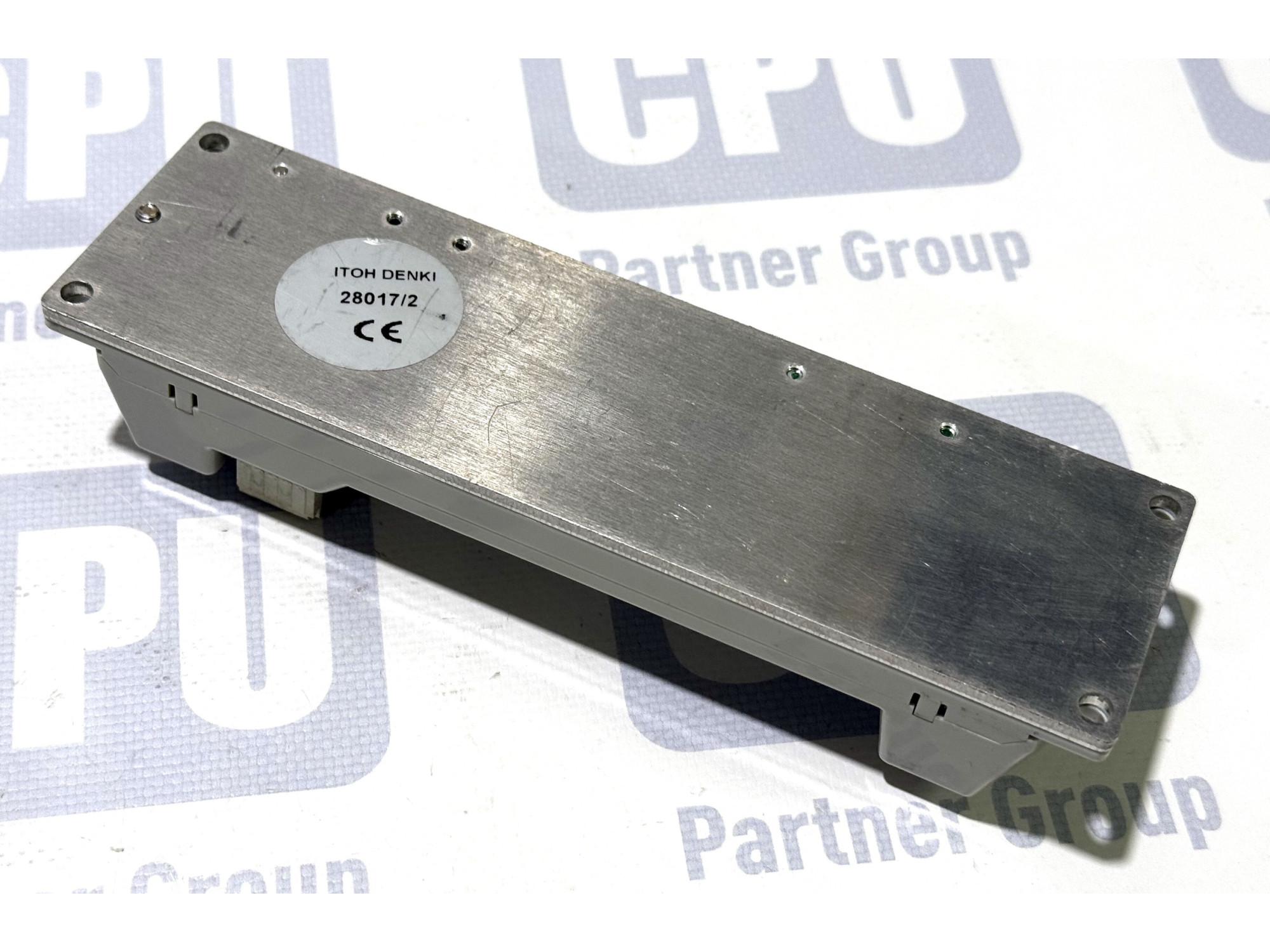

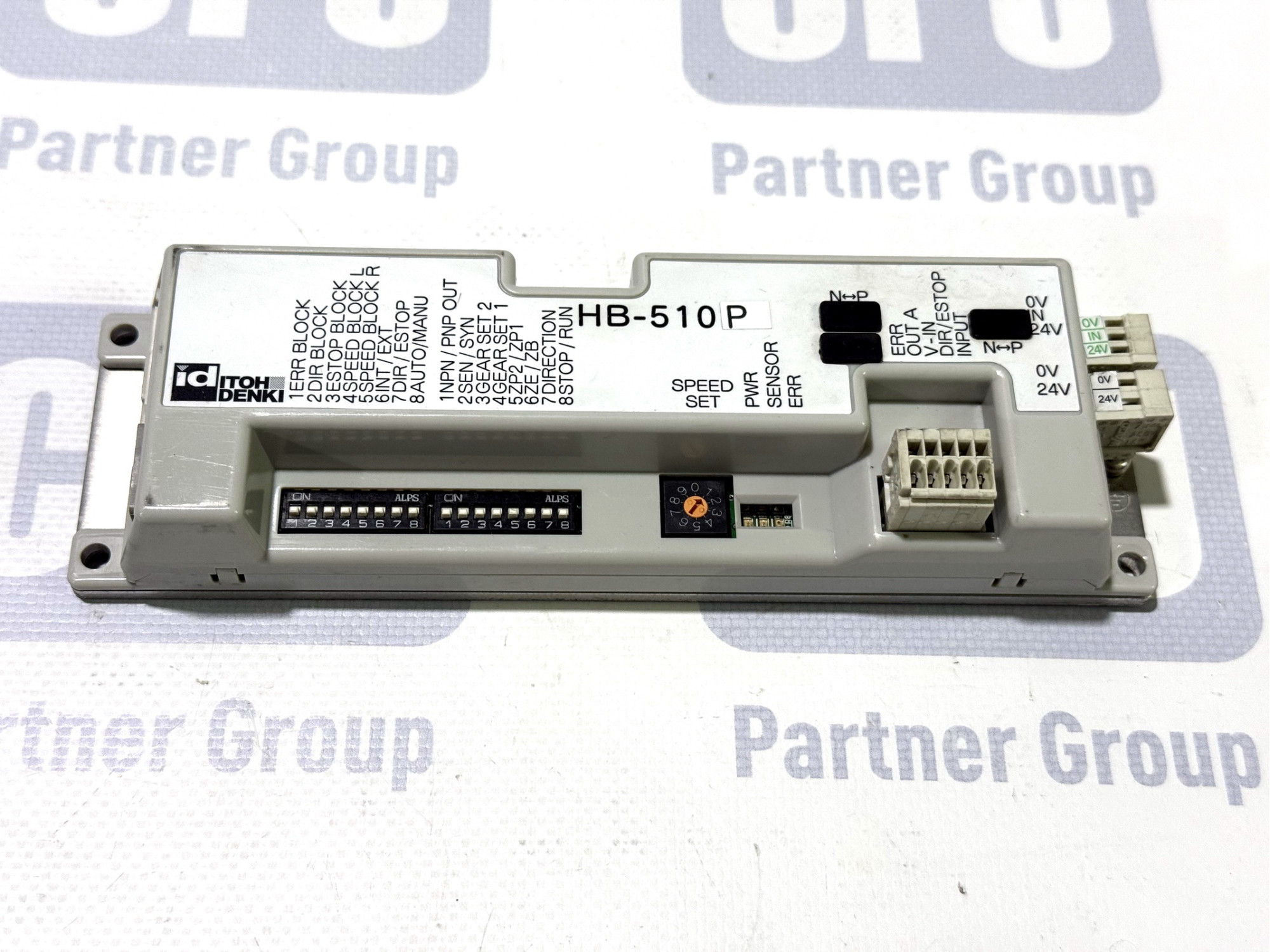

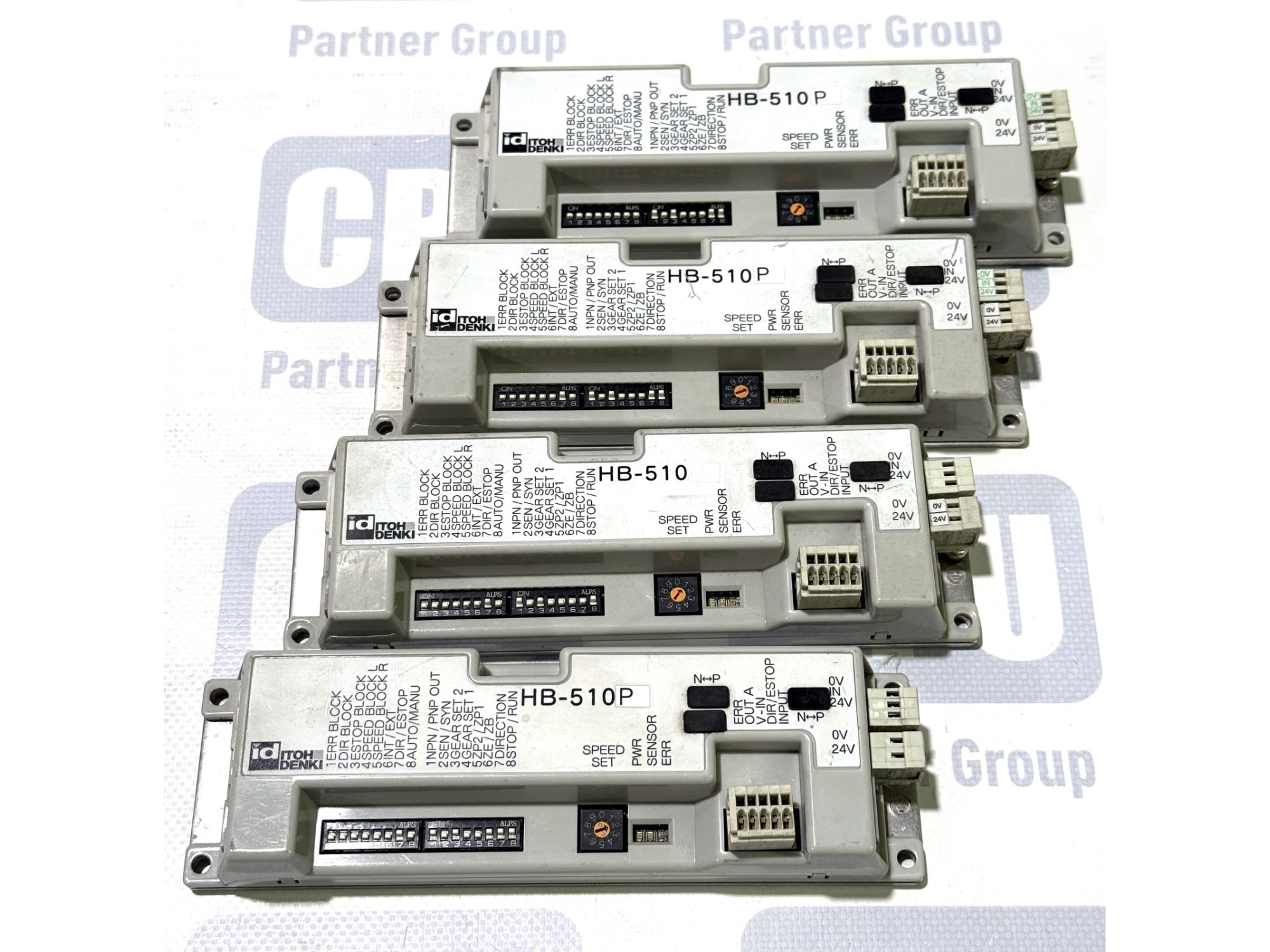

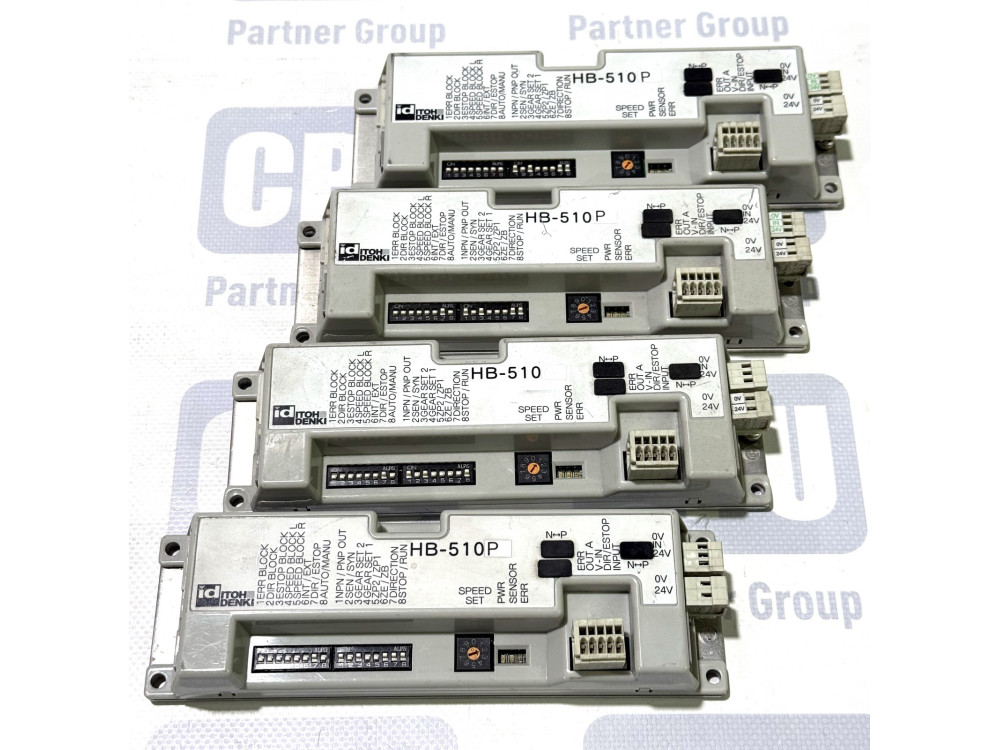

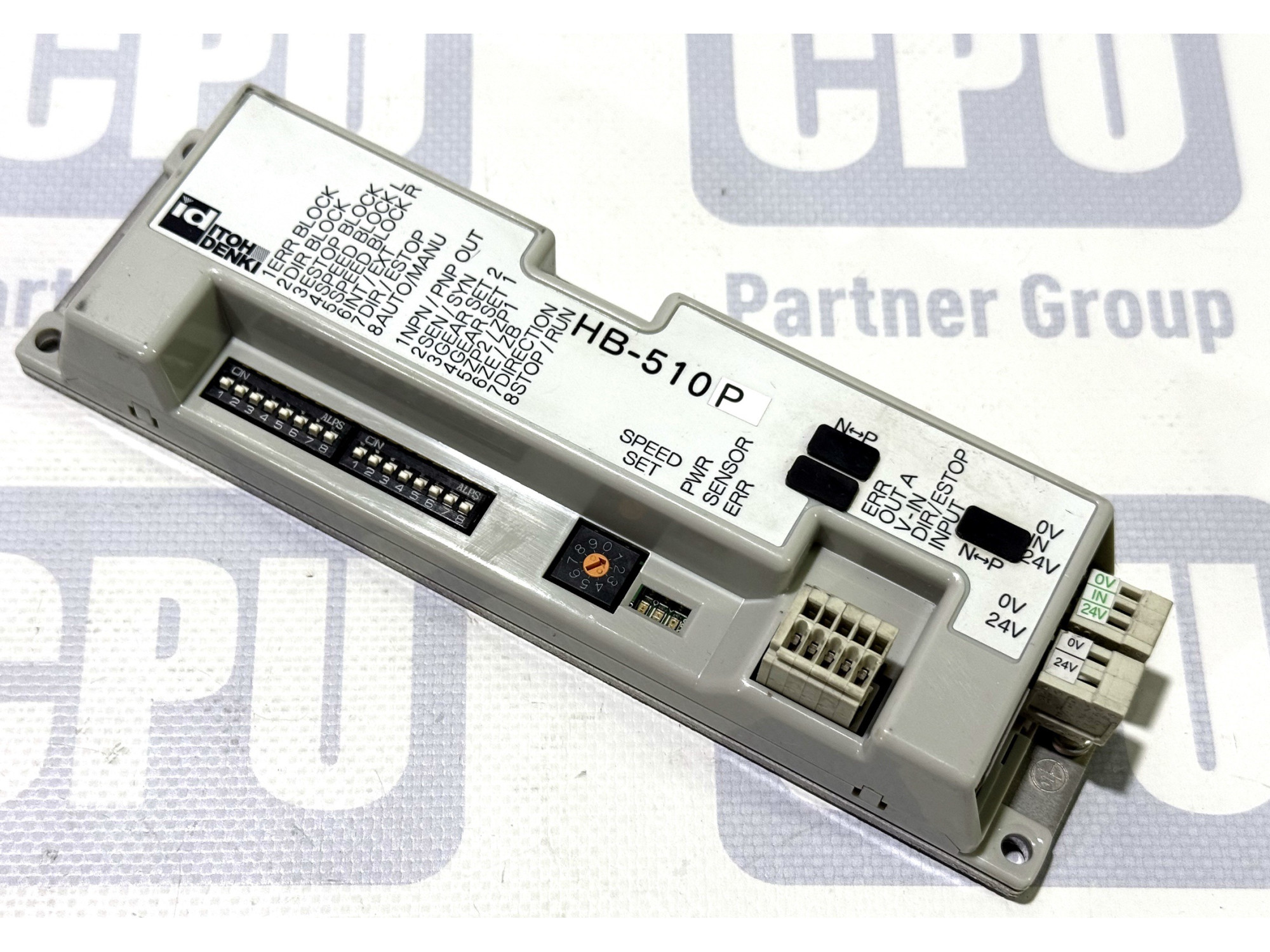

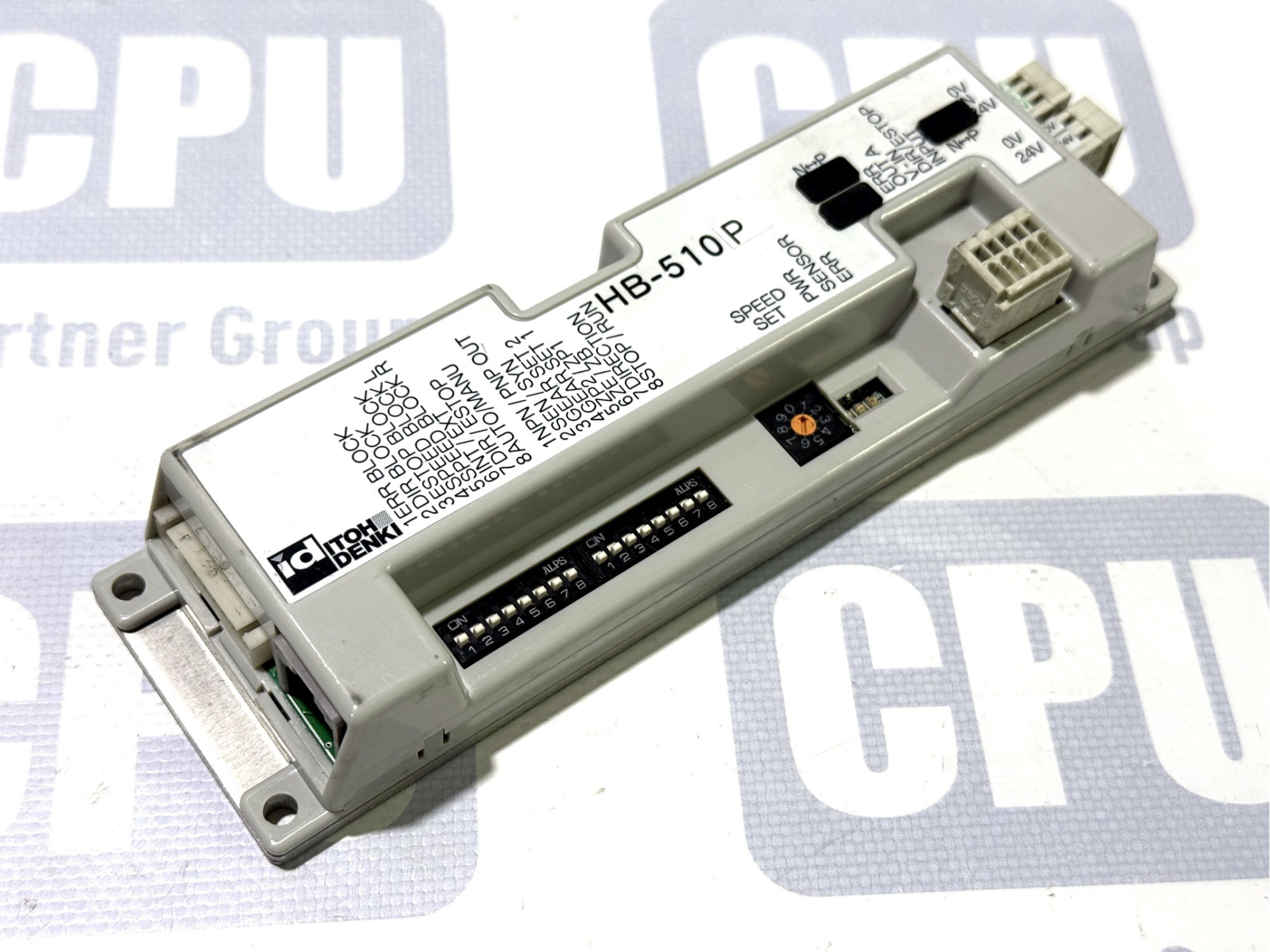

Itoh Denki HB-510P Conveyor drive module ( 1 pcs )

Itoh Denki HB-510P Conveyor Drive Module / Driver Card

• Type: Conveyor Drive Module / Driver Card

Itoh Denki HB-510P Conveyor Drive Module for Motorized Rollers (MDR)

The Itoh Denki HB-510P is a sophisticated drive module or driver card designed to control 24V DC Motorized Drive Rollers (MDRs) in automated conveyor systems. As part of the HB-510 series, this compact module provides the intelligence needed to manage the operation of individual or groups of MDRs, enabling efficient and flexible material handling solutions.

Key features of the HB-510P include integrated Zero Pressure Accumulation (ZPA) logic, allowing cartons or products to accumulate on the conveyor without touching, minimizing product damage. It offers direct connectivity for photo-sensors, simplifying wiring and setup for zone control. The module supports communication between adjacent HB-510P cards for coordinated movement and accumulation across multiple conveyor zones. Users can configure parameters such as speed, acceleration, and deceleration.

Built-in protection features like motor lock detection and thermal overload protection enhance system reliability and longevity. Status and error conditions are clearly indicated via LEDs. Compatible with various Itoh Denki 24V DC MDR series (such as FS, FE, and FP), the HB-510P is a versatile component for building modern, energy-efficient, and modular conveyor lines in logistics, distribution, and manufacturing environments.

Key Characteristics:

• Function: Control module for Itoh Denki 24V DC Motorized Drive Rollers (MDRs).
• Model: HB-510P.
• Type: Conveyor Drive Module / Driver Card.
• Features: Integrated ZPA logic, direct photo-sensor input, inter-card communication, adjustable speed/acceleration/deceleration, motor protection (lock, thermal overload), LED indicators.
• Voltage: 24V DC.
• Compatibility: Compatible with Itoh Denki FS, FE, and FP series MDRs.
• Applications: Automated conveyors, material handling, logistics, Zero Pressure Accumulation (ZPA) systems.

The Itoh Denki HB-510P drive module provides intelligent, decentralized control for MDR-based conveyor systems, enabling flexible and efficient automation.

On this page you will find the user manual for Itoh Denki HB-510P. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.
