Janitza UMG 96 S 52.13.001 Multifunction Power Meter / Power Quality Analyzer ( 1 PCS )

Janitza UMG 96 S 52.13.001 Multifunction Power Meter / Power Quality Analyzer (85-300VAC, RS232/RS485, Profibus)

The Janitza UMG 96 S 52.13.001 is a versatile and compact multifunction power meter and analyzer from Janitza electronics GmbH, manufactured in Germany. This universal measuring instrument is designed for precise monitoring and analysis of electrical parameters in low and medium voltage distribution systems.

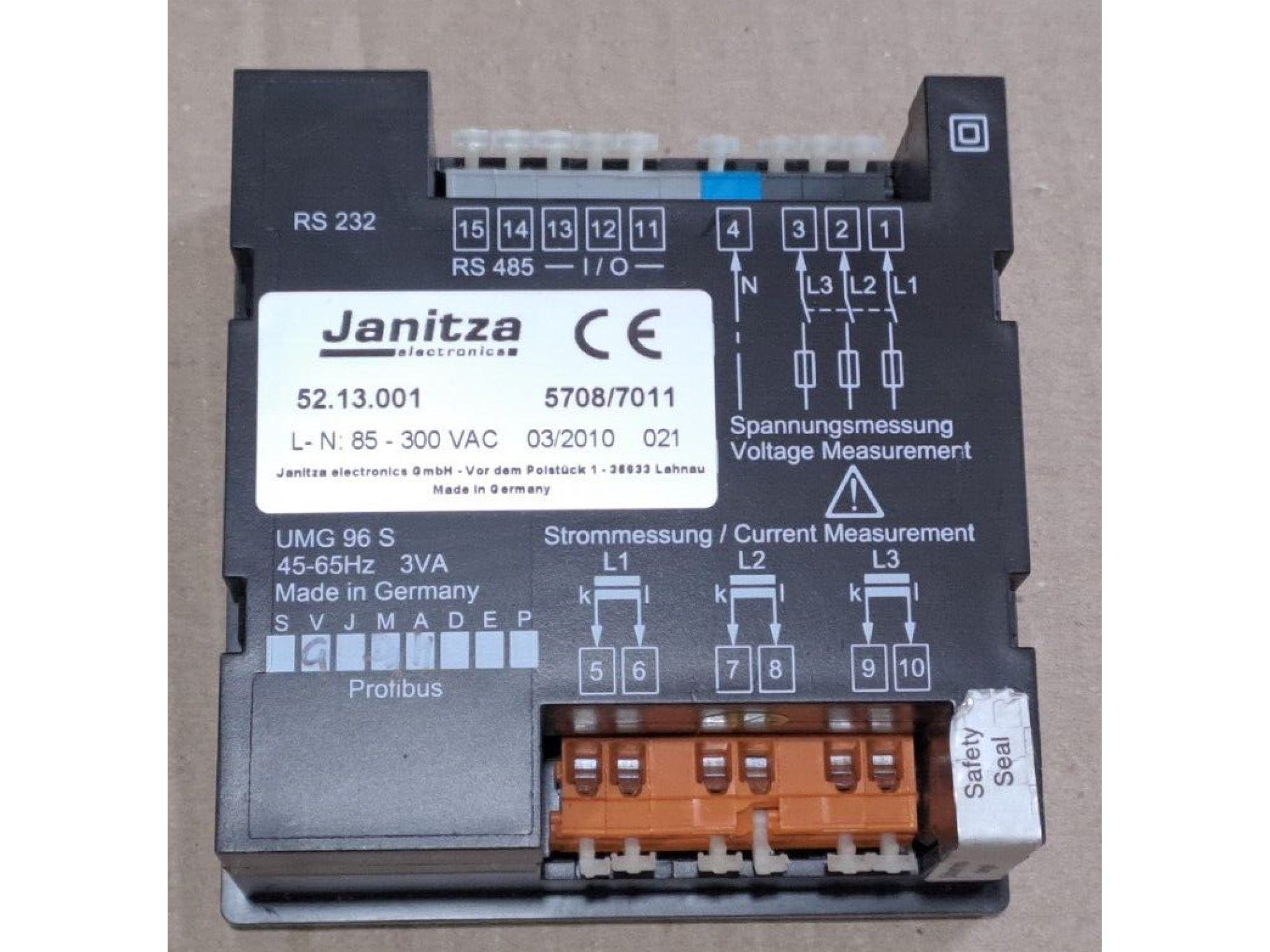

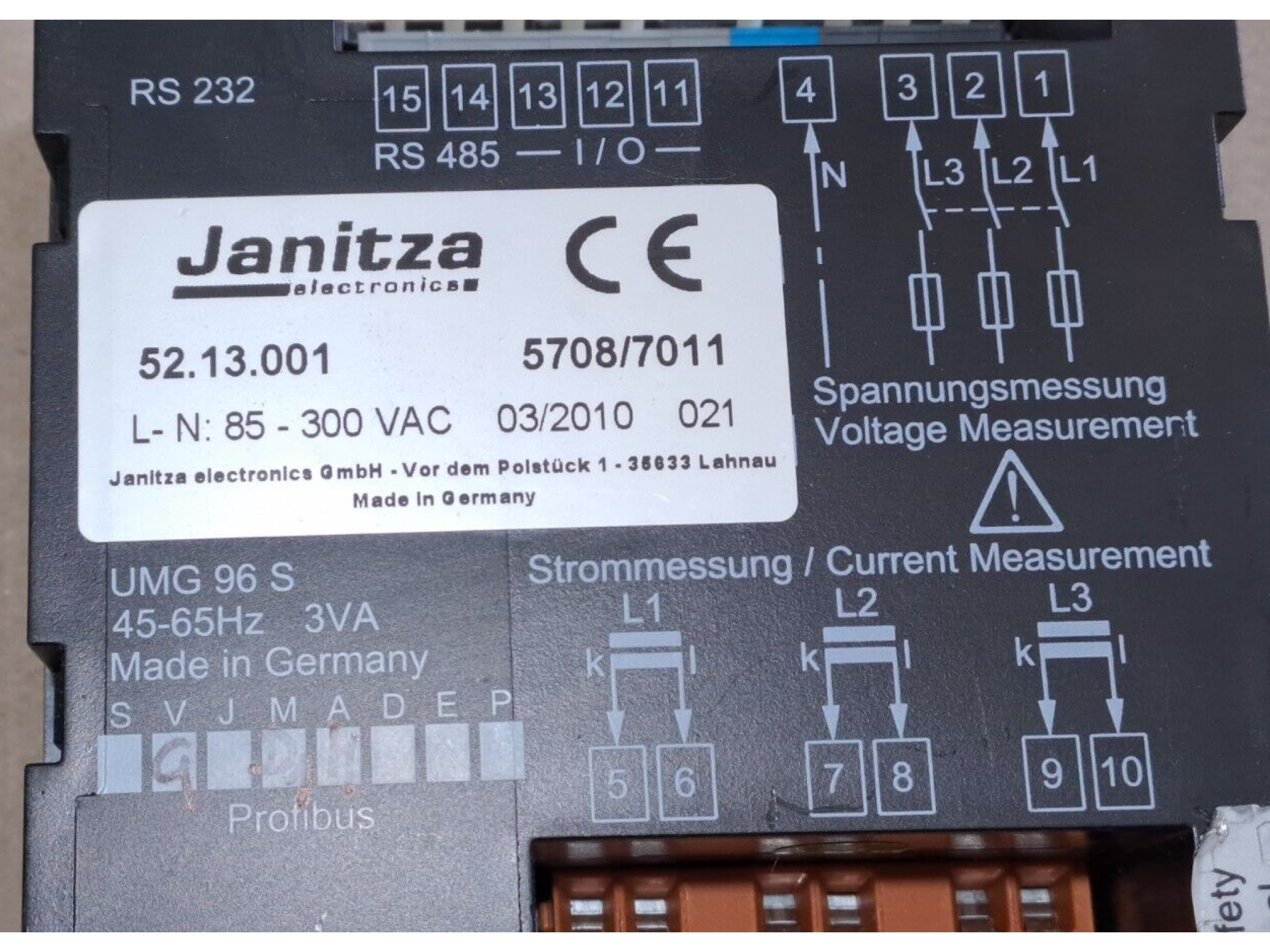

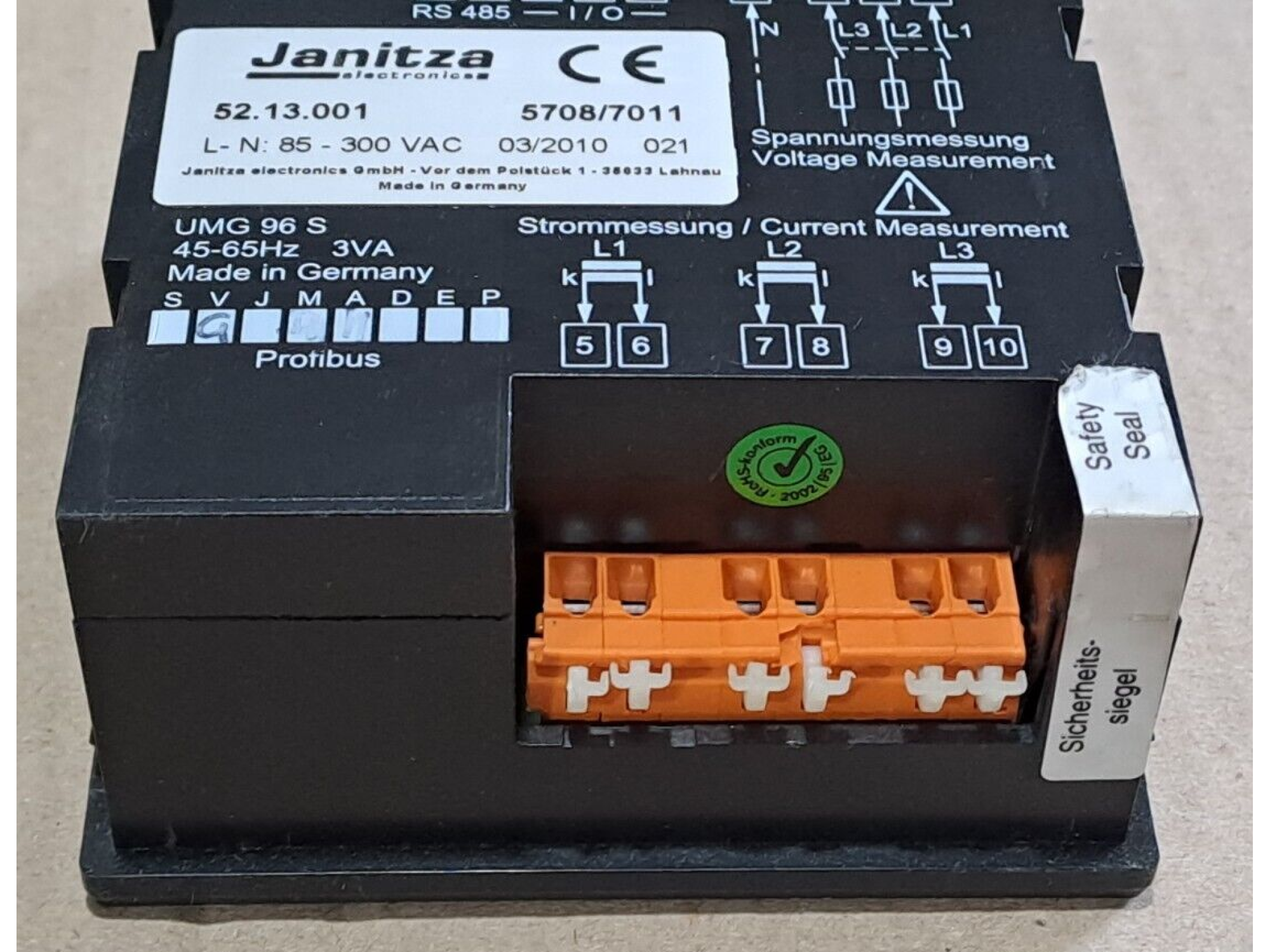

This meter is capable of measuring a wide array of electrical values, including voltage, current, power (active, reactive, apparent), energy (active and reactive), frequency, power factor, and potentially harmonics. It supports direct voltage measurement inputs (L1, L2, L3, N) and requires current transformers for current measurement inputs (L1, L2, L3), compatible with standard ../1A or ../5A CTs.

The UMG 96 S 52.13.001 features a flexible power supply range of 85 to 300 VAC. It is equipped with multiple communication interfaces, including RS232 and RS485, allowing for integration into energy management systems, SCADA systems, or building management systems using protocols like Modbus RTU.

Typical features for the UMG 96 S series include a built-in display for local readout, memory for data logging, recording of minimum and maximum values, and capabilities for basic power quality analysis like THD (Total Harmonic Distortion) and monitoring individual harmonics.

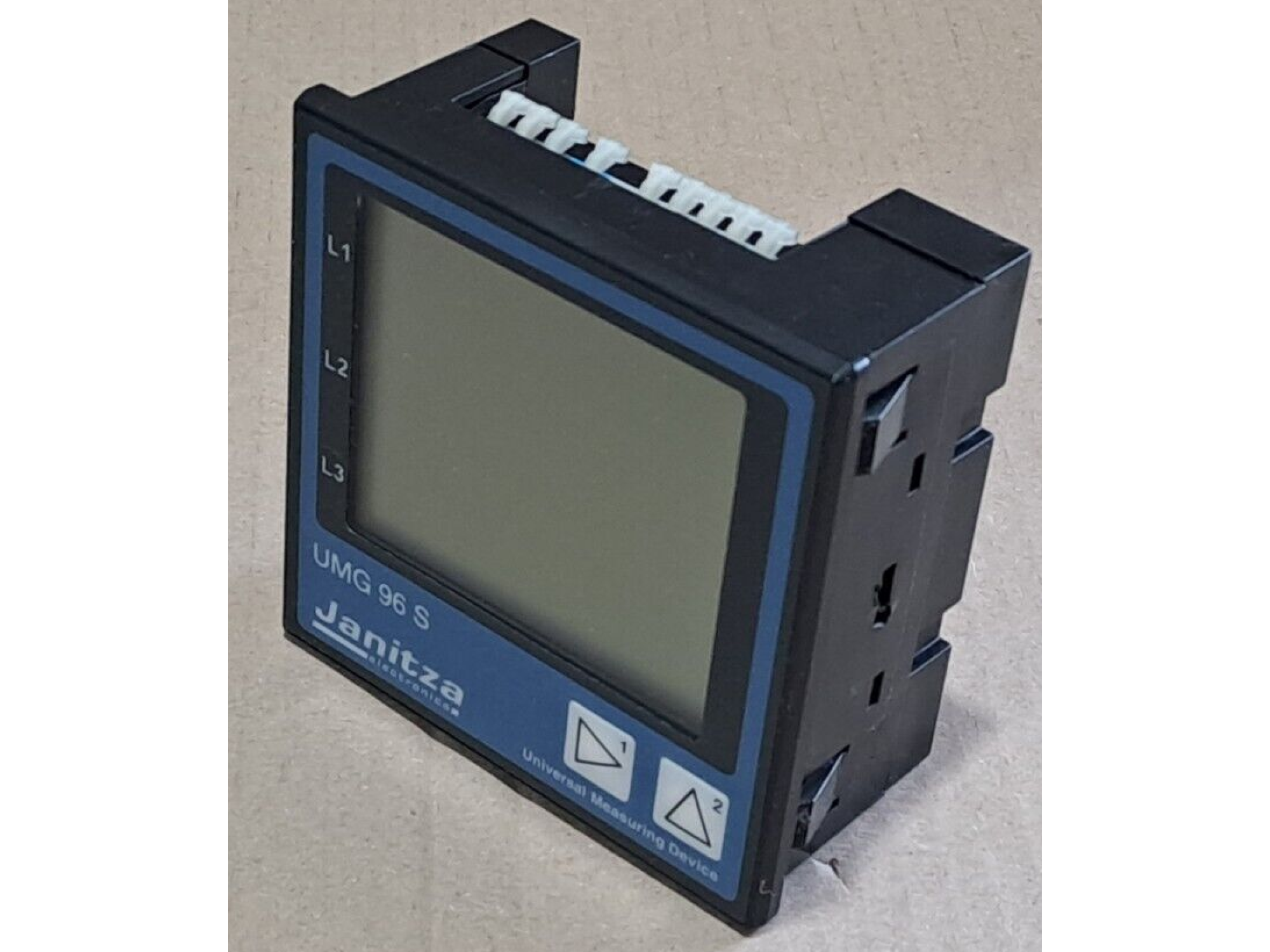

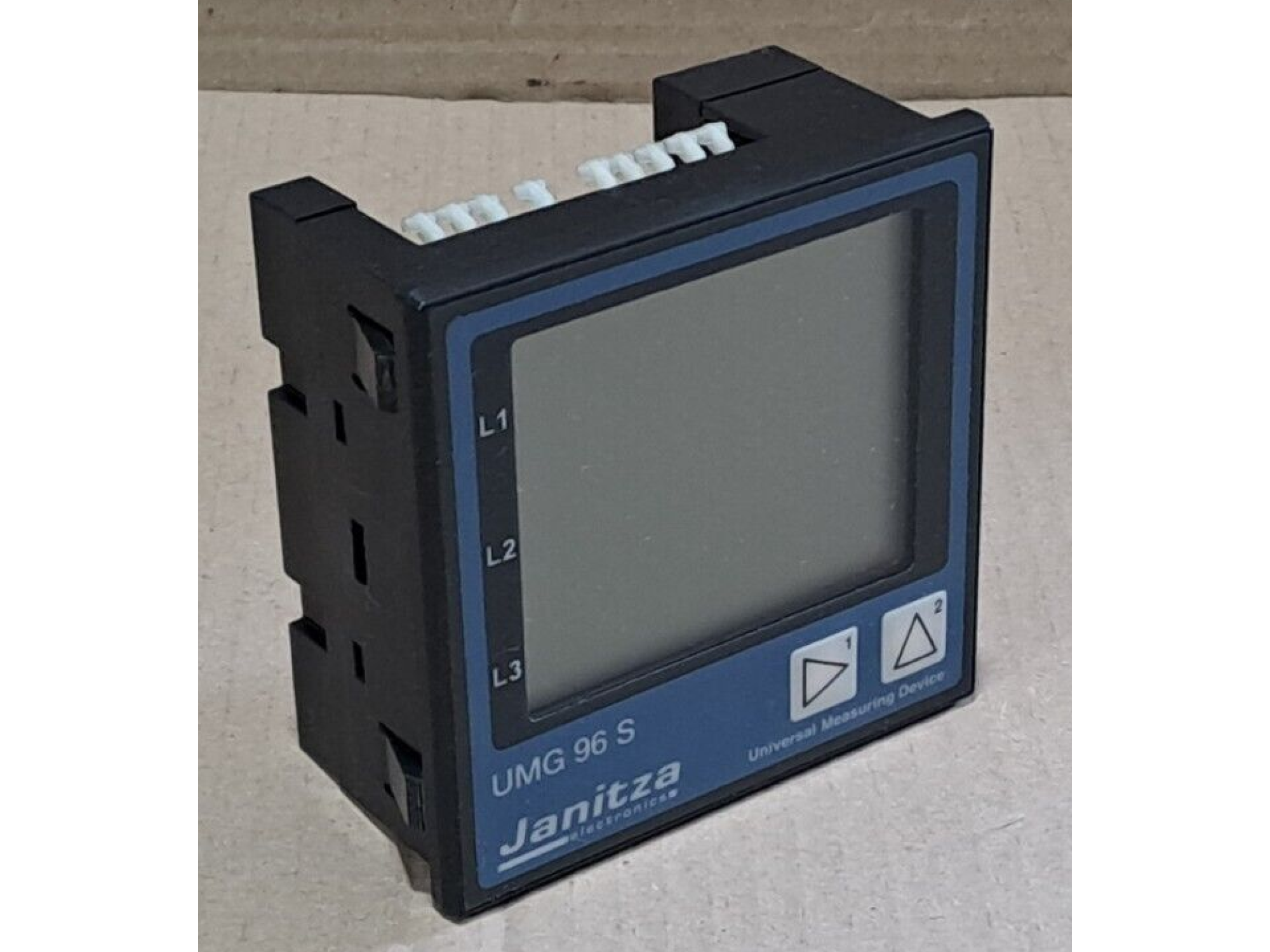

With its compact 96x96mm form factor, the UMG 96 S 52.13.001 is designed for panel mounting, making it a suitable replacement for multiple analog meters or a key data acquisition point on electrical distribution boards and control panels.

This meter is an effective tool for energy monitoring, cost allocation, load analysis, and ensuring the stability and quality of the electrical supply.

Key Features:

• Brand: Janitza electronics GmbH
• Model / MPN: UMG 96 S 52.13.001
• Type: Multifunction Power Meter / Power Quality Analyzer
• Voltage Measurement: Direct input L-N: 85-300 VAC
• Current Measurement: Via current transformers (L1, L2, L3 inputs)
• Frequency: 45-65 Hz
• Communication Interfaces: RS232, RS485 (Modbus RTU), Profibus DP V0
• Measurements: V, A, P, Q, S, PF, F, Energy (kWh, kvarh), Harmonics (typical for series)
• Display: Integrated digital display (typical for series)
• Mounting: Panel mount (96x96mm form factor)
• Origin: Made in Germany
• Applications: Energy management, power quality monitoring, data acquisition, sub-metering.
