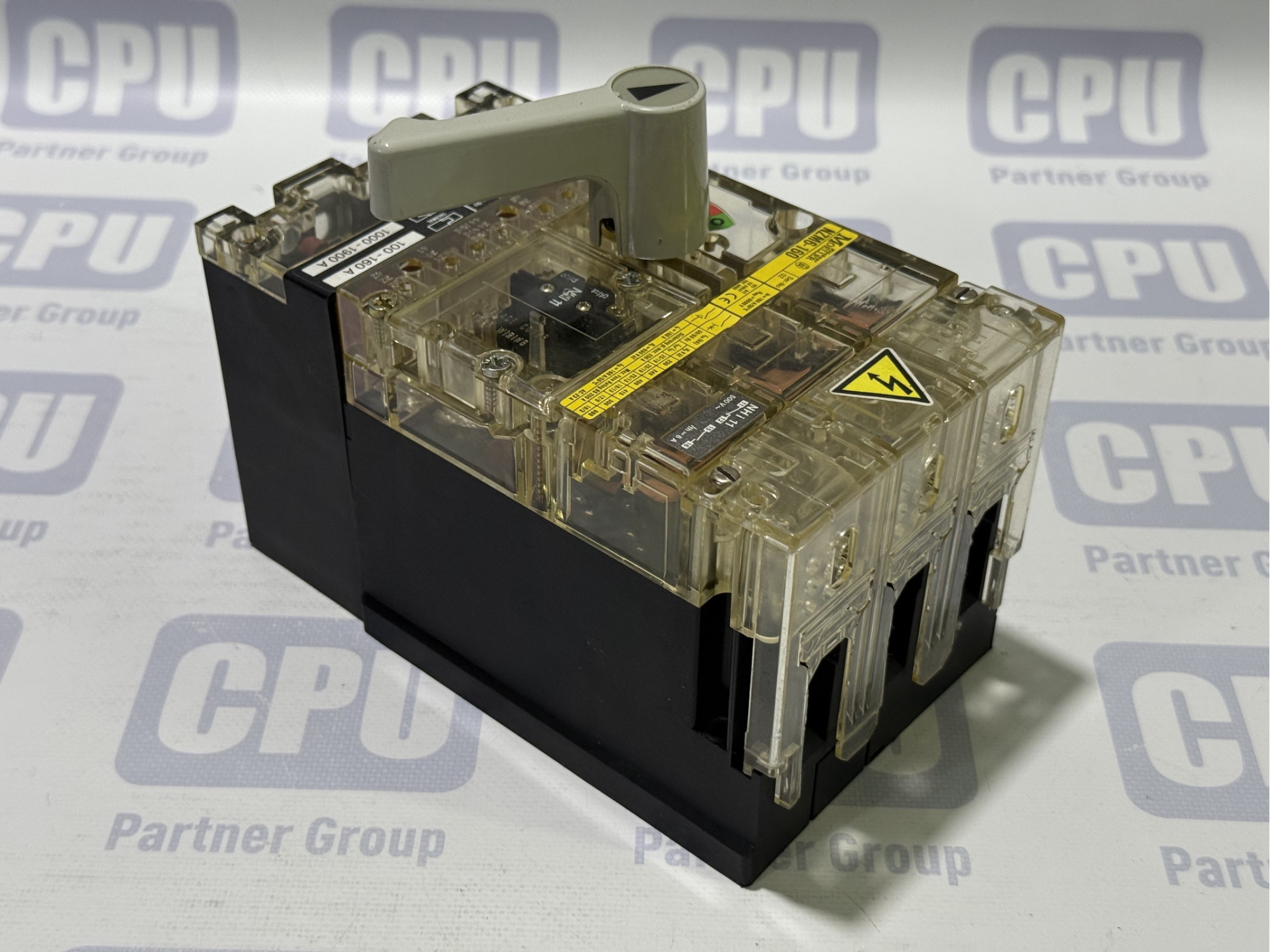

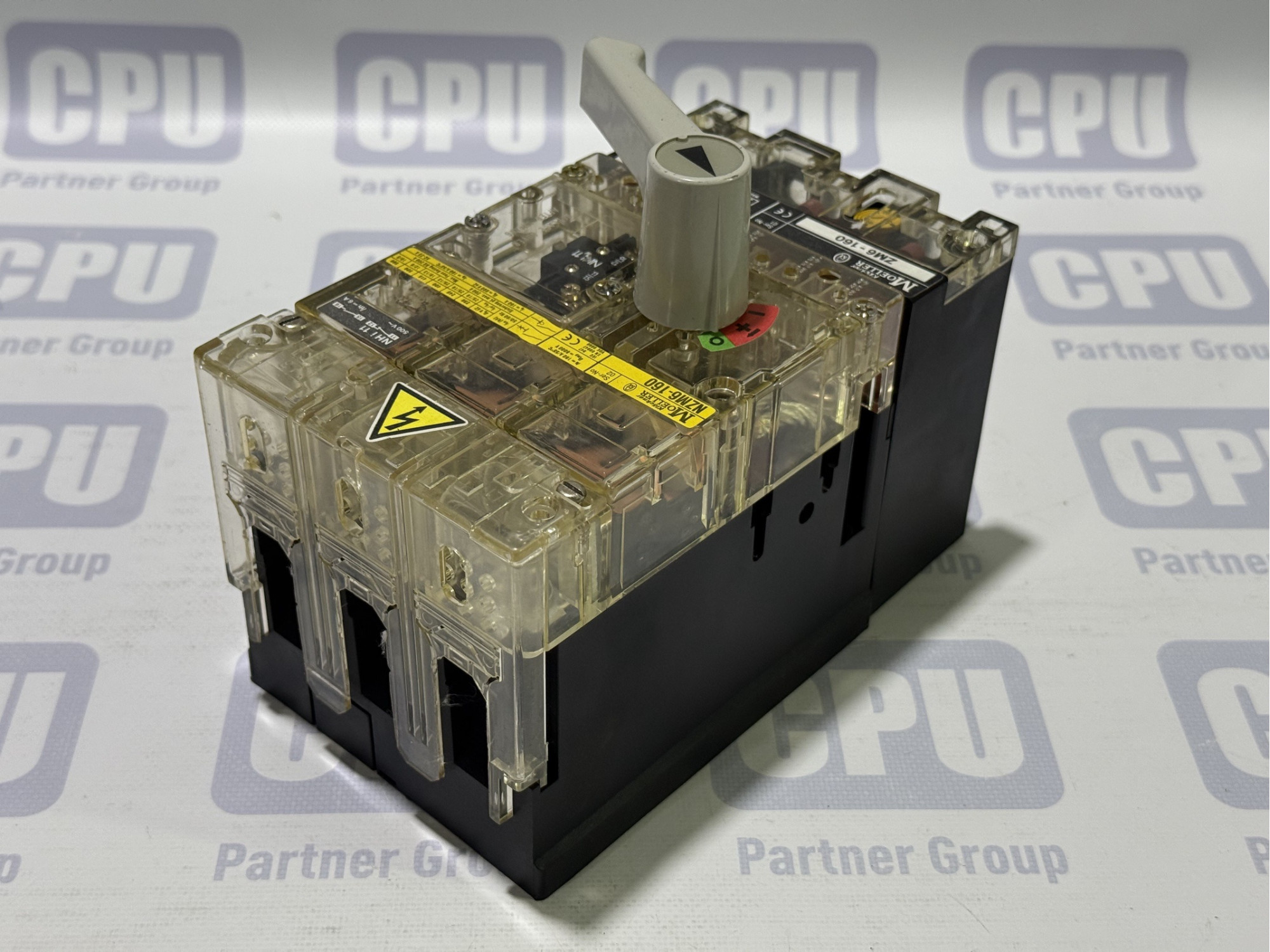

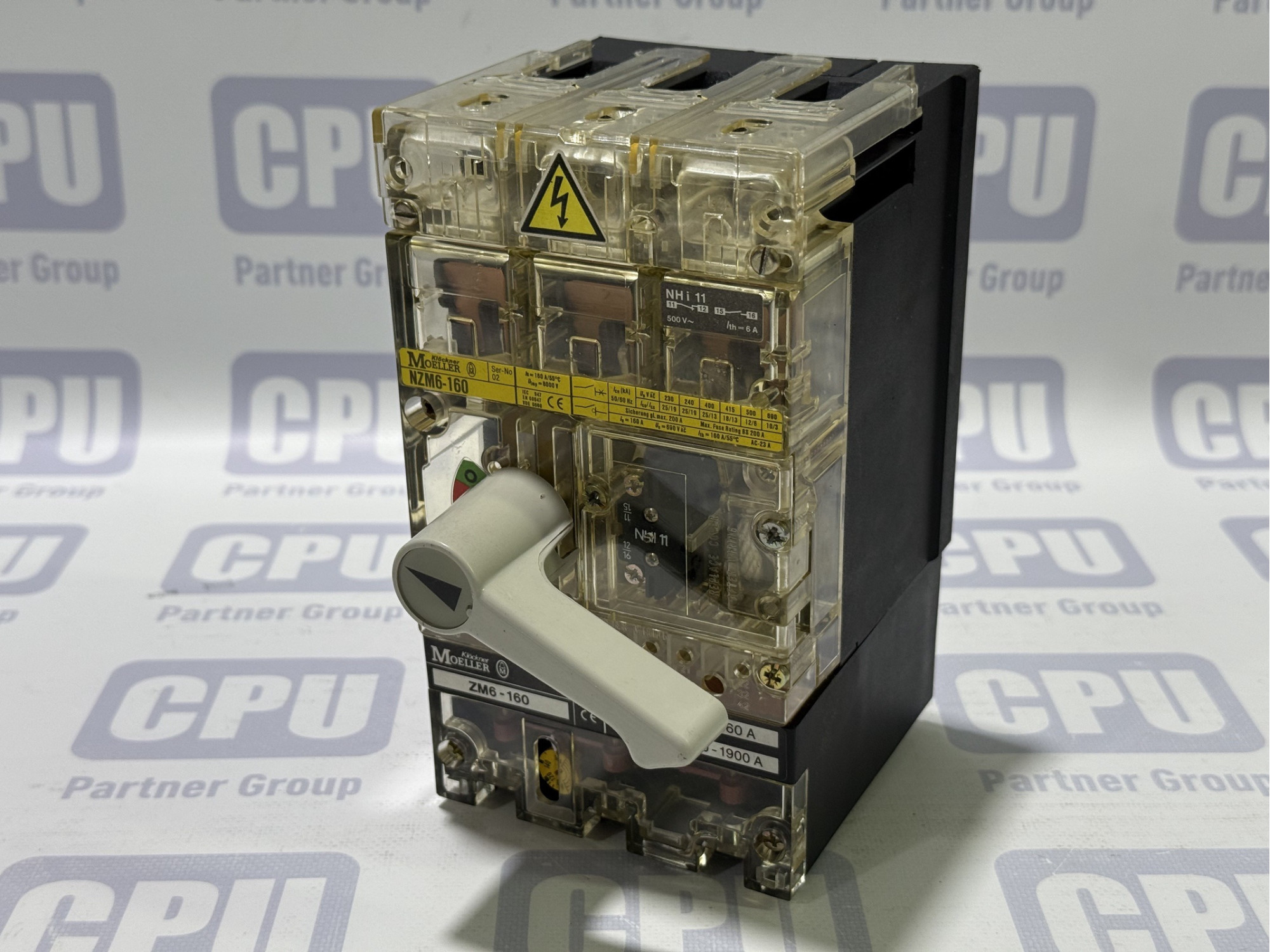

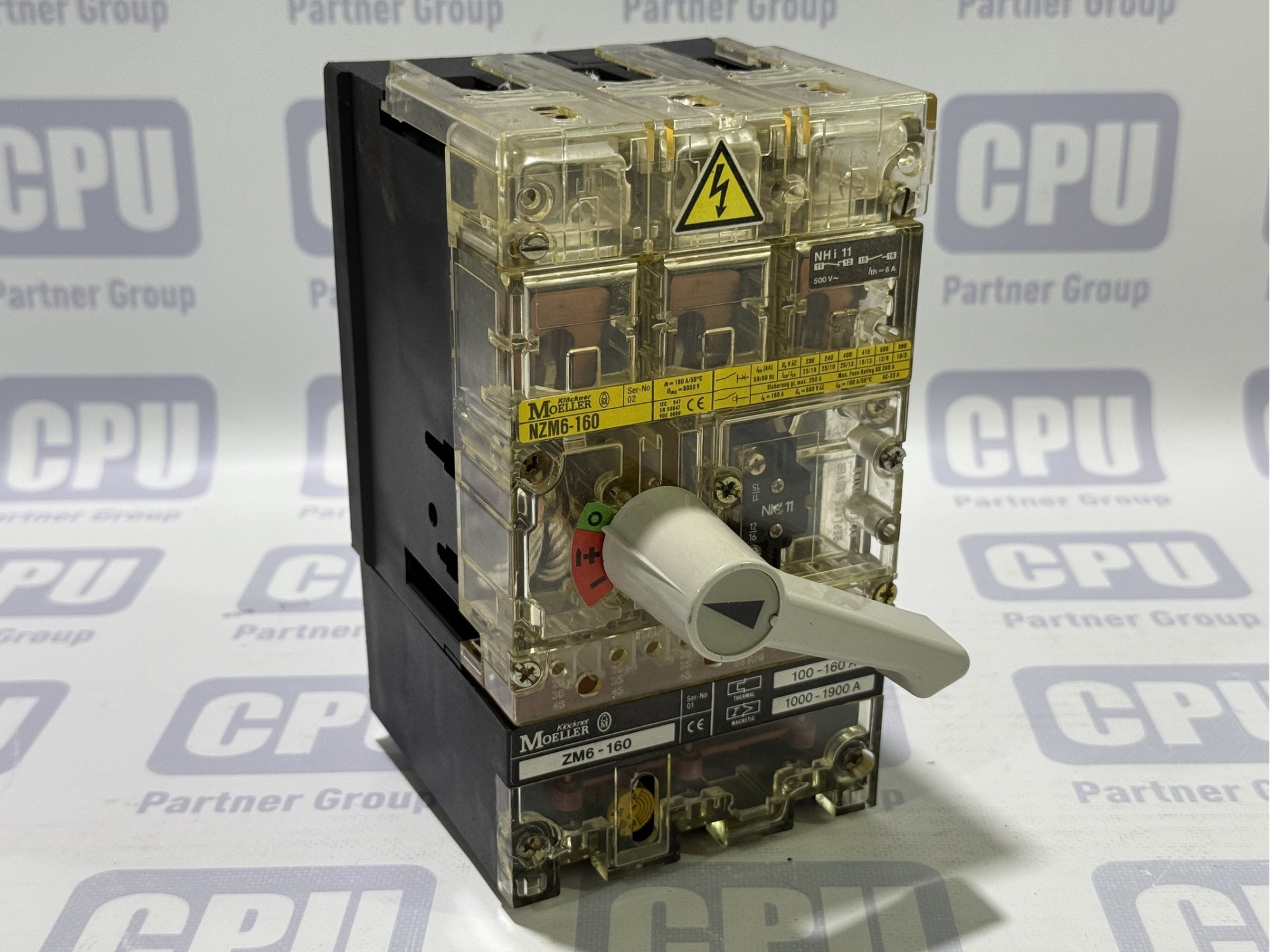

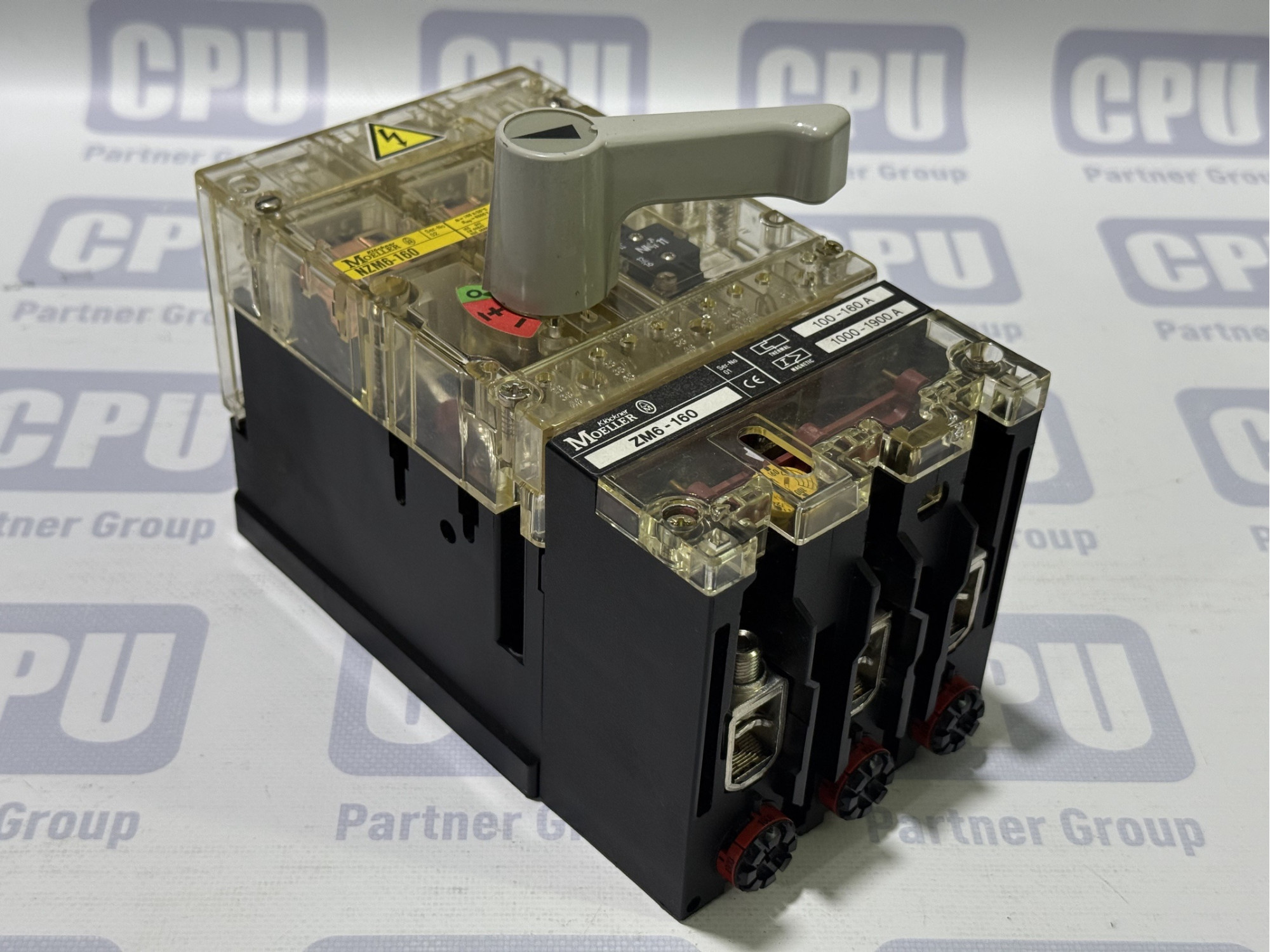

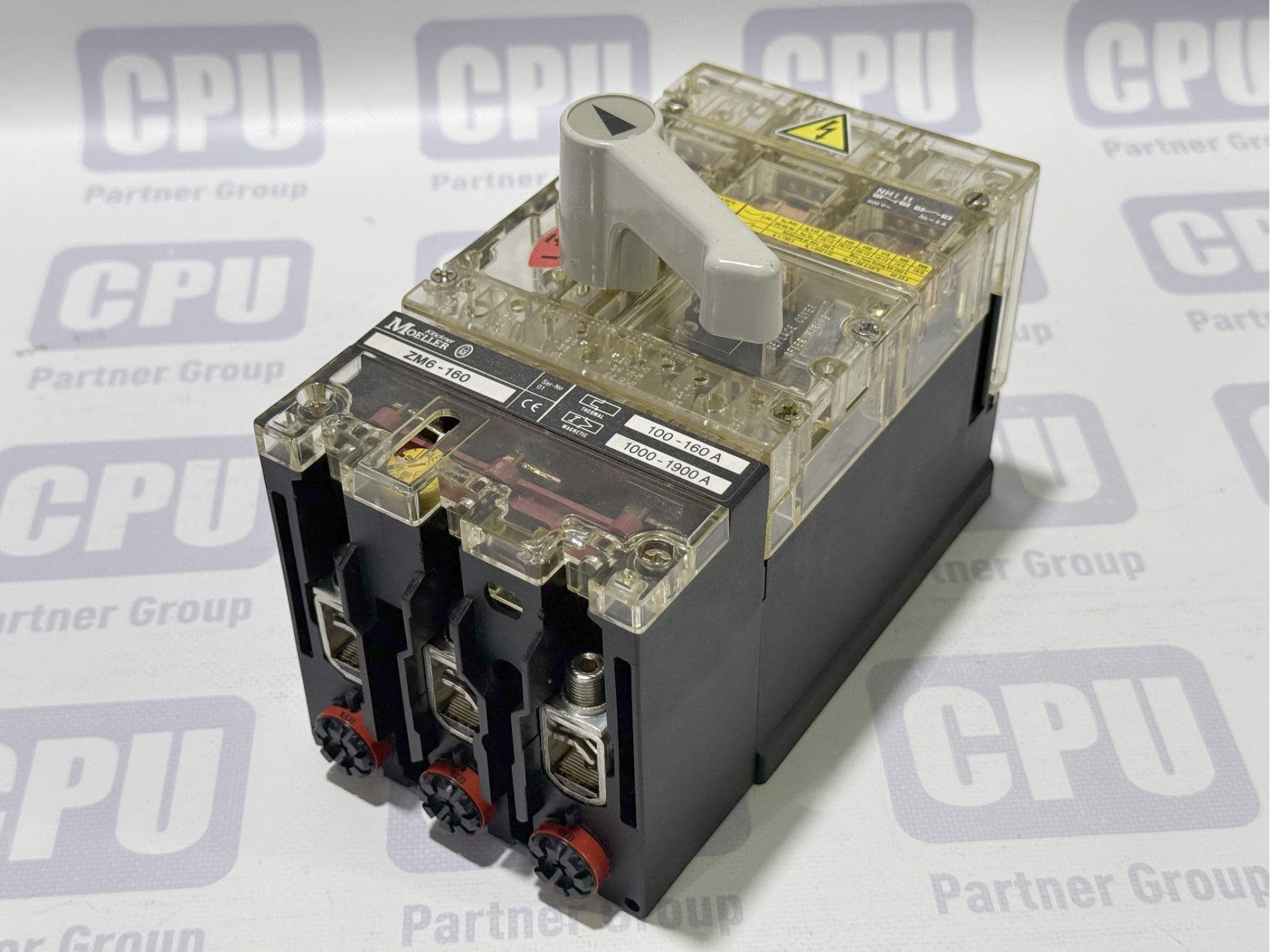

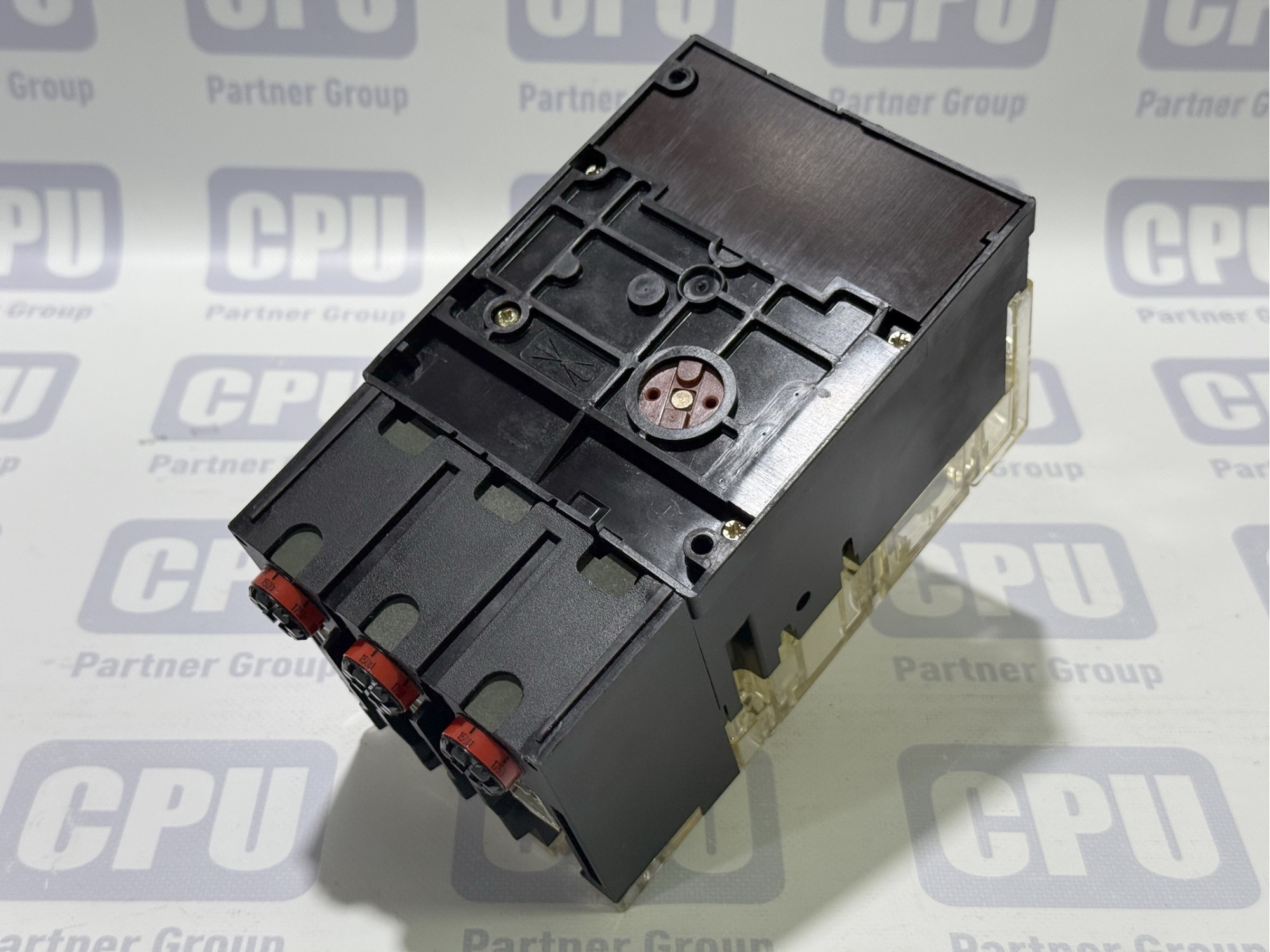

Klockner-Moeller NZM6-160 Circuit Breaker

 The Klockner-Moeller NZM6-160 circuit breaker is designed for reliable protection of electrical circuits, installations, and equipment against overloads and short circuits. It is a vital component in low-voltage power distribution systems, ensuring safety and uninterrupted operation in industrial, commercial, and other electrified facilities.

Key Features:

• Manufacturer: Klockner-Moeller ( Eaton).
• Model / Series: NZM6-160.
• Rated Current (In): 160 A at 55°C.
• Rated Voltage: Up to 690 V AC.

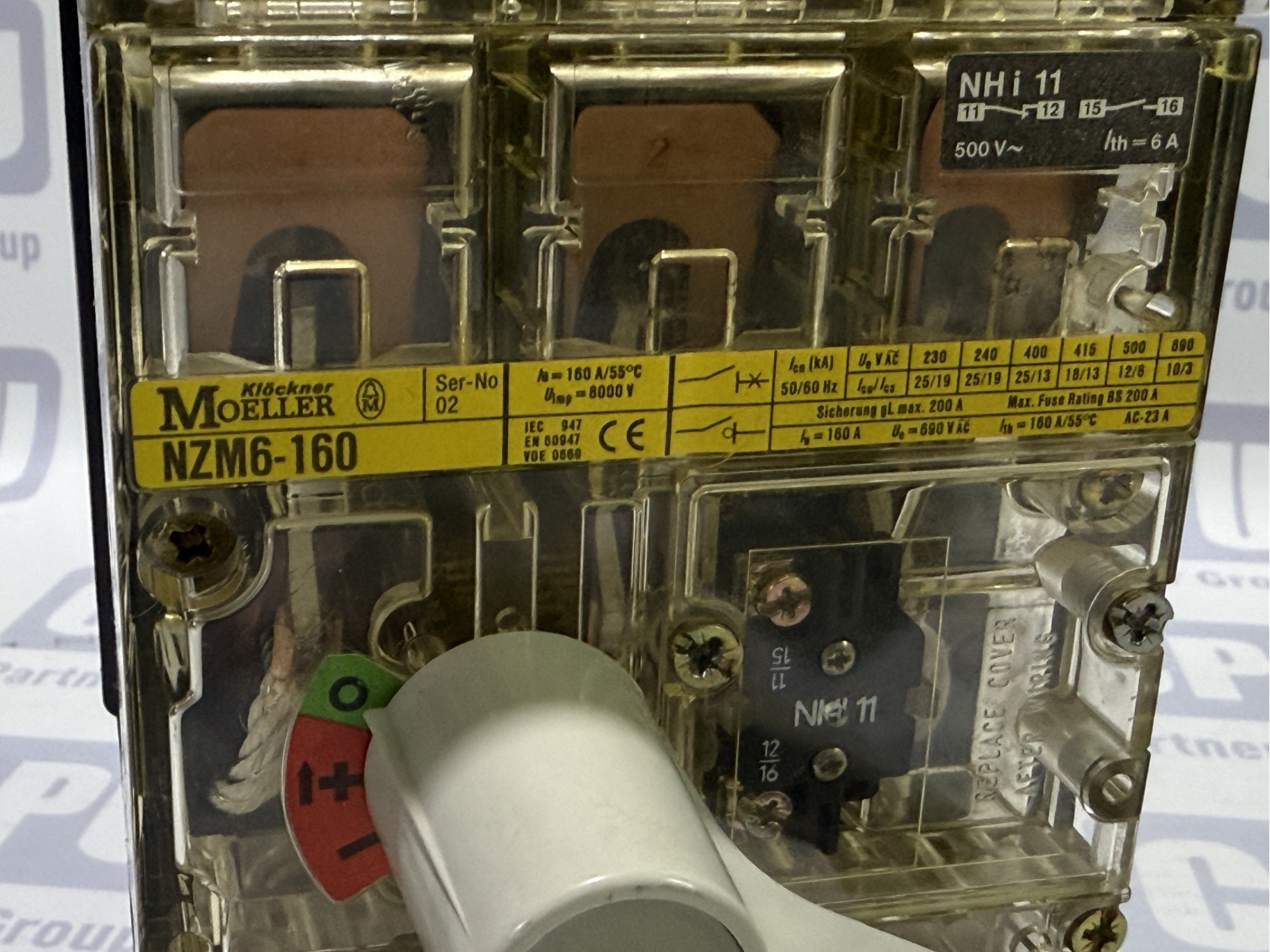

• Breaking Capacity (Icu / Ics) at 50/60 Hz:
  • 230 V AC: 25 kA / 19 kA
  • 240 V AC: 25 kA / 19 kA
  • 400 V AC: 25 kA / 13 kA
  • 415 V AC: 18 kA / 13 kA
  • 500 V AC: 12 kA / 8 kA
  • 690 V AC: 10 kA / 3 kA
• Rated Impulse Withstand Voltage (Uimp): 8000 V.

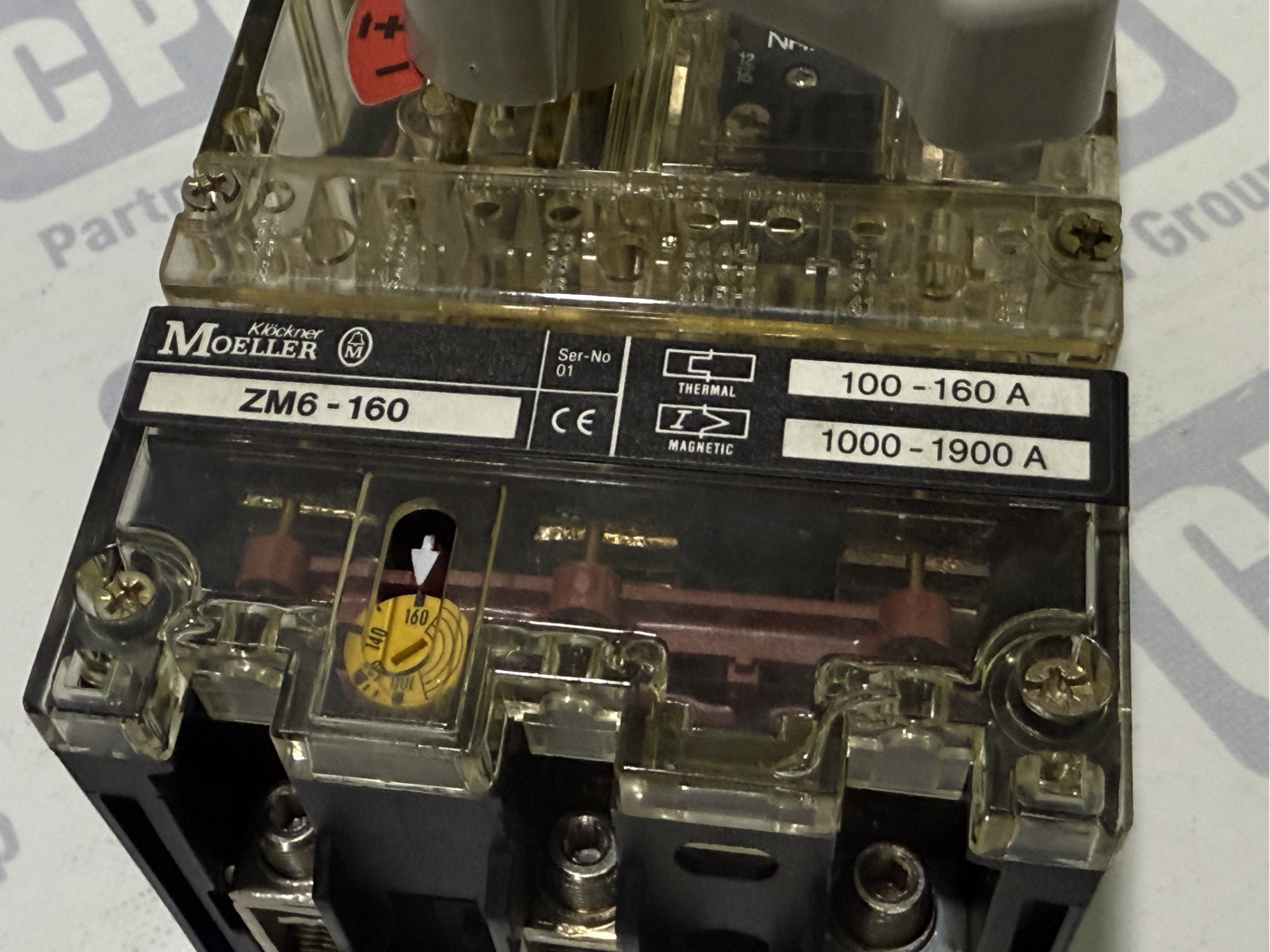

• Adjustments: Adjustable overload current (e.g., 100-160 A) and instantaneous trip current (1000-1900 A).
• Standards: Complies with IEC 947, EN 60947, VDE 0660.
• Certification: CE.

Unique Advantages or Features:

• High Protection Reliability: Provides effective protection against overloads and short circuits, preventing equipment damage and failures.
• Industrial Quality: Klockner-Moeller (Eaton) products are known for their robustness and durability, designed for operation in harsh industrial environments.
• Configuration Flexibility: The ability to adjust tripping parameters allows the circuit breaker to be adapted to the specific requirements of the protected circuit.
• Compact Design: Relatively compact dimensions for its breaking capacities facilitate installation in panels and cabinets.
• Standard Compliance: Certification according to international standards (IEC, EN, VDE) and CE marking confirm the high quality and safety of the product.
• Visual Inspection: The transparent casing allows for visual inspection of the internal contacts, and the handle provides clear ON/OFF positioning.

Installation Instructions

https://cpupartnergroup.com/image/pdf/eaton-n6-4-nzm6-4-nzms-h-6-4-zm6-4-nzm-6b-zm6-4-installation-instructions-awa123-701-ml.pdf
