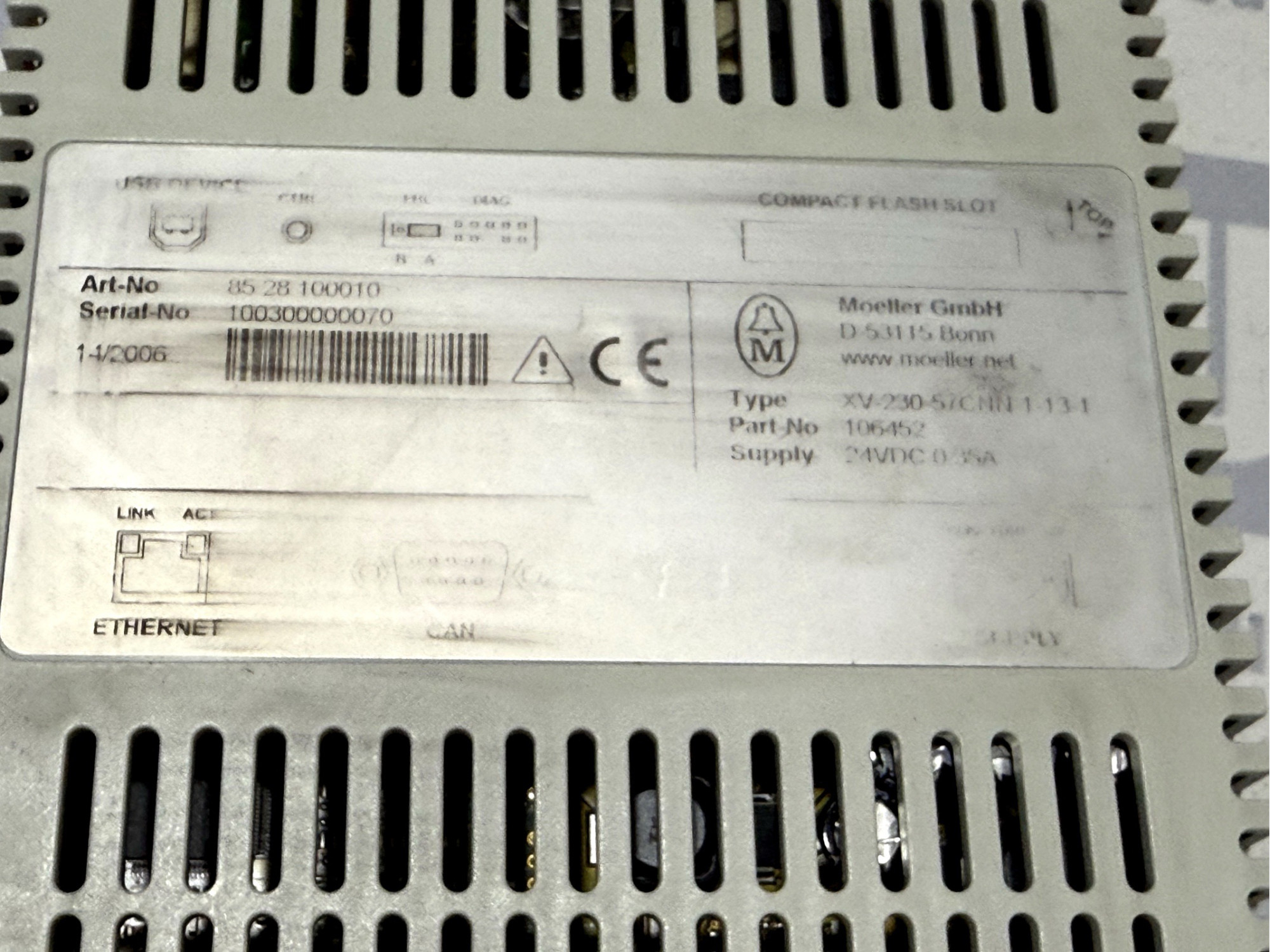

Moeller Gmbh D-53115 Bonn Touch Screen XV-230-57CNN-1-13-1 #B7809#

Moeller Gmbh D-53115 Bonn Touch Screen XV-230-57CNN-1-13-1

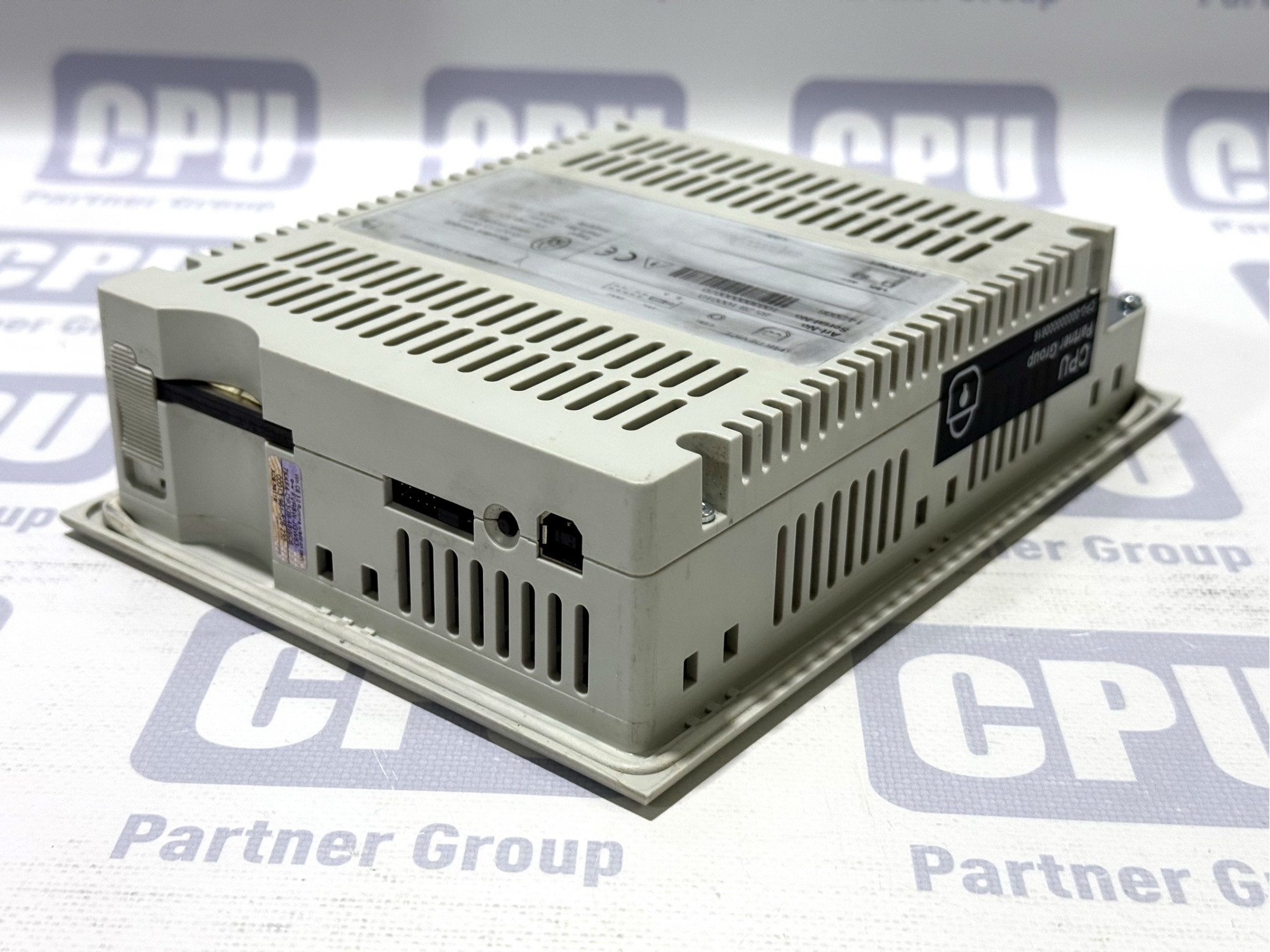

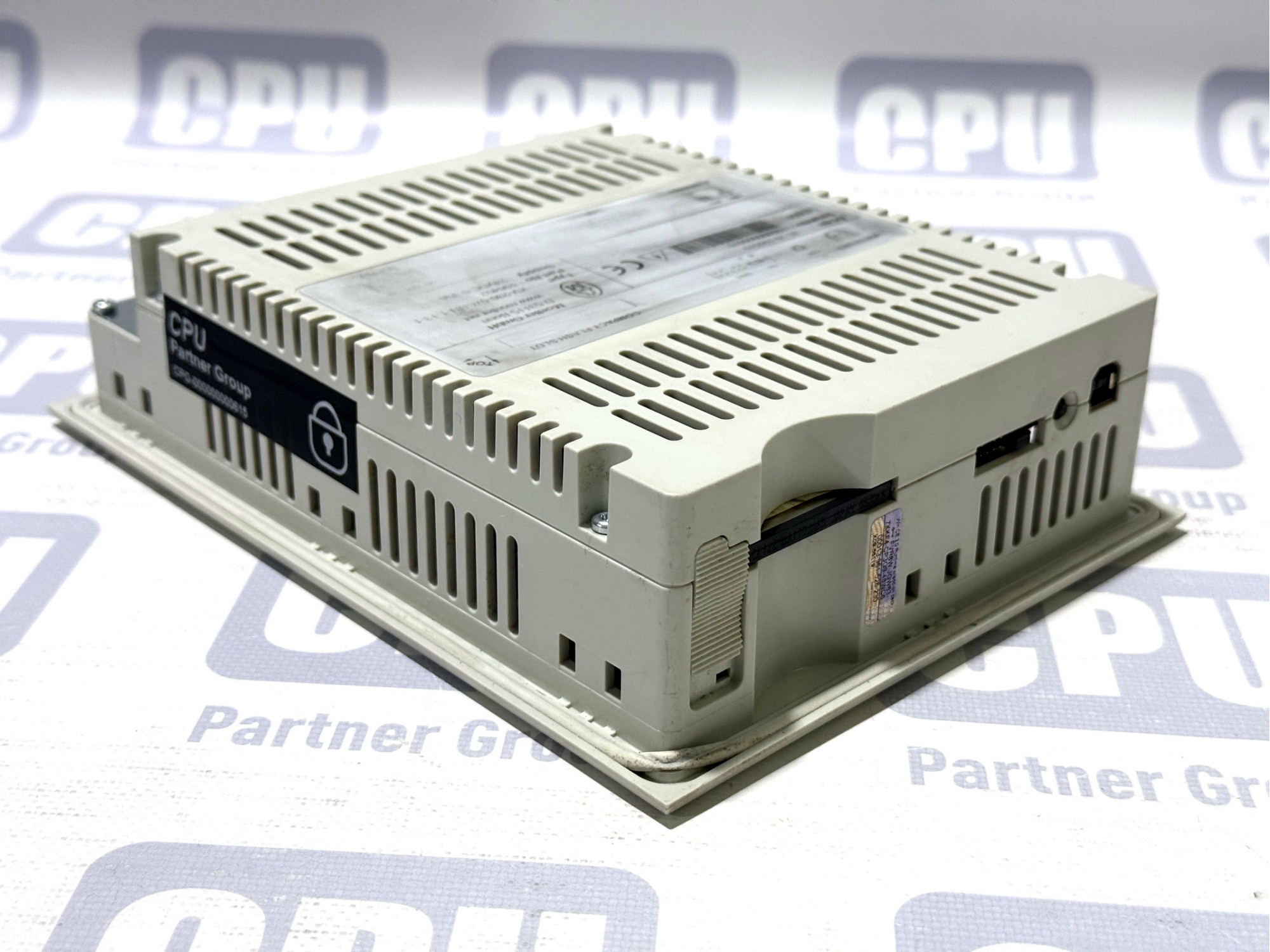

 Overview

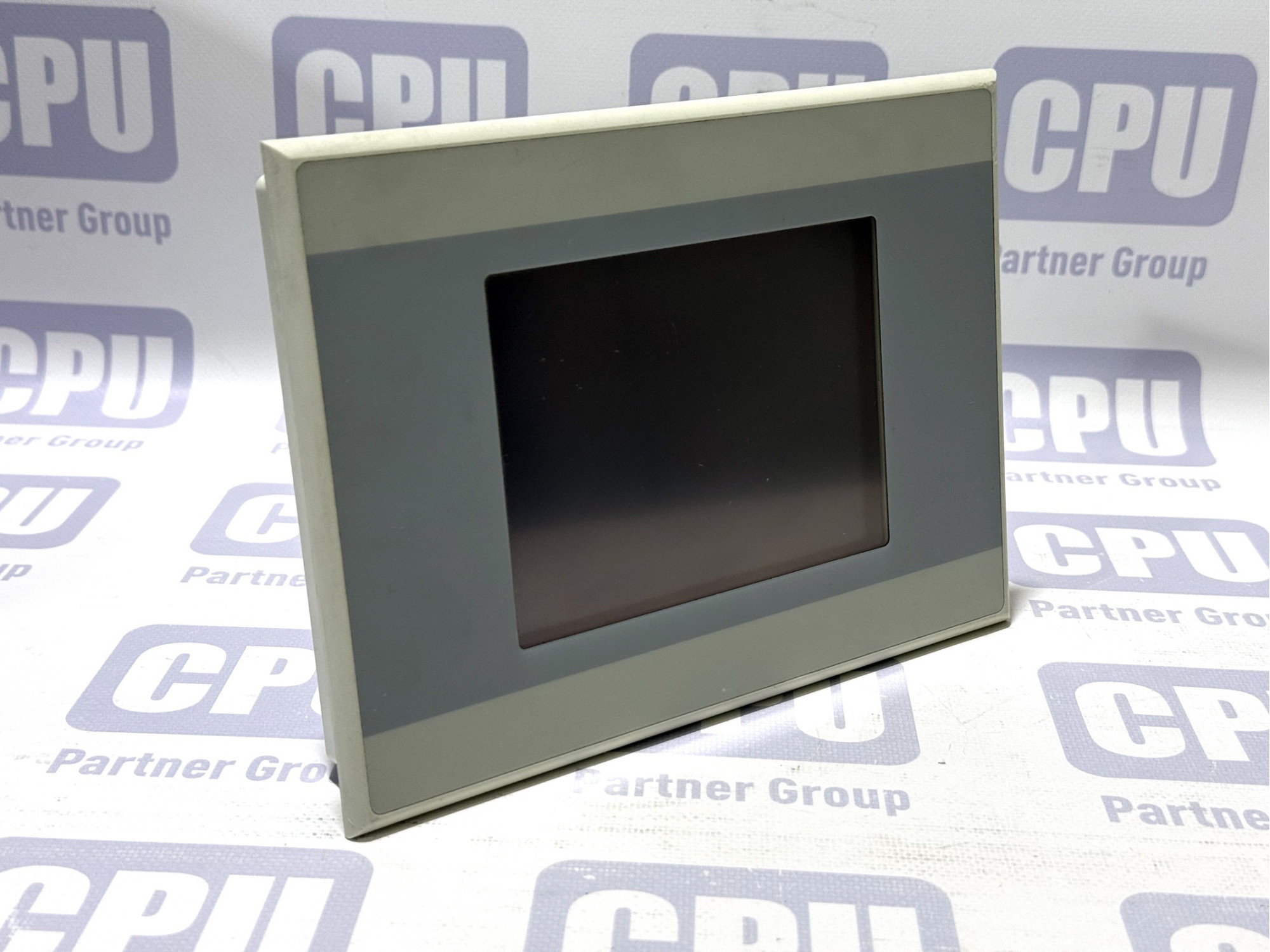

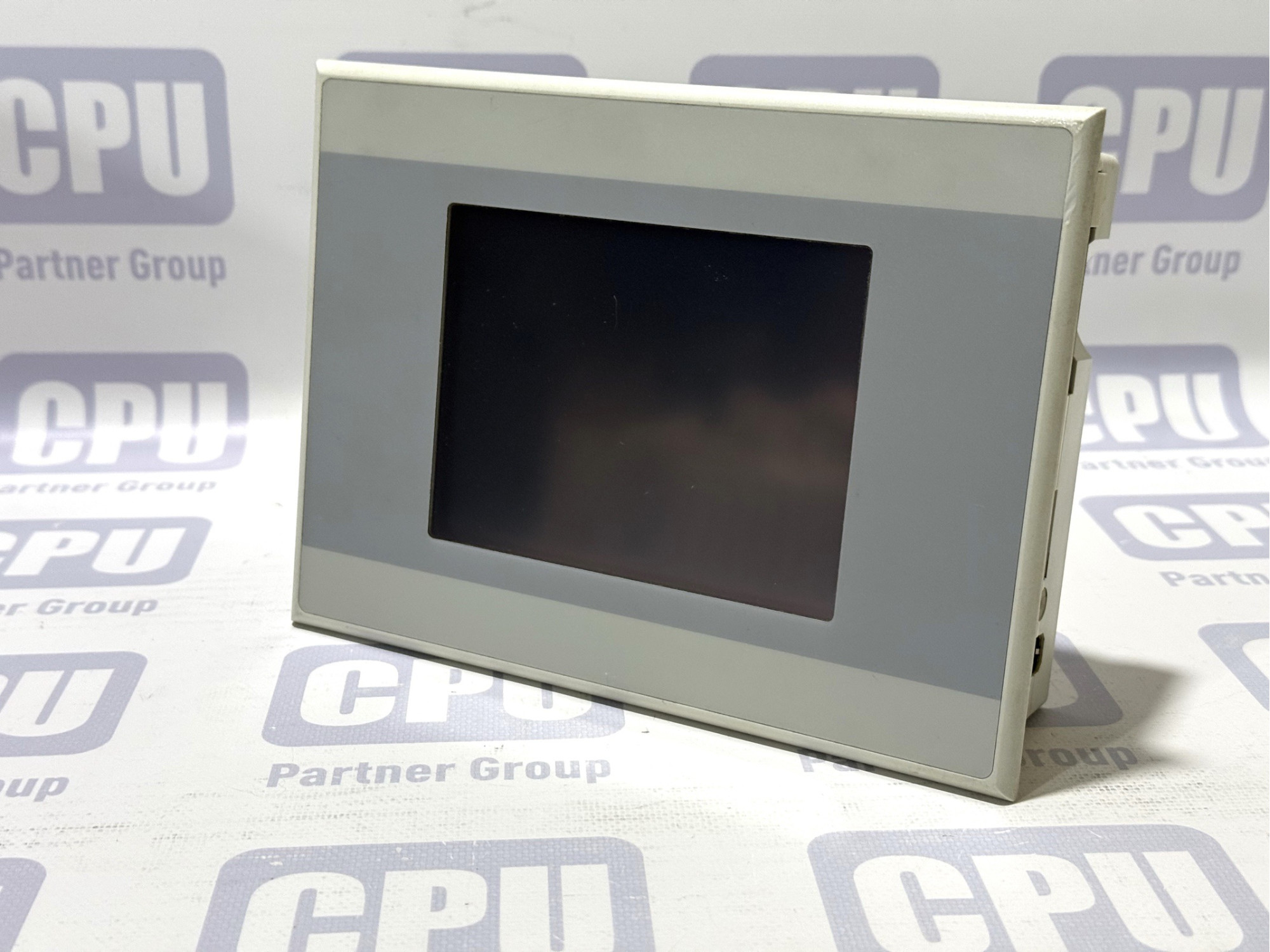

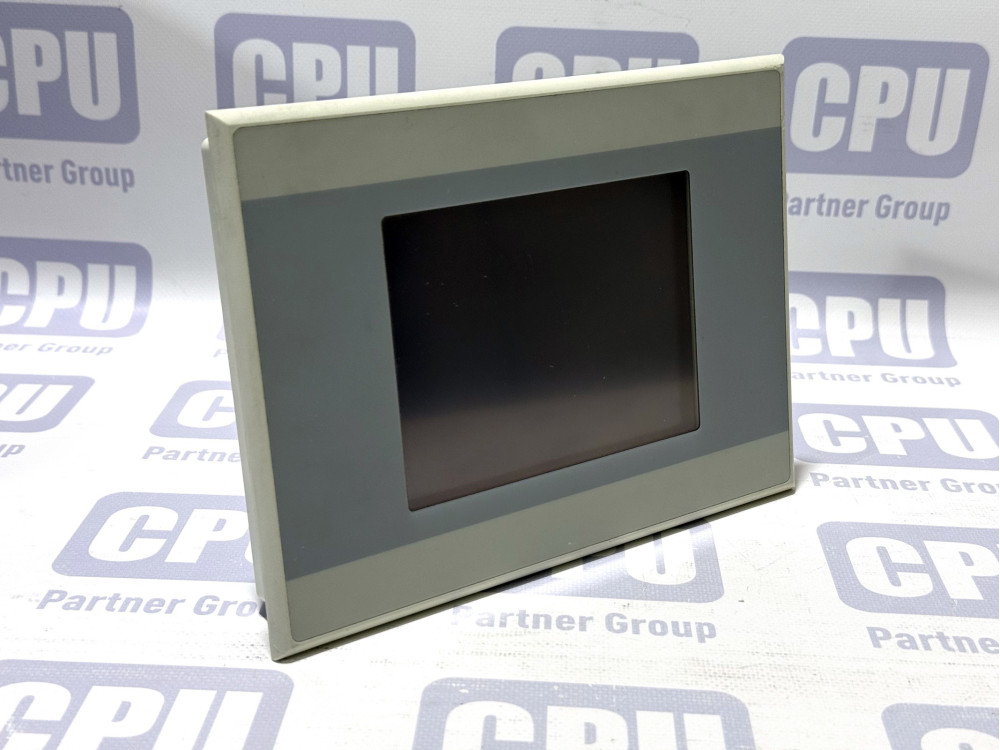

The XV-230-57CNN-1-13-1 is a 5.7″ monochrome industrial HMI operator panel featuring a resistive touchscreen. It is built on the Micro Innovation XV200 series and supports Windows CE-based HMI and optional PLC functionality. Designed for field use with robust sealing and multiple communication interfaces.

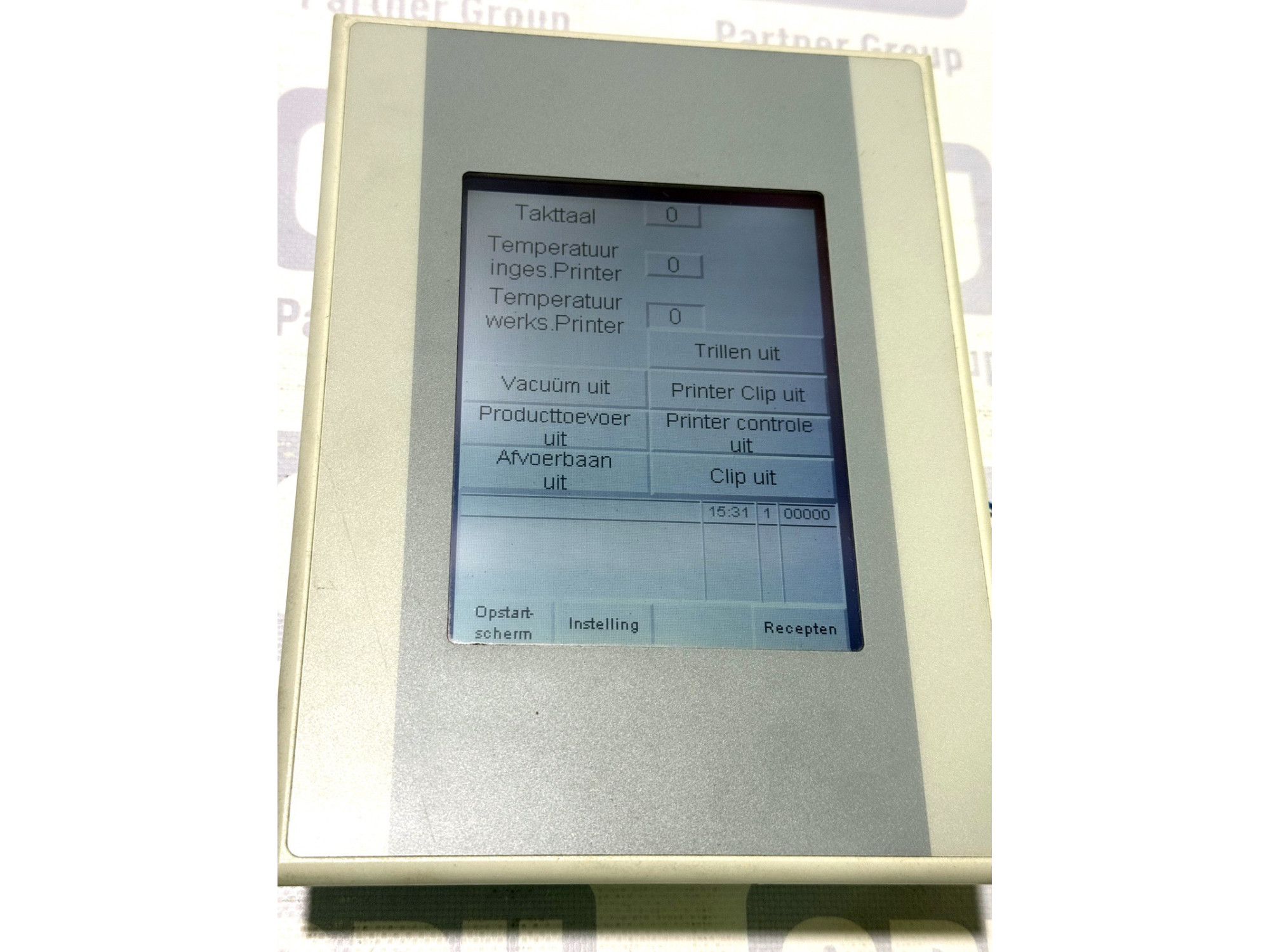

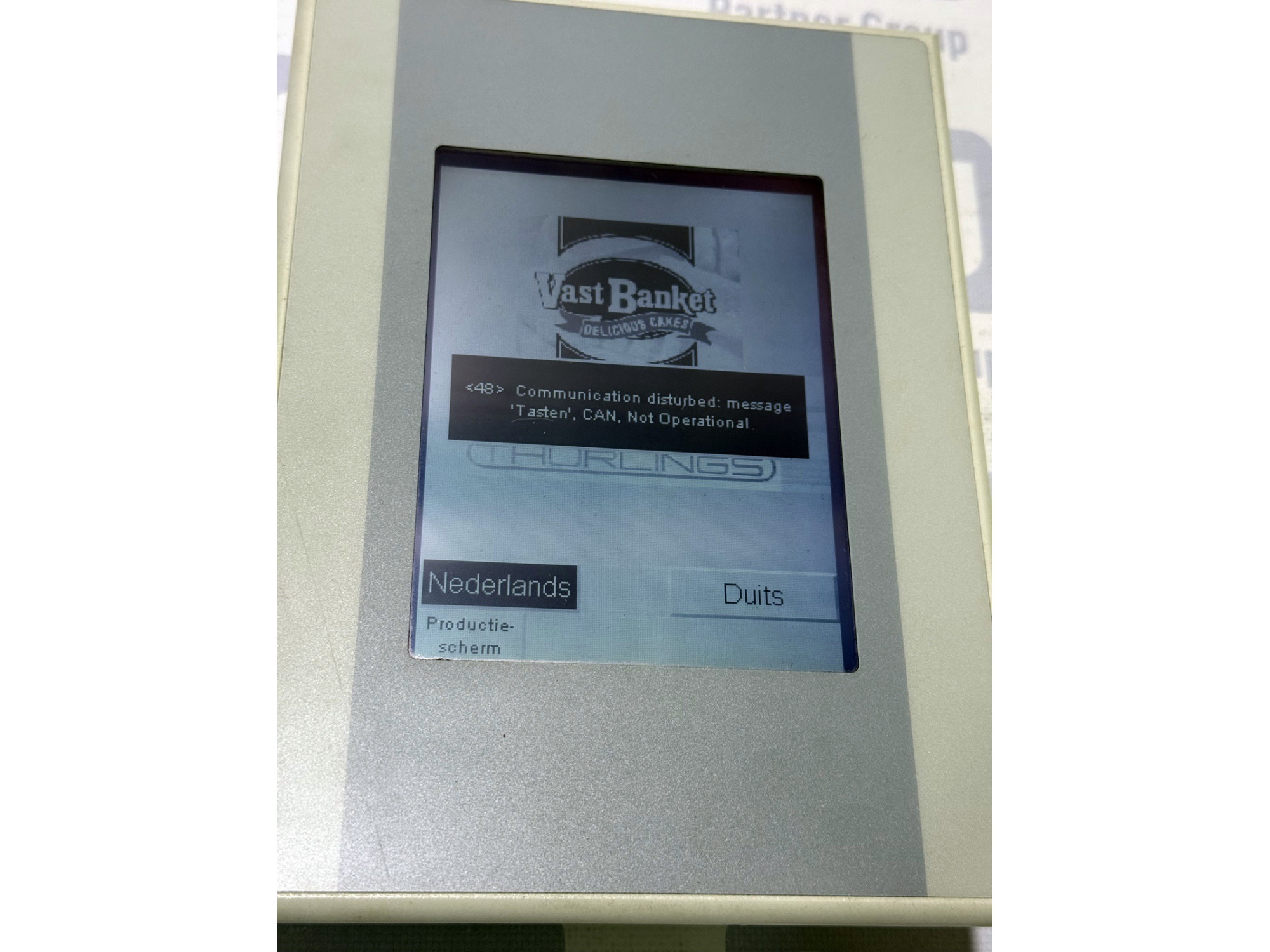

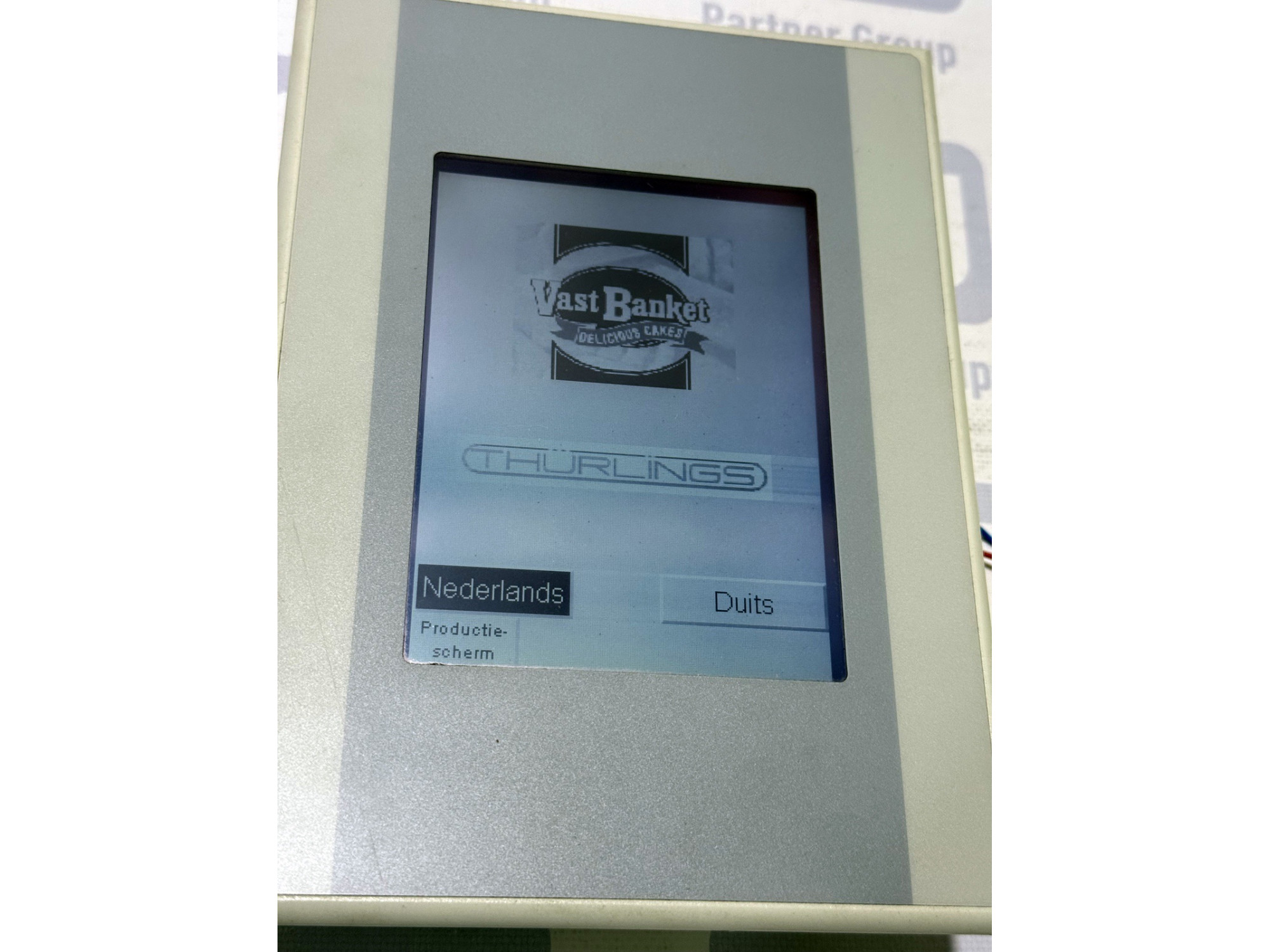

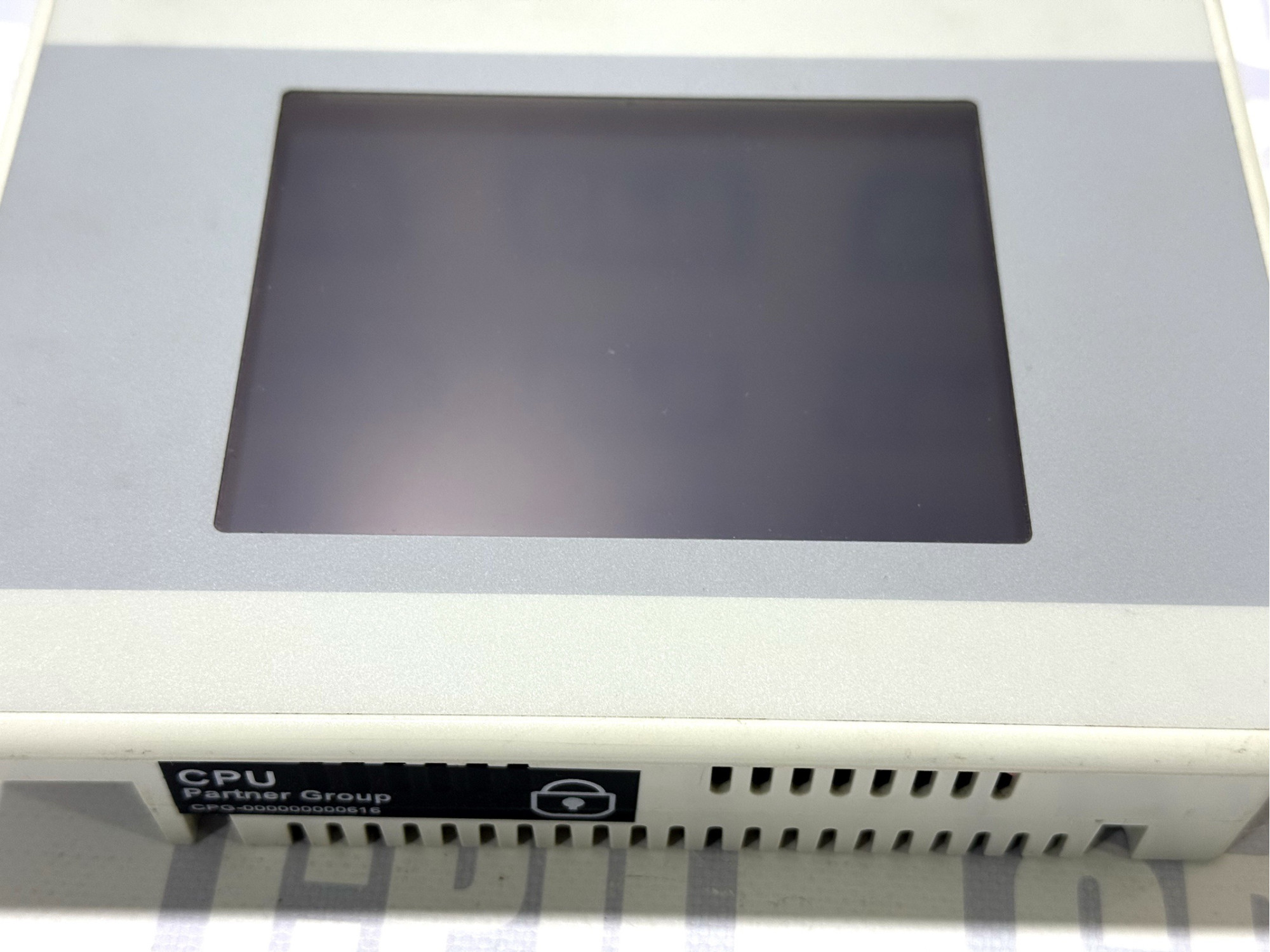

 Display & Touch

• Screen size: 5.7″ (visible area ~115 × 86 mm)

• Resolution: 320×240 pixels

• Display type: Monochrome (256 shades of gray), CSTN LCD

• Brightness: ~150 cd/m²

• Touchscreen: 4-wire resistive

• Backlight: CCFL (approx. 50 000 h lifespan)

• Contrast: ~10:1

 Hardware

• CPU: 32‑bit RISC, 200 MHz

• RAM: 32 MB DRAM

• Flash memory: Approx. 1.5 MB for data, plus CompactFlash I slot for OS and applications

• NVRAM: 100 bytes

• RTC battery backup: Up to 10 years hold-up

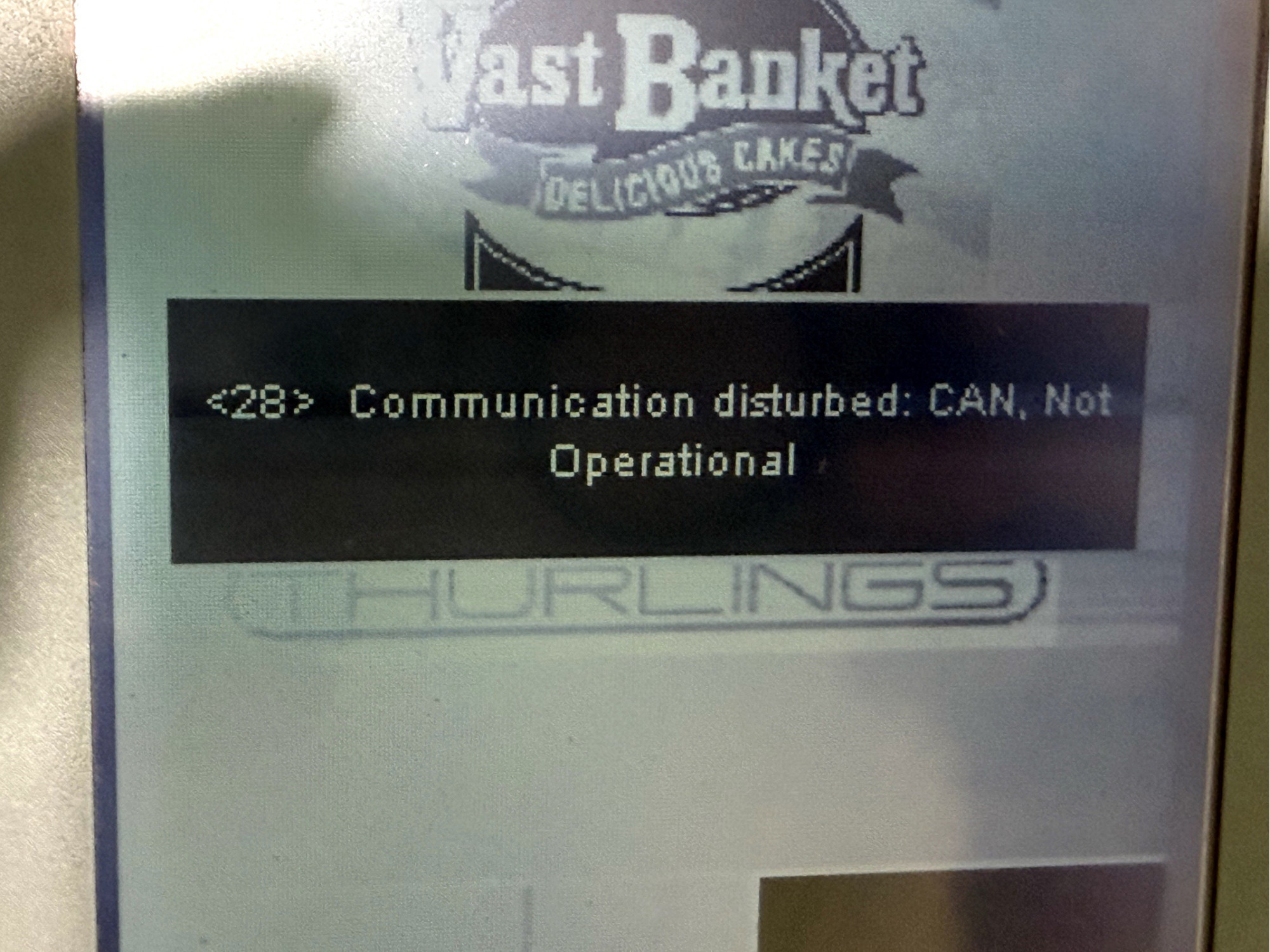

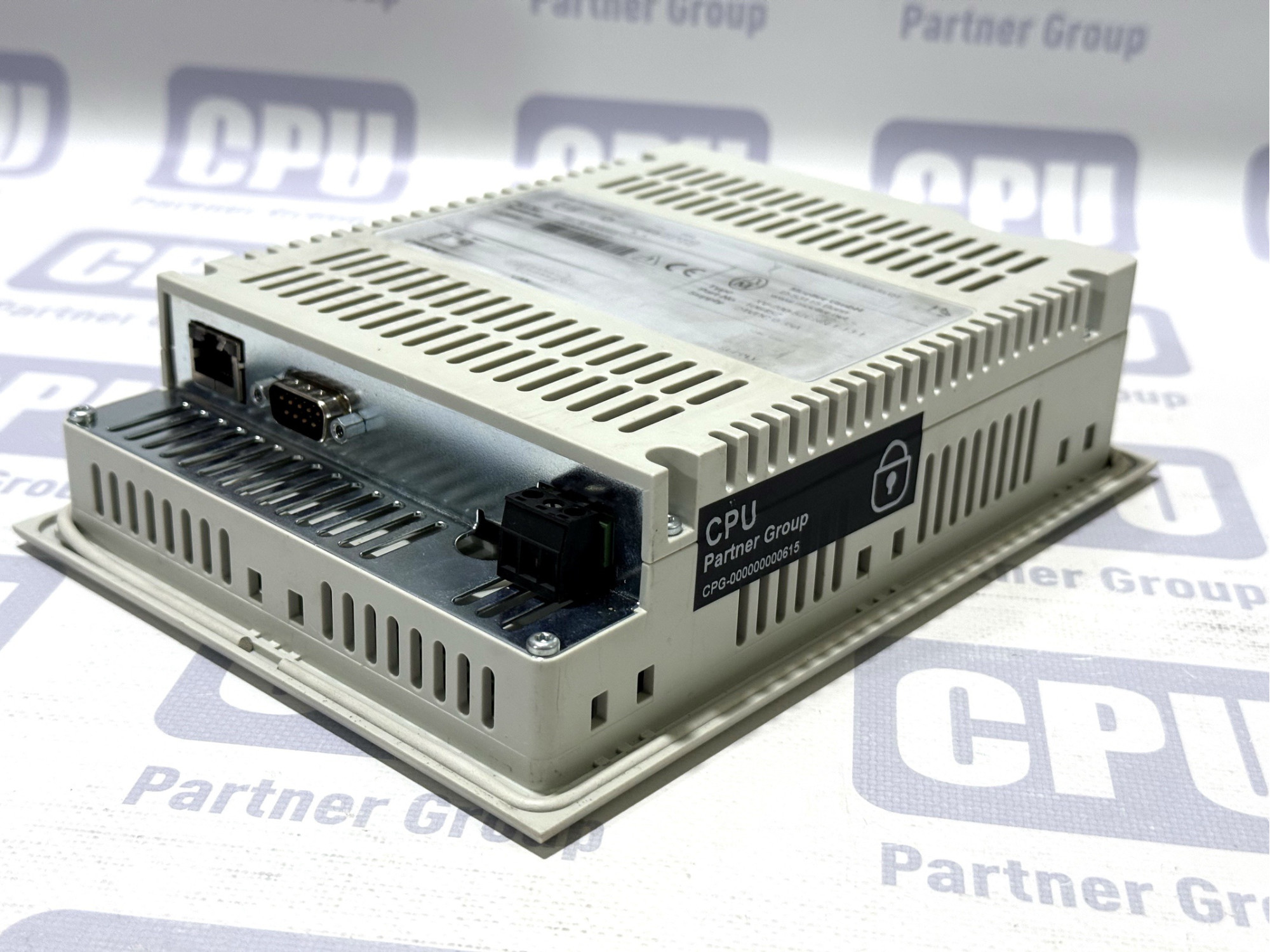

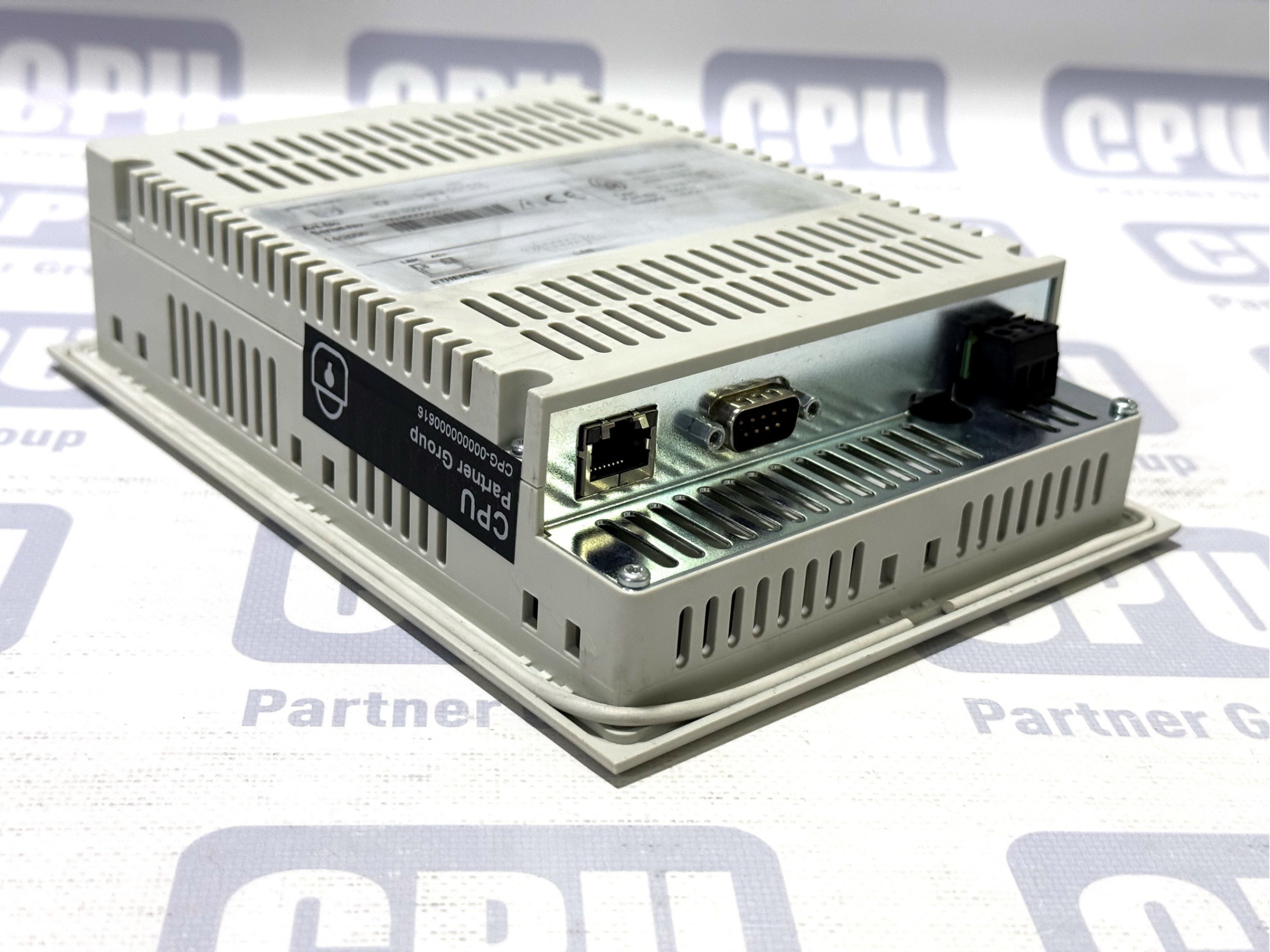

 Communication Interfaces

• 1× Ethernet 10/100 Mbps

• 1× CANbus/CANopen (model‑specific)

• 1× USB 1.1 (device)
  (Note: this model is CAN variant, not PROFIBUS/MPI)

 Power & Consumption

• Supply voltage: 24 V DC (19.2–30 V; withstands up to 35 V short-term)

• Power consumption: About 8 W (approx. 0.35 A typical, 2 A peak)

• Protection: Reverse-polarity protected with self-resetting fuse

 Mechanical & Environmental

• Enclosure rating: IP65 front, IP20 rear

• Dimensions: ~212 × 156 × 55 mm; panel cut-out ~198 × 142 mm

• Weight: ~0.7 kg

• Environmental rating: –20…+60 °C storage; 10–95% non-condensing humidity; compliance with IEC 60068-2-27/-6 for shock and vibration

 Summary Table

✅ Conclusion

The Eaton XV‑230‑57CNN‑1‑13‑1 is a compact and rugged 5.7″ monochrome HMI panel with resistive touch, suitable for industrial automation. It supports Ethernet and CANopen connectivity, CF card slot, and optional PLC capability (license-based). Its sealed front, reliable hardware, and shock/vibration rating make it a solid choice for factory-floor applications.

On this page you will find the user manual for XV200 MICRO PANEL. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for XV200 MICRO PANEL

https://cpupartnergroup.com/image/pdf/XV200%20MICRO%20PANEL%20Operating%20Instructions.pdf
