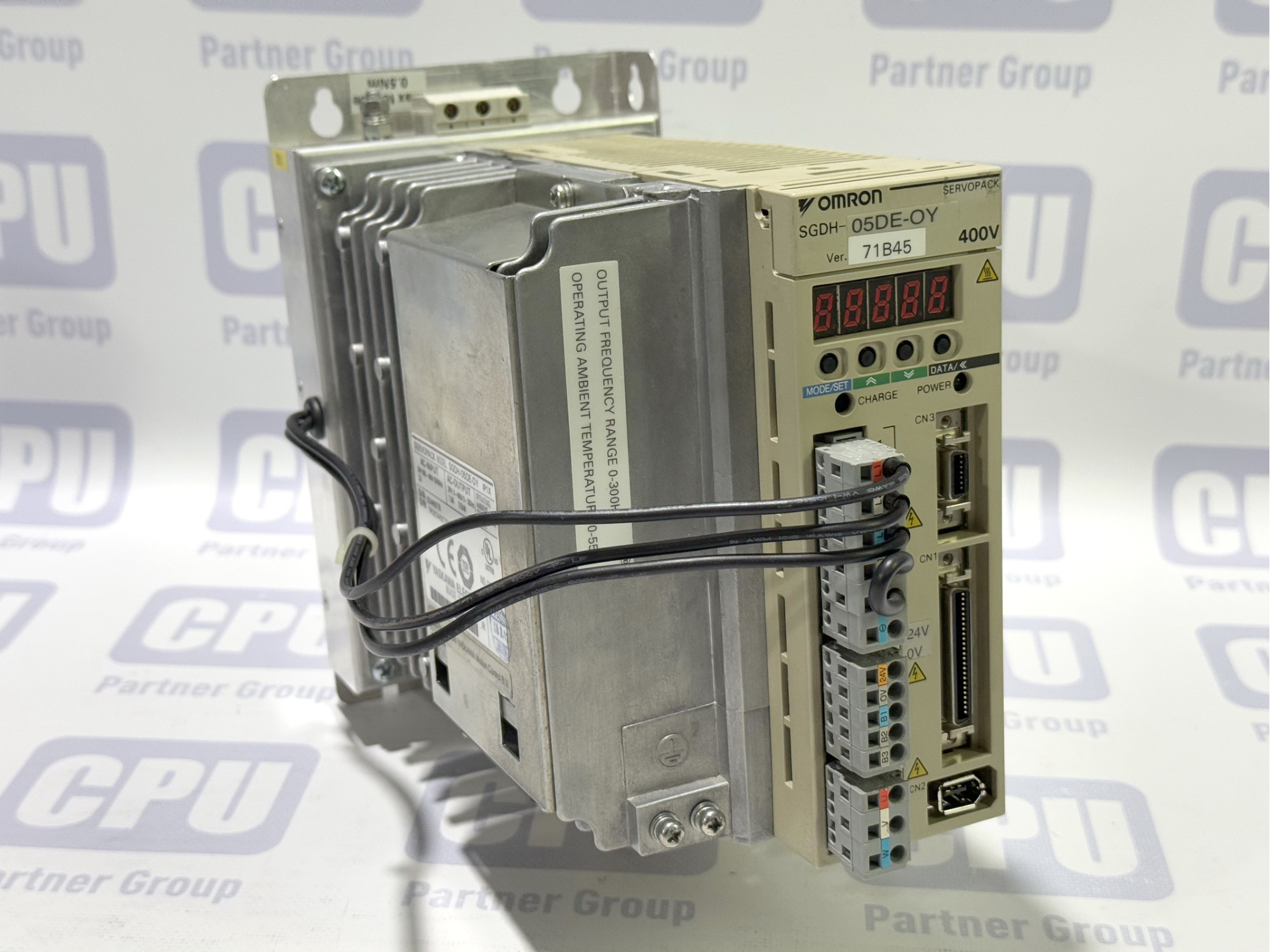

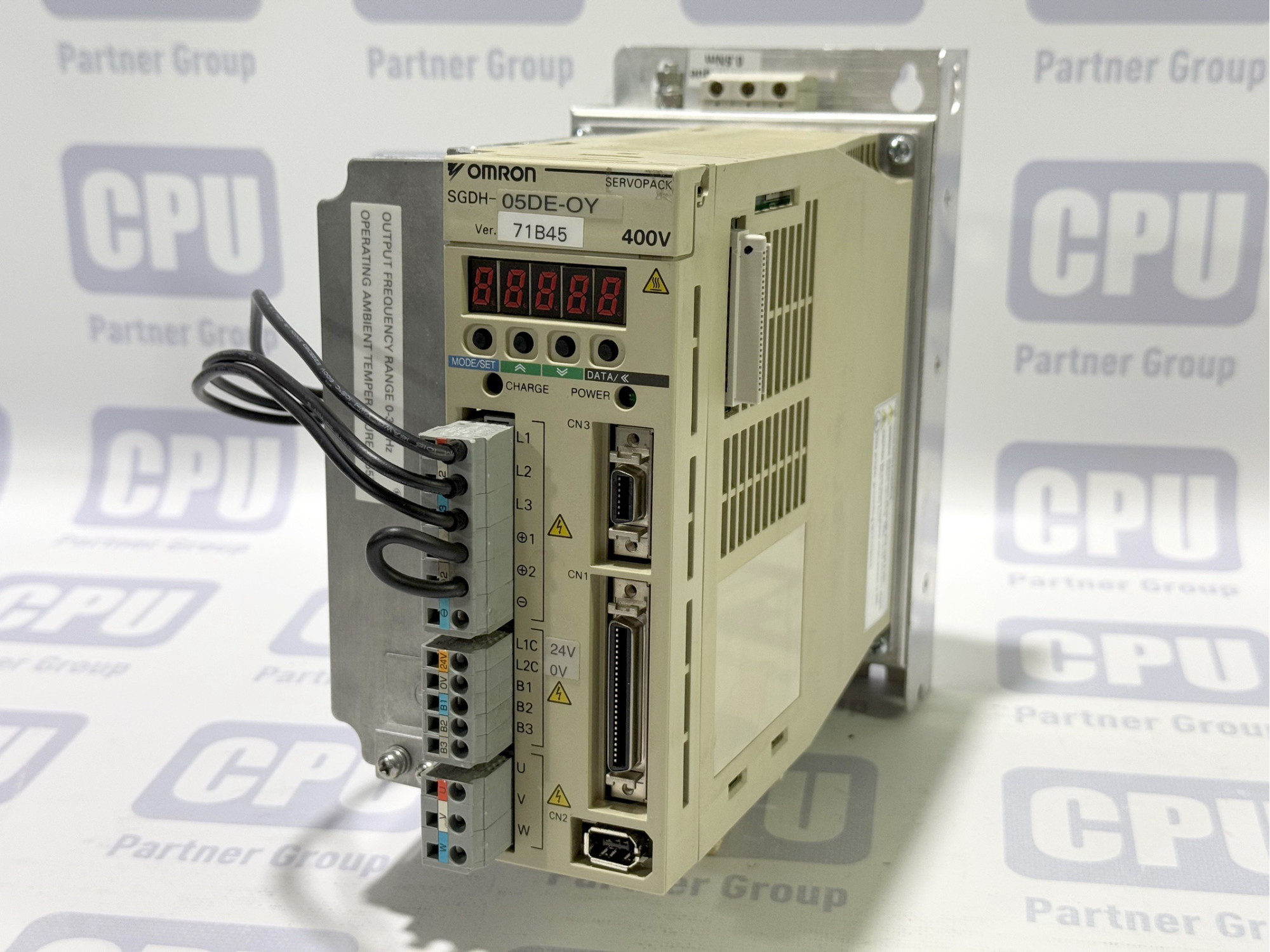

Omron YASKAWA SERVOPACK SGDH-05DE-OY

Omron YASKAWA SERVOPACK SGDH-05DE-OY

The Omron Yaskawa SGDH-05DE-OY is a high-performance AC servo drive unit from the SERVOPACK SGDH series. It is designed for precise control of servo motors in industrial automation systems. This drive provides reliable performance, fast response, and excellent positioning accuracy, making it suitable for a wide range of motion control applications.

Technical Specifications:

• Model: SGDH-05DE-OY

• Manufacturer: Yaskawa Electric / Omron

• Series: SERVOPACK SGDH

• Rated Output Power: 0.5 kW (500 W)

• Input Voltage:

  • Single-phase or three-phase 200–230 V AC

• Output Voltage:

  • Three-phase 0–230 V AC (to motor)

• Control Method:

  • Pulse train input

  • Analog voltage input (option)

  • Optional MECHATROLINK or other fieldbus interfaces (depending on configuration)

• Feedback Type:

  • Encoder feedback (incremental or absolute)

• Motor Compatibility:

  • Yaskawa SGM-series AC servo motors

• Communication Interface:

  • CN1: control signal interface

  • CN2: encoder feedback

• Protection Features:

  • Overcurrent, overvoltage, undervoltage, overheating, short circuit

• Cooling:

  • Natural or forced air cooling depending on mounting

• Mounting Type:

  • Panel (vertical installation)

• Dimensions: Compact and space-efficient for control cabinets

• Operating Temperature Range: 0 °C to 55 °C

• Applications: CNC machinery, robotics, packaging systems, conveyors, and precision positioning systems

This servo drive is part of a well-known and widely used motion control platform, offering excellent reliability and integration in demanding automation environments.

On this page you will find the user manual for Omron YASKAWA SERVOPACK SGDH-05DE-OY. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for Omron YASKAWA SERVOPACK SGDH-05DE-OY

https://cpupartnergroup.com/image/pdf/sigma2_english_data.pdf
