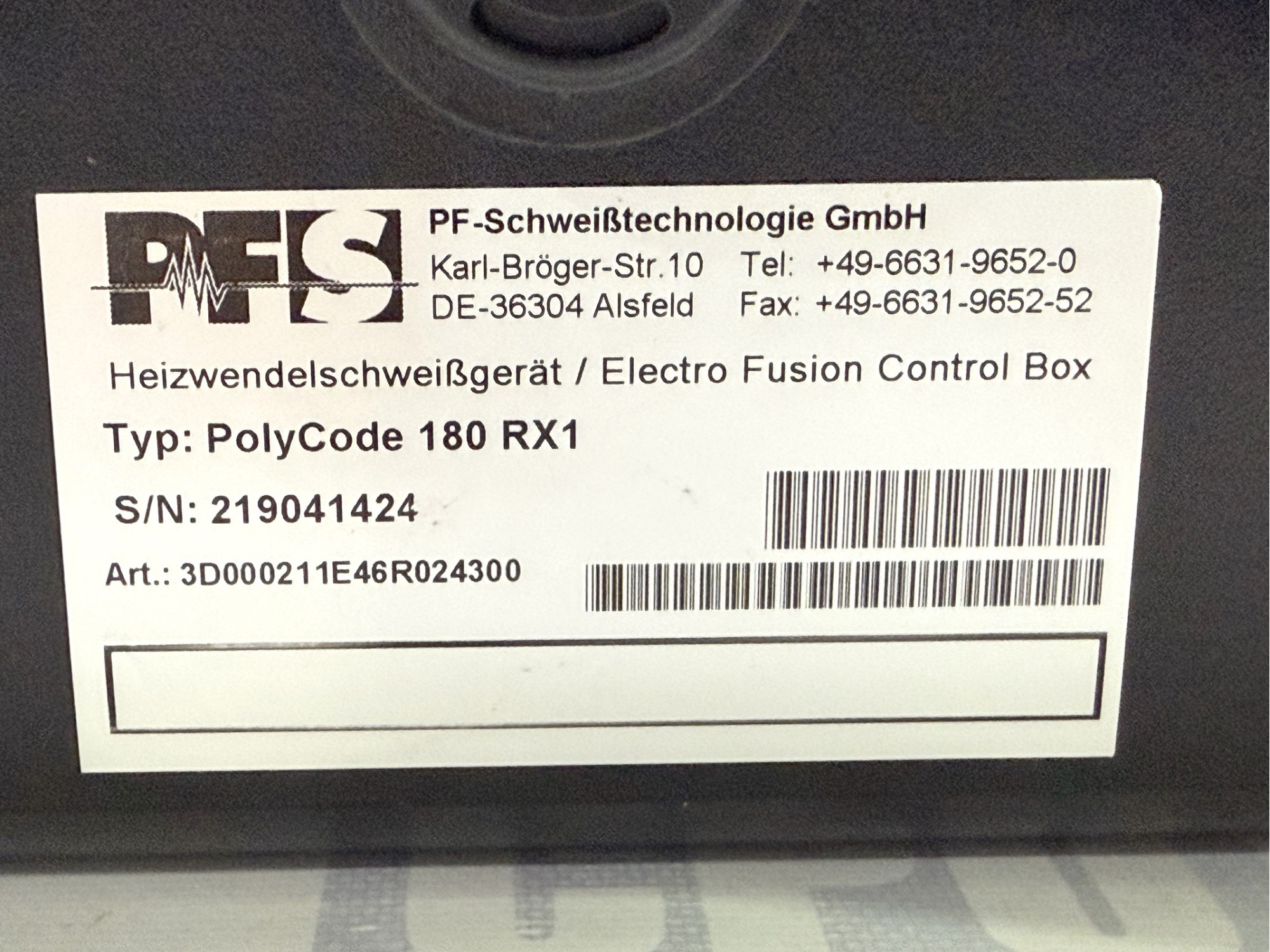

PFS Plasson PolyCode 180 RX1 Electrofusion Control Box

Виробник: PFS
Модель: PolyCode 180 RX1
Наявність: 1
Термін гарантії: 30 days
Місцезнаходження: Ukraine

️ 303

Ціна: 105,840 грн

Опис
Відгуків (0)

General Description

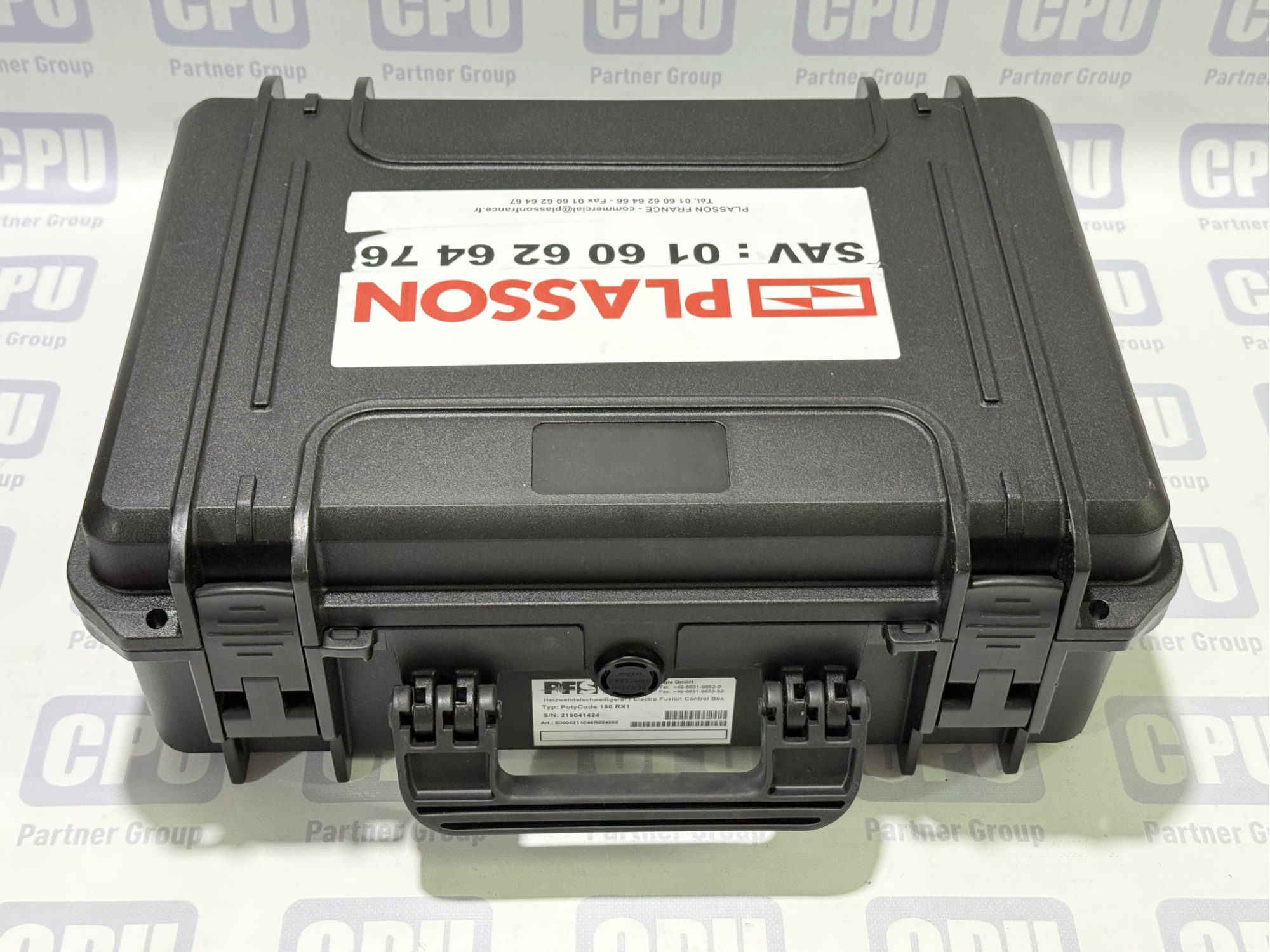

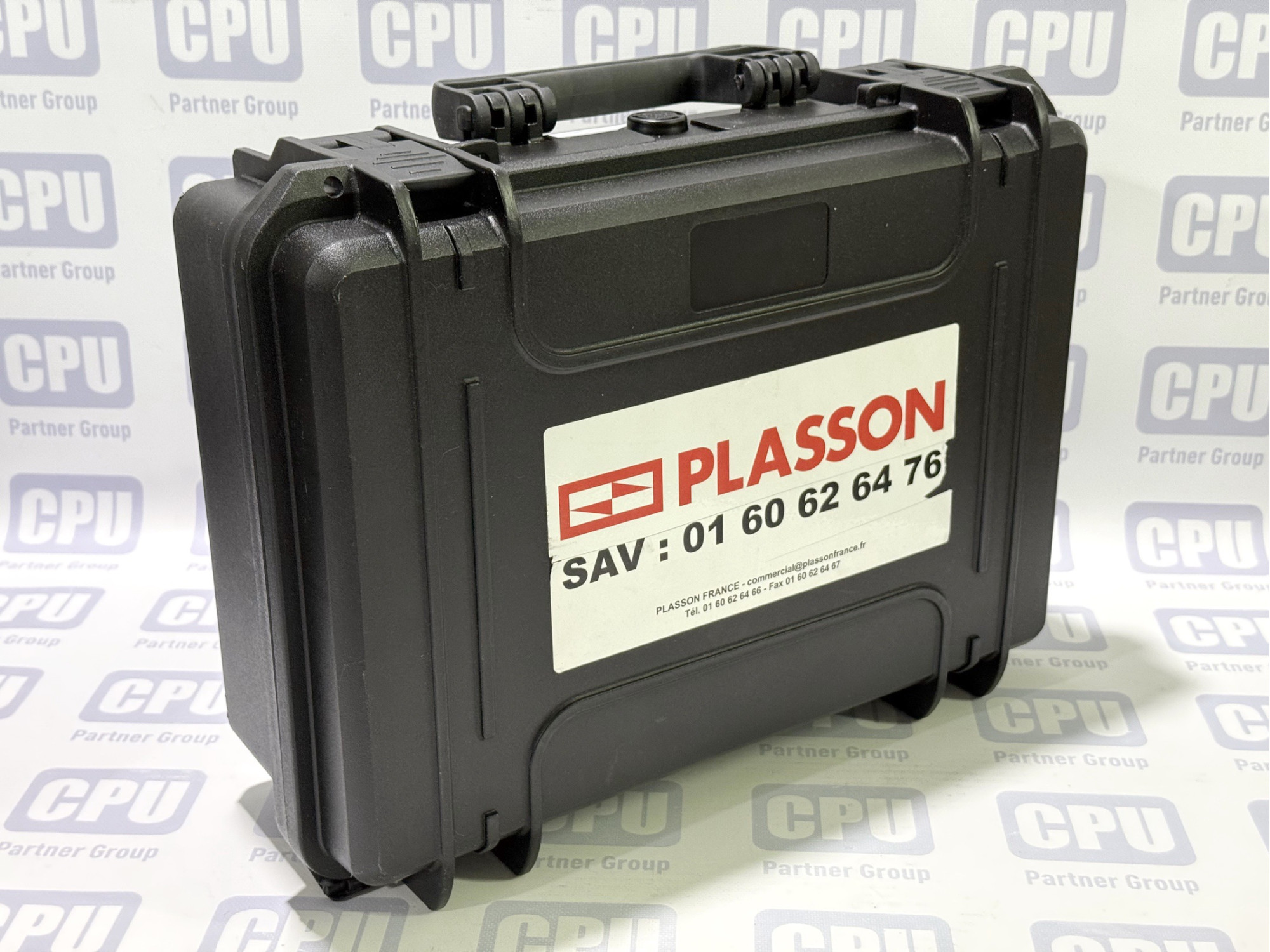

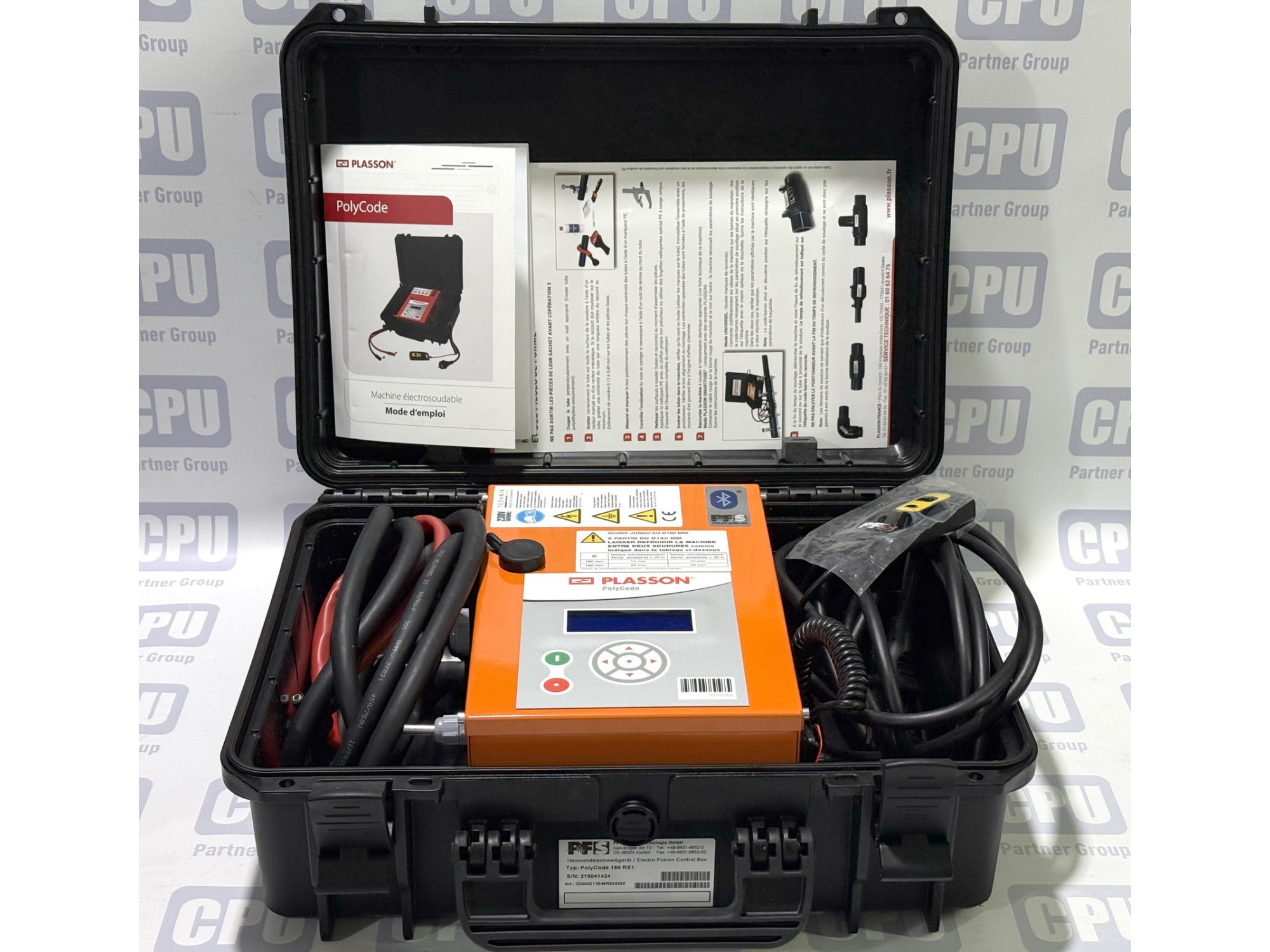

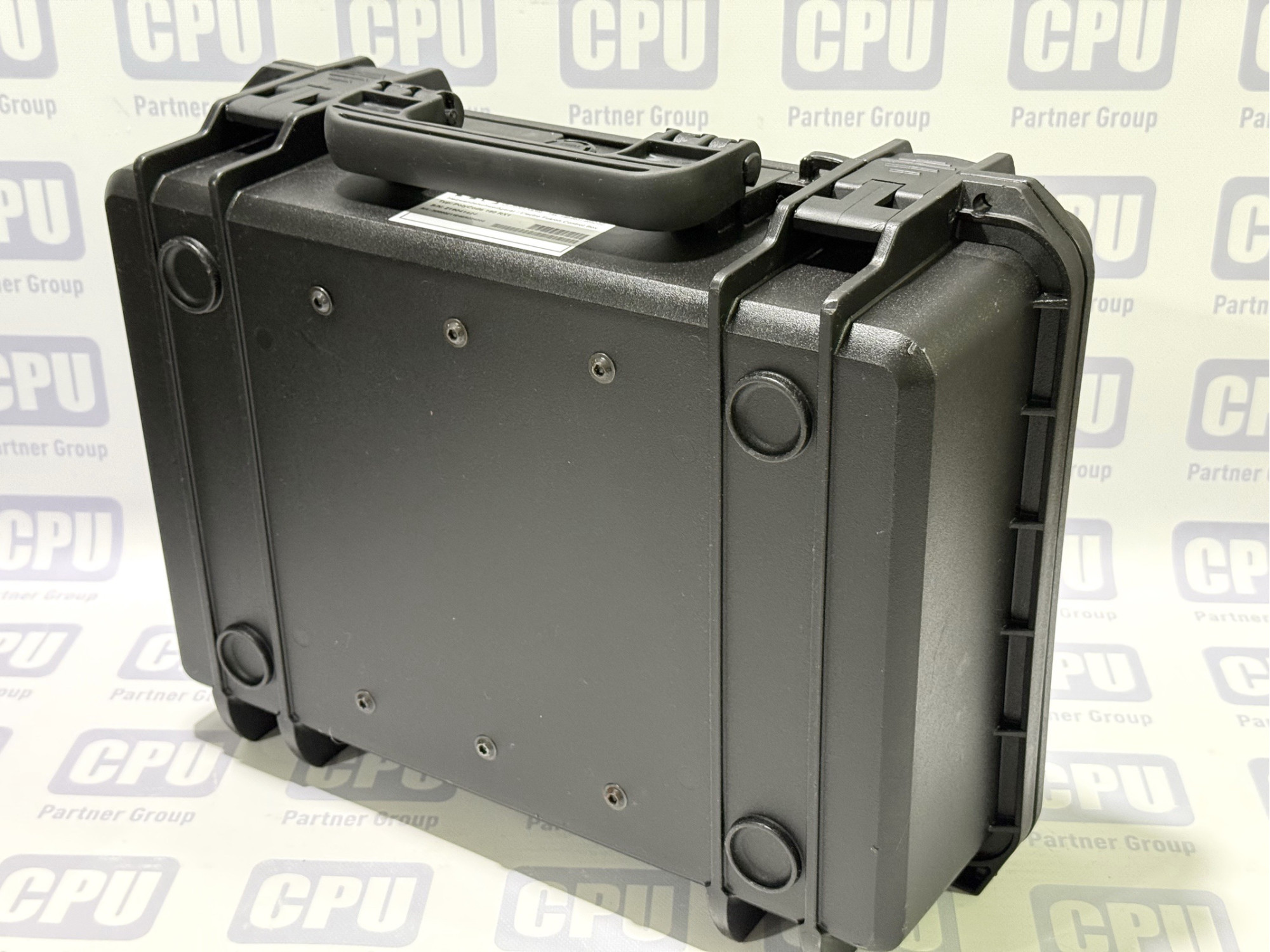

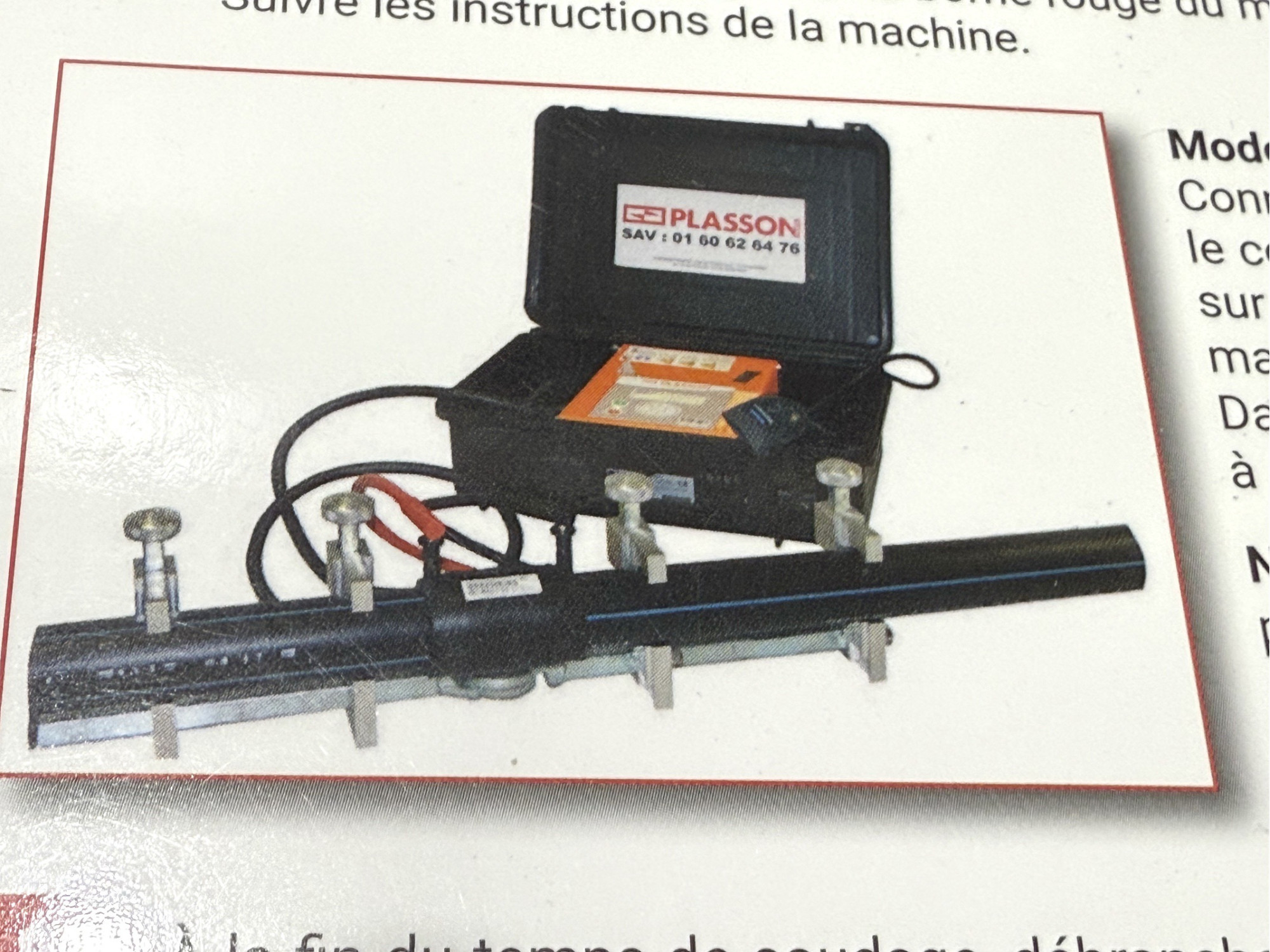

The PFS Plasson PolyCode 180 RX1 is a universal electrofusion control unit integrated into a durable transport case. It is compact, portable, and ideal for field applications. It is designed for welding couplers and fittings made of PE100, PE80, PP, and PP-R with diameters up to 180 mm.

Technical Specifications

Parameter	Value

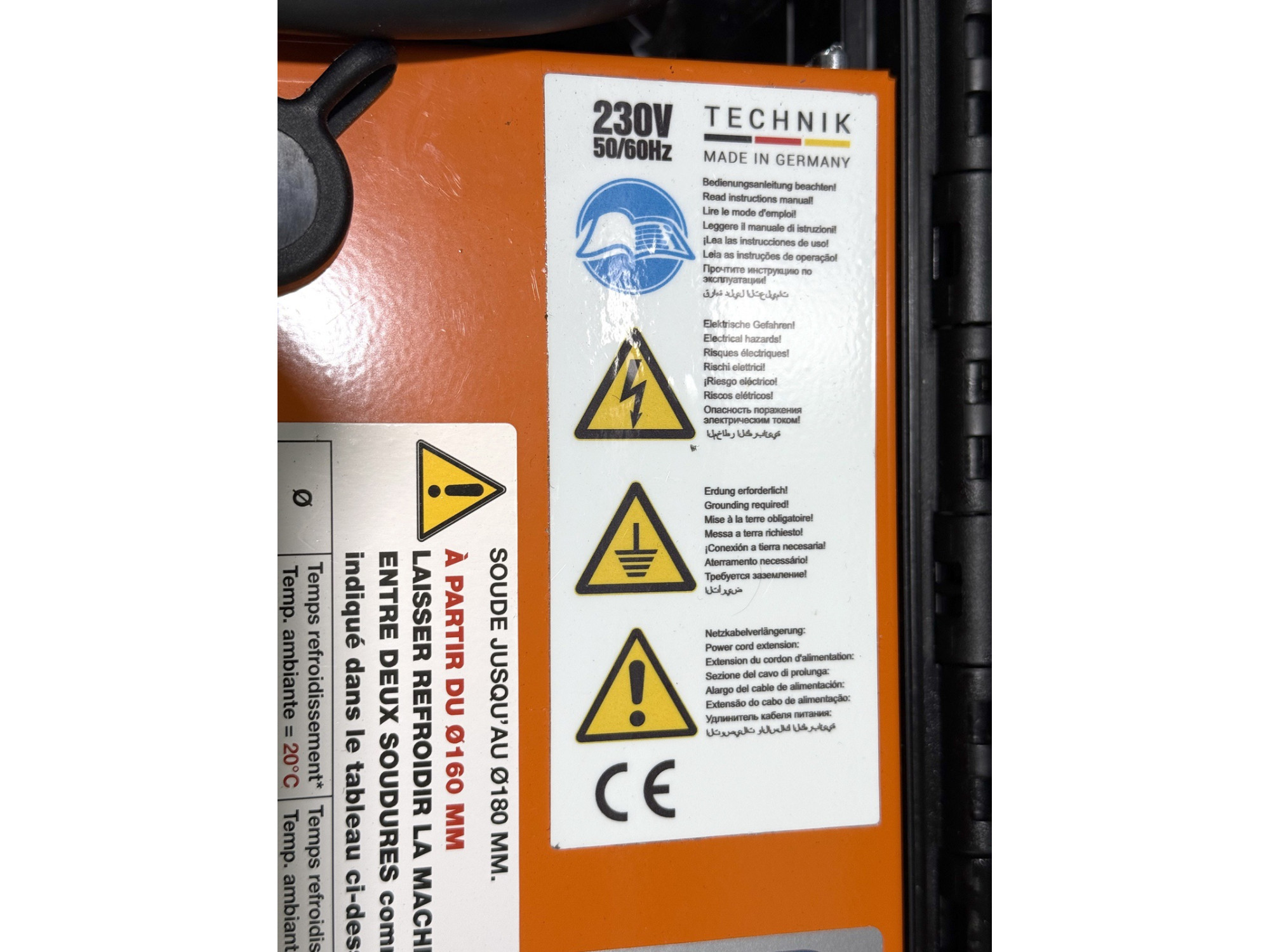

Input Voltage	230 V AC (range 190–300 V), 50/60 Hz (40–70 Hz)
Output Voltage	8–48 V AC, up to 54 A
Power	Approximately 1030 W

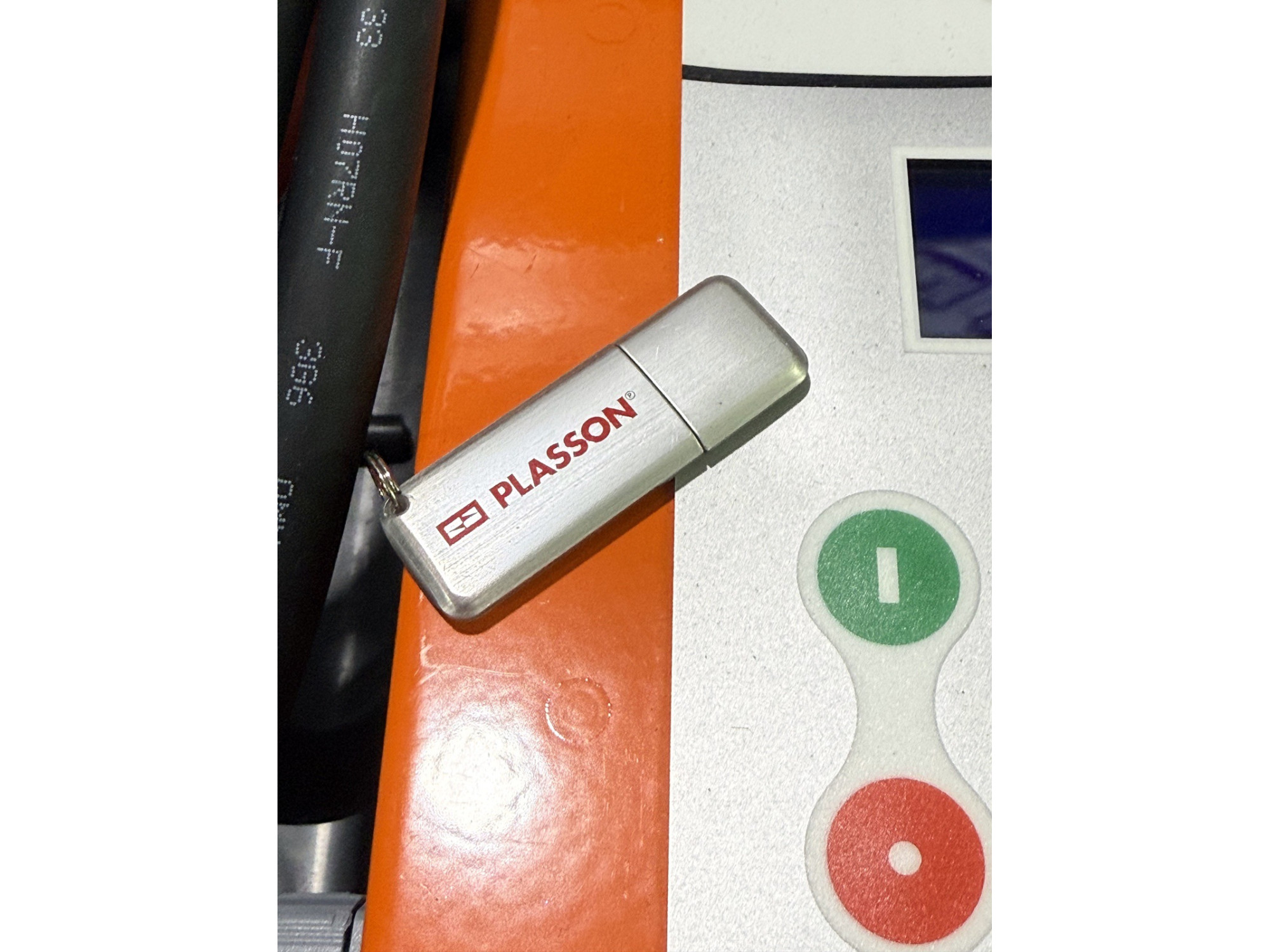

Memory / Logging	Stores up to 1000 welding records; export via USB (PDF/CSV)

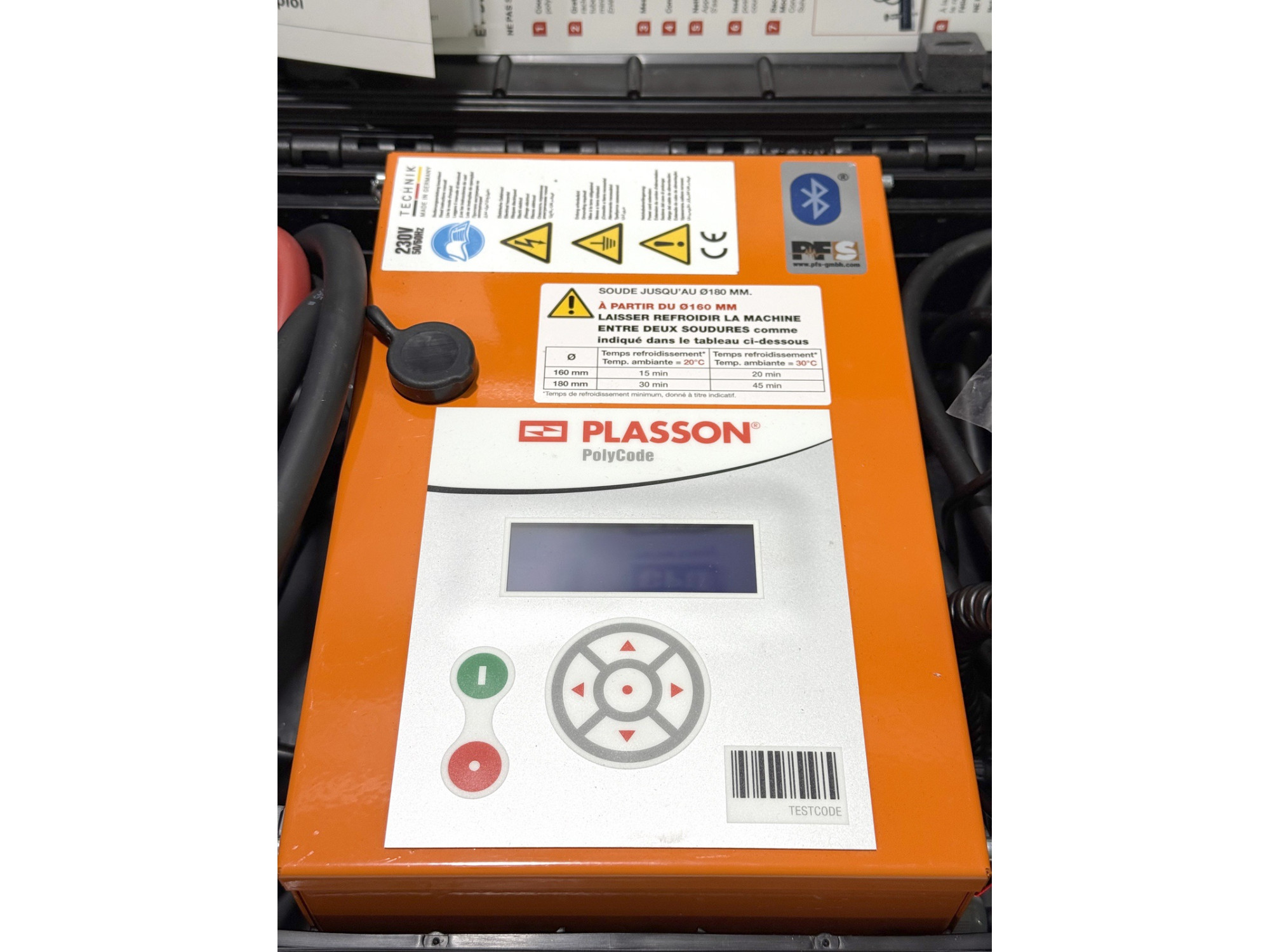

Display	4×20 character LCD with backlight
Input Methods	Barcode/QR-code scanner, SmartFuse auto-recognition, Bluetooth, manual entry

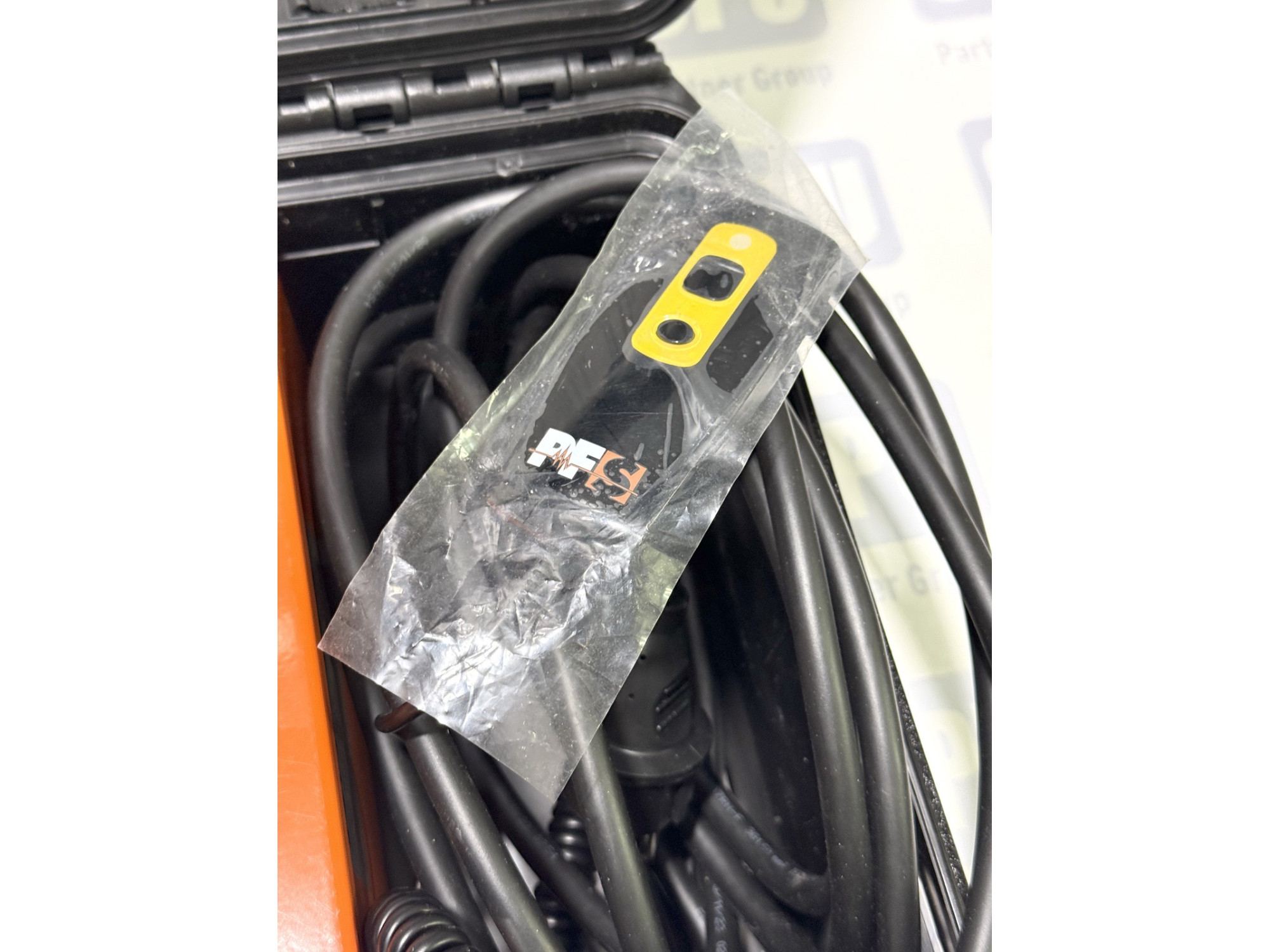

Connector Types	Universal pins (4.0 mm and 4.7 mm)
Welding Monitoring	Real-time tracking of voltage, current, resistance, contact status, short circuits
Additional Features	Soft start with phase-angle control, dynamic tracking, SmartFuse technology

Dimensions and Weight

Case size: approximately 470 × 180 × 370 mm
Weight: approximately 11 to 15 kg, typically around 13.6 kg

Operating Conditions

Operating temperature: from –10 °C to +50 °C
Recommended welding temperature: –5 °C to +35 °C

Main Features

SmartFuse: automatically detects Plasson fittings without scanning
Bluetooth connectivity for use with SmartFuse mobile app (record keeping, GPS tagging, photo documentation, data export)
Supports scanning of ISO/TR 13950 standard barcodes and QR codes
Generates reports in PDF and CSV format

Summary
The PFS Plasson PolyCode 180 RX1 is a reliable, compact, and advanced electrofusion welding controller for field use. It supports all major fitting brands up to 180 mm and offers automatic identification, Bluetooth integration, and convenient data export functions.

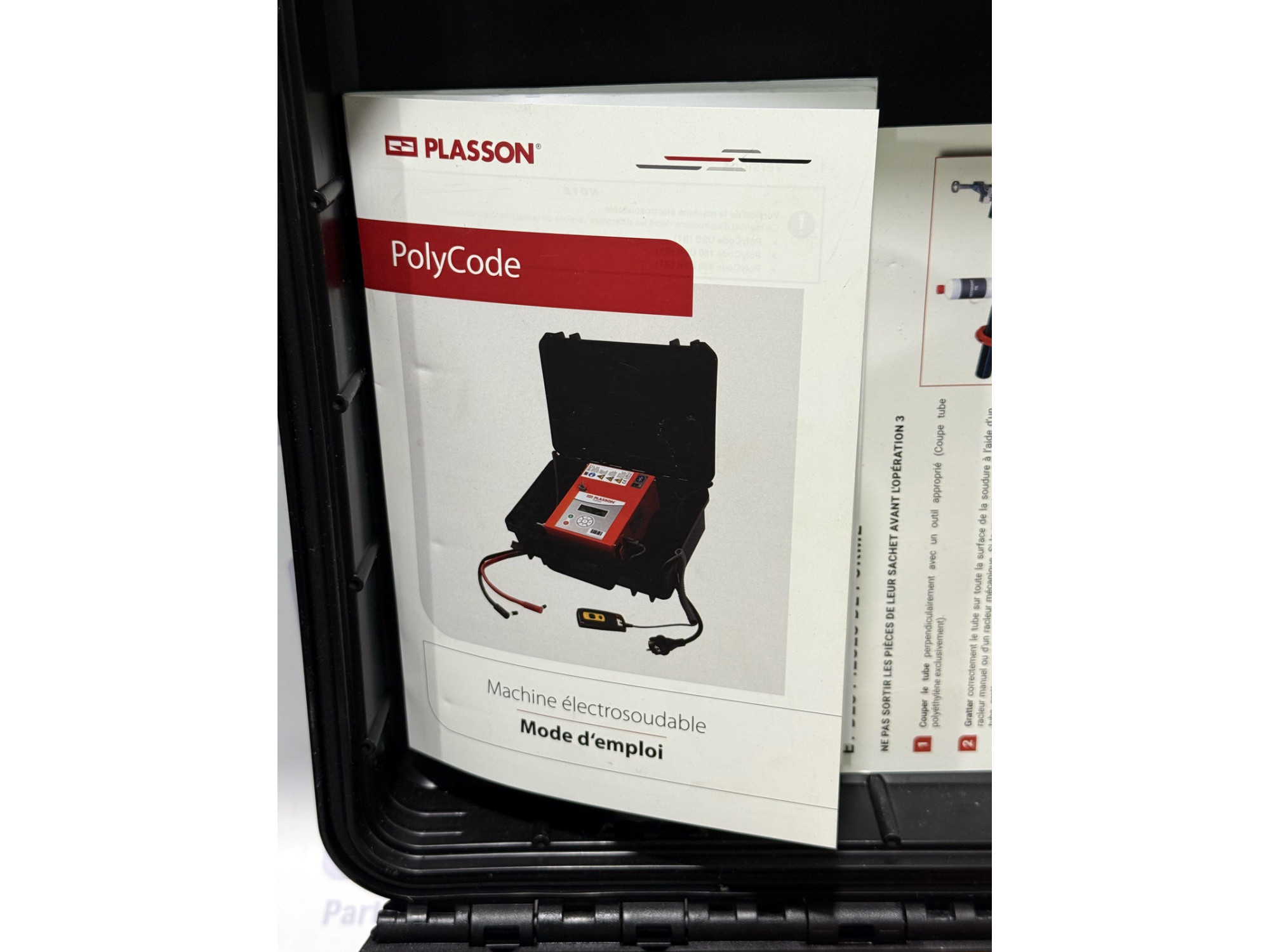

On this page you will find the user manual for PolyCode 180. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.
