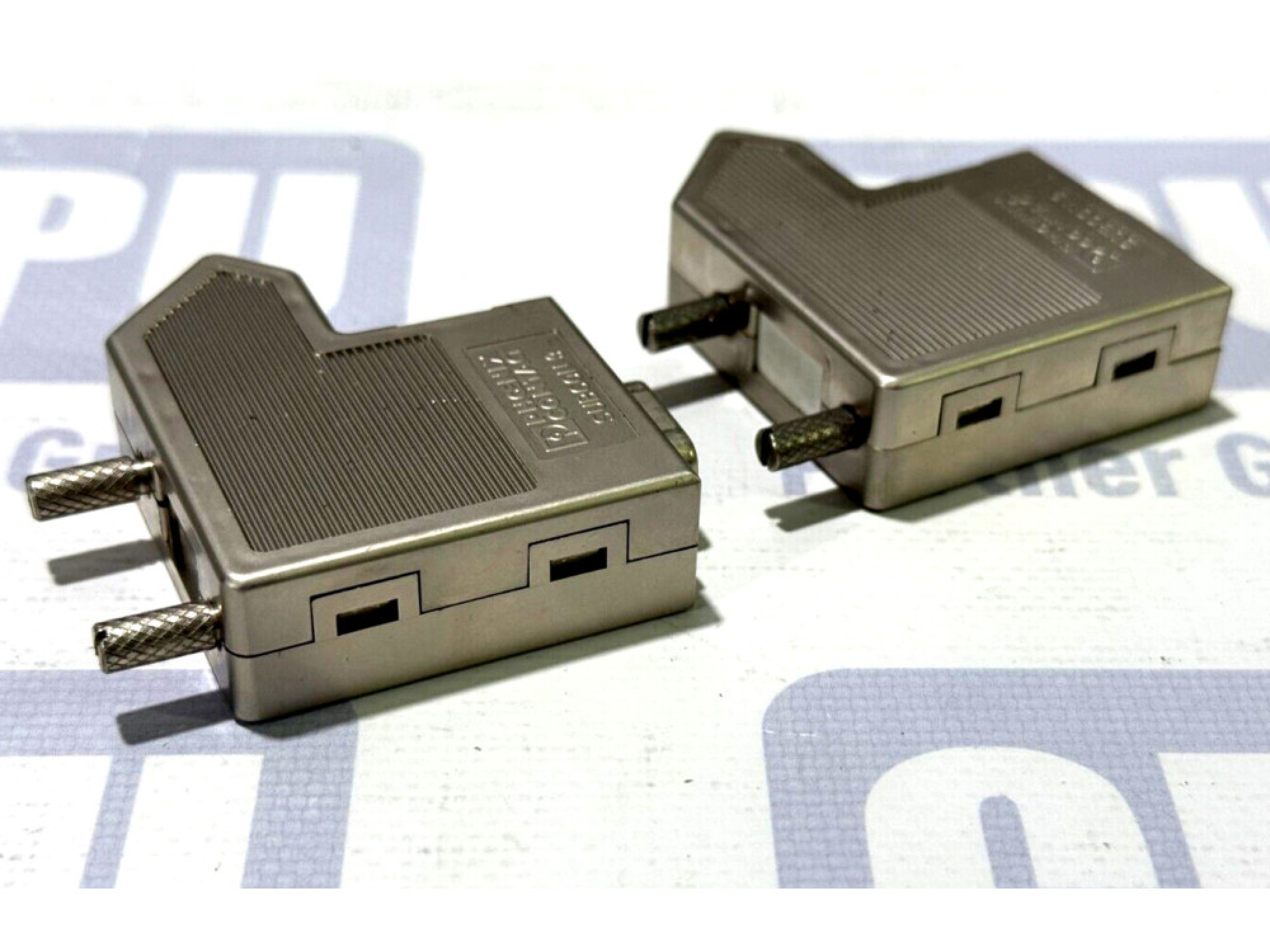

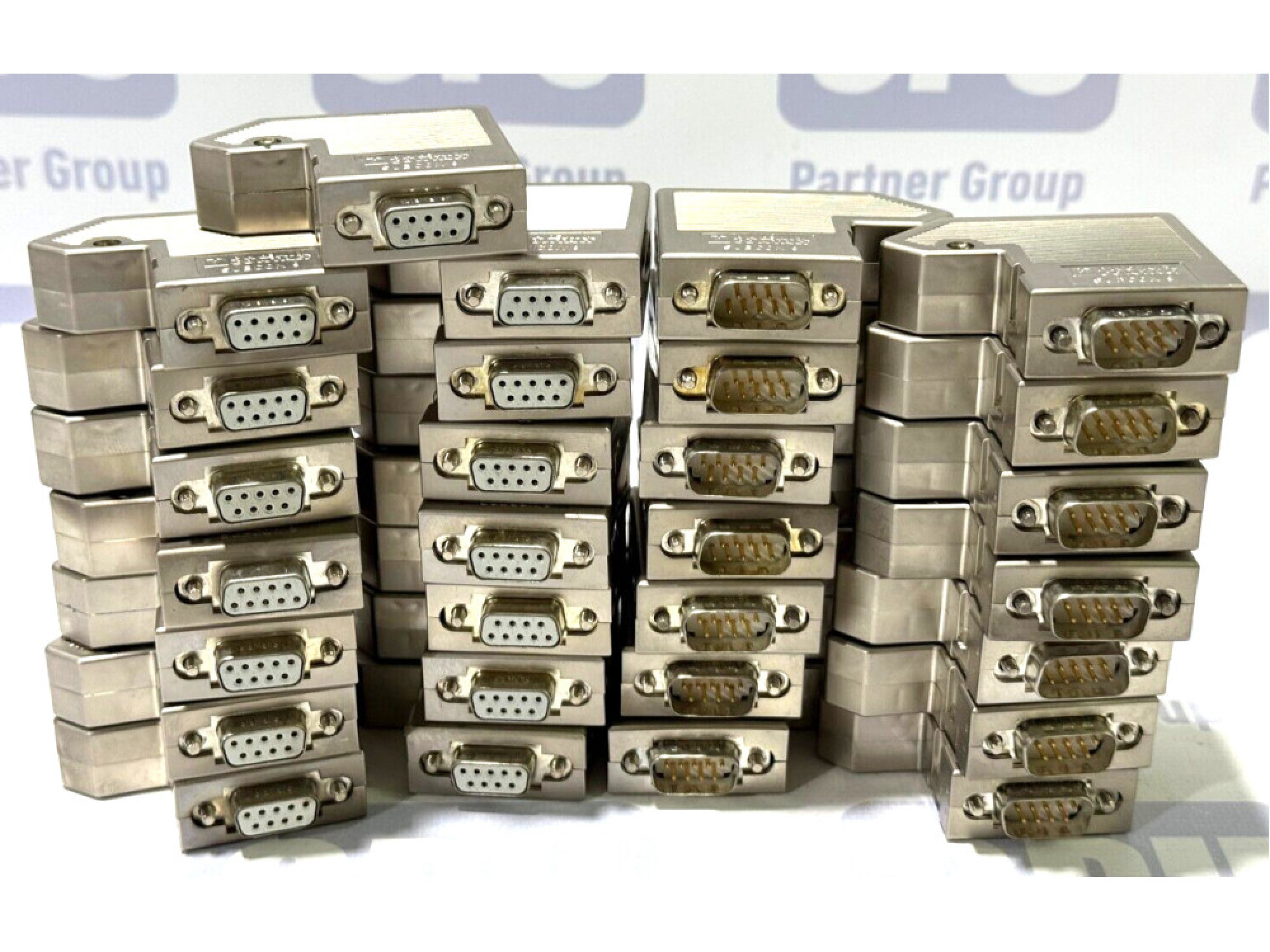

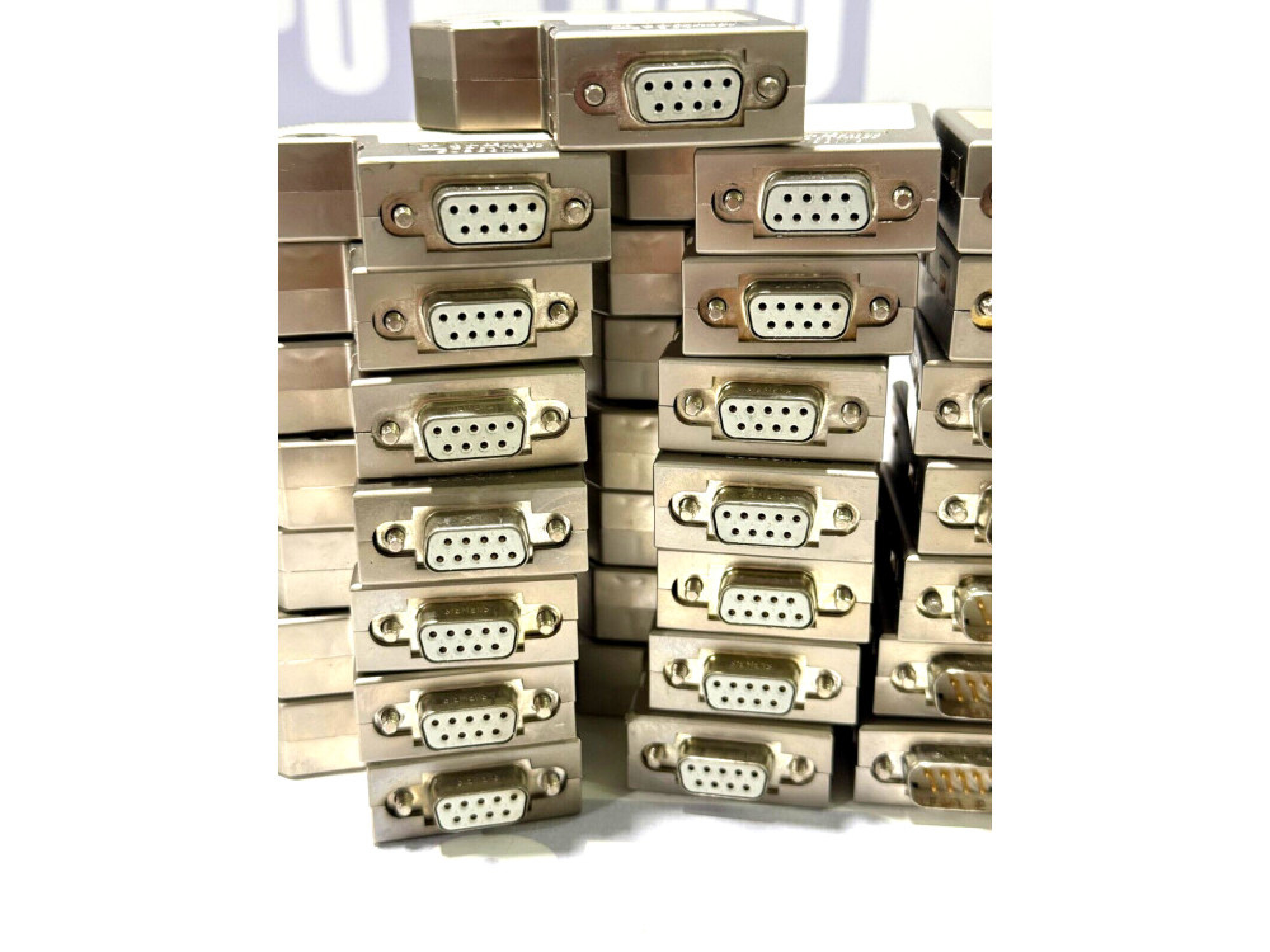

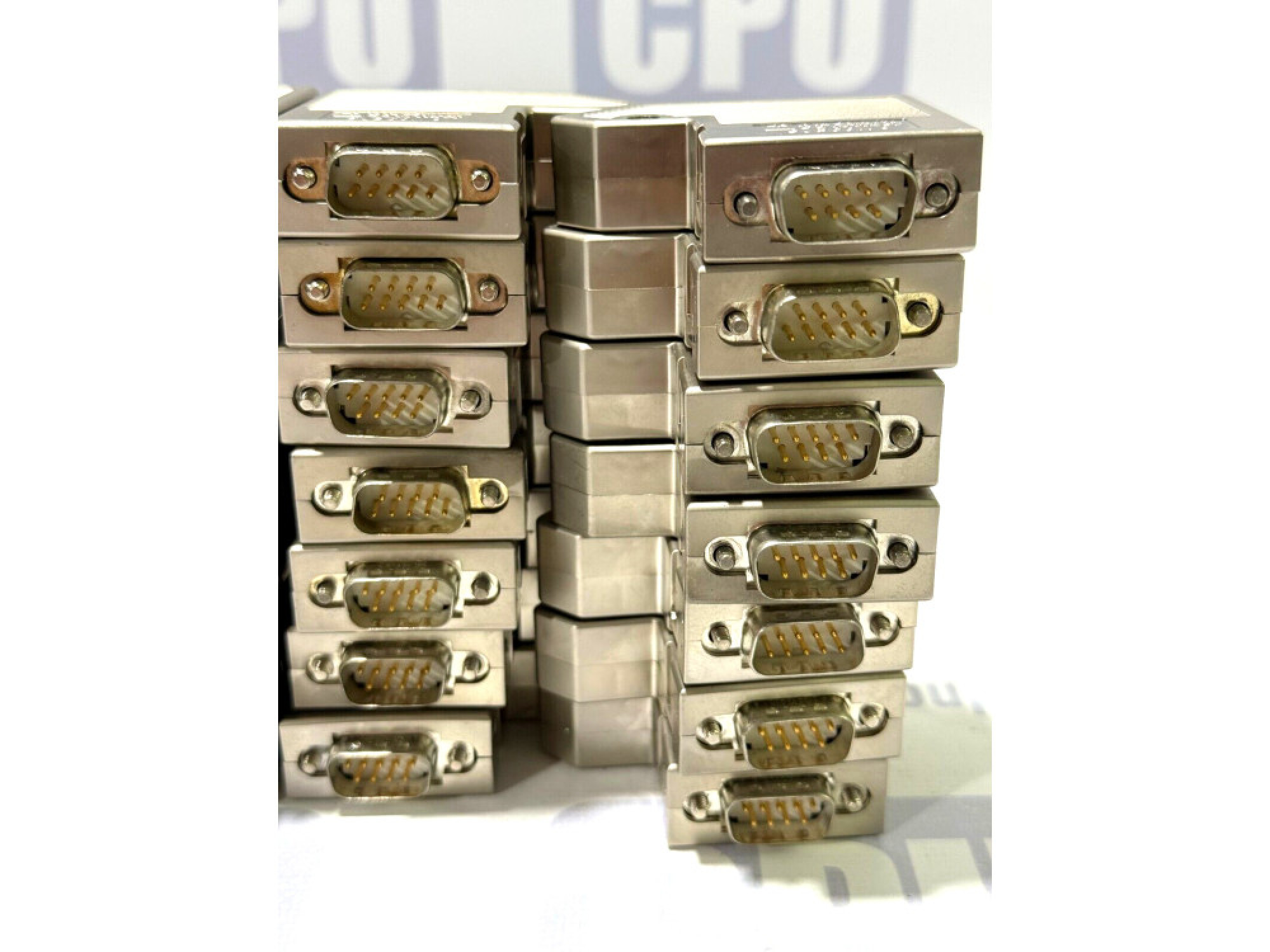

Phoenix Contact Connector SUBCON 9 LOT -29 PCS

Overview

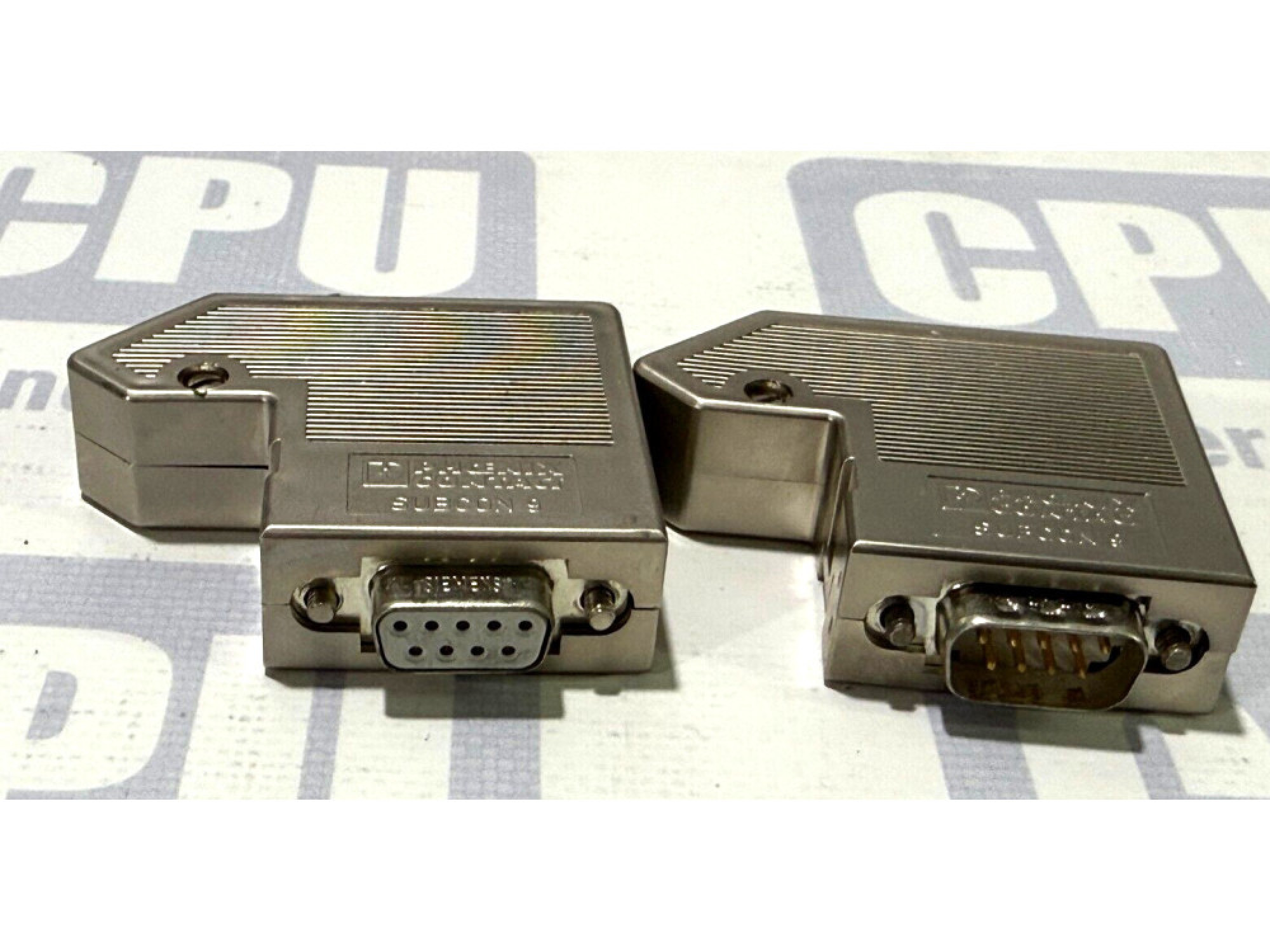

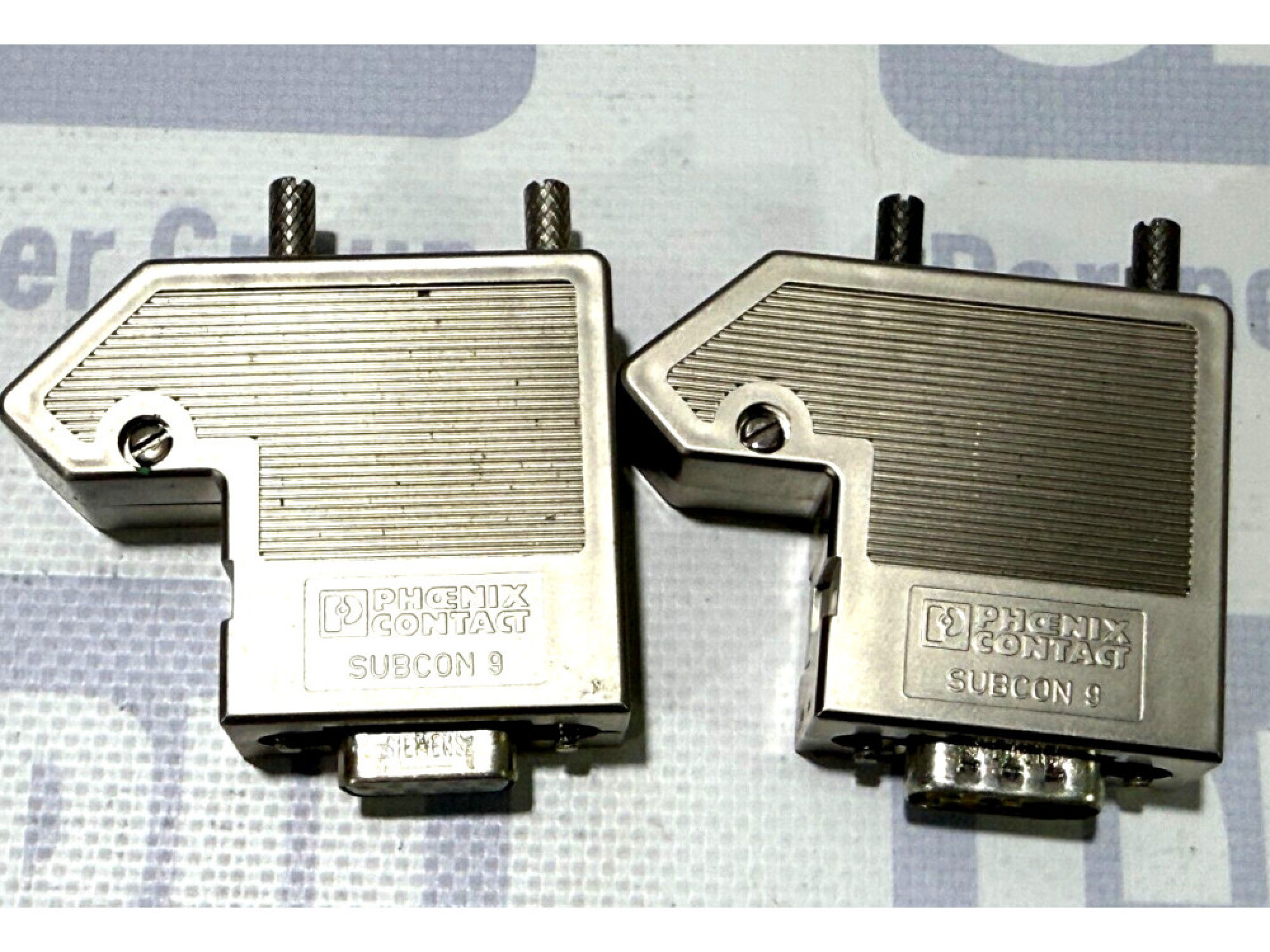

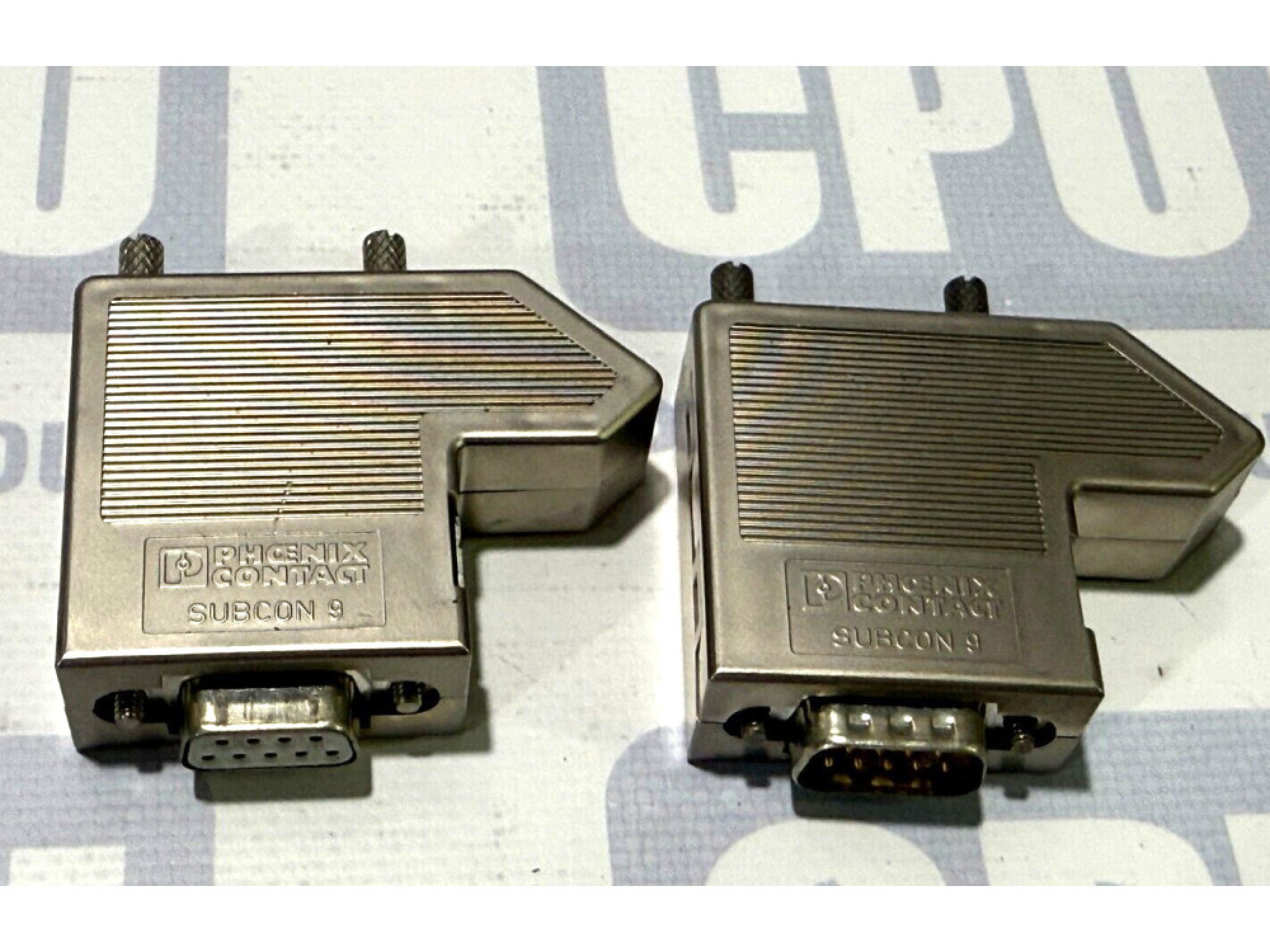

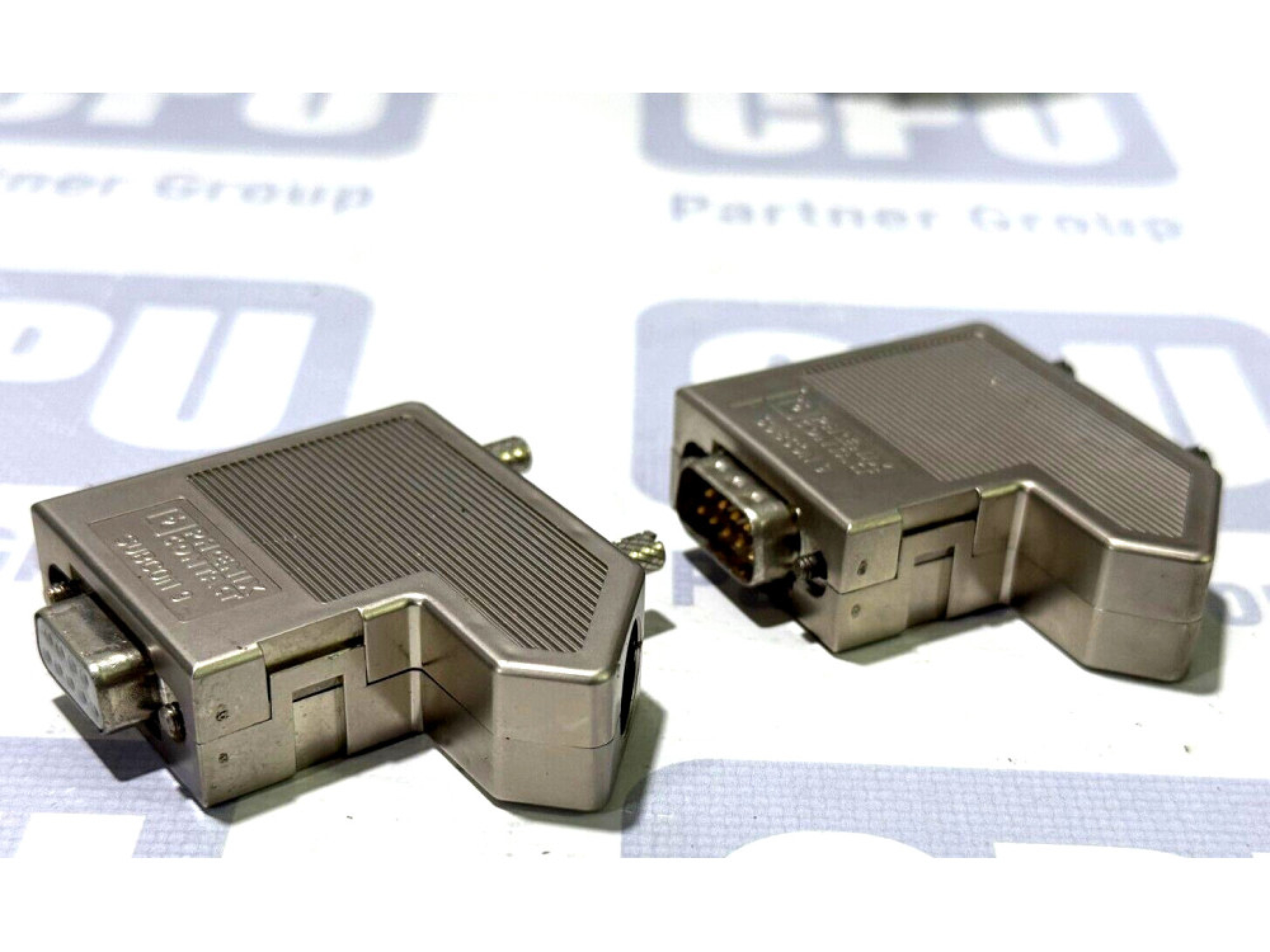

The SUBCON 9/M‑SH is a rugged, 9-position male D‑SUB bus connector with screw‑terminal internal wiring. It's designed for easy field assembly and universal system compatibility. It features a 35° cable outlet, metallized housing, and knurled fastening screws.

Key Features

Universal compatibility for protocols like RS‑232, RS‑422, RS‑485, Modbus, INTERBUS.
EMC‑shielded housing (metal‑plated ABS) for interference protection.

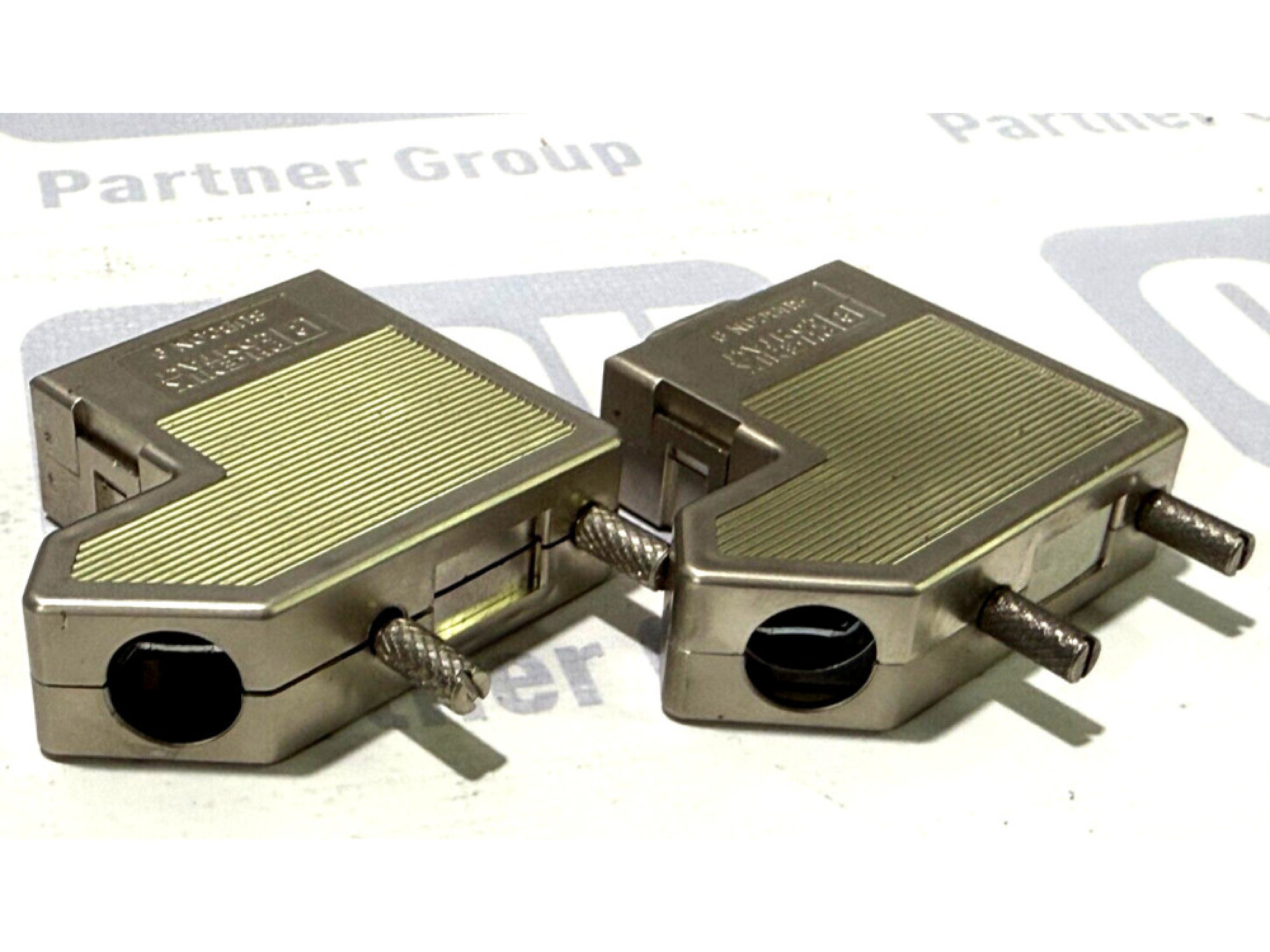

35° cable outlet with reversible internal block—you can rotate wiring orientation in the field.

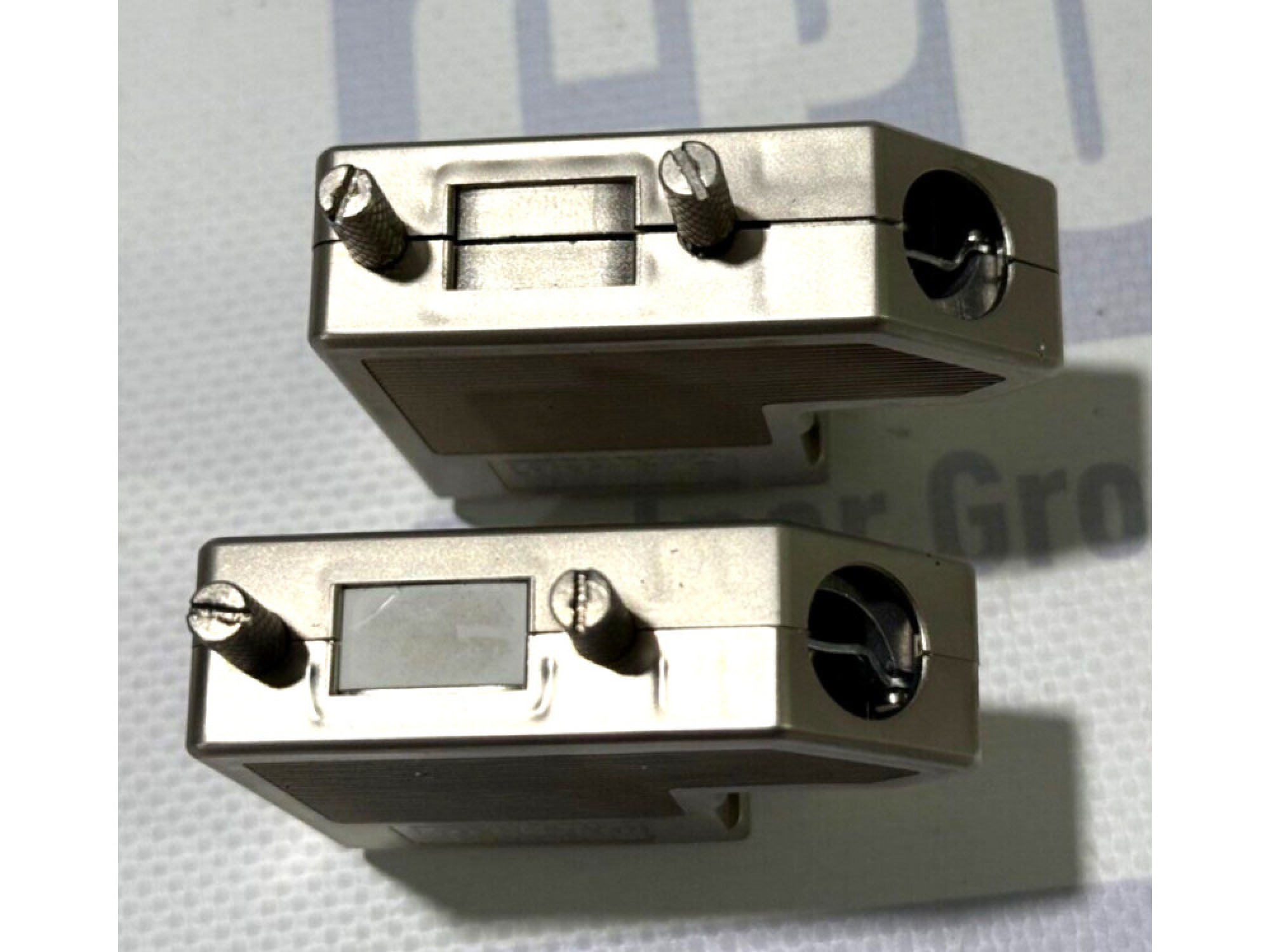

Field‑friendly assembly with captive knurled screws; fully 1:1 screw‑terminal assignment (each D‑SUB pin to its own terminal).

⚙️ Electrical & Mechanical Specs

Specification	Value
Number of positions	9 (DB9 male)
Nominal voltage (Un)	50 V DC
Nominal current (In)	100 mA
Terminal cross-section	Rigid: 0.14–1.5 mm² Flexible: 0.14–1.0 mm²
AWG range	Rigid: 26–16 Flexible: 26–18
Stripping length	5 mm
Insertion cycles	> 200
Tightening torque	0.4 Nm
Housing material	ABS, metal-plated
Cable diameter	4–10 mm
Operating temp.	–20 °C to +75 °C
Protection rating	IP20

Reliability & Approvals

MTTF (SN 29500): 6,706 years at 25 °C / 1,817 years at 40 °C / 155 years continuous 40 °C operation
Certified: ATEX, UL/cUL/CSA, EAC, cULus
Compliant: RoHS, IP20 enclosure standard
Origin: Manufactured in Germany

Advantages

Quick, tool‑free cable assembly: just strip wires and tighten screws.
High EMC protection for clean signal integrity.
Reversible cable entry orientation simplifies installation in tight spaces.
Universal pin mapping—suitable across multiple bus systems and devices.

Applications

Ideal for industrial automation, fieldbus, communication lines (RS-232/422/485), data acquisition modules, and any application requiring reliable, maintainable connector solutions in harsh environments.

✅ Summary

The Phoenix Contact SUBCON 9/M‑SH is a durable, field‑serviceable DB9 connector with internal screw‑terminal wiring, EMC protection, and robust mechanical design. It's perfect for industrial data and communication applications needing reliable, maintenance-friendly connectors.
