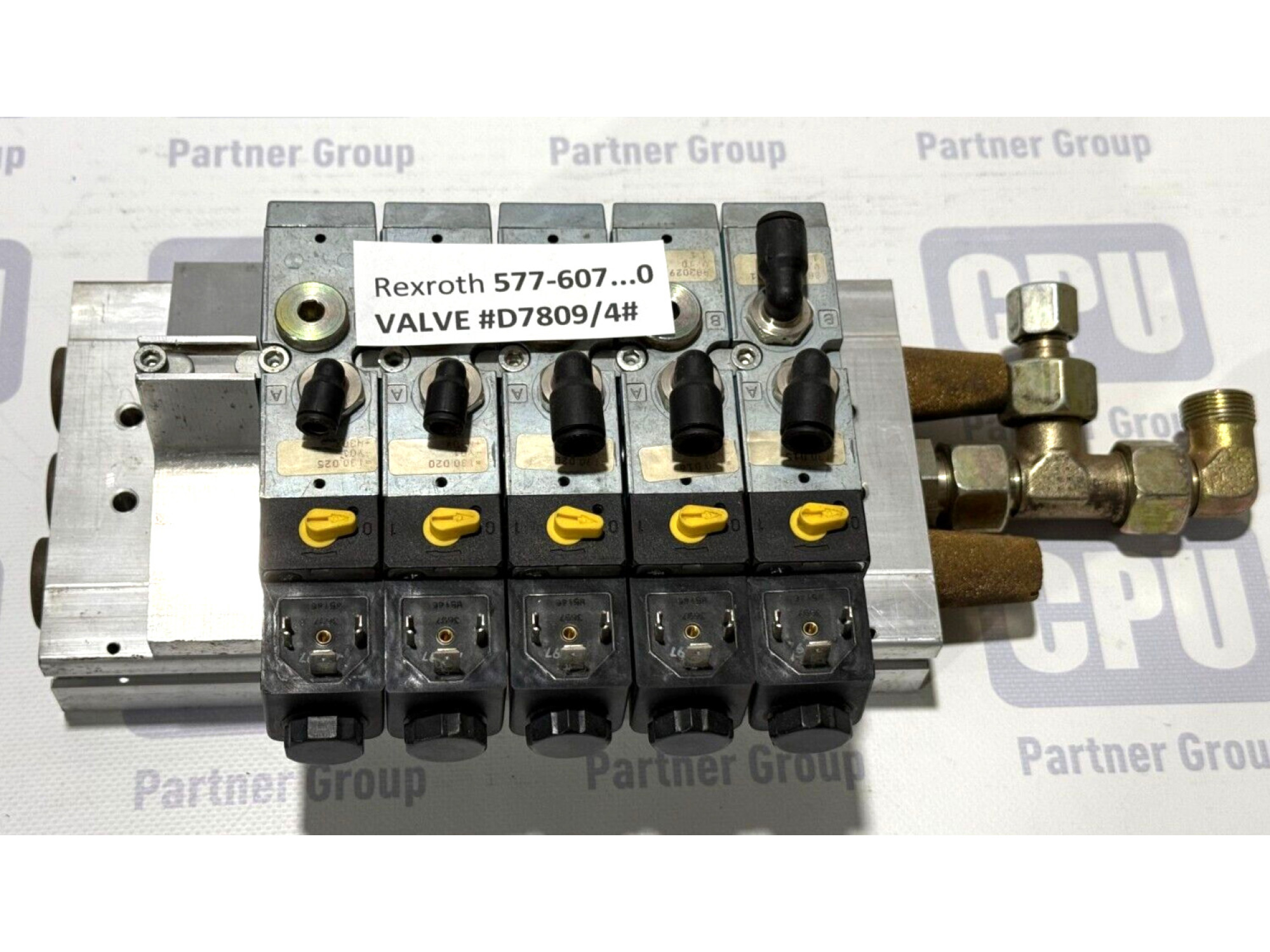

Rexroth 577-607...0 Air terminal SOLENOID VALVE #D7809/4#

Rexroth 577-607...0 – Air Terminal / Pneumatic Solenoid Valve Manifold

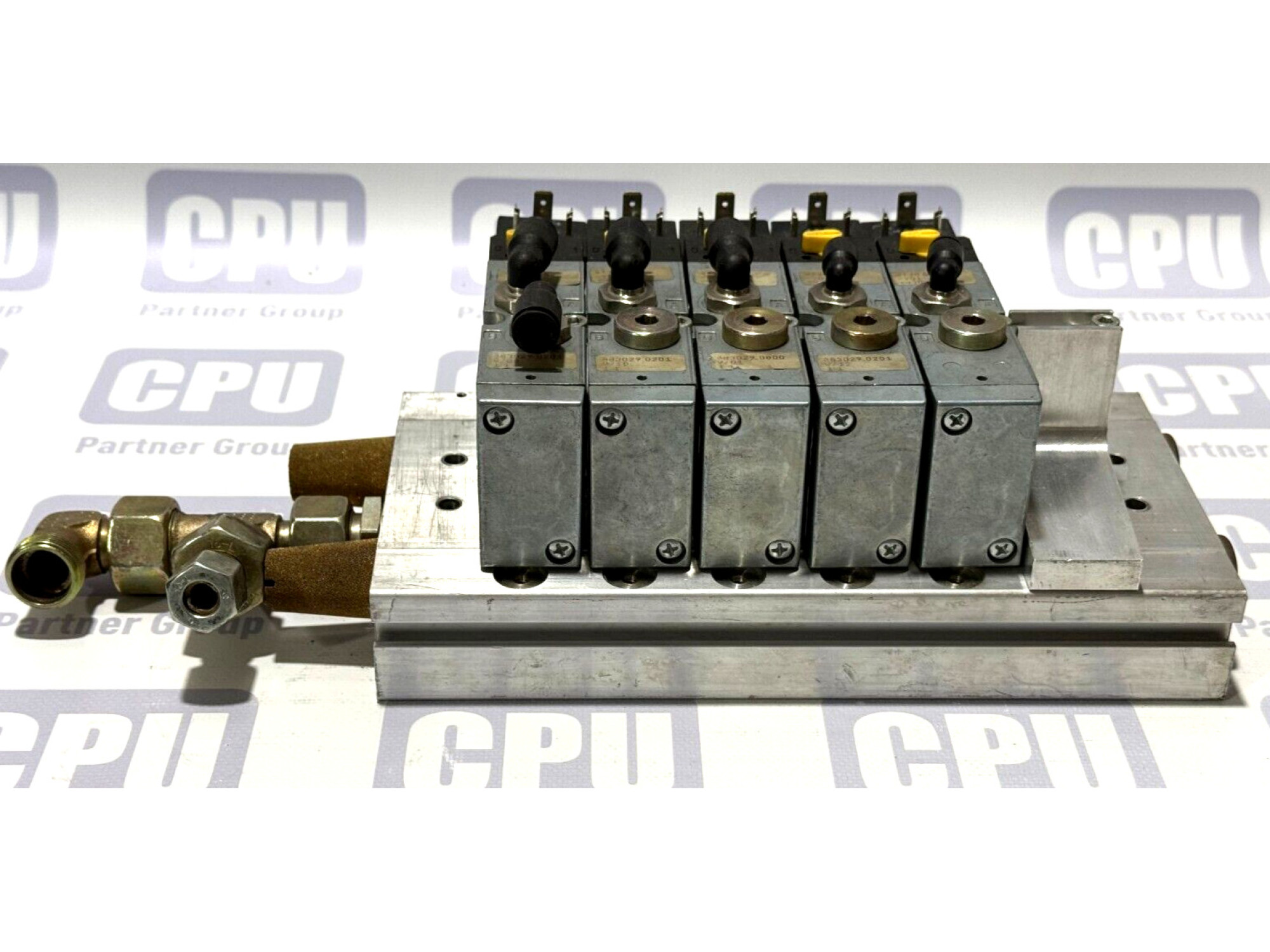

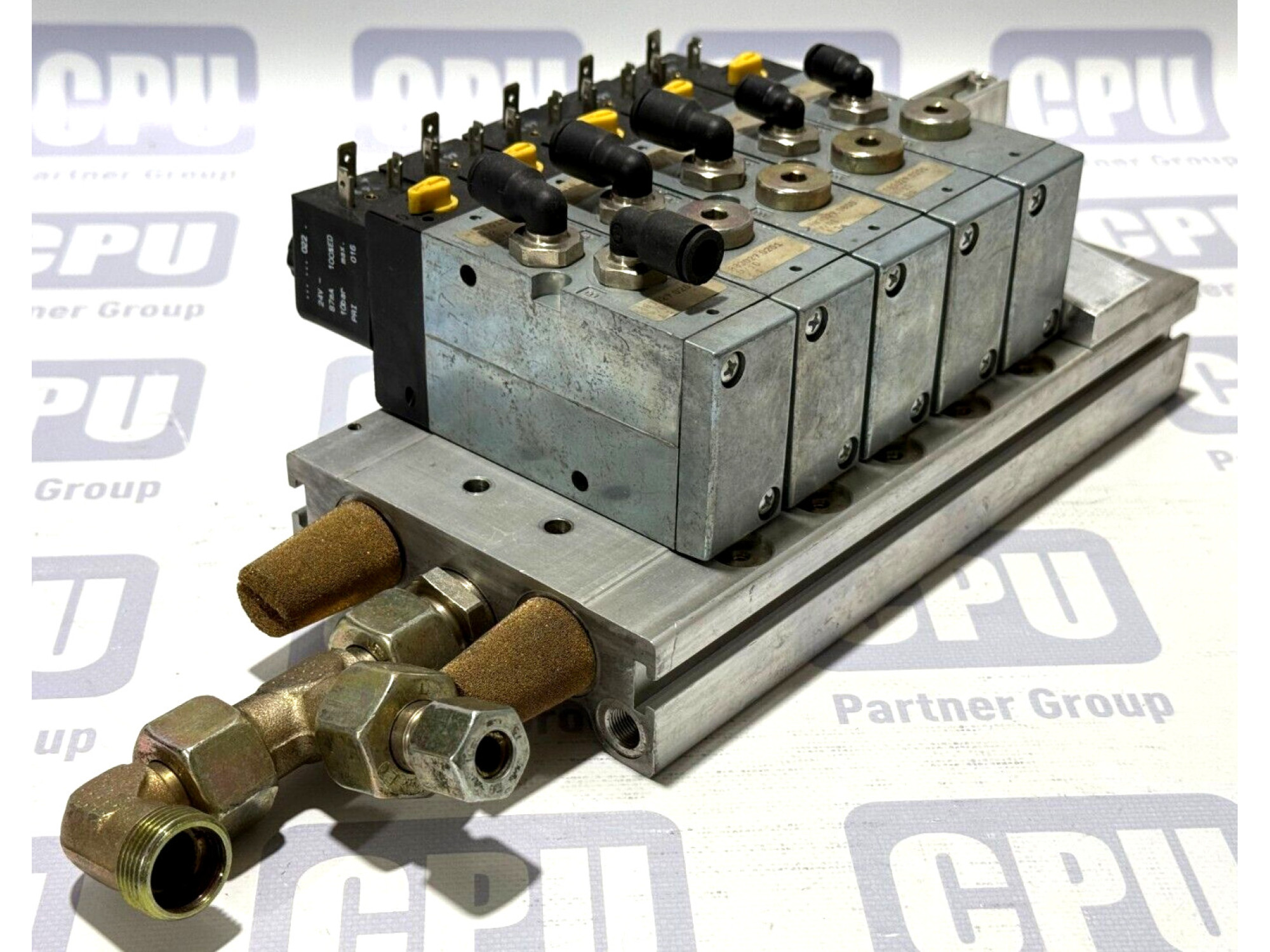

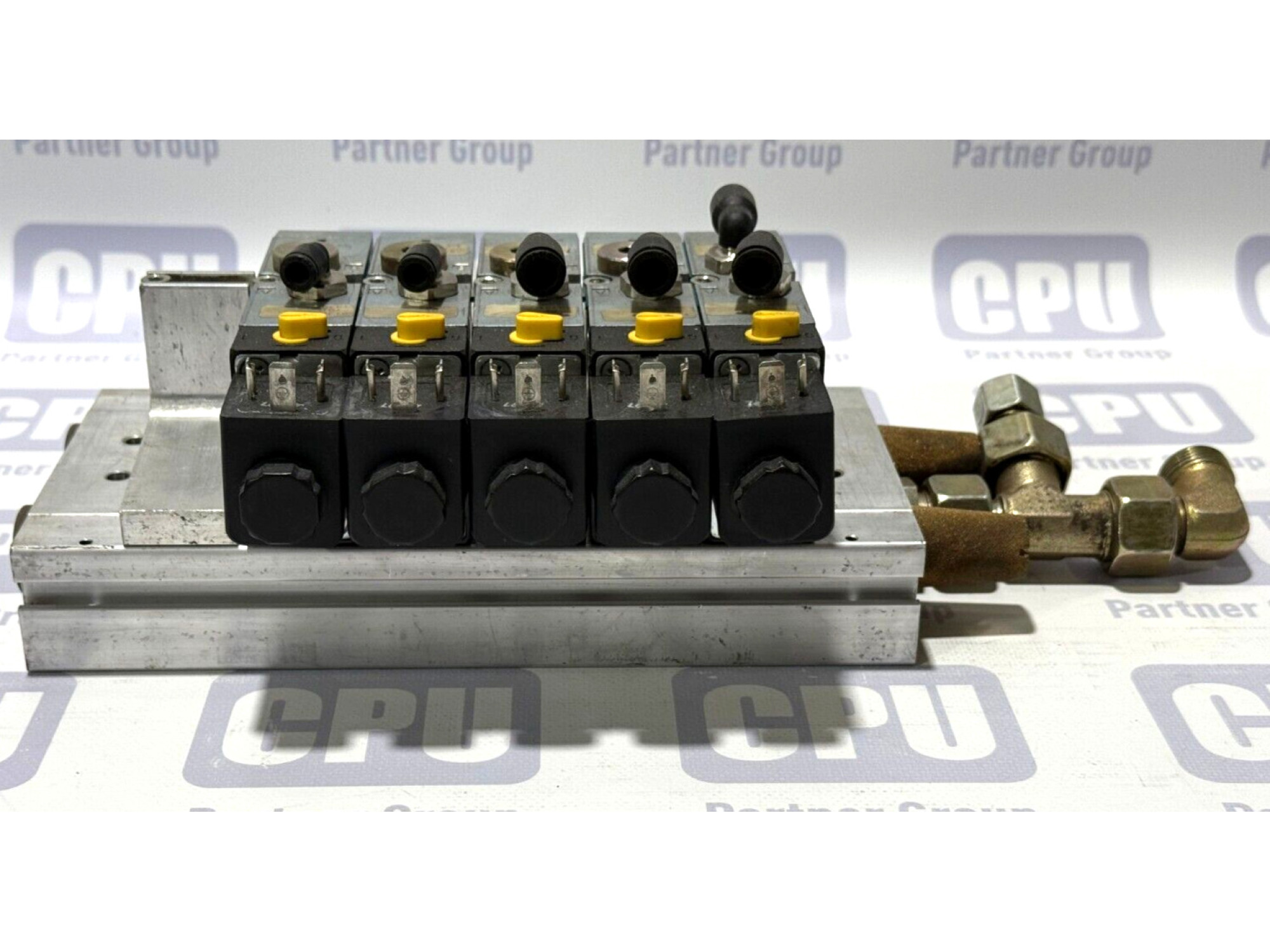

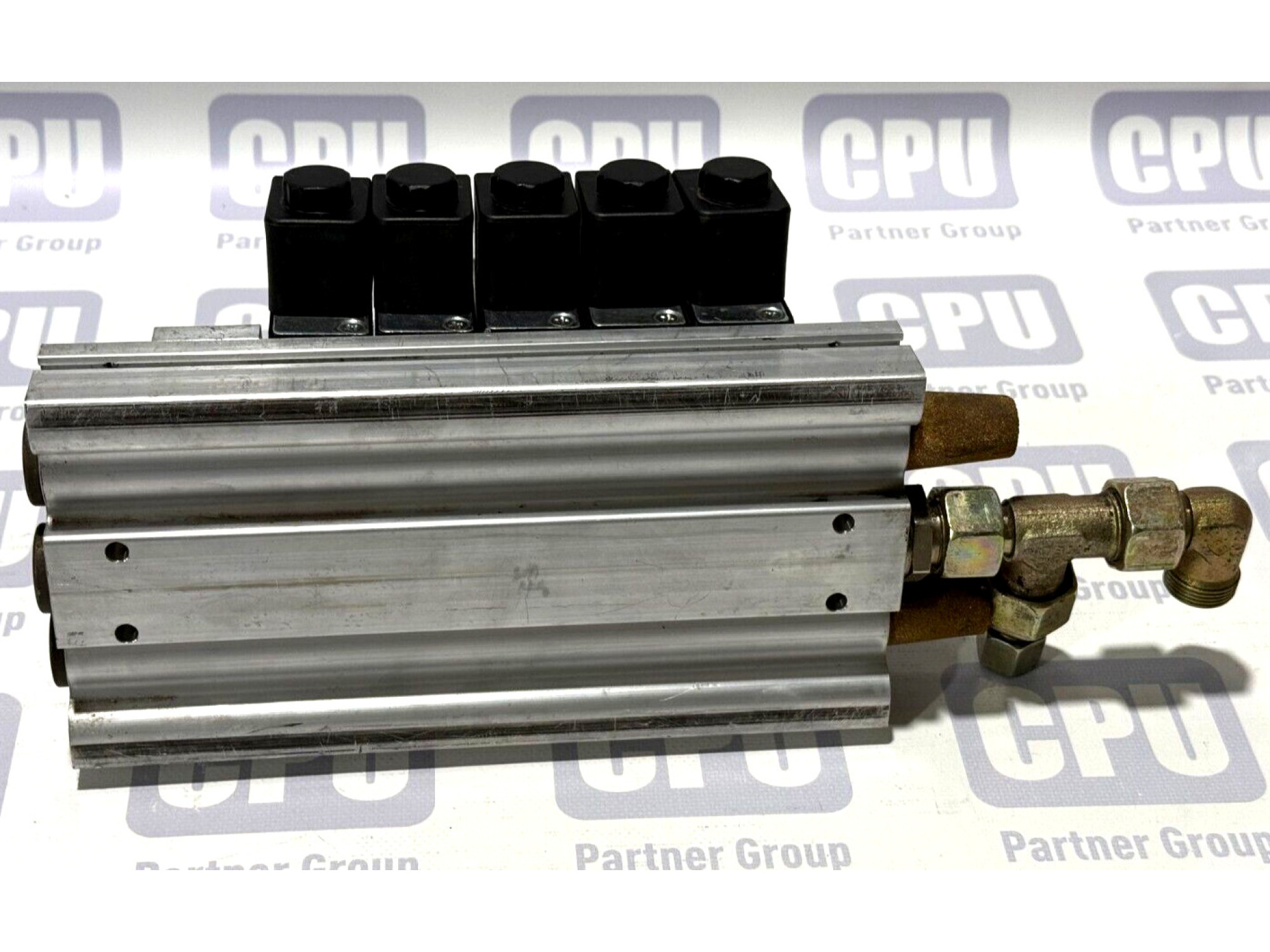

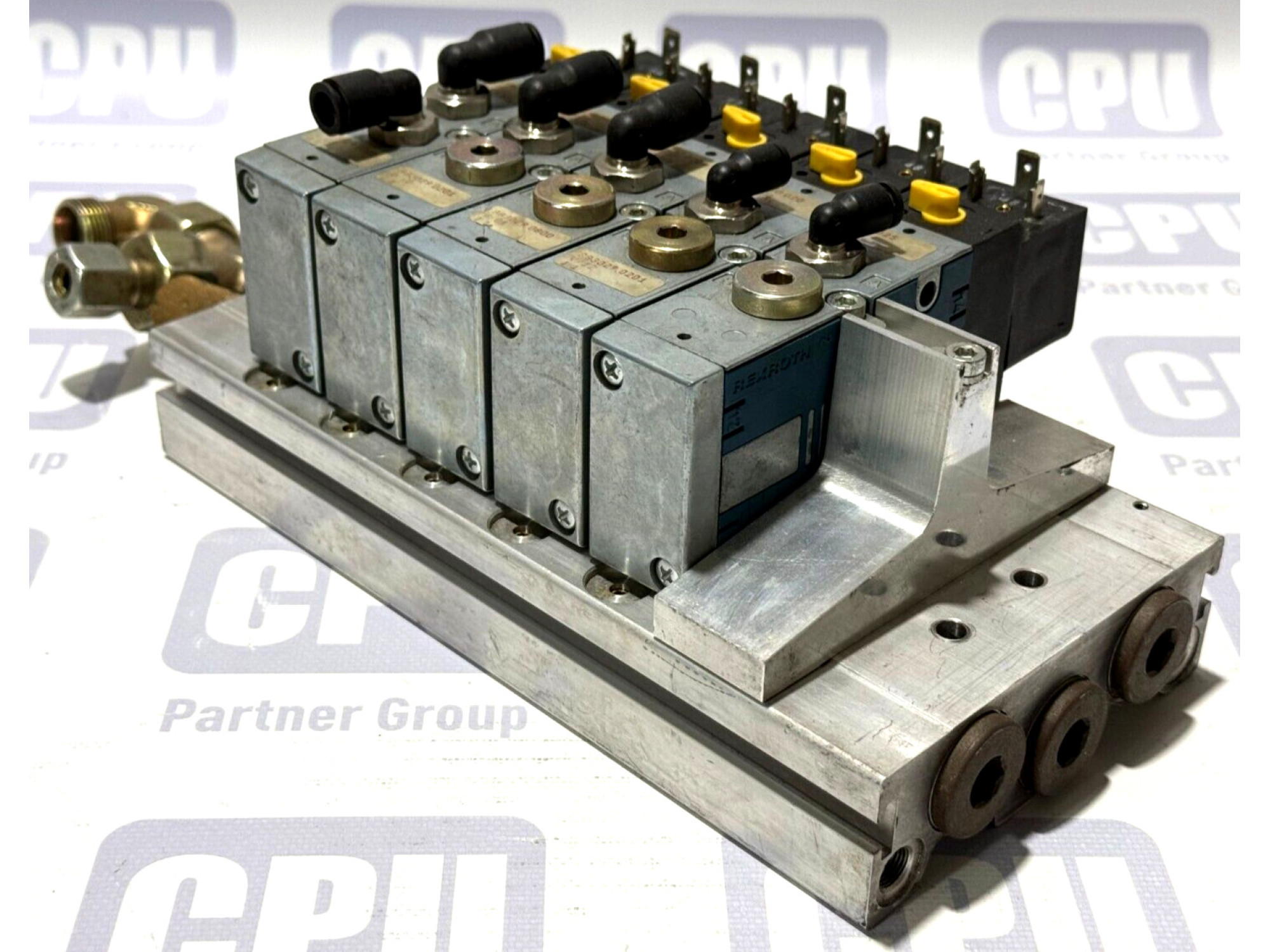

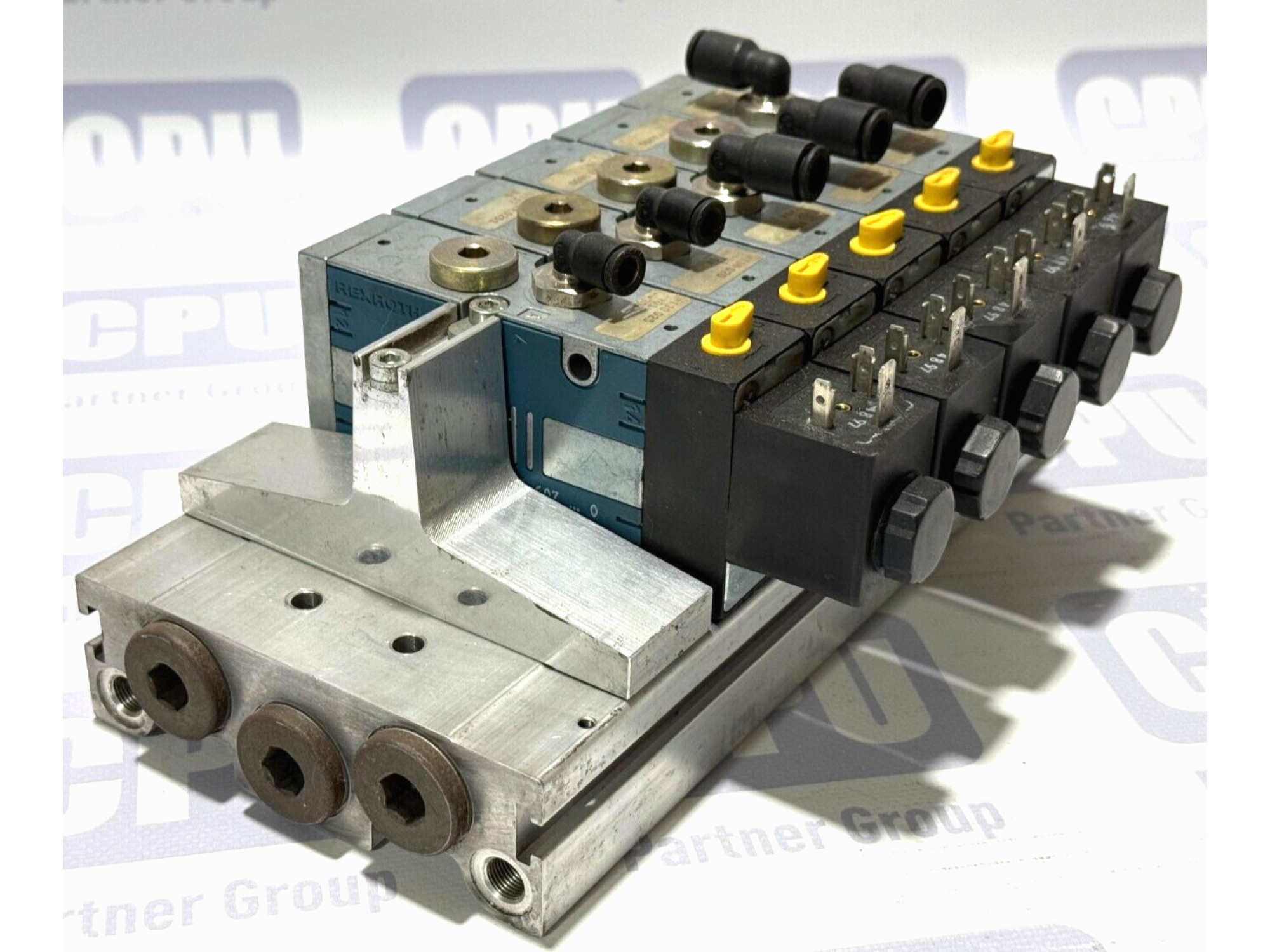

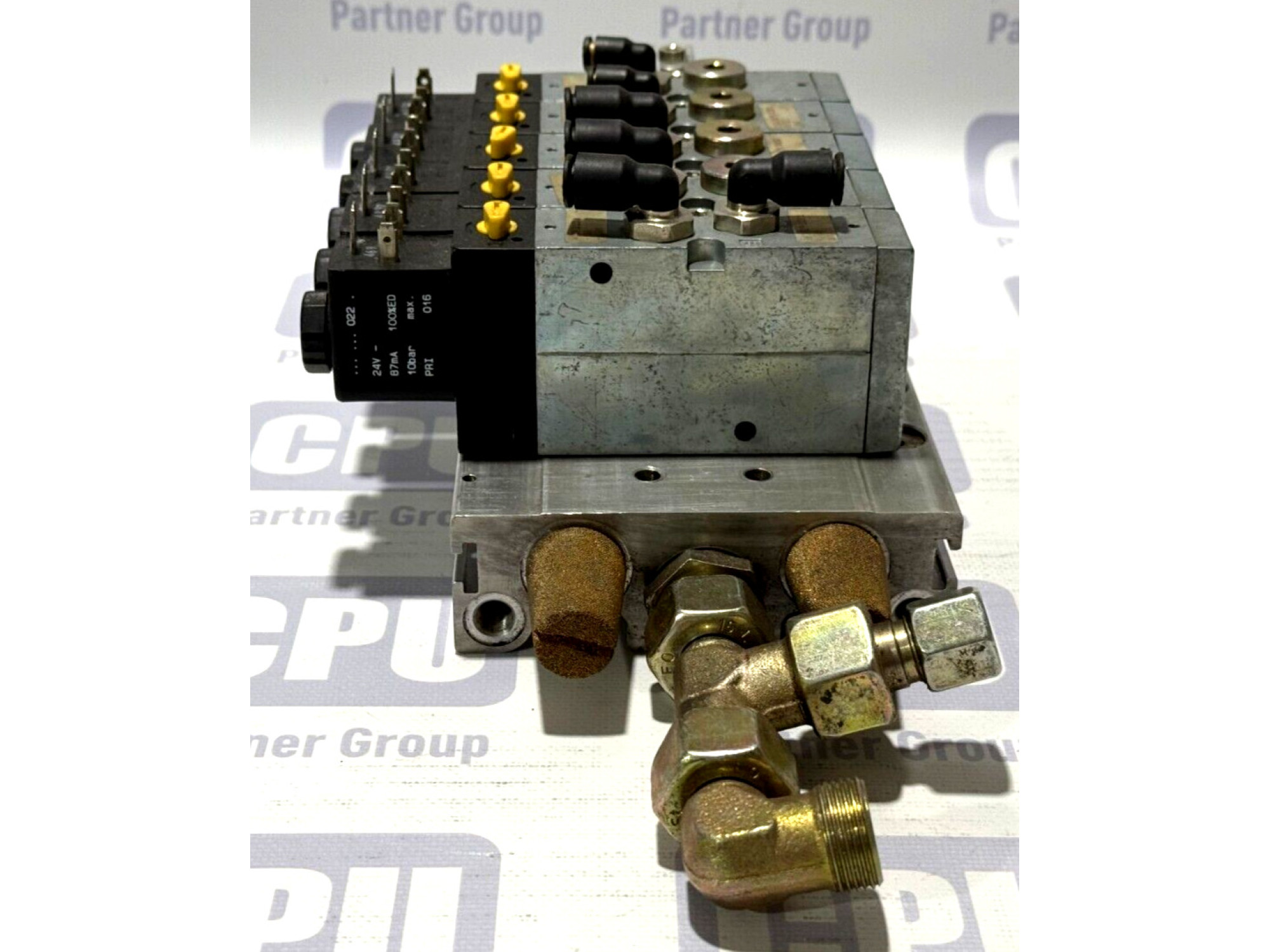

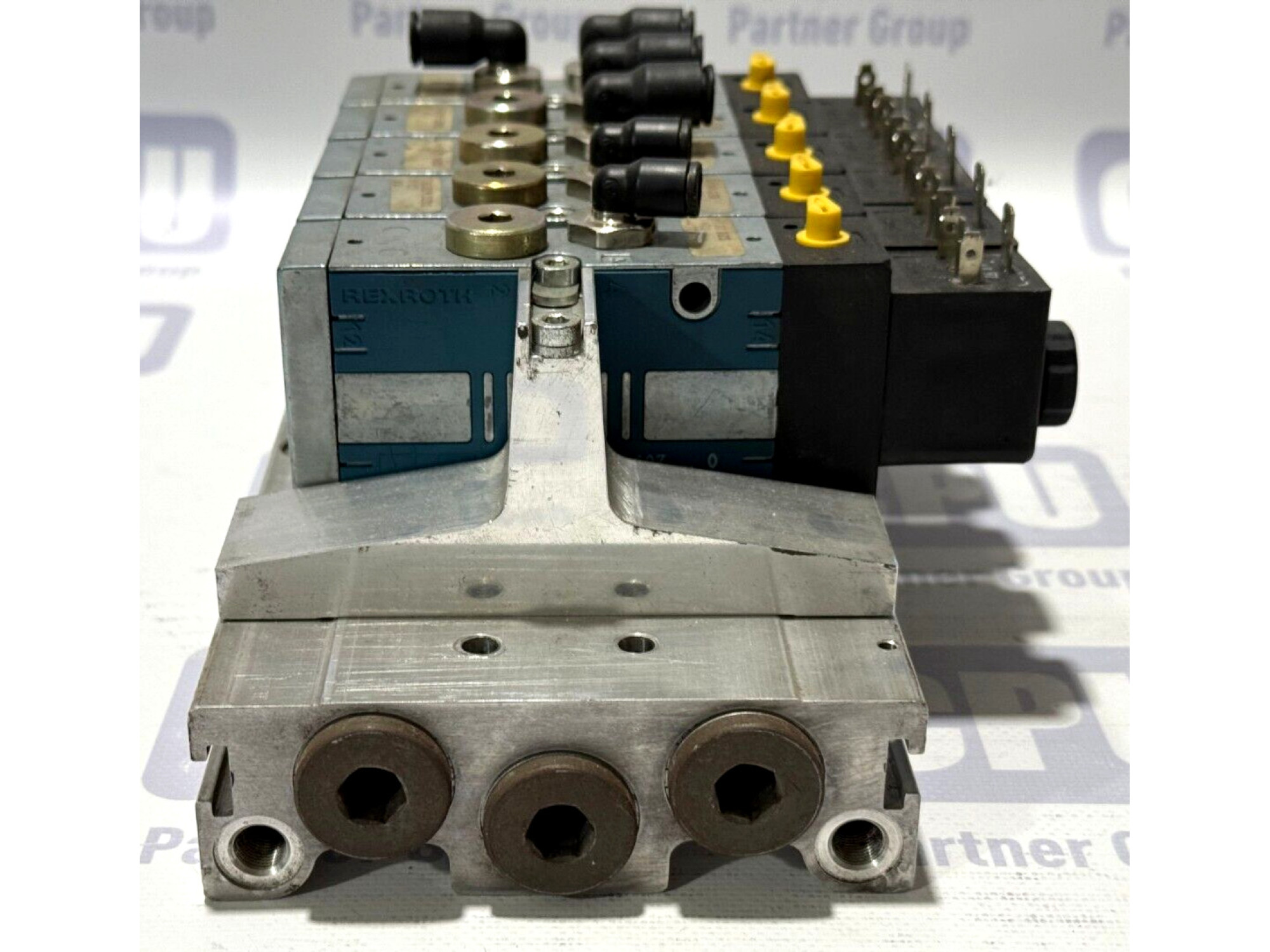

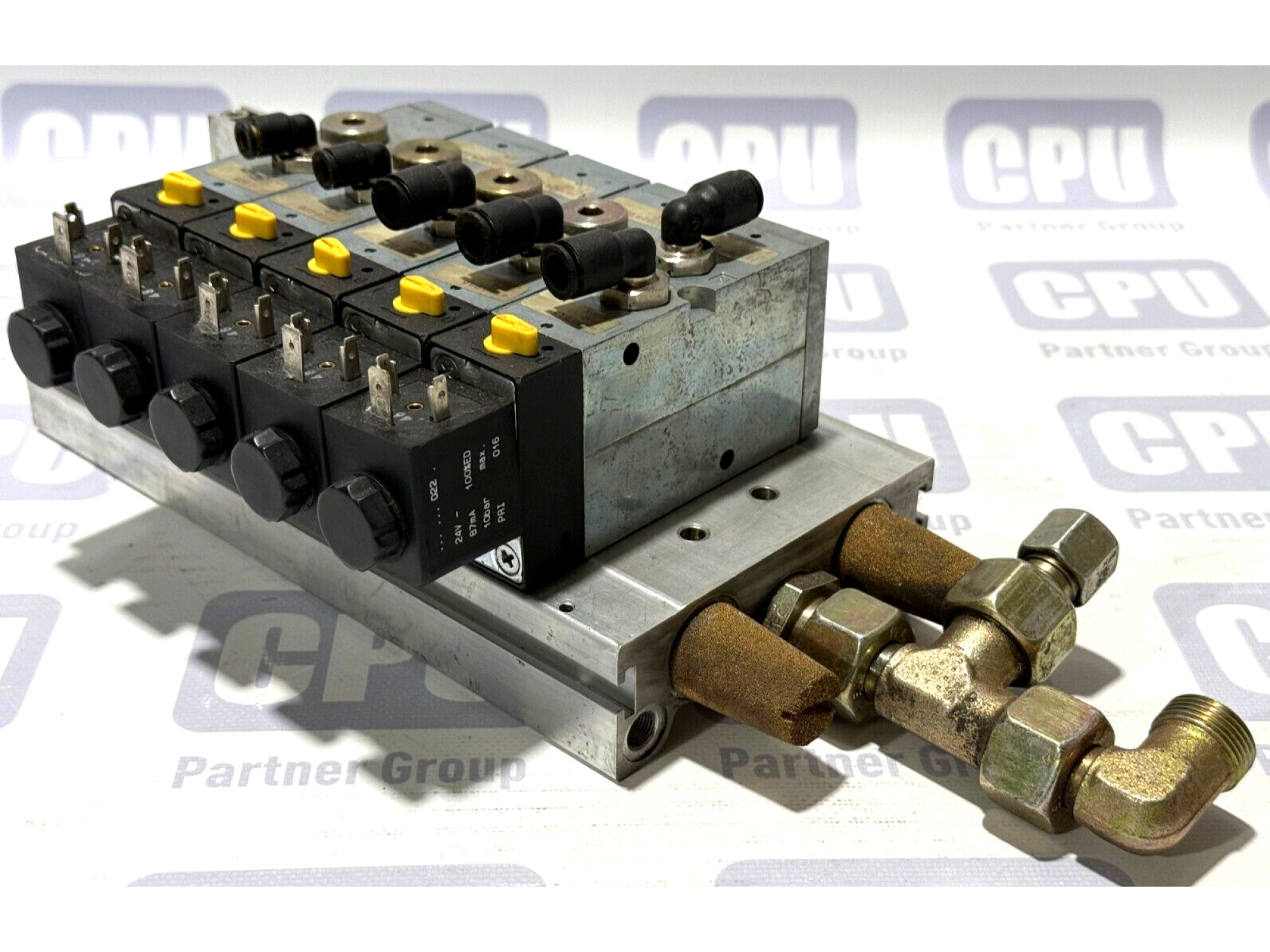

The Rexroth 577-607...0 is a high-quality air terminal, representing an assembly of pneumatic solenoid valves on a common manifold block. This modular unit is designed for precise and reliable control of compressed air flow in industrial automated systems. It is ideally suited for operating pneumatic actuators, cylinders, grippers, and other executive components, ensuring efficient and rapid response in manufacturing processes, robotics, assembly systems, and other applications requiring reliable pneumatic control.

Key Features:

• Manufacturer: Rexroth (part of Bosch Rexroth), renowned for its quality in hydraulics and pneumatics.
• Model/Series: 577-607...0
• Type: Air Terminal / Pneumatic Valve Island / Solenoid Valve Bank.
• Configuration: A modular system consisting of multiple solenoid valves mounted on a common distribution block.
  • Number of Valves: 5
  • Valve Type: Pneumatic solenoid valves, electrically actuated.
• Functionality: Controls the direction and flow of compressed air to activate pneumatic executive devices.
• Air Connections:
  • Working Ports: Equipped with quick-connect fittings (push-to-connect) for fast and convenient connection of pneumatic hoses. (A blue fitting is visible on one of the valves in the additional photos).
  • Main Ports: The manifold features threaded ports for the main compressed air supply and exhaust.
• Electrical Connection: Each solenoid valve has individual electrical connectors.
  • Control Voltage: 24V DC
  • Current: 87 mA
  • Duty Cycle: 100% ED (Continuous Duty)
  • Maximum Pressure: 10 bar (PRI)
• Materials: Durable metal valve bodies and an aluminum manifold, ensuring longevity and reliability in harsh industrial environments.
• Dimensions: Compact design for optimal space utilization within control cabinets and on machinery.
• Application: A wide range of industrial applications including mechanical engineering, robotics, assembly lines, packaging systems, food processing, and other areas requiring precise and reliable pneumatic control.

Unique Advantages and Features:

• Superior Reliability: As a Rexroth product, this air terminal ensures a high degree of reliability and a long service life, minimizing equipment downtime.
• Modular Flexibility: The manifold system allows for easy expansion or modification of the configuration by adding or replacing individual valves as needed, making it highly adaptable to various automation tasks.
• Ease of Installation and Maintenance: Quick-connect fittings simplify and speed up pneumatic line connections, while the modular design facilitates maintenance and replacement of individual components.
• Space Optimization: The compact manifold design helps efficiently utilize space in industrial installations, reducing the overall system footprint.
• Centralized Control: Allows for consolidating the control of multiple pneumatic functions in one location, simplifying electrical wiring and system programming.

Technical data

https://cpupartnergroup.com/image/pdf/Valves_CD7.pdf
