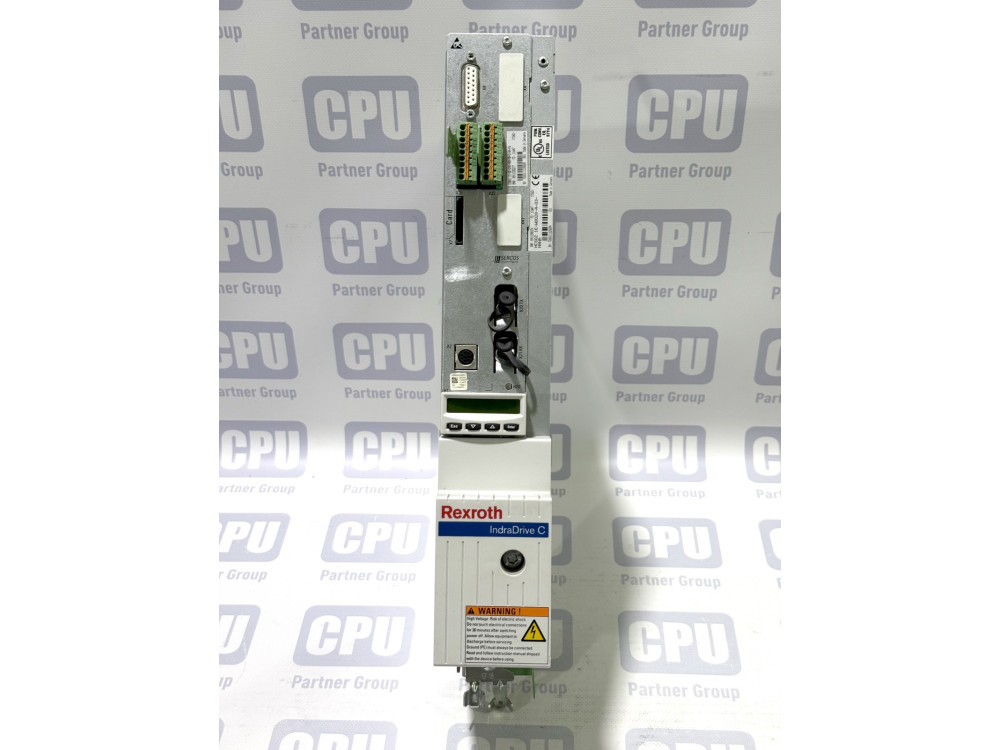

Rexroth IndraDrive C Servo Drive HCS02.1E-W0028-A-03-NNNN (MNR: R911298374 / R911305034) #BA/sk/3#

Rexroth IndraDrive C Servo Drive HCS02.1E-W0028-A-03-NNNN (MNR: R911298374 / R911305034)

The Rexroth IndraDrive C HCS02.1E-W0028-A-03-NNNN is a powerful and compact servo drive from the IndraDrive C series by Bosch Rexroth, engineered for high-performance motion control systems in industrial automation. It provides precise speed and position control, making it an ideal solution for demanding applications such as material handling, robotics, and precision manufacturing.

Key Features / Specifications:

• Type/Model: HCS02.1E-W0028-A-03-NNNN
• Manufacturer Part Number (MNR) for this configuration: R911298374
• MNR of the main servo drive unit (base type HCS02.1E-W0028): R911305034
• Series: IndraDrive C
• Manufacturer: Bosch Rexroth Electric Drives and Controls GmbH

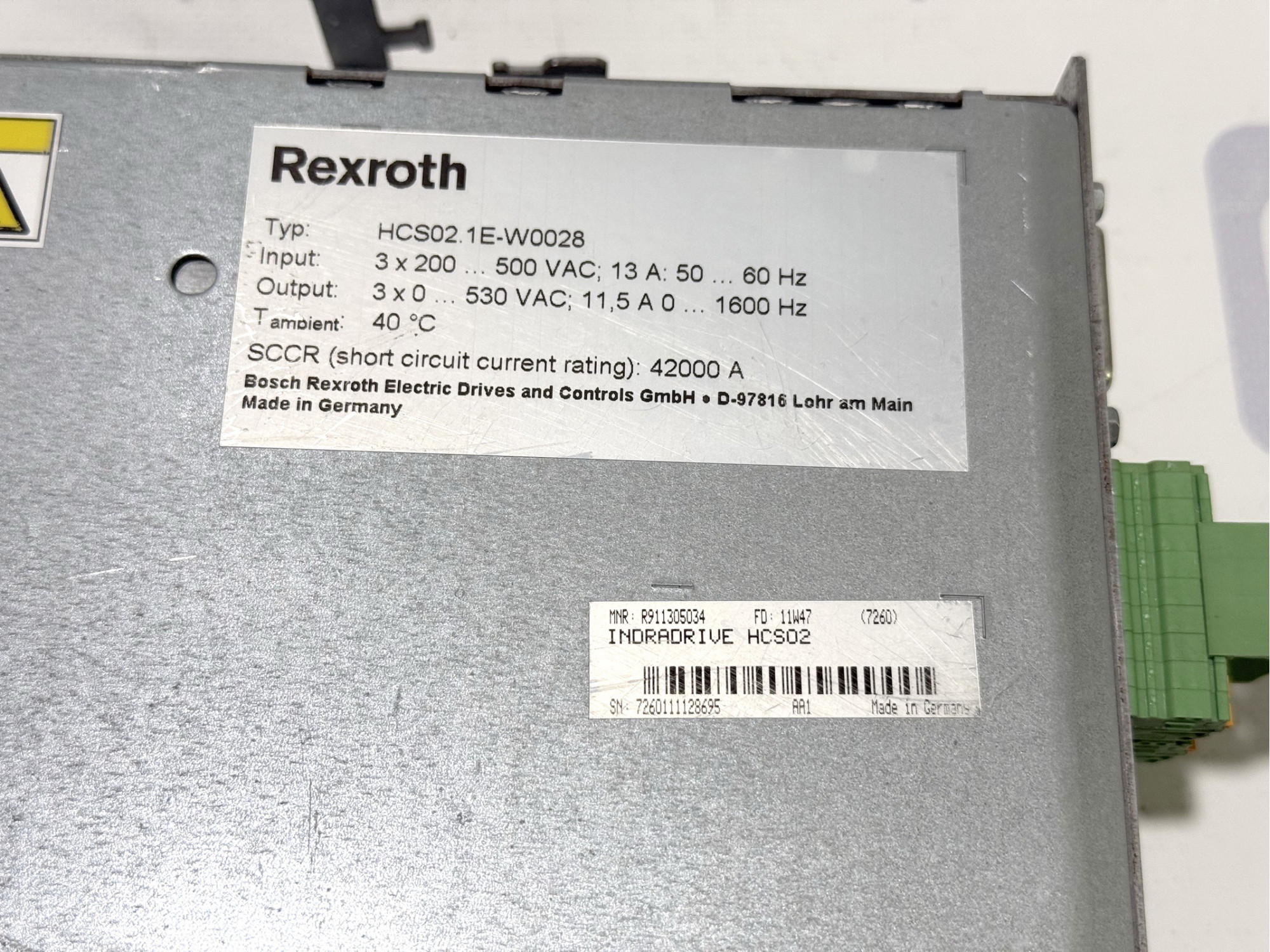

• Input Voltage: 3-phase, 200 – 500 VAC; 13 A; 50 – 60 Hz
• Output Voltage: 3-phase, 0 – 530 VAC; 11.5 A; 0 – 1600 Hz
• Ambient Temperature (T ambient): 40 °C
• Short Circuit Current Rating (SCCR): 42000 A
• Interface: SERCOS interface (for high-speed communication)

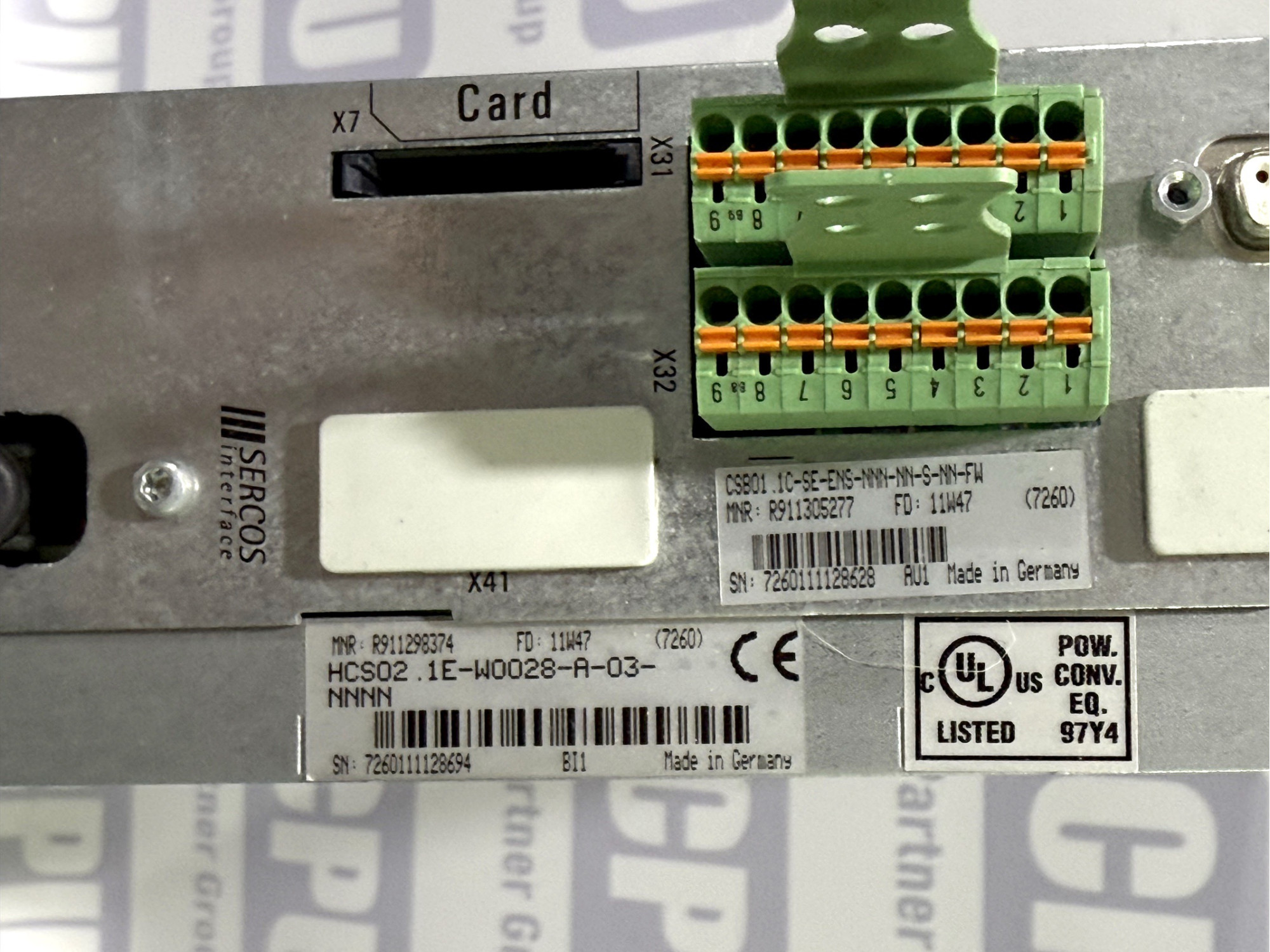

• Installed Control/Communication Section: CSB01.1C-SE-ENS-NNN-NN-S-NN-FW (MNR: R911305277)
• Manufacture: Made in Germany
• Certifications: CE, cULus (POW. CONV. EQ. LISTED 97Y4)
• Internal Article Number/SKU: #BA/sk/1#

Purpose and Application:Rexroth IndraDrive C servo drives are renowned for their reliability, precision, and flexibility. They are applied across a wide range of automated systems requiring:

• High-precision positioning.
• Dynamic speed control.
• Synchronized multi-axis motion.
• Energy-efficient drive solutions.They are ideally suited for CNC machines, packaging equipment, printing presses, automated assembly lines, and other industrial systems.

On this page you will find Instruction the user  for Rexroth IndraDrive C Servo Drive HCS02.1E-W0028-A-03-NNNN . Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Operating Instructions

https://cpupartnergroup.com/image/pdf/Rexroth%20IndraDrive%20C%20Drive%20Controllers%20HCS02.1%2C%20HCS03.1.pdf
