ROSEMOUNT 8800 8800DF020SD1N2D1E1M5Q4YR Vortex Flow Meter #1(CF-3M 316L, 4-20mA Pulse, FM/CE/IP66 )

ROSEMOUNT 8800 8800DF020SD1N2D1E1M5Q4YR Vortex Flow Meter #1 (CF-3M 316L, 4-20mA Pulse, FM/CE/IP66 )

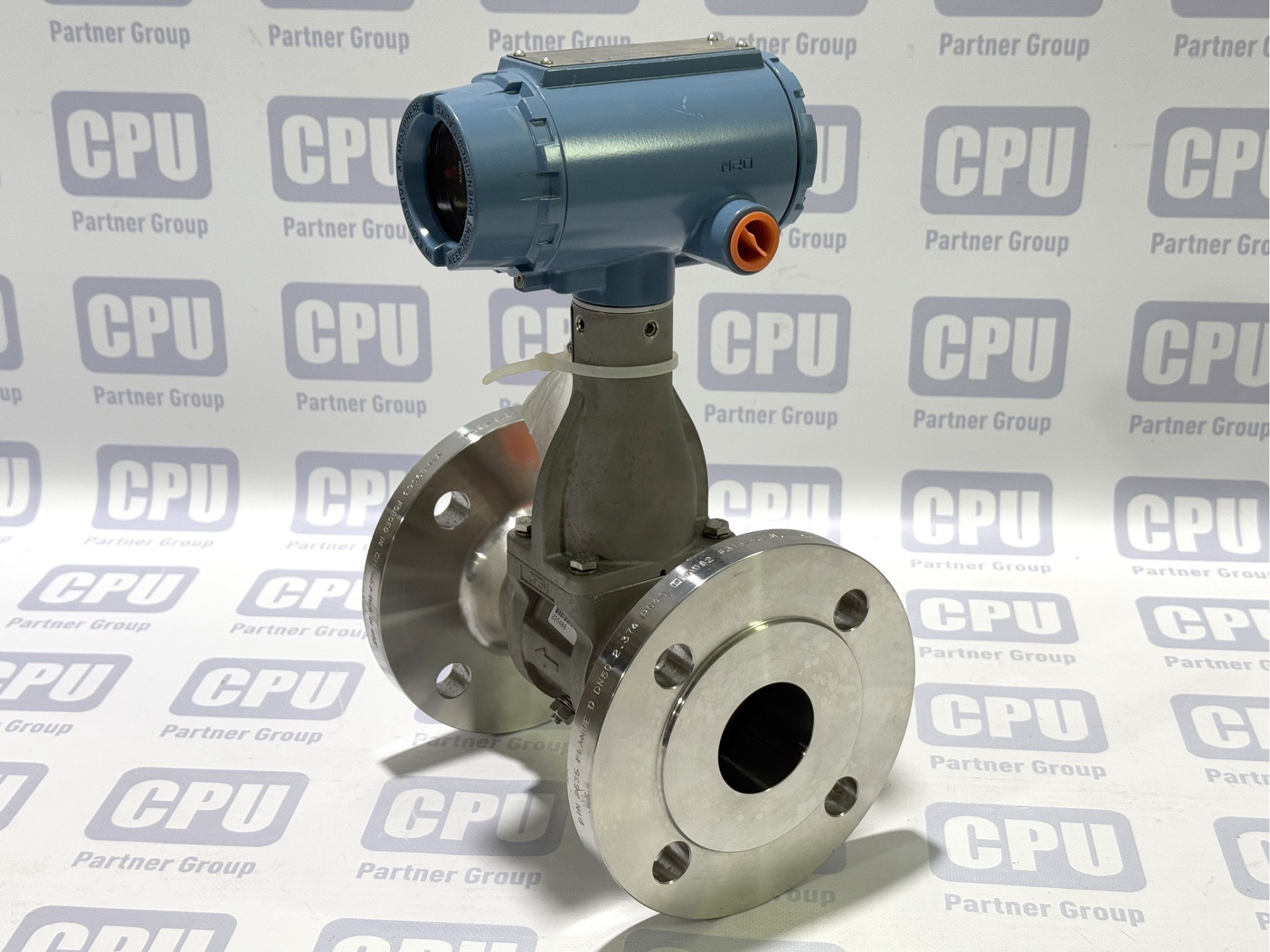

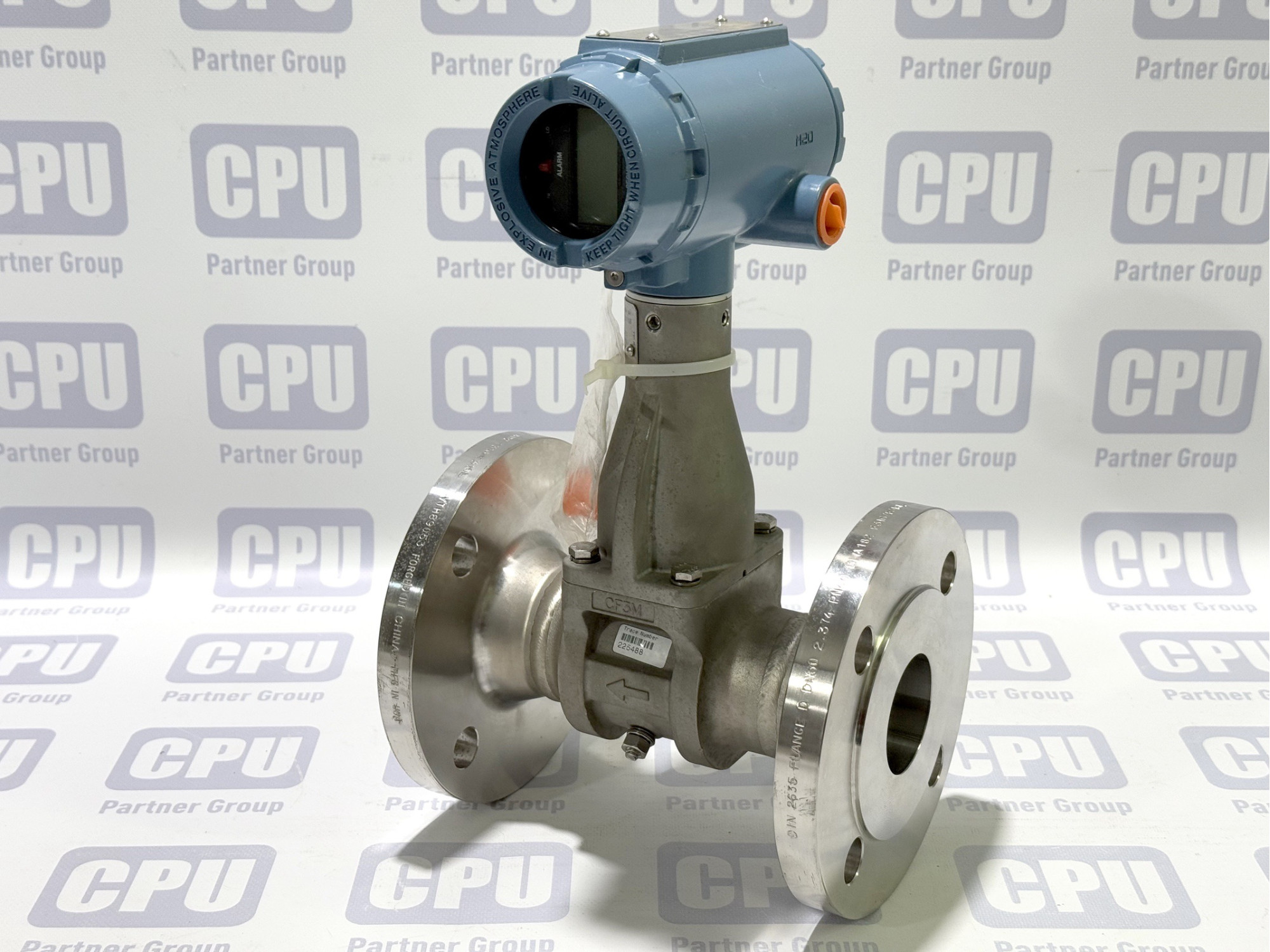

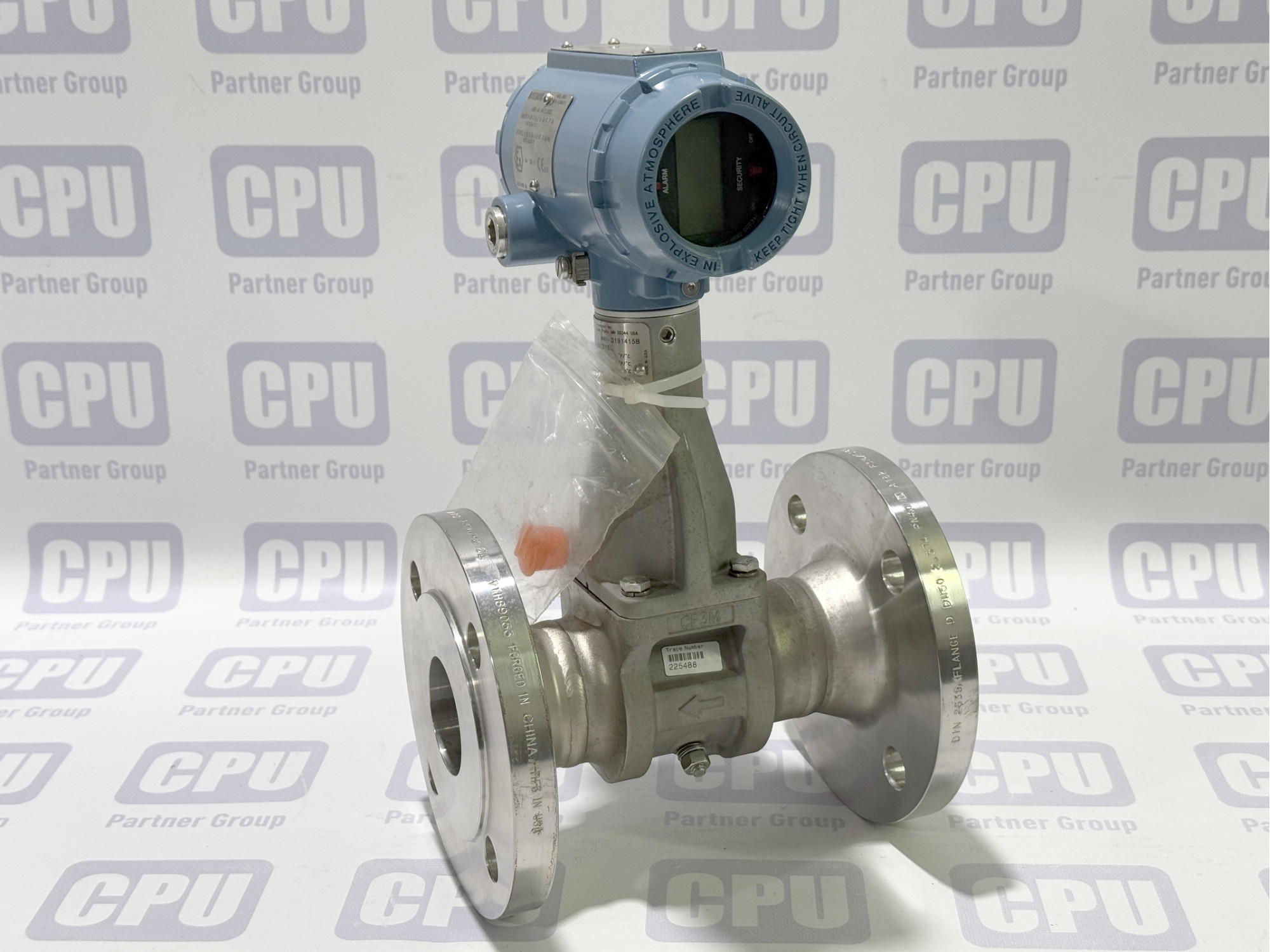

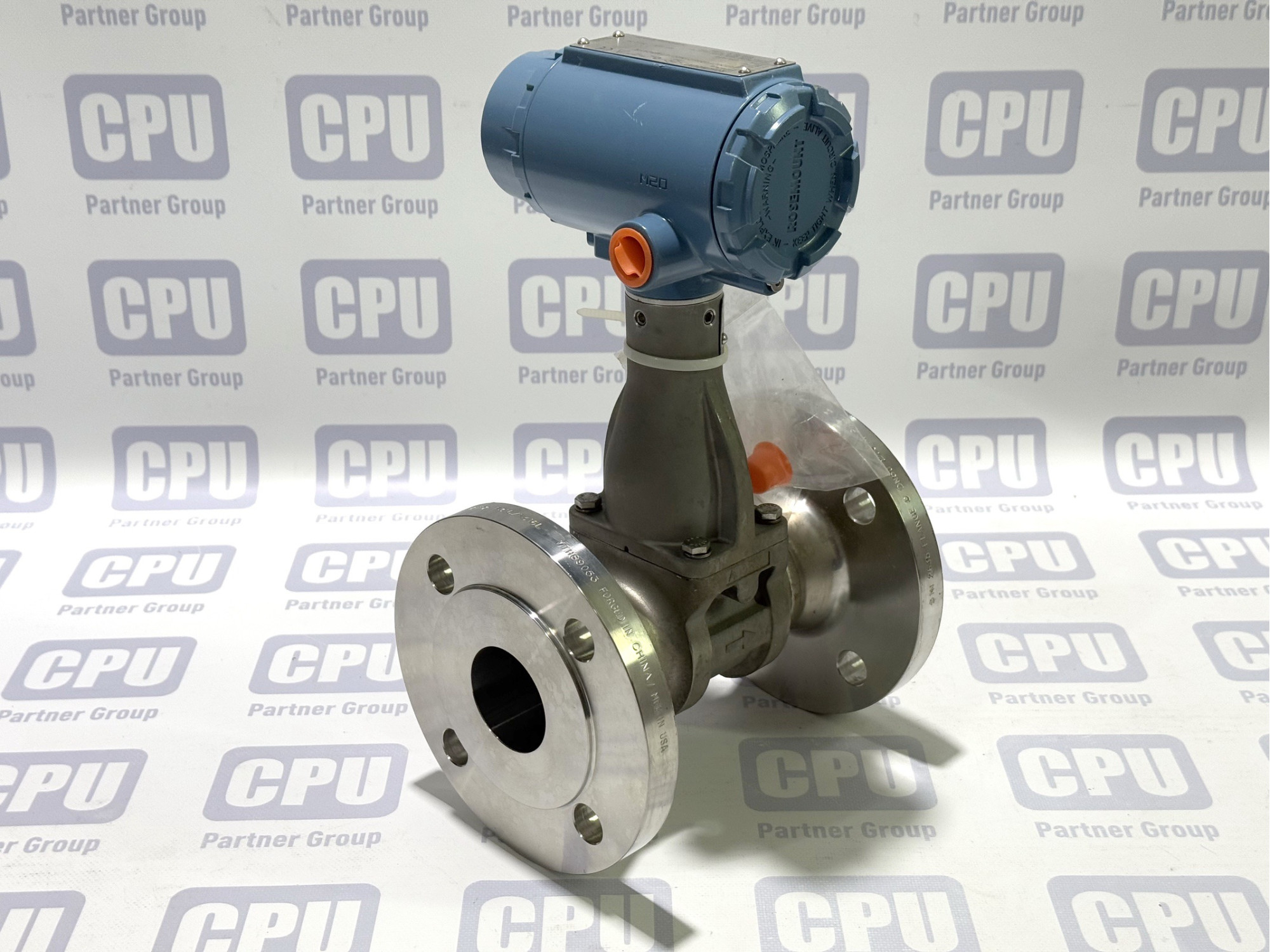

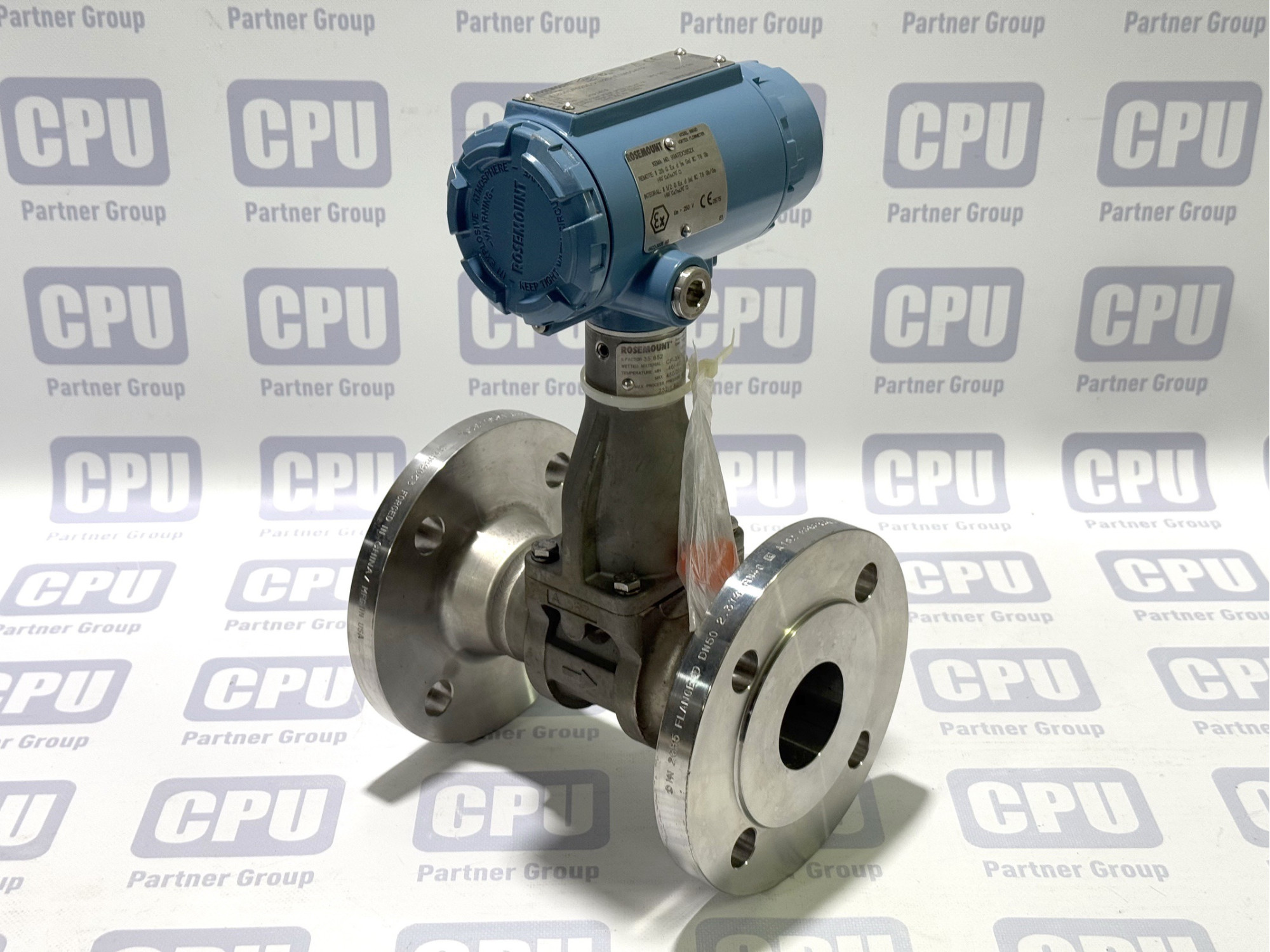

The ROSEMOUNT 8800DF020SD1N2D1E1M5Q4YR is a high-performance Vortex Flow Meter from the trusted Rosemount 8800 series, part of Emerson Automation Solutions. Manufactured in the USA, this industrial flow meter is designed for accurate and reliable measurement of flow rate for a variety of fluids, including liquids, gases, and steam, in demanding process applications.

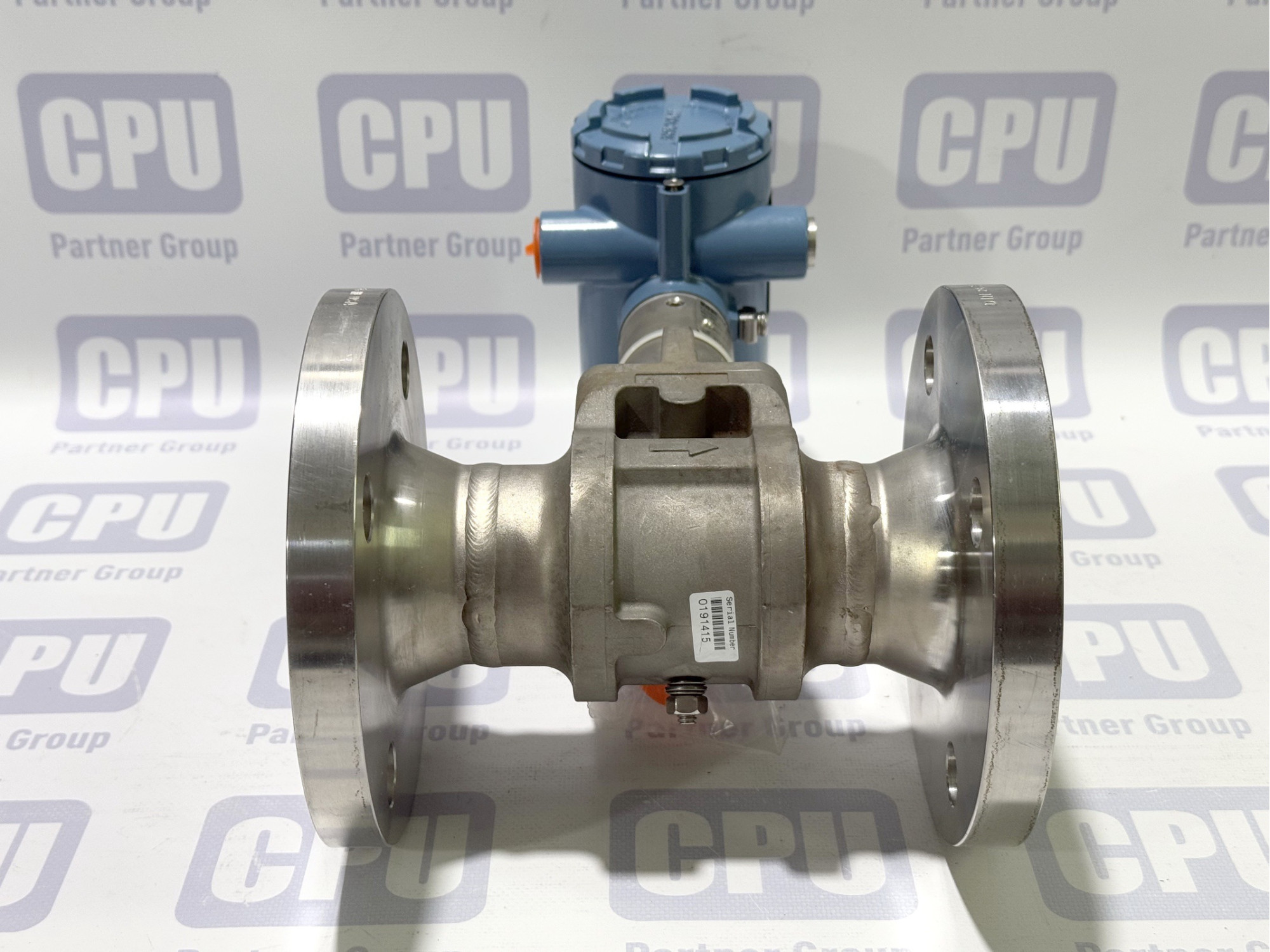

Vortex flow meters measure flow by utilizing a bluff body placed in the flow stream. As fluid passes the bluff body, vortices are shed alternately from each side. The frequency of these vortex shedding is directly proportional to the flow velocity, which the meter then converts into a flow rate measurement.

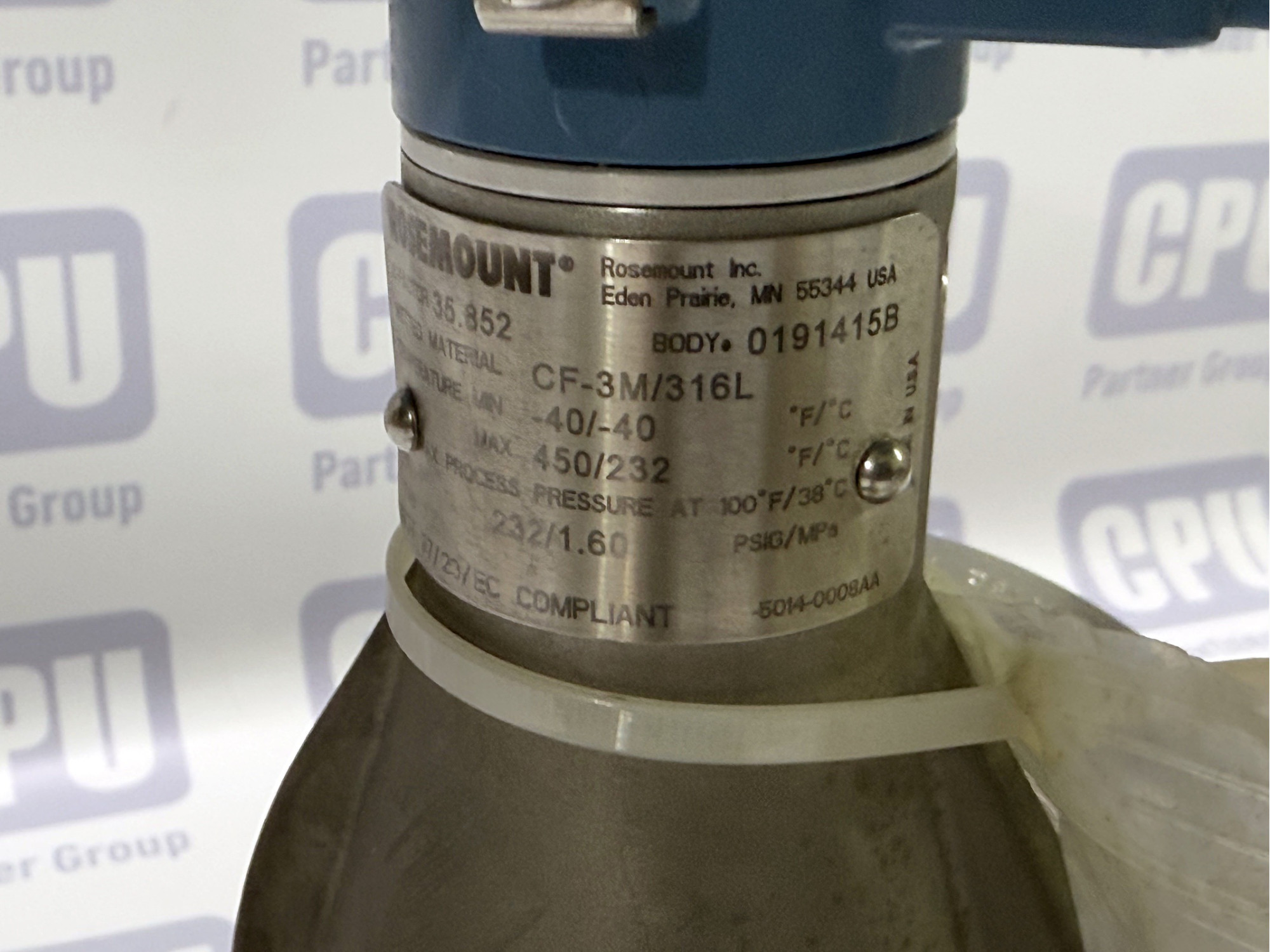

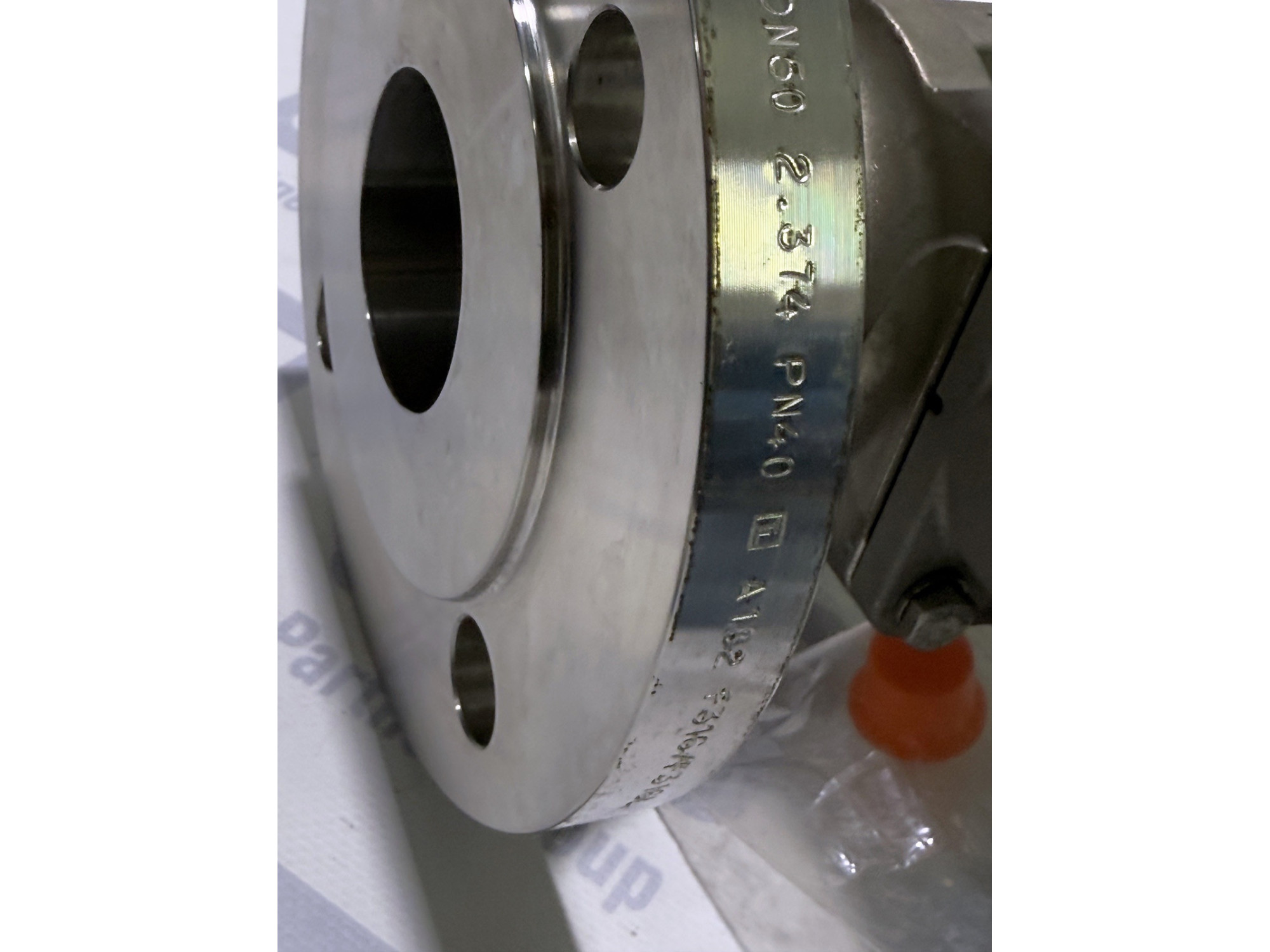

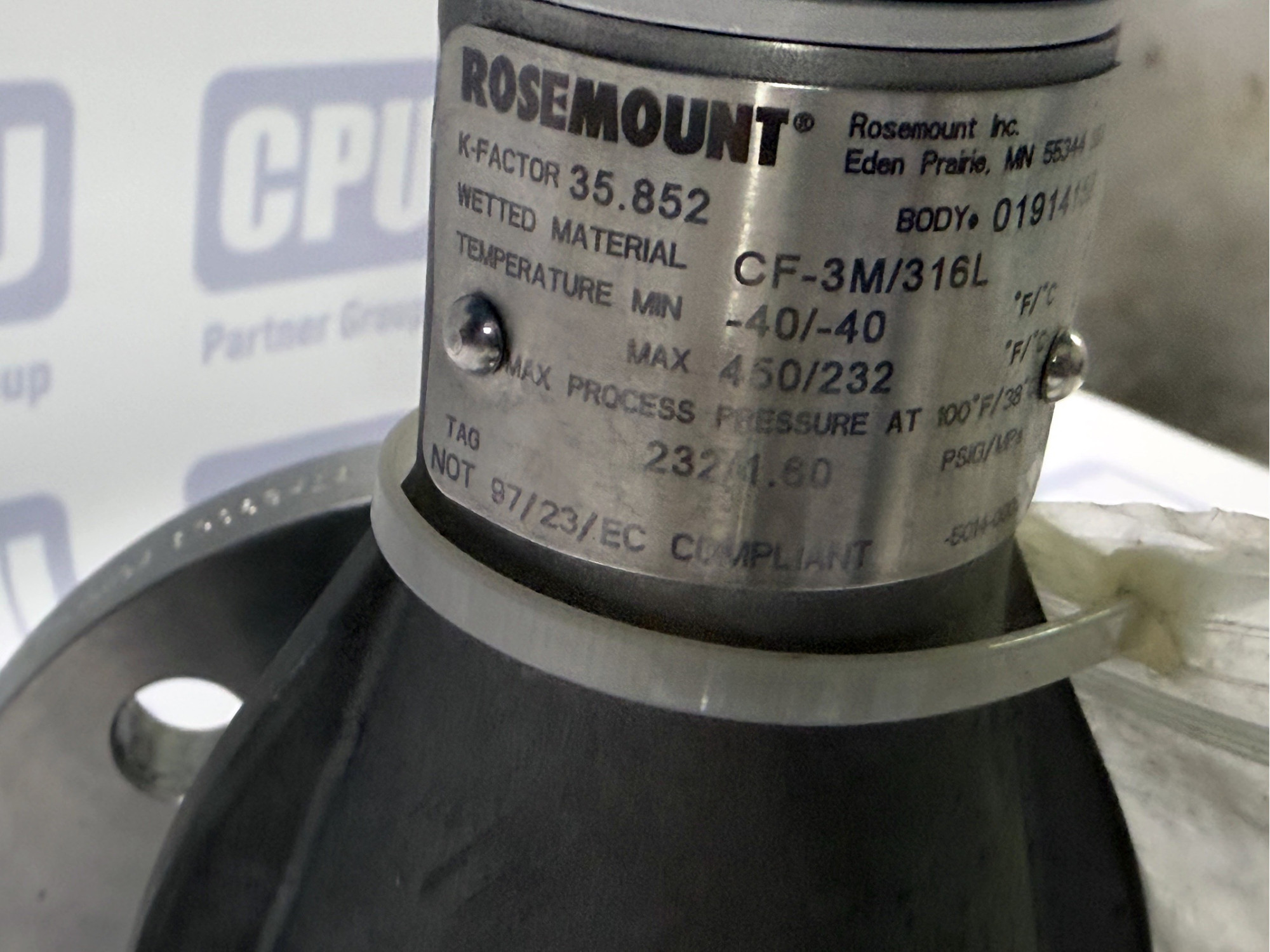

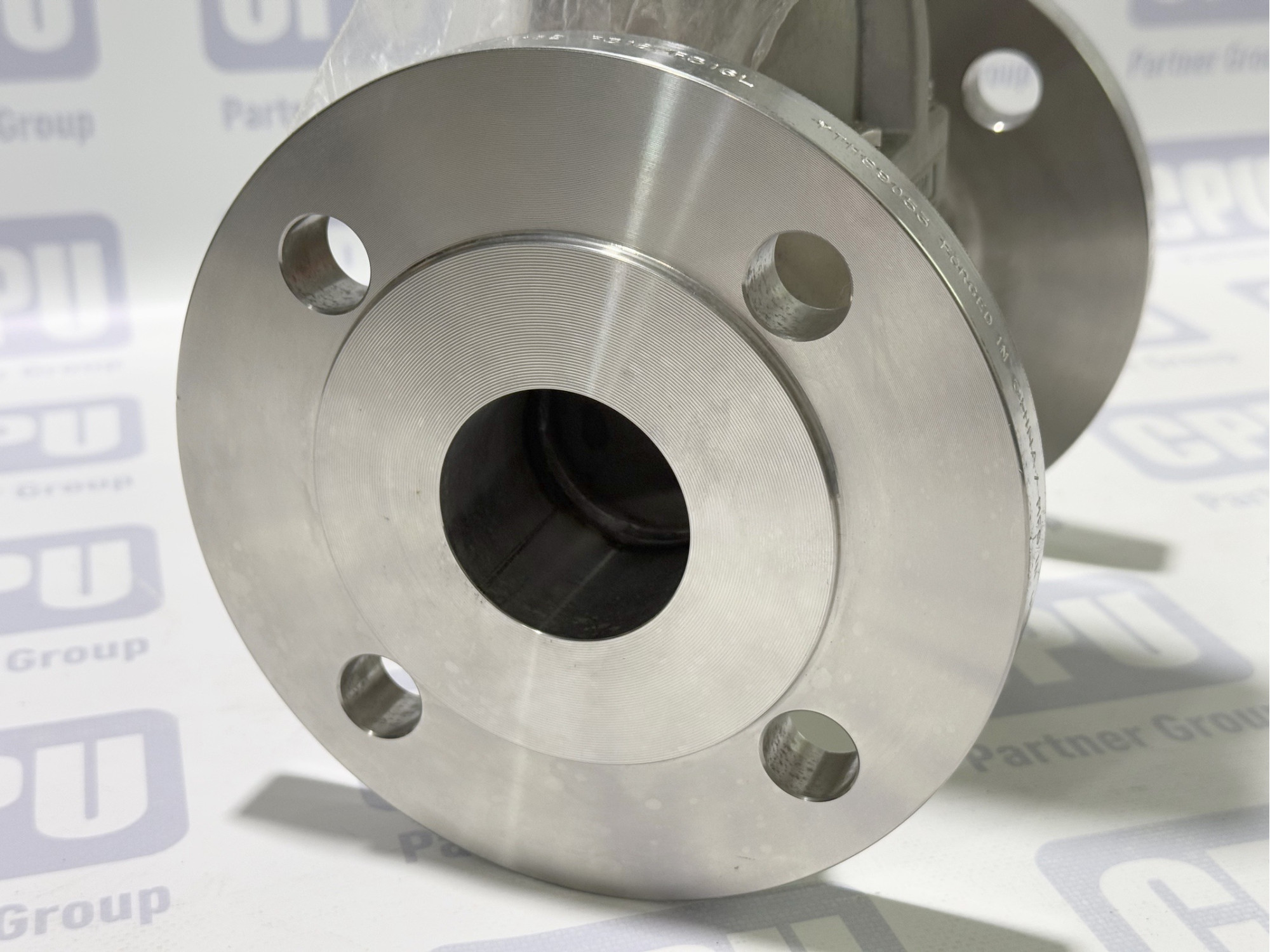

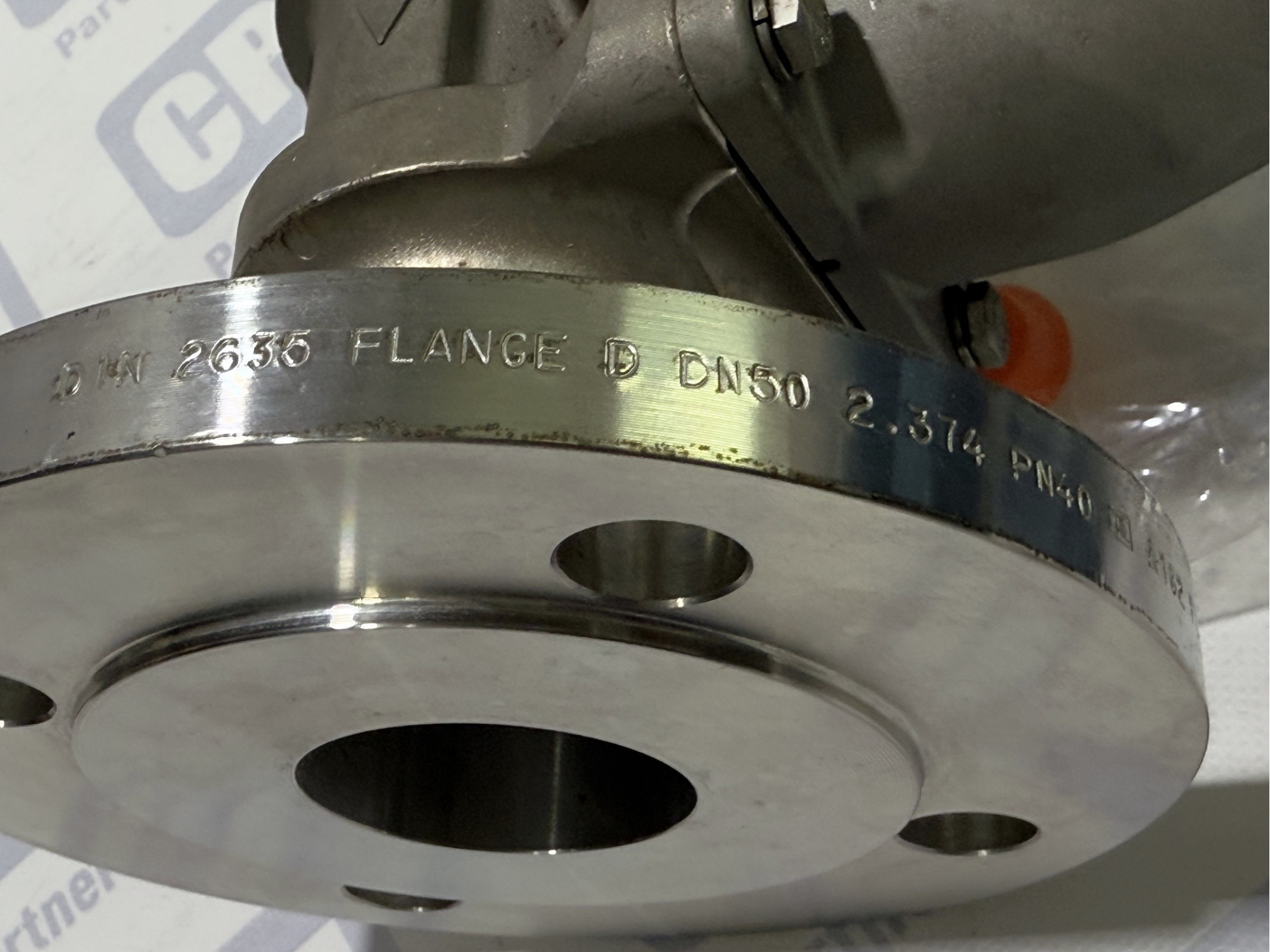

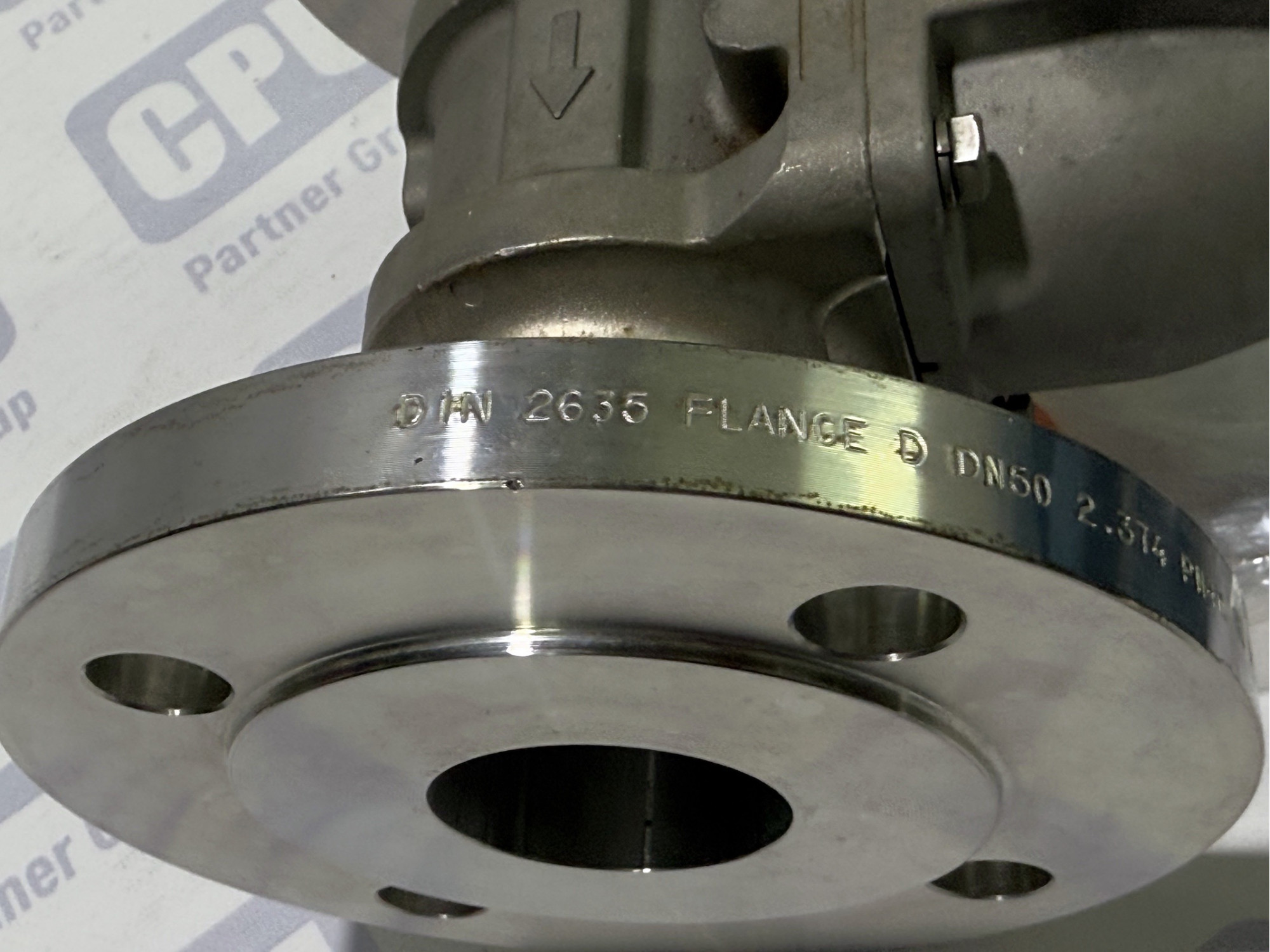

This specific model, 8800DF020SD1N2D1E1M5Q4YR, is constructed from CF-3M 316L stainless steel, a highly corrosion-resistant material suitable for aggressive media.

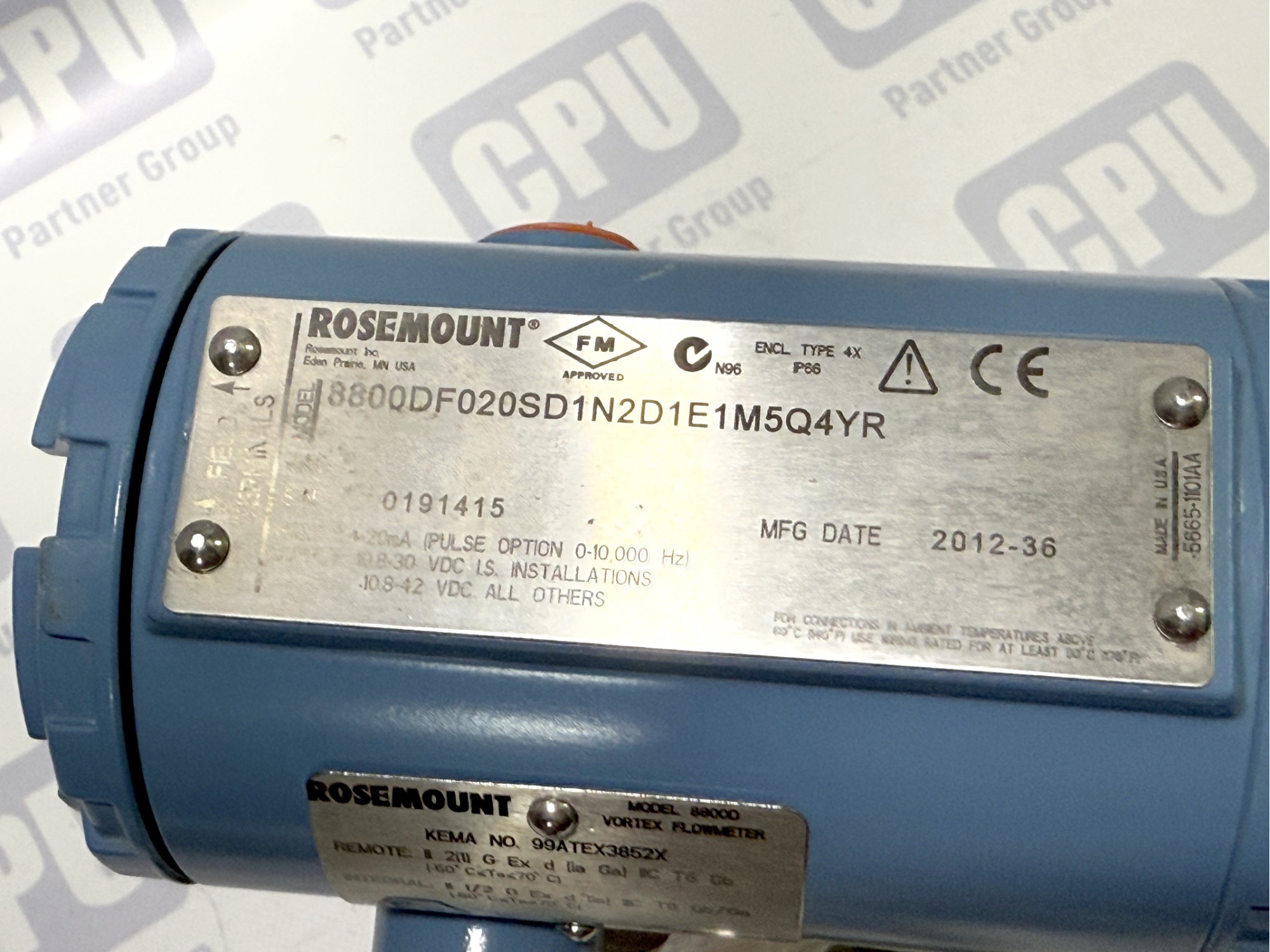

The meter provides a standard industrial output signal of 4-20 mA, representing the measured flow rate. It also includes a Pulse Option output with a frequency range of 0-10.000 Hz, providing discrete pulses for totalization purposes.

It operates on a DC power supply, accepting 10.8-30 VDC for Intrinsically Safe (I.S.) installations and 10.8-42 VDC for all other installations.

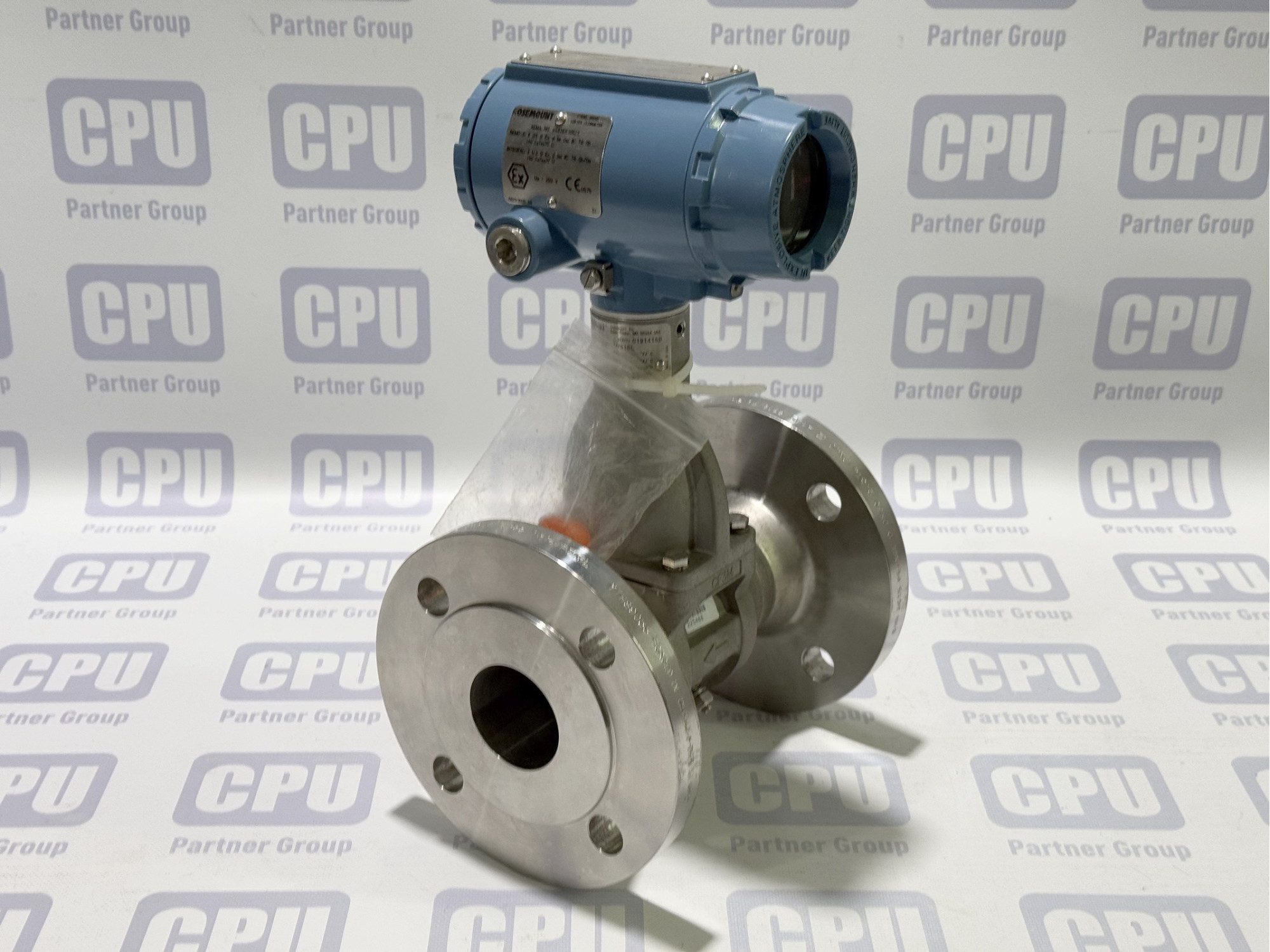

The ROSEMOUNT 8800DF020SD1N2D1E1M5Q4YR is built for rugged industrial environments, featuring an enclosure rated as NEMA Type 4X and IP66. This ensures protection against dust ingress, powerful water jets, and corrosion. It holds FM APPROVED and CE certifications, indicating compliance with relevant safety and quality standards.

The Rosemount 8800 series is widely used in the chemical, petrochemical, oil and gas, power generation, and other industries for accurate and reliable flow measurement essential for process control, monitoring, and optimization.

Key Features:

• Brand: ROSEMOUNT (Emerson Automation Solutions)
• Model / MPN: 8800DF020SD1N2D1E1M5Q4YR
• Type: Vortex Flow Meter
• Material: CF-3M 316L Stainless Steel
• Output Signal: 4-20 mA and Pulse Option (0-10.000 Hz)
• Power Input: 10.8-30 VDC (IS) / 10.8-42 VDC (Others)
• Certifications: FM APPROVED, CE
• Enclosure Rating: NEMA Type 4X, IP66

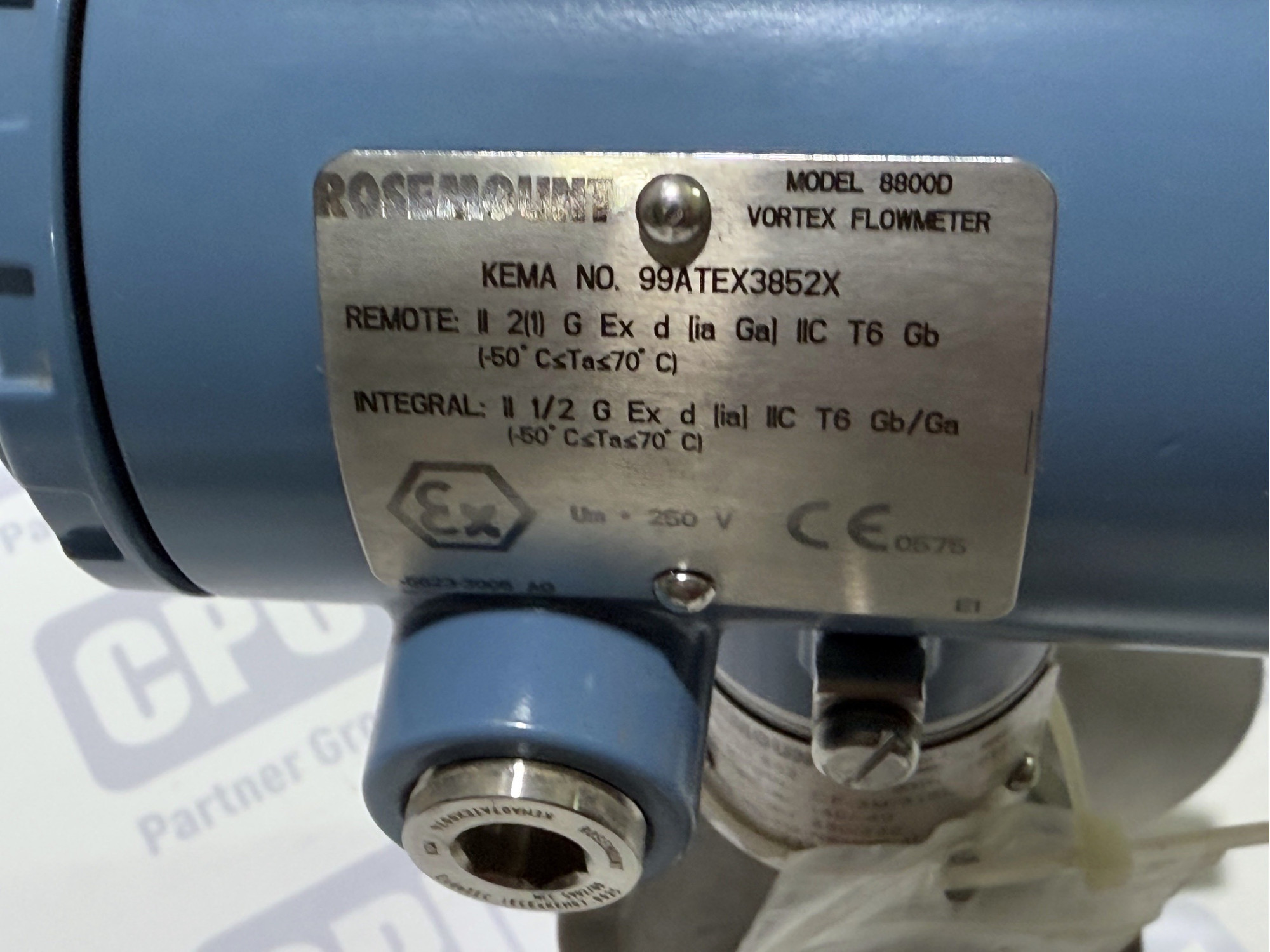

• Key Certification: ATEX (KEMA NO. 99ATEX3852X)
• Hazardous Area Protection:
  • REMOTE: II 2(1) G Ex d [ia Ga] IIC T6 Gb
  • INTEGRAL: II 1/2 G Ex d [ia] IIC T6 Gb/Ga
• Applicable Zones: Zone 0, Zone 1
• Gas Group: IIC
• Temperature Class: T6
• Ambient Temperature Range (ATEX): -50°C to +70°C
• Umax: 250 V
• CE Marking: CE 0576
• Origin: Made in USA
• Applications: Measurement of liquid, gas, and steam flow in industrial processes.
