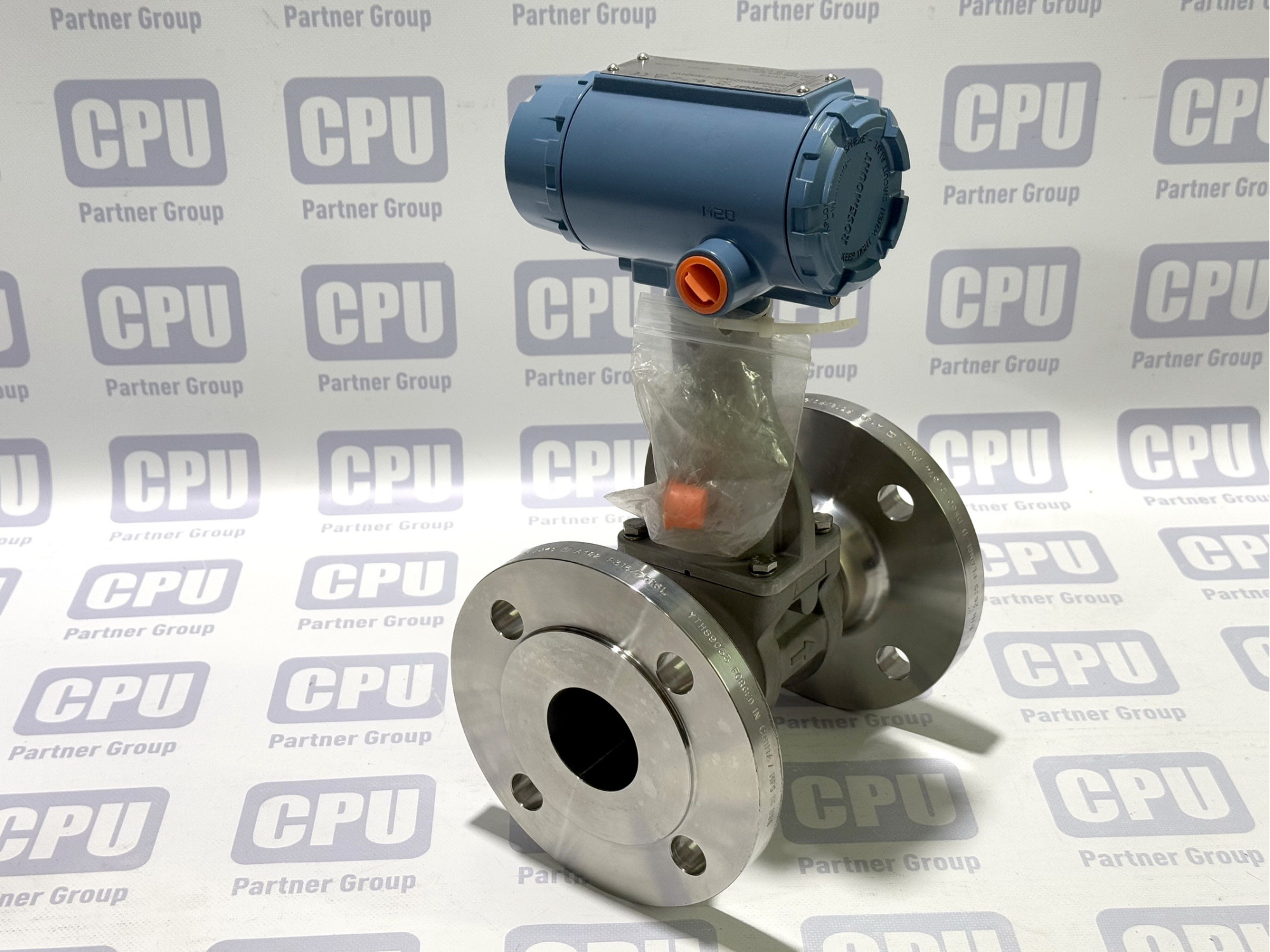

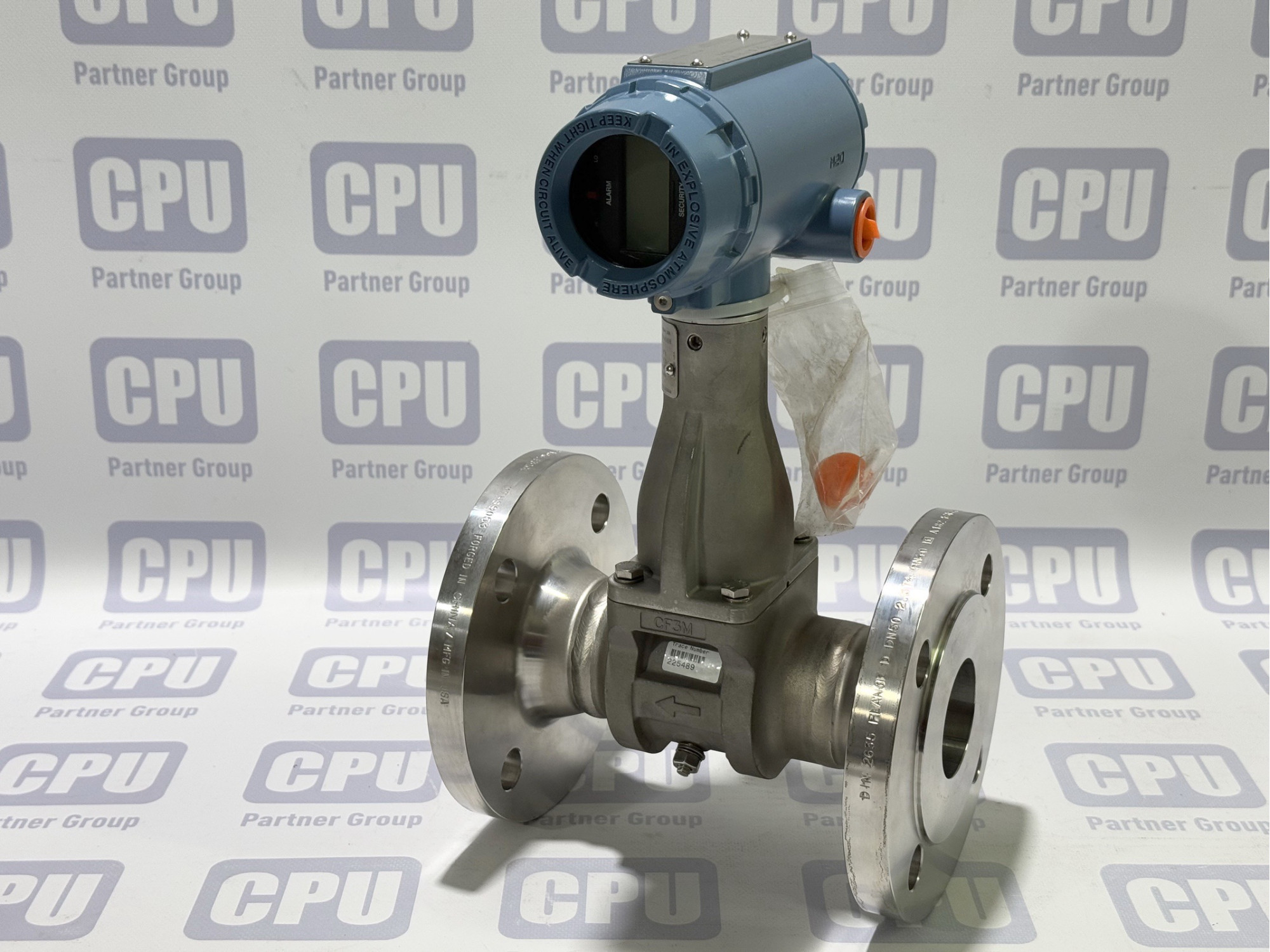

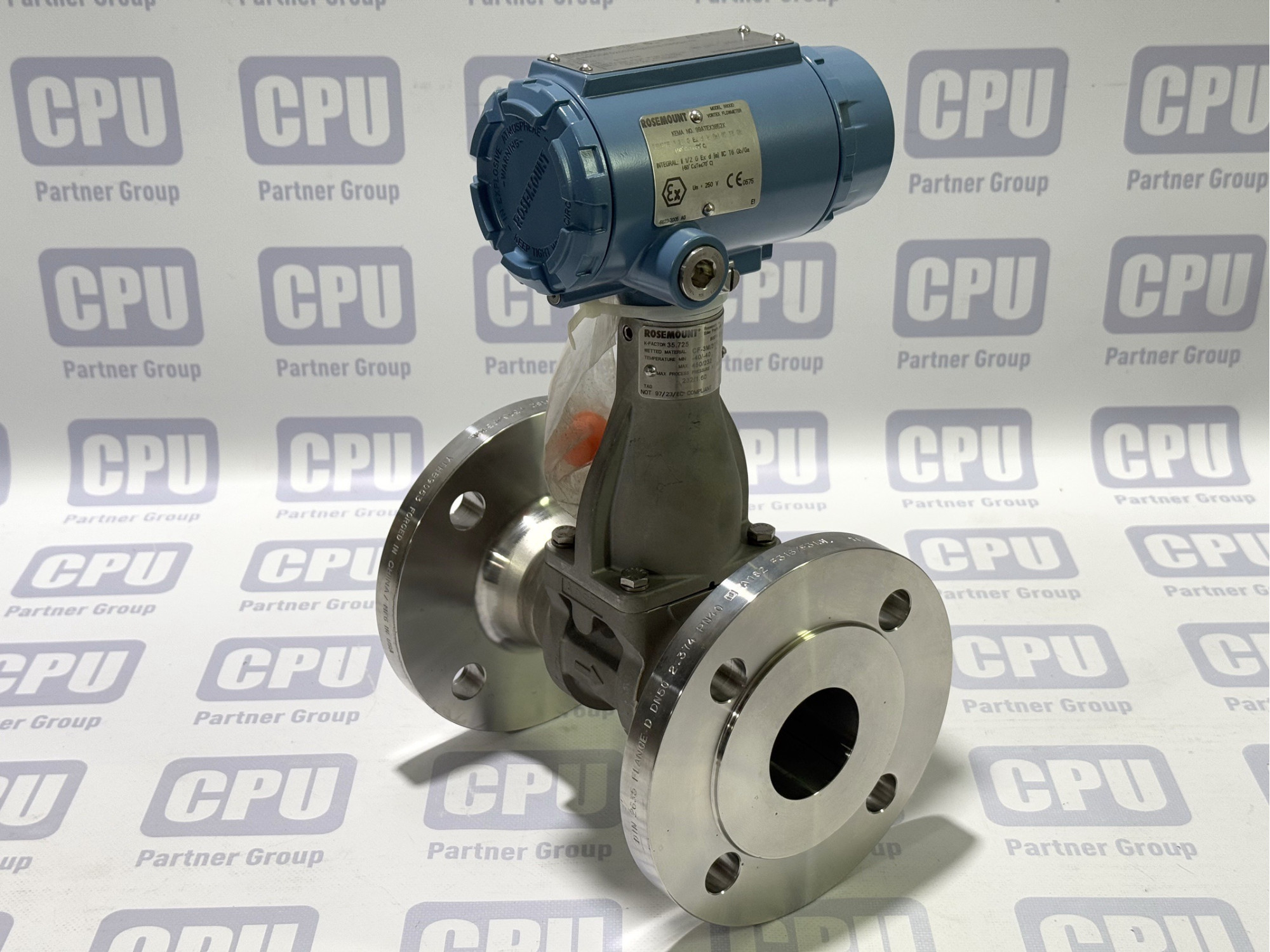

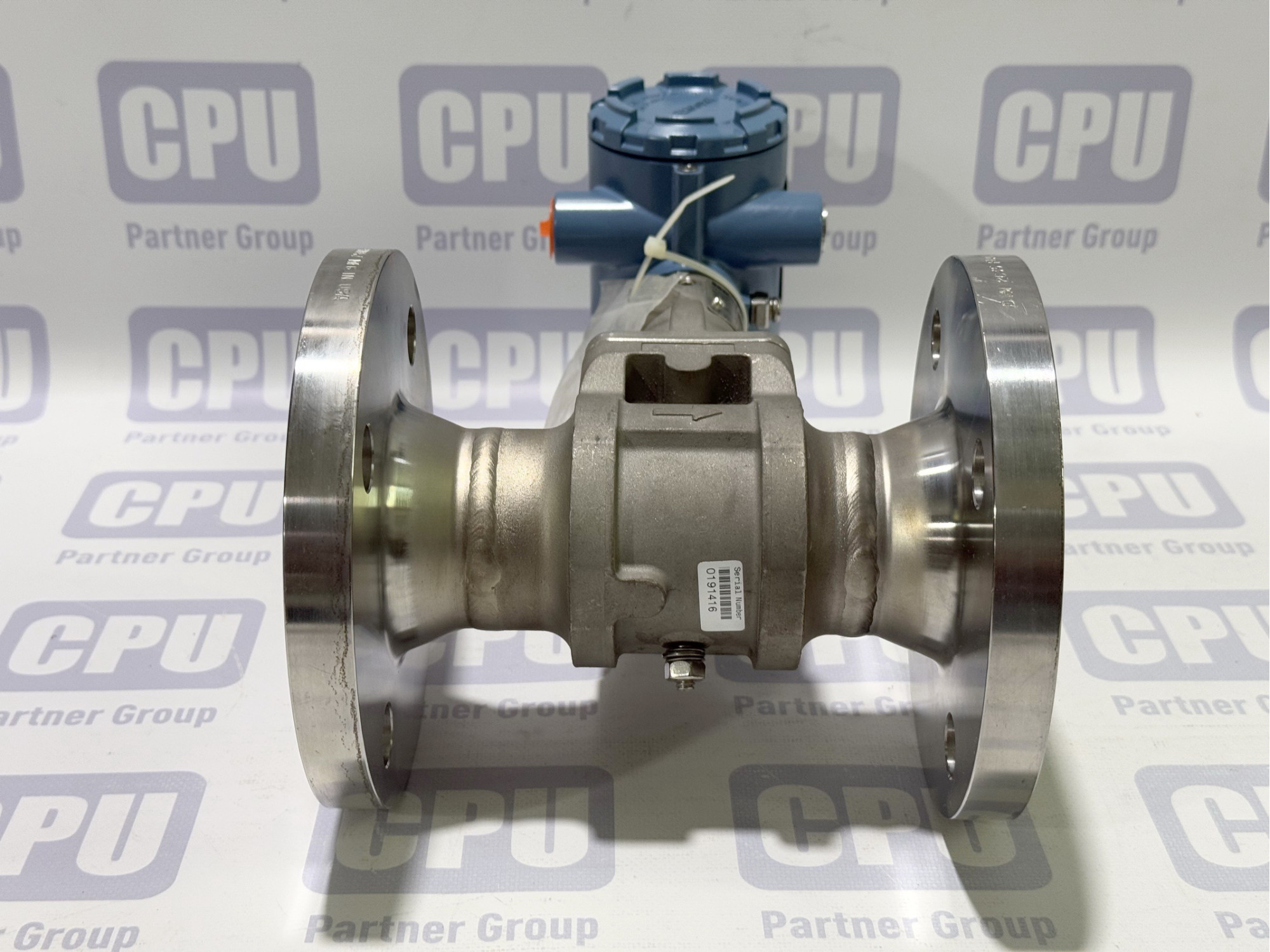

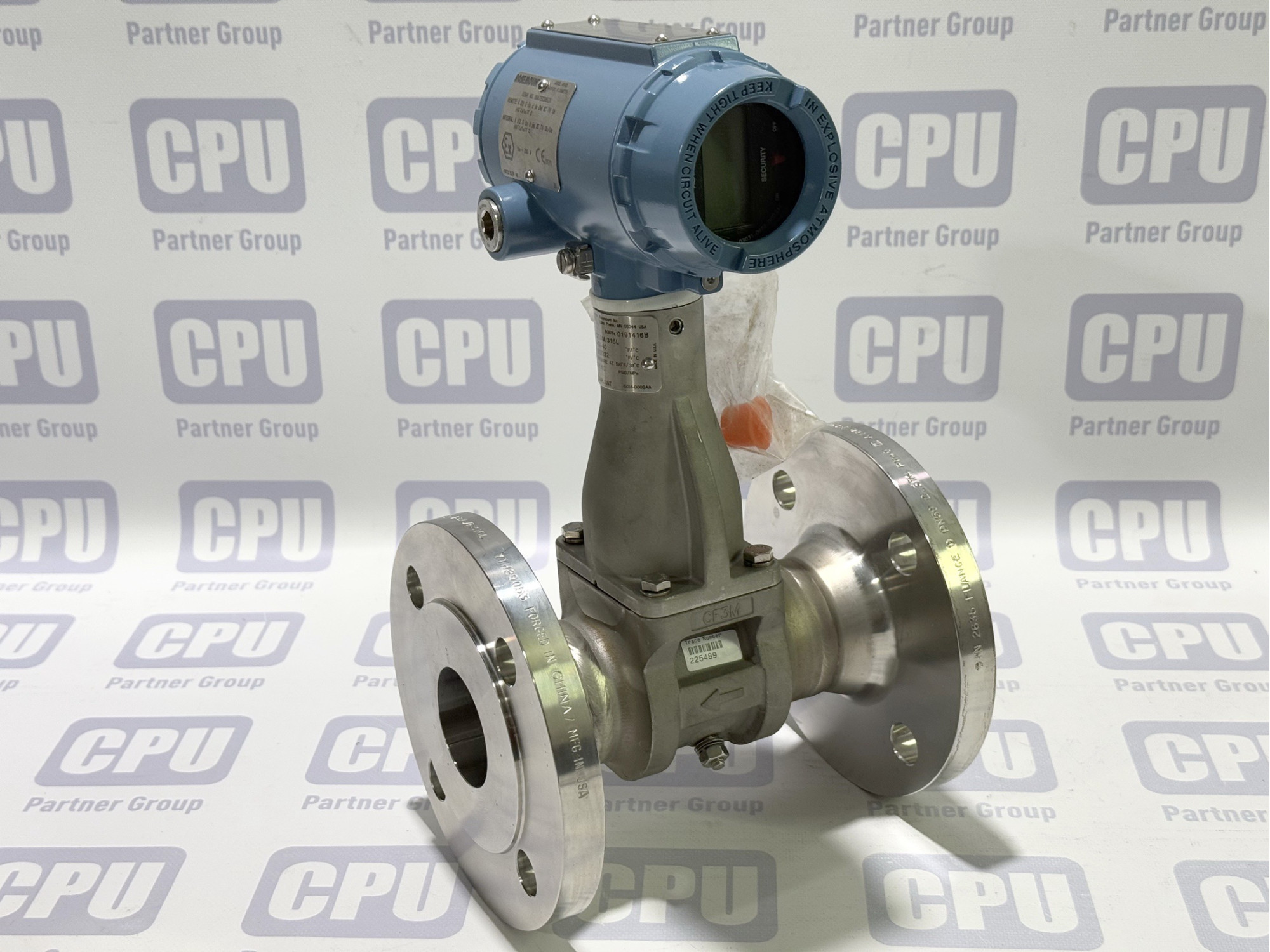

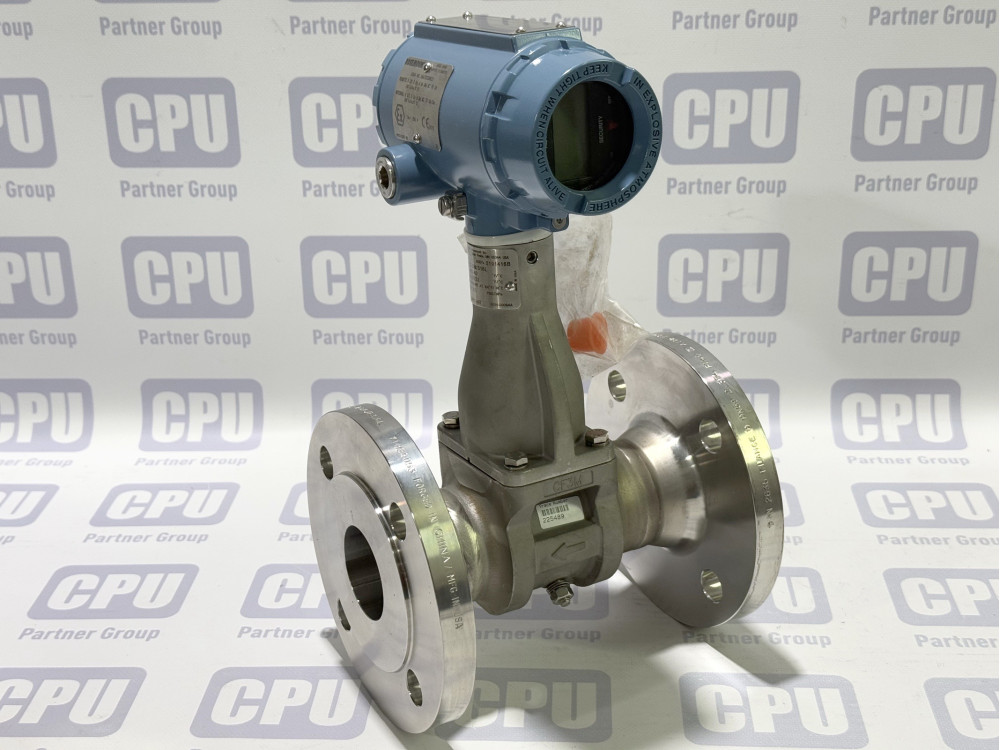

ROSEMOUNT 8800DF020SD1N2D1E1M5Q4YR Vortex Flow Meter # 2 (CF-3M 316L, DN50 PN40 Flange, 160 bar, -40°C to 232°C)

ROSEMOUNT 8800DF020SD1N2D1E1M5Q4YR Vortex Flow Meter # 2 (CF-3M 316L, DN50 PN40 Flange, 160 bar, -40°C to 232°C)

The ROSEMOUNT 8800DF020SD1N2D1E1M5Q4YR is a specific configuration of the high-performance 8800 Series Vortex Flow Meter from Rosemount, an Emerson Automation Solutions brand. Manufactured in the USA, this industrial flow meter is designed for accurate and reliable measurement of flow rate for various fluids, including liquids, gases, and steam, in demanding process applications.

Vortex flow meters measure flow by detecting the frequency of vortices shed from a bluff body in the flow stream, which is directly proportional to the flow velocity.

This particular meter, identified by the model number 8800DF020SD1N2D1E1M5Q4YR, features a body constructed from CF-3M / 316L Stainless Steel, a highly corrosion-resistant material.

The meter is designed for process connection via flanges.

The Rosemount 8800 series flow meters are widely used in industries such as chemical, petrochemical, oil & gas, and power generation for accurate and reliable flow measurement in challenging process conditions.

Key Features:

• Brand: ROSEMOUNT (Emerson Automation Solutions)

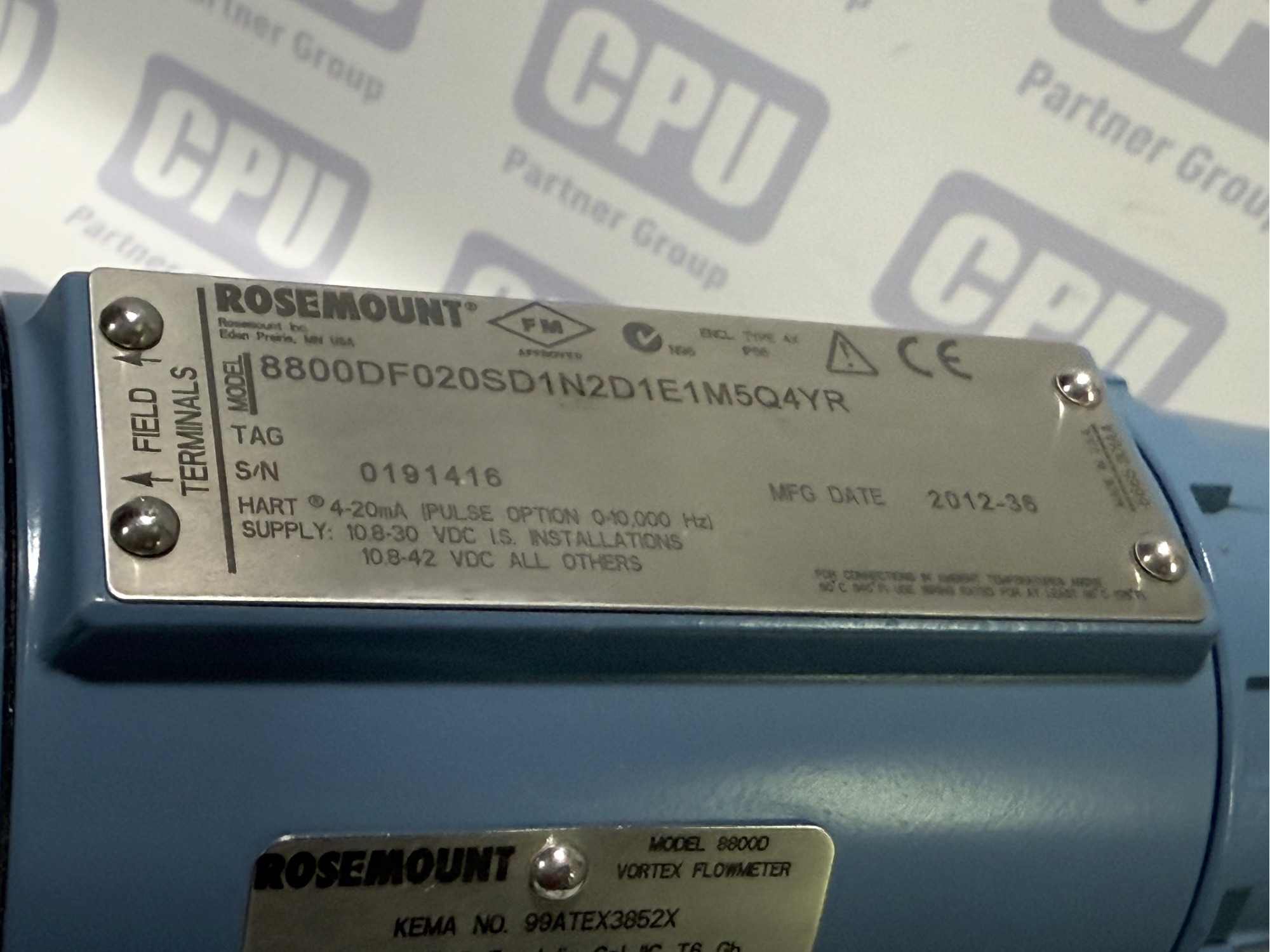

• Model / MPN: 8800DF020SD1N2D1E1M5Q4YR
• Type: Vortex Flow Meter
• K-FACTOR: 35.852
• Wetted Material: CF-3M / 316L Stainless Steel

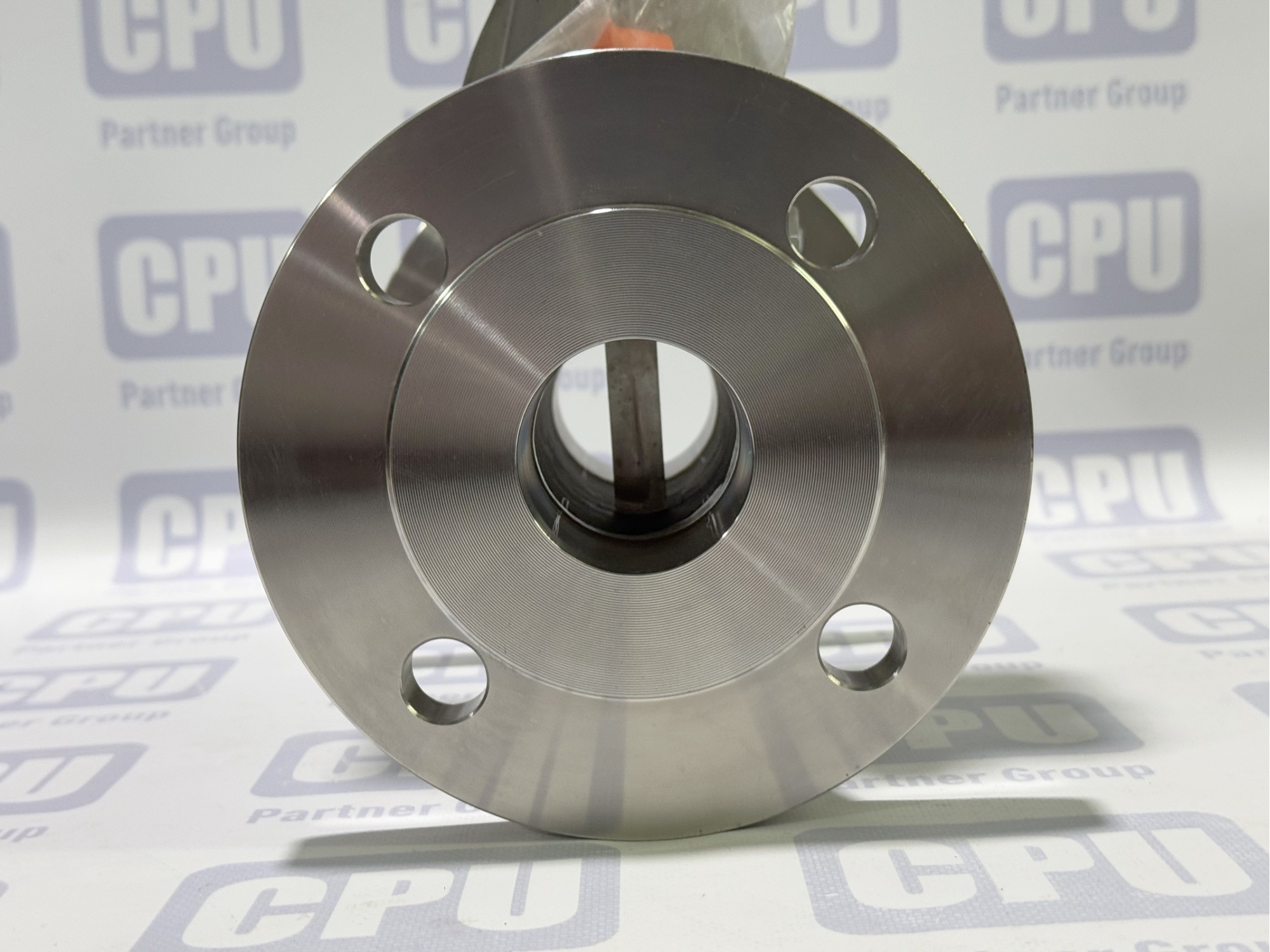

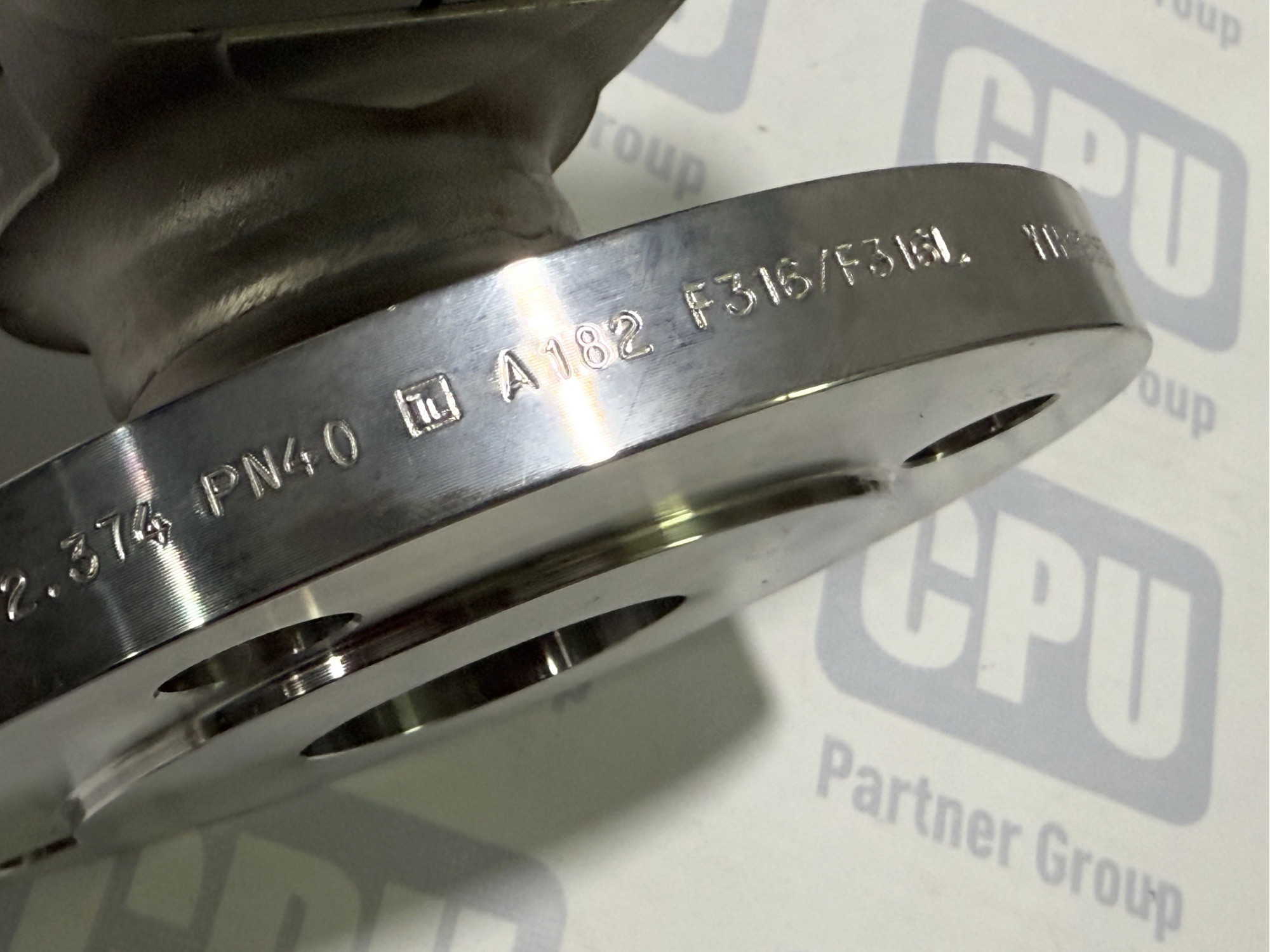

• Process Connection (Likely): DN50 PN40 Flange
• Temperature Limits: -40°F/-40°C to 450°F/232°C
• Max Process Pressure: 2321 PSI / 160 BAR at 100°F/38°C
• PED Compliance: NOT 97/23/EC COMPLIANT
• Output Signal: 4-20 mA + Pulse Option (0-10.000 Hz)
• Power Input: 10.8-30 VDC (IS) / 10.8-42 VDC (Others)
• Certifications: FM APPROVED, CE
• Enclosure Rating: NEMA Type 4X, IP66
• Origin: Made in USA

Manual for ROSEMOUNT 8800

https://cpupartnergroup.com/image/pdf/ROSEMOUNT%208800.pdf
