Rosemount Model 751AM1 I8B Field Signal Indicator / Transmitter

Rosemount Model 751AM1 I8B Field Signal Indicator / Transmitter (4-20mA Input, ATEX EEx ia IIC T6, IP65)

The Rosemount Model 751AM1 I8B is a robust Field Signal Indicator and Transmitter designed for reliable operation in demanding industrial environments. Manufactured by Rosemount (an Emerson Automation Solutions brand), this unit provides a convenient method for locally displaying important process variables from any two-wire transmitter with a standard 4-20 mA output.

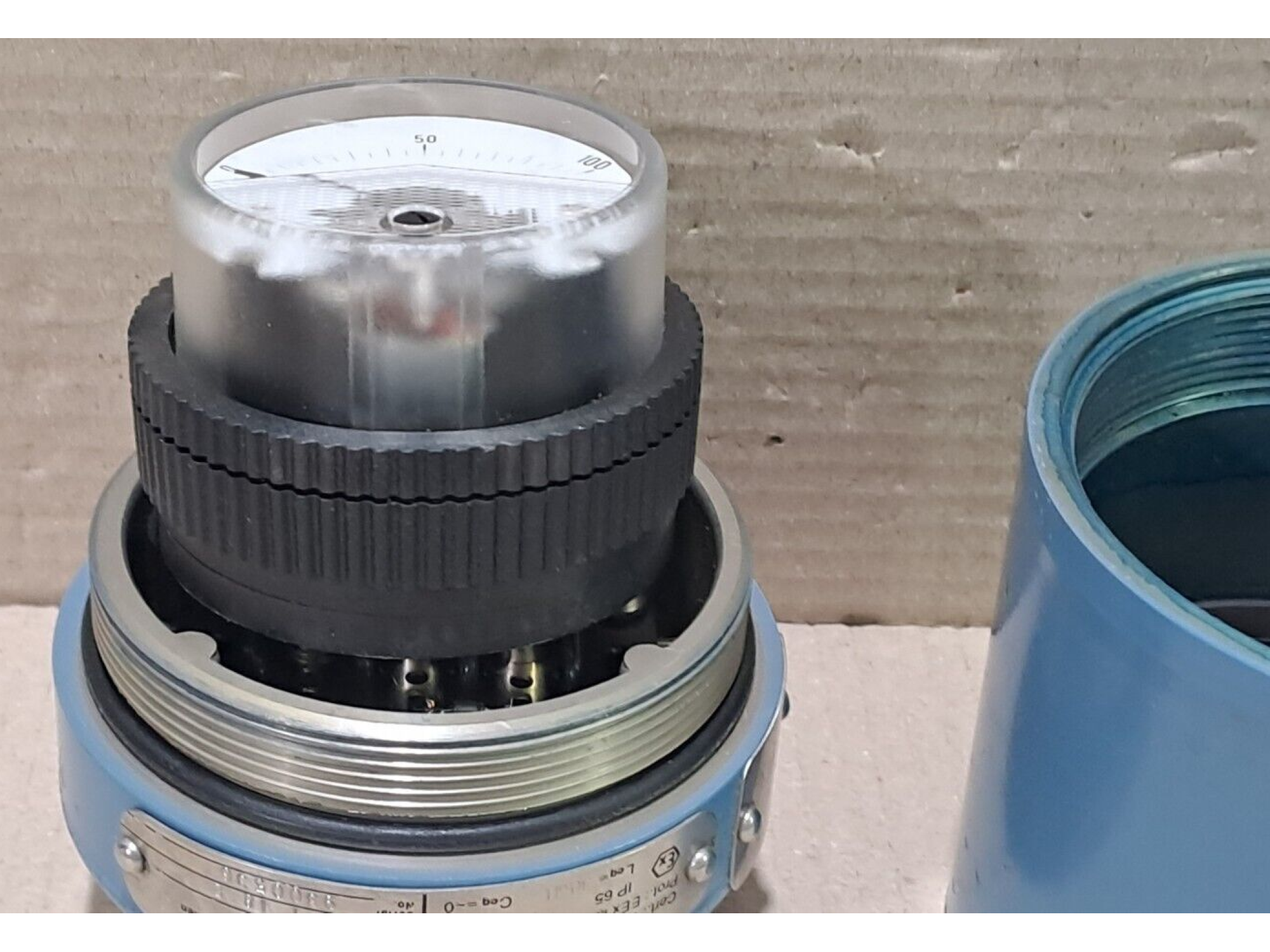

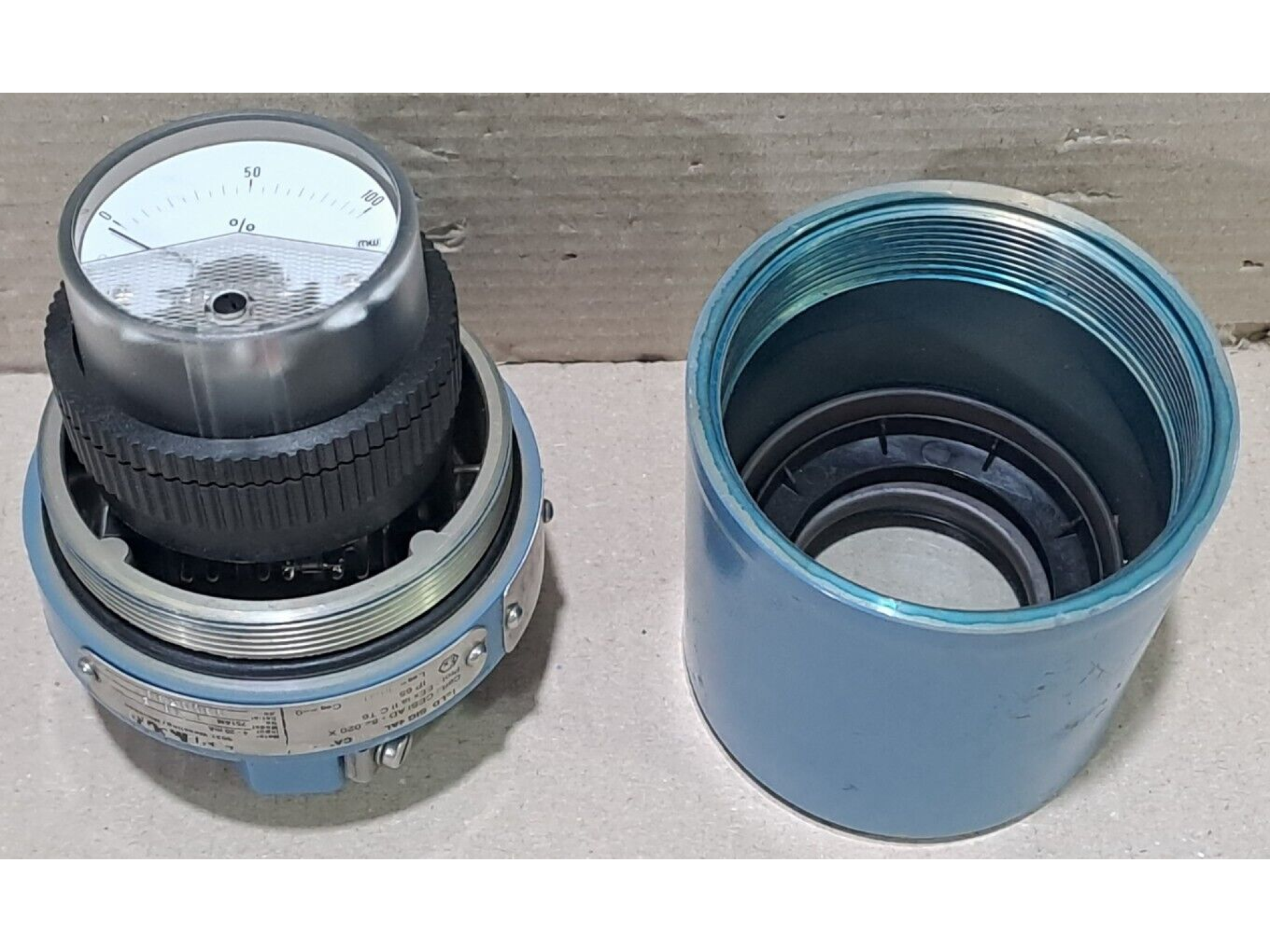

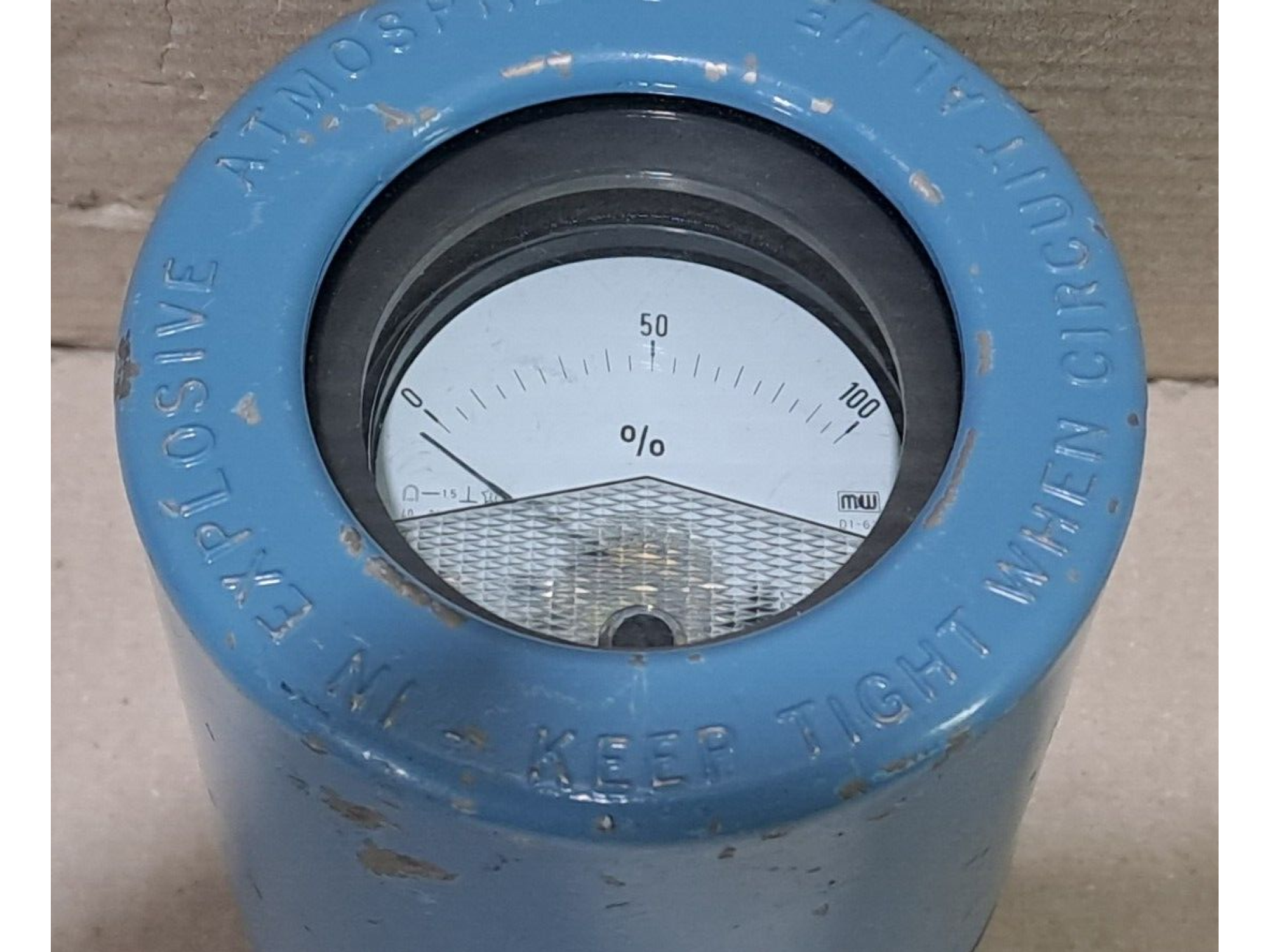

This device receives a 4-20 mA DC input signal from a connected field instrument, such as a flowmeter (like the Rosemount 8030), pressure transmitter, level transmitter, or temperature transmitter. It processes this signal to provide a local indication, typically on a scaled analog or digital display (depending on the exact meter option, but "Indicator" implies a display). It also functions as a transmitter, re-transmitting or conditioning the signal for integration into control loops or supervisory systems.

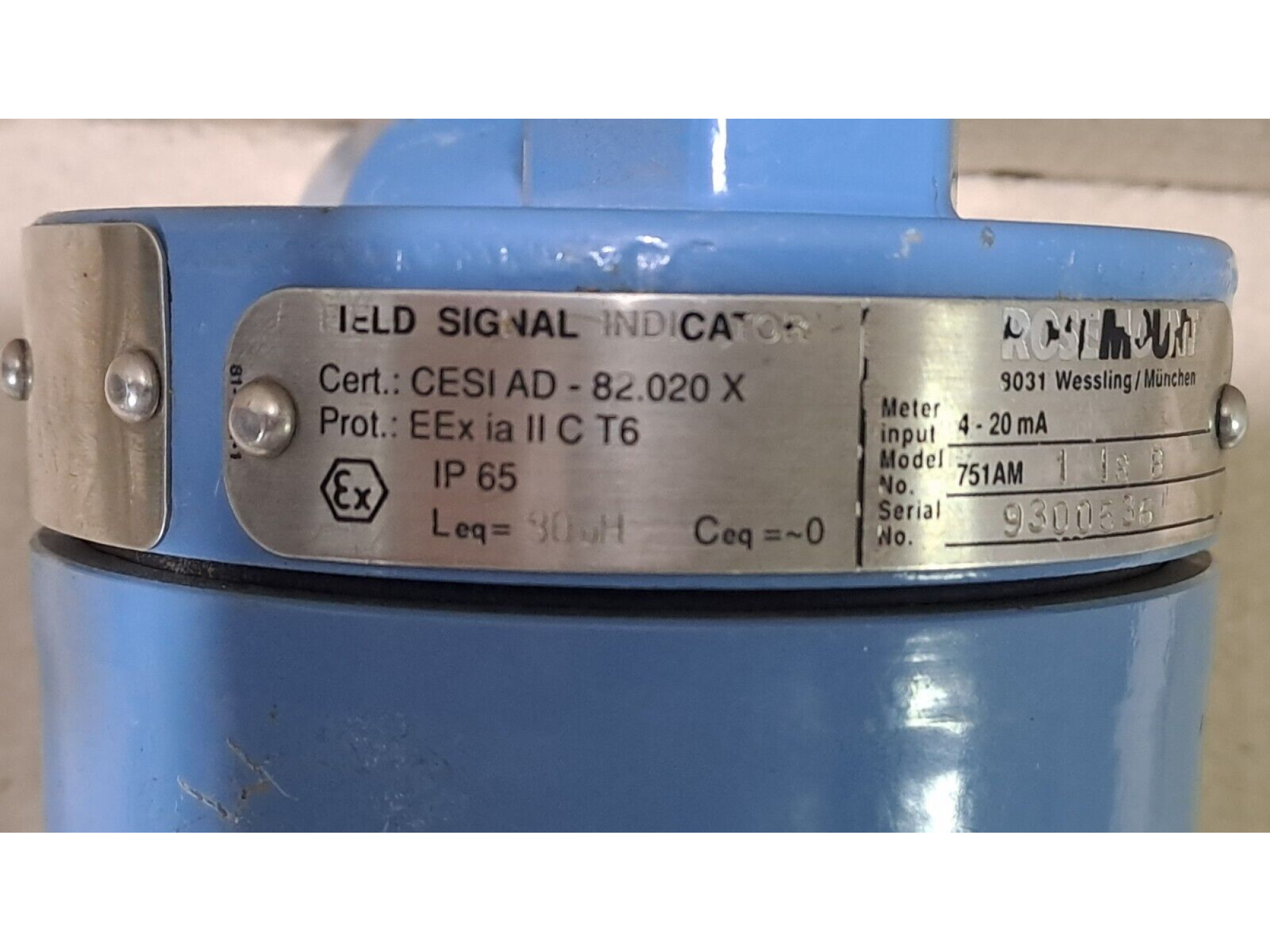

A key feature is its suitability for hazardous locations, backed by ATEX certification (Cert.: CESI AD - 82.020 X) with the protection marking EEx ia II C T6. This certifies it as Intrinsically Safe for use in areas with explosive gas atmospheres (Zone 0 or Zone 1), specifically for gas group IIC and temperature class T6.

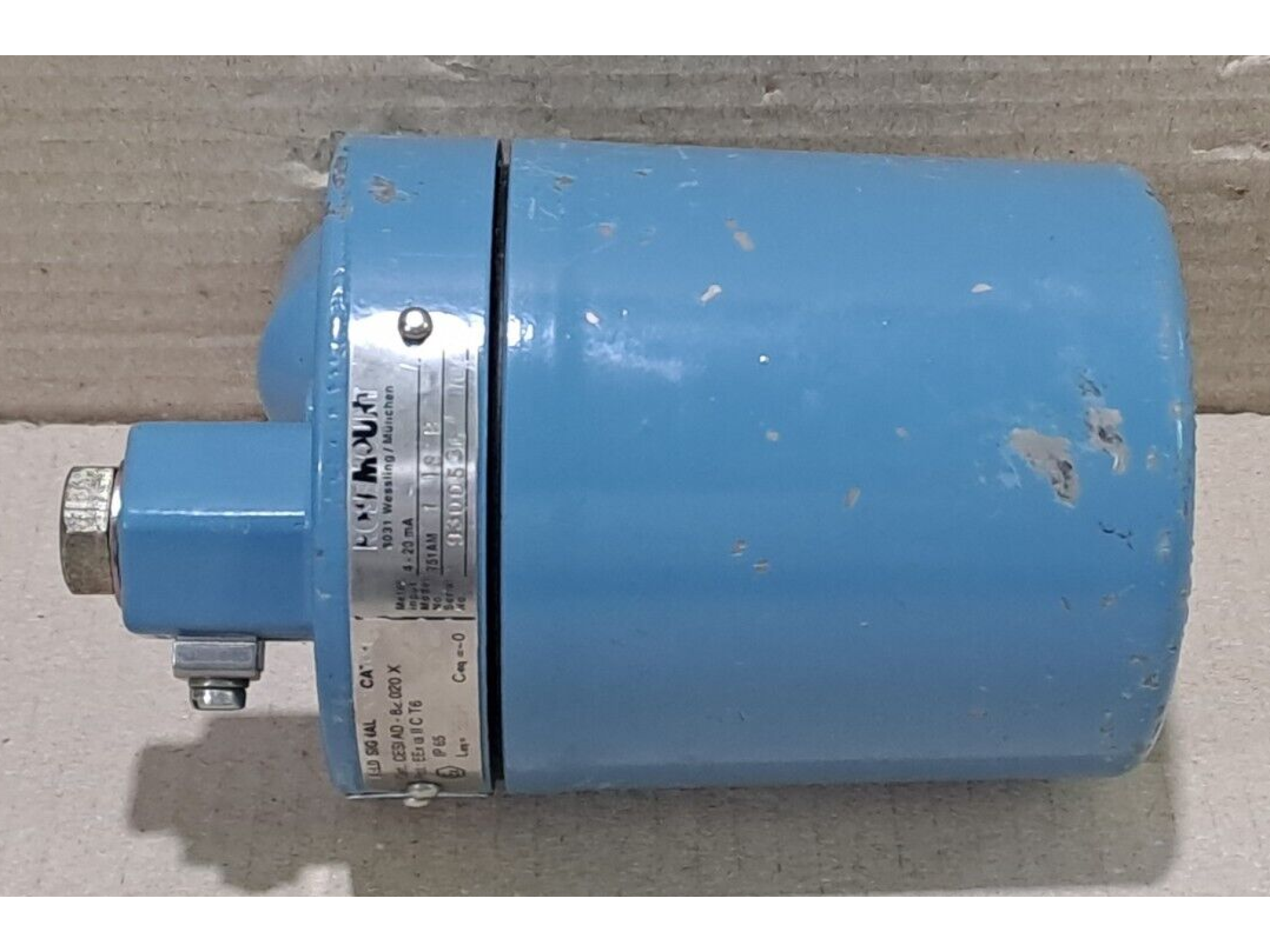

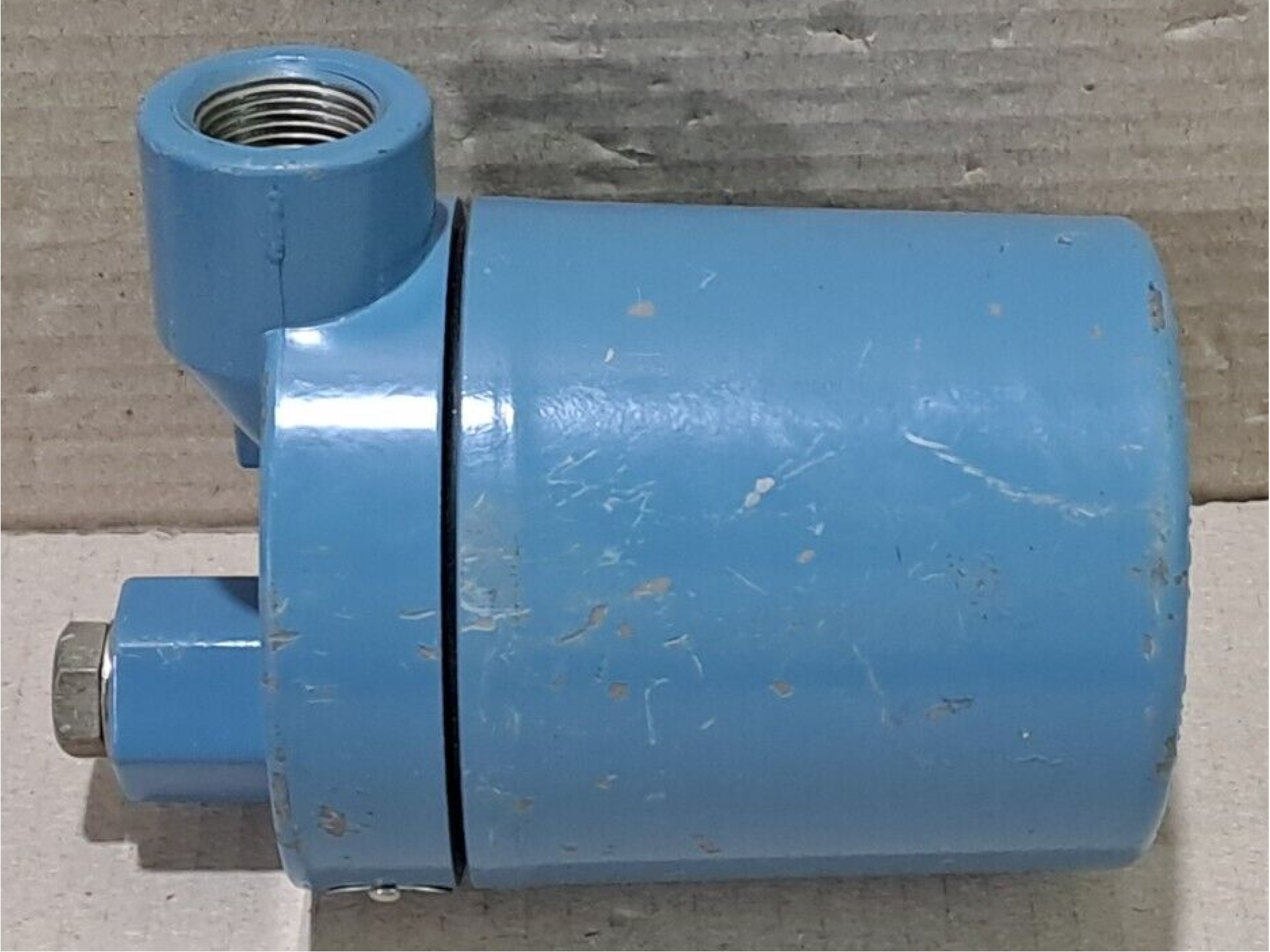

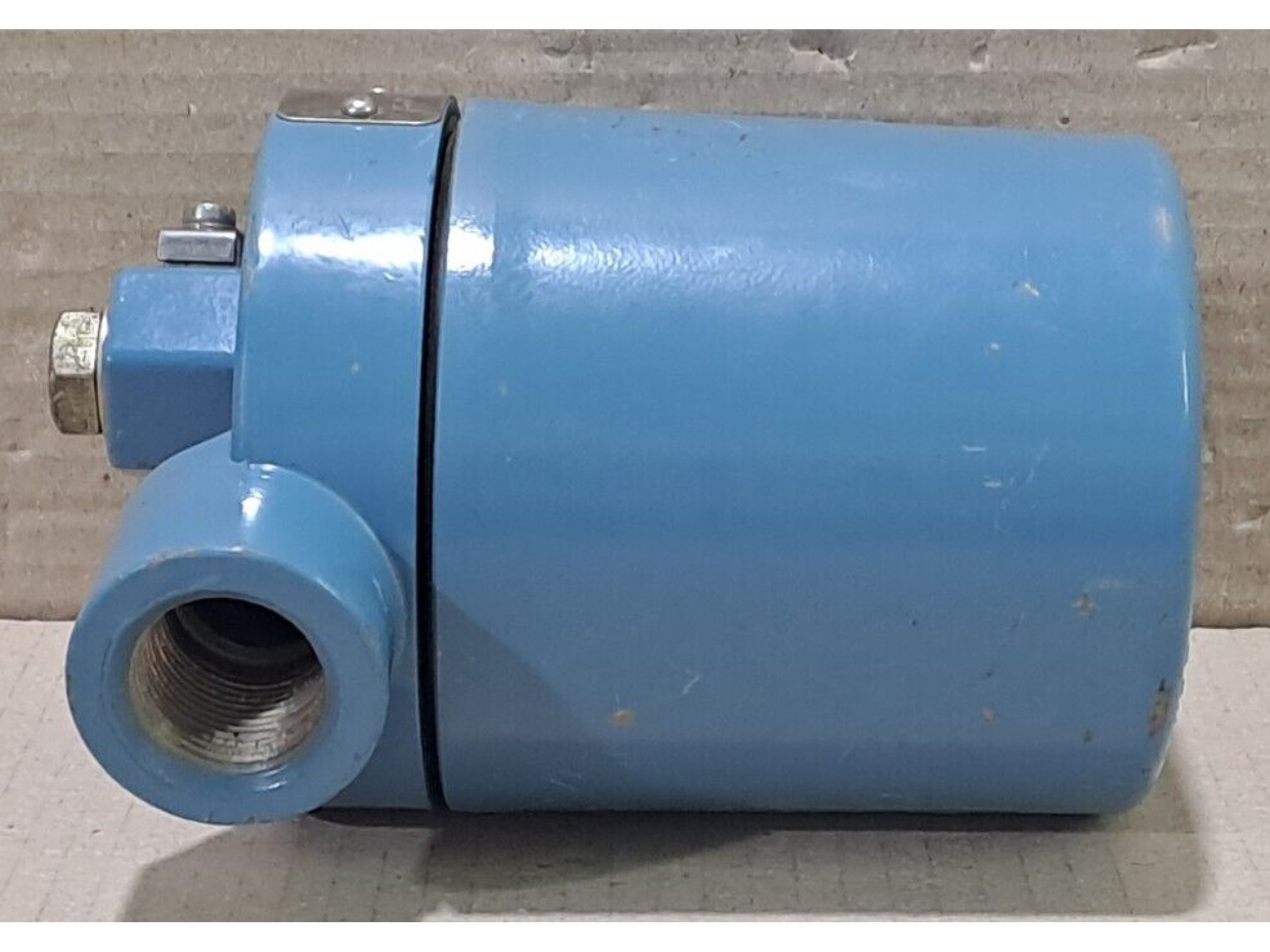

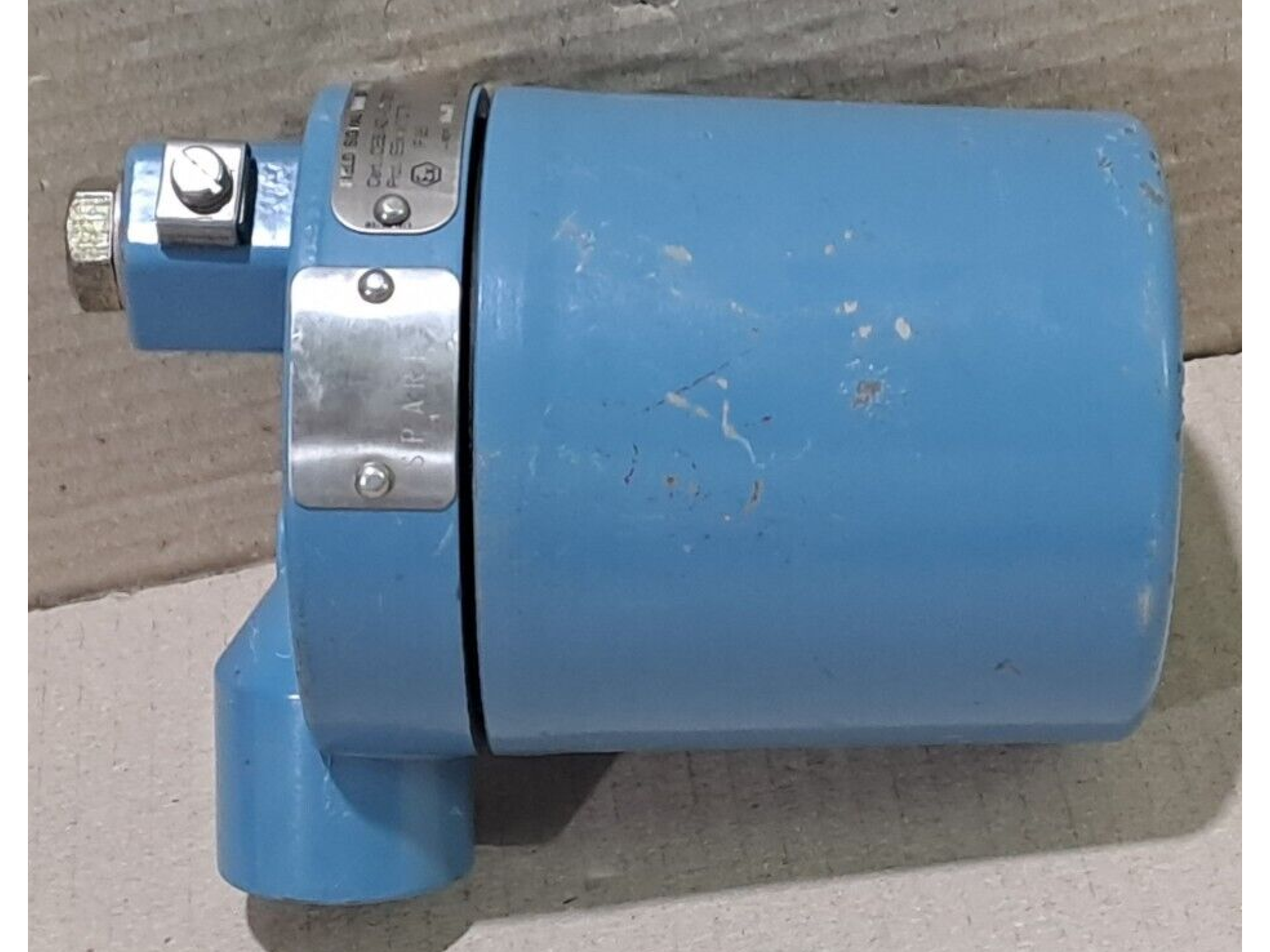

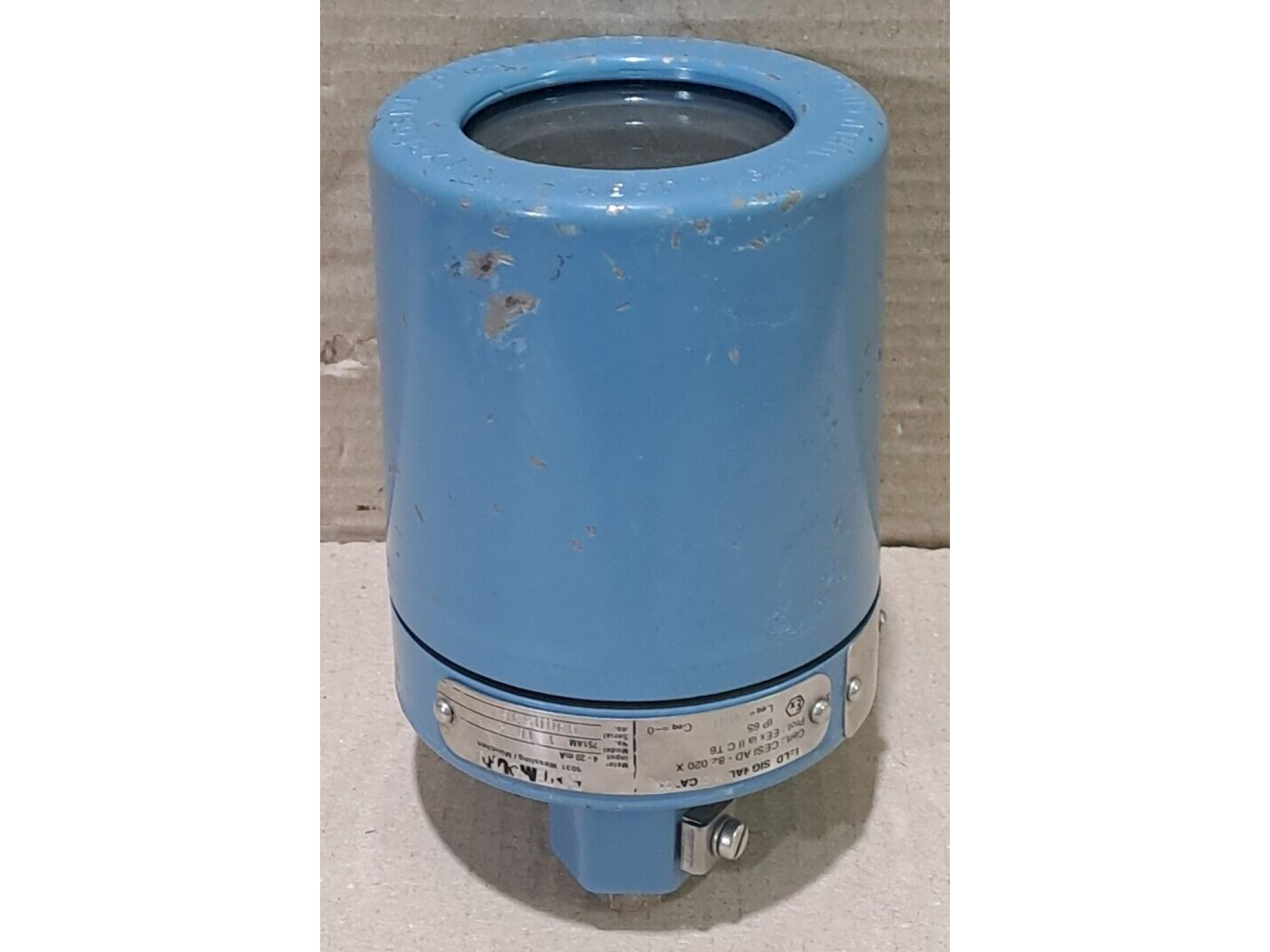

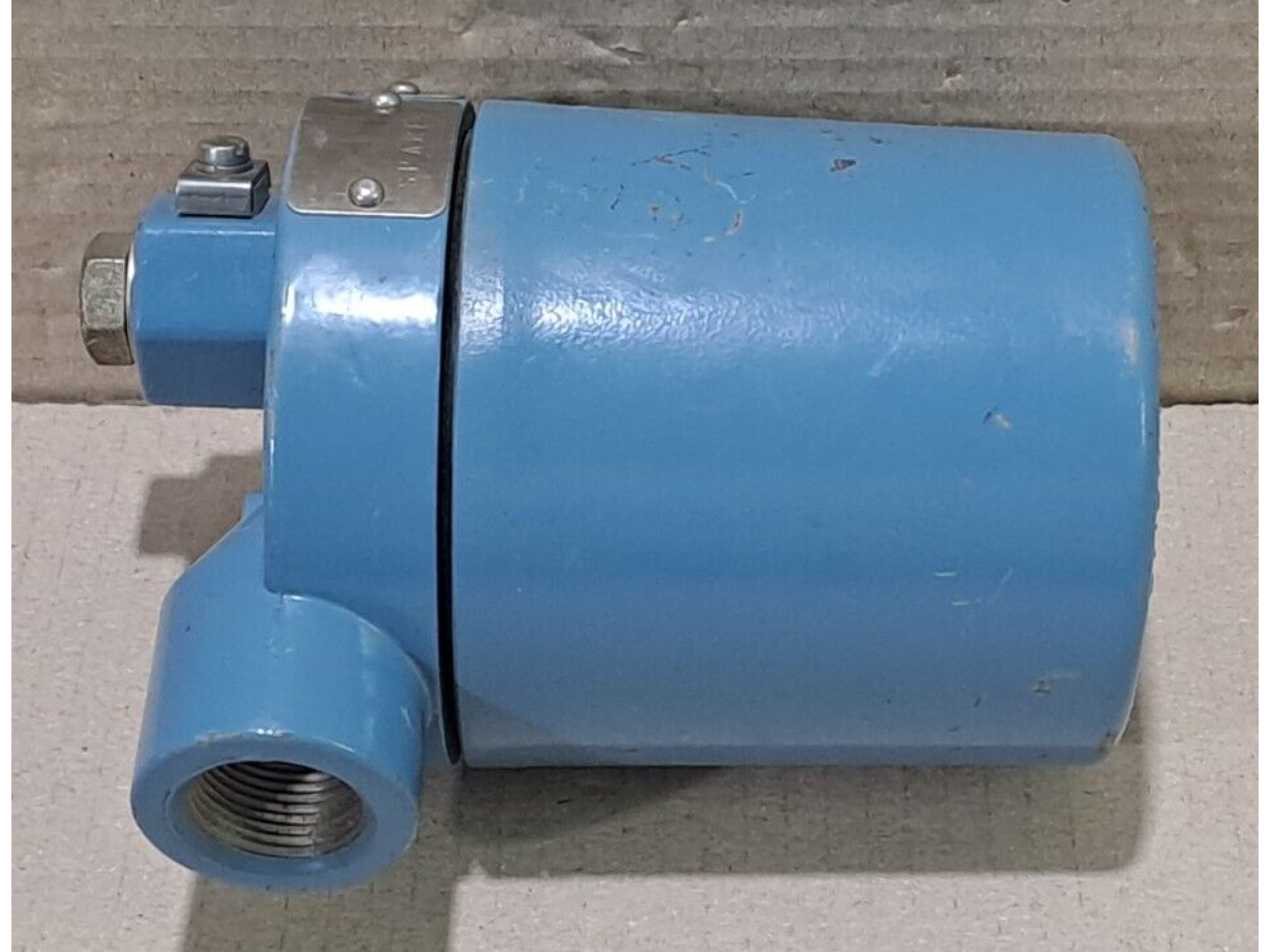

The Rosemount 751AM1 I8B features a durable enclosure with an IP 65 protection rating, signifying resistance to dust and water jets, suitable for harsh outdoor or industrial environments.

 This indicator/transmitter is often used in conjunction with the Rosemount 8030 Vortex Flowmeter.

Key Features:

• Brand: Rosemount (Emerson Automation Solutions)

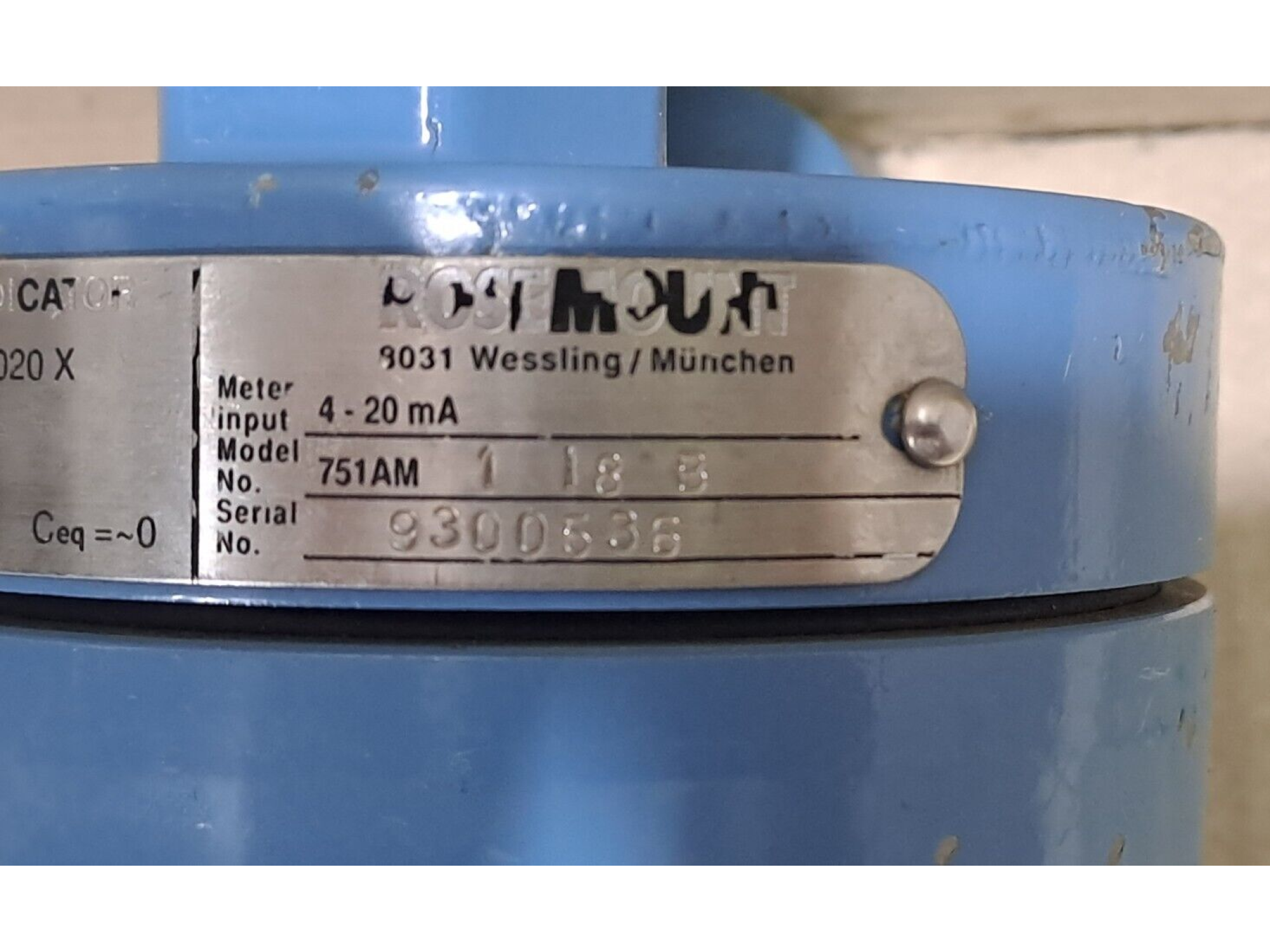

• Model No. / MPN: 751AM1 I8B
• Type: Field Signal Indicator / Transmitter
• Input Signal: 4-20 mA DC (2-wire)
• Function: Local indication and signal transmission for process variables
• Certifications: ATEX (CESI AD - 82.020 X)
• Hazardous Area Protection: EEx ia II C T6 (Intrinsically Safe)
• Protection Rating: IP 65
• Intrinsic Safety Parameters: Leq= 90uH, Ceq= ~0
• Typical Use: With 4-20mA output devices like flowmeters (e.g., Rosemount 8030), pressure, level, or temperature transmitters.
