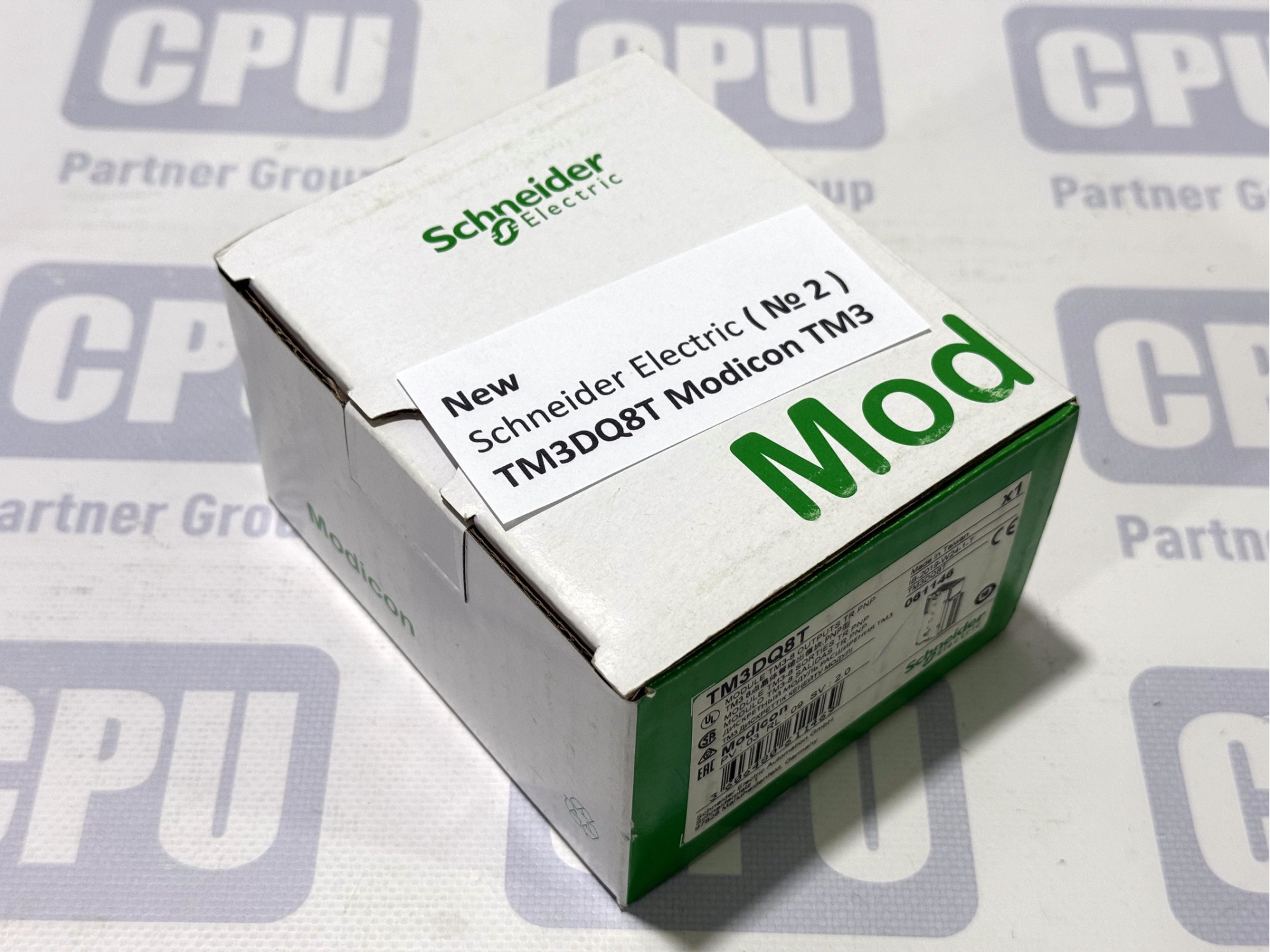

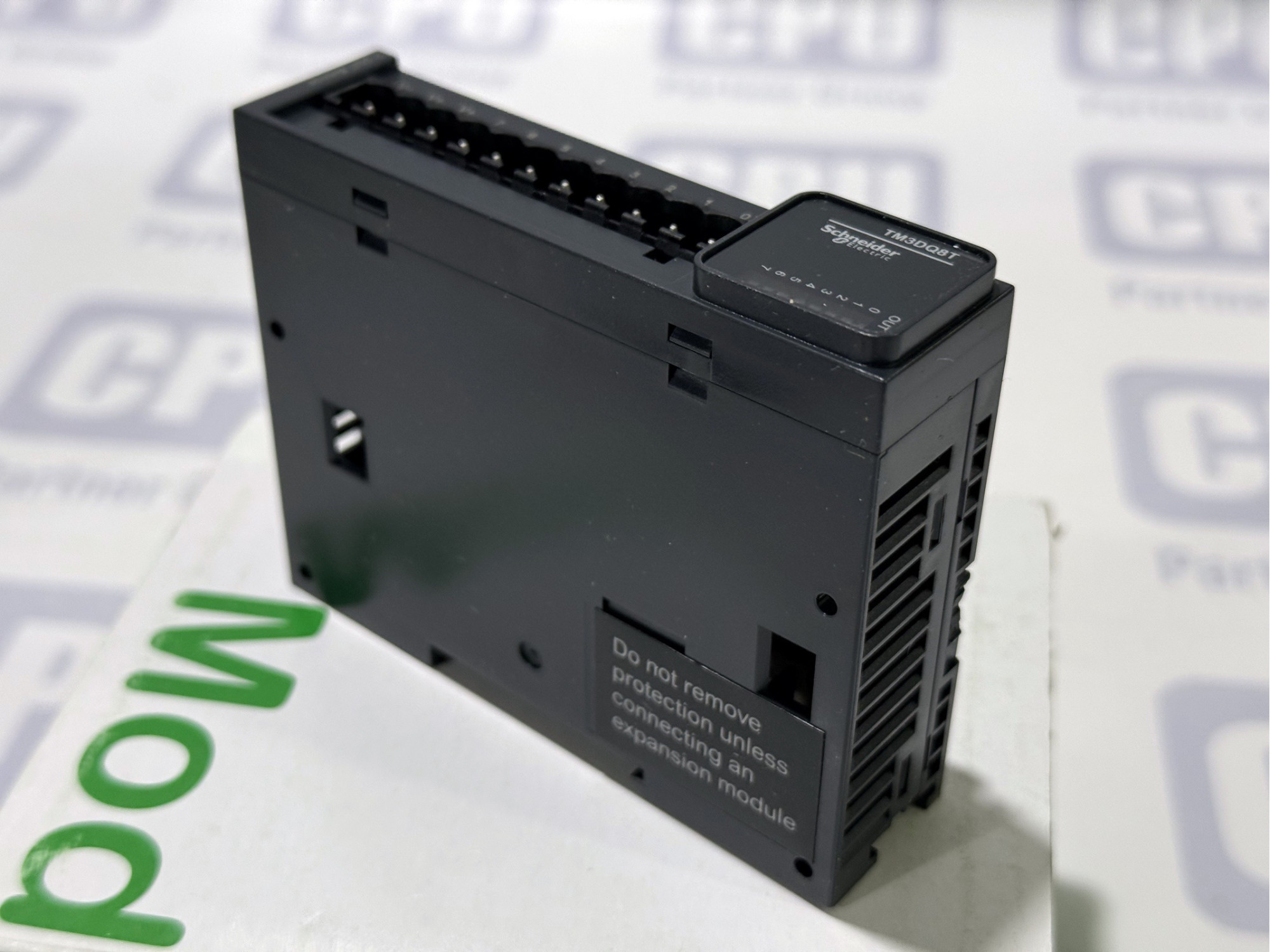

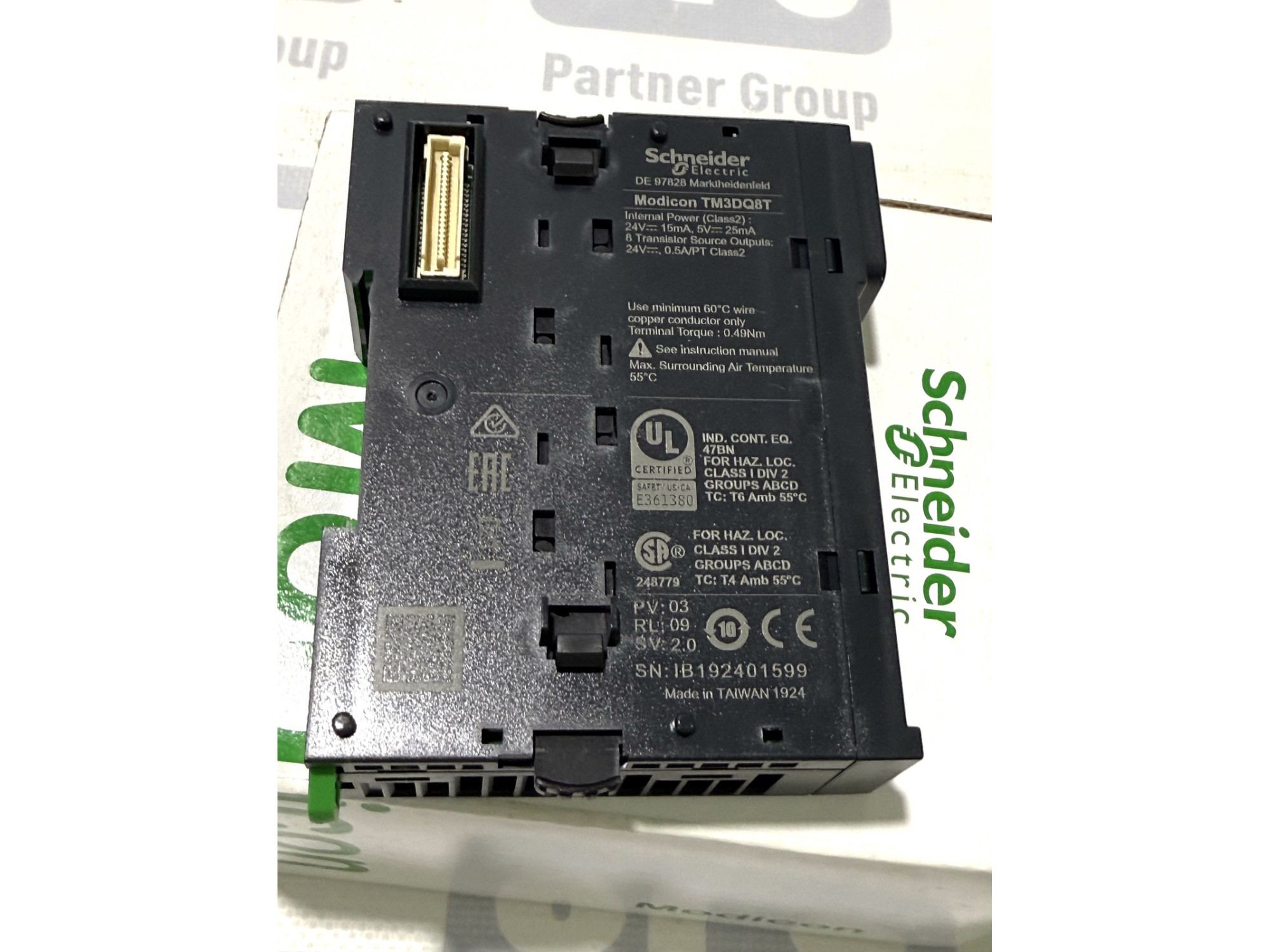

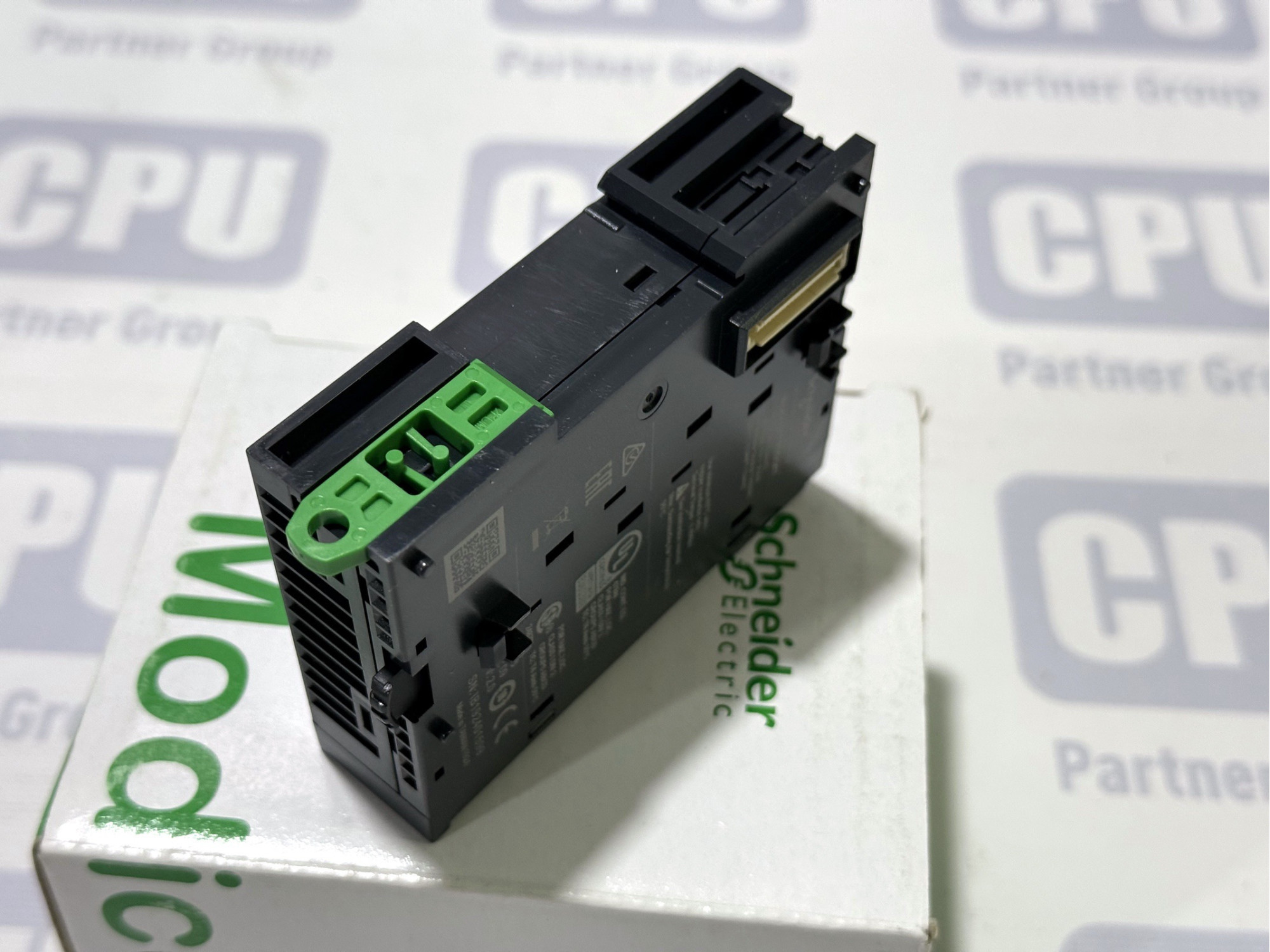

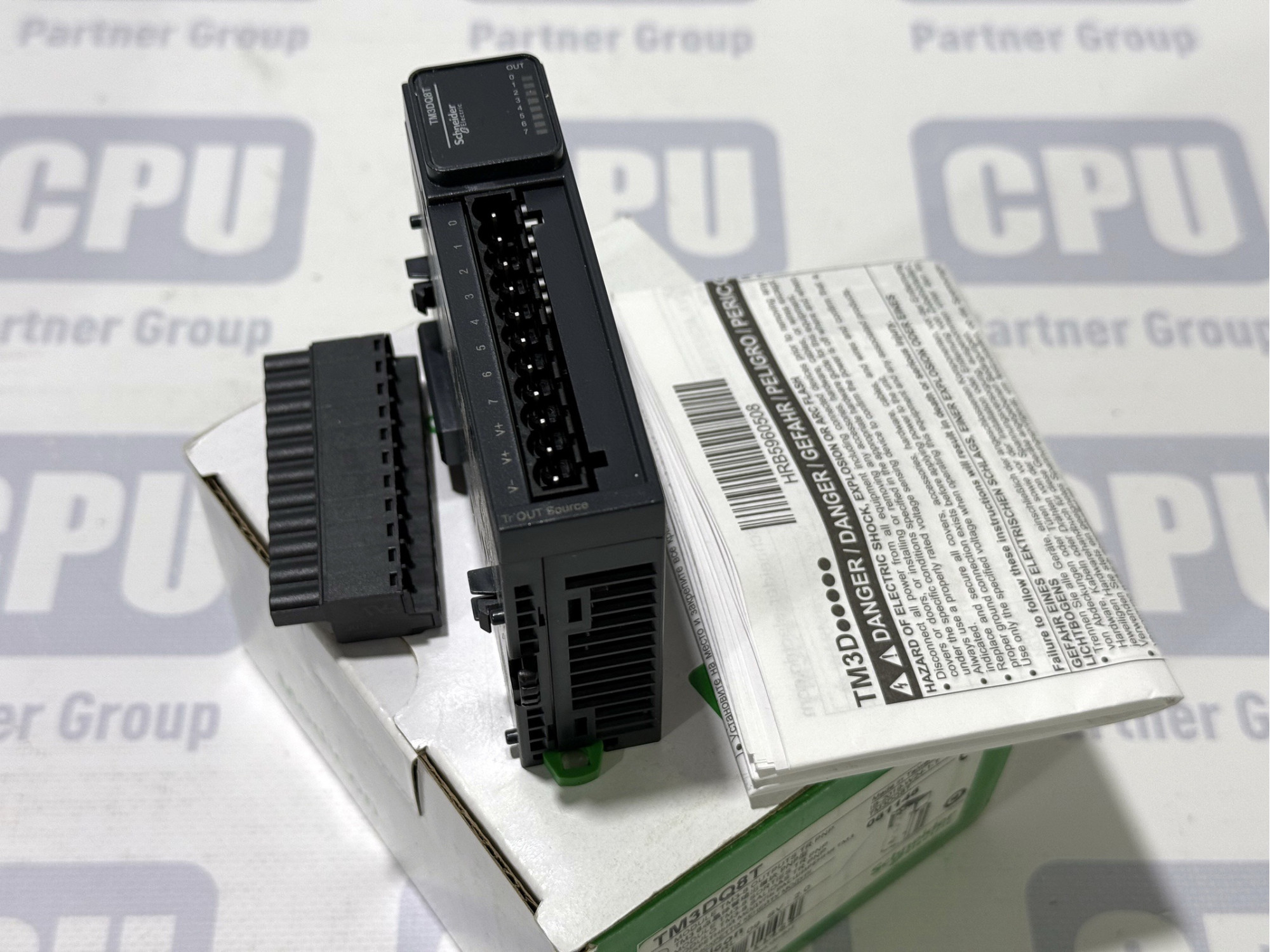

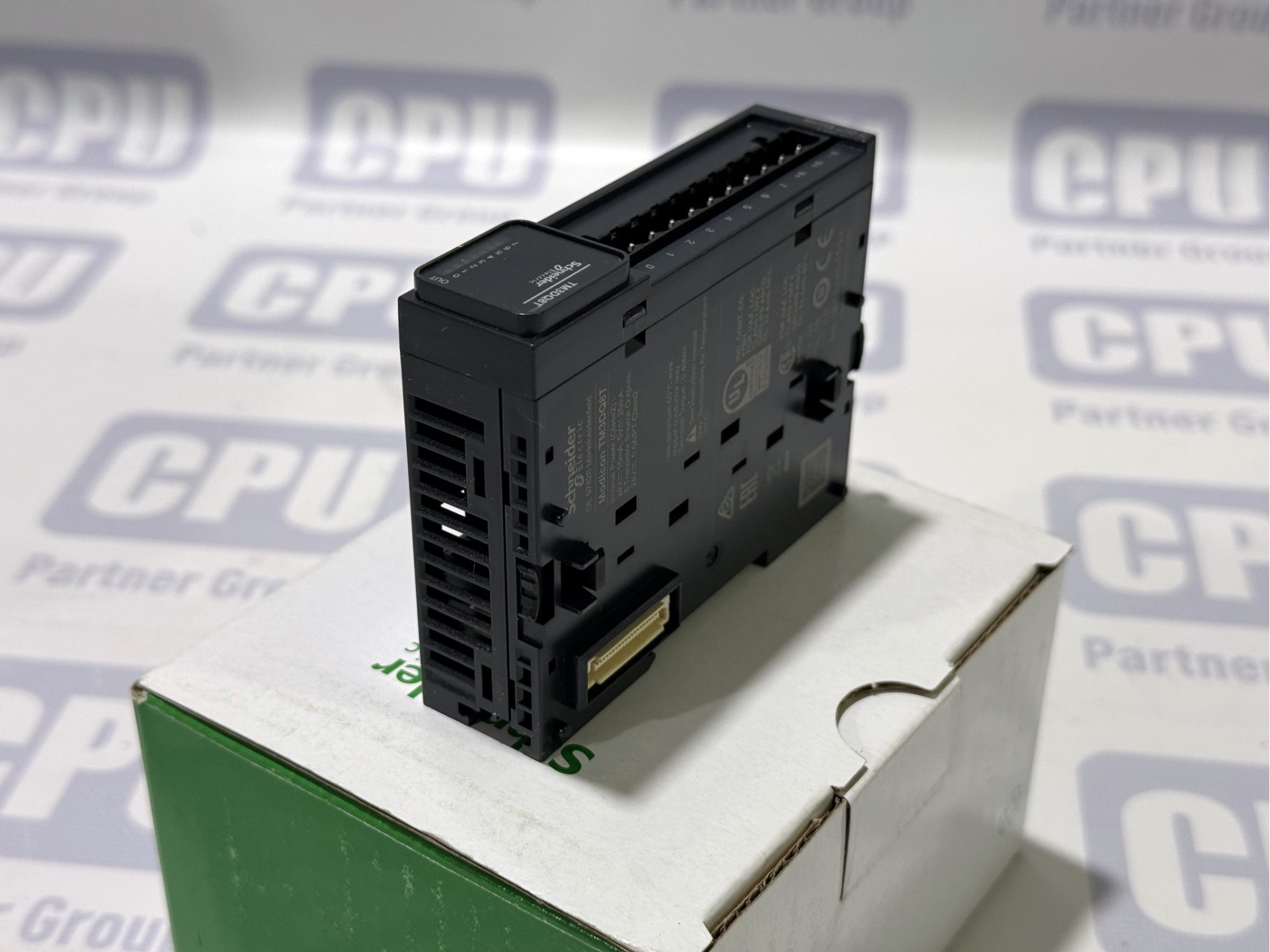

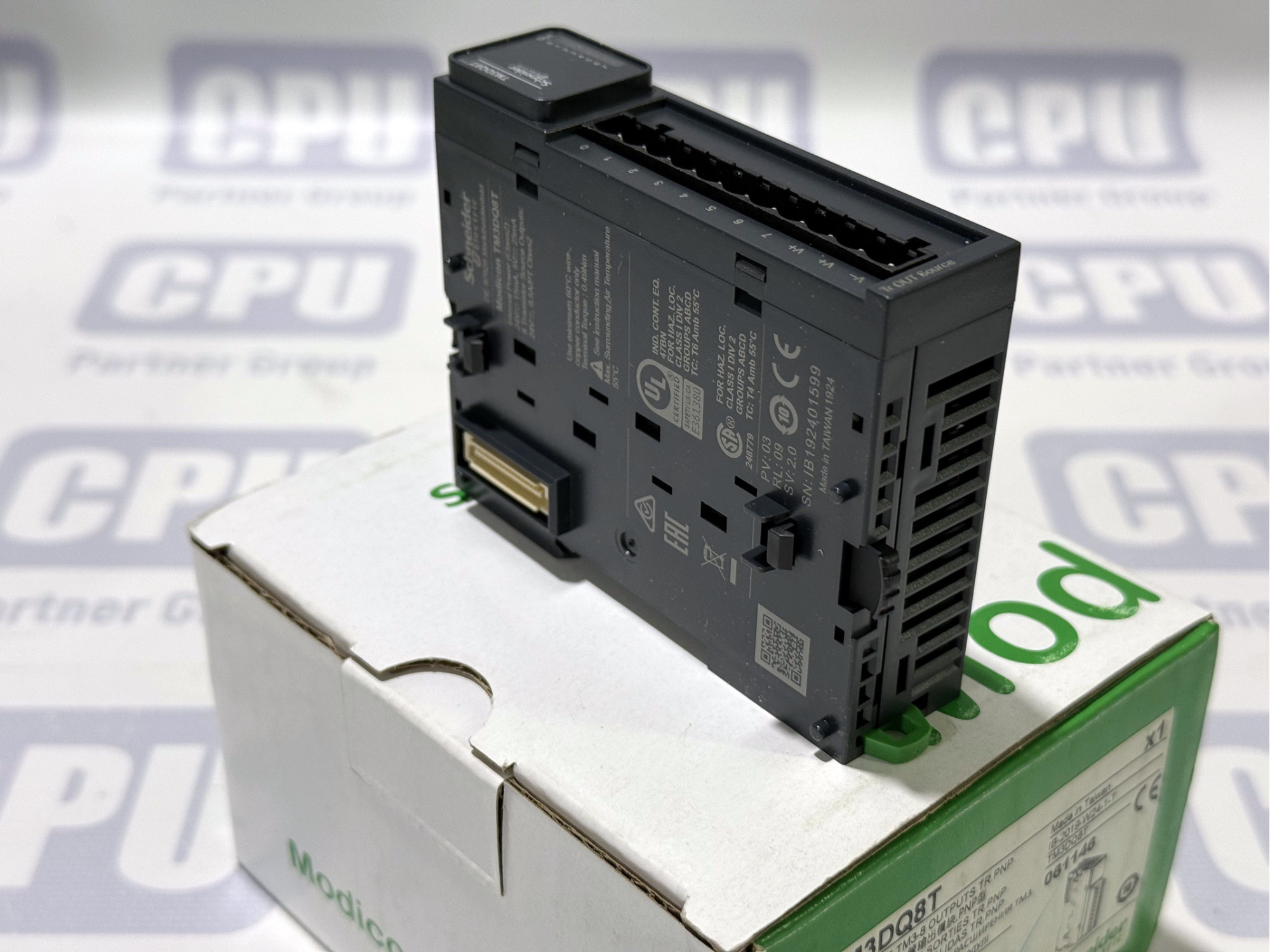

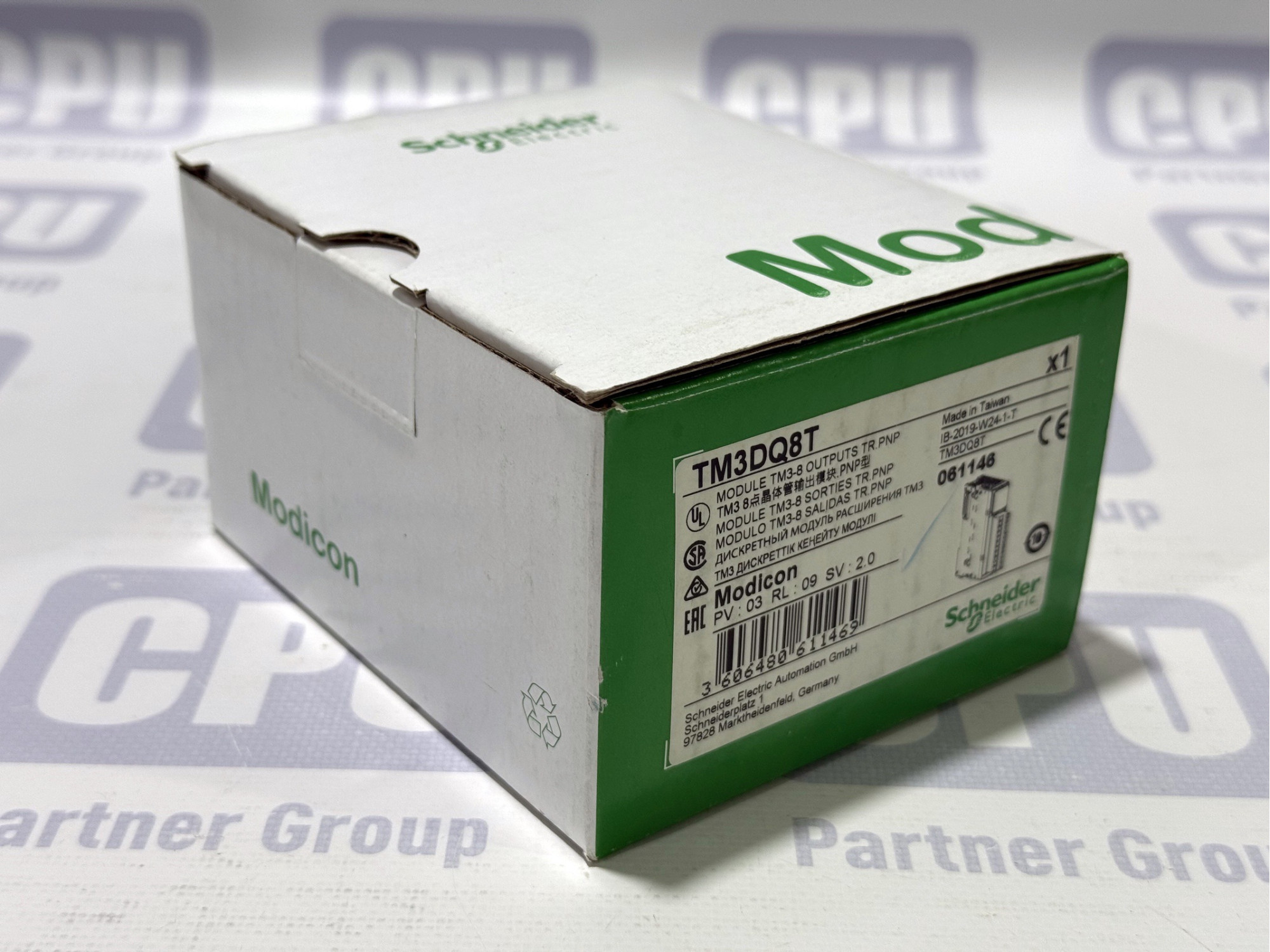

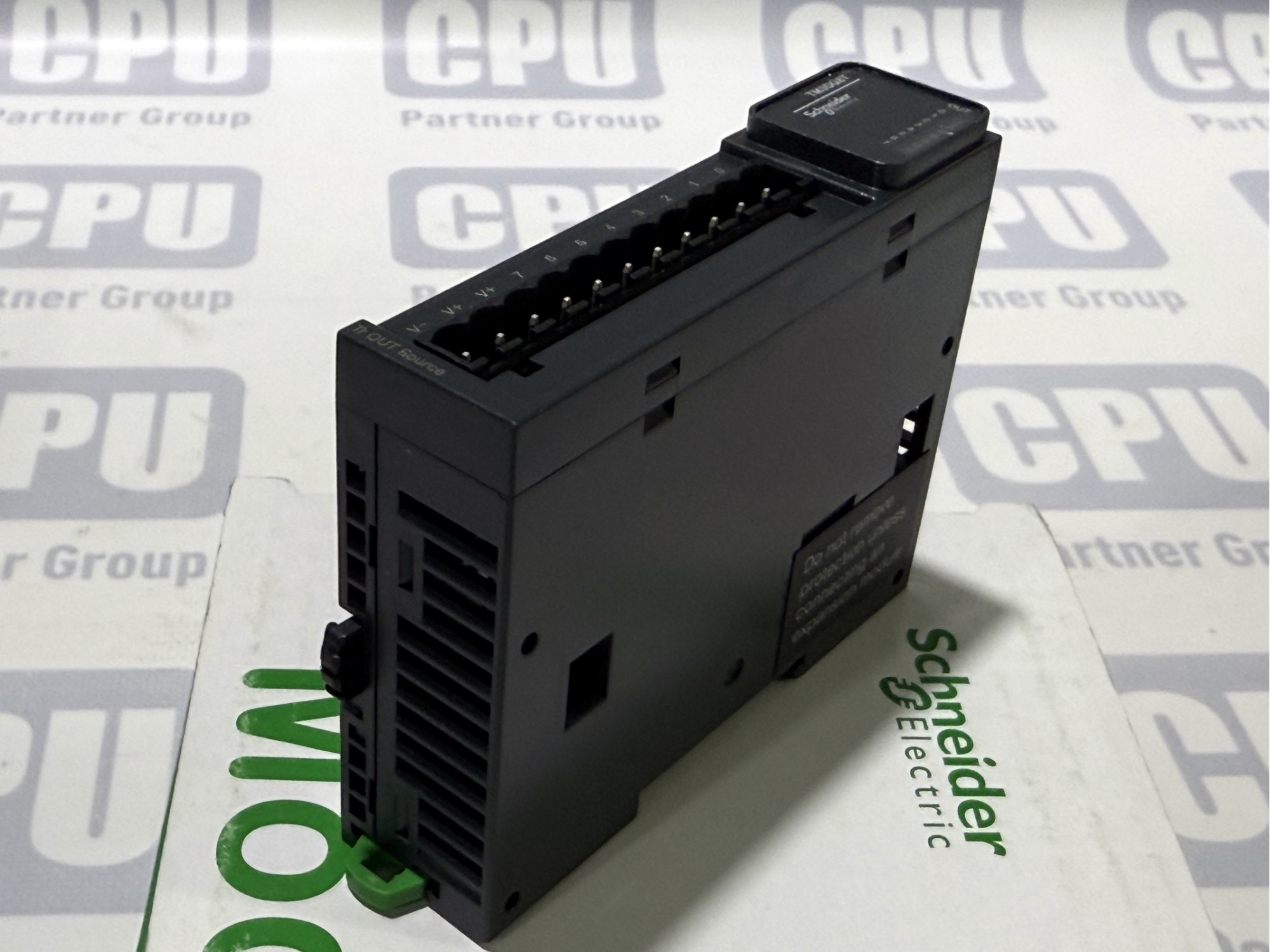

Schneider Electric TM3DQ8T Discrete module Modicon 061146 #2

Name: Schneider Electric TM3DQ8T Discrete module Modicon 061146 #2
Brand: Schneider Electric
SKU: 1853
Price: 3150.00 UAH
Availability: OutOfStock
Rating: 5 (10 reviews)

Виробник: Schneider Electric
Модель: TM3DQ8T
Код: #ZV/2/36 #
Наявність: 1
Термін гарантії: 30 days
Місцезнаходження: Ukraine

️ 69

0 відгуків / Написати відгук

Ціна: 3,150 грн

Опис
Відгуків (0)

Schneider Electric TM3DQ8T Discrete module Modicon 061146

Description

This product is part of the Modicon TM3 range, an offer of expansion I/Omodules for Modicon M221, M241, M251 and M262. The discrete output moduleprovides 8 transistor outputs with source (positive) logic. It is an outputmodule with an output voltage of 24V DC and a current consumption of 20mA at24V DC via bus connector. This product is capable of controlling variable speeddrives or any device equipped with a current or voltage input. There is aninsulation between output and internal logic at 500V AC, non-insulated betweenoutputs. It is furnished with removable screw terminal for electricalconnection with 5.08mm pitch adjustment for outputs. It is an IP20 ratedproduct. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). Itweighs 0.110kg. This product is certified by CE, CULus and C-Tick. It meetsEN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible withModicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. Itsupports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC60715 and plate or panel with fixing kit mount. Modicon TM3 expansion moduleshave been designed with a simple interlocking assembly mechanism. A busexpansion connector is used to distribute data and the power supply whenassembling the Modicon TM3 modules with logic controllers. Boost theperformance of your controller with the Modicon TM3 I/O system speciallydesigned for the Modicon M221, M241 and M251 logic controllers.

Specifications

Main
Range of Product	Modicon TM3
Product or Component Type	Discrete output module
Range Compatibility	Modicon M241 Modicon M251 Modicon M221 Modicon M262
Discrete output type	Transistor
Discrete output number	8
Discrete output logic	Positive logic (source)
Discrete output voltage	24 V DC transistor output
Discrete output current	500 mA transistor output

Complementary
Discrete I/O number	8
Current consumption	5 mA 5 V DC via bus connector at state off) 0 mA 24 V DC via bus connector at state off) 20 mA 24 V DC via bus connector at state on) 10 mA 5 V DC via bus connector at state on)
Response time	450 µs (turn-on) 450 µs (turn-off)
Maximum leakage current	0.1 mA transistor output
Maximum voltage drop	<0.4 V
Maximum tungsten load	<3 W transistor output
Local signalling	1 LED per channel (green) for output status
Electrical connection	11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs
Maximum cable distance between devices	Unshielded cable <98.4 ft (30 m) transistor output
Insulation	Between output and internal logic 500 V AC Non-insulated between outputs
Marking	CE
Mounting support	Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Height	3.5 in (90 mm)
Depth	3.3 in (84.6 mm)
Width	1.08 in (27.4 mm)
Net Weight	1.68 lb(US) (0.76 kg)

Environment
Standards	IEC 61131-2
Product Certifications	CE cULus UKCA RCM EAC cULus HazLoc
Resistance to electrostatic discharge	8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2
Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Resistance to magnetic fields	98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8
Resistance to fast transients	1 kV I/OIEC 61000-4-4
Surge withstand	1 kV I/O common mode IEC 61000-4-5 DC
Resistance to conducted disturbances	10 V 0.15...80 MHz IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission	Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011
Ambient Air Temperature for Operation	14…95 °F (-10…35 °C) vertical installation 14…131 °F (-10…55 °C) horizontal installation
Ambient Air Temperature for Storage	-13…158 °F (-25…70 °C)
Relative humidity	10…95 %, without condensation in operation) 10…95 %, without condensation in storage)
IP degree of protection	IP20 with protective cover in place
pollution degree	2
Operating altitude	0...6561.68 ft (0...2000 m)
Storage altitude	0…9842.5 ft (0…3000 m)
Vibration resistance	3.5 mm 5…8.4 Hz DIN rail 3 gn 8.4…150 Hz DIN rail 3.5 mm 5…8.4 Hz panel 3 gn 8.4…150 Hz panel
Shock resistance	15 gn 11 ms
