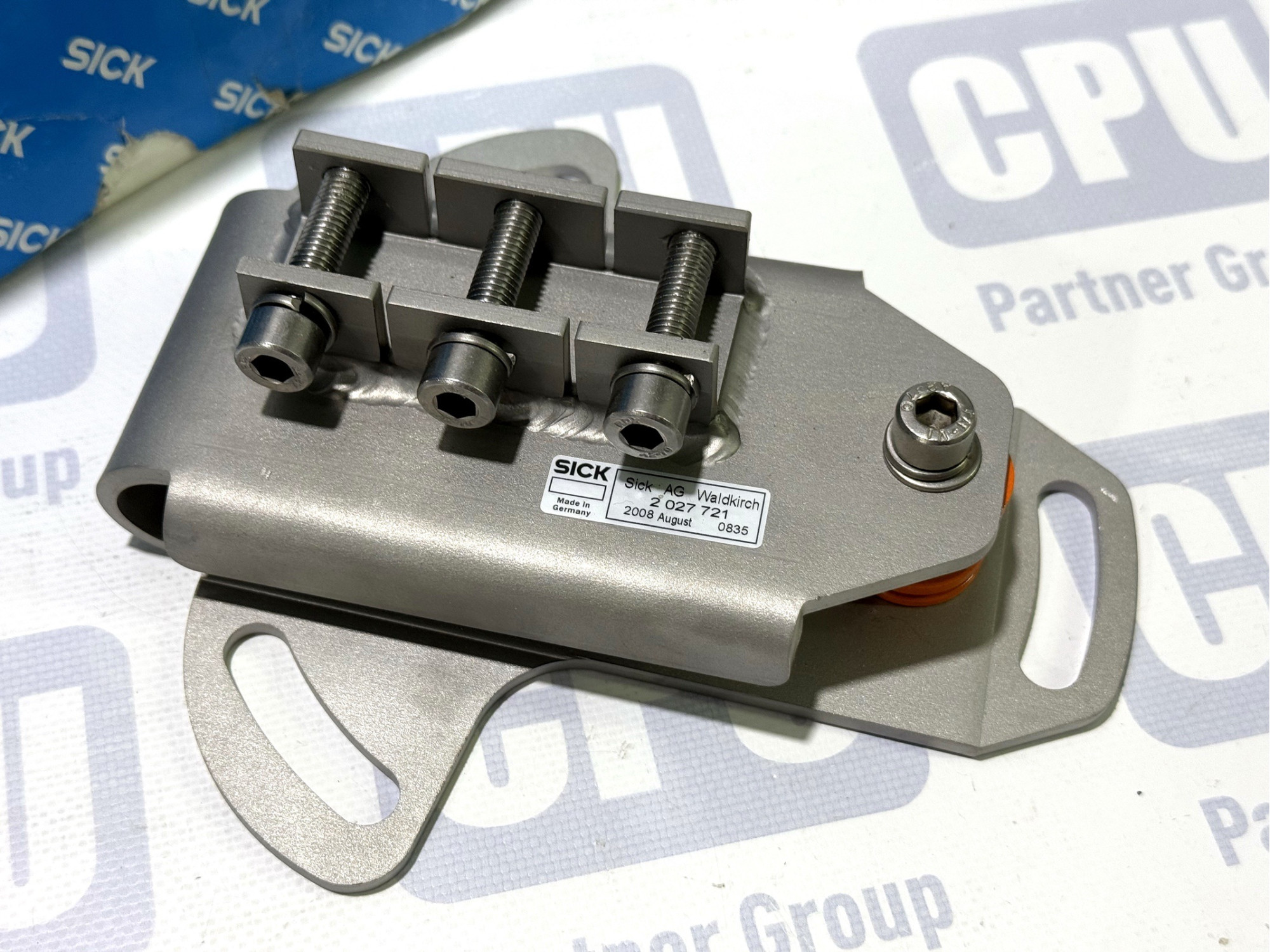

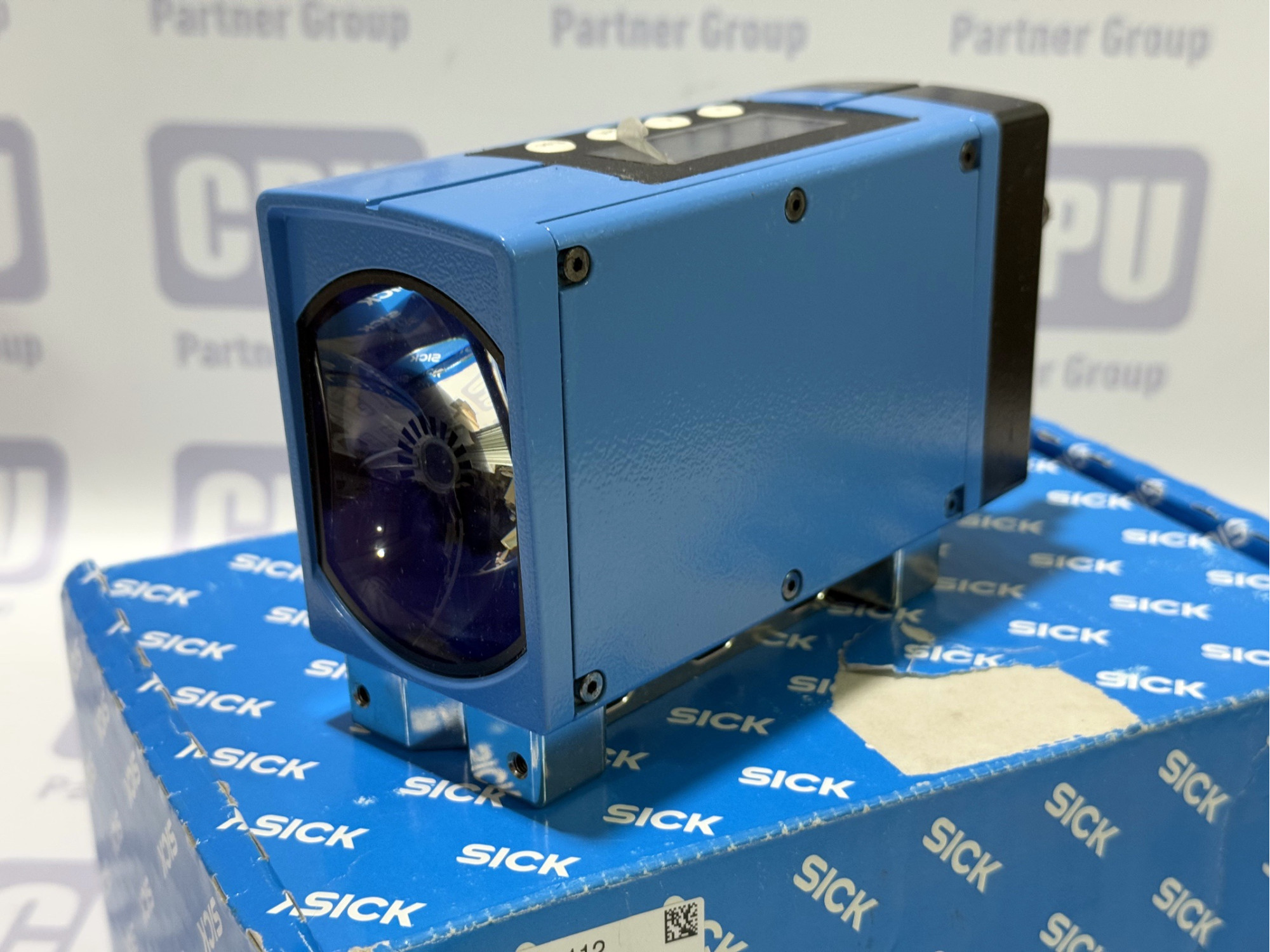

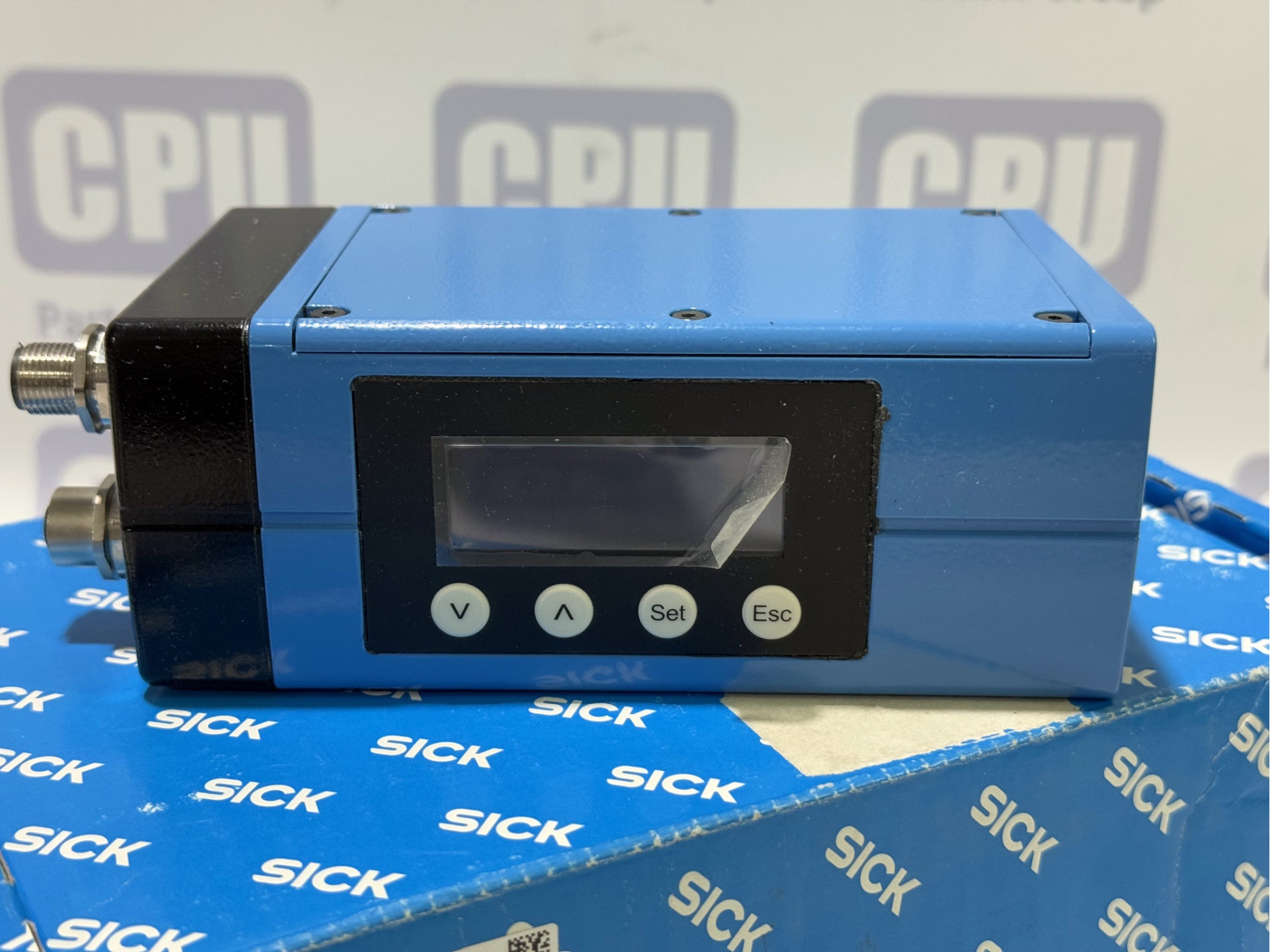

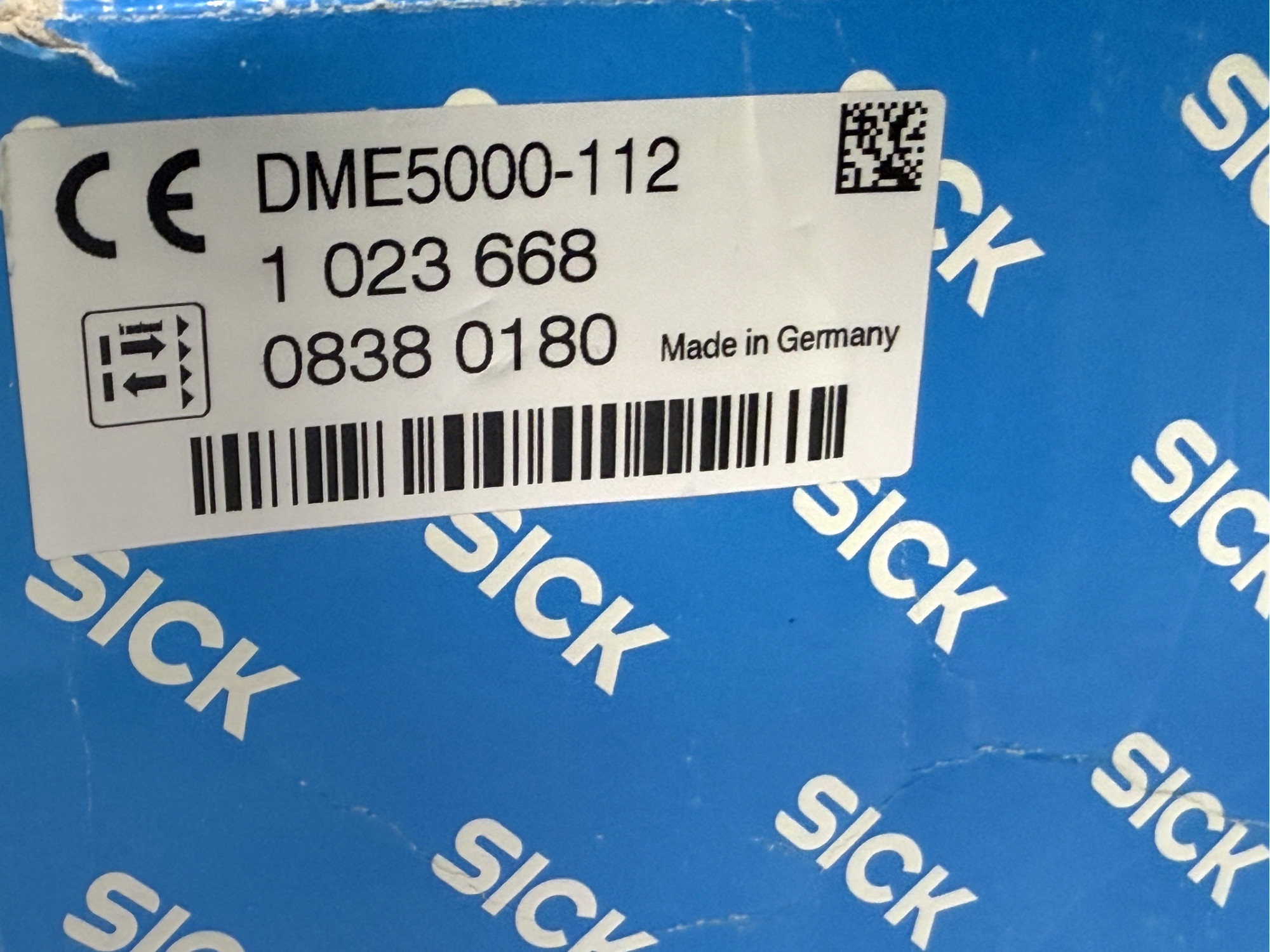

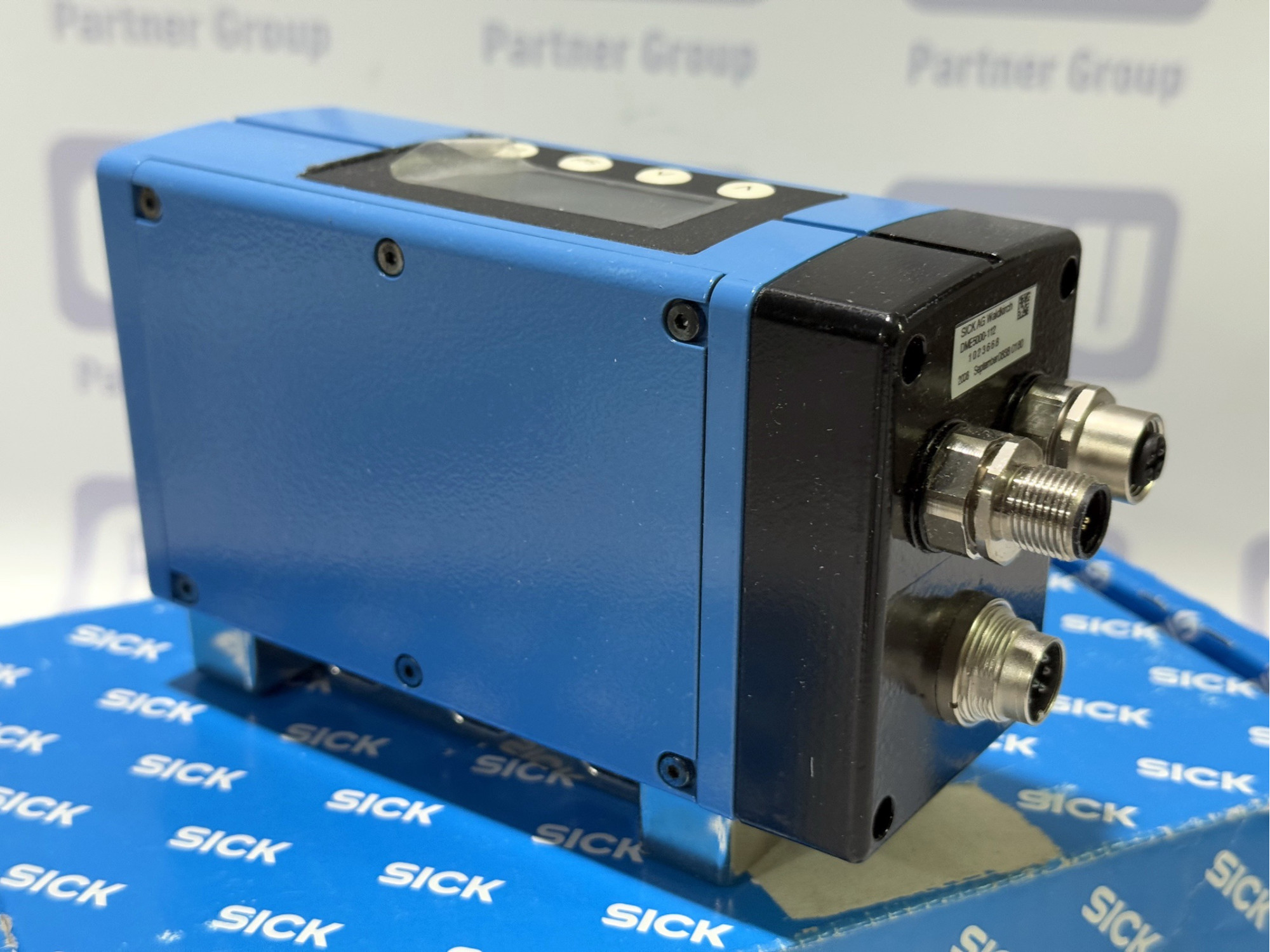

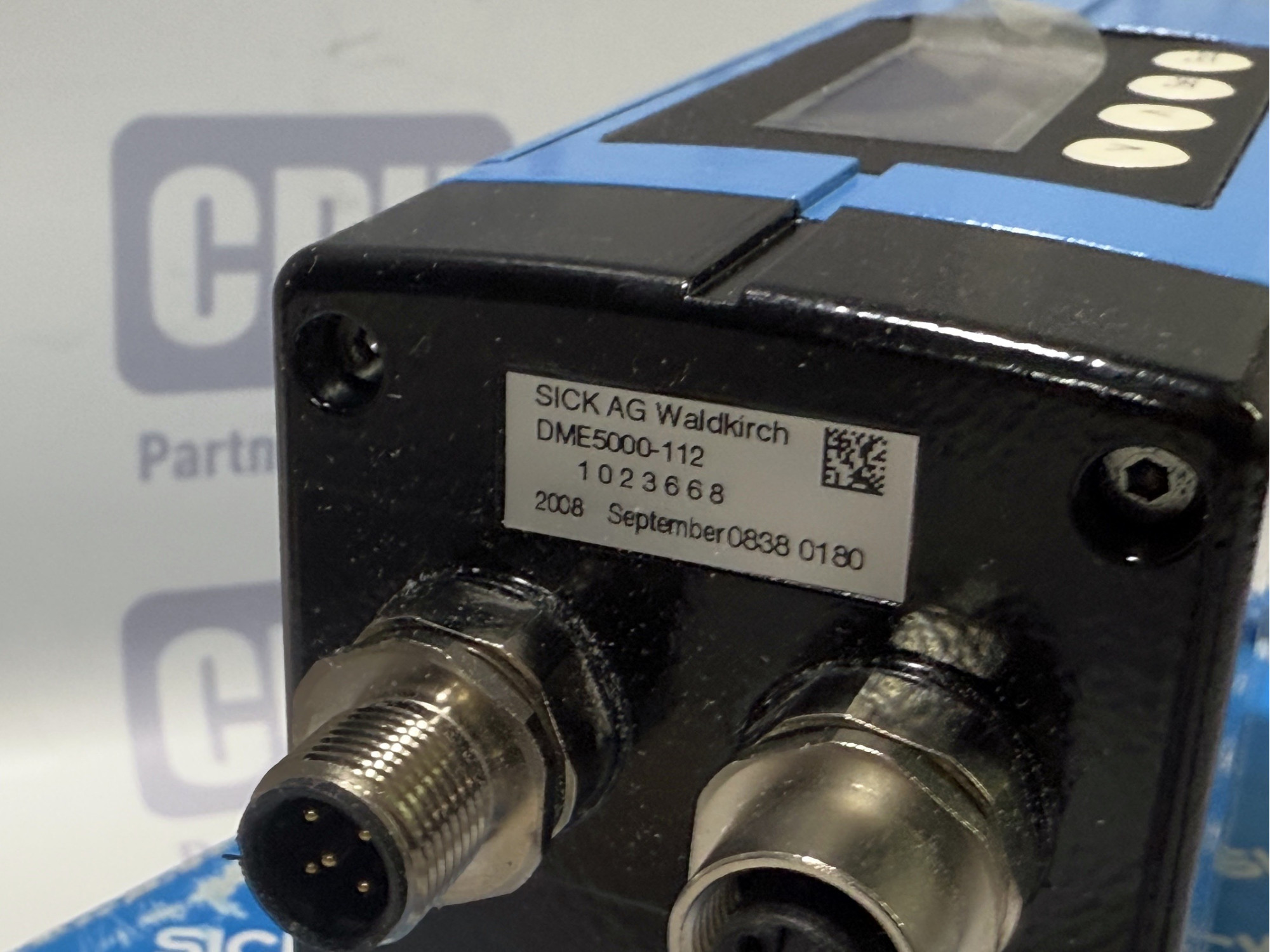

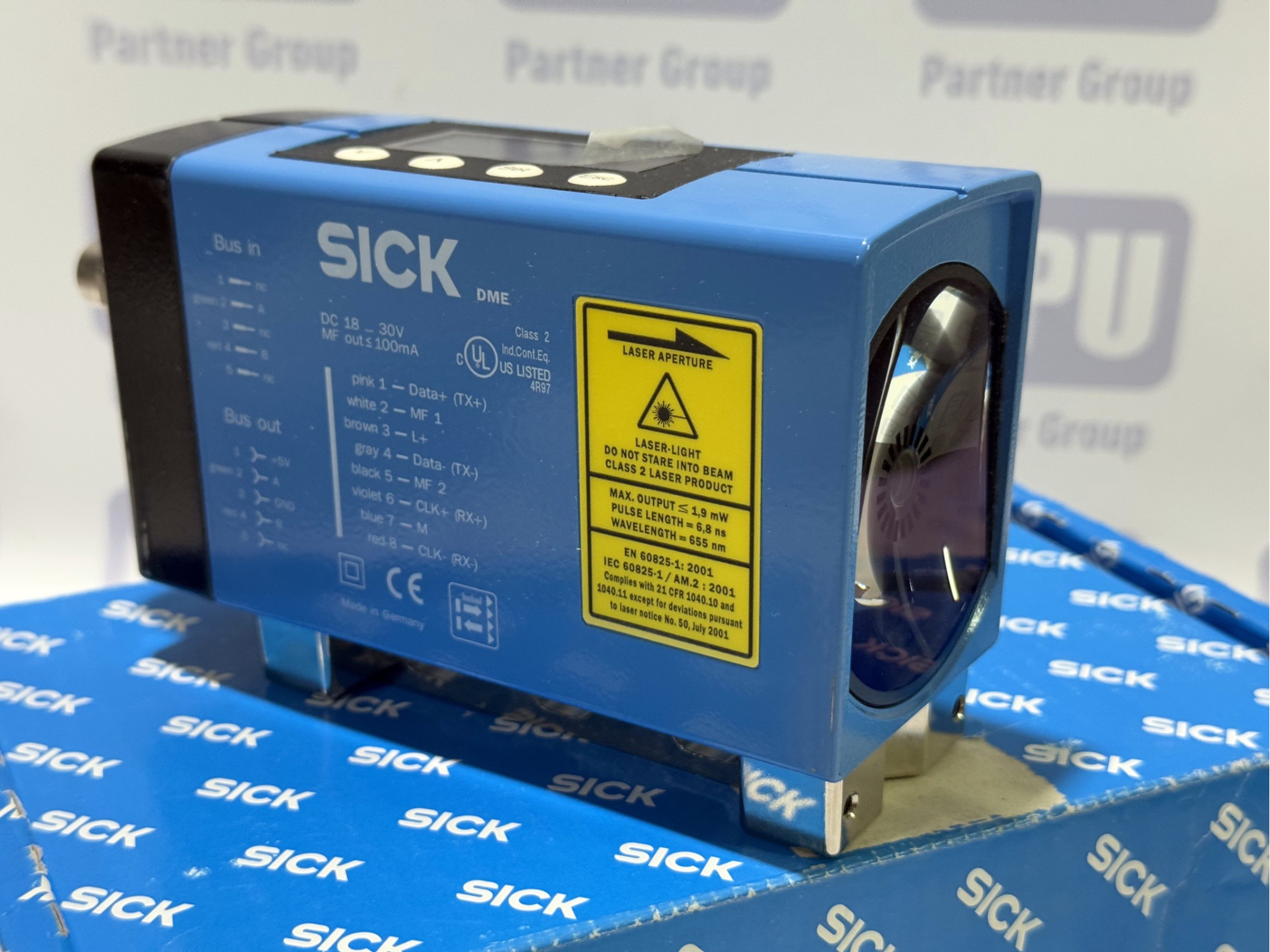

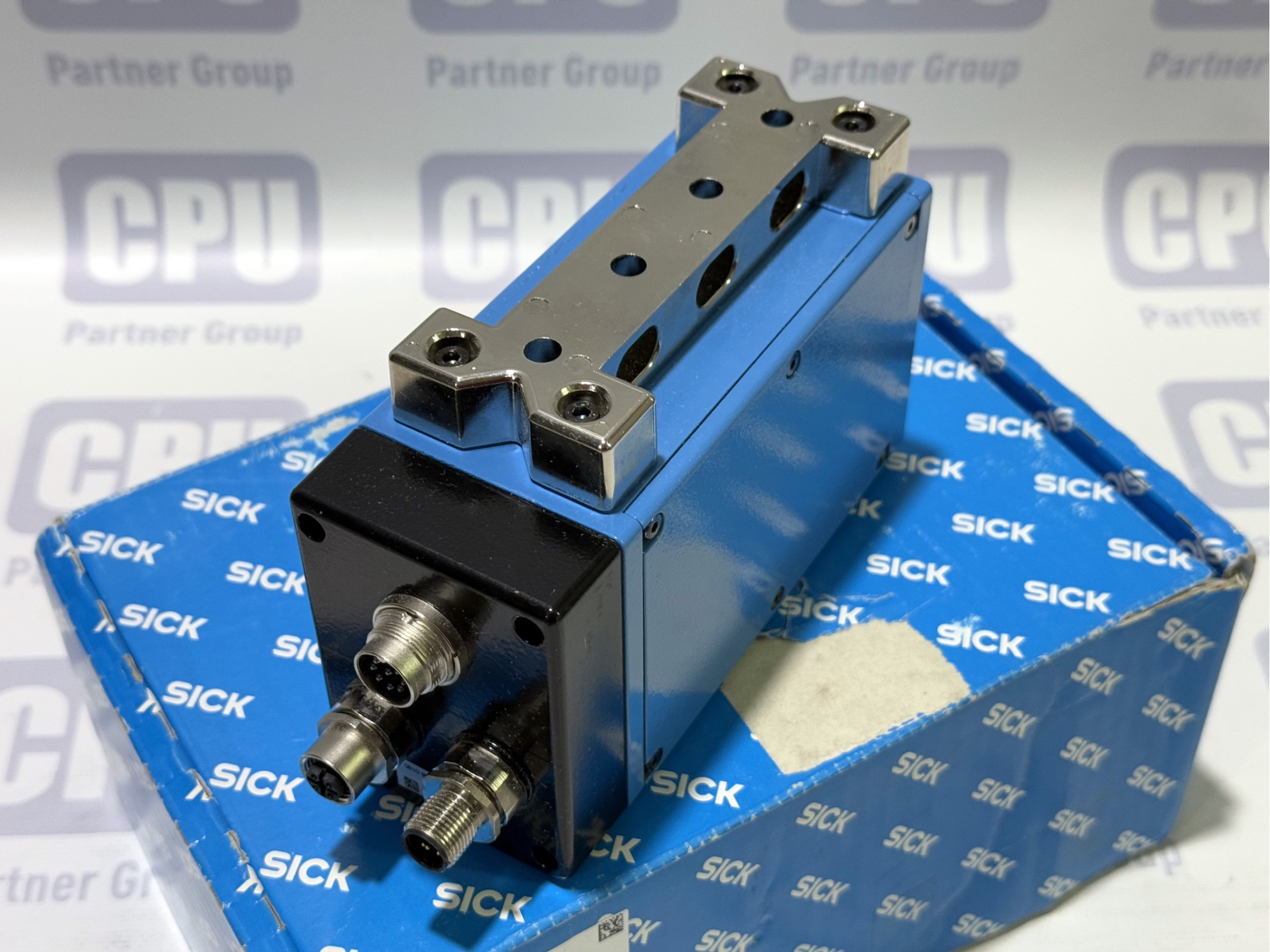

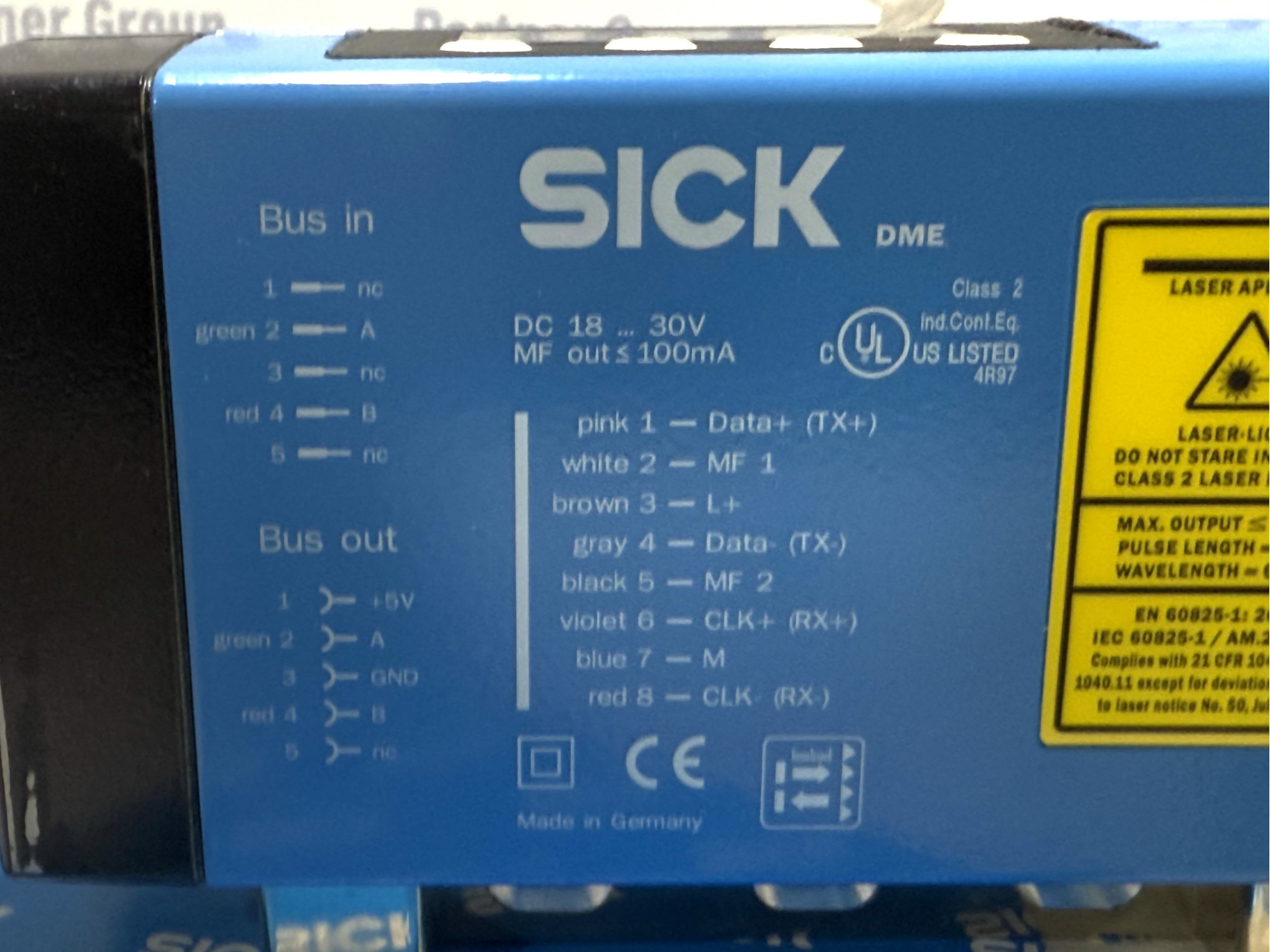

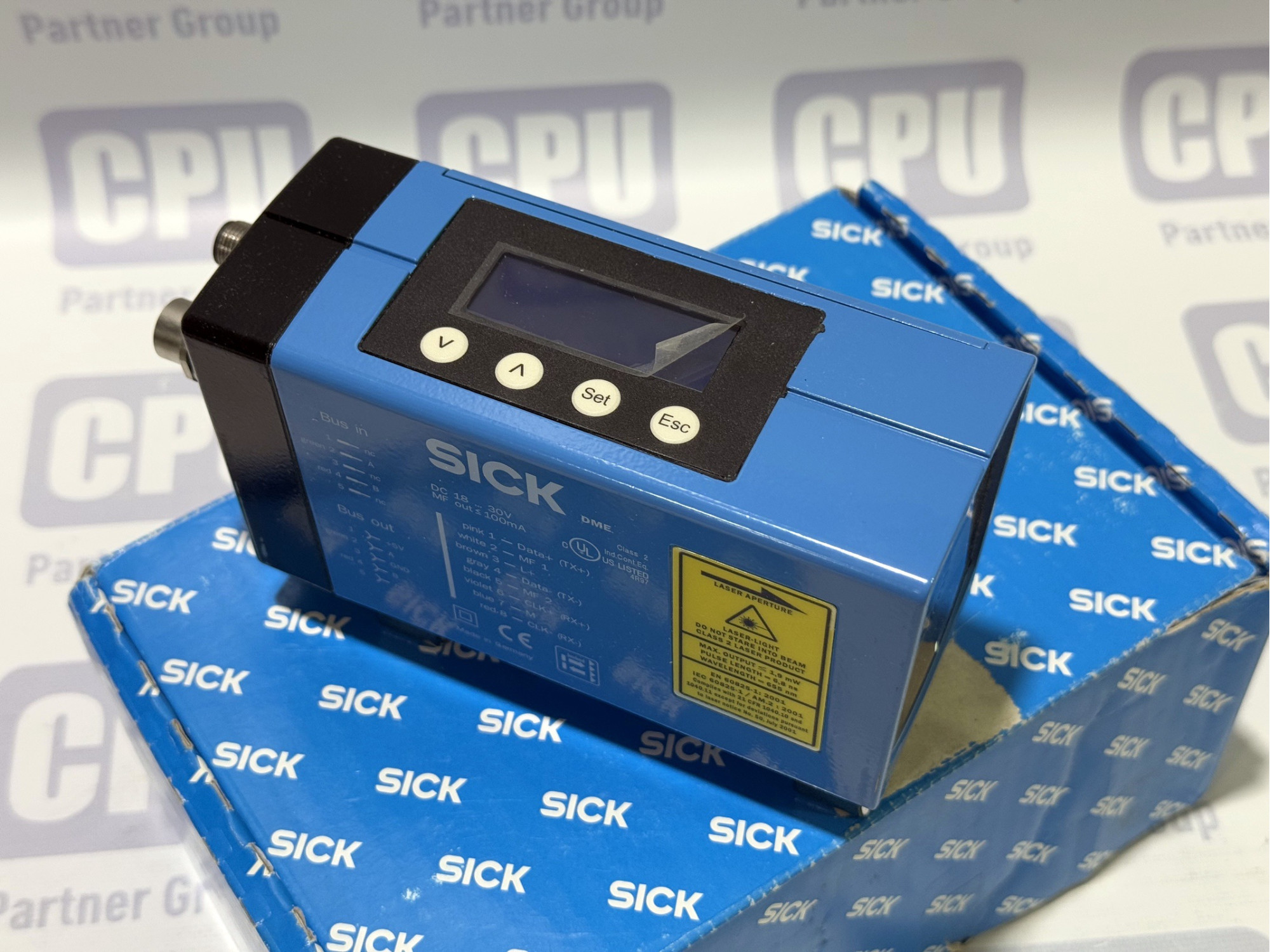

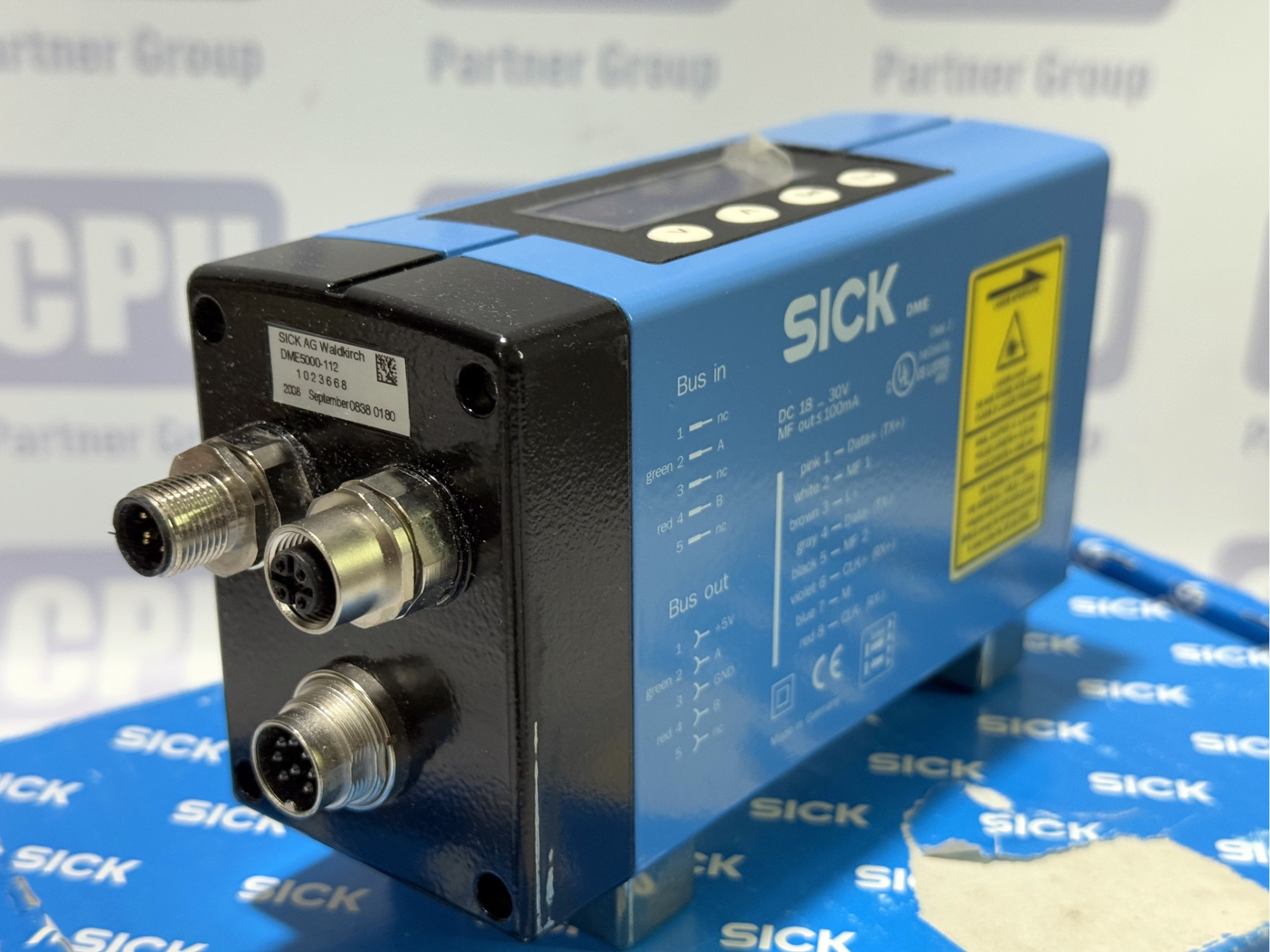

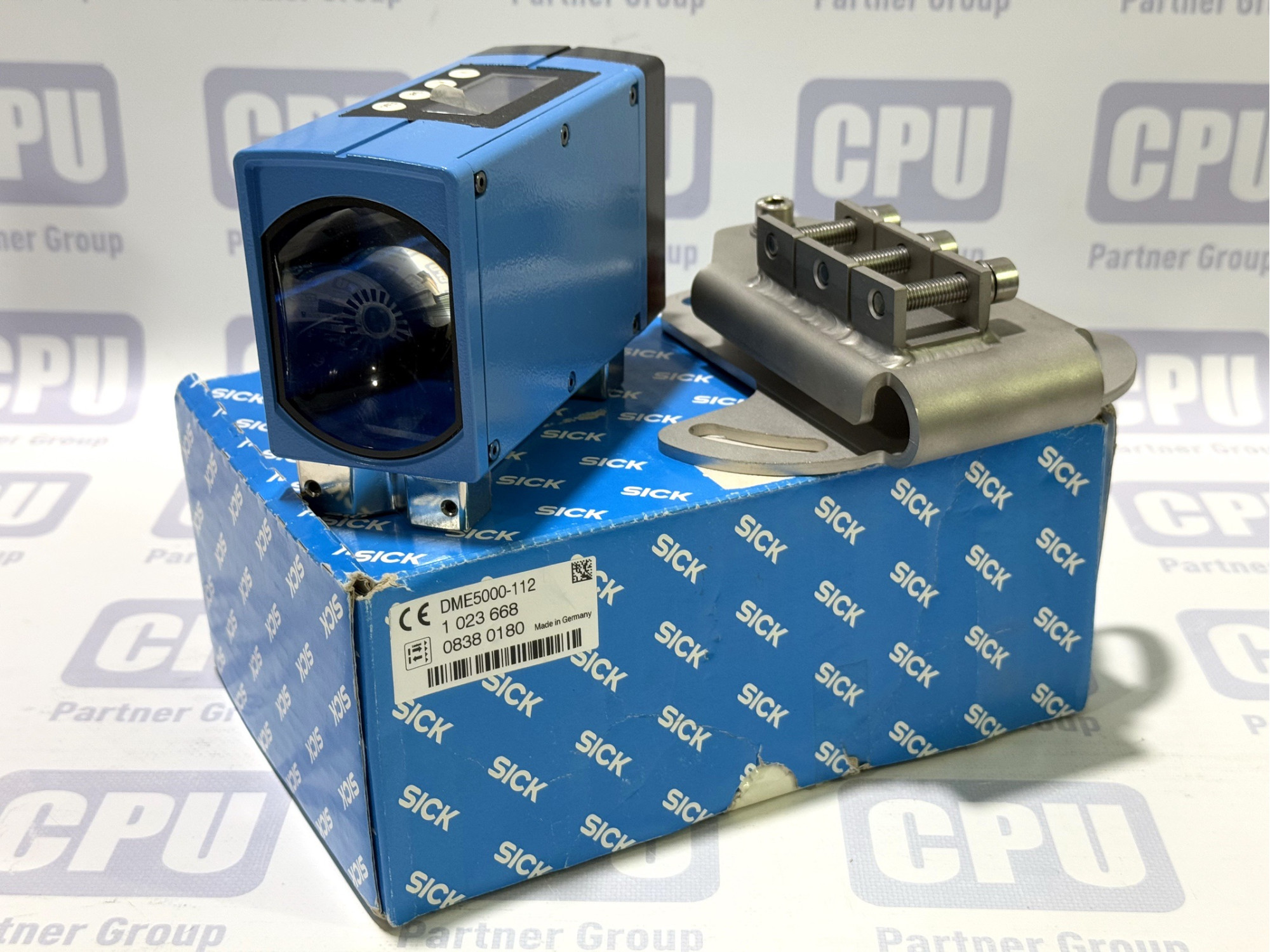

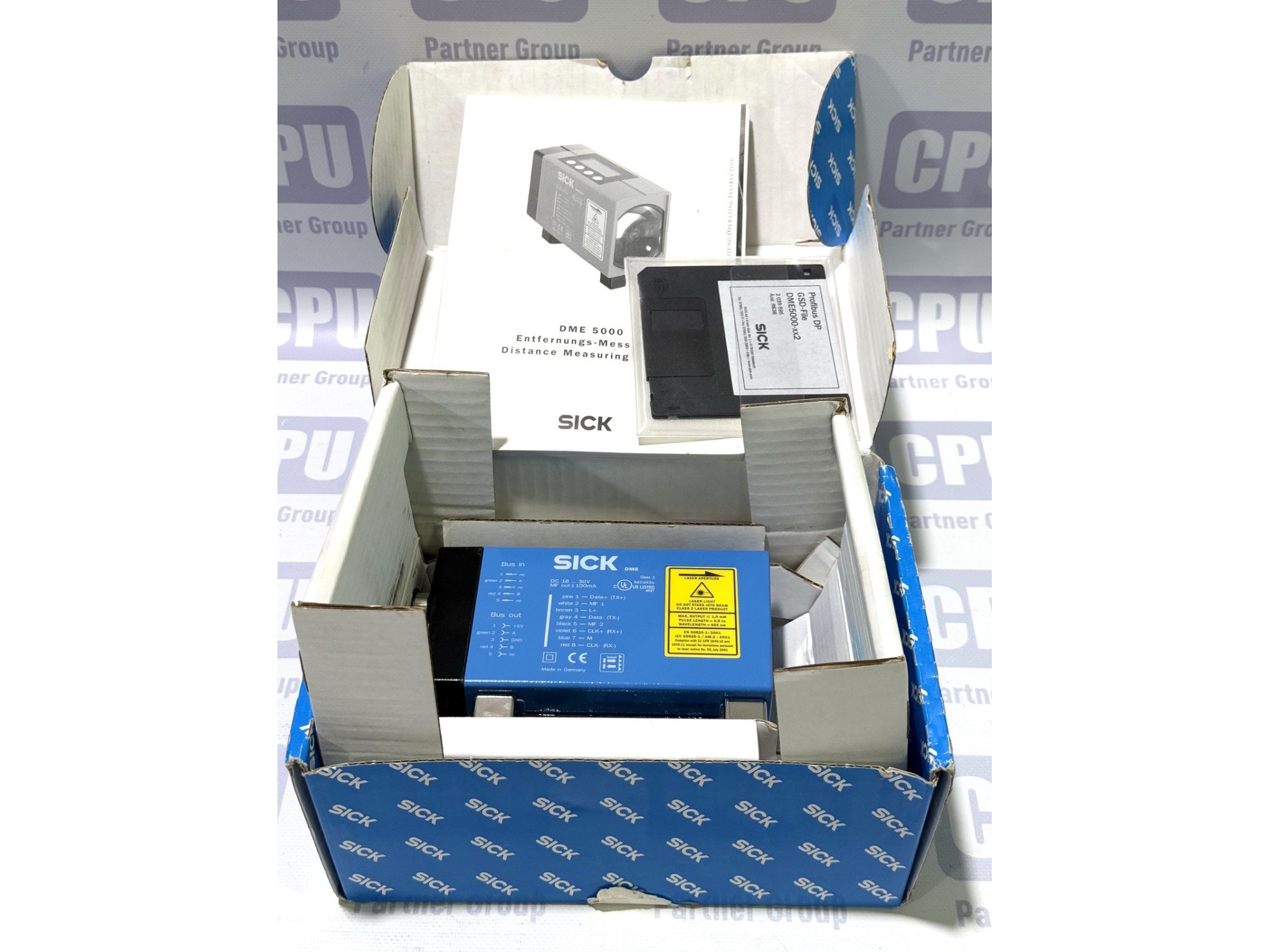

Sick AG Waldkirch DME5000-112 + Sick AG Waldkirch 2 027 721 LONG RANGE DISTANCE SENSOR
- Виробник: Sick
- Модель: DME5000-112
- Код: #EV1972/1/39#
- Наявність: 1
- Термін гарантії: 30 days
- Місцезнаходження: Ukraine
-
Ціна: 132,300 грн
Sick AG Waldkirch DME5000-112 + Sick AG Waldkirch 2 027 721 LONG RANGE DISTANCE SENSOR
| Measuring range | 0.15 m ... 70 m, on “diamond grade” reflective tape 1) | ||||||
| Target | Reflector | ||||||
| Resolution | 0.05 mm ... 5 mm | ||||||
| Repeatability | 0.5 mm 1) 2) | ||||||
| Measurement accuracy | ± 2 mm | ||||||
| Response time | 6 ms | ||||||
| Output time | 2 ms | ||||||
| Light source | Laser, red 3) | ||||||
| Type of light | Visible red light | ||||||
| Laser class | 2, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014) | ||||||
| Typ. light spot size (distance) | 130 mm (at 70 m) 270 mm (at 150 m) 360 mm (at 220 m) | ||||||
| Max. movement speed | 10 m/s | ||||||
| |||||||
1) On “diamondgrade” reflective tape.
2) Statisticalerror 1 σ, environmental conditions constant, min. warm-up time10 min.
3) Average servicelife of 50,000 h at TA = +25 °C.
Manual for Sick DME5000-112
https://cpupartnergroup.com/image/pdf/Sick%20DME5000-112.pdf
