Siemens 3SE5122-0LE01 Metal Enclosure Position Switch 1 PCS

Siemens SIRIUS  3SE5122-0LE01 Metal Enclosure Position Switch

• Type: Position Switch / Limit Switch / Mechanical Limit Switch

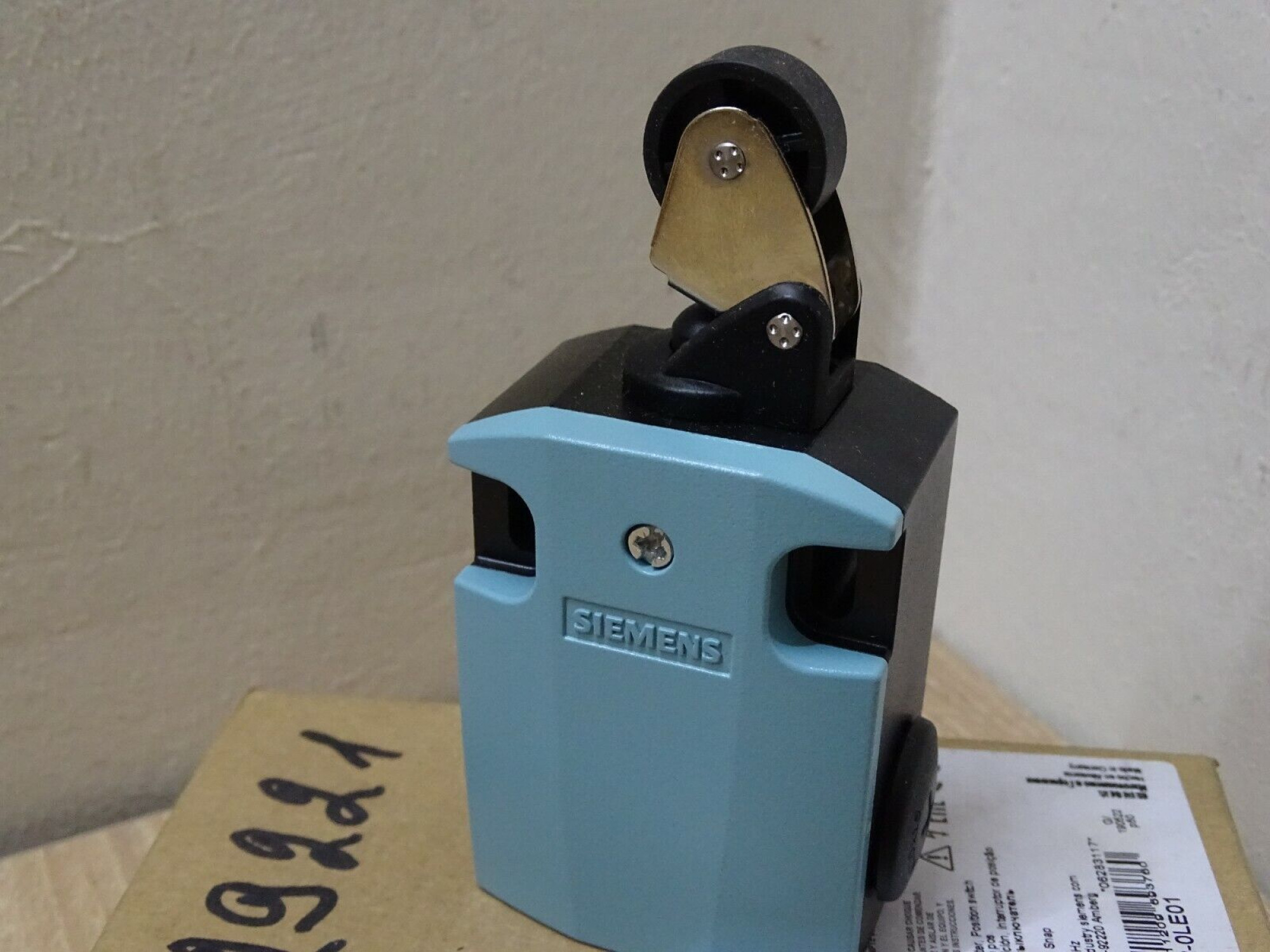

Siemens 3SE5122-0LE01 SIRIUS Position Switch with Roller Lever

The Siemens 3SE5122-0LE01 is a high-quality position switch from the SIRIUS 3SE5 series, featuring a robust metal enclosure. This limit switch is designed for reliable position detection and end-of-travel sensing in a wide range of industrial machinery and automation applications.

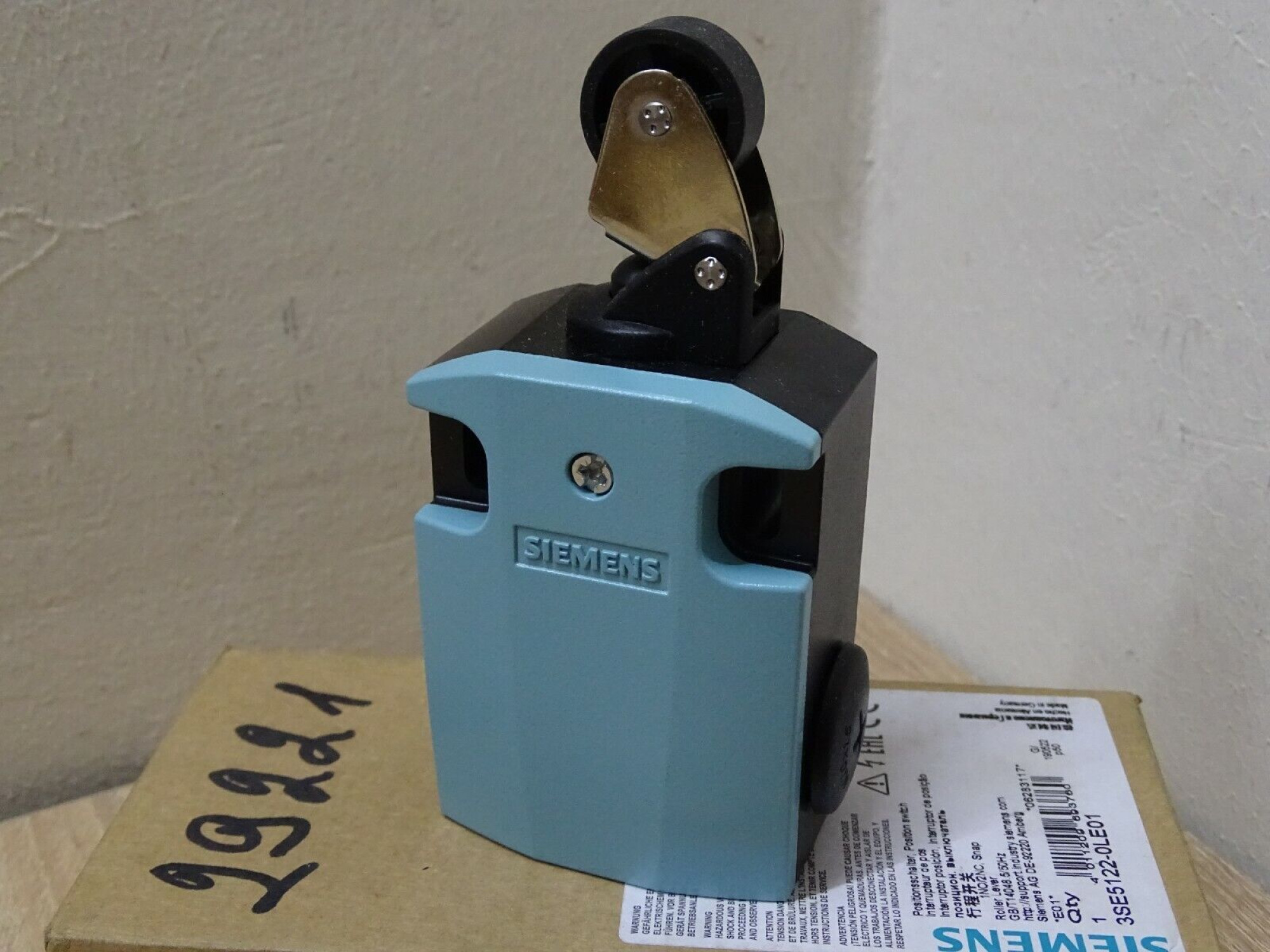

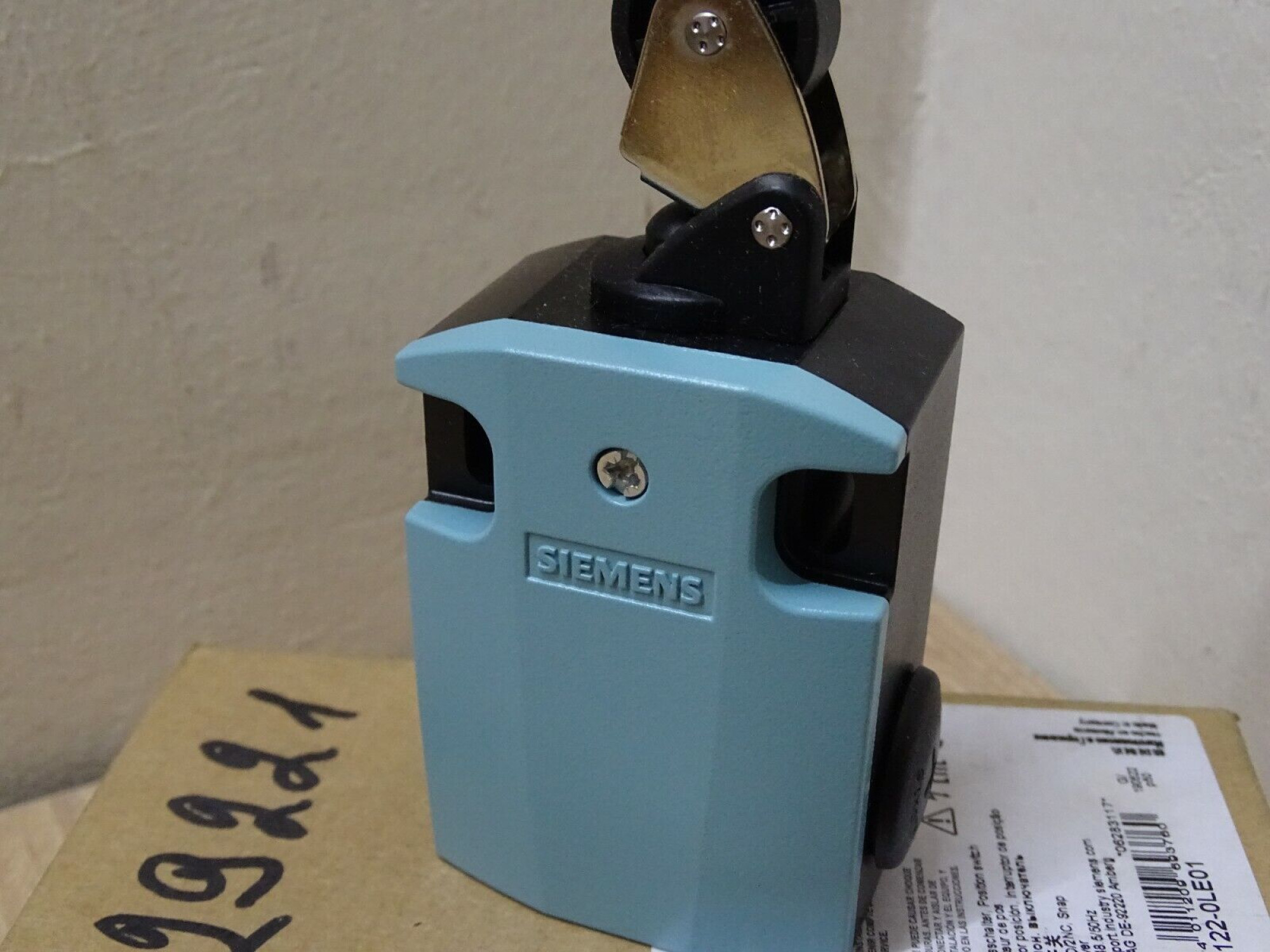

Equipped with a roller lever actuator (with metal lever and 22mm plastic roller), the 3SE5122-0LE01 is activated by contact with a moving machine part. It utilizes a contact block with 1 Normally Open (NO) and 2 Normally Closed (NC) snap-action contacts, providing quick switching response. The NC contacts are designed for positive opening, which is a crucial safety feature ensuring the circuit is reliably broken.

The durable metal housing provides excellent protection with an IP66 and IP67 rating, making it suitable for use in demanding environments exposed to dust and water. The switch offers convenient electrical connection via three M20 x 1.5 cable entries. The Siemens 3SE5122-0LE01 is a dependable component for accurate and safe position monitoring in your industrial equipment.

Key Characteristics:

• Function: Position detection, limit switching.
• Actuator: Roller lever (metal lever, 22mm plastic roller).
• Contacts: 1 NO + 2 NC snap-action contacts.
• Safety Feature: Positive opening of NC contacts.
• Housing: Metal enclosure, 56 mm wide.
• Protection Rating: IP66 / IP67.
• Connection: 3 x M20 x 1.5 cable entries.
• Type: Mechanical limit switch.

The Siemens 3SE5122-0LE01 provides robust and reliable position sensing for ensuring precise and safe operation of your machinery.
