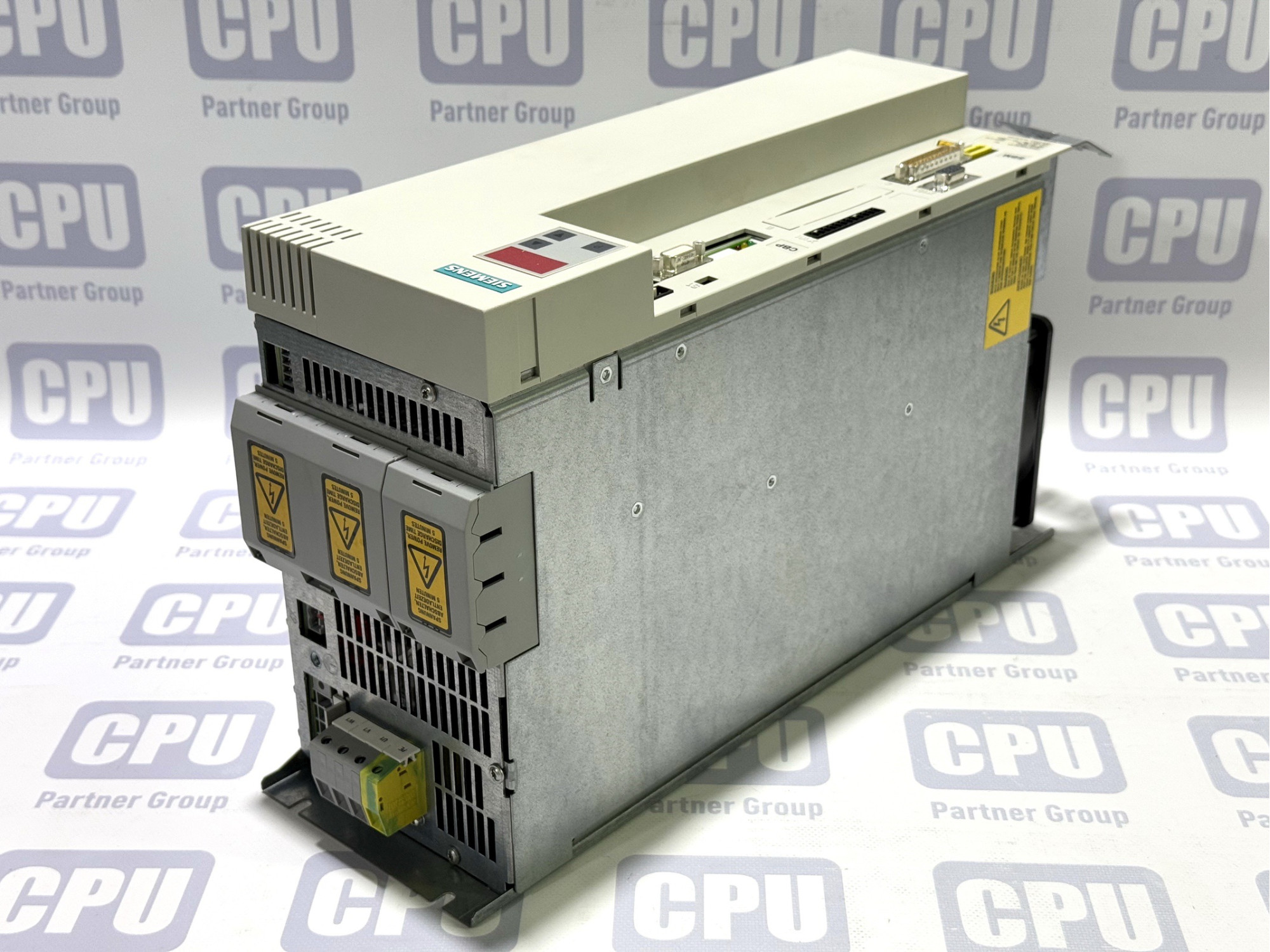

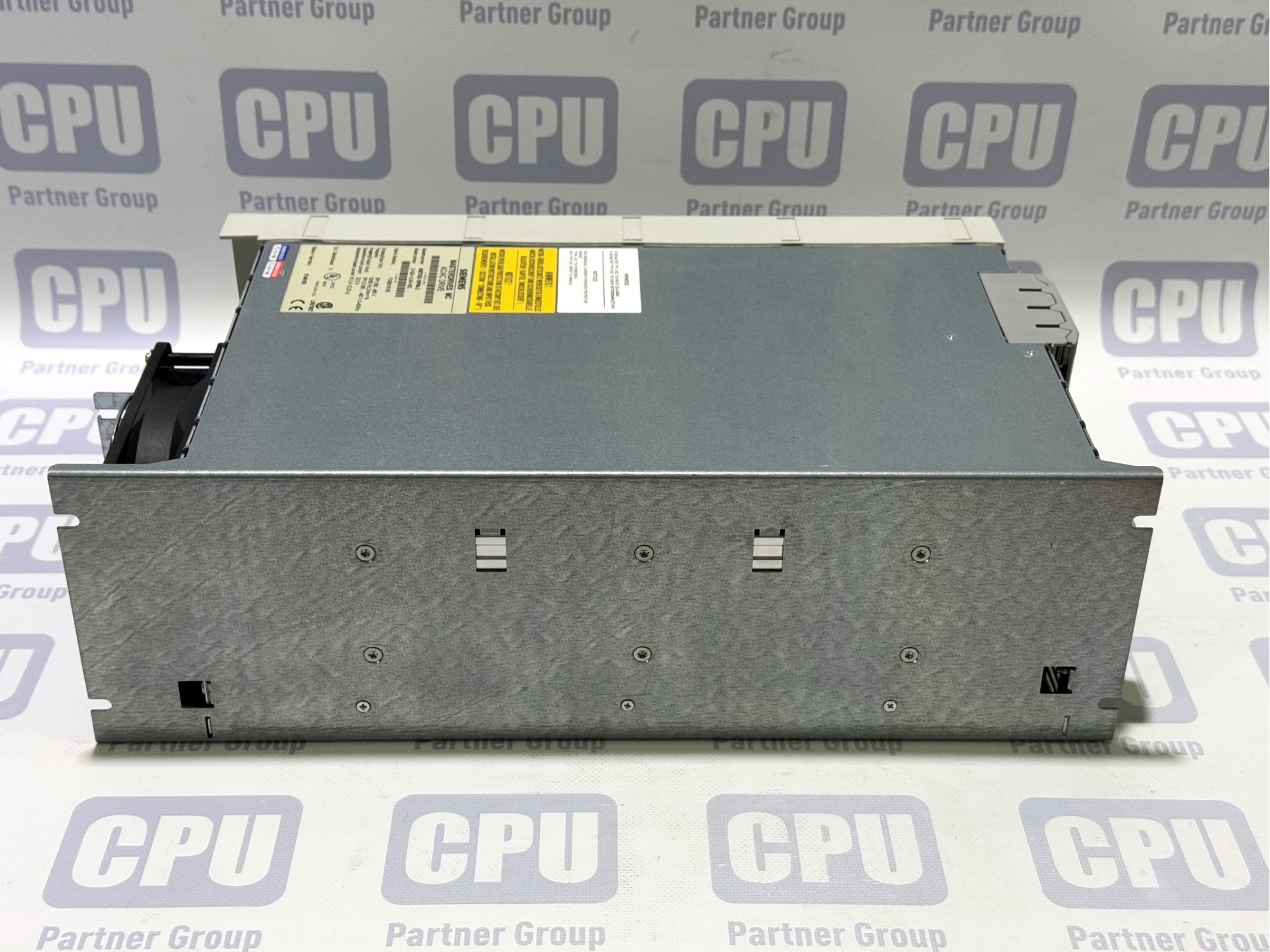

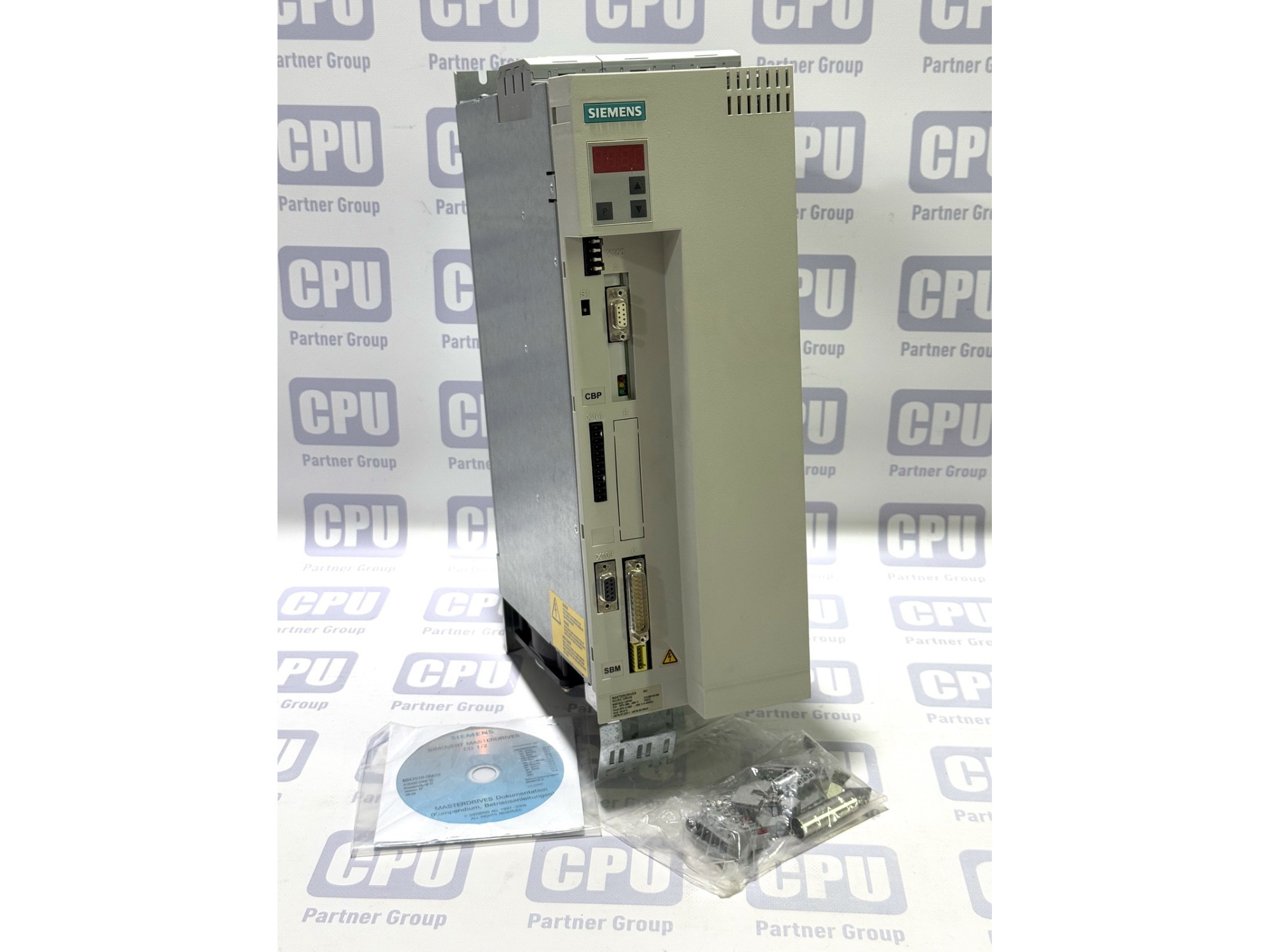

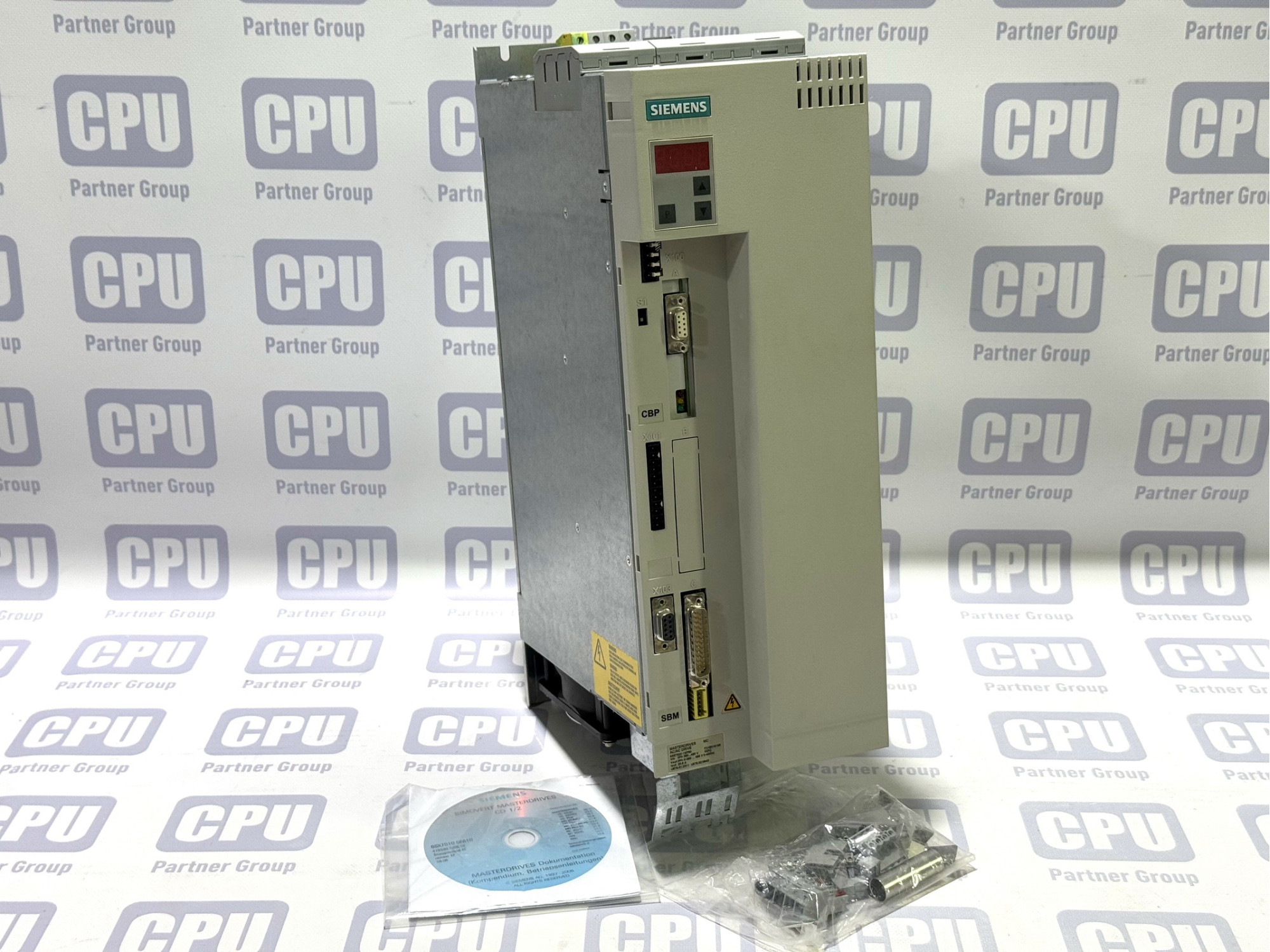

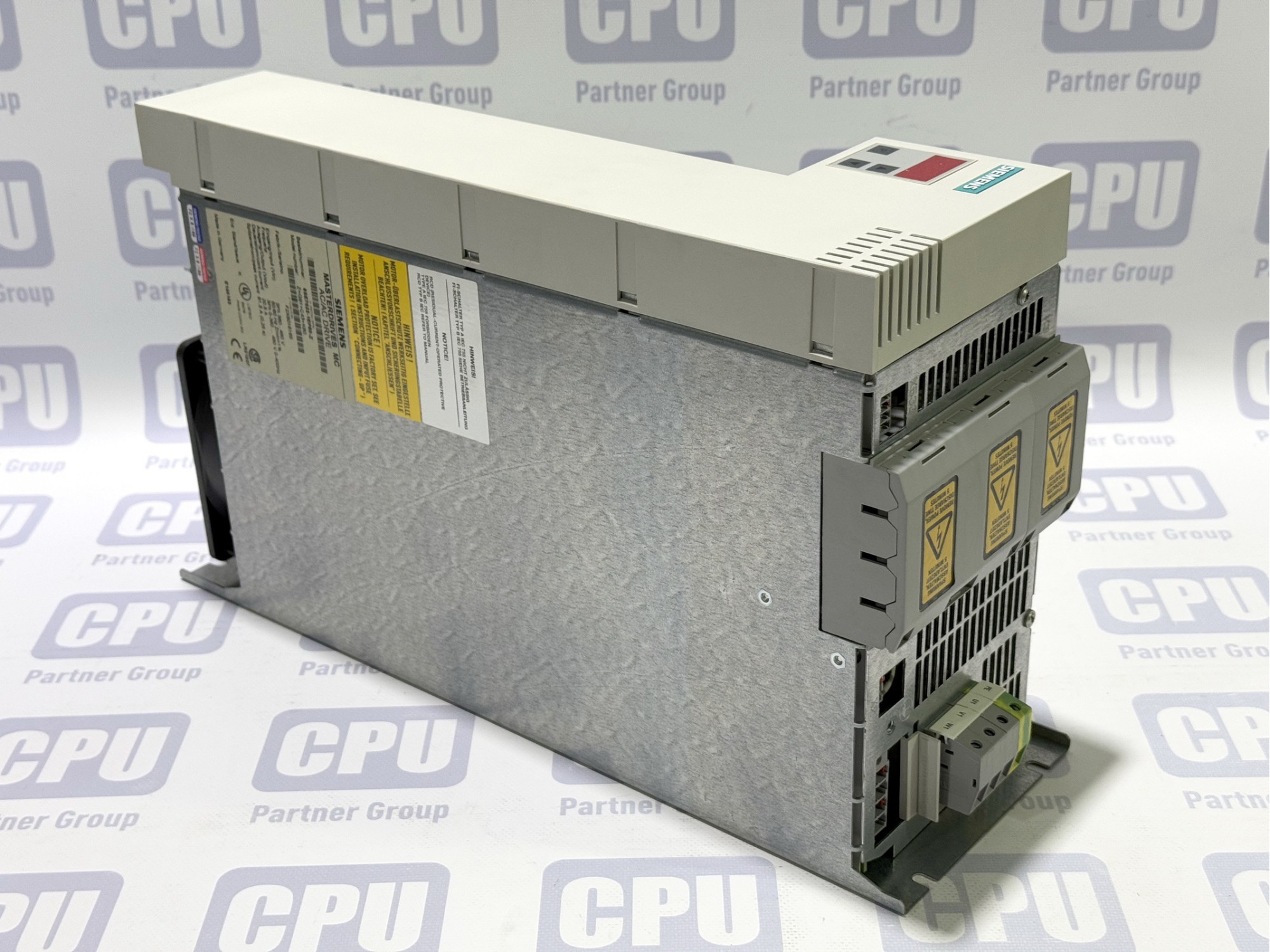

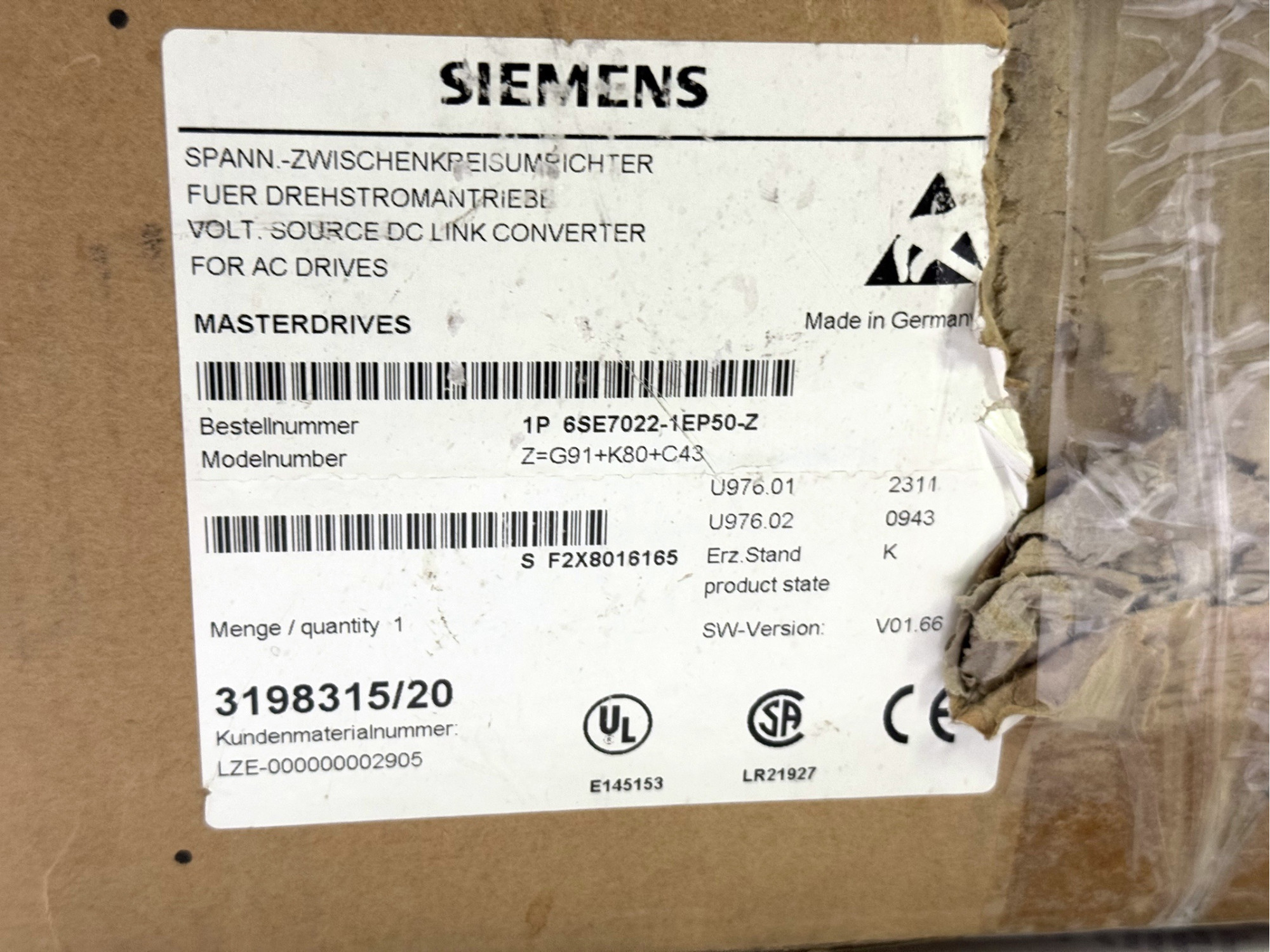

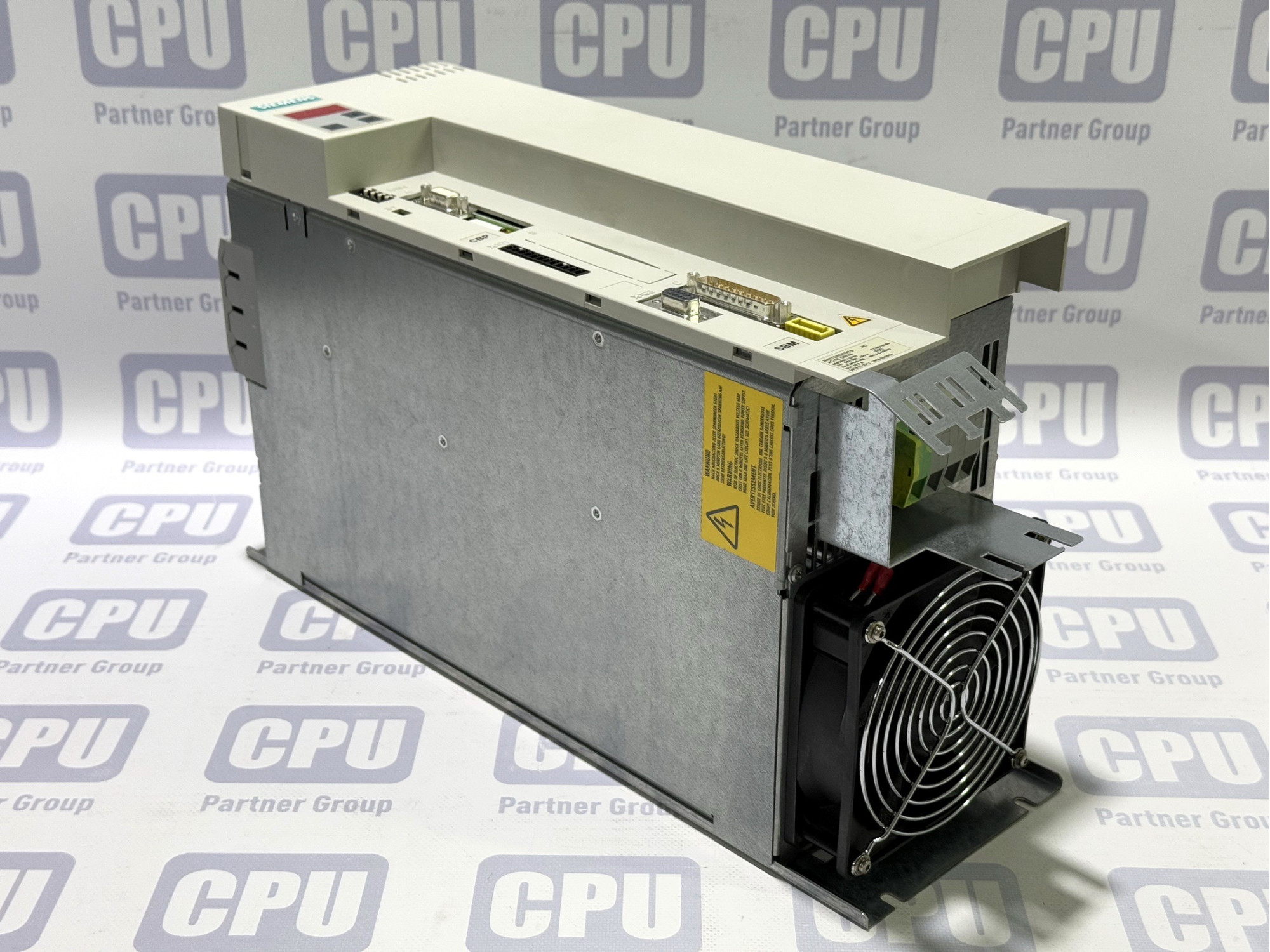

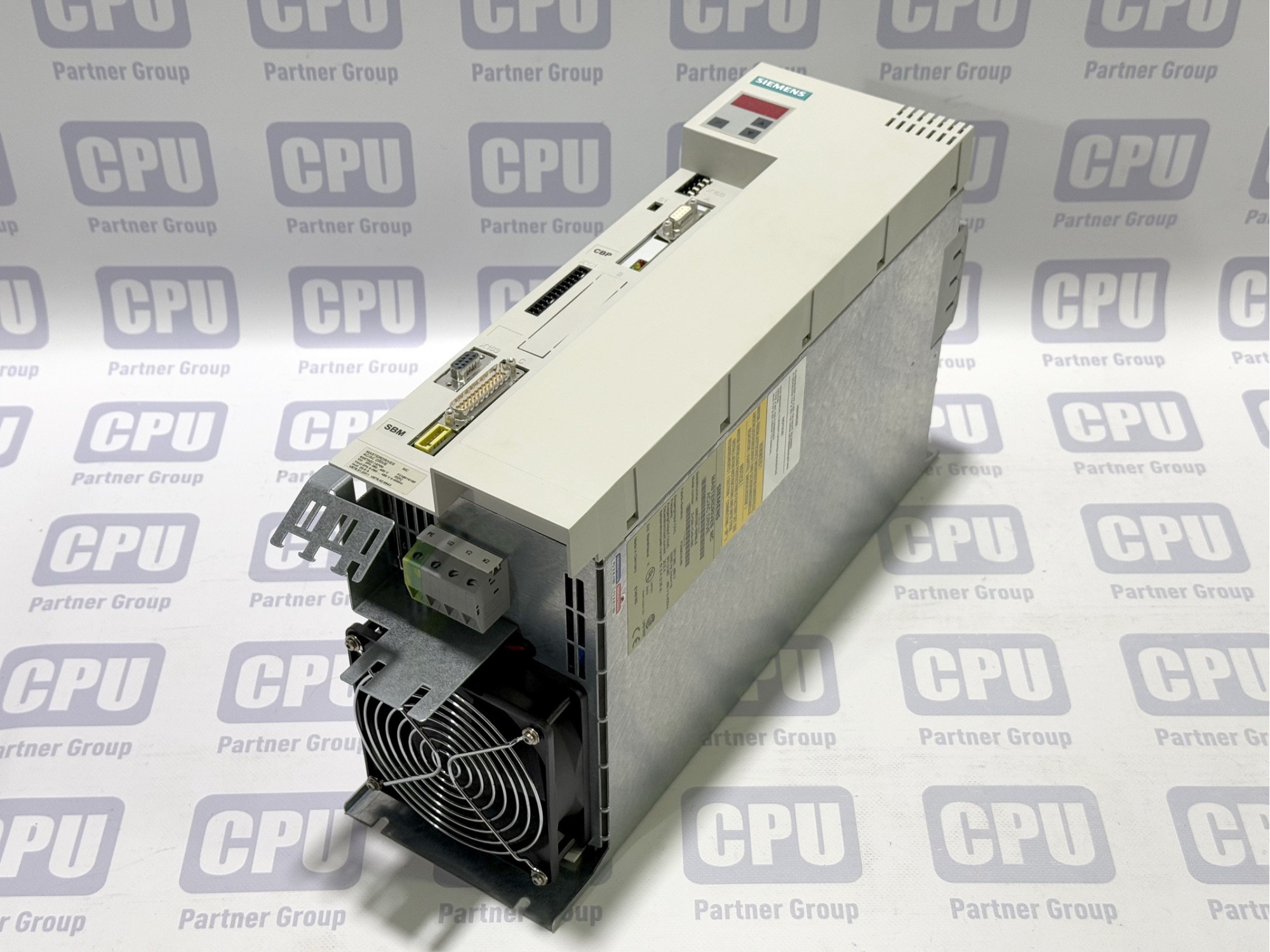

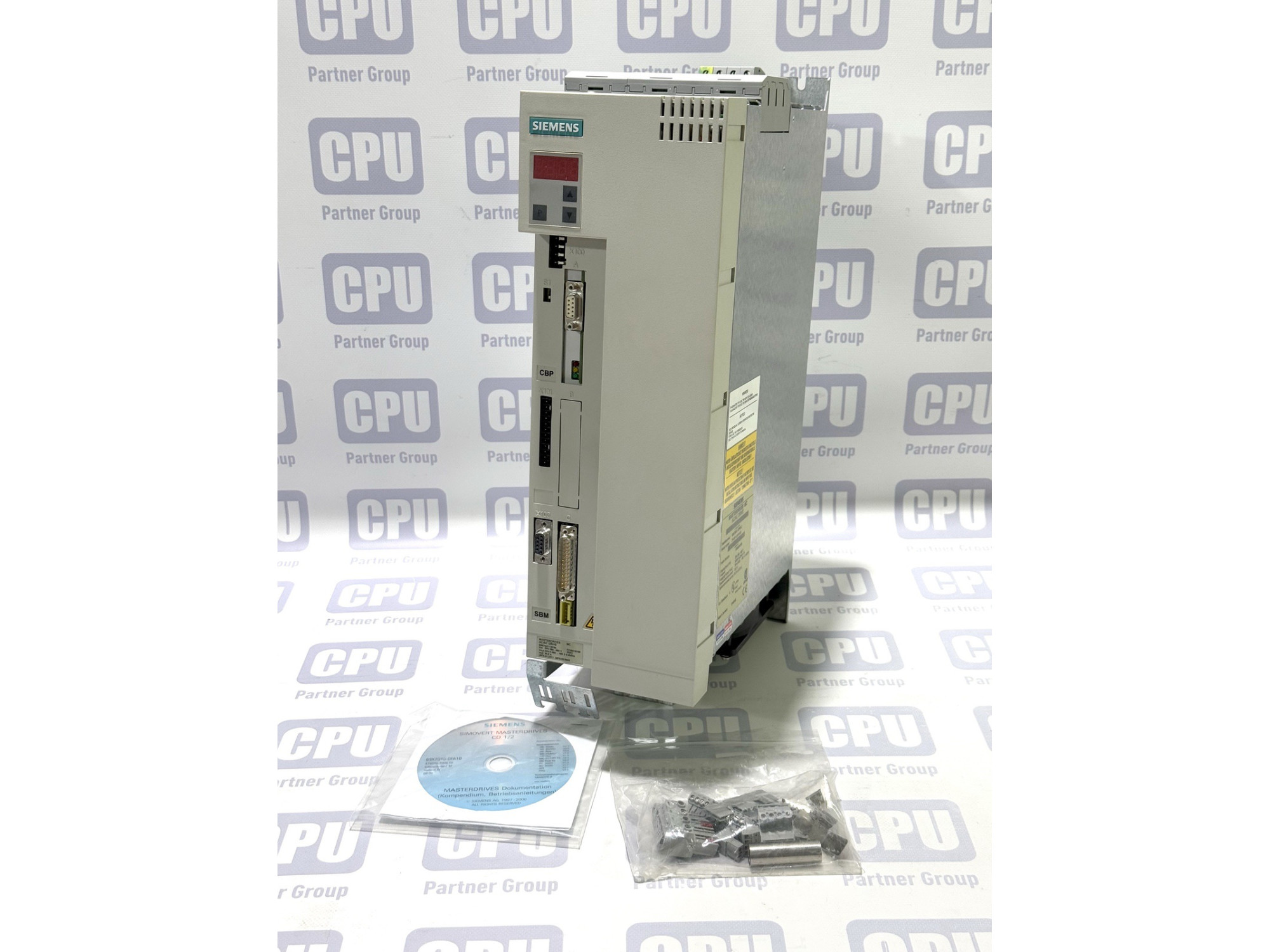

SIEMENS 6SE7022-1EP50-Z MASTERDRIVES MC AC/AC DRIVE

SIMOVERT MASTERDRIVES MC 6SE7022-1EP50-Z is used where high dynamics, precise positioning, and servo motor control are key requirements. The SIMOVERT MASTERDRIVES MC 6SE7022-1EP50-Z belongs to the SIMOVERT MASTERDRIVES MC (Motion Control) series. It is designed for high-dynamic servo drive tasks and motion control systems.

Main Areas of Application:

• CNC Machines: Control of feed axes and spindles where the highest positioning accuracy, speed, and dynamics are essential. This is critical for complex machining and high-speed cutting processes.

• Robotics: Servo drive control for performing fast, precise, and complex motion trajectories.

• Packaging Equipment: Servo drive control to ensure high-speed and synchronized operation during the movement of packaging materials and products.

• Textile Machines: Control of servo drives in high-speed and precision textile processes.

• Printing Machines: Servo control for precise movement of materials and print heads, which is critical for print quality.

• Hoisting and Conveying Equipment: Control of servo drives for accurate positioning of loads at high speeds, especially in automated warehouse systems.

• Other High-Dynamic Applications: Any tasks requiring precision motion control with very fast response and accurate positioning, such as in test benches, simulators, and special machinery.

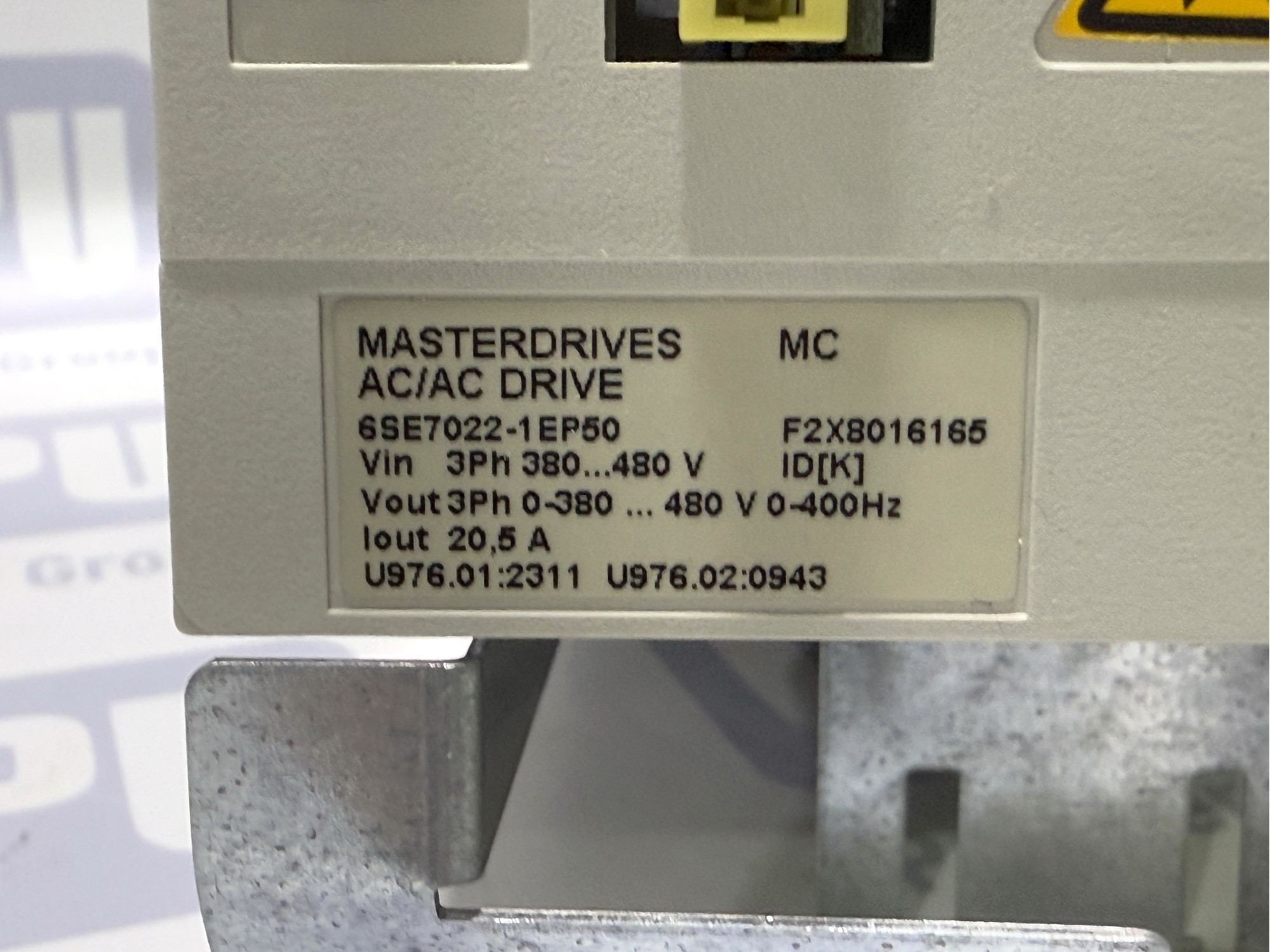

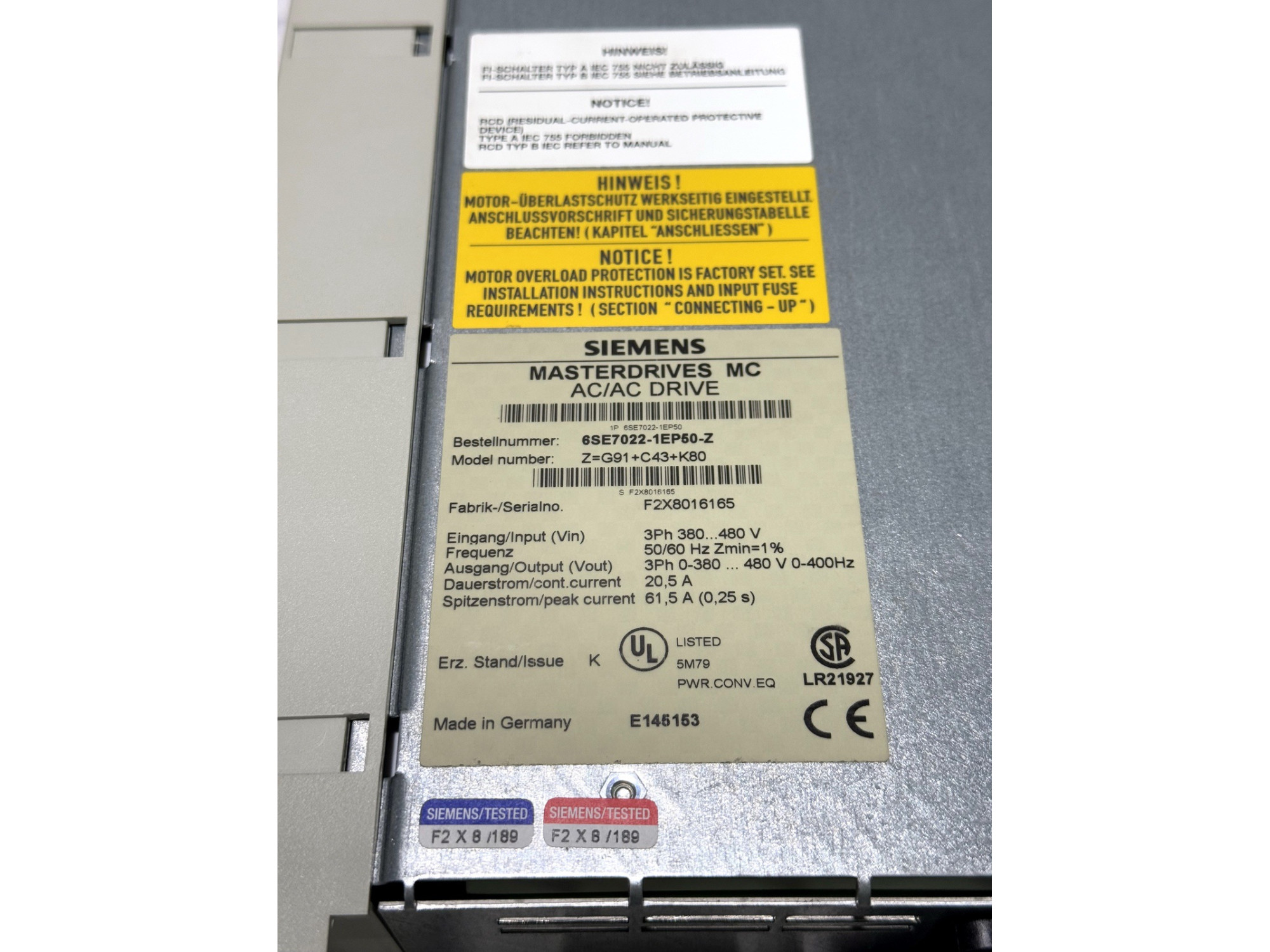

Specifications:

• Series: SIMOVERT MASTERDRIVES MC (Motion Control)

• Device Type: Compact Frequency Converter (Compact-Plus-Unit)

• Input Voltage: 3-phase, 380 V – 480 V

• Frequency: 50/60 Hz, Zmin=1%

• Output Voltage: 3-phase, 0 – 380 ... 480 V

• Output Frequency: 0 ... 400 Hz

• Rated Current: 20.5 A

• Maximum Current (for 0.25 s): 61.5 A

  On this page you will find the user manual for Siemens SIMOVERT MASTERDRIVES. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

  Mannual for Siemens SIMOVERT MASTERDRIVES

  https://cpupartnergroup.com/image/pdf/SIMOVERT%20MASTERDRIVES%20Braking%20Unit%20Operating%20Instructions.pdf
