General Description

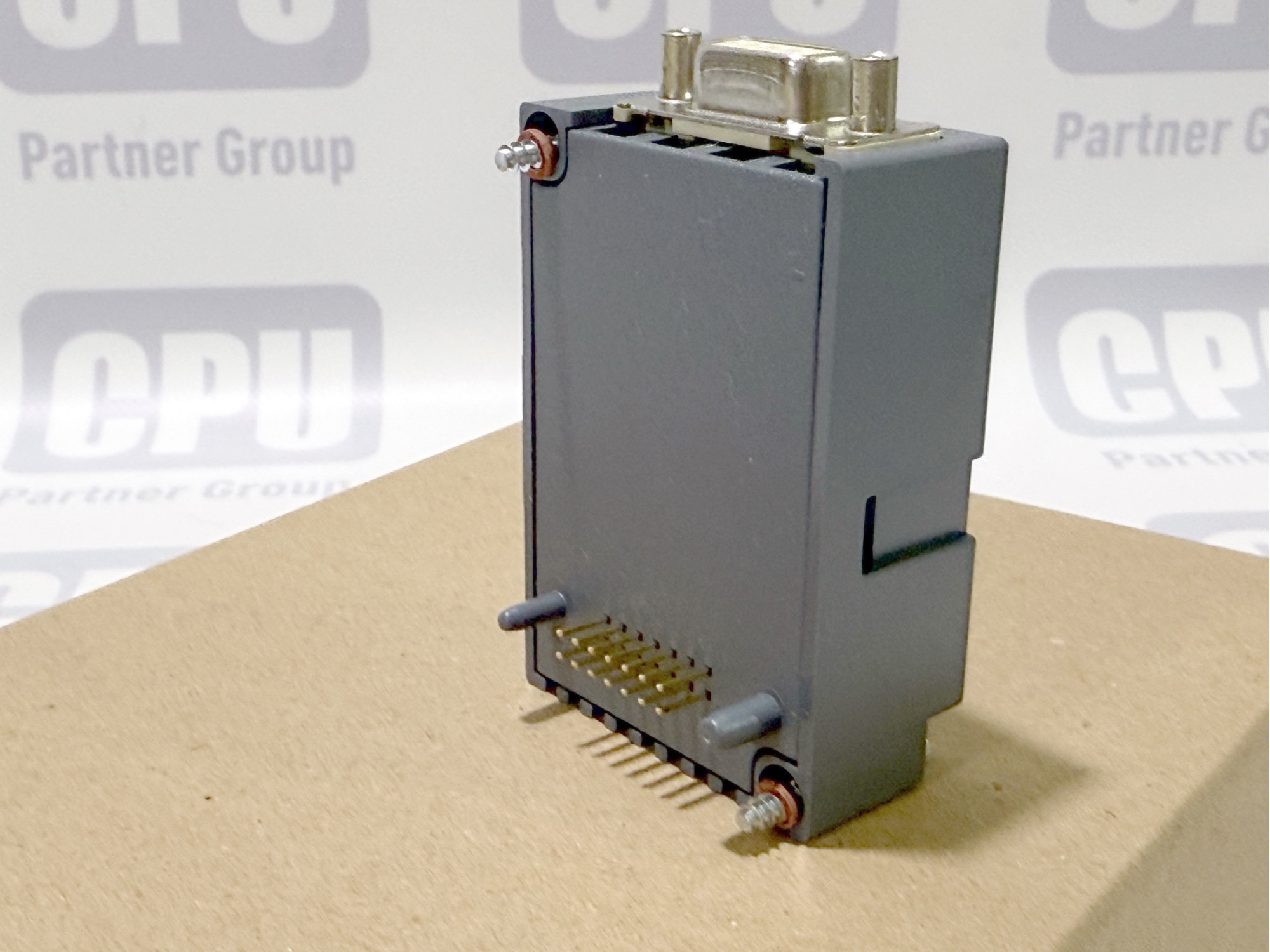

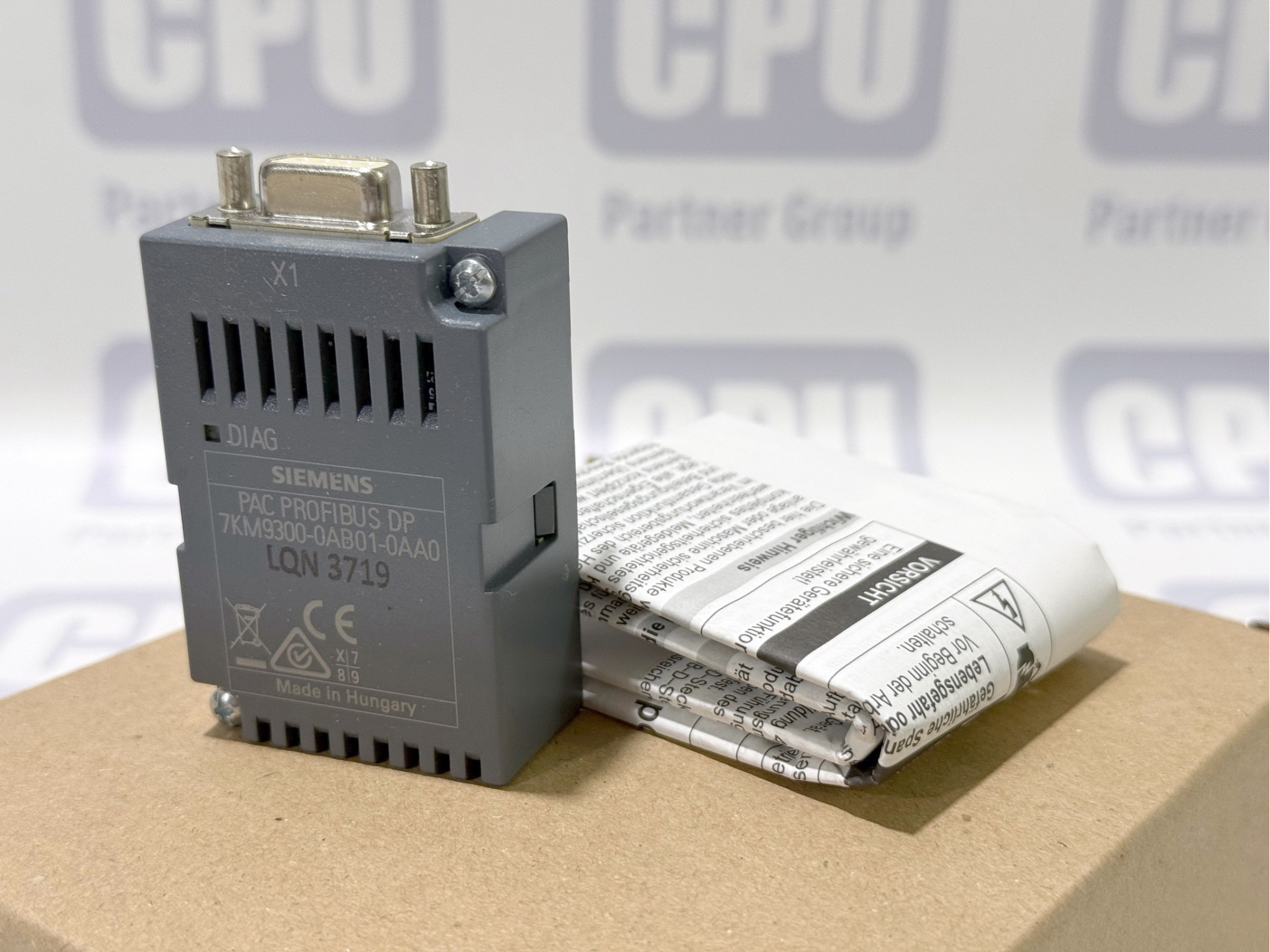

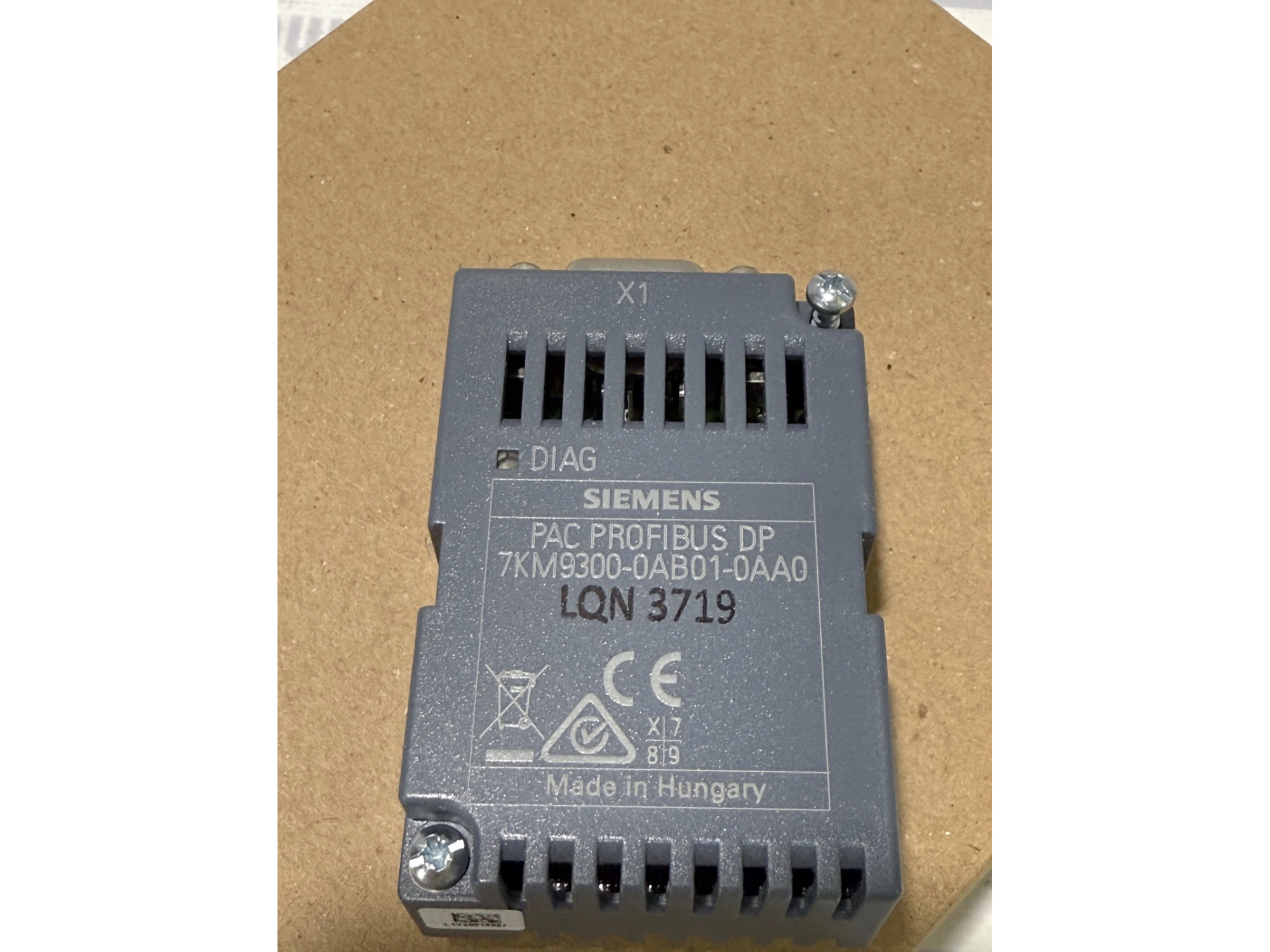

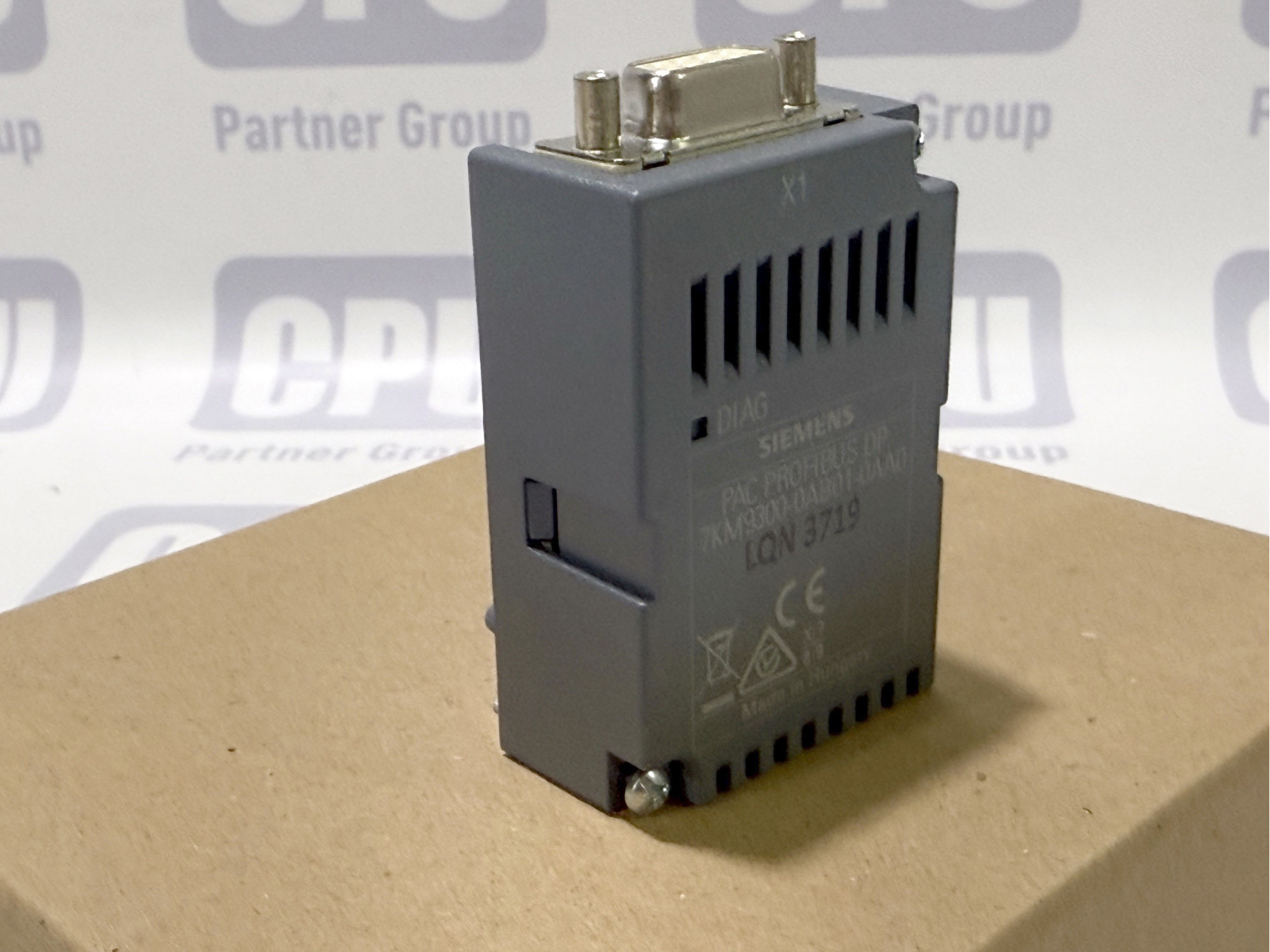

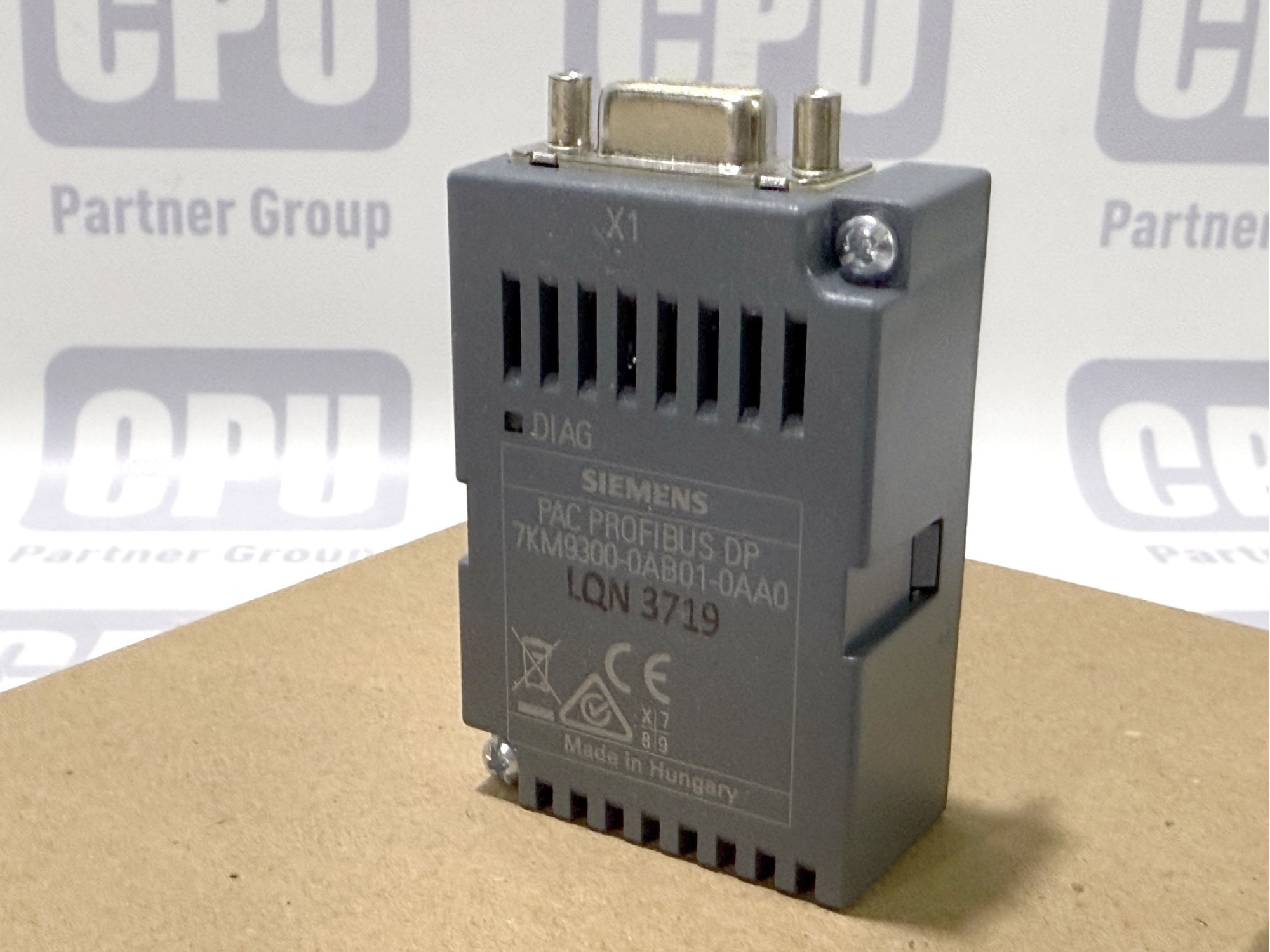

The 7KM9300-0AB01-0AA0 is a PROFIBUS DP expansion module designed for use with Siemens SENTRON devices, such as PAC3200, PAC3220, PAC4200 power meters, as well as communication modules COM100 and COM800. It enables integration of these devices into industrial PROFIBUS DP networks.

Main Specifications

• Module Type: Expansion module for installation into the corresponding device slot

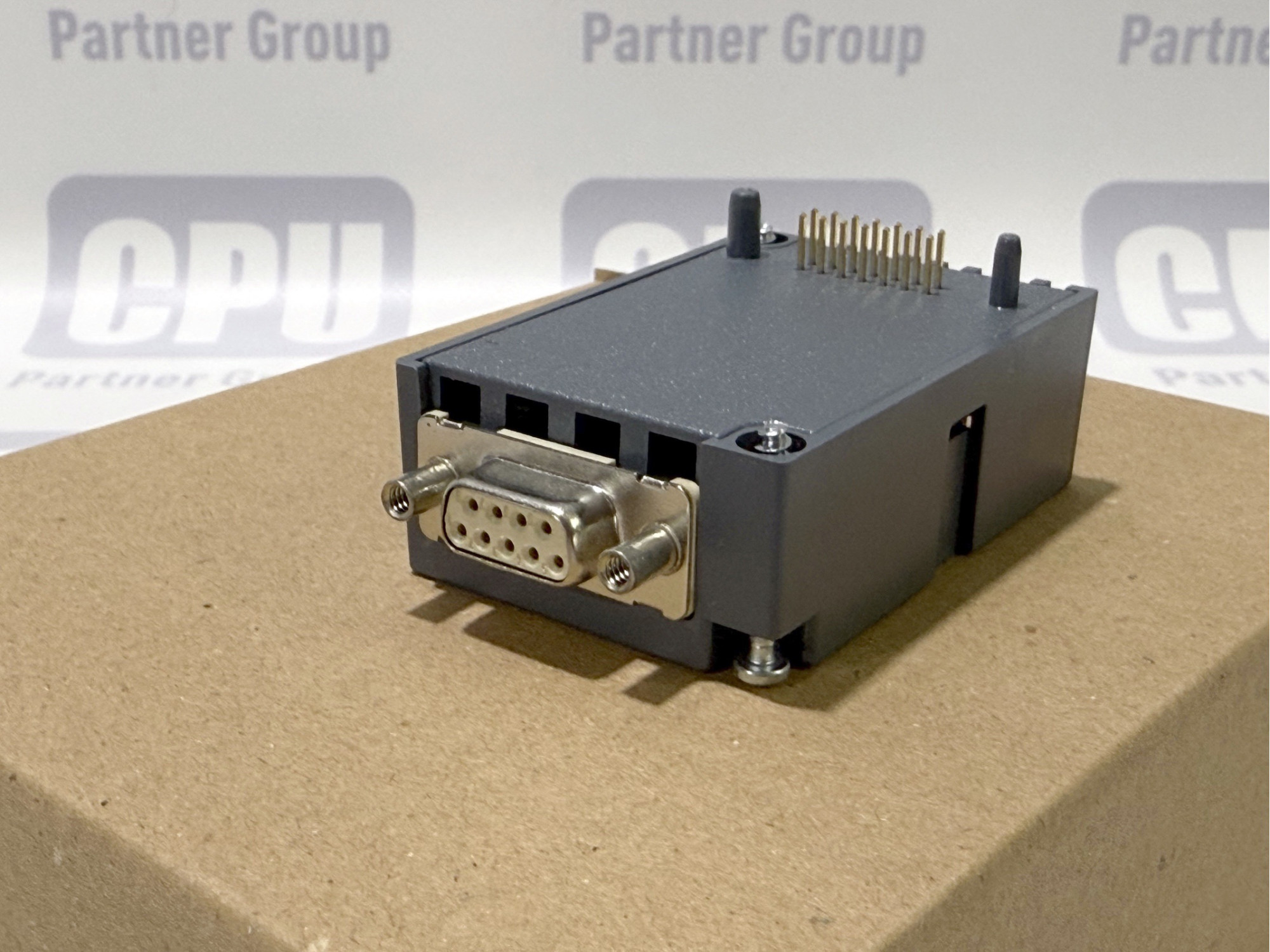

• Interface: 9-pin Sub-D connector, PROFIBUS DP standard

• Supported Protocol: PROFIBUS DP V0

• Maximum Data Transmission Speed: Up to 12 Mbit/s

• Data Structure Size: Up to 240 bytes of input data and 2 bytes of output data

• Galvanic Isolation: Up to 500 V AC between the module and the host device

• Power Supply: No external power supply required, powered by the base device

• PROFIBUS Address Setting: Via device display, configuration software, or PROFIBUS master

Mechanical and Environmental Parameters

• Dimensions: 63 × 43 × 22 mm

• Weight: Approx. 80 g

• Operating Temperature: –5 °C to +55 °C

• Storage Temperature: –25 °C to +70 °C

• Protection Rating: IP20

• Pollution Degree: Class 2 according to IEC 61131

• Housing Material: Flame retardant, class UL 94 V-0

• Mean Time Between Failures (MTBF): Approximately 141 years at 25 °C

Functional Features

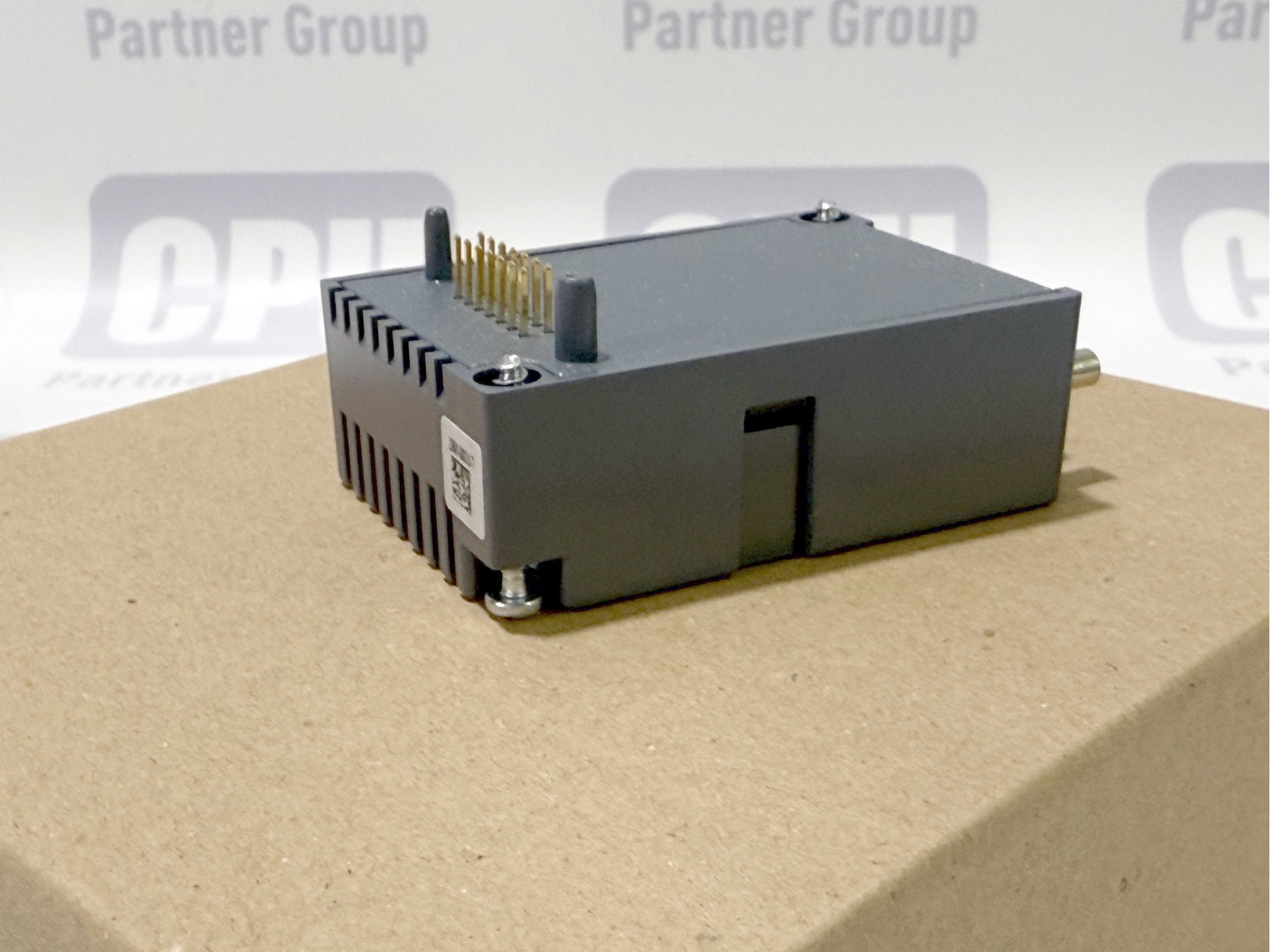

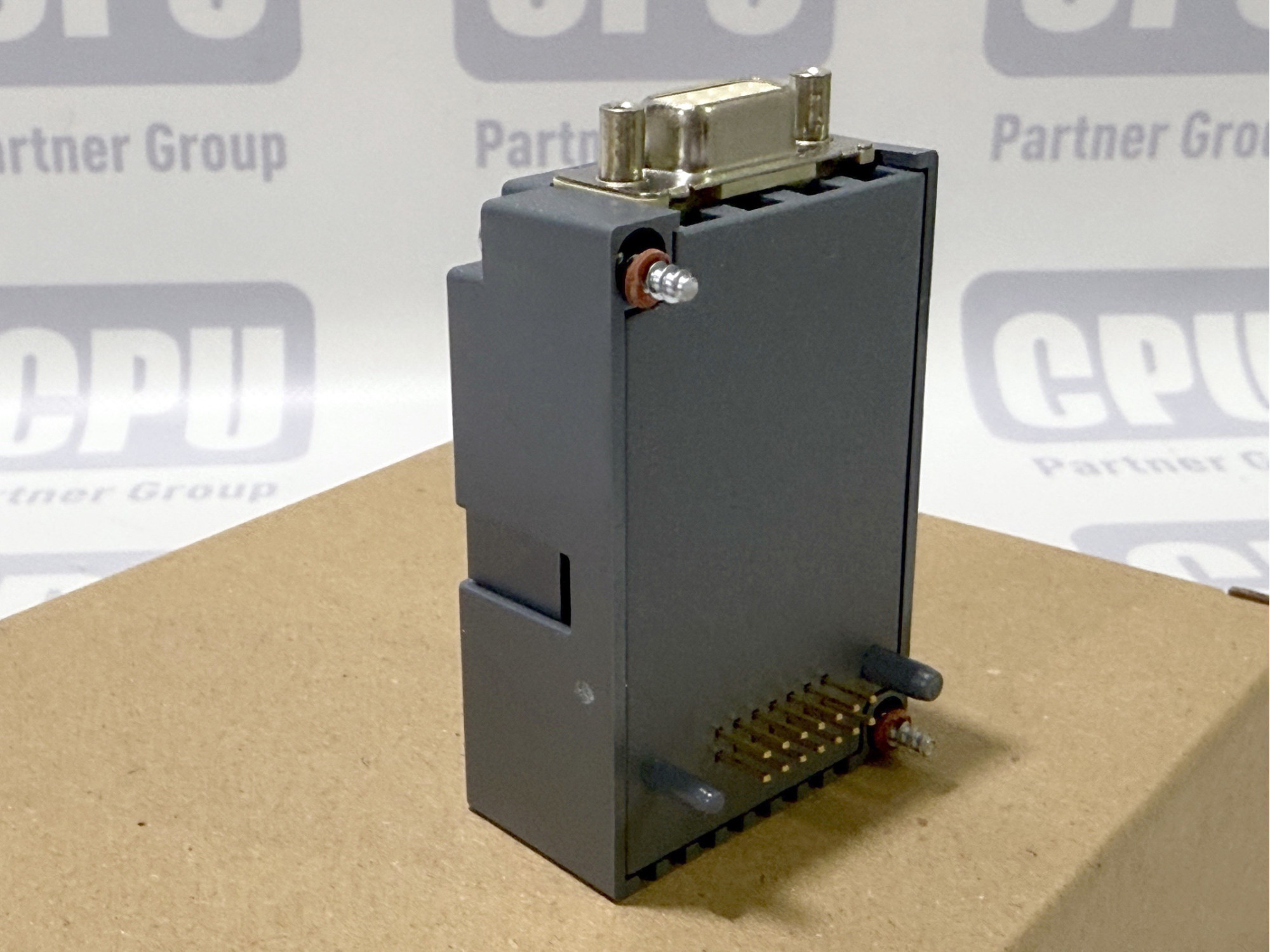

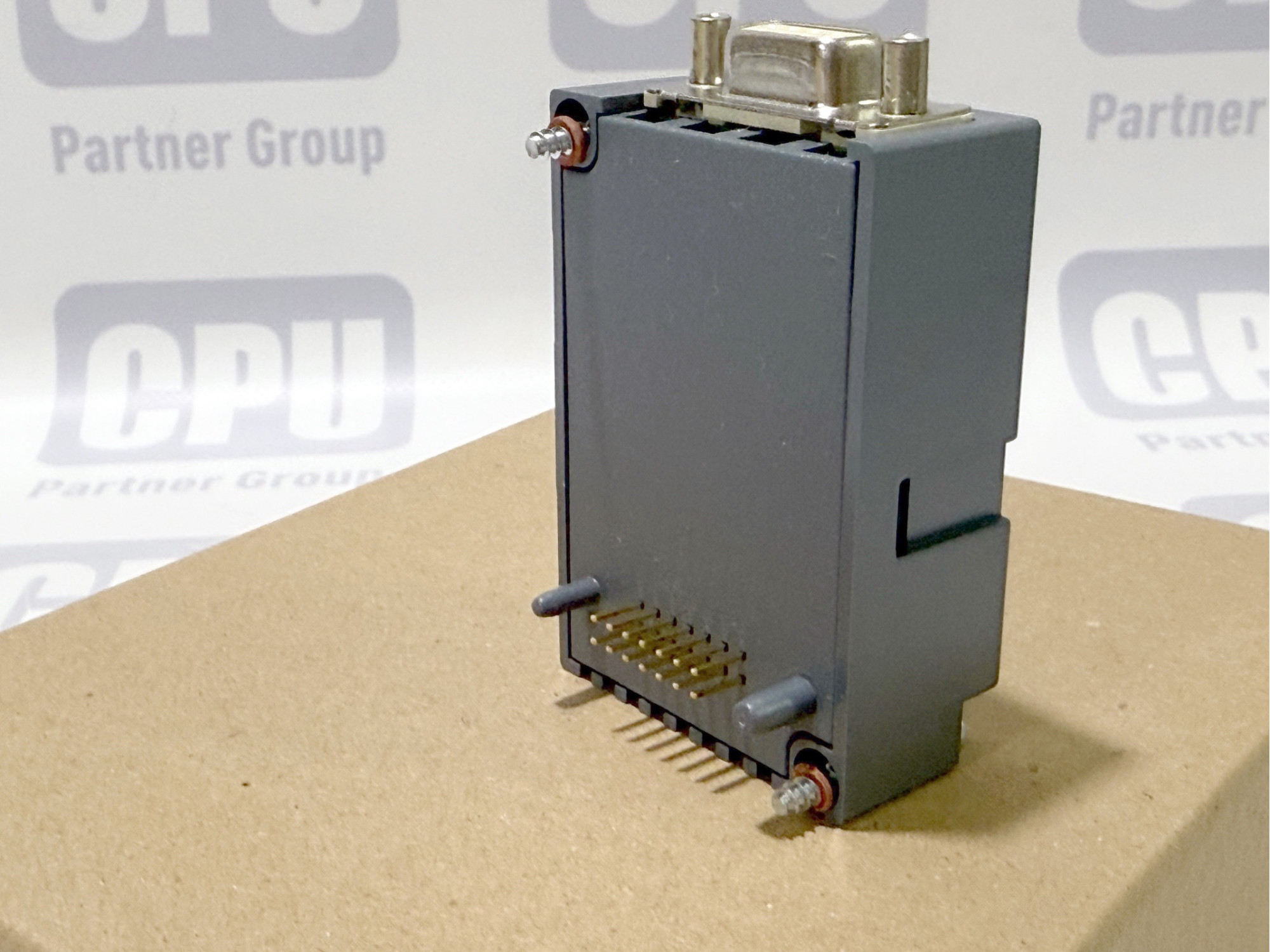

• Installed into an expansion slot (MOD1 or MOD2 depending on the device model)

• Transfers diagnostic signals and messages from the base device to the PROFIBUS network

• Does not support PROFIBUS DPV1 features (such as SYNC, FREEZE, etc.)

• Provides reliable and stable data exchange in cyclic mode

• Can be automatically detected in configuration software (e.g., TIA Portal)

Application
This module is intended for industrial applications where Siemens measuring devices or intelligent circuit breakers need to be connected to a PROFIBUS network. It ensures fast and reliable communication with the control system, enabling real-time transfer of energy parameters, statuses, and diagnostics.
