Siemens Sinamics PM240-2 6SL3210-1PB13-8AL0 / 6SL3244-0BB12-1BA1

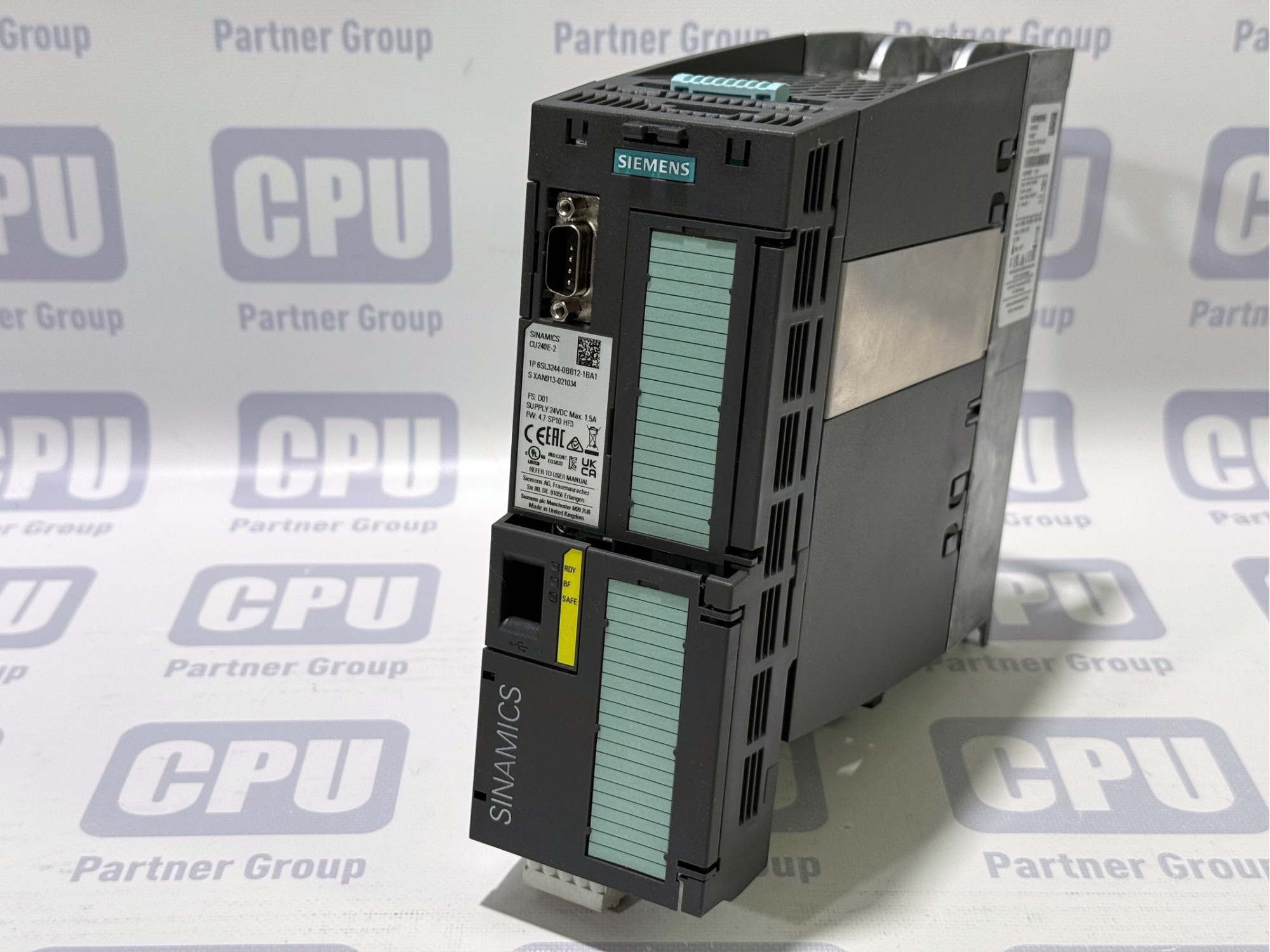

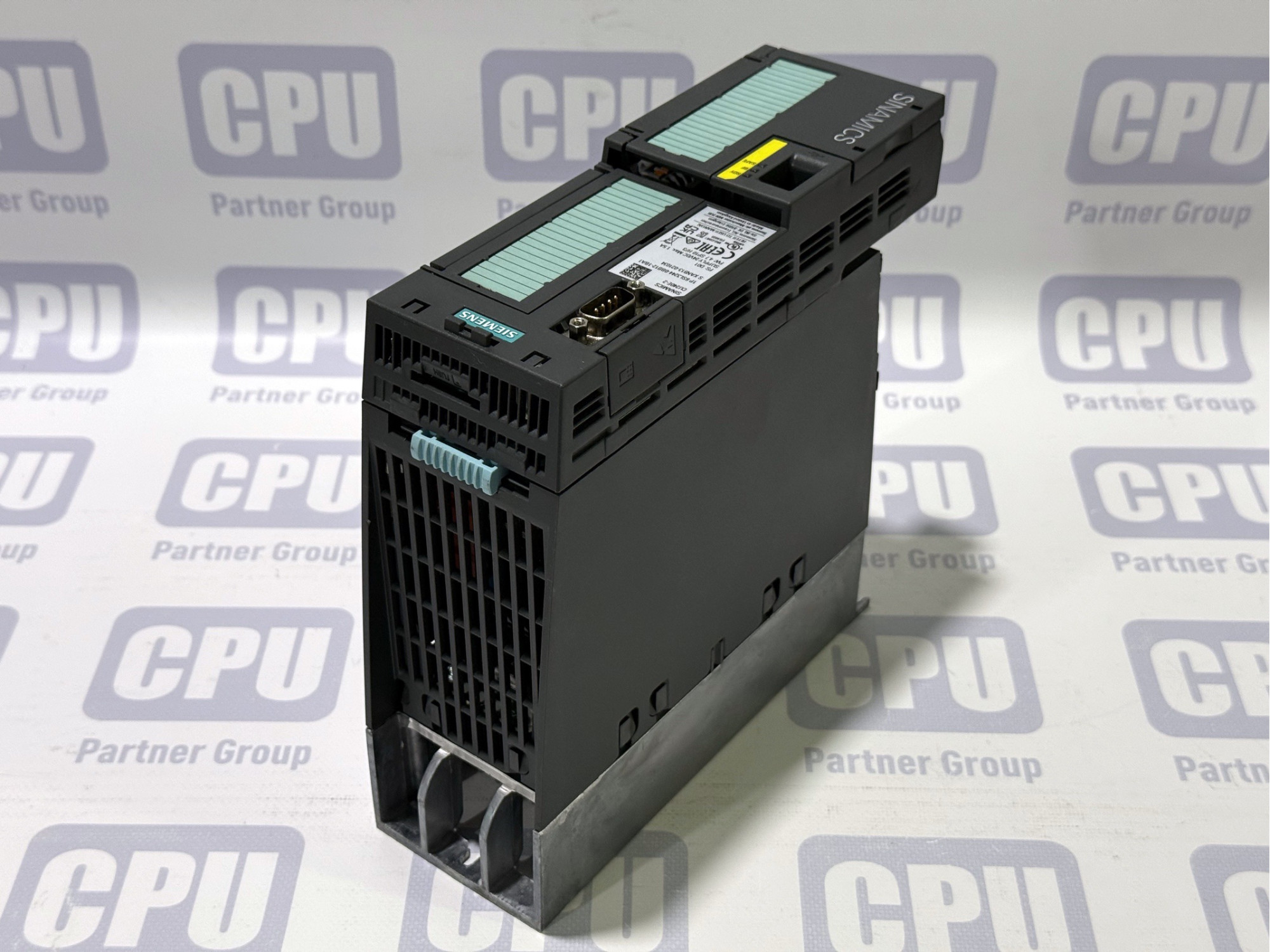

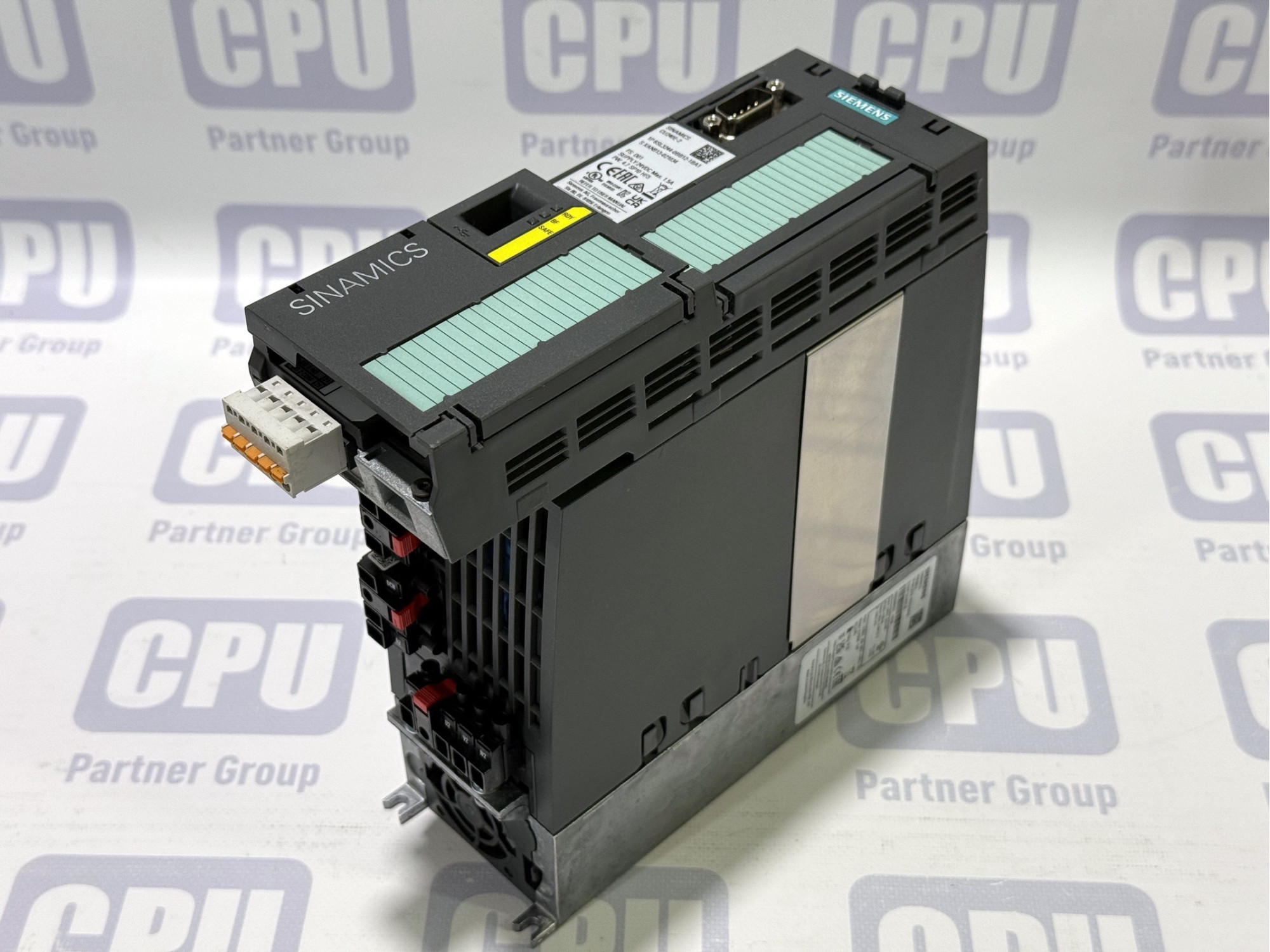

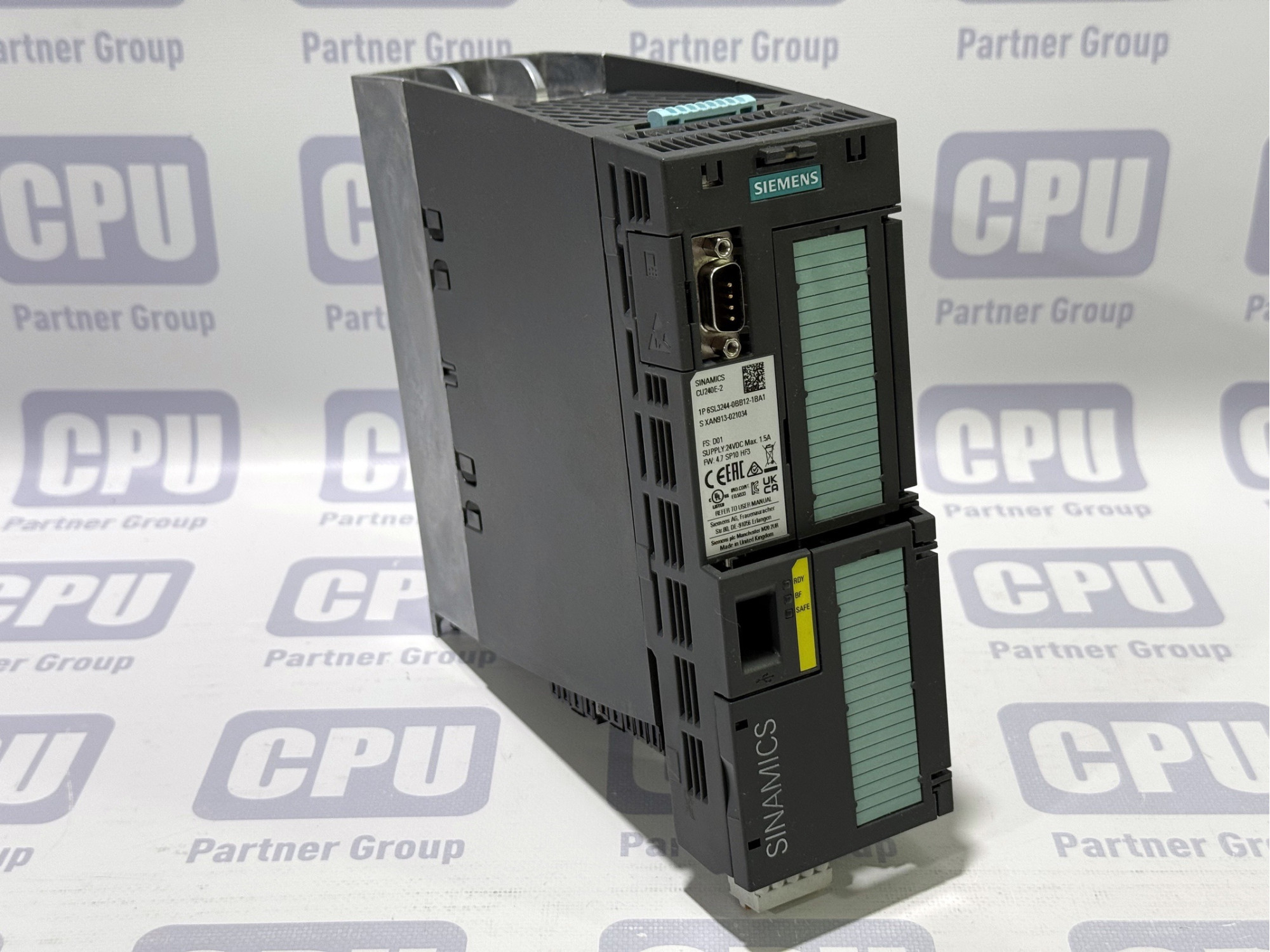

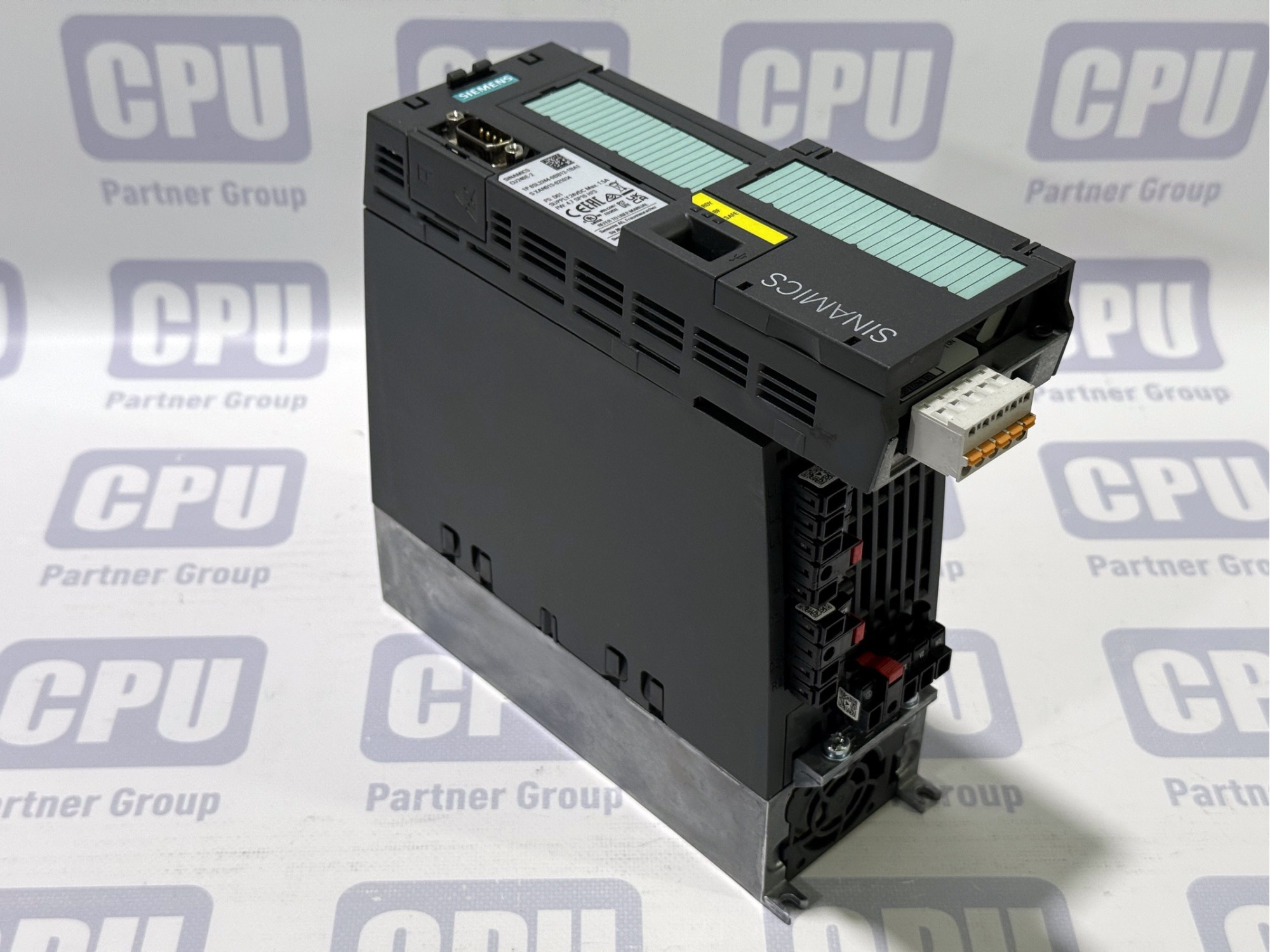

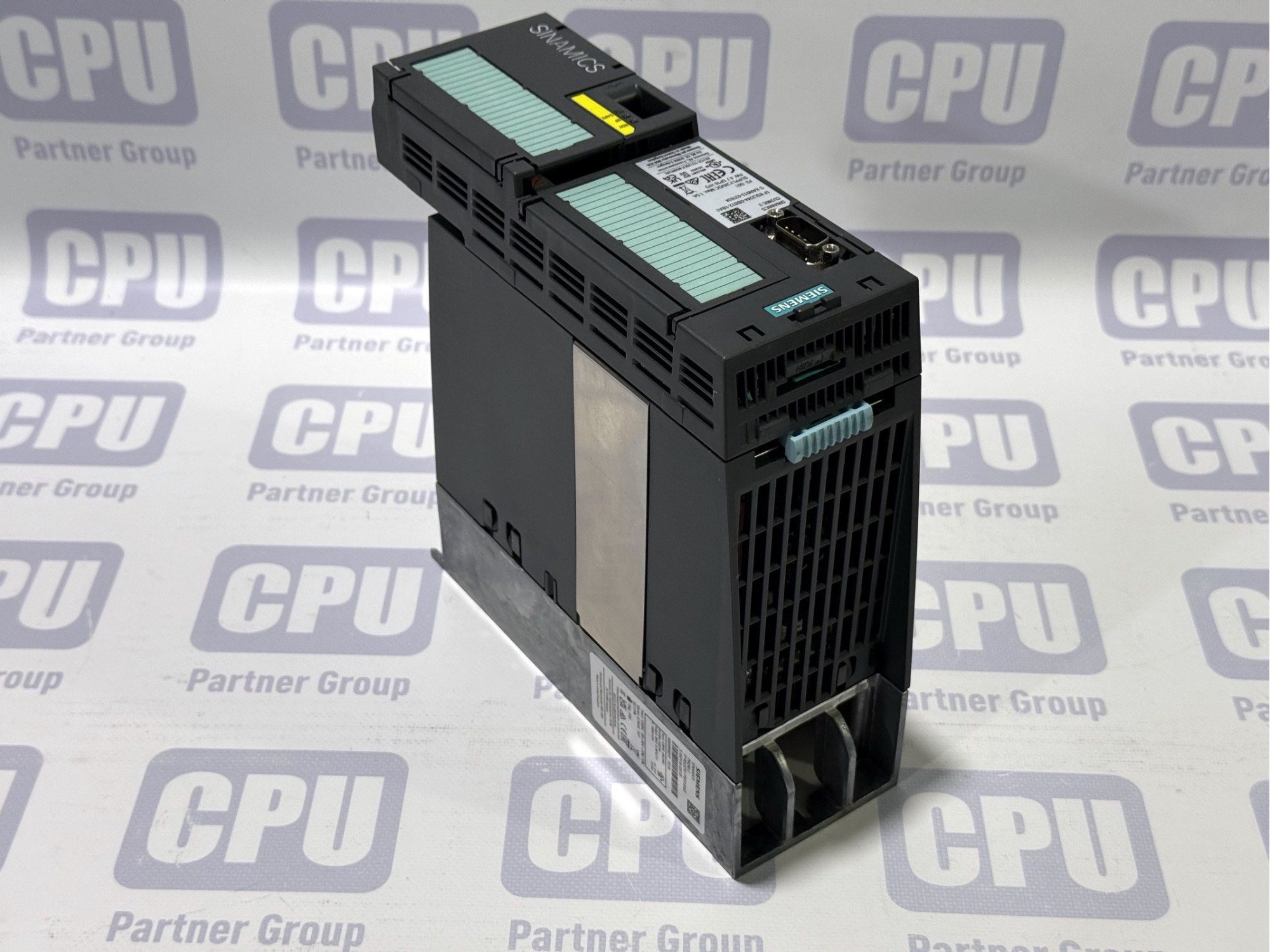

Siemens SINAMICS G120 Drive System (Single-Axis) comprising Power Module PM240-2 and Control Unit CU240E-2

Introducing a ready-to-use single-axis drive system from the modular Siemens SINAMICS G120 range, consisting of the Power Module PM240-2 and the Control Unit CU240E-2. This combination offers a flexible and efficient solution for a wide spectrum of speed control tasks in industrial automation.

System Components:

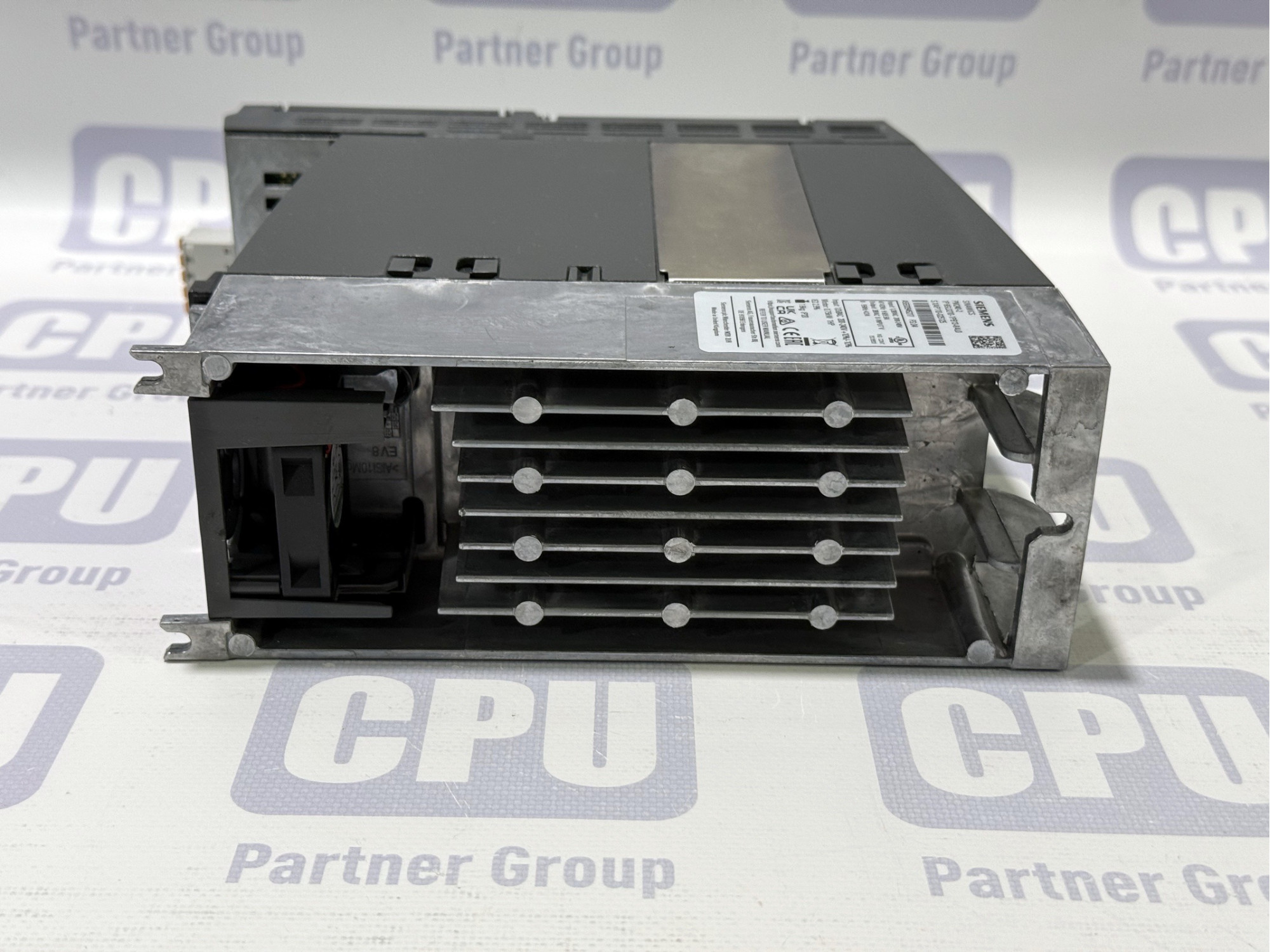

Siemens SINAMICS Power Module PM240-2 (6SL3210-1PB13-8AL0):

Responsible for supplying power to the electric motor.

Type: Blocksize construction, Frame Size FSB.

Input Voltage: 3 AC 380-480V.

Output Power: 1.1 kW (at Low Overload - LO) / 0.75 kW (at High Overload - HO).

Terminals: Convenient Push-in terminals.

Integrated Filter: Class A filter for EMC compliance.

Cooling: Internal air cooling.

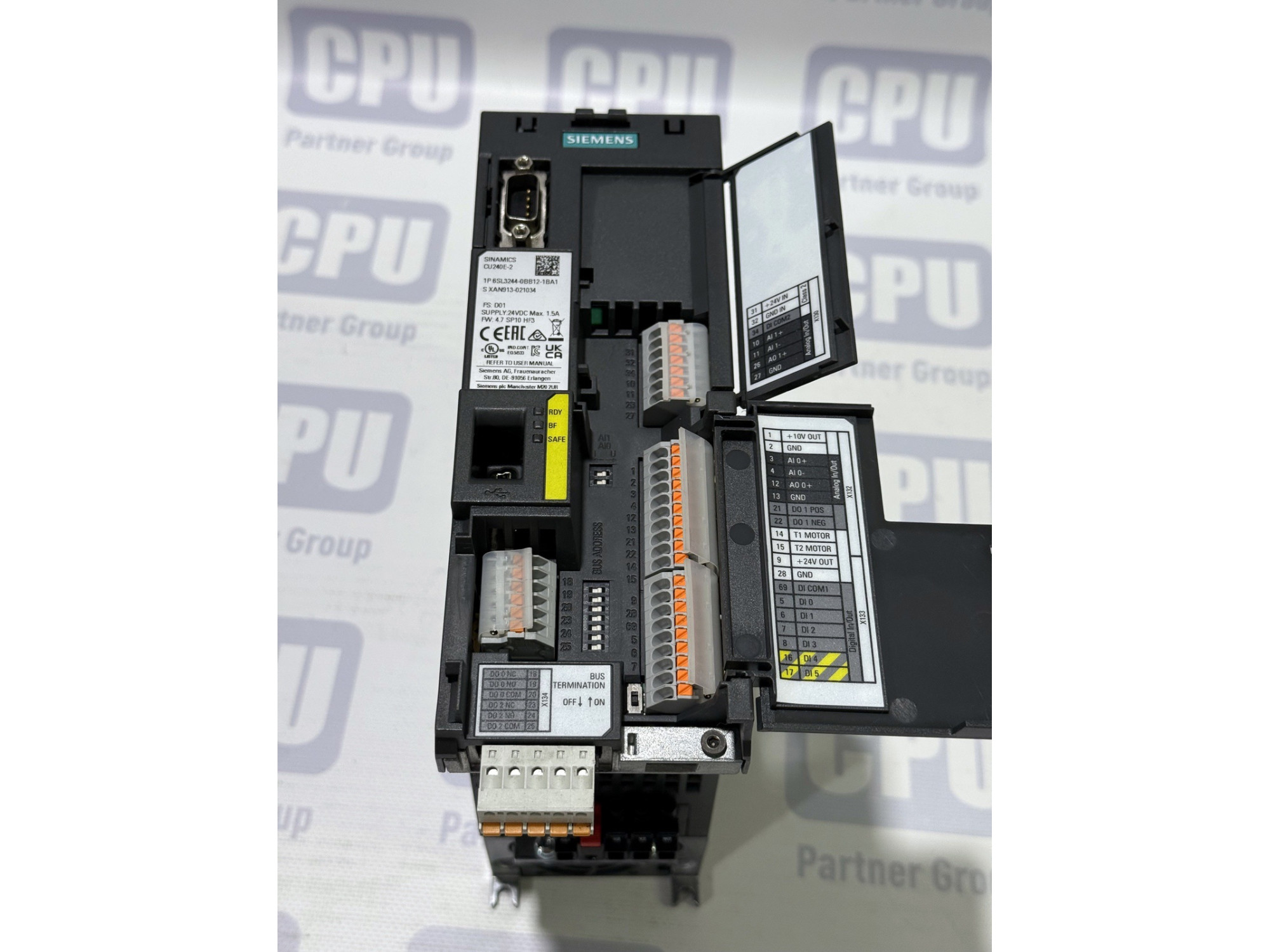

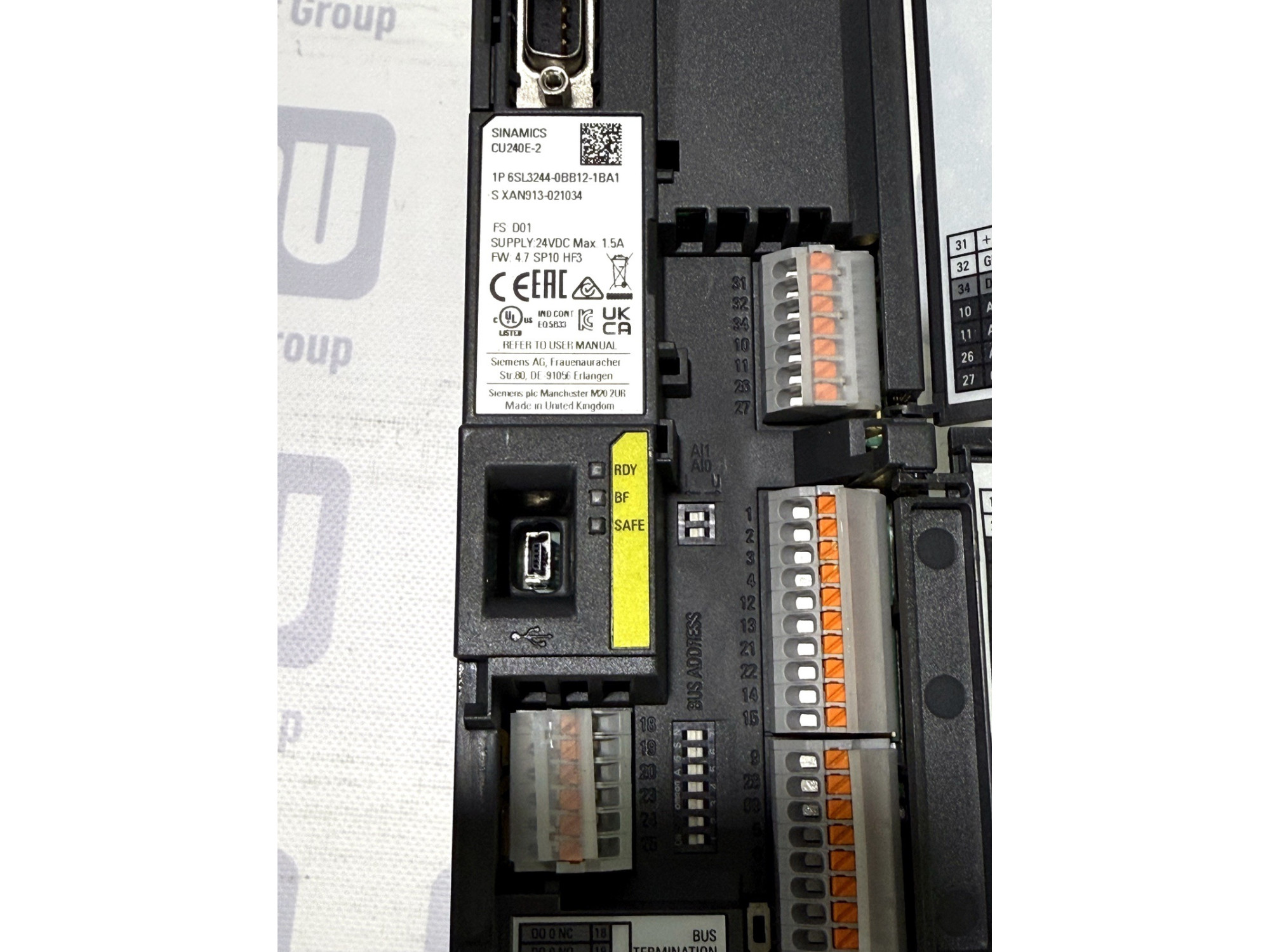

Siemens SINAMICS Control Unit CU240E-2 (6SL3244-0BB12-1BA1):

Acts as the "brain" of the drive, performing control and monitoring functions.

Type: CU240E-2, E-type (with extended I/O and integrated safety functions).

Communication Interface: RS485 supporting USS and Modbus RTU protocols for integration into automation systems.

Integrated Safety: Safe Torque Off (STO) function.

Inputs/Outputs: 6 digital inputs, 3 digital outputs, 2 analog inputs, 2 analog outputs, and a motor temperature sensor input.

Interfaces: USB and slots for SD/MMC cards for commissioning and diagnostics.

Purpose and Application:

Together, these SINAMICS G120 modules form a complete frequency inverter for controlling a single motor. It is ideally suited for standard machine building tasks such as:

Conveyors and material handling systems

Pumps and fans (general industrial)

Mixers and agitators

Simple lifting mechanisms

The modular design of the G120 provides flexibility in configuration and maintenance, while integrated safety functions and standard industrial interfaces make this system a reliable choice for modern production lines.
