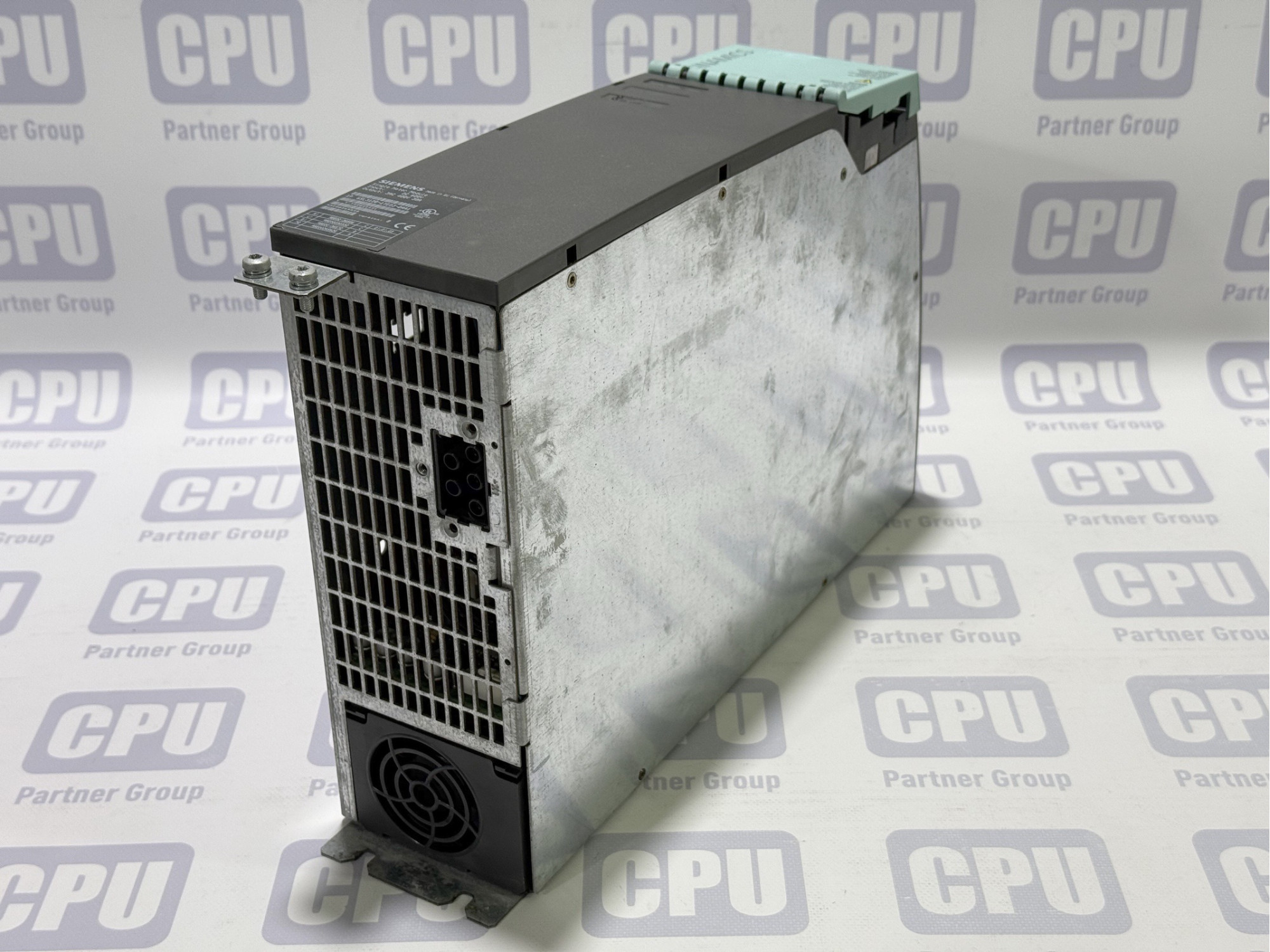

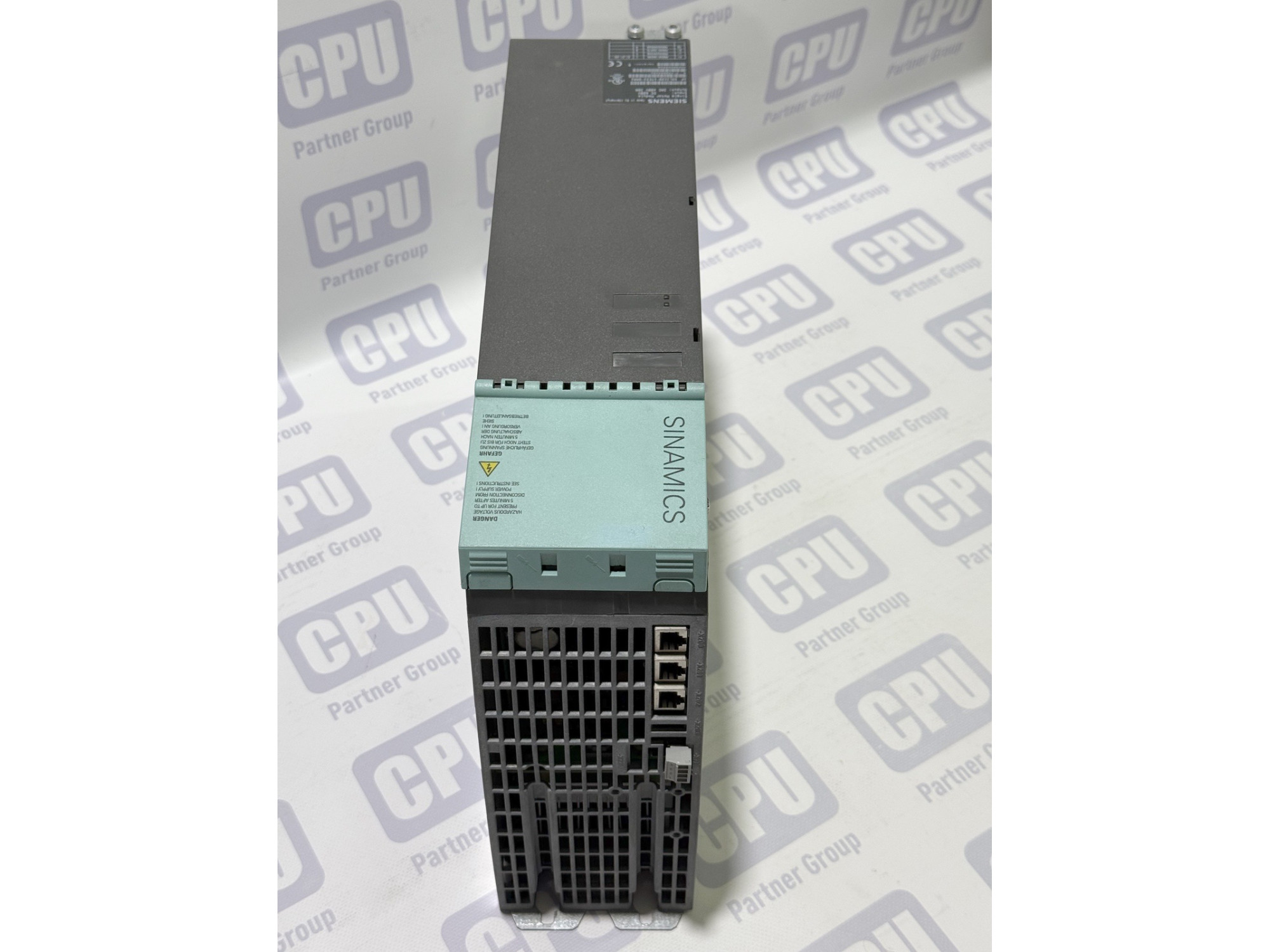

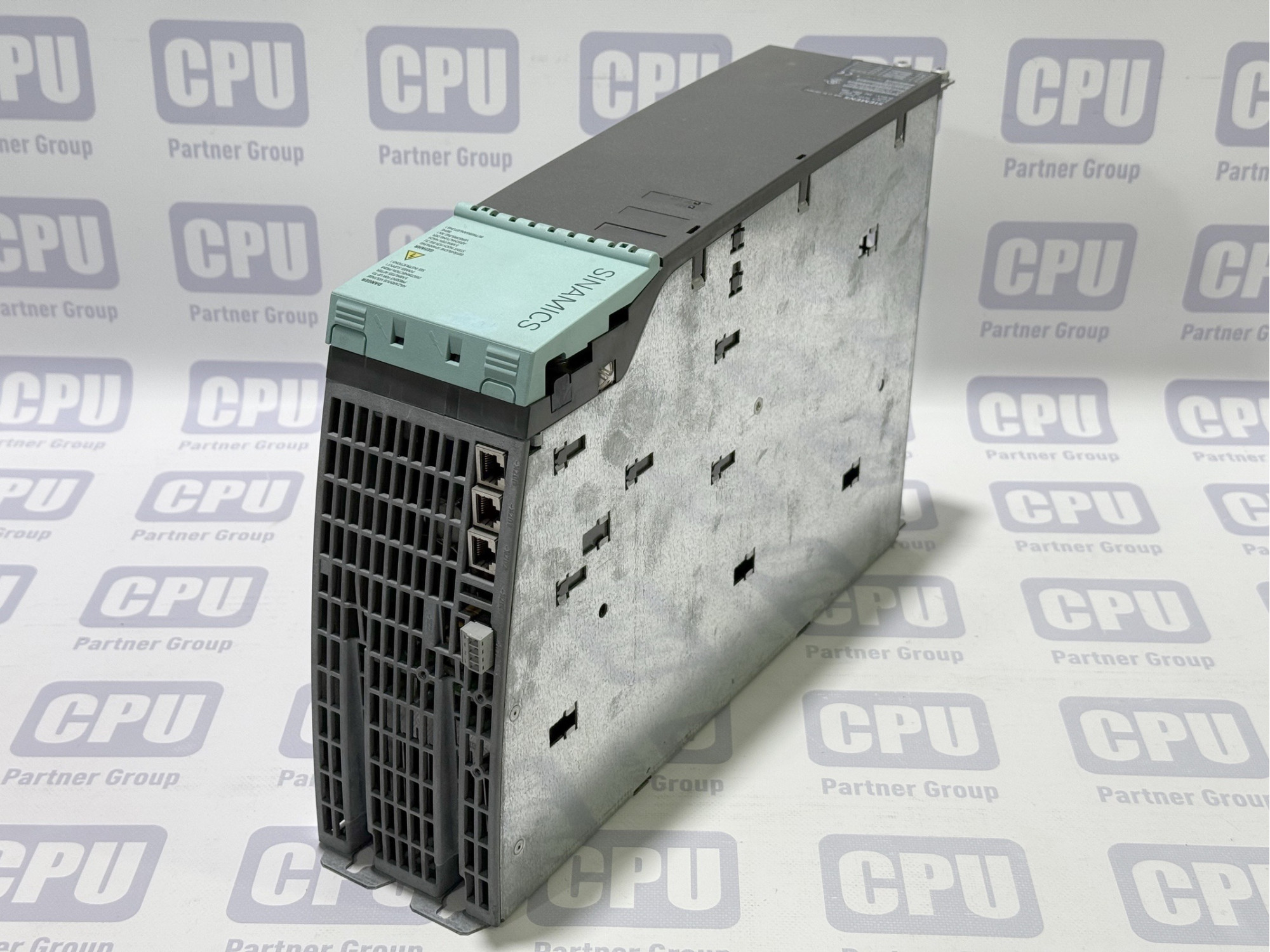

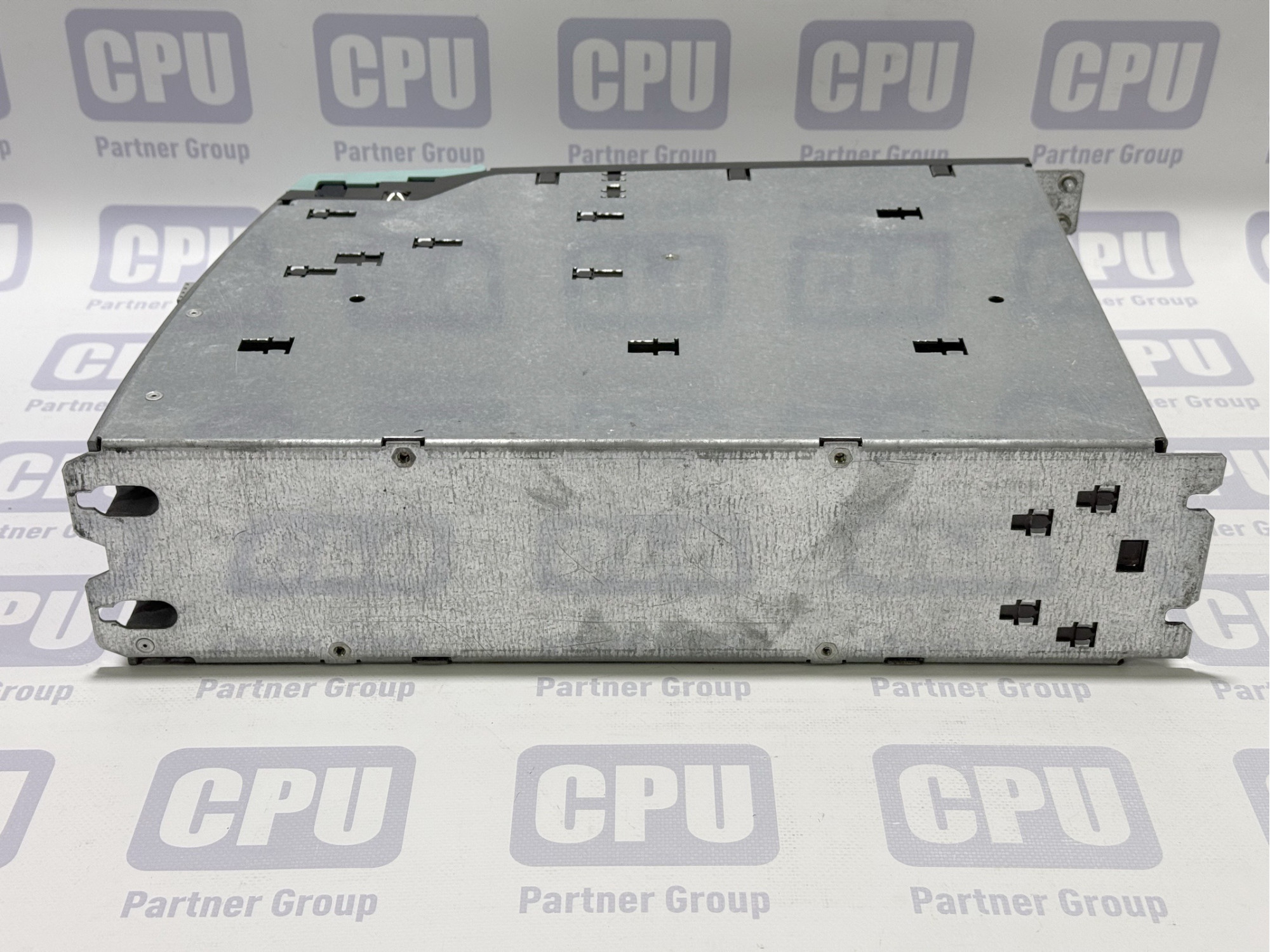

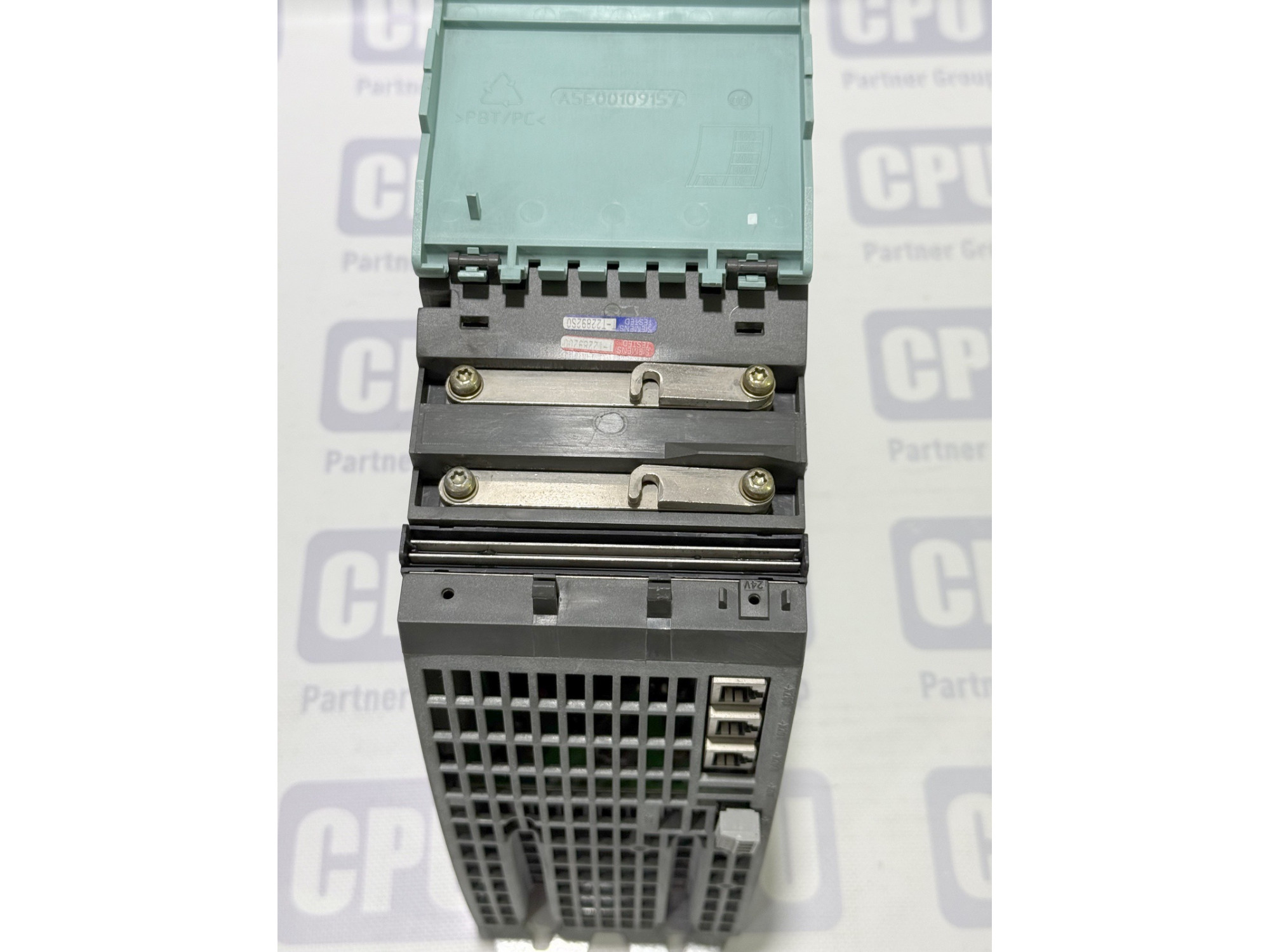

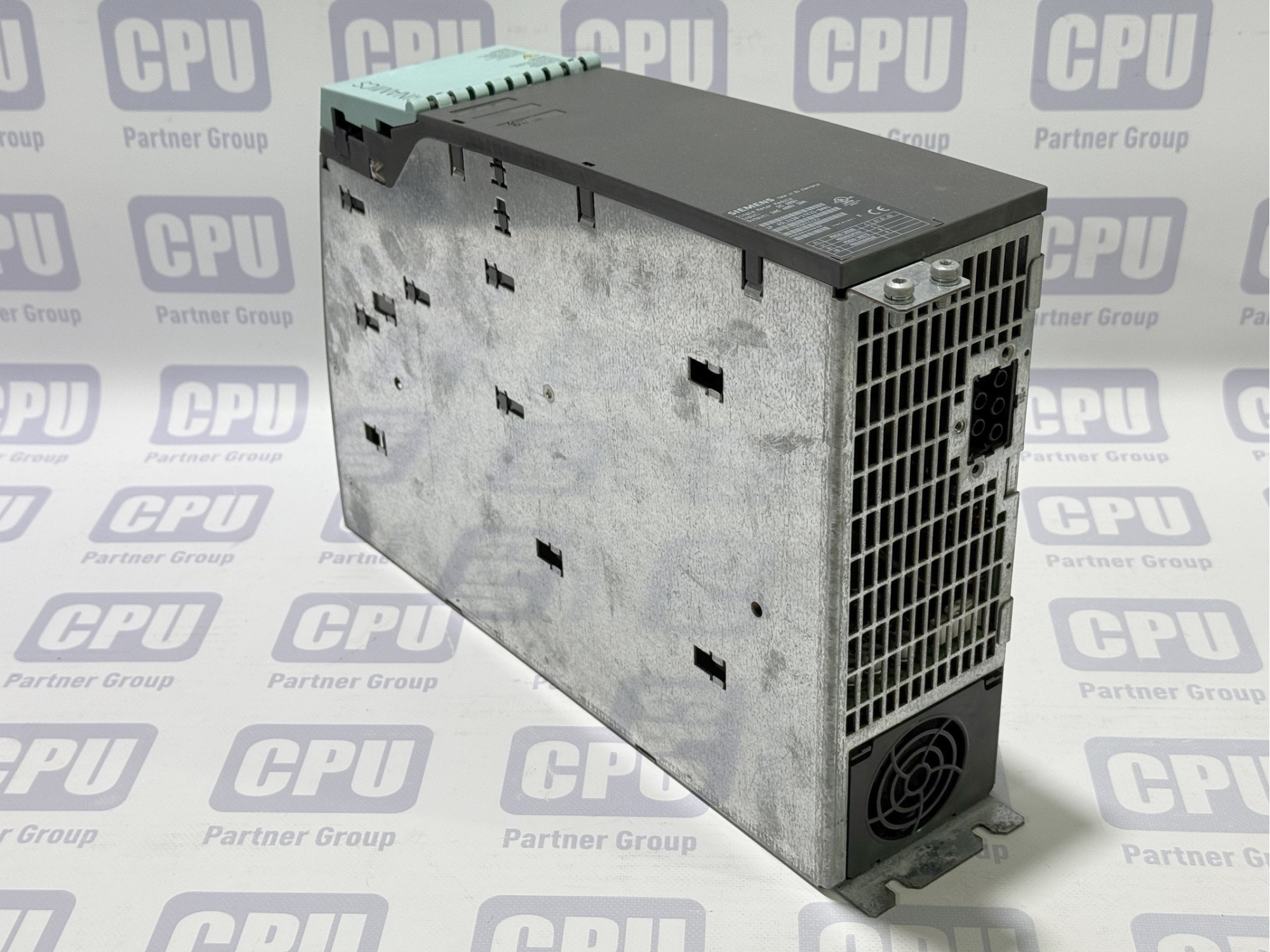

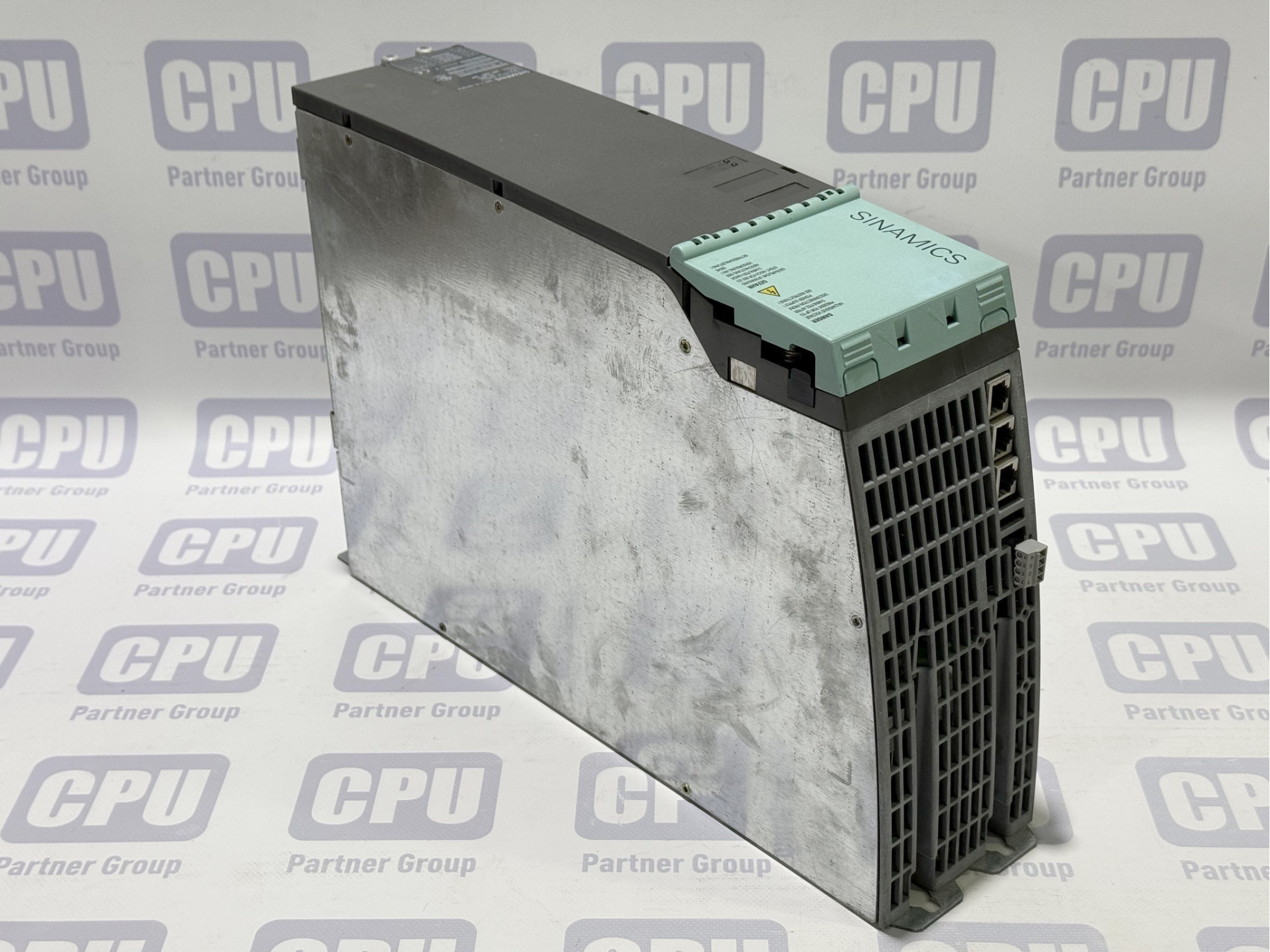

Siemens SINAMICS S120 6SL3120-1TE23-0AA1 Single motor module

Siemens SINAMICS S120  6SL3120-1TE23-0AA1 Single motor module

Main specifications from the official catalog:

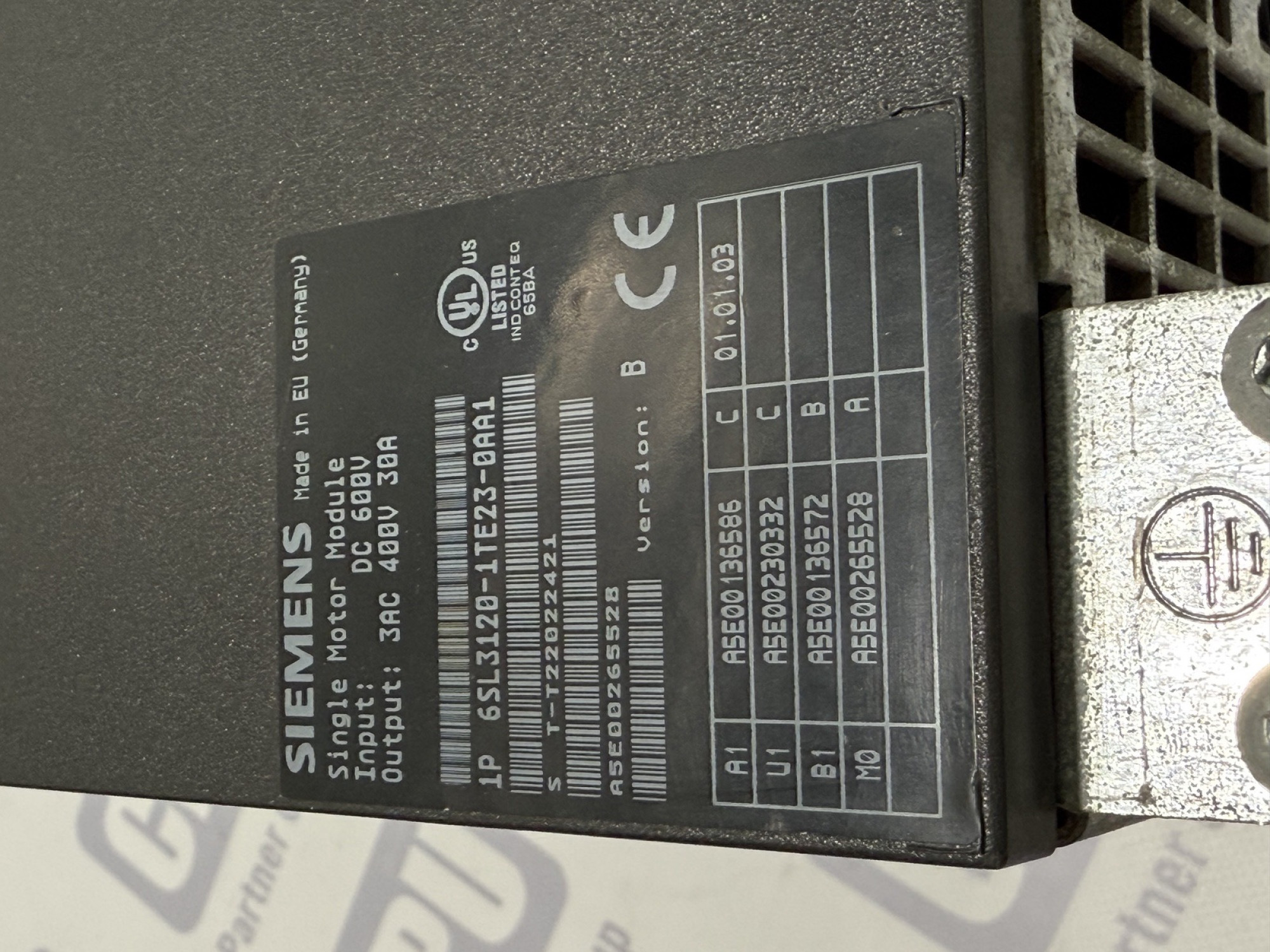

• Article Number: 6SL3120-1TE23-0AA1

• Output Current (rated): 30 A

• Maximum Power: approximately 16.5–17 kW at 400 V

• Input Voltage: DC 600 V (connected to the common DC link)

• Output Voltage: 3AC 400 V

• Housing Format: Booksize, frame size C

• Cooling: Internal air cooling (built-in fan)

• Interface: DRIVE-CLiQ for communication with the control unit

• Integrated Safety Functions: Supports Safety Integrated (e.g., STO — Safe Torque Off)

These modules are used for:

• Multi-axis drive systems (machine tools, packaging equipment, material handling)

• Precise control of motor speed and torque

  On this page you will find the user manual for Siemens SINAMICS S120. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

  Mannual for Siemens SINAMICS S120

  https://cpupartnergroup.com/image/pdf/SINAMICS%20S120%20Booksize%20Power%20Units%20Manual.pdf
