Siemens SINAMICS S120 6SL3120-2TE15-0AA3 Double Motor Modul

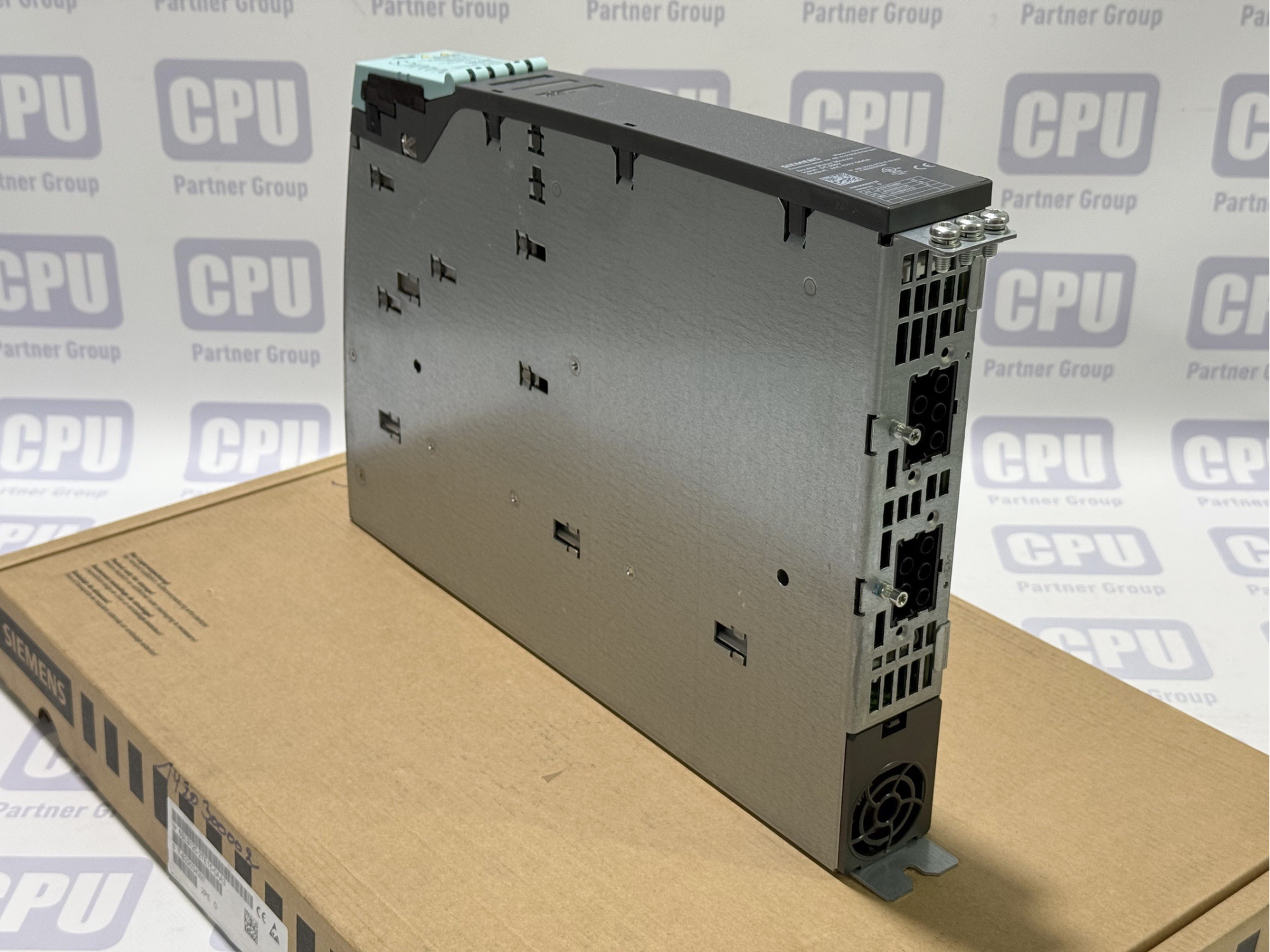

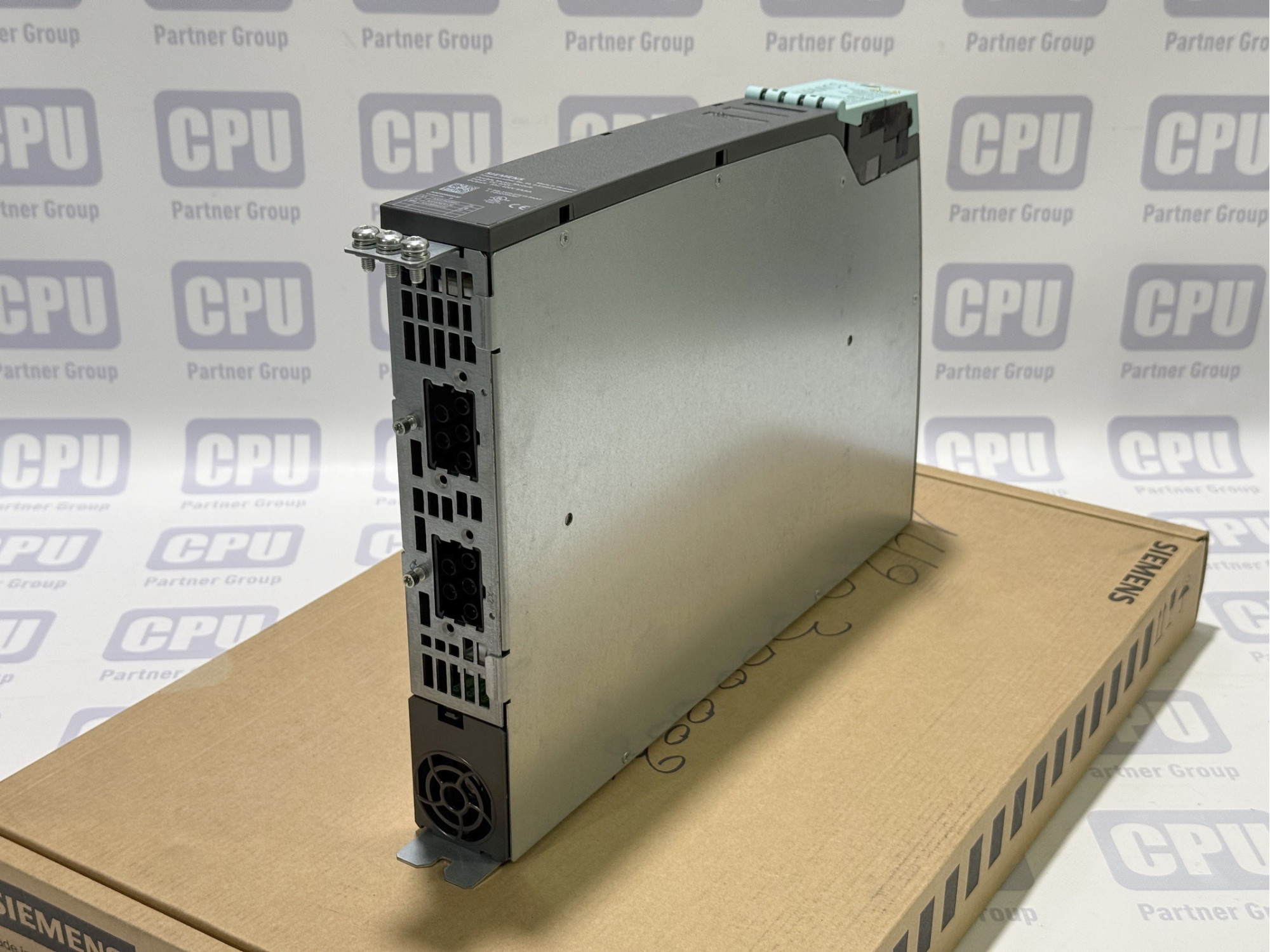

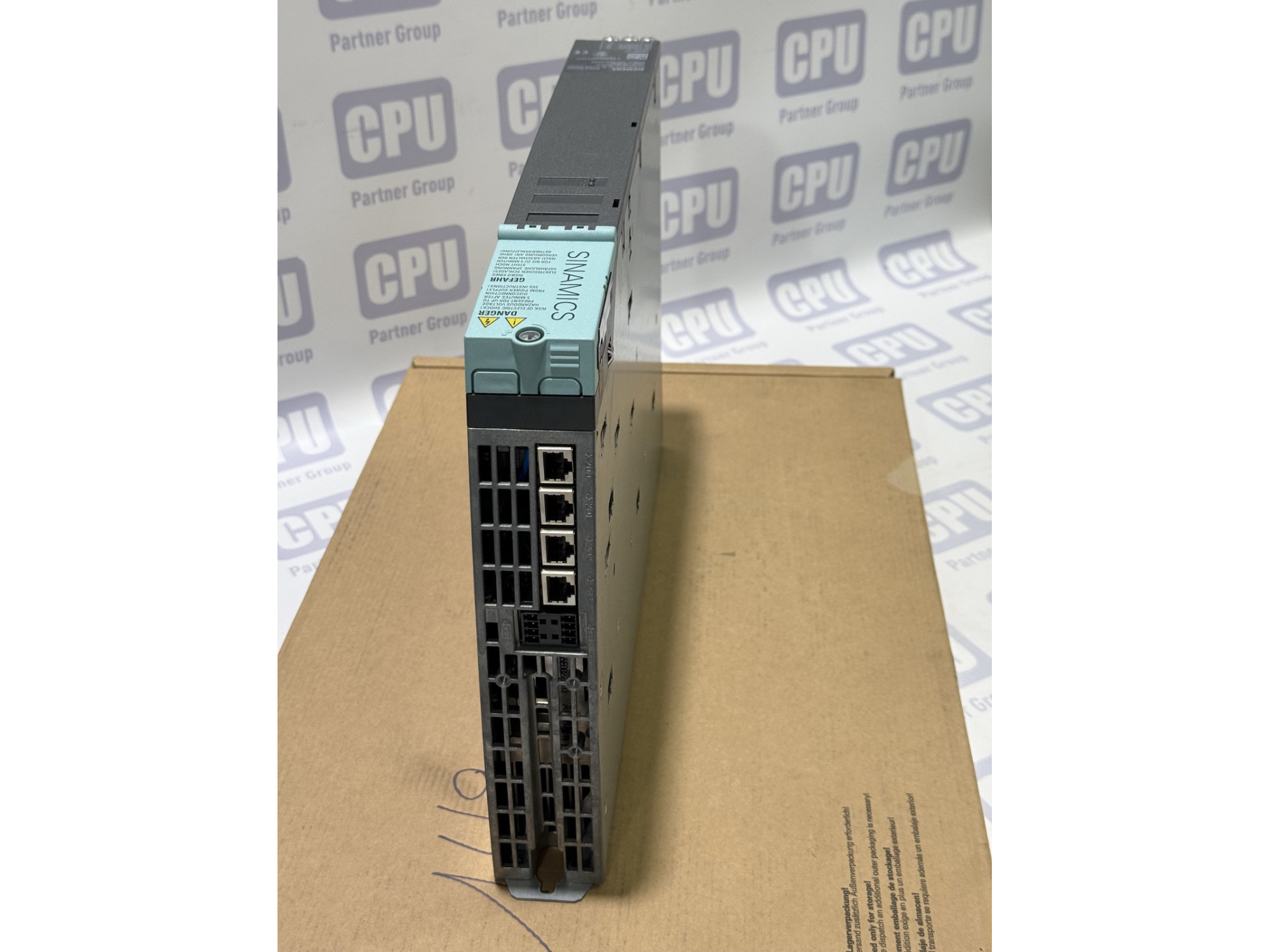

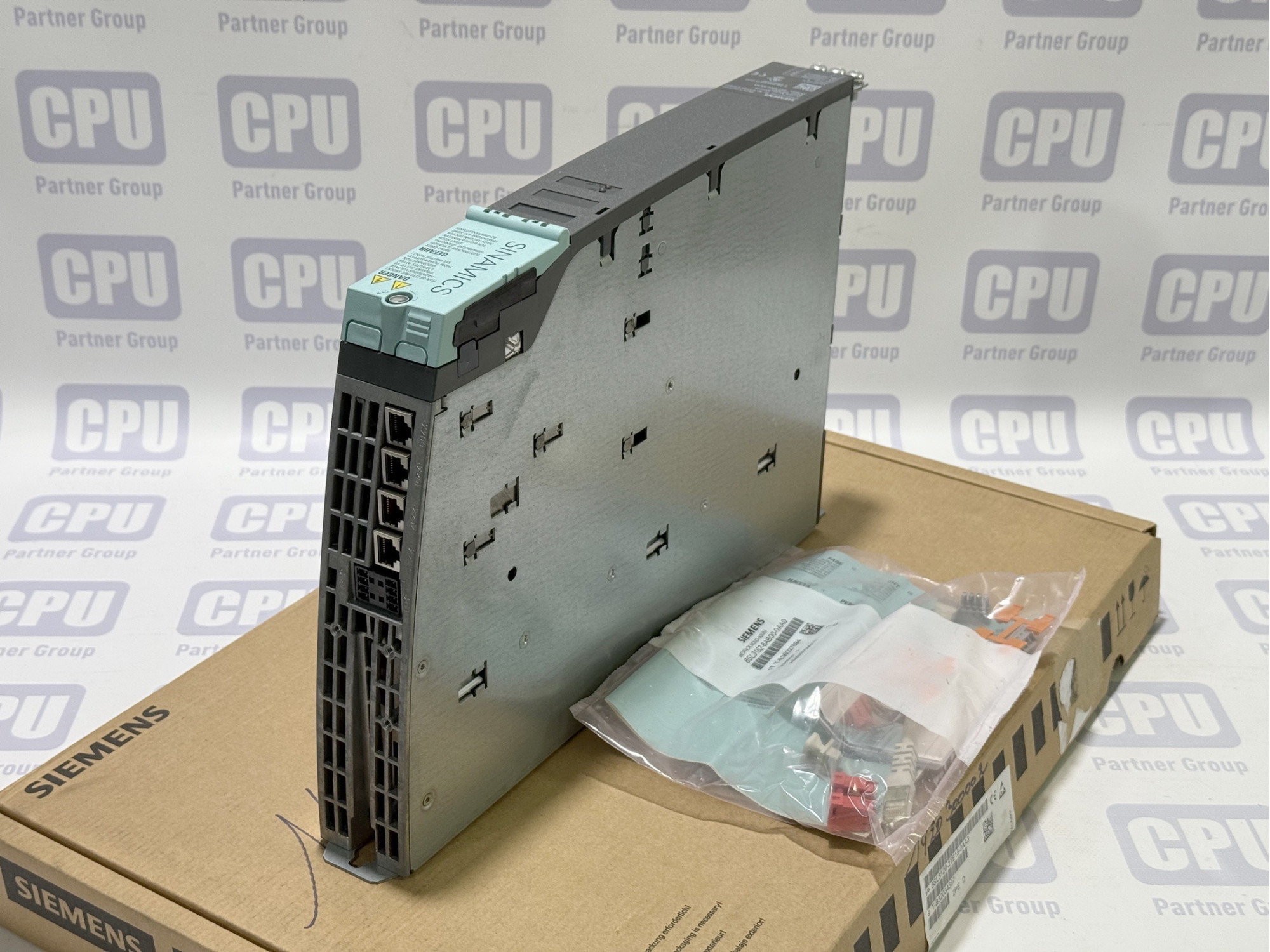

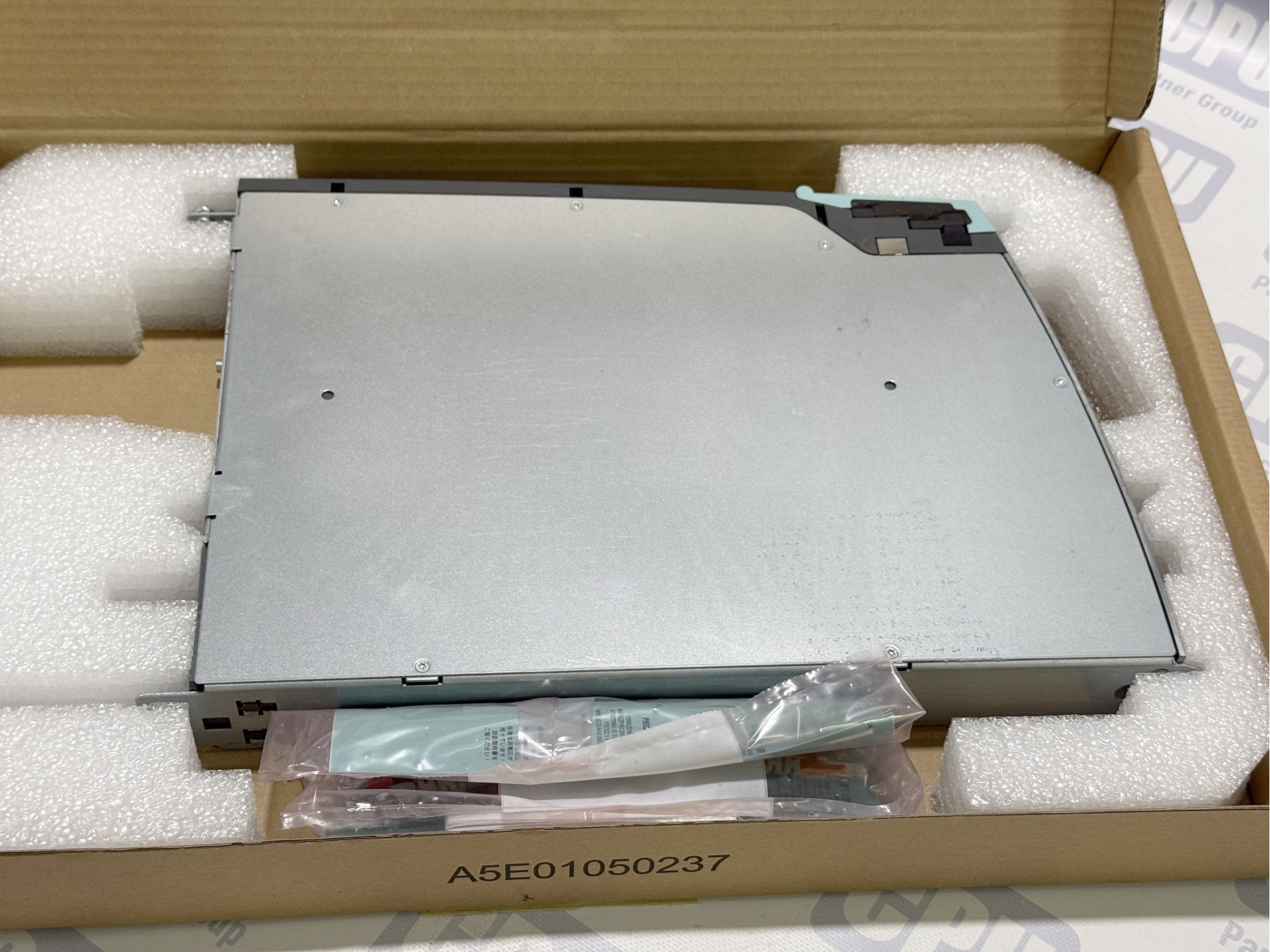

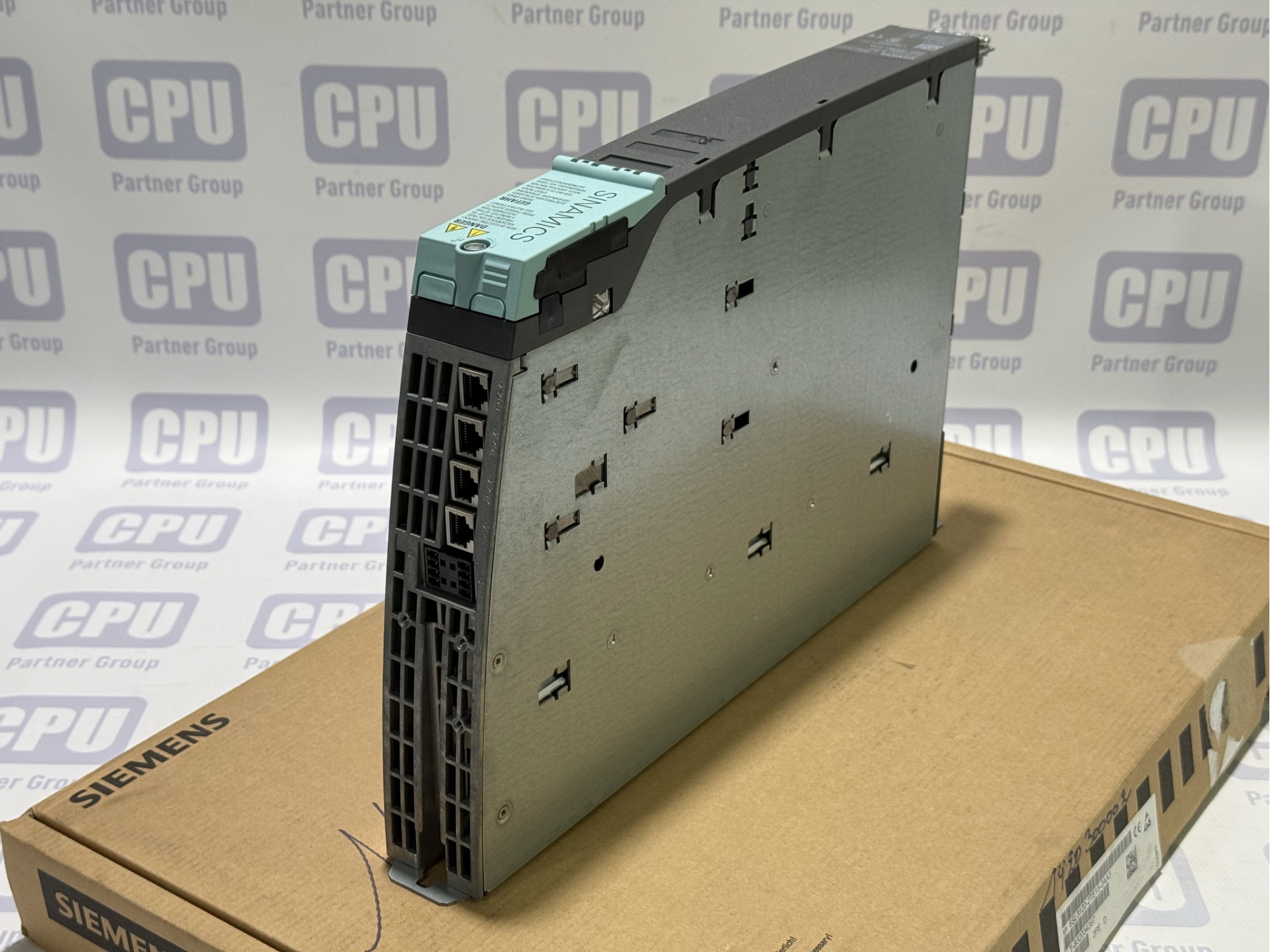

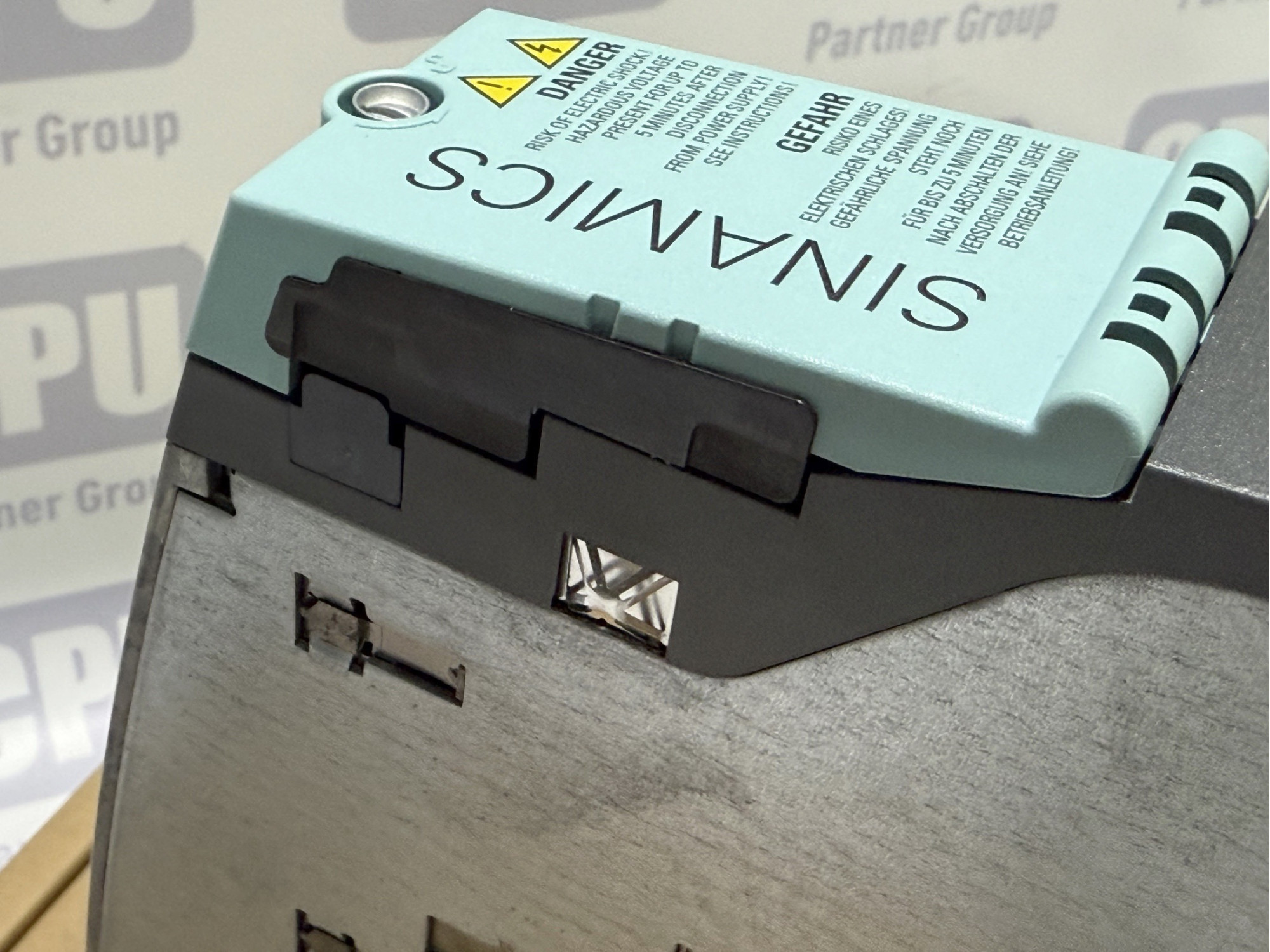

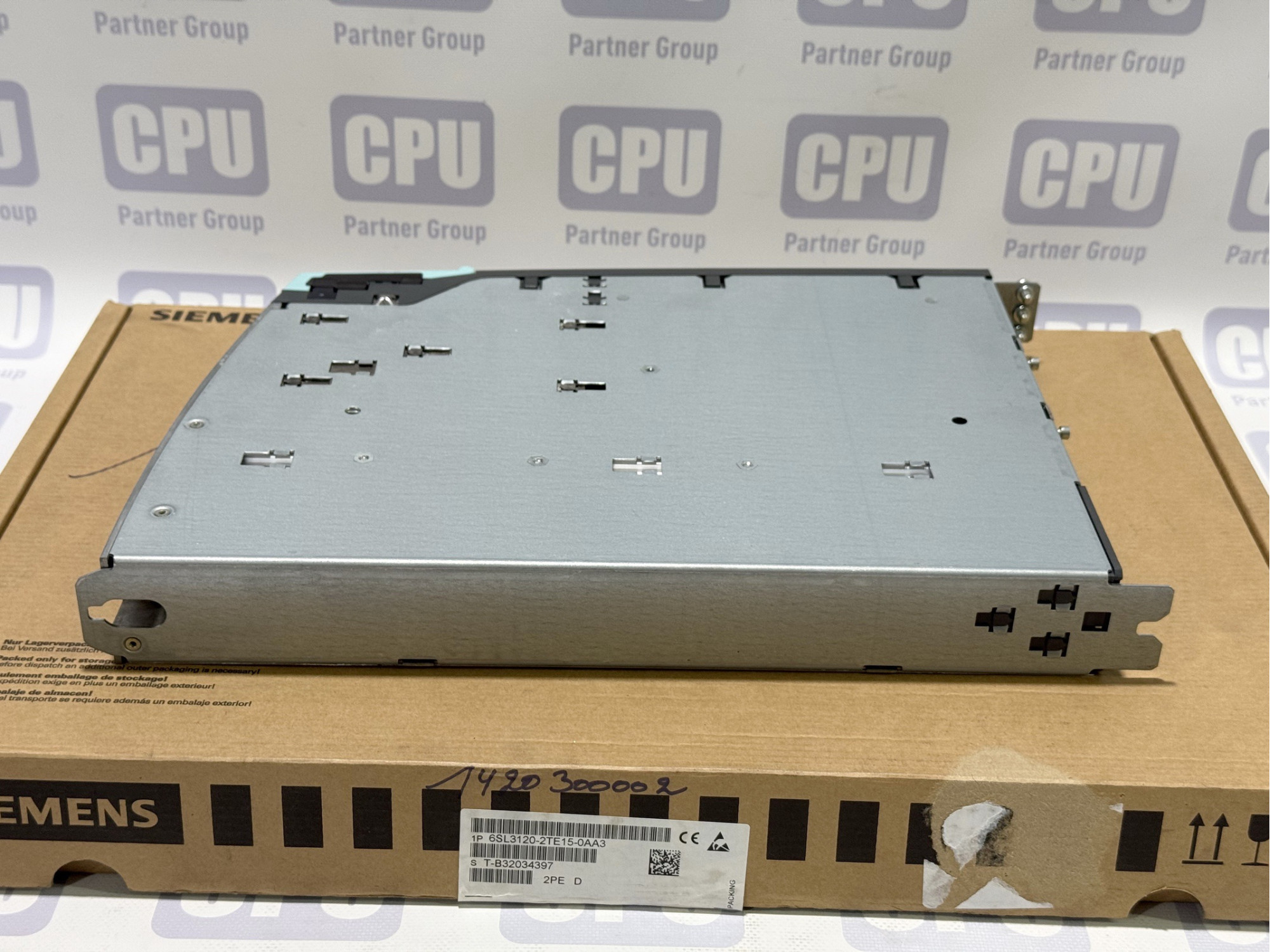

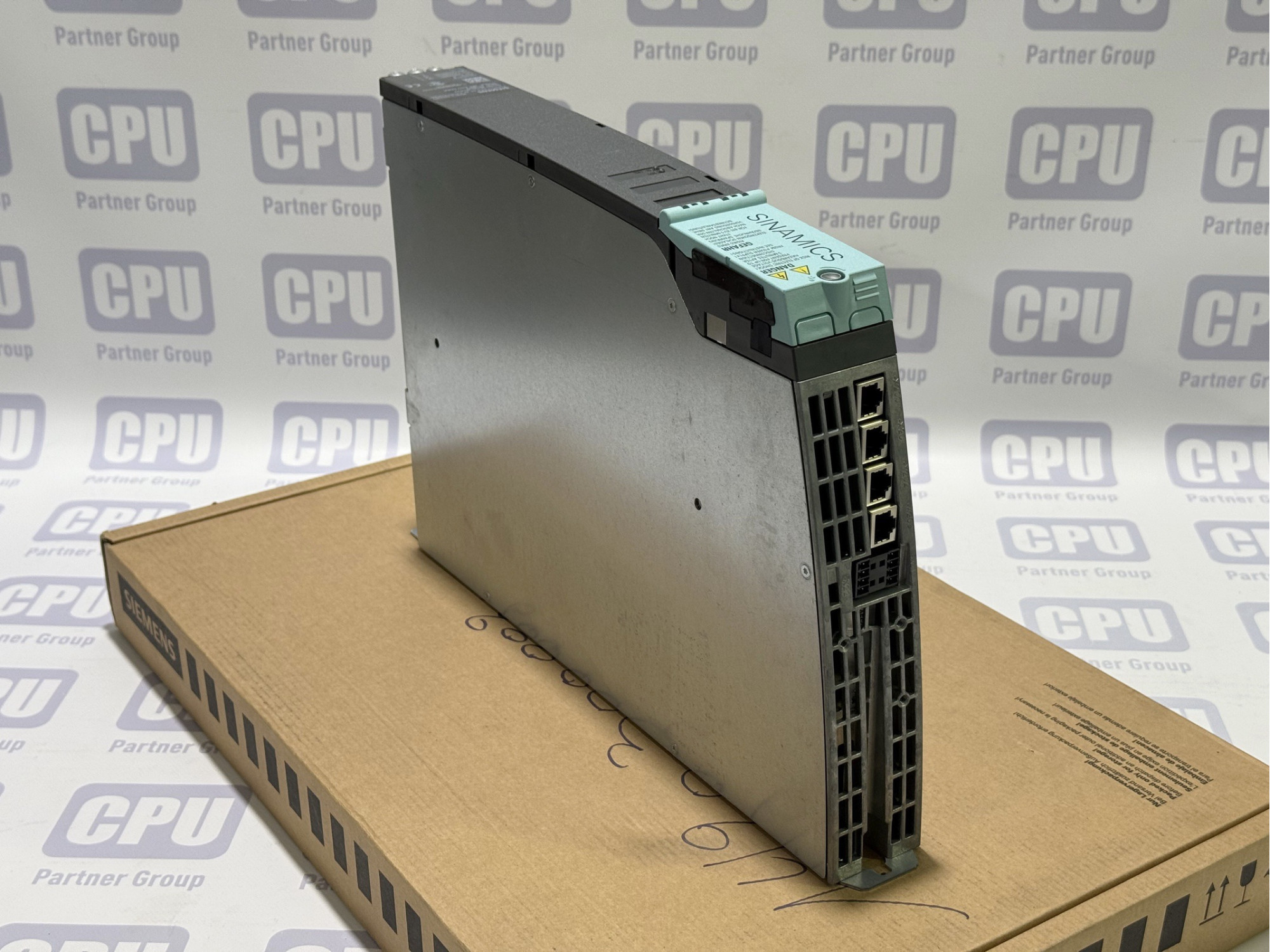

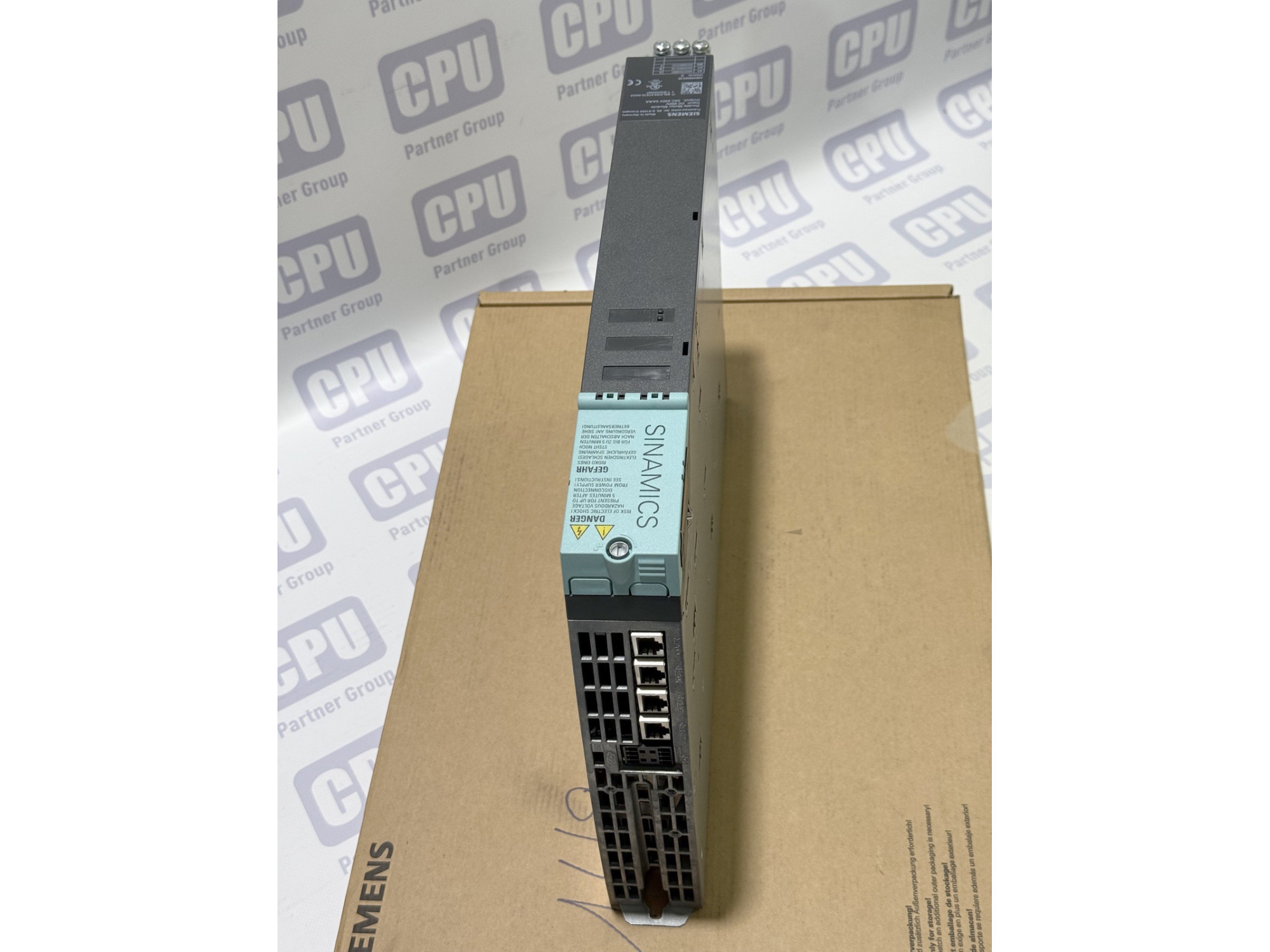

Siemens SINAMICS S120 Double Motor Module (6SL3120-2TE15-0AA3)

The Siemens SINAMICS S120 Double Motor Module 6SL3120-2TE15-0AA3 is a power component designed for integrated drive systems within the SINAMICS S120 platform. This Booksize format module allows for the control of two independent motors from a single, compact unit.

Operating from a 600V DC link voltage, this module provides a 3 AC 400V output with a rated current capacity of 5A for each of the two connected motors. It features internal air cooling and is built to support advanced drive functionalities.

Key Features:

Module Type: Double Motor Module for SINAMICS S120 systems

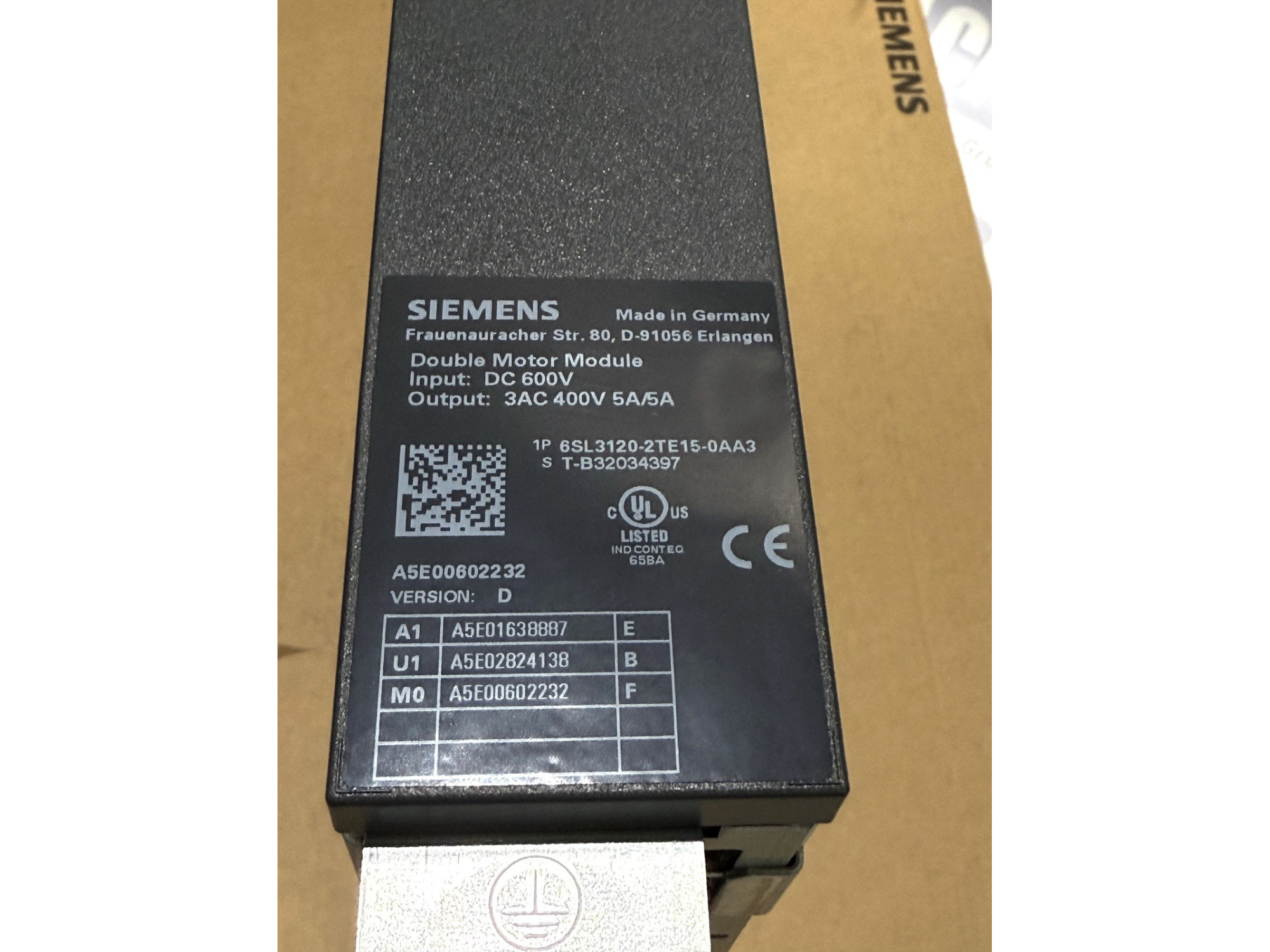

Input: 600V DC

Output: 3 AC 400V, 5A / 5A (for two motors)

Axis Control: Enables control of two independent motor axes.

Design: Compact Booksize format with internal air cooling.

Integrated Safety: Supports extended Safety Integrated functions (requires compatible control unit and configuration).

Connectivity: Features the DRIVE-CLiQ interface for seamless integration.

This module is suitable for multi-axis motion control applications in various industrial sectors, providing a reliable solution for coordinated drive tasks within the SINAMICS S120 architecture.

On this page you will find the user manual for Siemens SINAMICS S120. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for Siemens SINAMICS S120

https://cpupartnergroup.com/image/pdf/SINAMICS%20S120%20Booksize%20Power%20Units%20Manual.pdf
