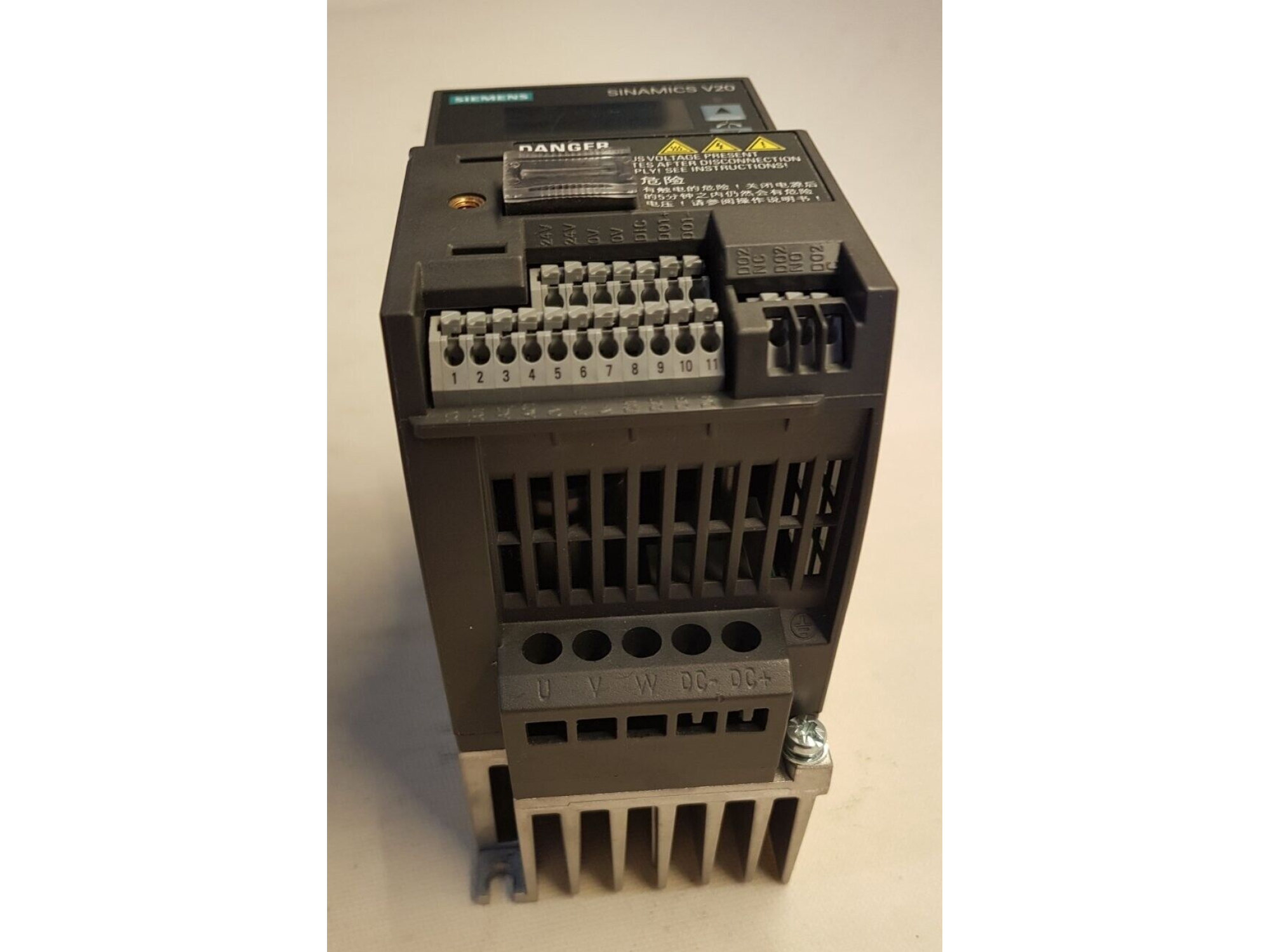

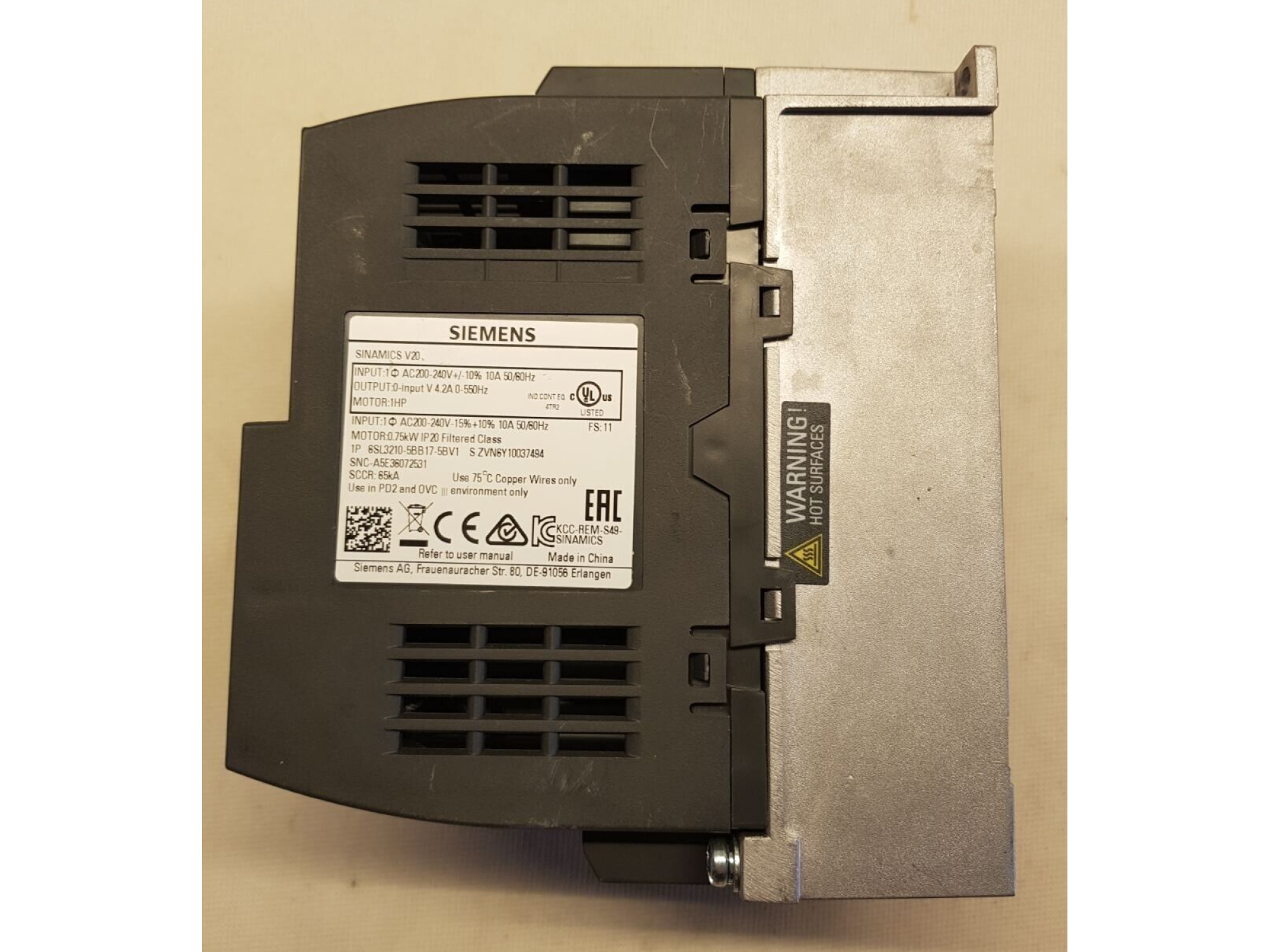

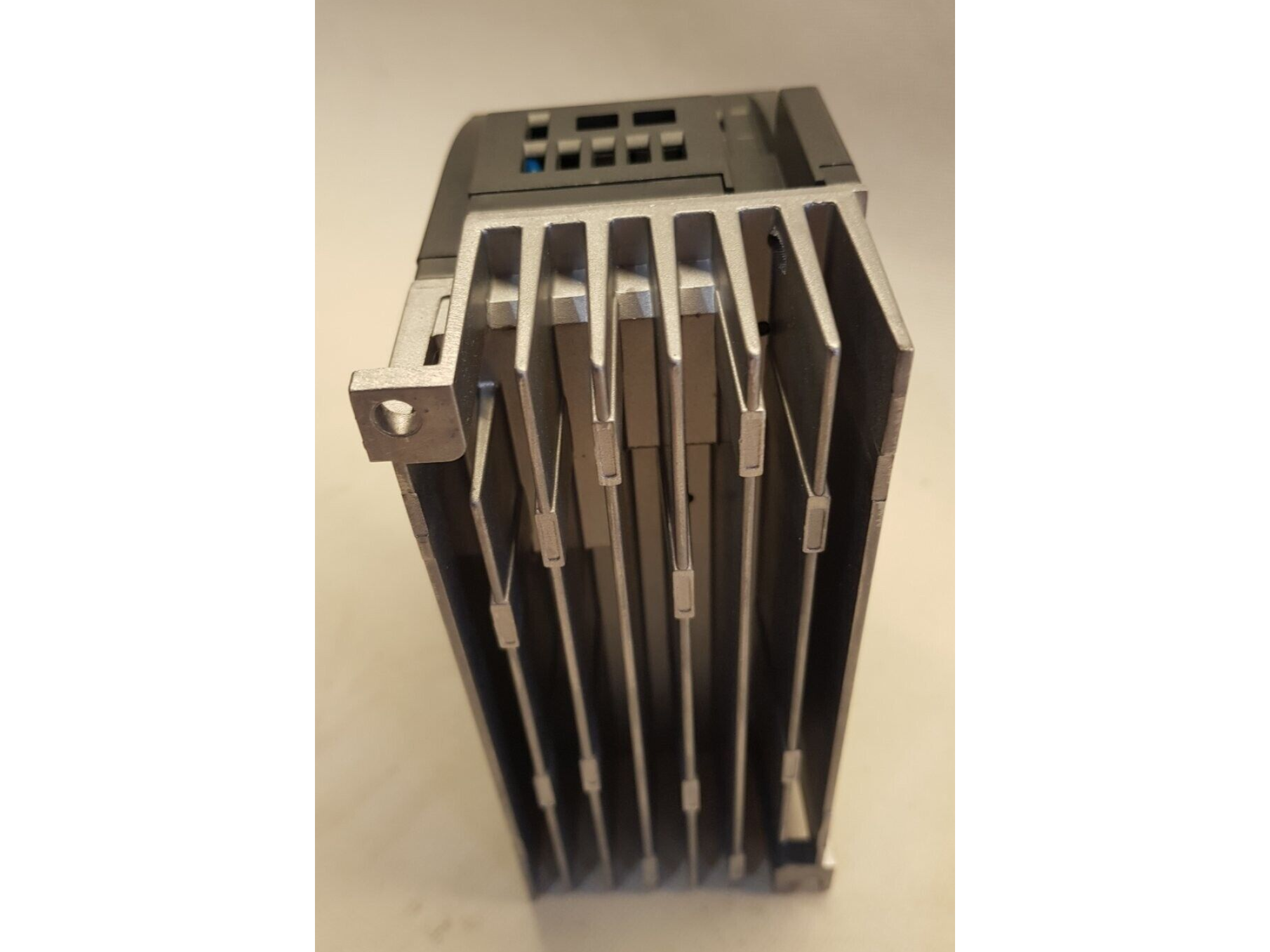

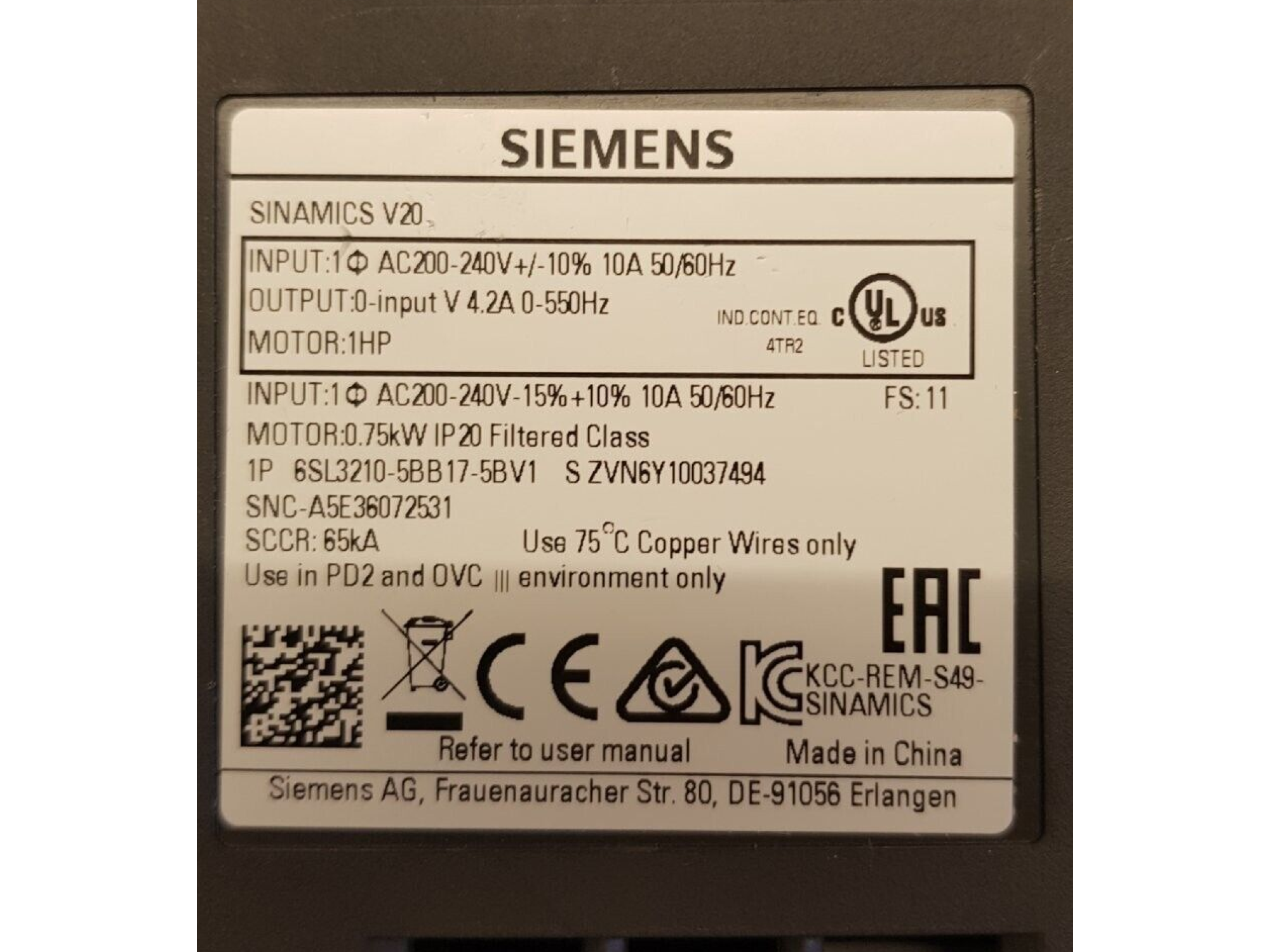

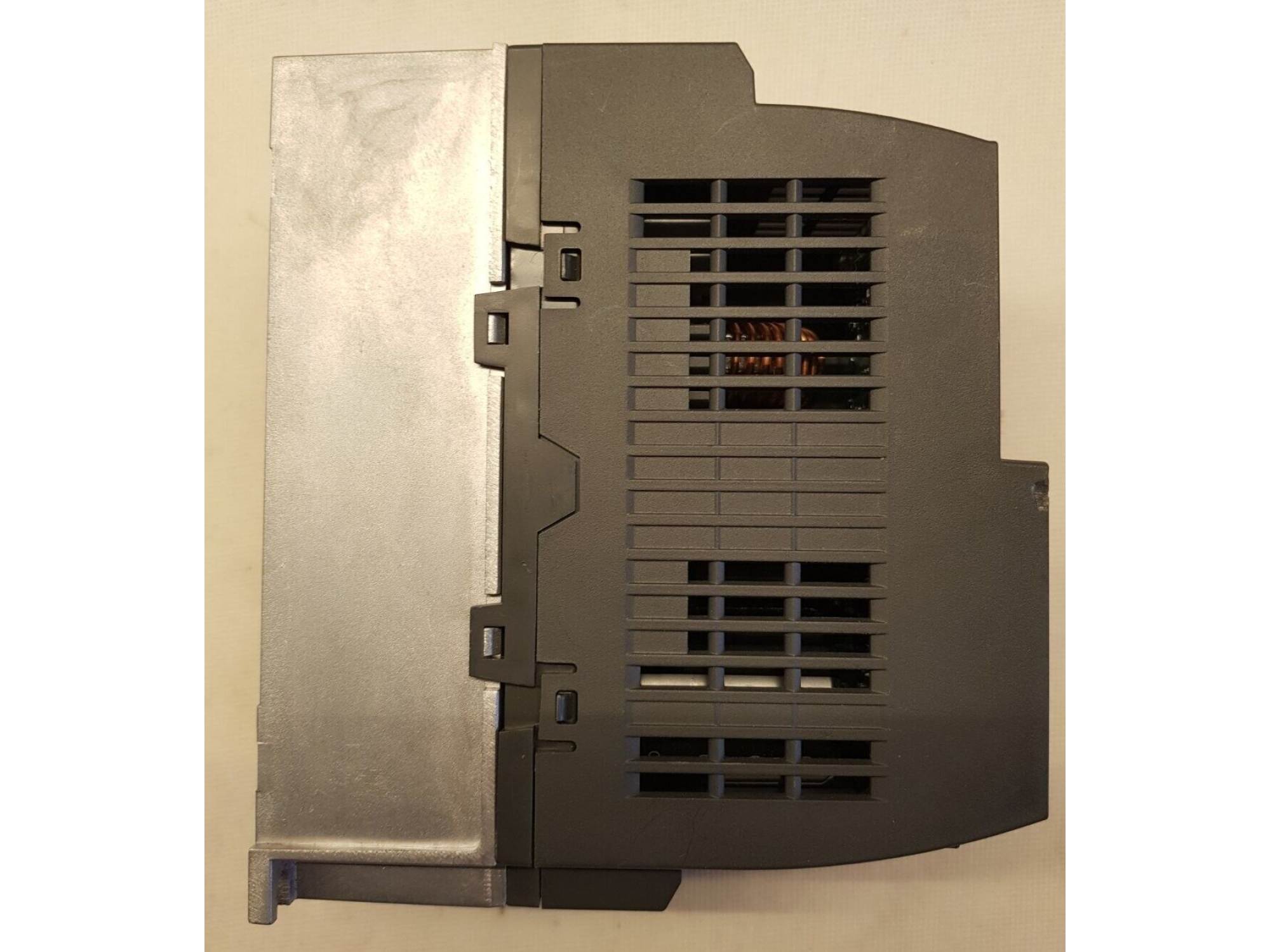

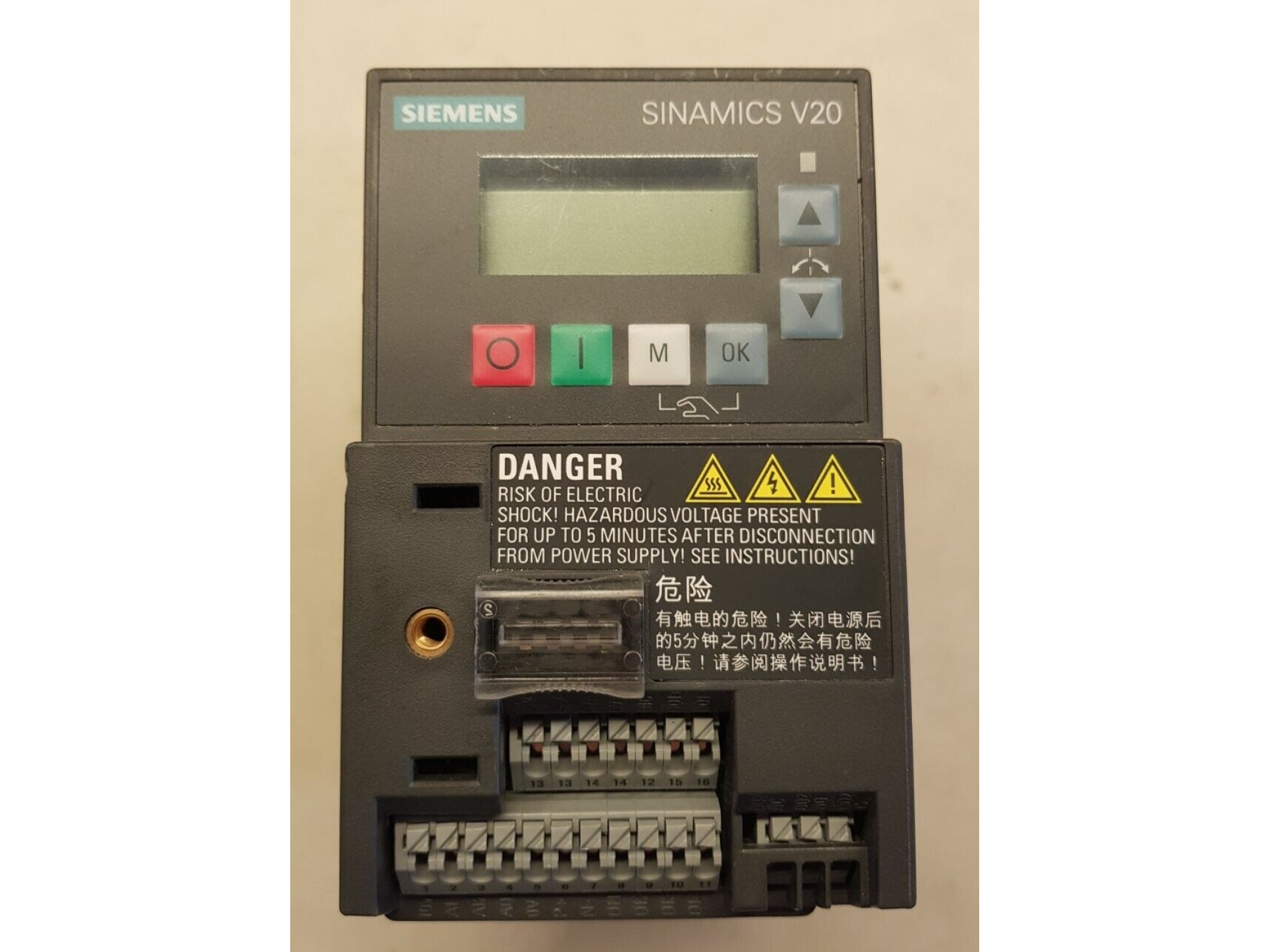

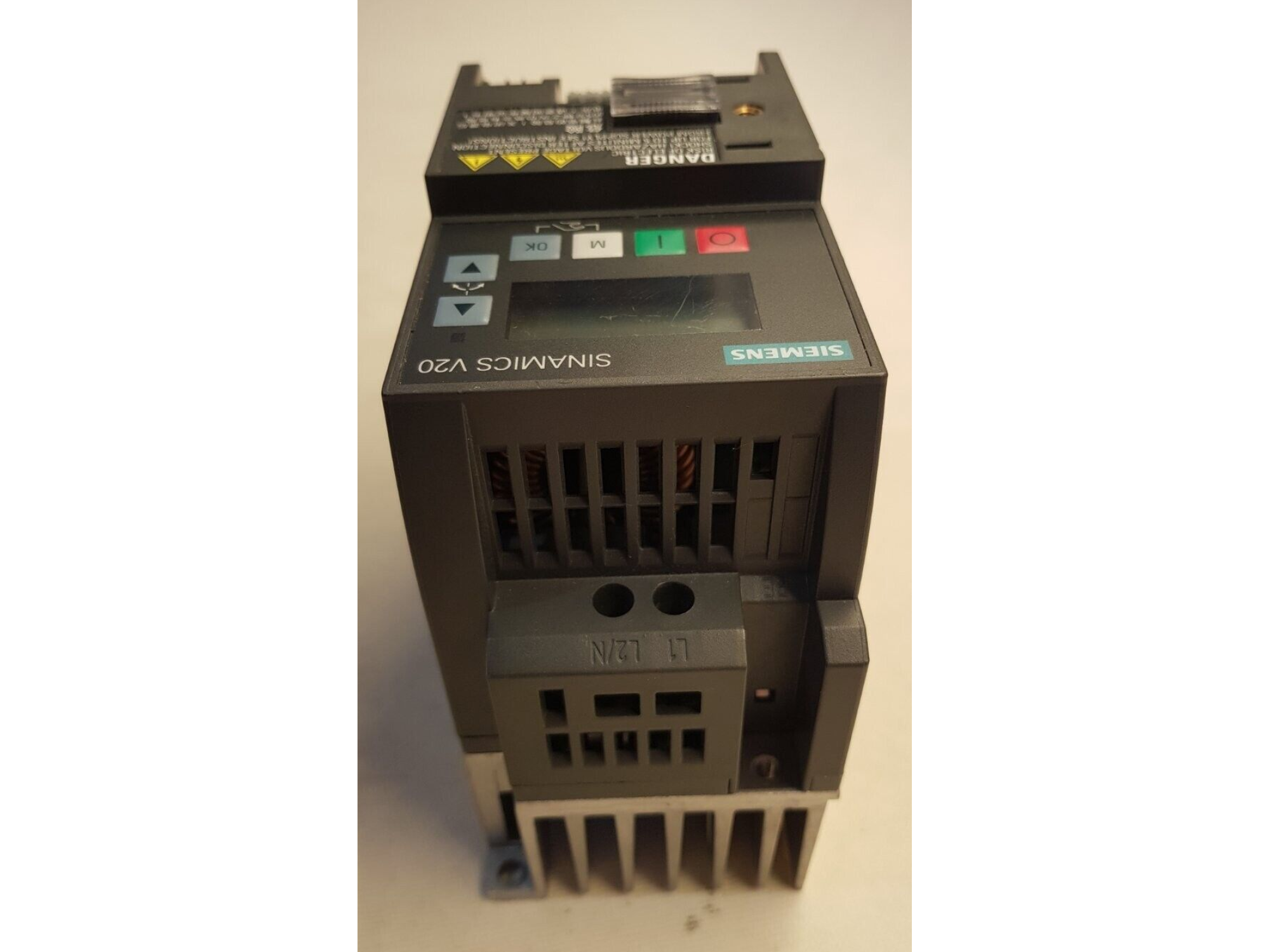

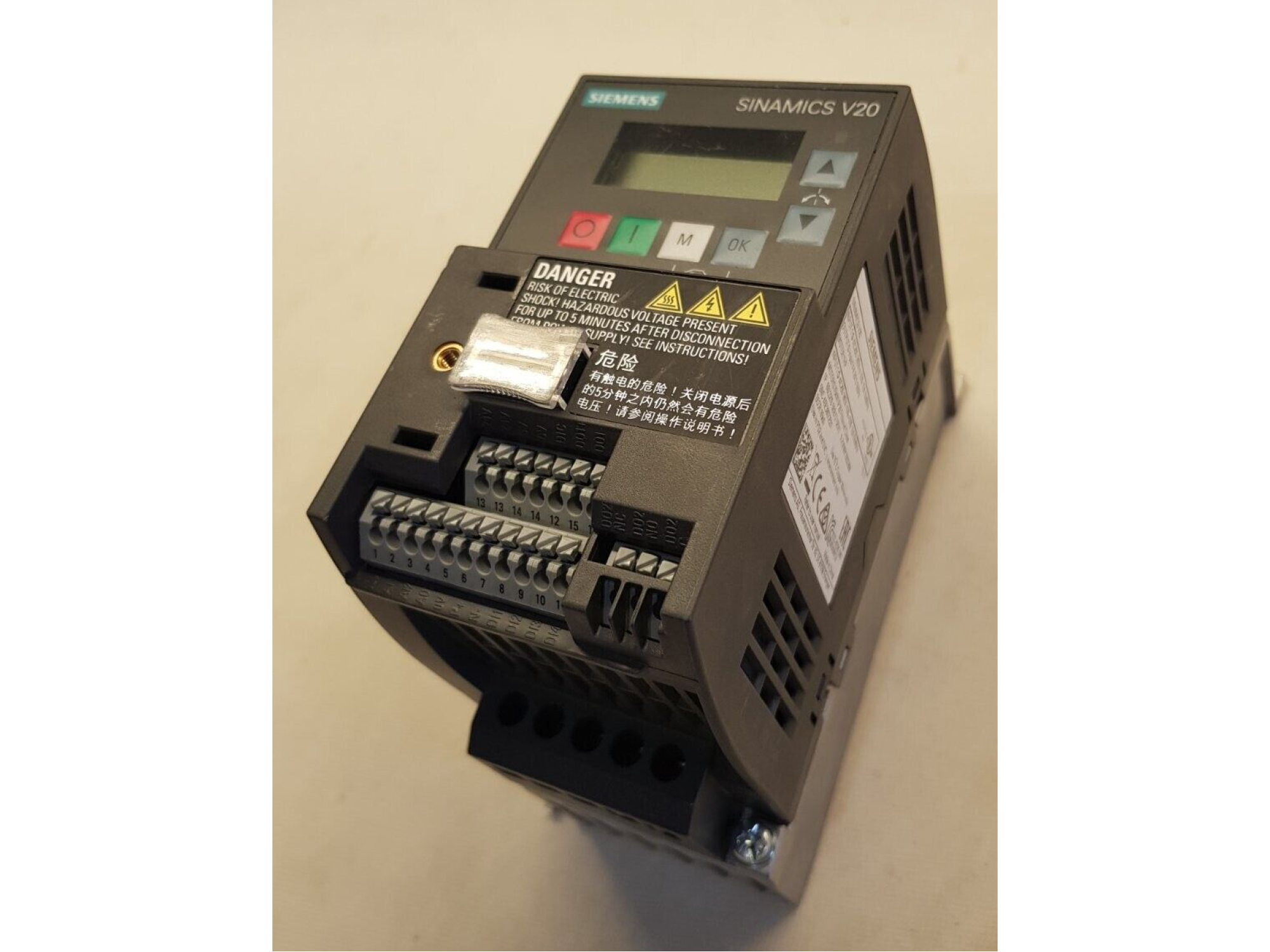

Siemens Sinamics V20 200-240 6SL3210-5BB17-5BV1 Inverter (1 pcs)

Siemens SINAMICS V20 Inverter 6SL3210-5BB17-5BV1

• Input Voltage: 1-phase AC 200-240V (-10%/+10%), 47-63 Hz
• Output Power: 0.75 kW (1 HP)
• Output Voltage: 3-phase AC (up to input voltage)

Siemens SINAMICS V20 Basic Inverter, 0.75 kW (6SL3210-5BB17-5BV1)

The Siemens SINAMICS V20 (6SL3210-5BB17-5BV1) is a versatile and cost-effective basic inverter designed for simple motion control applications. As part of the SINAMICS V20 family, it stands out for its quick commissioning, ease of operation, robustness, and energy efficiency features, making it an ideal choice for various industrial and commercial uses.

Key Features:

• Compact Design: Features a space-saving Booksize Compact (FSAB) frame size, allowing for easy installation in control panels.
• Simple to Use: Designed for straightforward setup and operation, often described as "out-of-the-box" ready.
• Integrated Filter: Includes a built-in C1 filter to help meet EMC requirements.
• Flexible I/O: Provides 4 digital inputs, 2 digital outputs (relay and transistor), 2 analog inputs, and 1 analog output for versatile connectivity.
• Standard Communication: Supports USS and MODBUS RTU communication protocols via the RS485 interface.
• Built-in BOP: Comes with an integrated Basic Operator Panel (BOP) for local commissioning and monitoring.
• Energy Efficiency: Includes optimized energy-saving functions, such as automatic flux reduction.
• Robust: Designed to operate reliably even under fluctuating line conditions (Keep-Running mode).
• Voltage: Operates from a single-phase 200-240V AC supply and provides a three-phase output for standard motors.
• Power Rating: Delivers 0.75 kW (1 HP) of power with a 150% overload capacity for 60 seconds.

The SINAMICS V20 0.75 kW inverter is perfectly suited for applications like pumps, fans, compressors, conveyor belts, and basic machinery where a reliable, efficient, and easy-to-handle variable frequency drive is required.
