Telemecanique XCS DMP70010 Coded Magnetic Safety Switch (1PCS)

Telemecanique Preventa  XCSDMP70010 Coded Magnetic Safety Switch

• Type: Coded Magnetic Safety Switch / Safety Interlock Switch (Non-contact)

Telemecanique XCSDMP70010 Preventa Coded Magnetic Safety Switch

The Telemecanique XCSDMP70010 from the Preventa XCS series is a coded magnetic safety switch designed for non-contact interlocking and position monitoring of machine guards and doors. This switch provides a high level of tamper resistance due to its coded magnetic principle, ensuring that the safety function can only be defeated by the specifically matched coded actuator.

This safety switch features a contact arrangement of 2 Normally Closed (NC) and 1 Normally Open (NO) contacts, with the NC contacts having a staggered operation for enhanced safety circuit design flexibility. It is housed in a durable rectangular plastic (thermoplastic PBT) enclosure, rated IP66 and IP67, making it suitable for harsh industrial environments.

The XCSDMP70010 comes with a pre-cabled 10-meter cable for convenient electrical connection. It is designed for low current switching applications (up to 100 mA) and is certified to meet high international safety standards, capable of achieving Performance Level e (PLe) / Safety Category 4 according to ISO 13849-1 and SIL 3 according to IEC 61508 when used with appropriate safety monitoring devices. This switch requires a separate coded magnetic actuator (not included) for operation.

Key Characteristics:

• Function: Non-contact safety interlocking and position monitoring.
• Sensing Principle: Coded magnetic.
• Output Contacts: 2 NC + 1 NO (NC staggered operation).

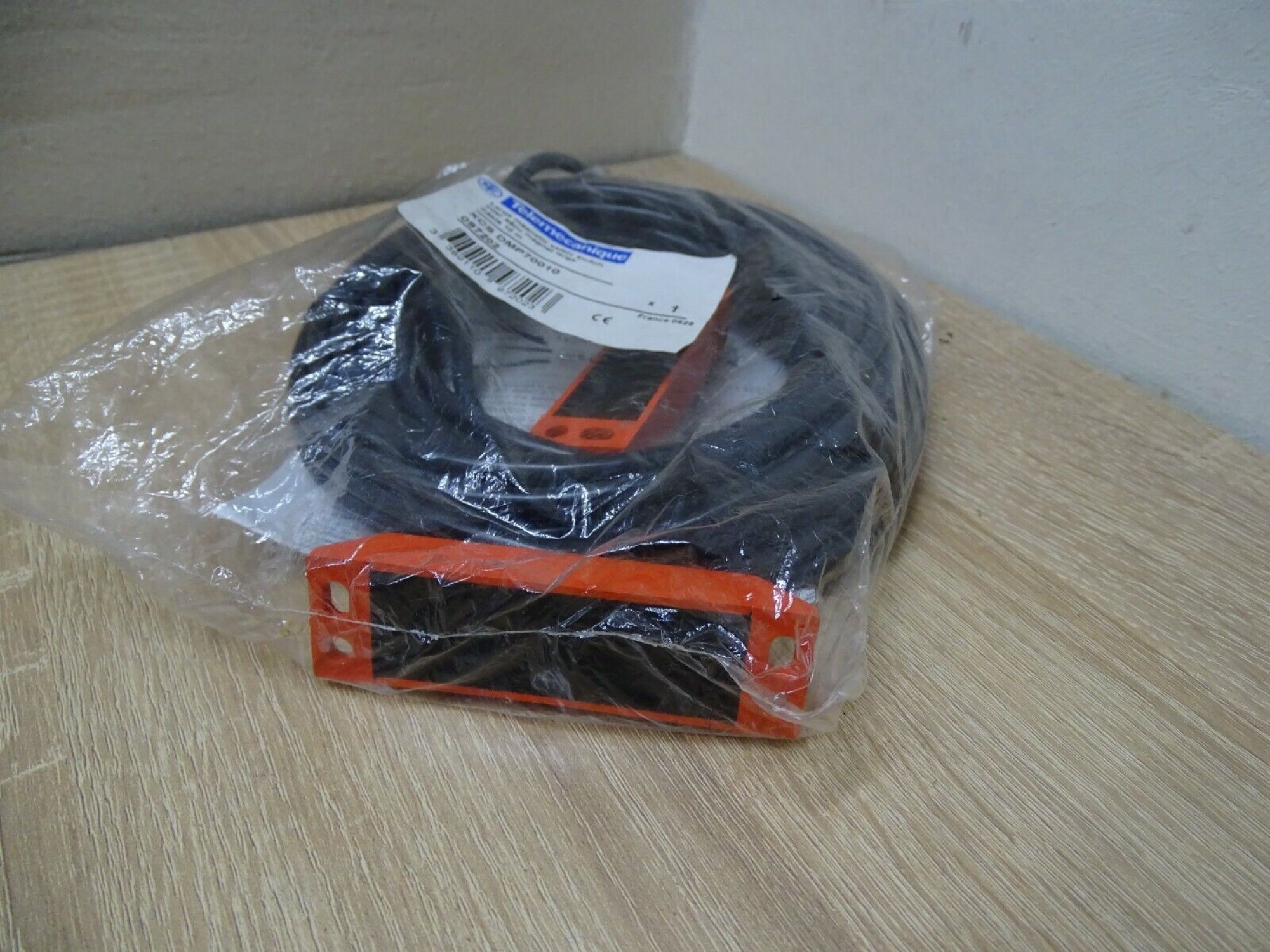

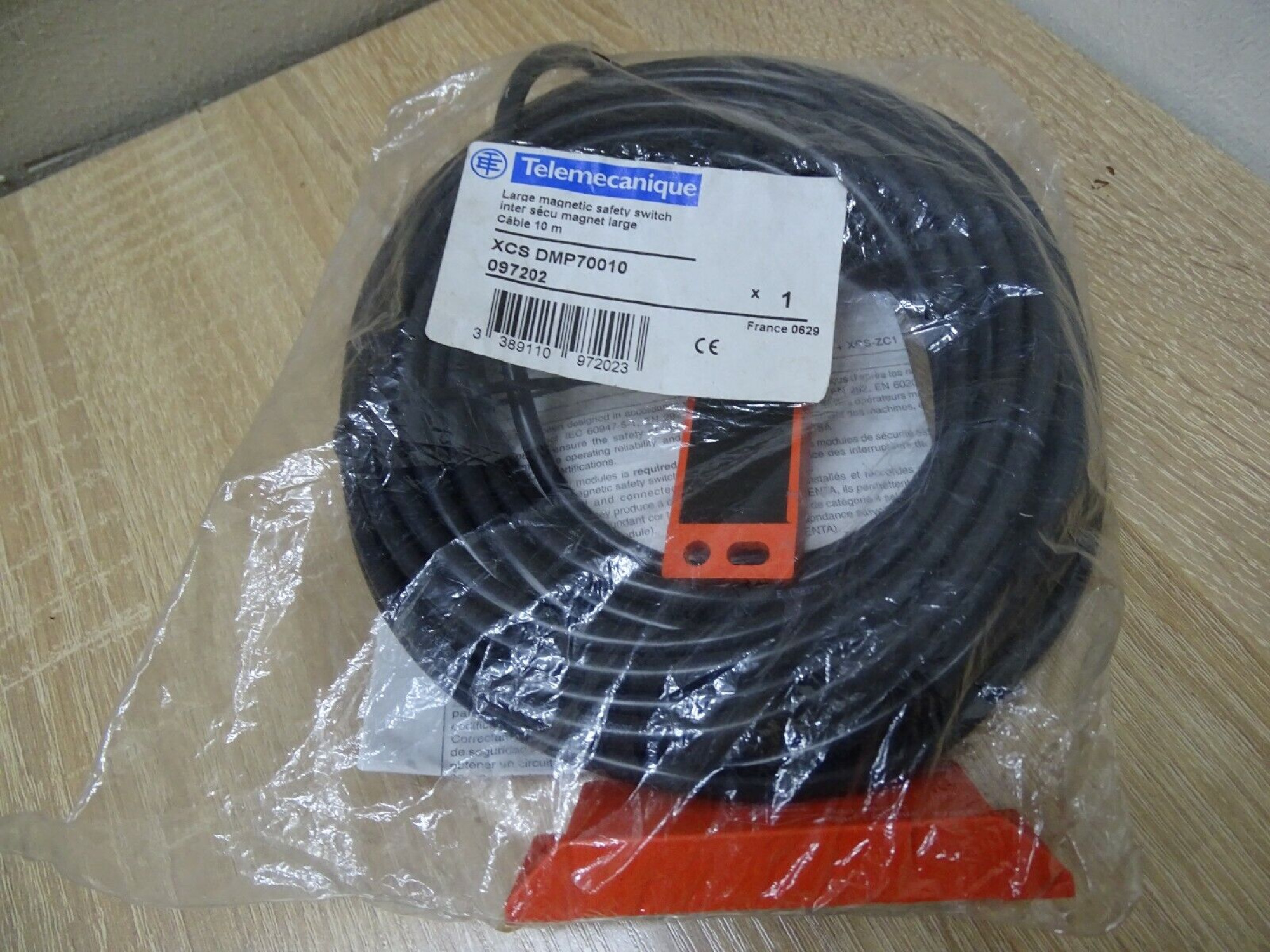

• Connection: Pre-cabled (10 m cable).
• Housing: Thermoplastic (Plastic PBT), rectangular.
• Protection Rating: IP66 / IP67.
• Current Rating: Low current (up to 100 mA).
• Safety Standards: PLe/Cat 4 (ISO 13849-1), SIL 3 (IEC 61508), ISO 14119.

The Telemecanique XCSDMP70010 coded magnetic safety switch offers a reliable and tamper-resistant solution for safety guarding applications in machine automation.
