Telemecanique XCS PL571 Safety Limit Switch 1 PCS

Telemecanique Preventa XCS PL571 Safety Limit Switch (Hinge Switch)

• Type: Safety Limit Switch / Safety Position Switch (often used as a Hinge Switch)

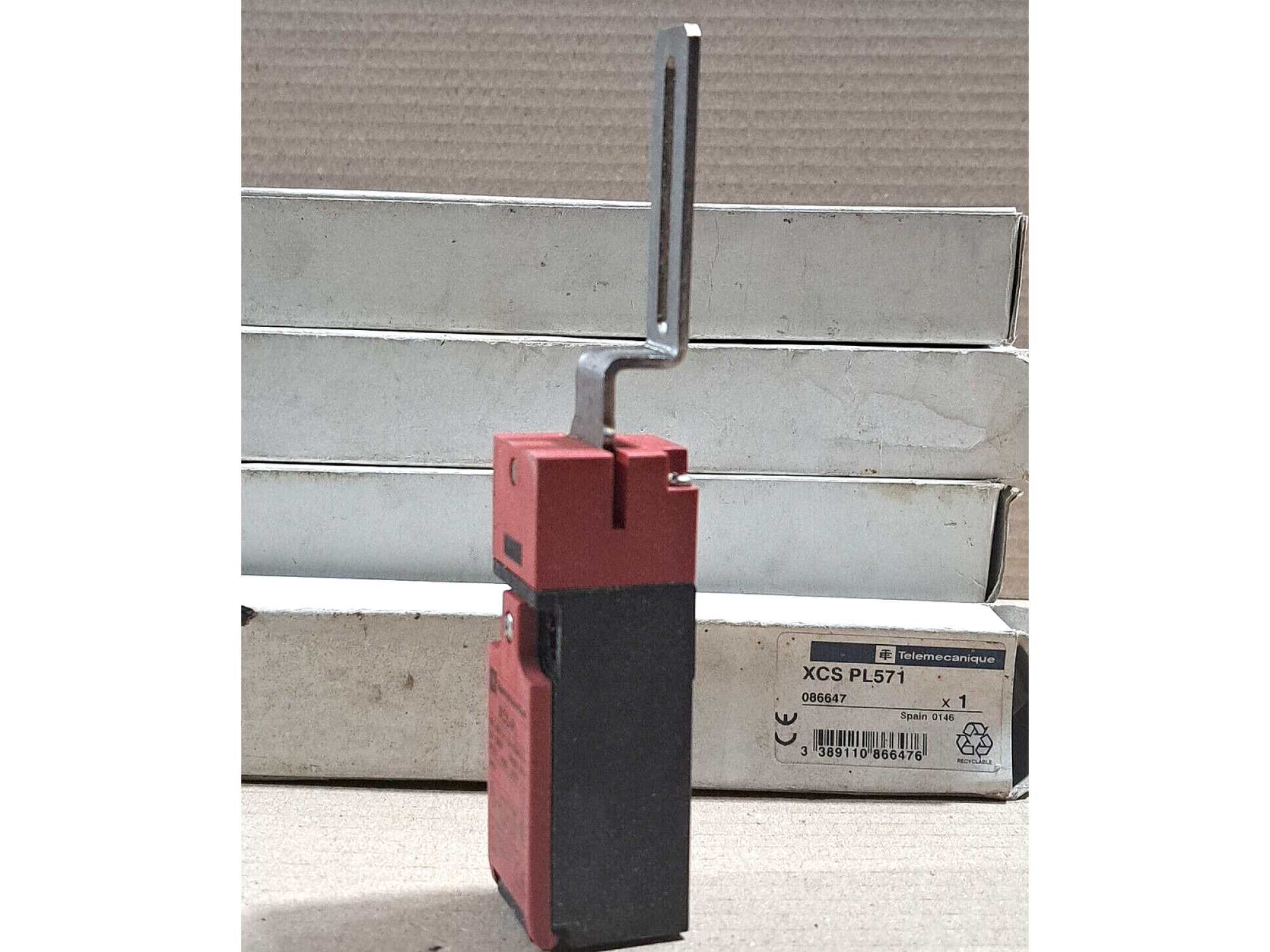

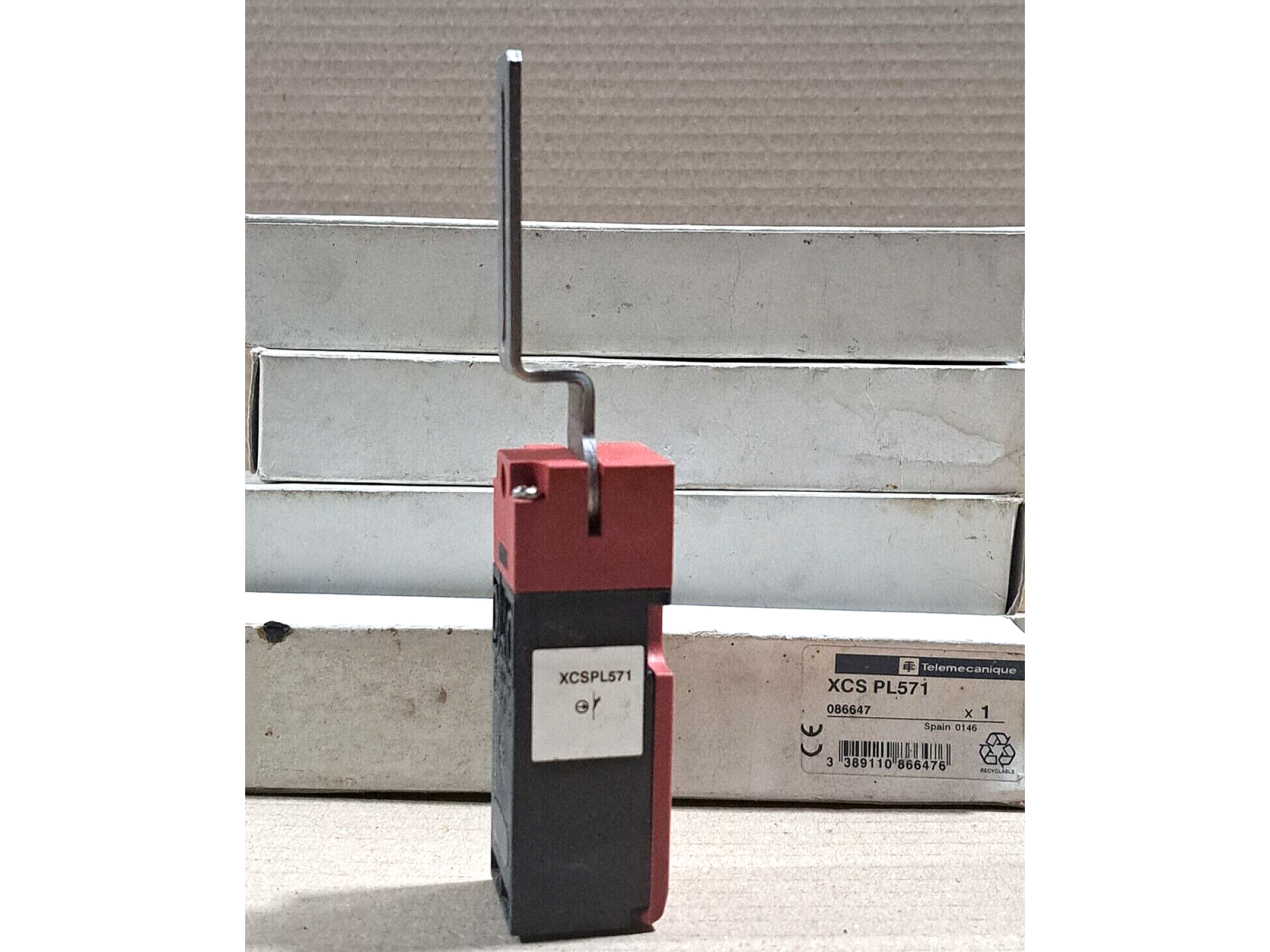

Telemecanique XCS PL571 Preventa Safety Limit Switch with Elbowed Lever

The Telemecanique XCS PL571 from the Preventa XCS series is a safety limit switch designed for reliable position monitoring in machine safety applications, frequently used as a hinge switch. It is ideal for supervising the position of guards, doors, flaps, or other moving machine parts.

This switch features a turret head with an elbowed flush lever actuator that operates to the right, making it suitable for activation by rotating or hinged elements. It is equipped with 1 Normally Closed (NC) contact with positive opening and 1 Normally Open (NO) contact, utilizing a slow-break, break-before-make operation for dependable switching feedback in safety circuits.

Housed in a compact, double-insulated plastic (Polyamide PA66) enclosure and boasting an IP67 protection rating, the XCSPL571 is built to withstand demanding industrial environments, including exposure to dust and water. Electrical connection is made via a single tapped entry for a Pg 11 cable gland. Compliant with high safety standards such as EN ISO 13849-1 (up to PLe / Category 4) and IEC 61508 (up to SIL 3) when used with appropriate monitoring, this safety limit switch provides a crucial component for implementing effective machine safety solutions.

Key Characteristics:

• Function: Safety position monitoring of guards, doors, or machine parts.
• Actuator: Turret head rotary lever (elbowed flush lever, operation to the right).
• Output Contacts: 1 NC (positive opening) + 1 NO, slow-break.
• Housing: Plastic (Polyamide PA66), double insulated, compact size.
• Protection Rating: IP67.
• Connection: 1 entry tapped for Pg 11 cable gland.
• Type: Safety Limit Switch / Hinge Switch.
• Safety Standards: PLe/Cat 4 (ISO 13849-1), SIL 3 (IEC 61508), EN ISO 14119.

The Telemecanique XCSPL571 safety limit switch offers a robust and certified solution for position-based safety functions in industrial automation.
