Telemecanique XCS PL771 Safety Limit Switch 1 PCS

Telemecanique Preventa XCS PL771 Safety Limit Switch (Hinge Switch)

• Type: Safety Limit Switch / Safety Position Switch (often used as a Hinge Switch)

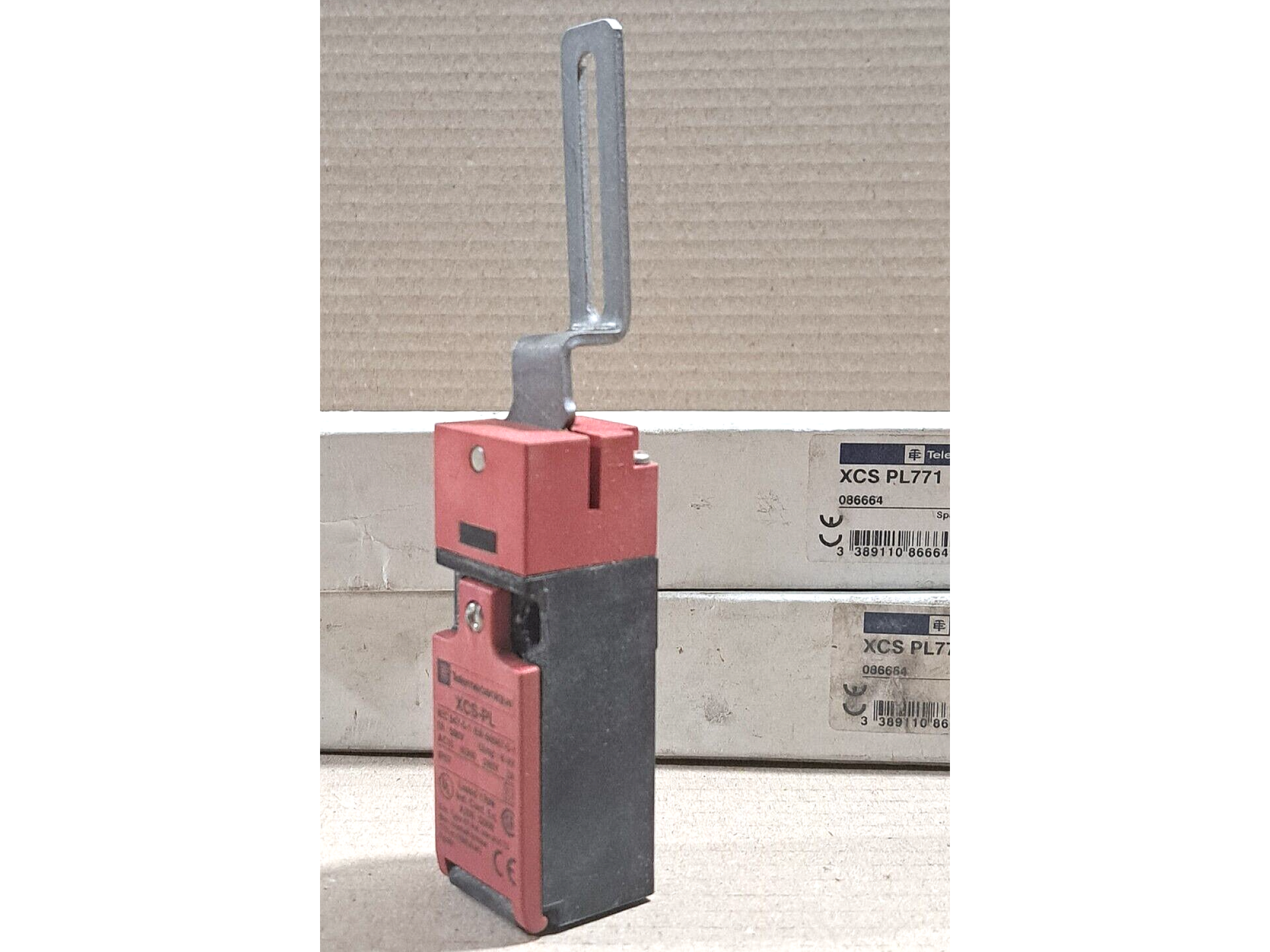

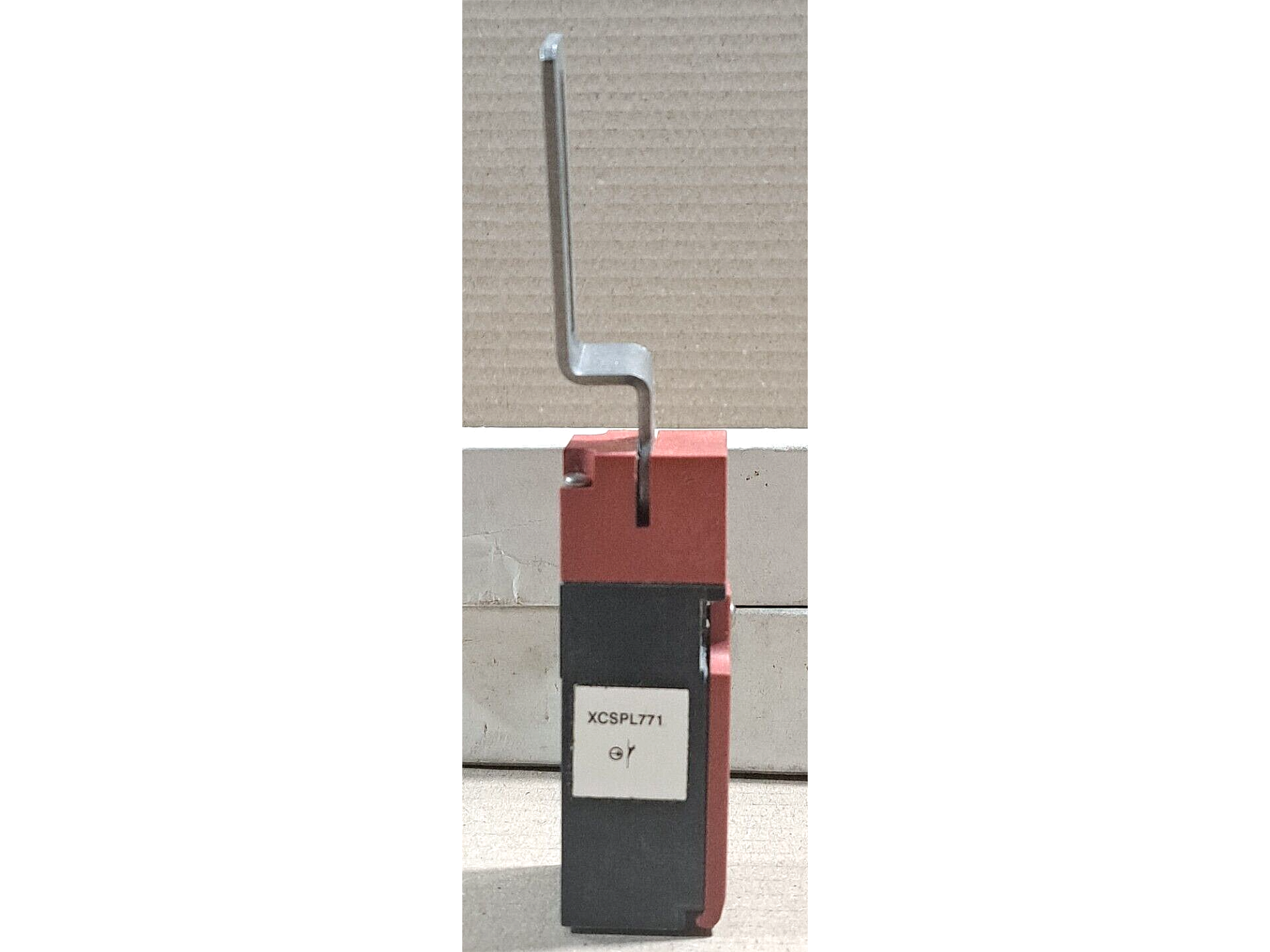

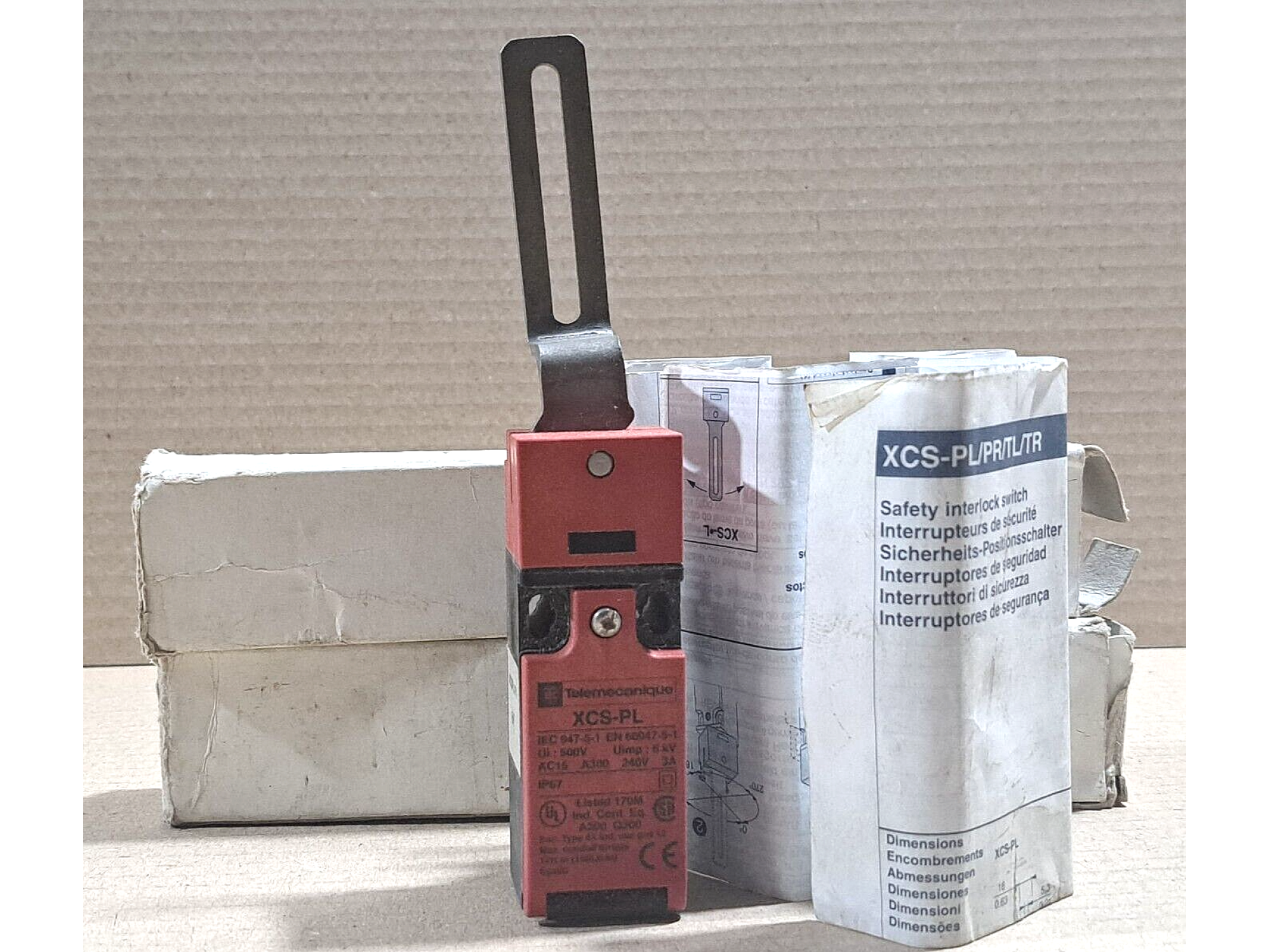

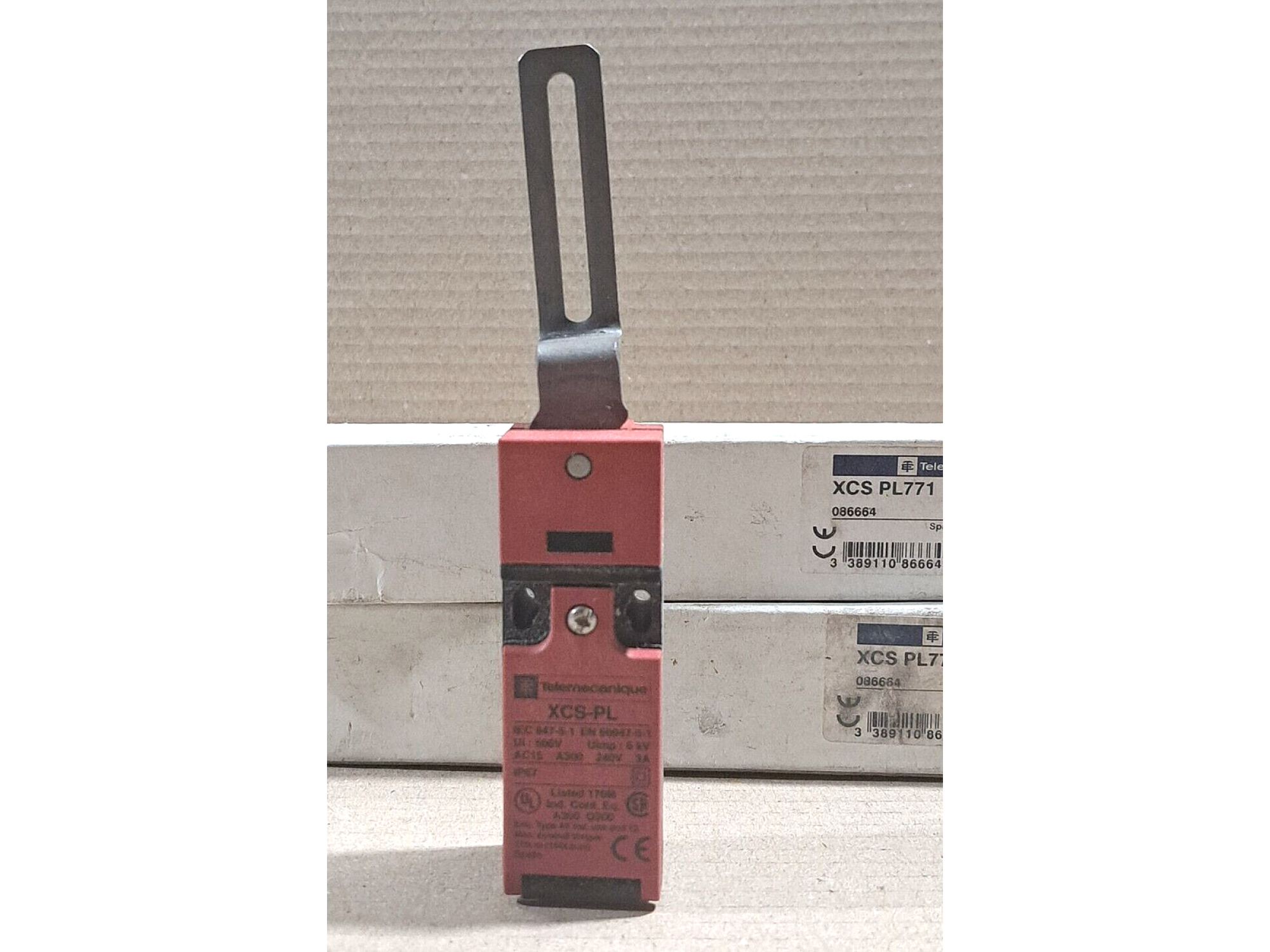

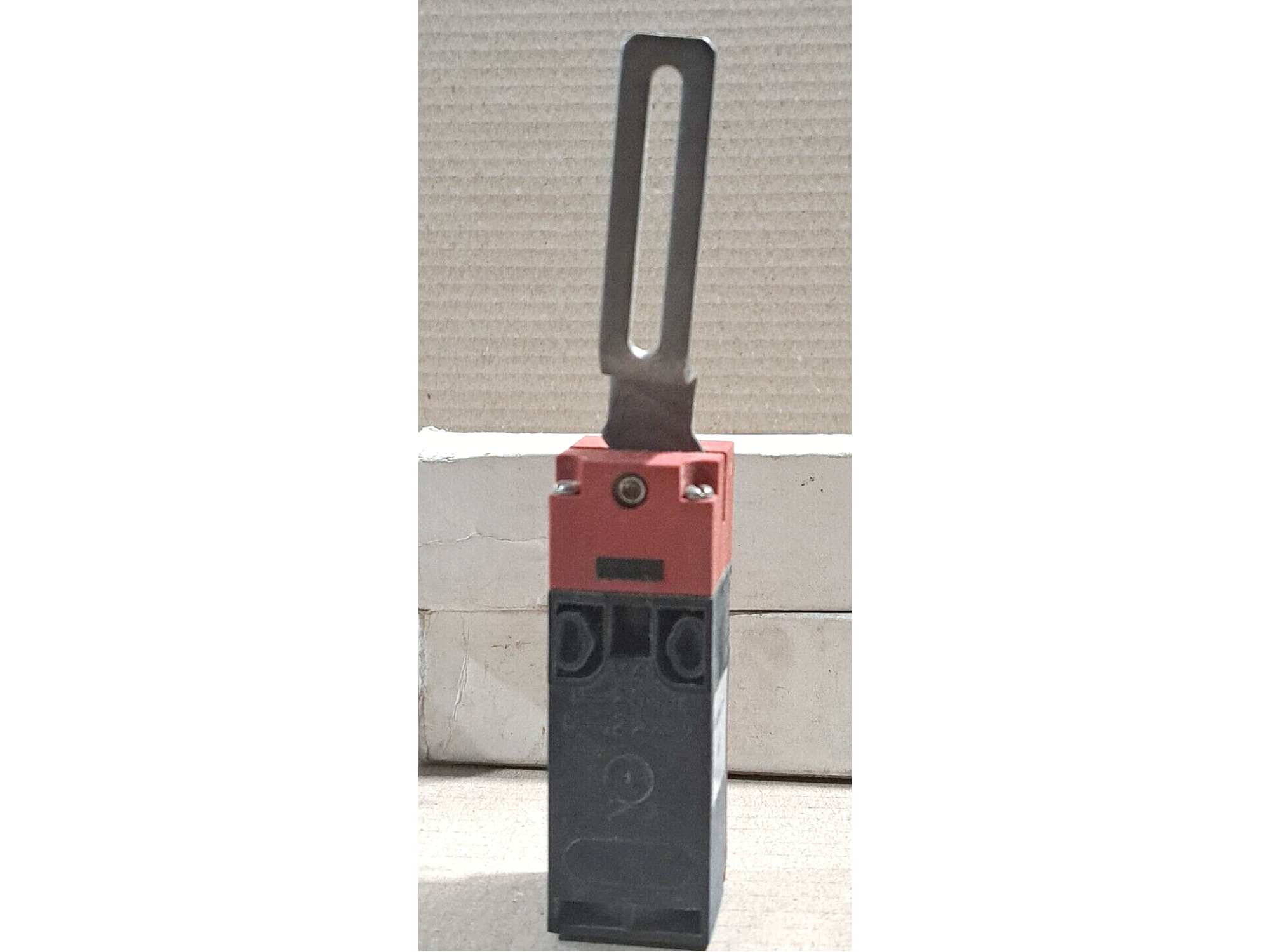

Telemecanique XCS PL771 Preventa Safety Limit Switch with Elbowed Lever

The Telemecanique XCS PL771 from the Preventa XCSPL series is a safety limit switch designed for reliable position monitoring in safety-critical applications, commonly employed as a hinge switch. It is an ideal component for supervising the open/closed position of machine guards, doors, flaps, or other machine elements that move with a rotating motion.

This switch features a robust plastic housing and is equipped with a turret head fitted with an elbowed flush lever actuator. The actuator operates to the right, making it suitable for activation by angular movement. The XCS PL771 is configured with two Normally Closed (NC) contacts, which feature slow-break operation and positive opening, a critical safety mechanism ensuring the circuit is broken even if contacts are welded.

With a compact, double-insulated plastic (Polyamide PA66) enclosure measuring 88 mm in height, 30 mm in width, and 30 mm in depth, and an IP67 protection rating, this switch is well-suited for use in demanding industrial environments. Electrical connection is provided via a single tapped entry for a Pg 11 cable gland. The XCSPL771 complies with stringent international safety standards, capable of reaching Performance Level e (PLe) / Safety Category 4 according to ISO 13849-1 and SIL 3 according to IEC 61508 when integrated into an appropriate safety system.

Key Characteristics:

• Function: Safety position monitoring of guards, doors, or machine parts.
• Actuator: Turret head rotary lever (elbowed flush lever, operation to the right).
• Output Contacts: 2 NC (positive opening), slow-break.
• Housing: Plastic (Polyamide PA66), double insulated, compact size (88x30x30 mm).
• Protection Rating: IP67.
• Connection: 1 entry tapped for Pg 11 cable gland.
• Type: Safety Limit Switch / Hinge Switch.
• Safety Standards: PLe/Cat 4 (ISO 13849-1), SIL 3 (IEC 61508), EN ISO 14119.

The Telemecanique XCSPL771 safety limit switch provides a robust, certified, and compact solution for position-based safety functions in industrial automation.
