Telemecanique XS9C4A2A2G13 Inductive Proximity Sensor 1 pcs

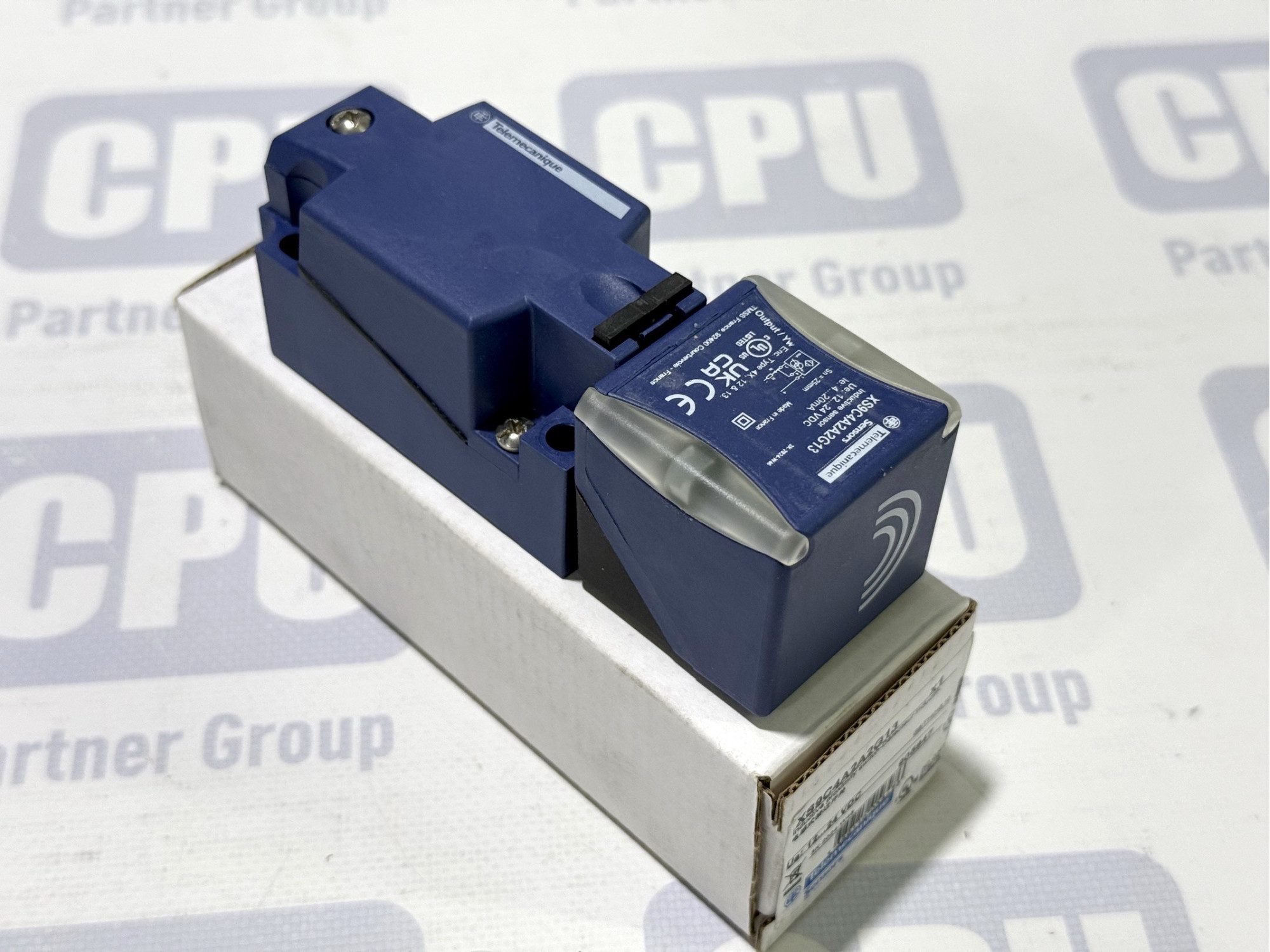

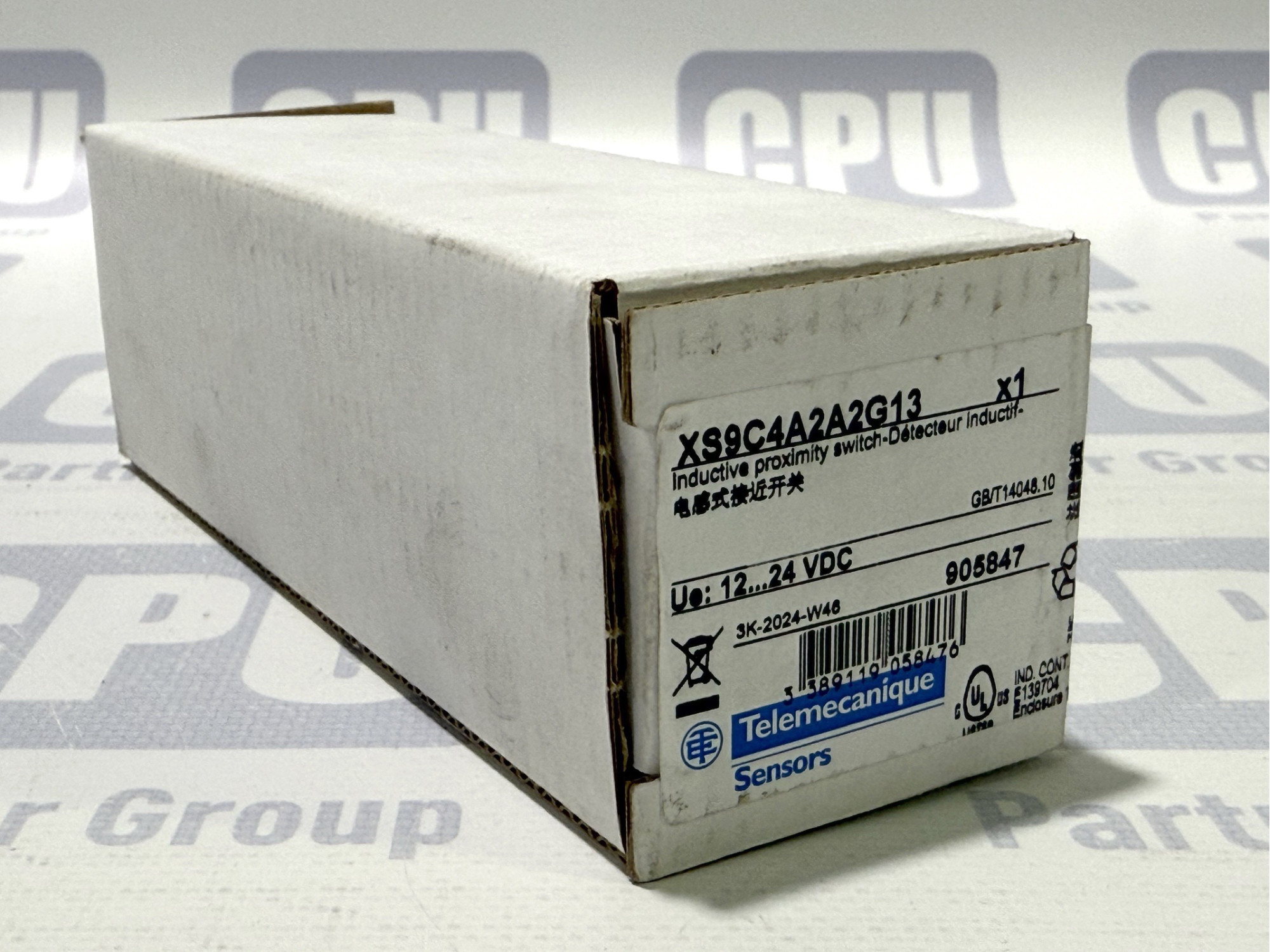

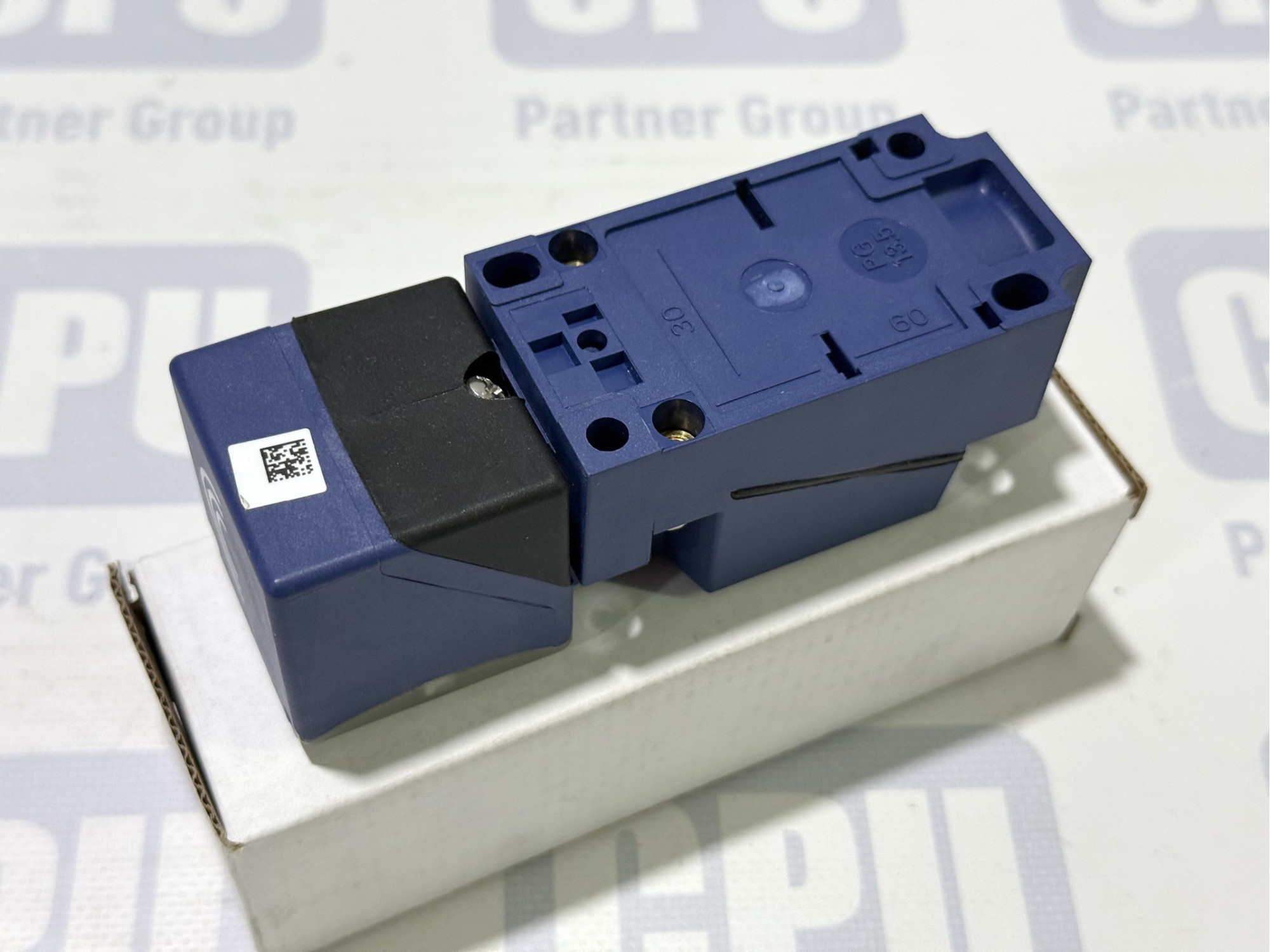

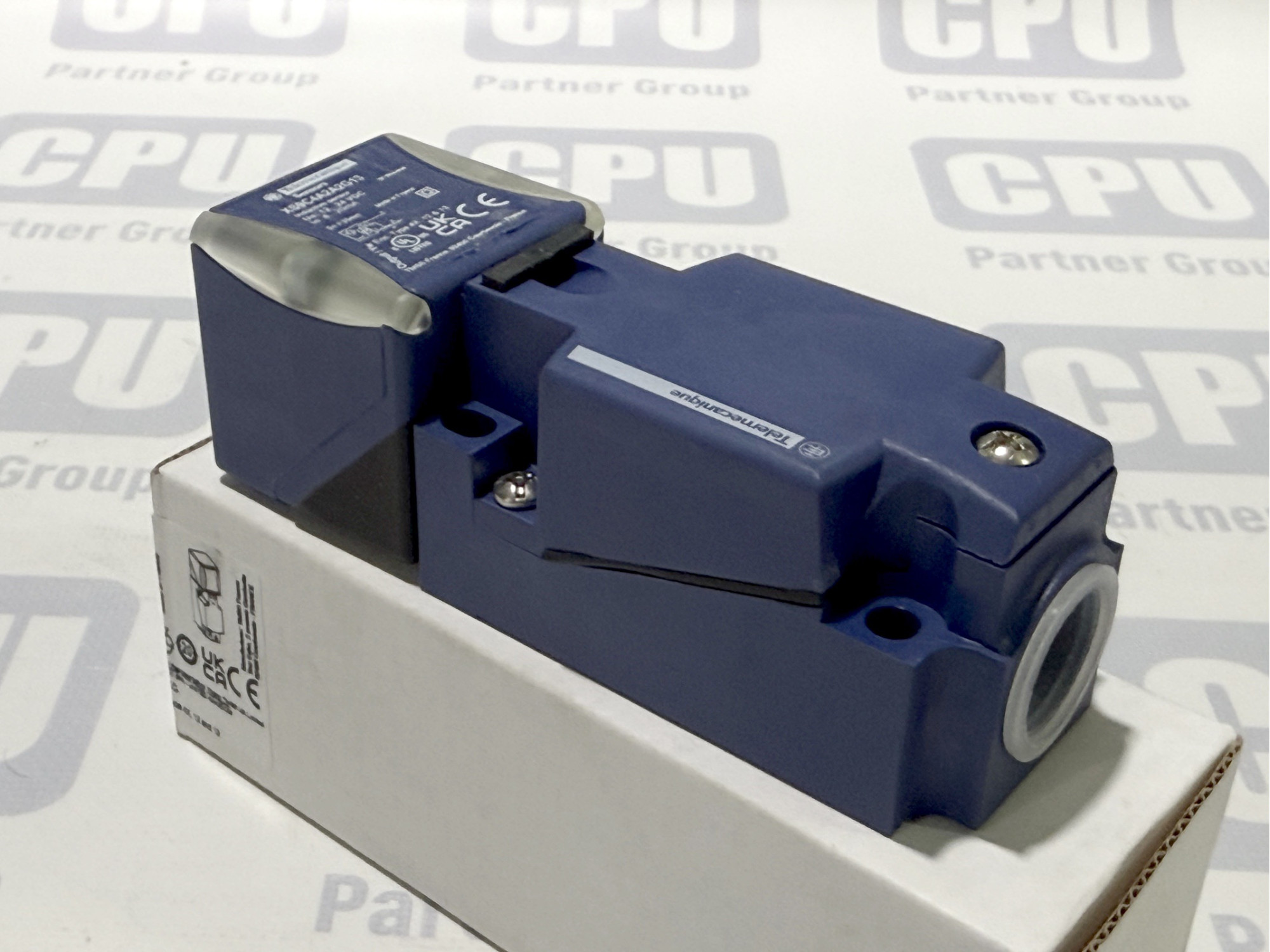

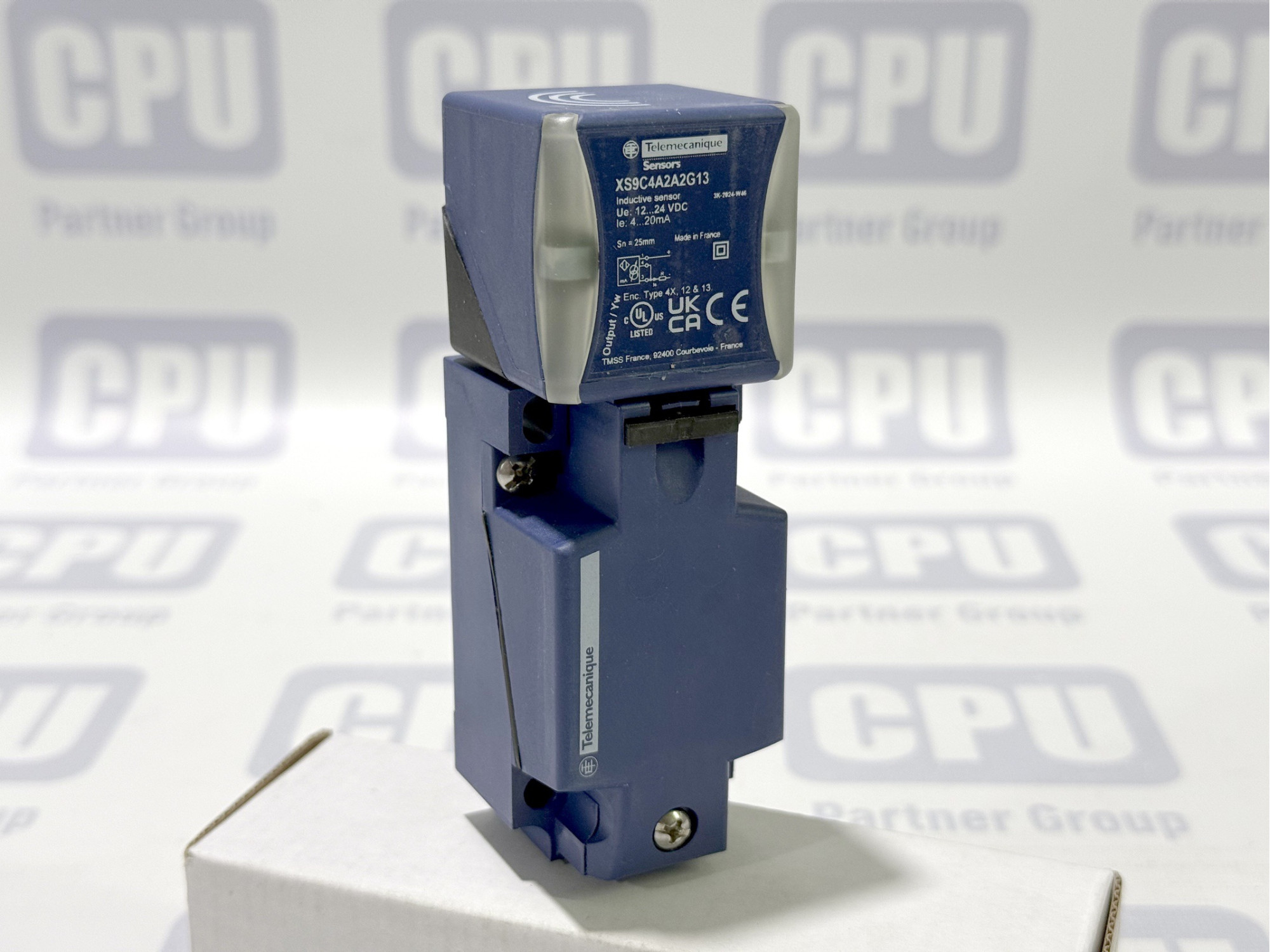

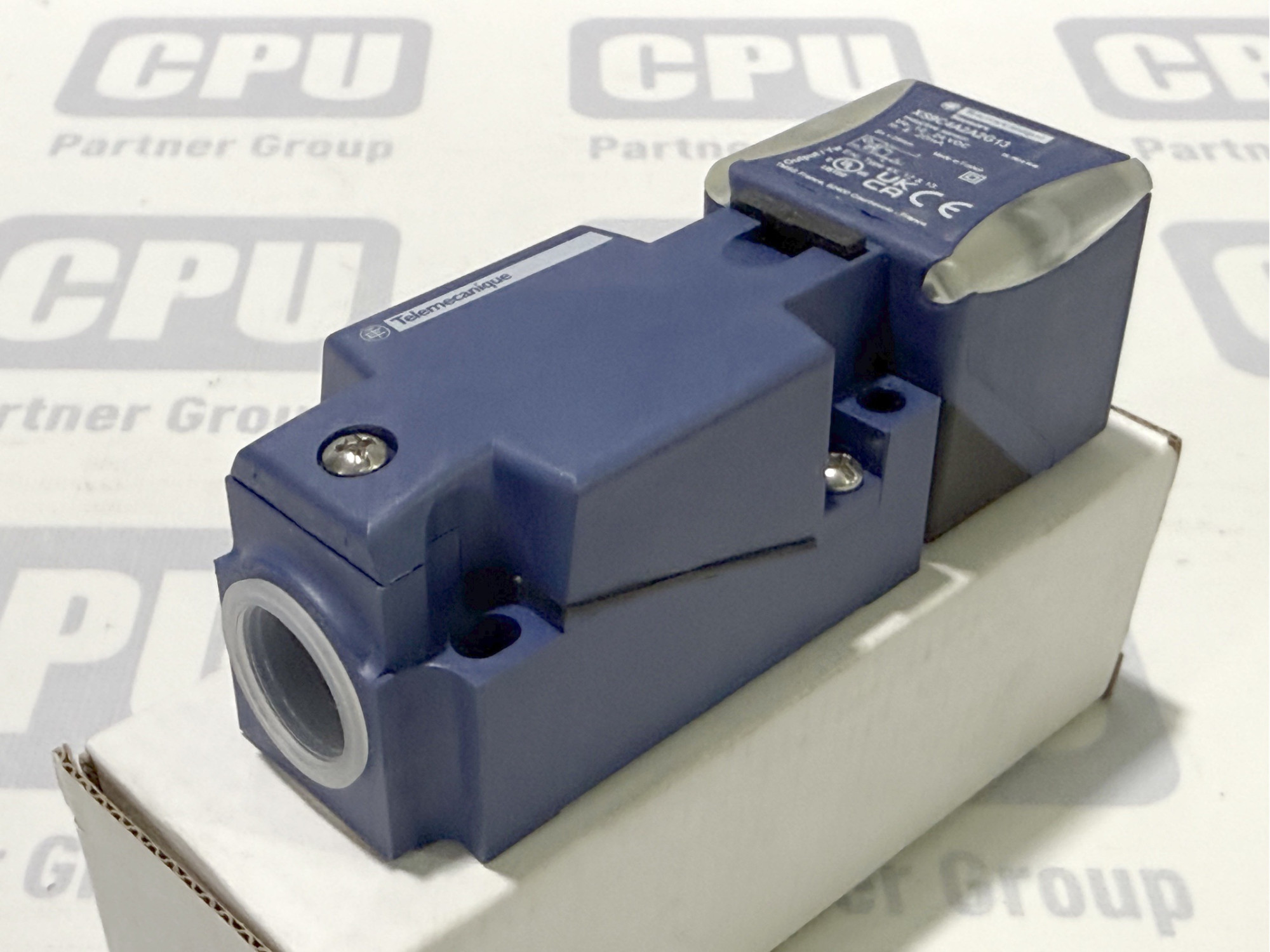

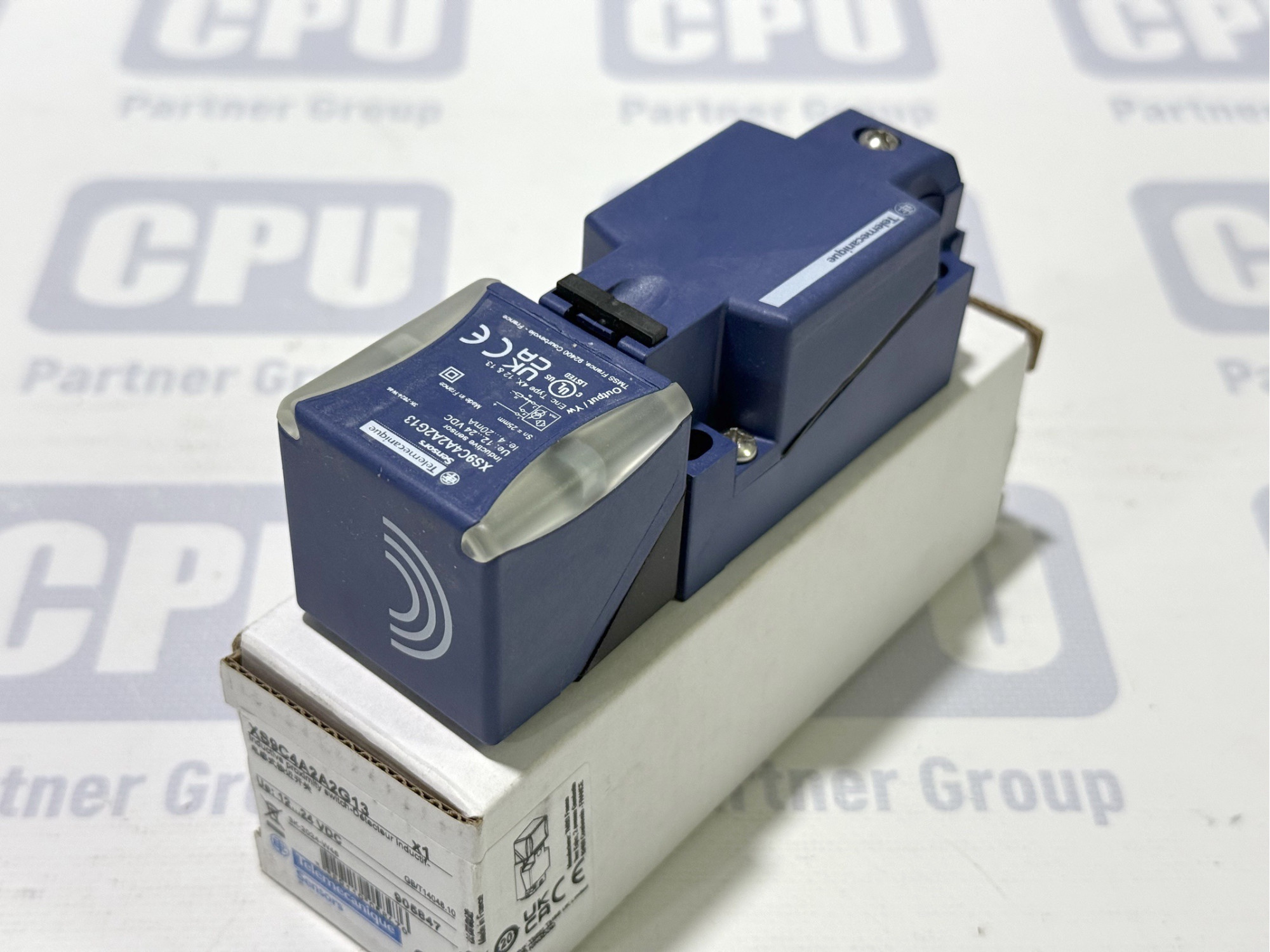

Telemecanique XS9C4A2A2G13 Inductive Proximity Sensor

The Telemecanique XS9C4A2A2G13 inductive proximity sensor is designed for contactless detection of metal objects in industrial environments. It is ideally suited for tasks requiring precise position sensing, presence/absence control, counting, and automating various manufacturing processes without physical contact, which helps reduce wear and increase equipment reliability.

Key Features:

• Manufacturer: Telemecanique (a Schneider Electric brand)
• Model: XS9C4A2A2G13
• Sensor Type: Inductive proximity sensor
• Sensor Design: Form $40\times 40\times 117$ mm.
• Enclosure Material: PBT (plastic).
• Rated Supply Voltage (Us): 12...24 V DC with reverse polarity protection.
• Analog Output: 4...20 mA.
• Nominal Sensing Distance (Sn): 25 mm.
• Operating Zone: 2...27 mm.
• Type of Output Signal: Analog.
• Electrical Connection: Screw-clamp terminals, $4\times 1.5m{m}^2$.
• Cable Entry: 1 tapped entry for Pg 13.5 cable gland.
• Status Indication: 1 yellow LED for output state.
• IP Degree of Protection: IP67, IP65 (conforming to IEC 60529) and IP69K (conforming to DIN 40050).
• Vibration Resistance: 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6.
• Shock Resistance: 50 gn for 11 ms conforming to IEC 60068-2-27.
• Temperature Range: Ambient air temperature for operation from -25 to 70°C, ambient air temperature for storage from -40 to 85°C.
• Certifications: CSA, CE.

Unique Advantages or Features:

• Reliability in Harsh Environments: High IP ratings of IP67, IP65, and IP69K ensure resistance to water, dust, and high pressure/temperature, making it ideal for demanding industrial environments.
• Precise Analog Measurement: The 4-20 mA analog output allows not only object detection but also distance sensing, providing high accuracy and flexibility in control.
• Versatile Mounting: The 5-position turret head and mounting options (head can be rotated) allow the sensor to be adapted to various equipment configurations.
• Durability: The absence of mechanical contact with the object and robust materials (PBT) extend the sensor's lifespan and reduce operating costs.

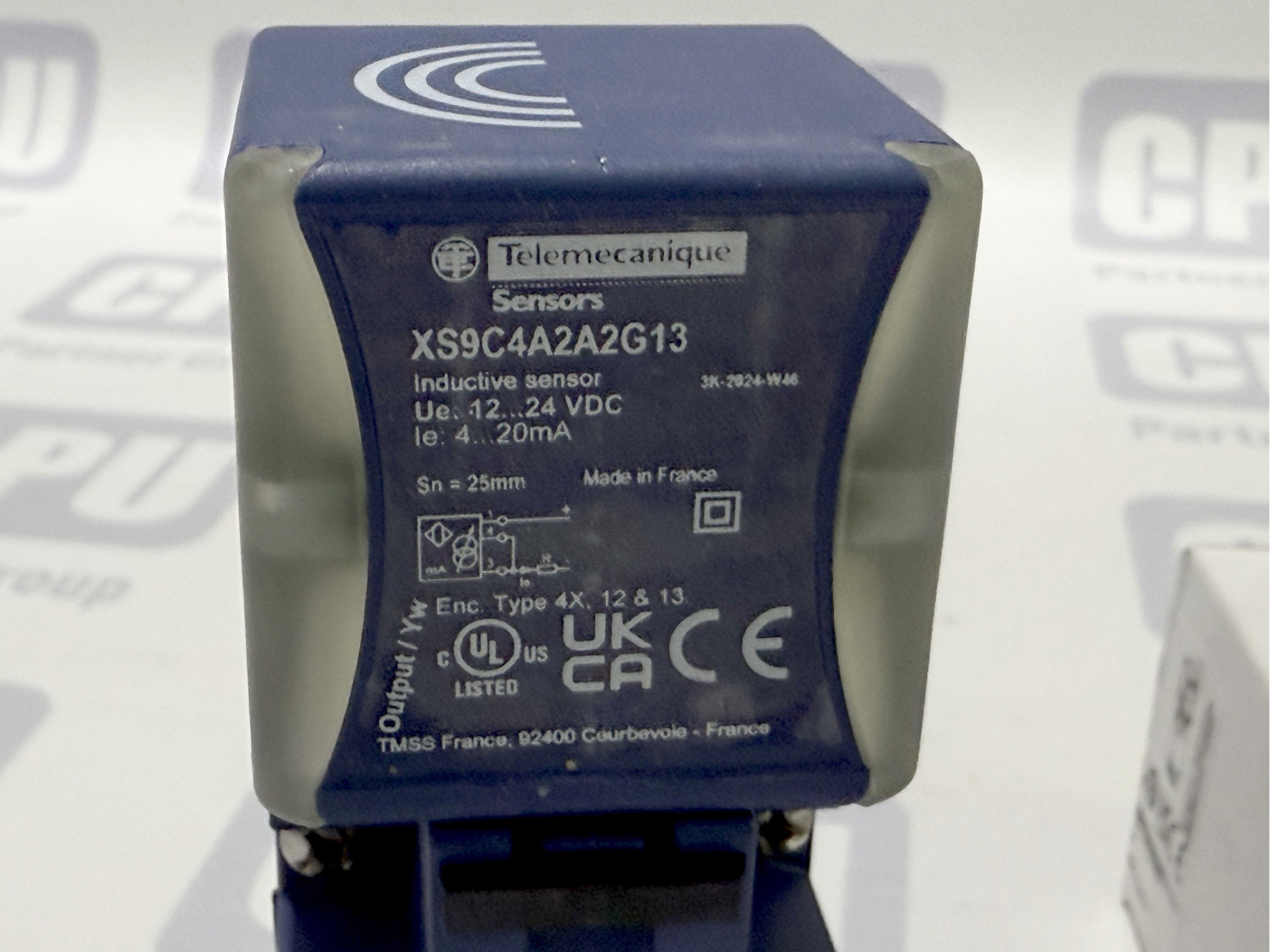

• Standard Compliance: UL, UKCA, and CE certifications confirm the product's high quality and safety. (Note: While the image shows UL and UKCA, the PDF only explicitly mentions CSA and CE for product certifications ).

Product data sheet

Characteristics

https://cpupartnergroup.com/image/pdf/XS9C4A2A2G13_EN.pdf
