Emerson Rosemount BINOS 100 2MC-TC Gas Analyzers (1PCS)

Emerson Rosemount BINOS 100 2MC-TC Gas Analyzer

 This instrument is part of the high-quality analytical equipment line designed for accurate measurement of gas composition in various technological processes.

The BINOS 100 2MC-TC model is a dual-channel (2MC) analyzer utilizing the thermal conductivity (TC) measurement principle. This method is ideally suited for analyzing gases with high or low thermal conductivity compared to the background medium, such as Hydrogen (H2) in hydrocarbon (HC) mixtures.

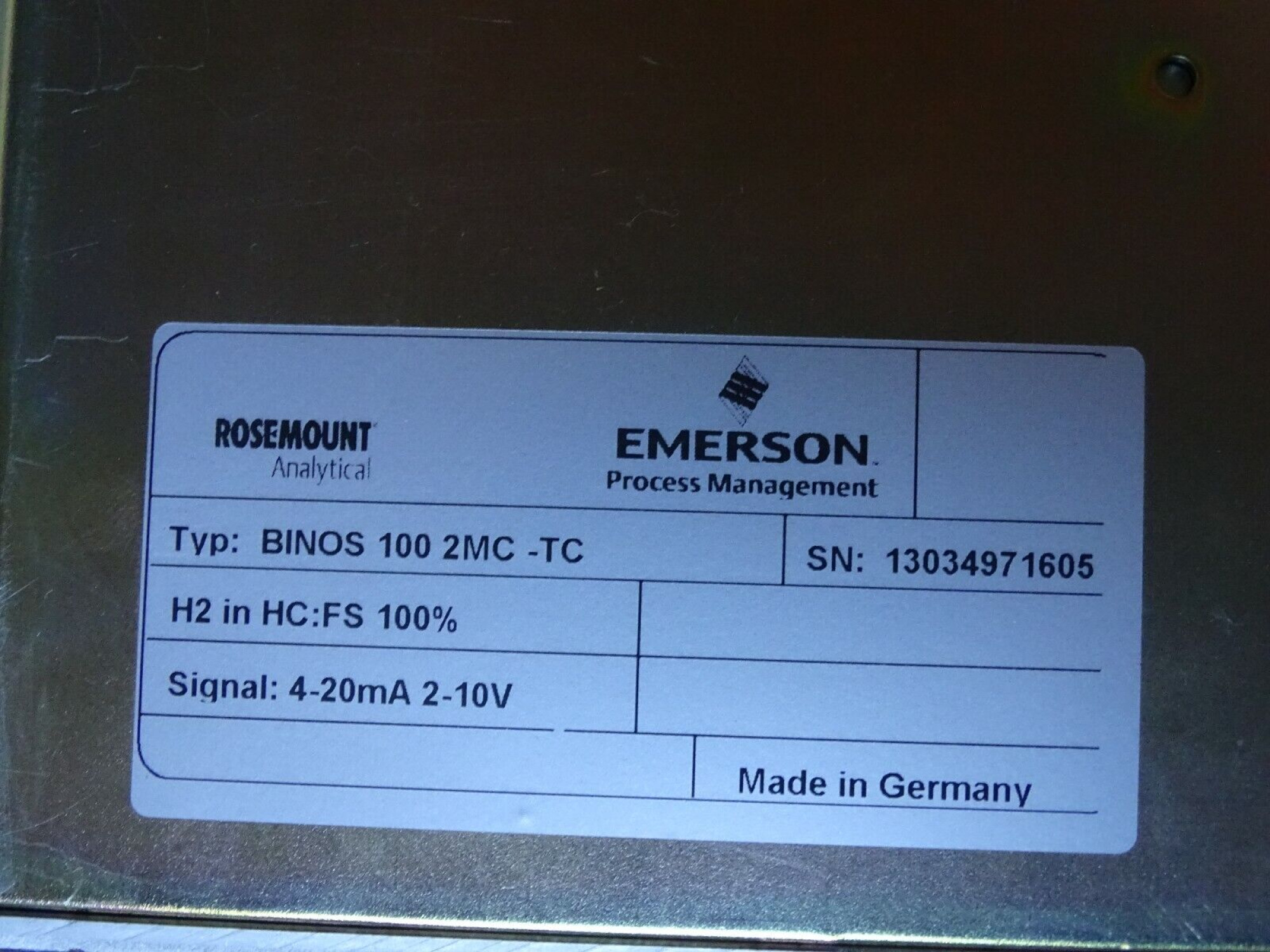

This specific analyzer is configured to measure the Hydrogen (H2) content in Hydrocarbons (HC) with a full measuring range of 100% (FS 100%). Thanks to its dual-channel configuration, the instrument is capable of providing high measurement accuracy, including the possibility of compensating for interfering components (up to three externally measured gases via analog inputs).

Key Features and Benefits:

High Accuracy and Reliability: The thermal conductivity principle and Emerson Rosemount quality ensure stable and precise measurements.

Dual-Channel Configuration (2MC): Increases flexibility and accuracy, especially when dealing with complex gas mixtures.

H2 in HC Measurement: Specialized configuration for monitoring hydrogen content in hydrocarbon streams up to 100%.

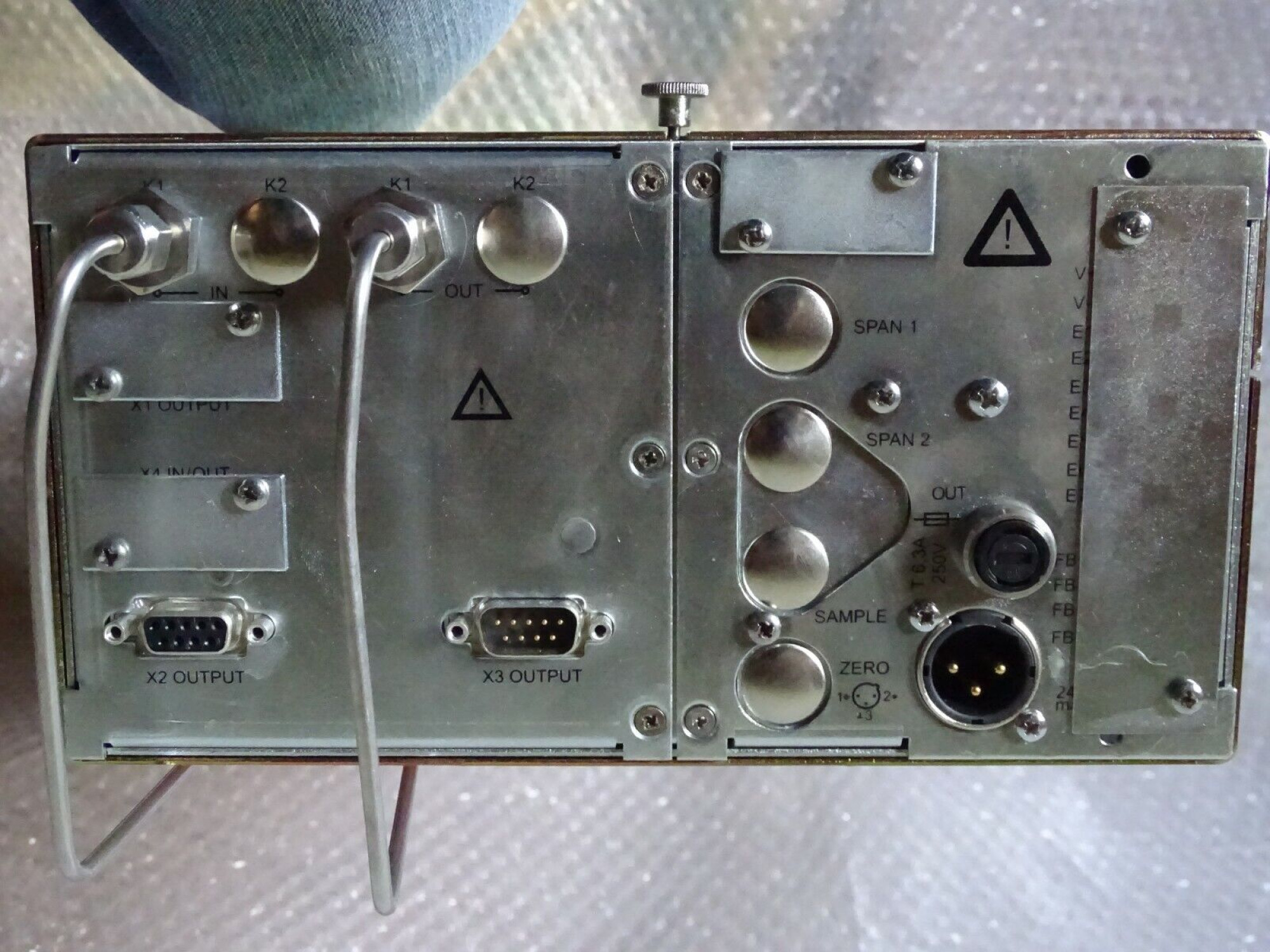

Standard Output Signals: Provides analog 4-20 mA and 2-10 V outputs for easy integration into existing control and monitoring systems.

Fast Response Time: Typical response time (t90) can range from less than 5 to approximately 12 seconds, depending on the configuration and conditions.

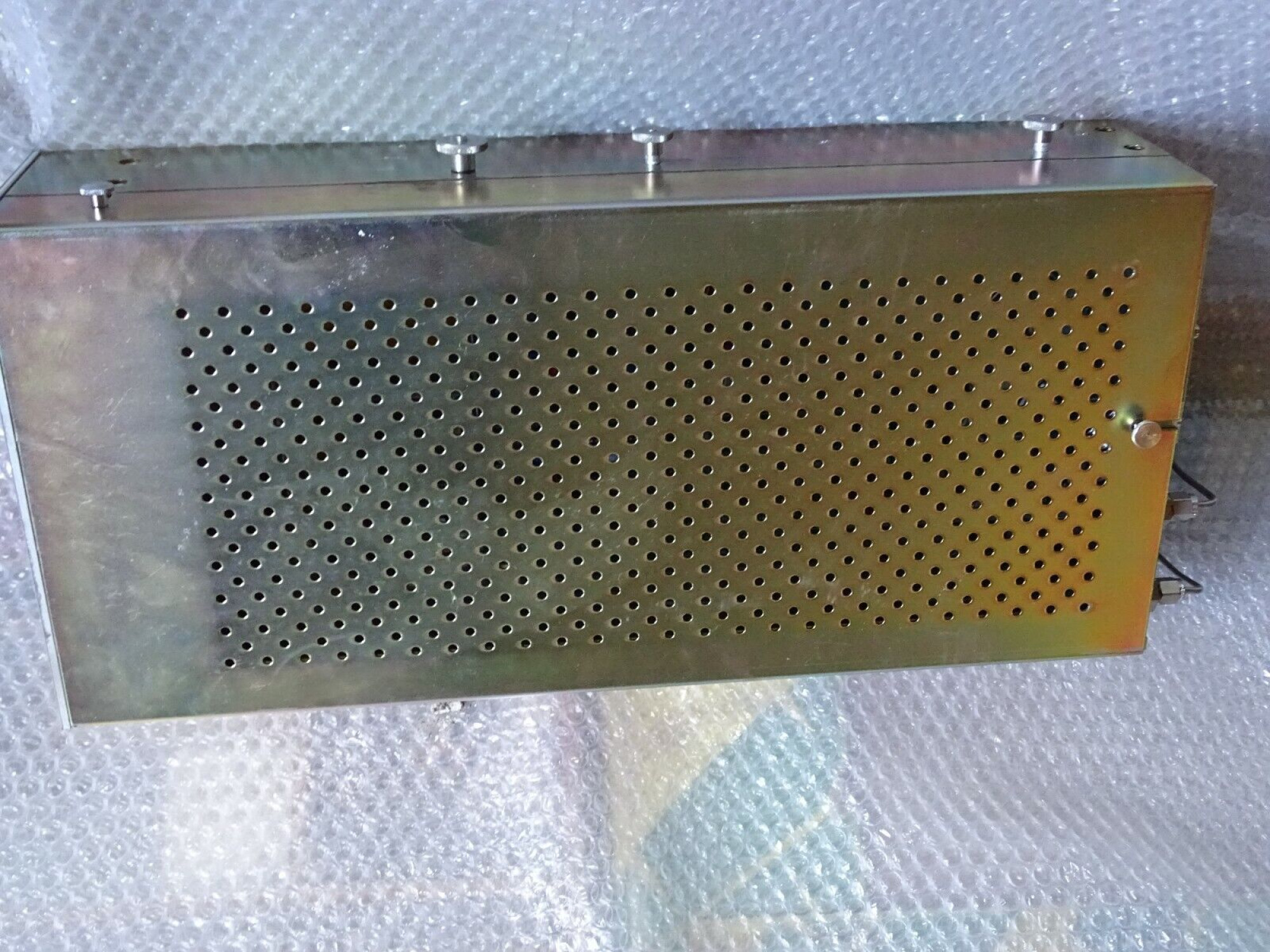

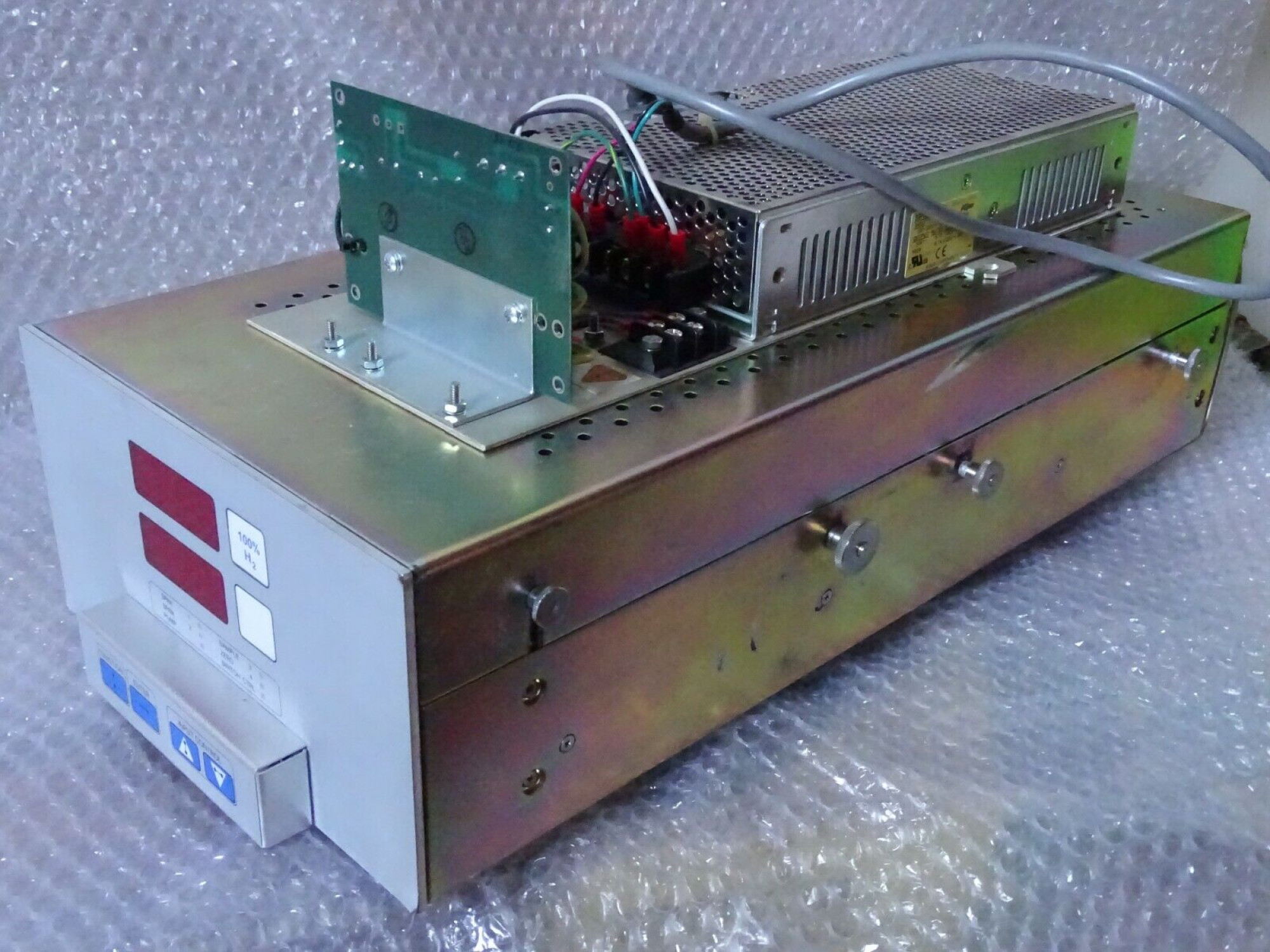

Industrial Design: The analyzer is built in a reliable 1/2 19" housing suitable for panel mounting and is designed for use in industrial environments.

Additional Capabilities: Supports optional digital interfaces (RS 232/485, Fieldbus) and relay outputs for status signals and external device control.

Technical Specifications:

Measurement Principle: Thermal Conductivity (TC)

Configuration: Dual-Channel (2MC)

Measured Component: Hydrogen (H2) in Hydrocarbons (HC)

Measuring Range: 0-100% H2 in HC (Full Scale)

Output Signals: 4-20 mA, 2-10 V

Typical Ambient Operating Temperature: +5°C to +40°C

Maximum Gas Pressure: < 1500 hPa abs. (1.5 bar abs.)

Typical Response Time (t90): < 5 s to approx. 12 s (configuration dependent)

Form Factor: Likely 1/2 19" housing for panel mounting

Optional Interfaces: RS 232 C / 485, Fieldbus

The Emerson Rosemount BINOS 100 2MC-TC Gas Analyzer is a reliable and accurate solution for quality and safety control tasks requiring the measurement of hydrogen in hydrocarbon streams on an industrial scale.
