Emerson Rosemount OXYNOS 100-PO2 High-Precision Oxygen Analyzer (1PCS)

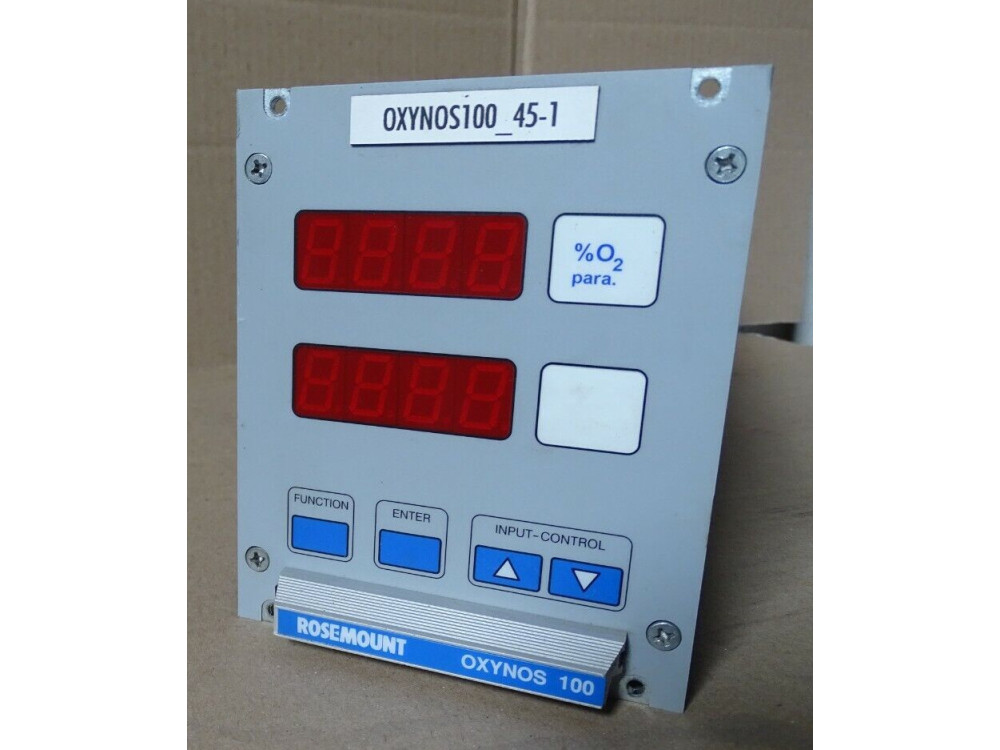

High-Precision Oxygen Analyzer Emerson Rosemount OXYNOS 100-PO2

 This instrument is designed for the accurate and reliable measurement of oxygen (O2) concentration in various gas mixtures and technological processes.

The OXYNOS 100-PO2 model uses the highly effective paramagnetic measurement principle (PO2) to determine oxygen content. This method provides high accuracy, linearity, and stability of measurements, which is critical for applications requiring precise control of O2 levels.

This specific analyzer is configured to measure oxygen (O2) with a full measuring range of 25% .

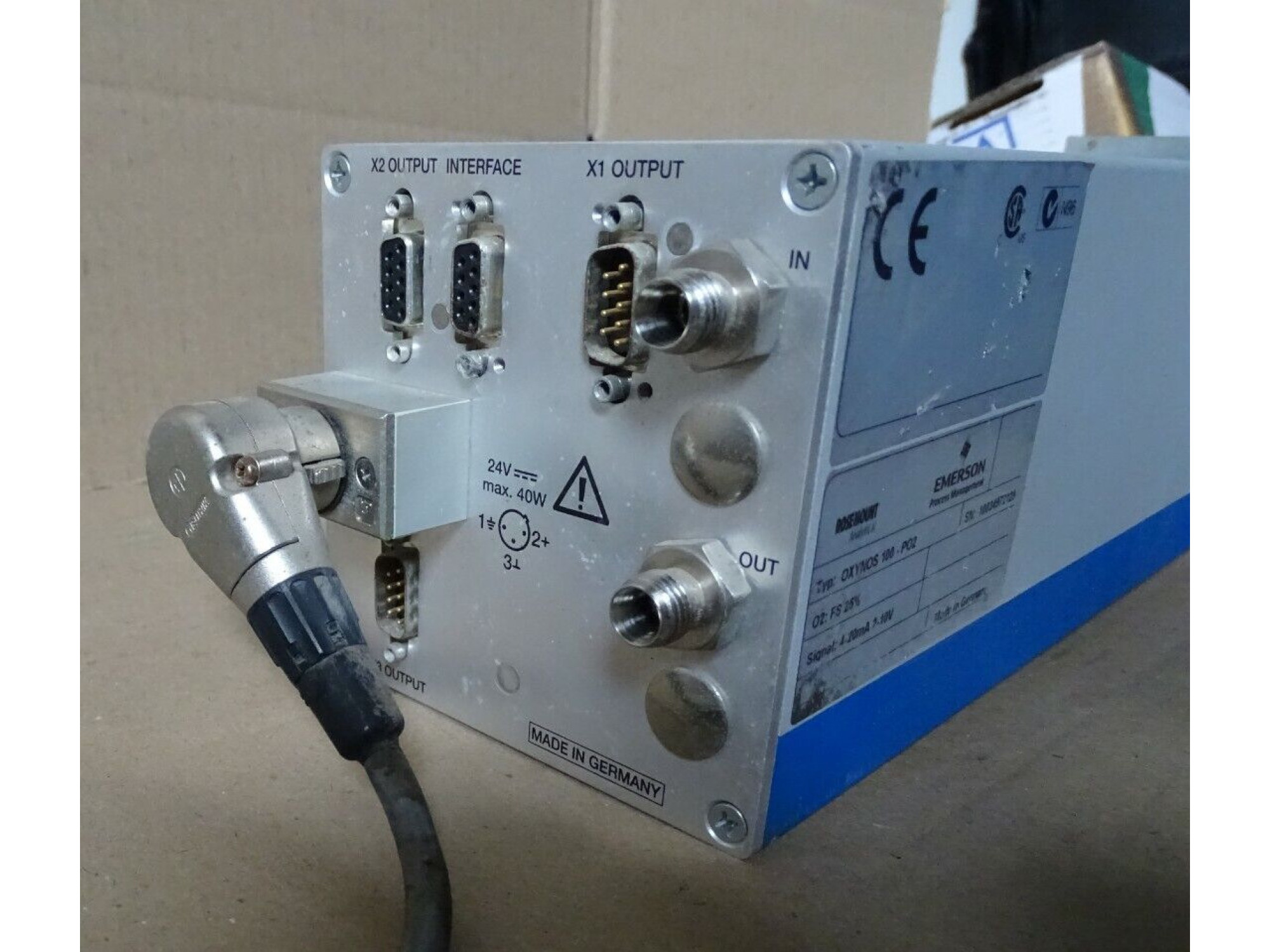

The analyzer provides standard industrial output signals: 4-20 mA and 2-10 V, ensuring easy integration into existing control and monitoring systems. Optional serial interfaces (RS 232C/485) and relay outputs are also available for status signals and external device control for the series.

The instrument is designed for industrial use and has an ingress protection rating of IP20 (standard version).

Key Features and Benefits:

• High-Precision Oxygen Measurement: Uses the paramagnetic principle (PO2) for reliability and accuracy.
• Specialized 25% O2 Range: Optimally suited for monitoring oxygen concentration in various industrial mixtures.
• Standard Industrial Outputs: 4-20 mA and 2-10 V for easy integration.
• Robust Design: Developed for industrial operating conditions.
• Fast Response Time (typ.): Approximately 5 seconds.

Technical Specifications (based on available data):

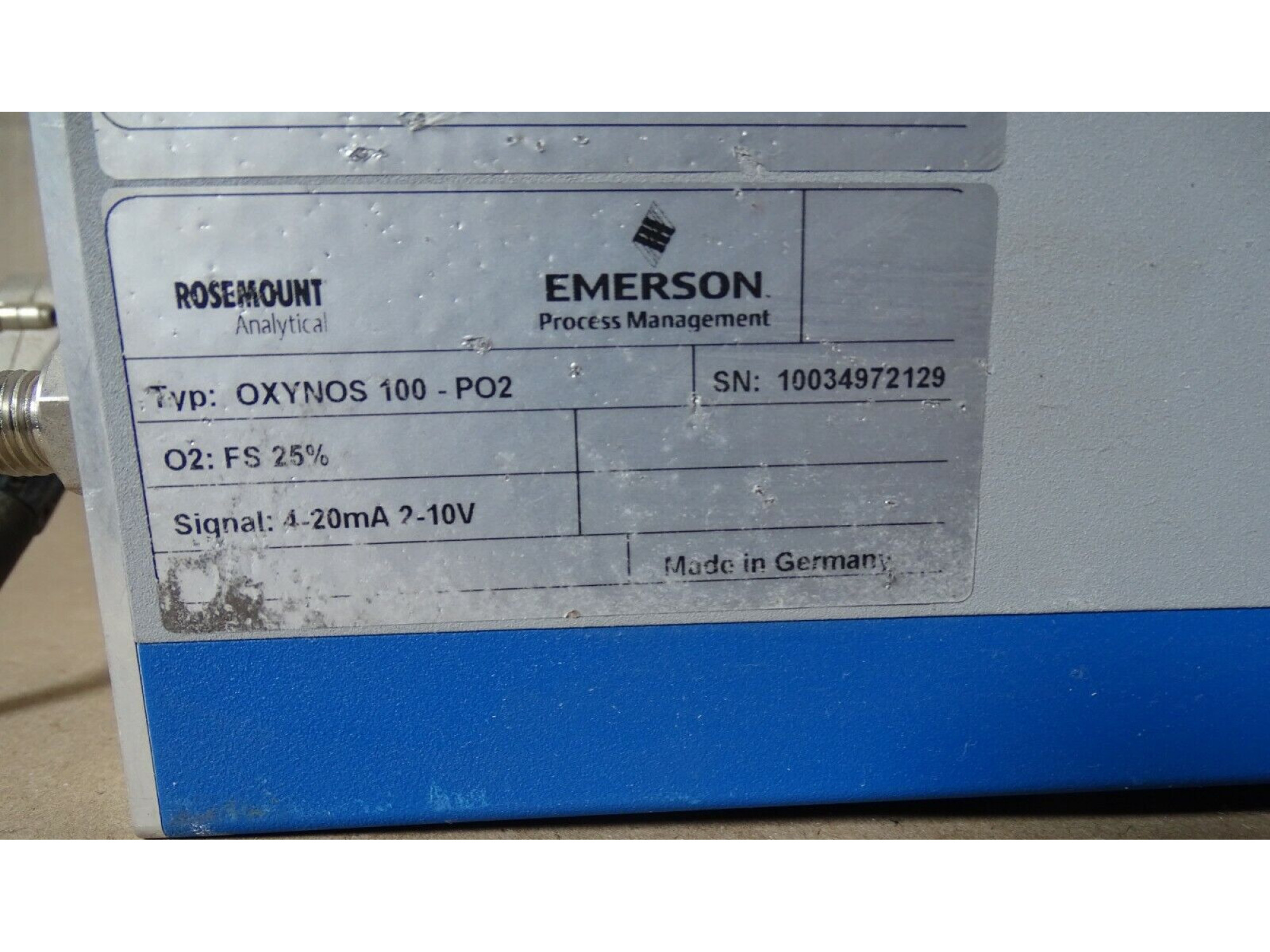

• Brand: Emerson Rosemount Analytical
• Model: OXYNOS 100-PO2
• Measurement Principle: Paramagnetic (PO2)
• Measured Component: Oxygen (O2)
• Measuring Range: 0-25% O2 (Full Scale)
• Output Signals: 4-20 mA, 2-10 V
• Typical Ambient Operating Temperature: +5°C to +40°C
• Operating Humidity: < 90% RH at 20°C (non-condensing)
• Maximum Gas Flow: 0.2 - 1.5 l/min
• Maximum Gas Pressure: < 1500 hPa abs. (1.5 bar abs.)
• Typical Response Time (t90): ~5 s
• Protection Rating: IP20
• Manufacturing Location: Germany

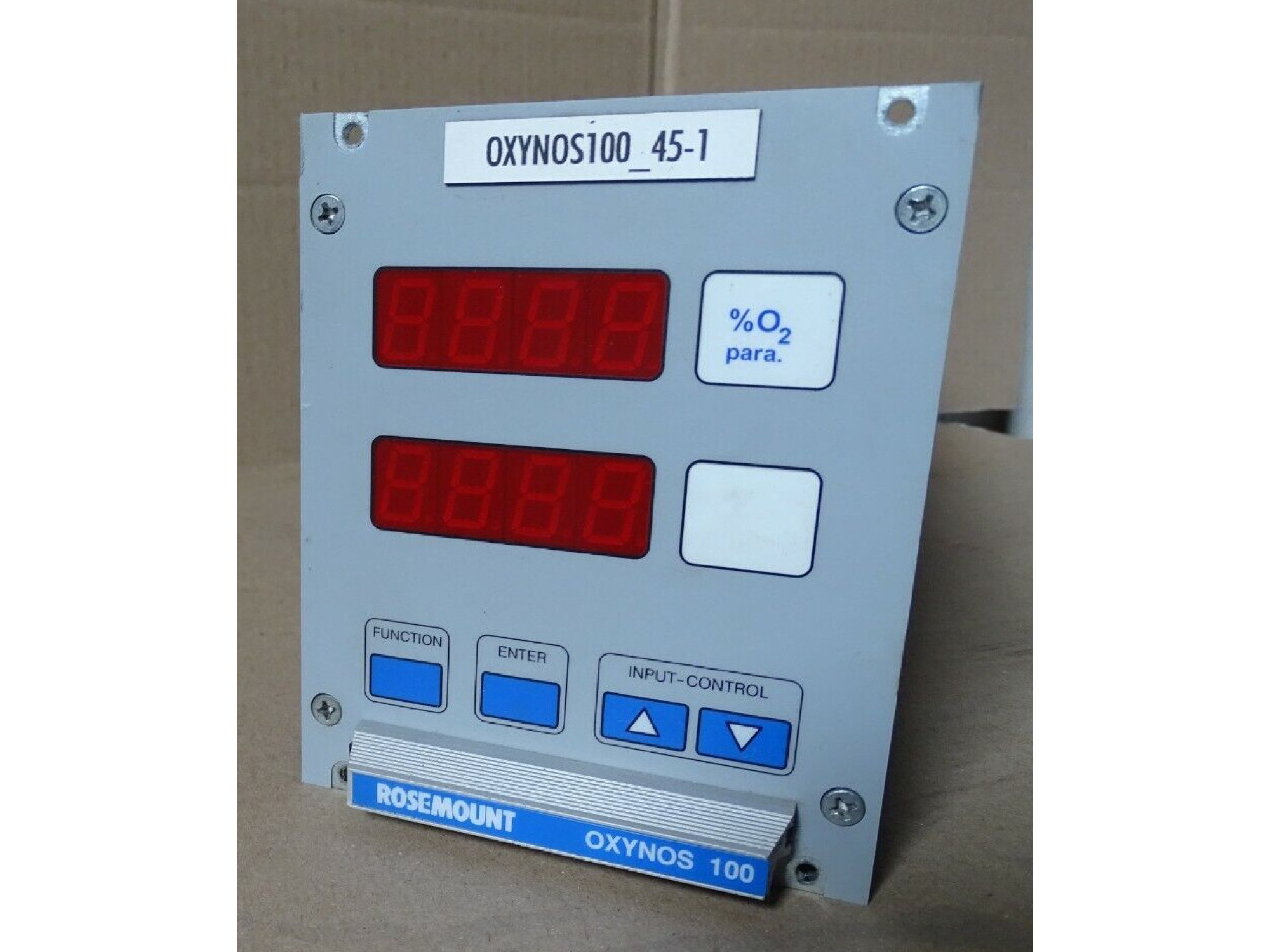

• Form Factor: Part of the Series 100, often in a housing for panel mounting (e.g., 1/4 19")

The Emerson Rosemount OXYNOS 100-PO2 Gas Analyzer is a reliable and accurate instrument for monitoring oxygen content in analytical and technological processes, ensuring high quality and compliance with industrial standards.
