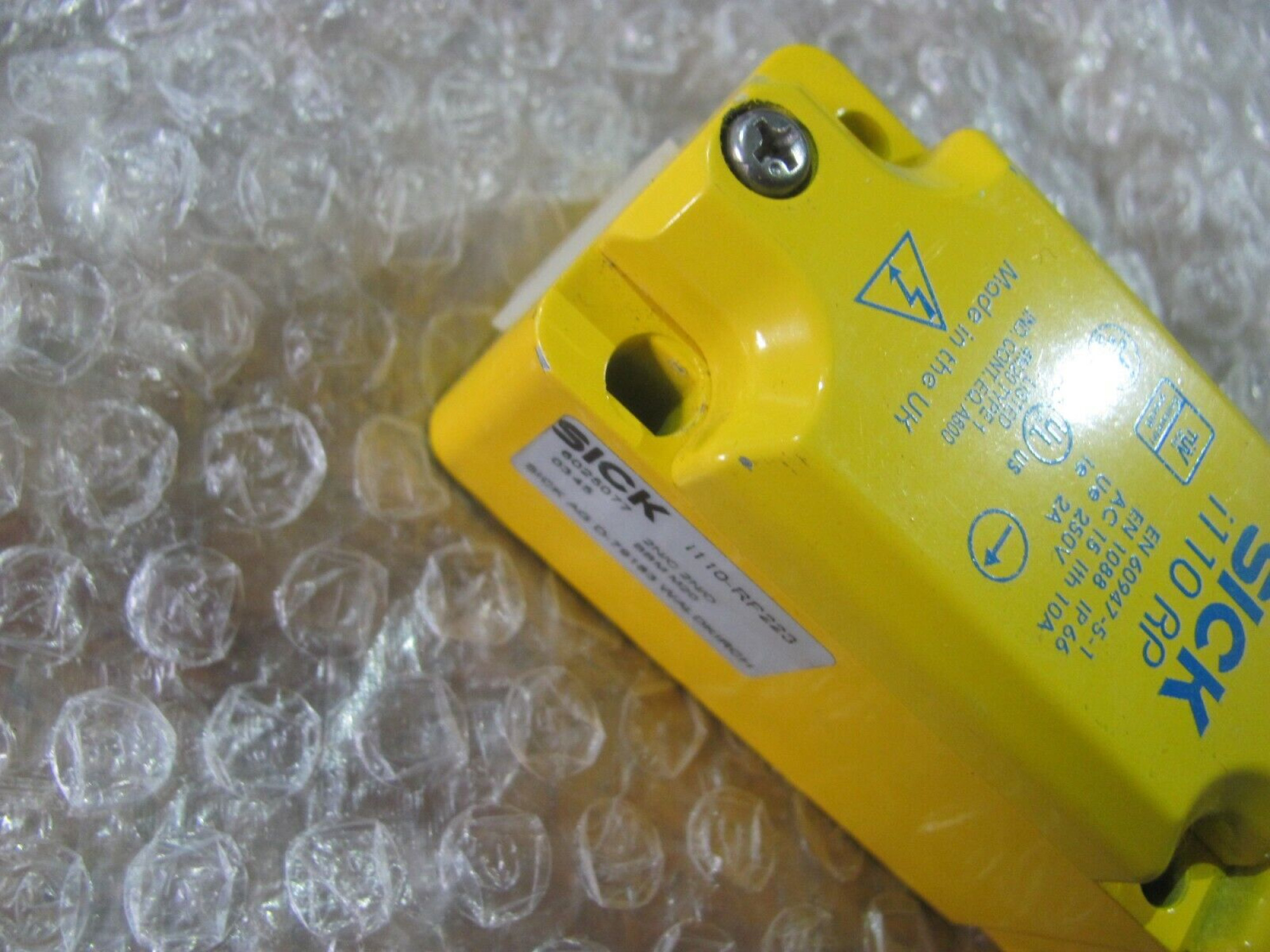

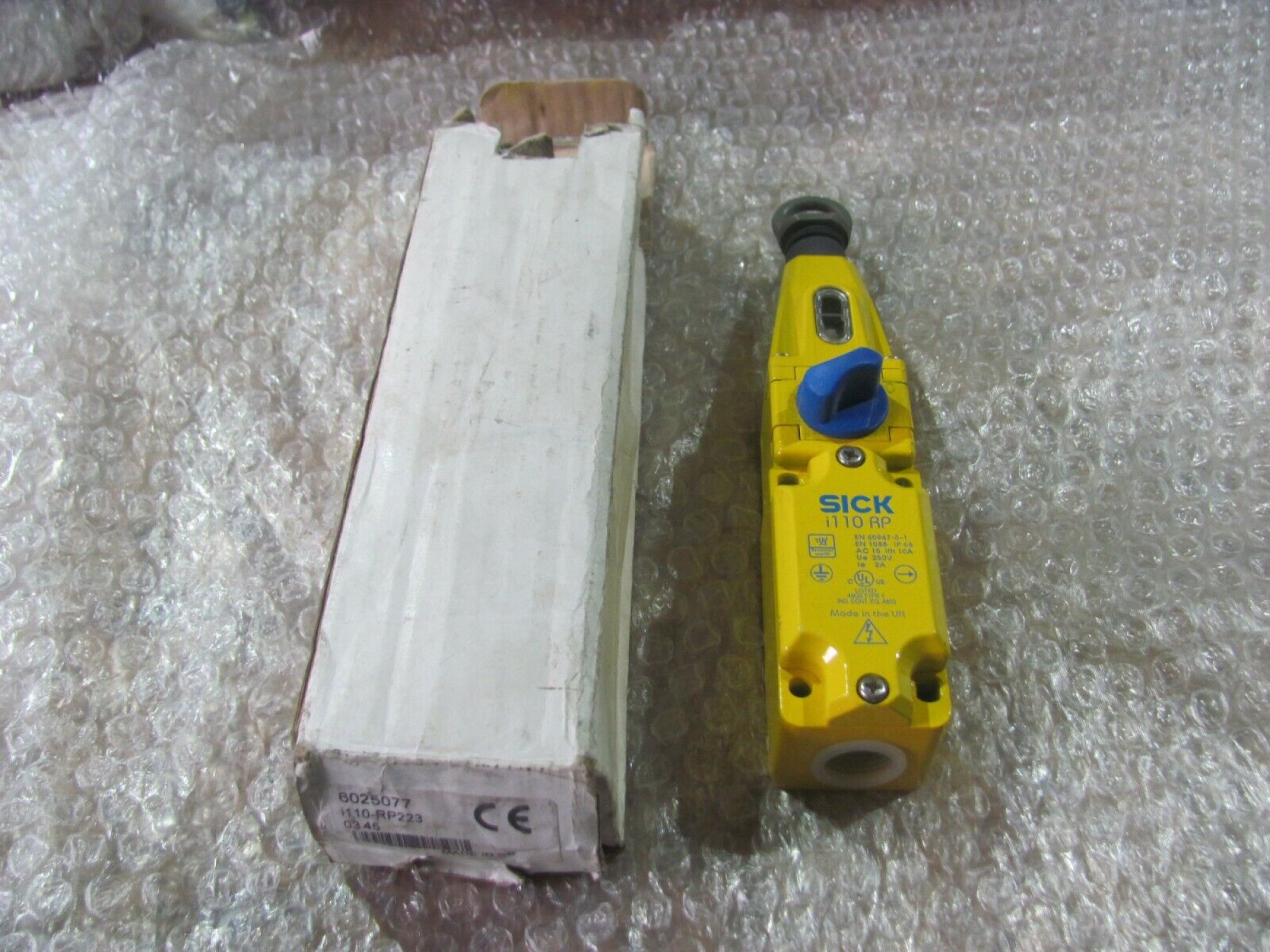

SICK i110-RP223 6025077 Safety Rope Pull Switch

SICK I110RP Series Safety Rope Pull Switch

• Model: I110-RP223
• Part Number: 6025077
• Manufacturer: SICK
• Type: Safety Rope Pull Switch / Cable Pull Safety Switch

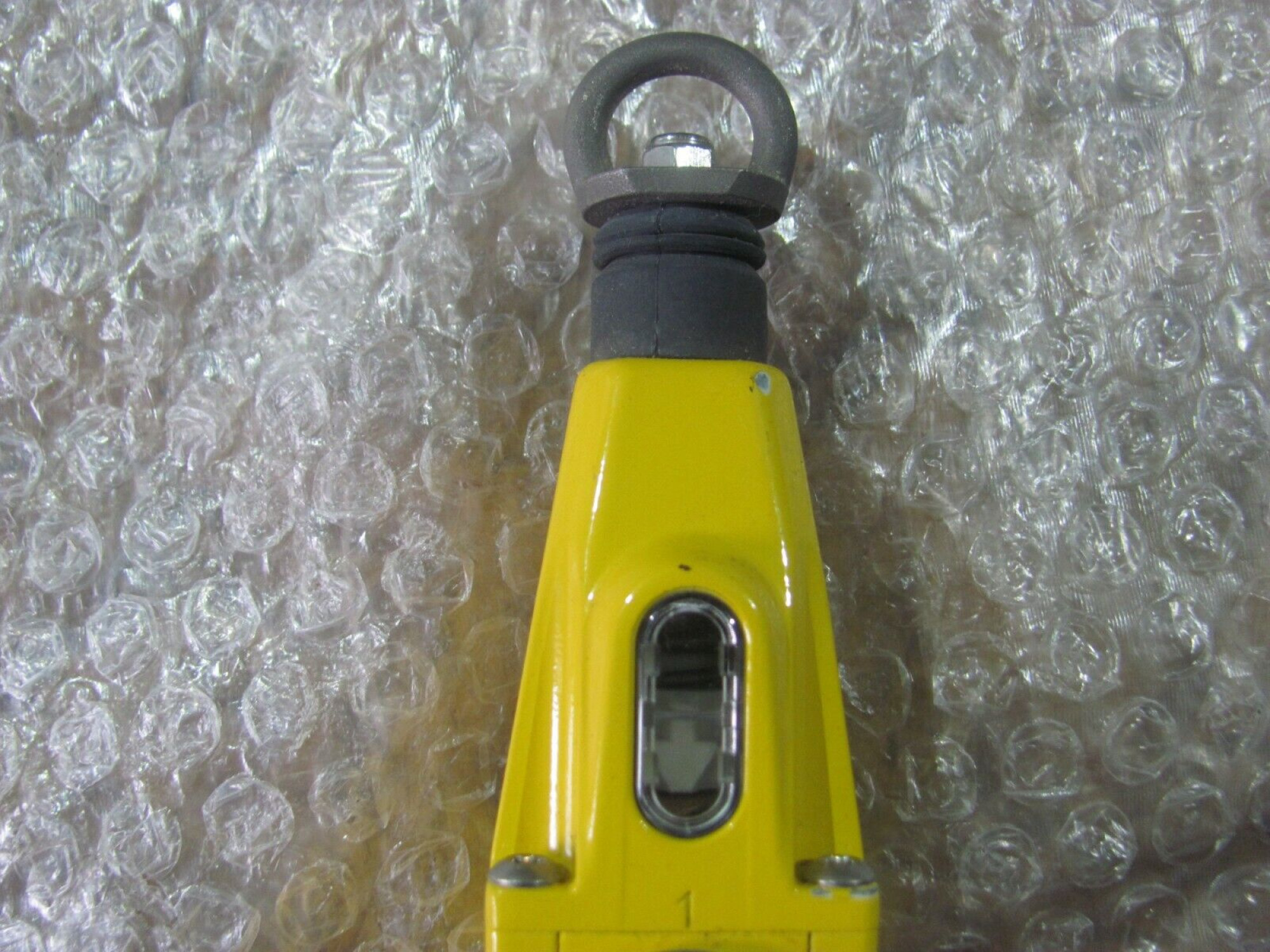

SICK I110-RP223 Safety Rope Pull Switch

The SICK I110-RP223 is a robust safety rope pull switch from the I110RP series, designed to provide emergency stop and position monitoring functionality along hazardous areas of machinery and conveyors. With a maximum rope span of up to 30 meters, this cable pull switch allows for emergency stopping from any point along the installed rope.

Engineered for safety, the I110-RP223 features 2 Normally Closed (NC) contacts with positive opening, ensuring reliable interruption of the safety circuit even in the event of contact welding. It also includes 2 Normally Open (NO) auxiliary contacts for signaling. The switch is triggered by pulling the rope or automatically activates if the rope breaks.

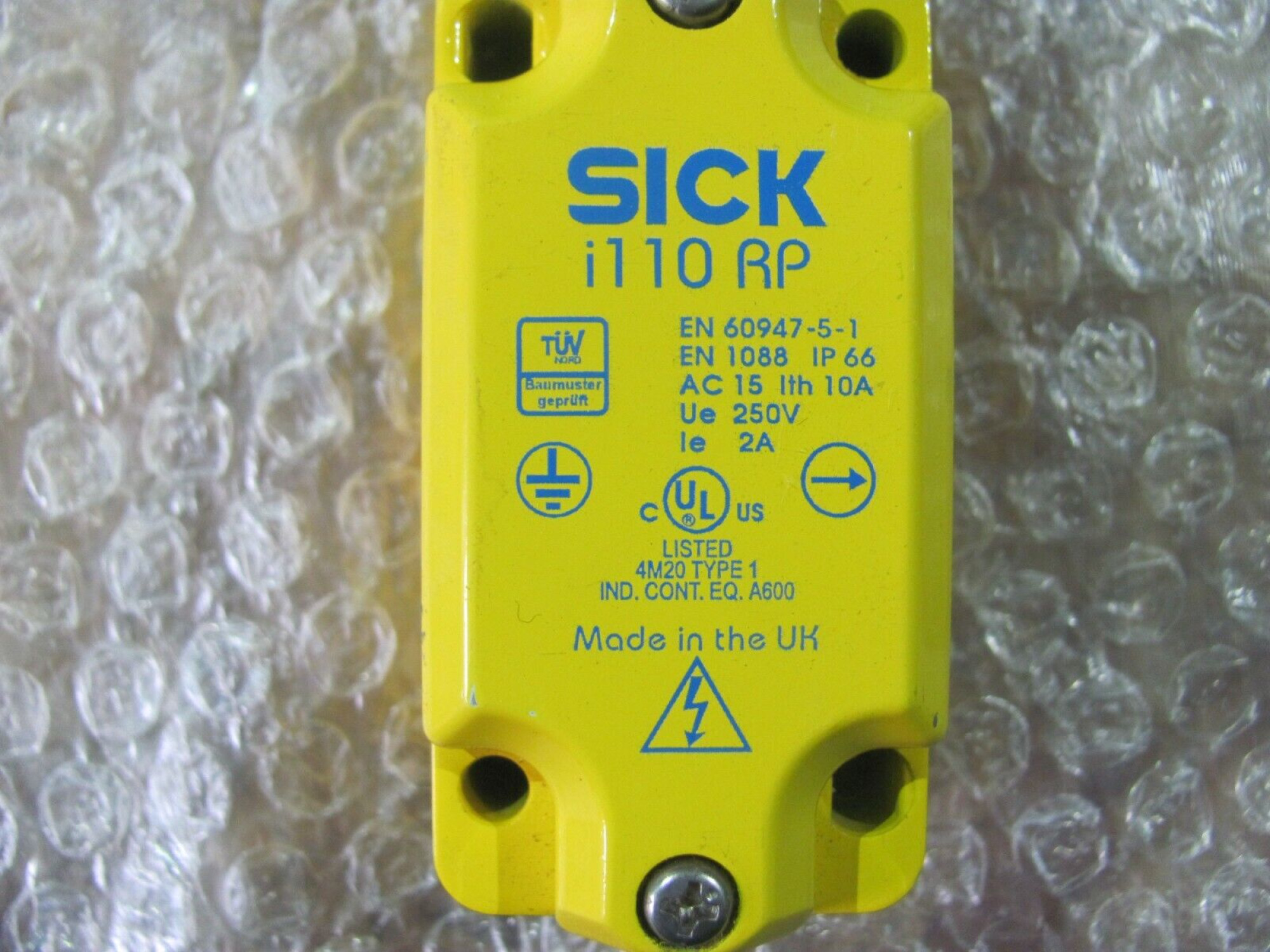

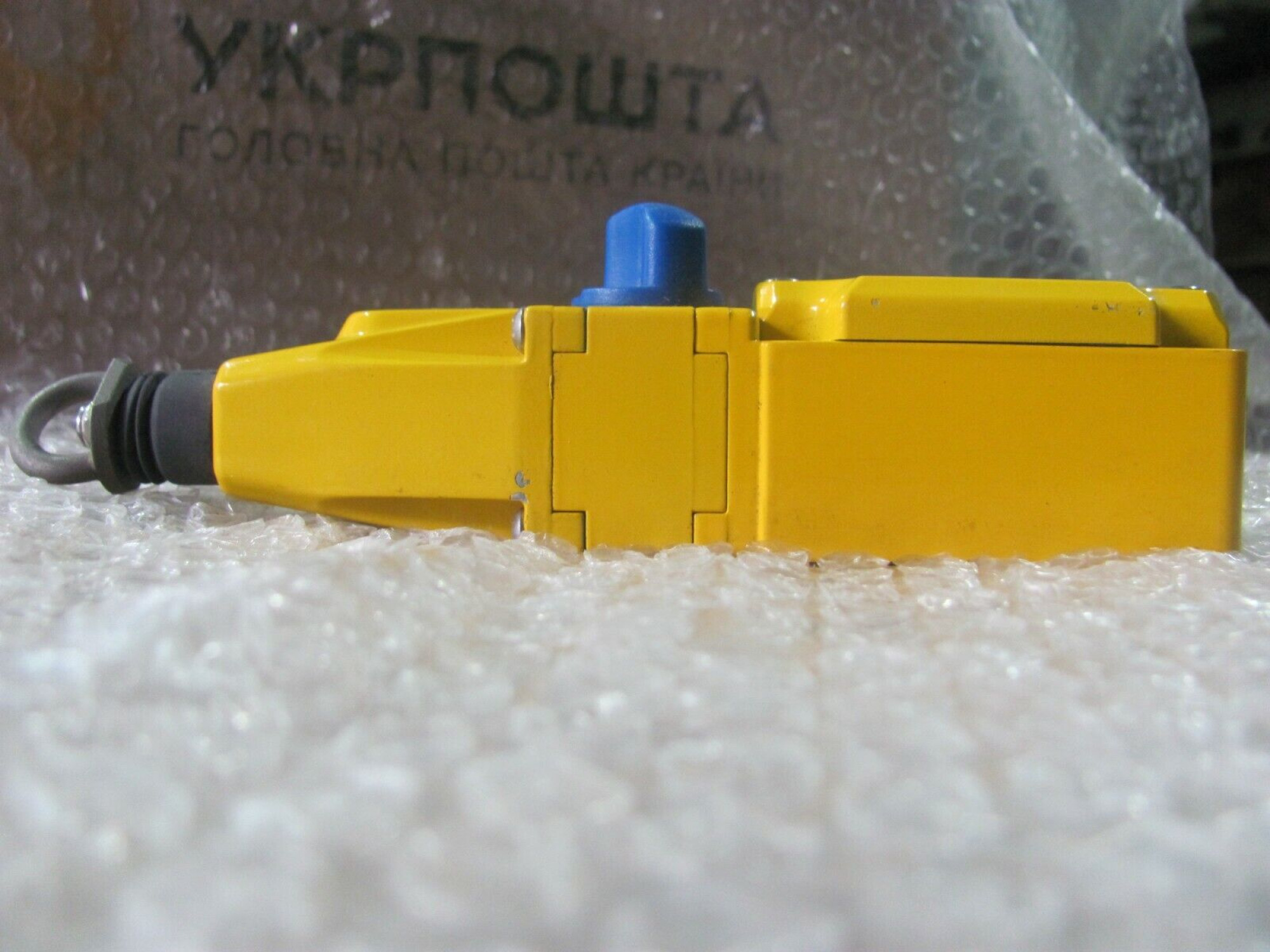

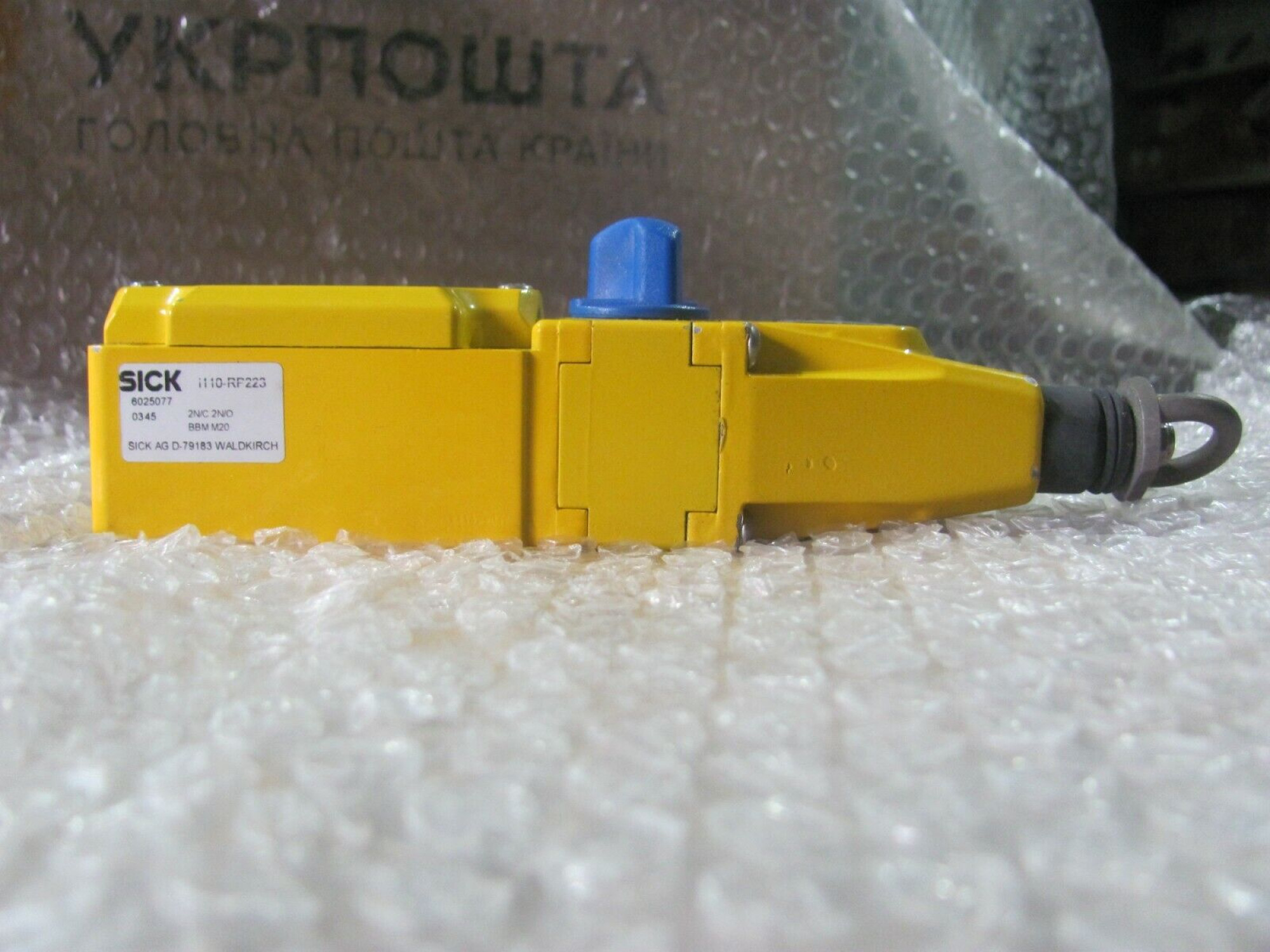

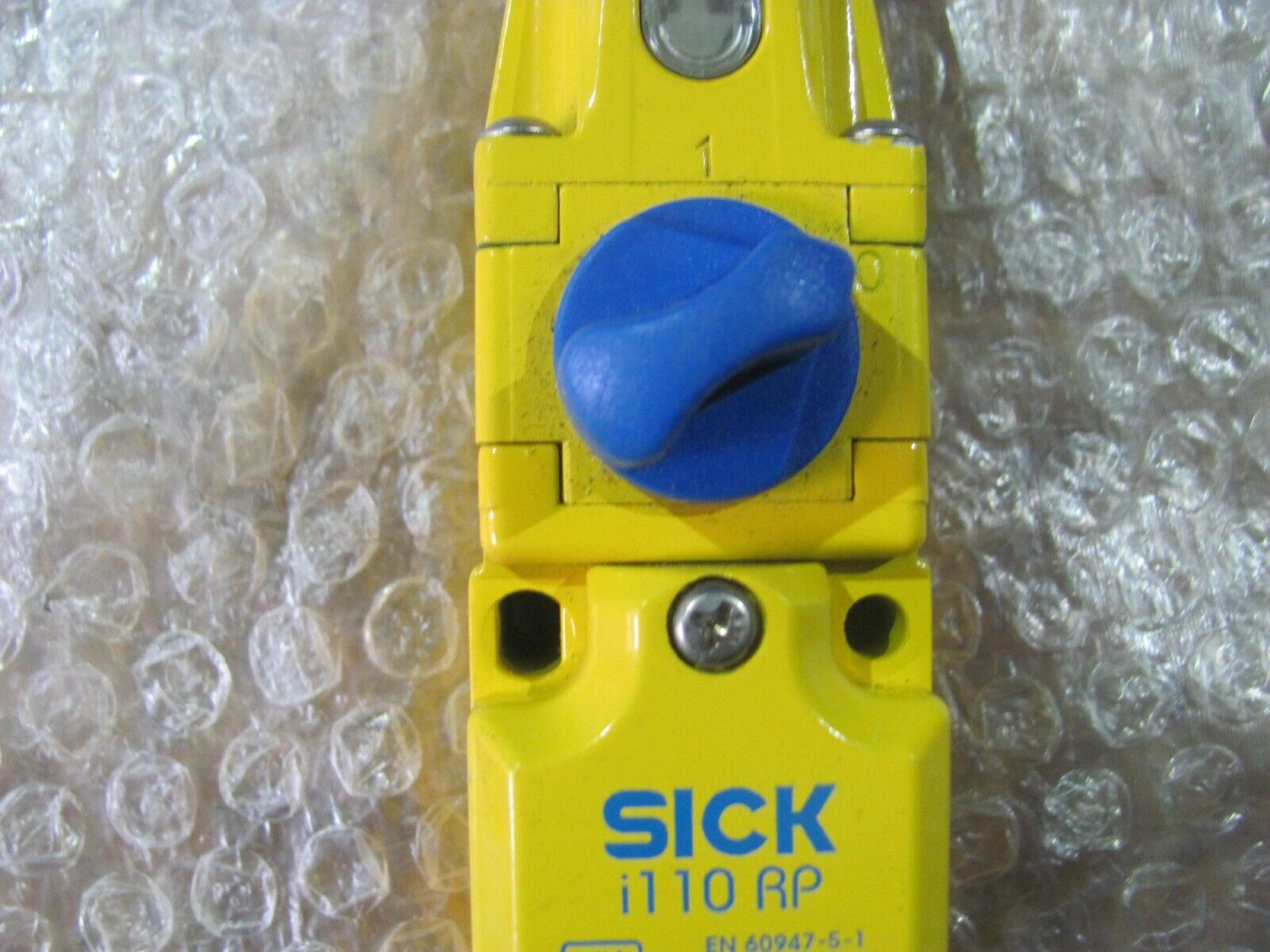

Constructed with a durable zinc die-cast housing and rated IP66, this switch is built to withstand harsh industrial environments. It requires a manual reset via the integrated blue lever after actuation. The SICK I110-RP223 complies with relevant safety standards (such as EN ISO 13850 and IEC/EN 60947-5-5) and is a dependable component for implementing essential safety functions in accordance with machine safety directives.

Key Characteristics:

• Function: Emergency stop and position monitoring via rope pull.
• Rope Span: Up to 30 meters.
• Contacts: 2 NC with positive opening + 2 NO.
• Switching Principle: Slow-action switching elements.
• Actuation: Rope pull or rope break.
• Reset: Manual reset lever.
• Housing: Zinc die-cast, varnished.
• Protection Rating: IP66.

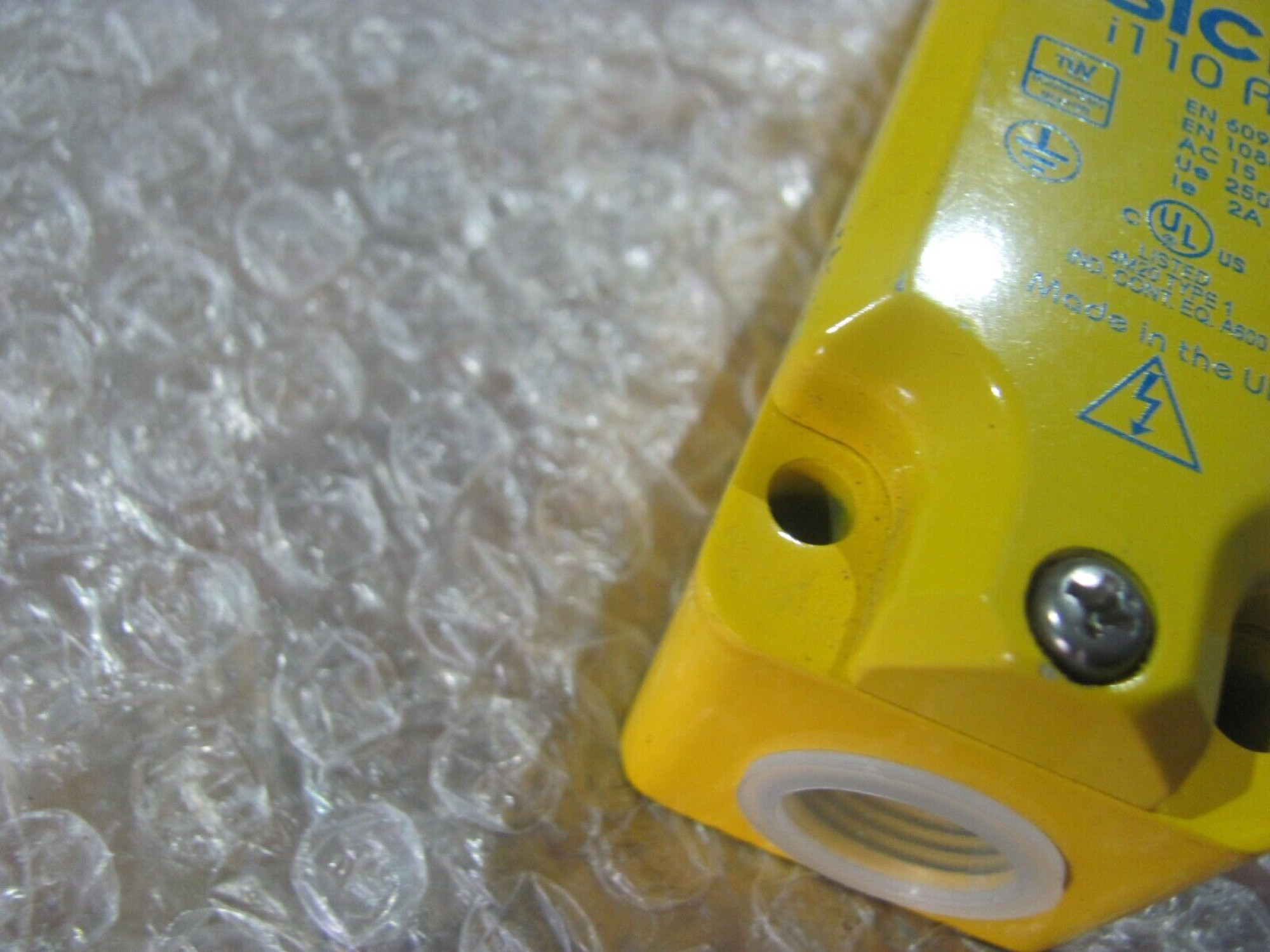

• Connection: Cable entry, 1 x M20.
• Safety Standards: Complies with relevant EN/IEC standards for safety switches.

The SICK I110-RP223 safety rope pull switch provides a reliable and easily accessible emergency stop solution for safeguarding conveyors and long machinery sections.
